Features

Product Type: Mixers
Type: Installations
Number of Zones: 4 (Master, Zone A-C)
Type: Stereo
Rack Height: 3 HE
Total Input Channels: 8 (2x Mic, 1x AUX/Line, 2x Phono/Line, 2x Line, 1x FOH/Line)
Frequency Response: 20 - 40,000 Hz
Microphone Channels: 2 (with Phantom Power 12 V)
Microphone Channel Connections: 6.3 mm Jack (2 x, balanced), XLR
Microphone Channel Controls: 1 x Hi EQ, 1 x Low EQ, 1 x Talkover, 1 x Mid EQ, 2 x Gain, 2 x On/Off
Microphone Channel Indicators: LED (ON)
Microphone Channel Input Impedance: 4 kOhm
Microphone Channel Input Sensitivity: 4.5 mV
Microphone Channel THD: 0.08 %

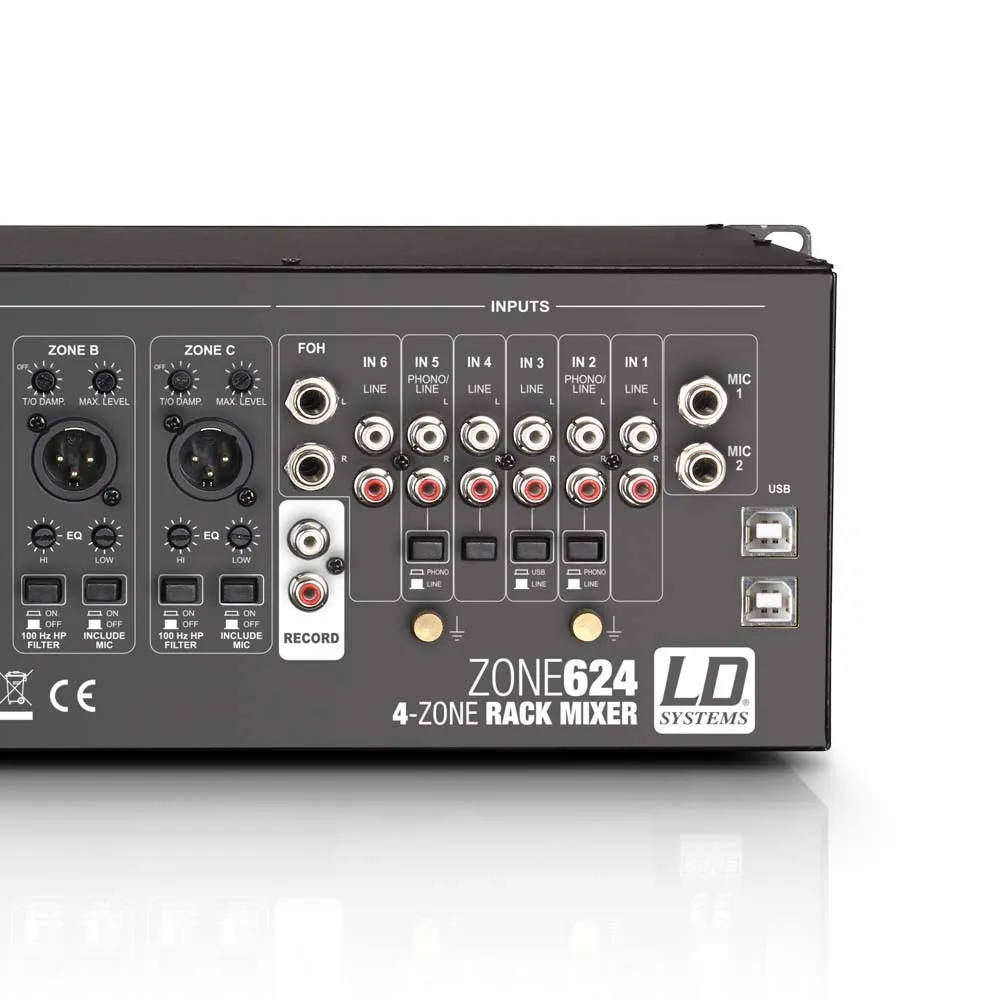

Line Channels: 6 (Input 1: Aux/Line, Input 2 + 5: Line/Phono, Input 3: USB/Line, Input 4: Line, Input 6: Line/FOH)
Line Input Connections: Input 1: 2x RCA + 3.5 mm Stereo Jack, Input 2, 4 - 5: 2x RCA, Input 3: 2x RCA + USB, Input 6: 2x RCA + 2x 6.3 mm Jack
Line Channel Controls: 2 x Phono/Line, AUX enable, Cue, FOH On, Gain, Level
Line Channel Indicators: LED (Cue), LED (Signal/0 dB)
Line Channel Input Impedance: (Phono) 50 kOhm, 6 kOhm
Line Channel Input Sensitivity: (Phono) 25 mV, 2.1 V
Line Channel THD: (Phono) 0.05%, 0.02%
AUX/Line Input Sensitivity: 3 V
Line Outputs: 5 (Master - Stereo, 3x Zone - Mono, Rec - Stereo)
Master Output Connections: RCA (2 x), Terminal Block, XLR (2 x, balanced)
Master Controls: Hi EQ, Low EQ, Mid EQ, Level, Max Level, T/O Damping, T/O Sensitivity
Master Indicators: 2 x 10 Segment Level Meter
Master Output Level: (balanced) 24 dBu, (unbalanced) 17 dBu
Zone Output Connections: Terminal Block, XLR (balanced)
Zone Controls: 100 Hz High Pass, Cue, Hi EQ, Low EQ, Include Mic, Level, Max Level, Source, T/O Damp
Zone Indicators: 5-Segment Level Meter
Zone Output Level: 24 (balanced/unbalanced) dBu
Rec Output Connections: 2 x RCA
Headphone Output: 1
Headphone Output Connection: 6.3 mm Stereo Jack
Headphone Output Controls: Cue Volume
Headphone Output Voltage: (@ 32 Ohm) 2.5 V

LD Systems ZONE 624 - 19" 4-Zone Mixer 3U

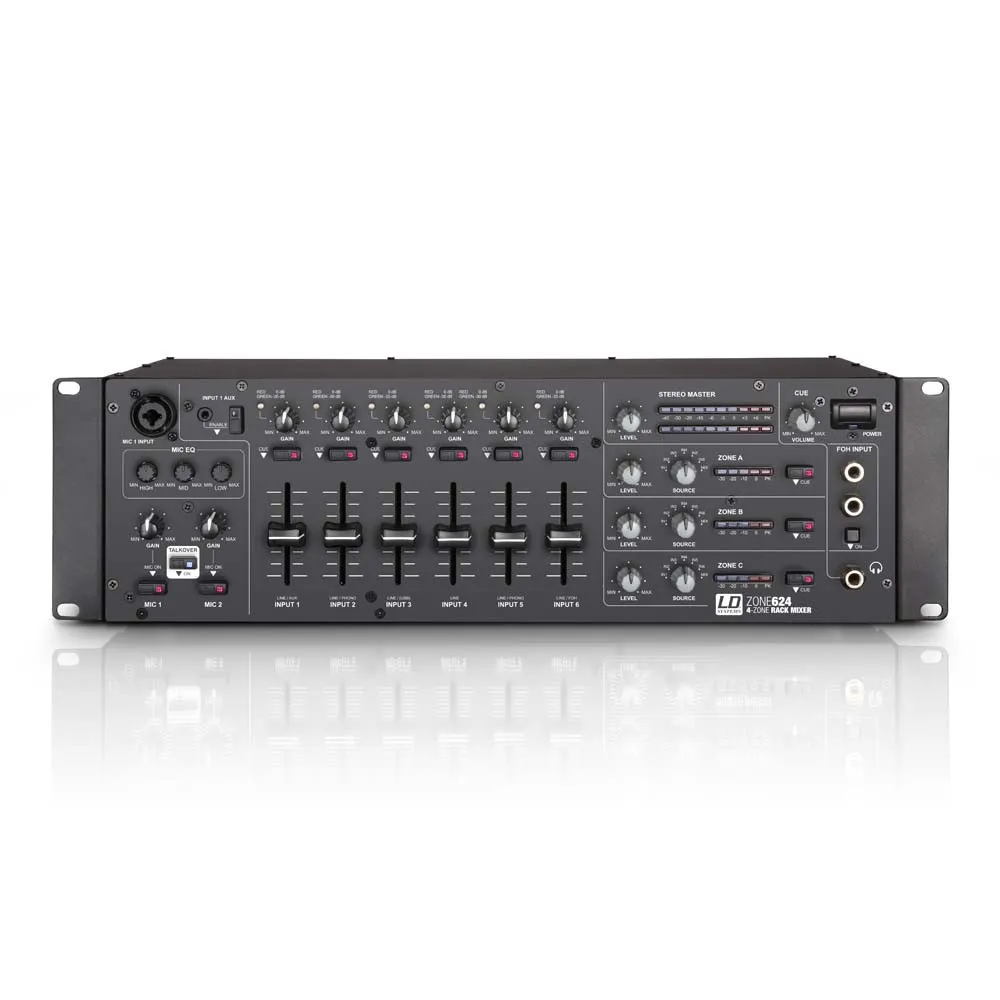

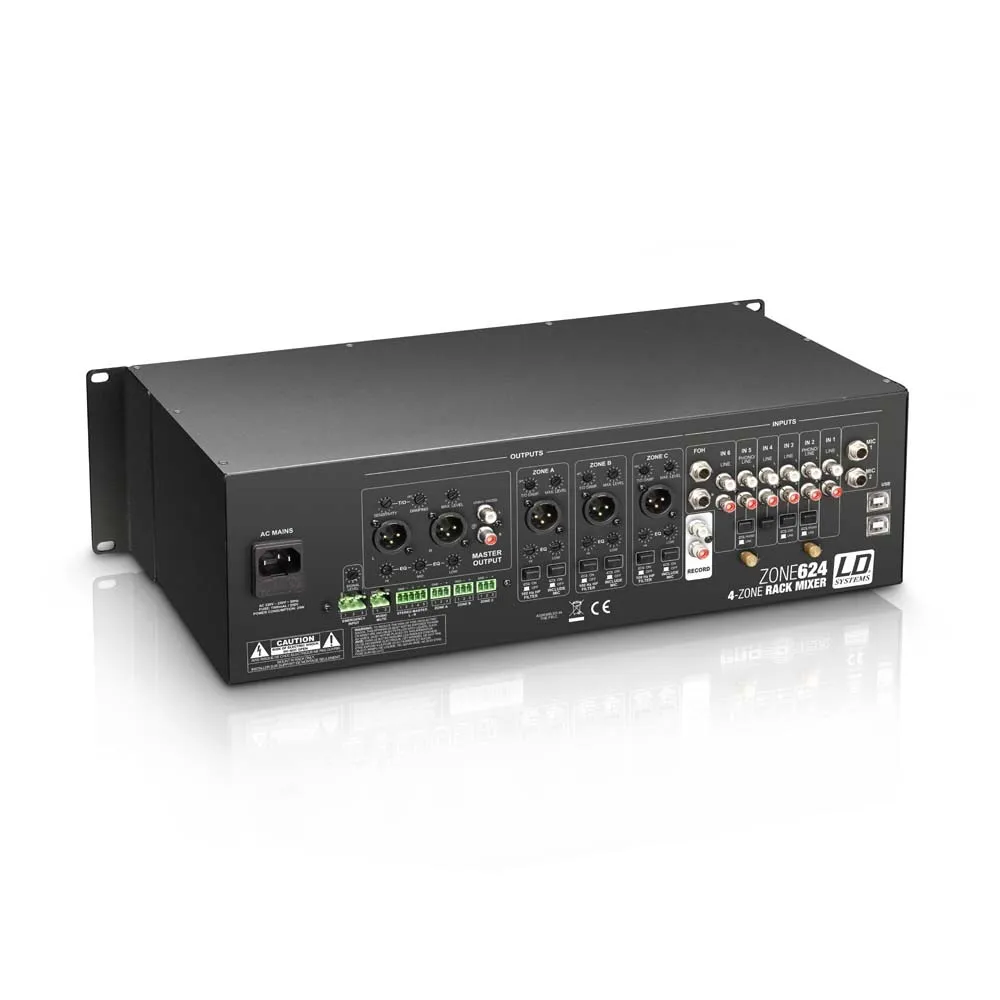

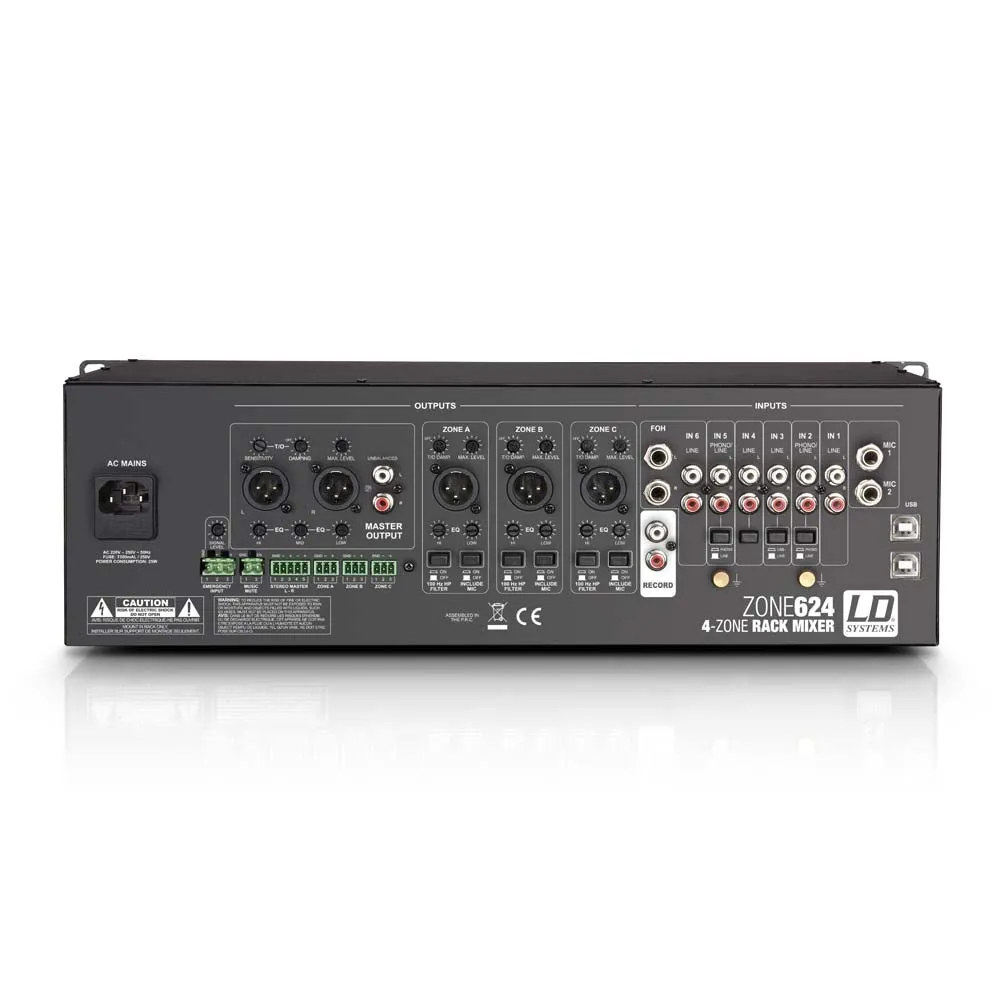

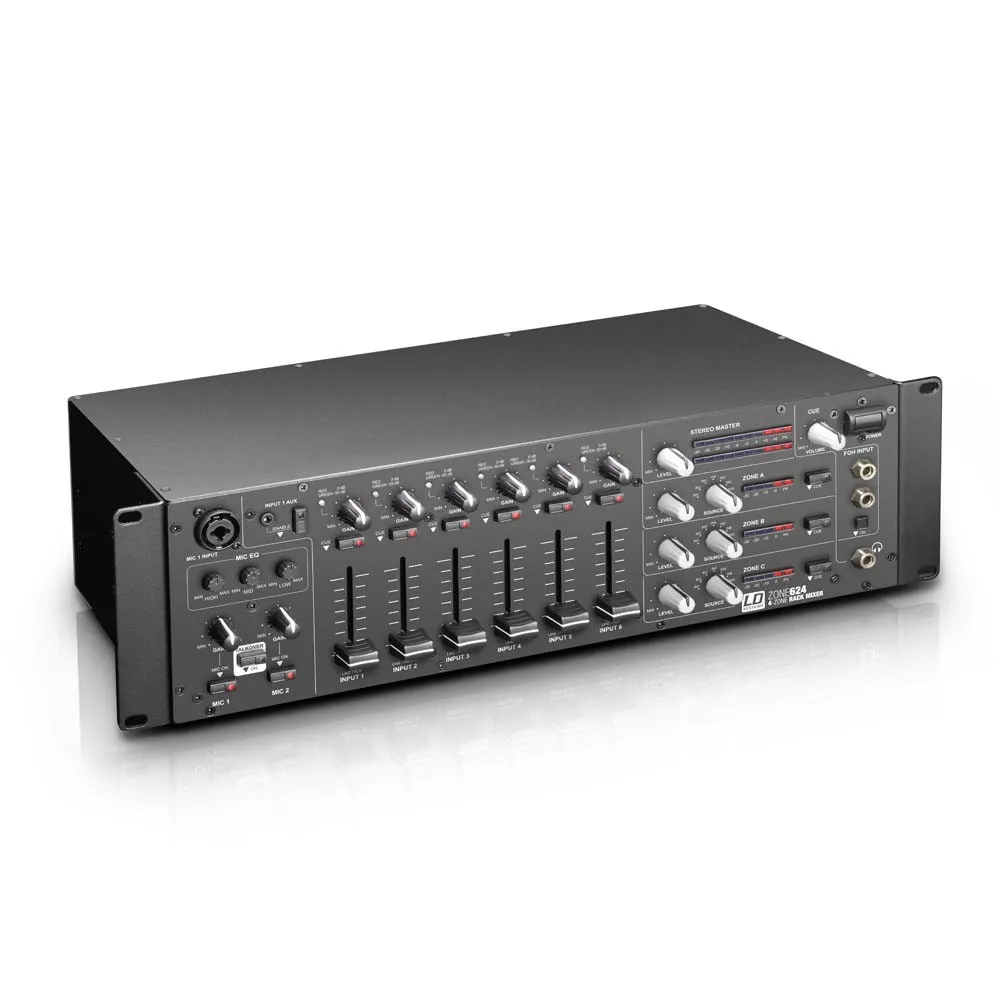

The LD Systems ZONE 624 is a highly advanced 4-zone mixer specifically designed for professional applications in restaurants, clubs, hotels, and fitness centers. With 6 line and 2 microphone channels, it offers impressive flexibility and control over your audio sources. The compact 3U rackmount device allows for easy integration into existing systems and features inputs for an external emergency announcement system as well as remote mute control.

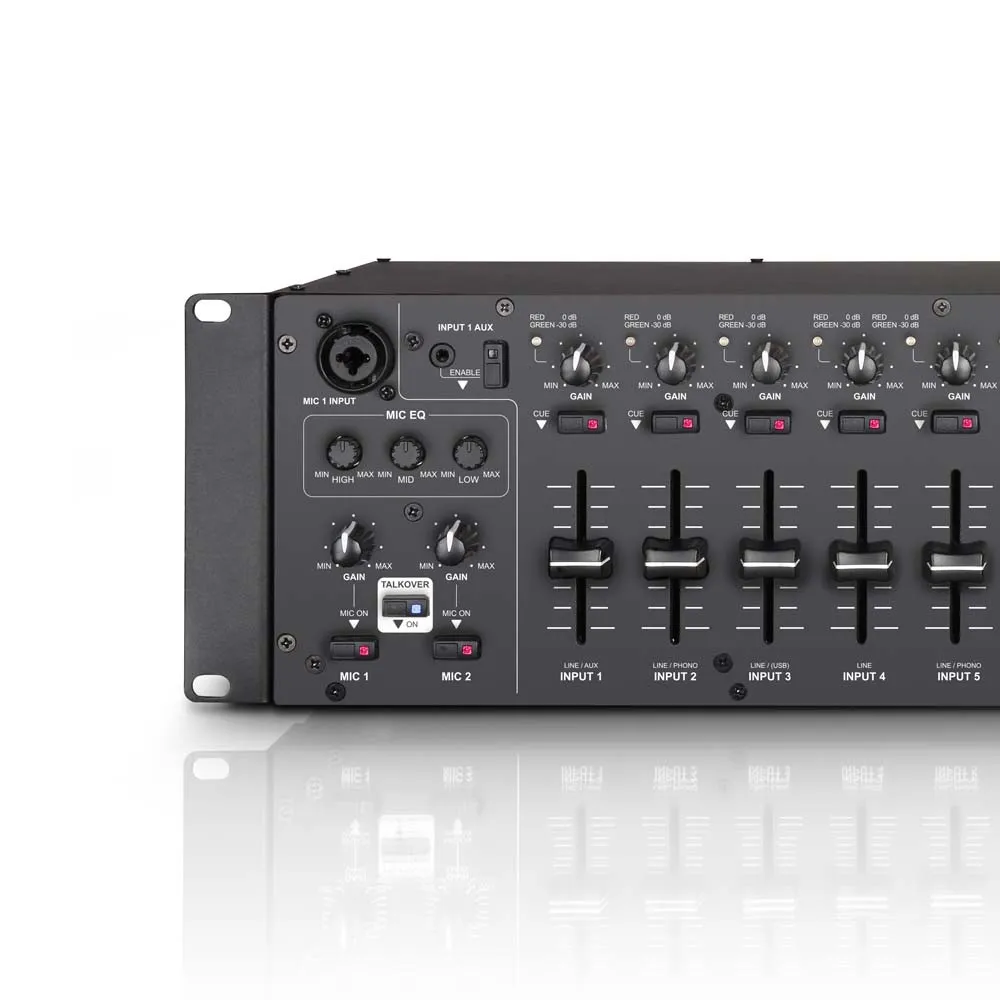

The two balanced microphone inputs are equipped with a 3-band equalizer, 12V phantom power, and a talkover function, enabling individual adjustments for all zone outputs. The 6 stereo input channels come with gain controls, signal and peak LEDs, and 45 mm faders to ensure precise control. Additionally, the ZONE 624 includes a USB port that functions as an external audio interface.

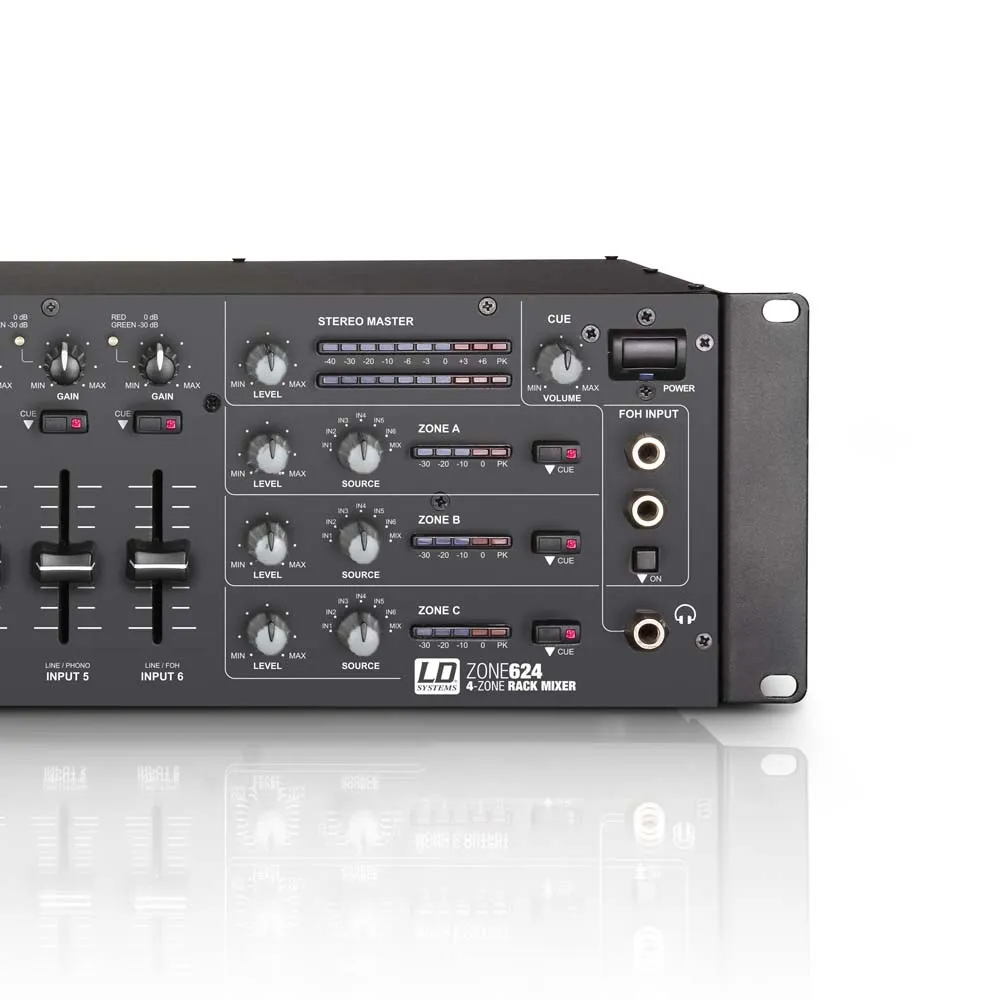

The master section of the mixer features electronically balanced outputs provided via XLR connectors and terminal block connections. With a maximum output level that can be individually preset for each zone and an adjustable PFL headphone output, the ZONE 624 is the ideal solution for all your audio needs.
