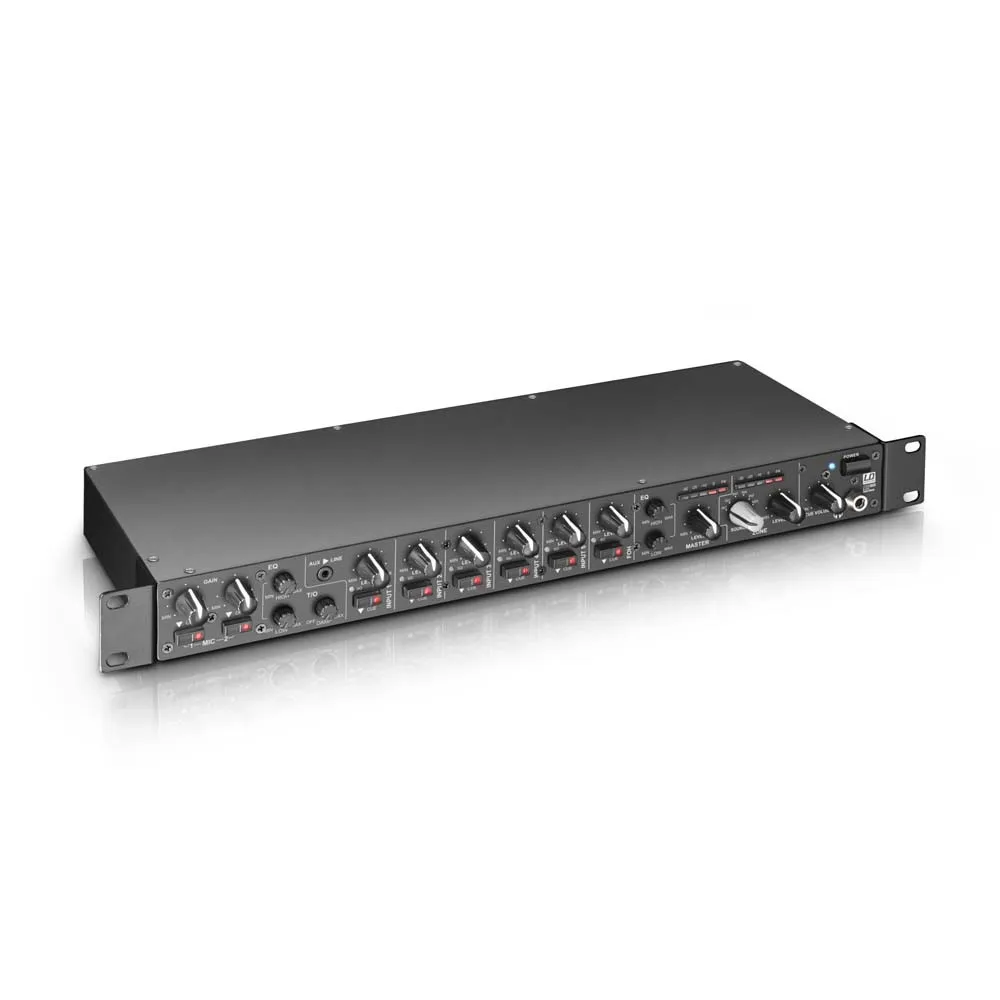

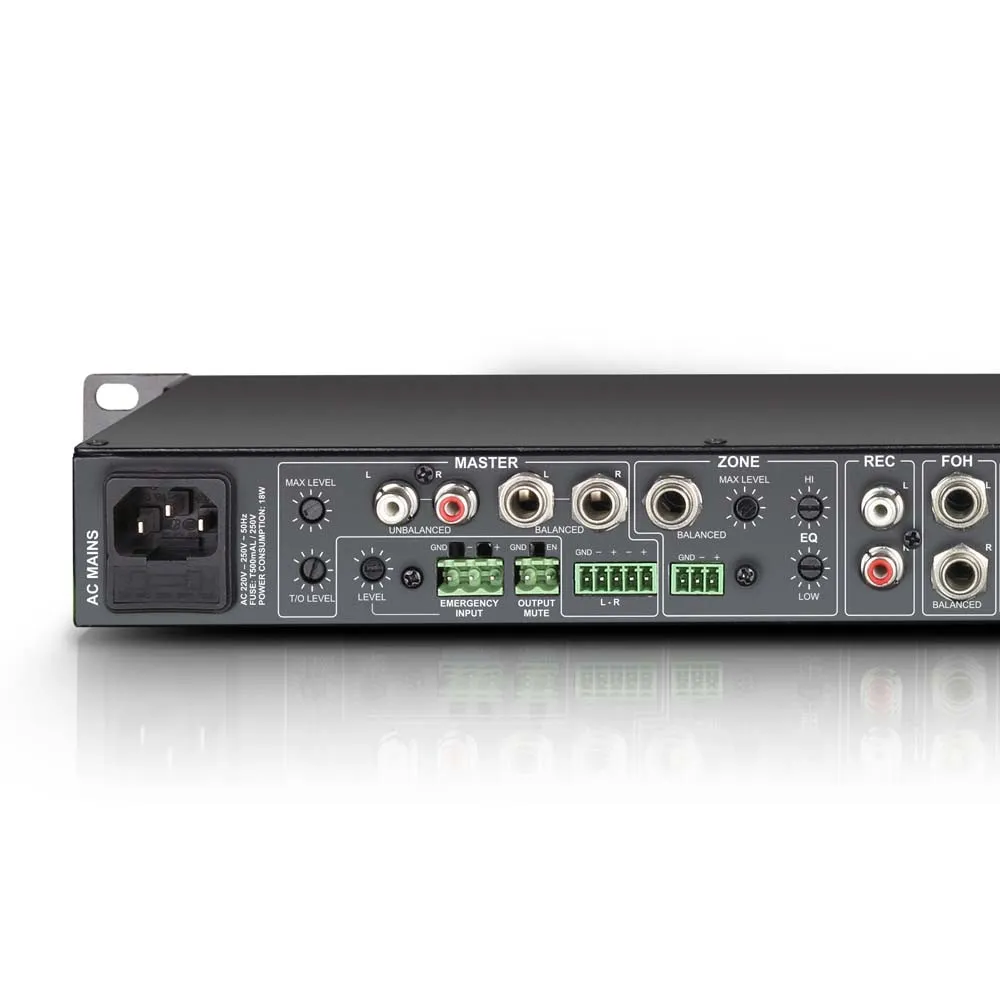

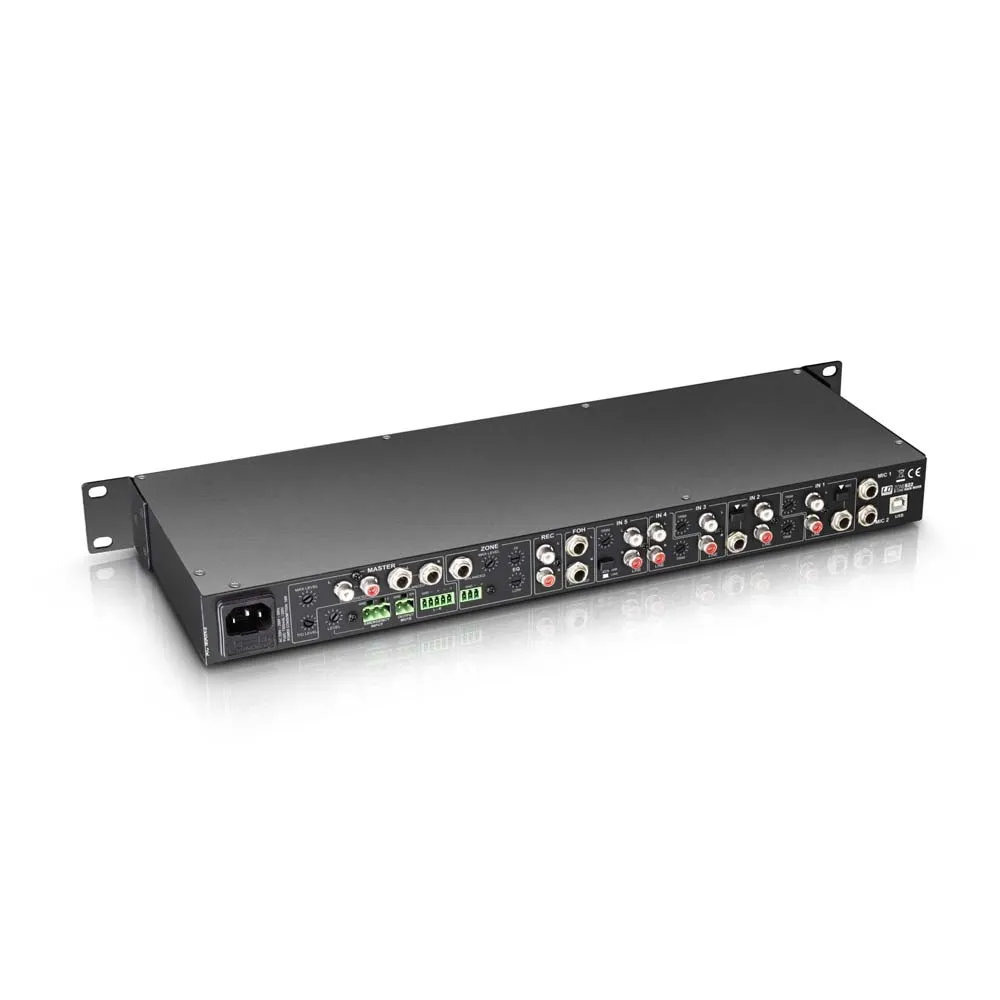

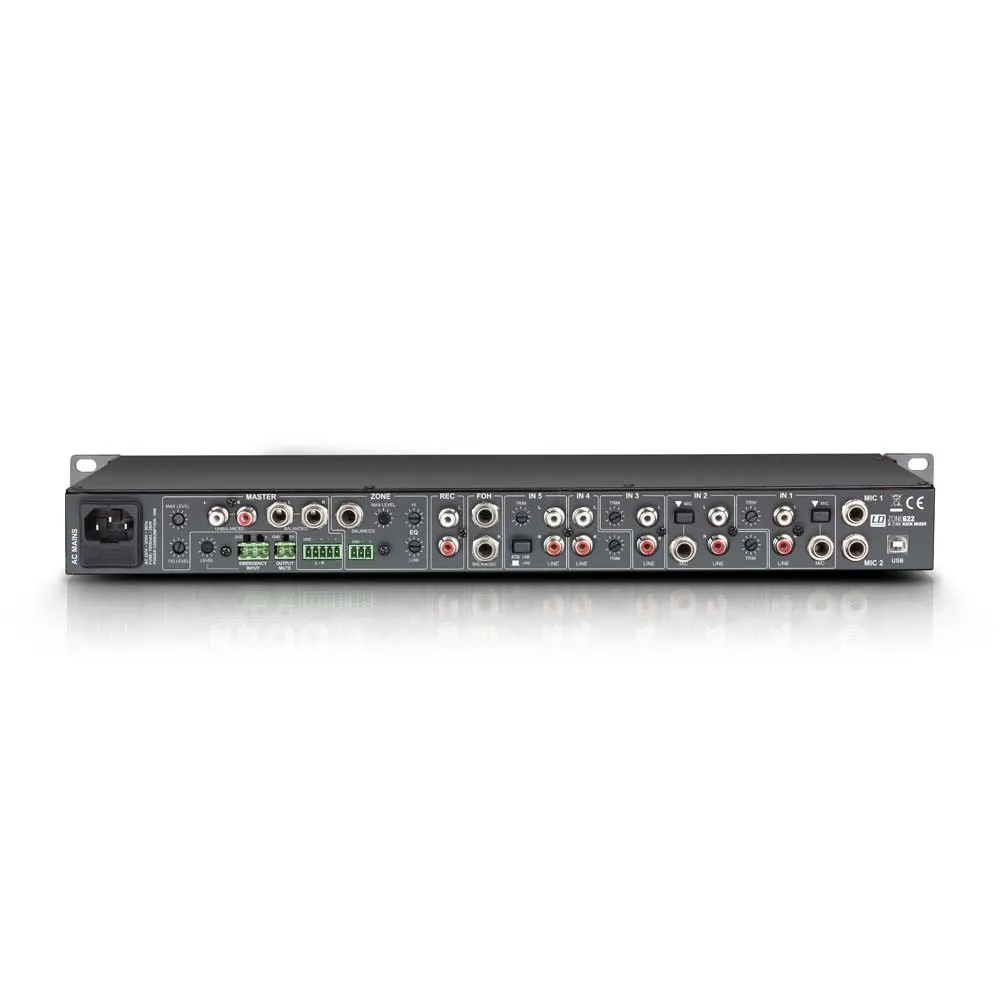

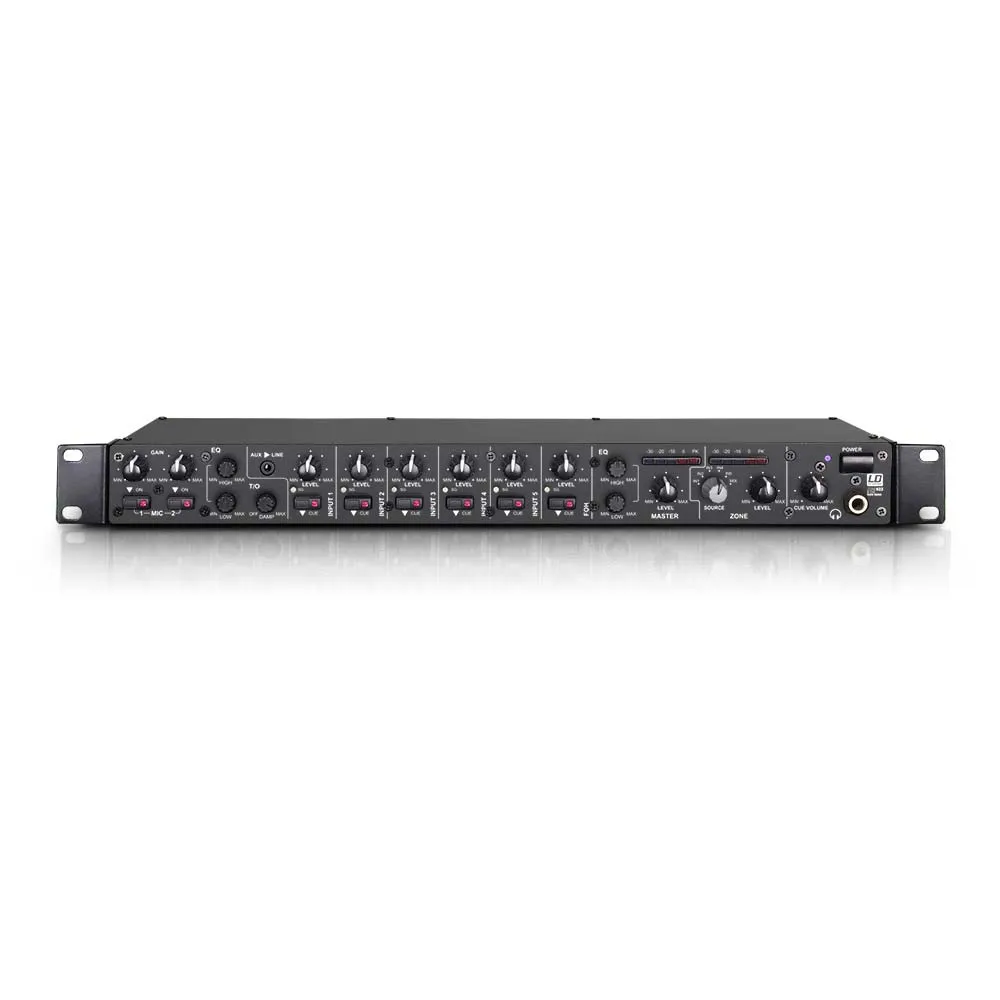

The LD Systems ZONE 622 is a compact 1U zone mixer equipped with 6 line and 2 microphone channels, which can be flexibly assigned to a stereo and a mono master output. Ideal for sound reinforcement in separate zones in restaurants, clubs, hotels, and fitness centers, this mixer offers all essential features, including an input for an external emergency announcement system with its own volume control and a connection for remote muting.

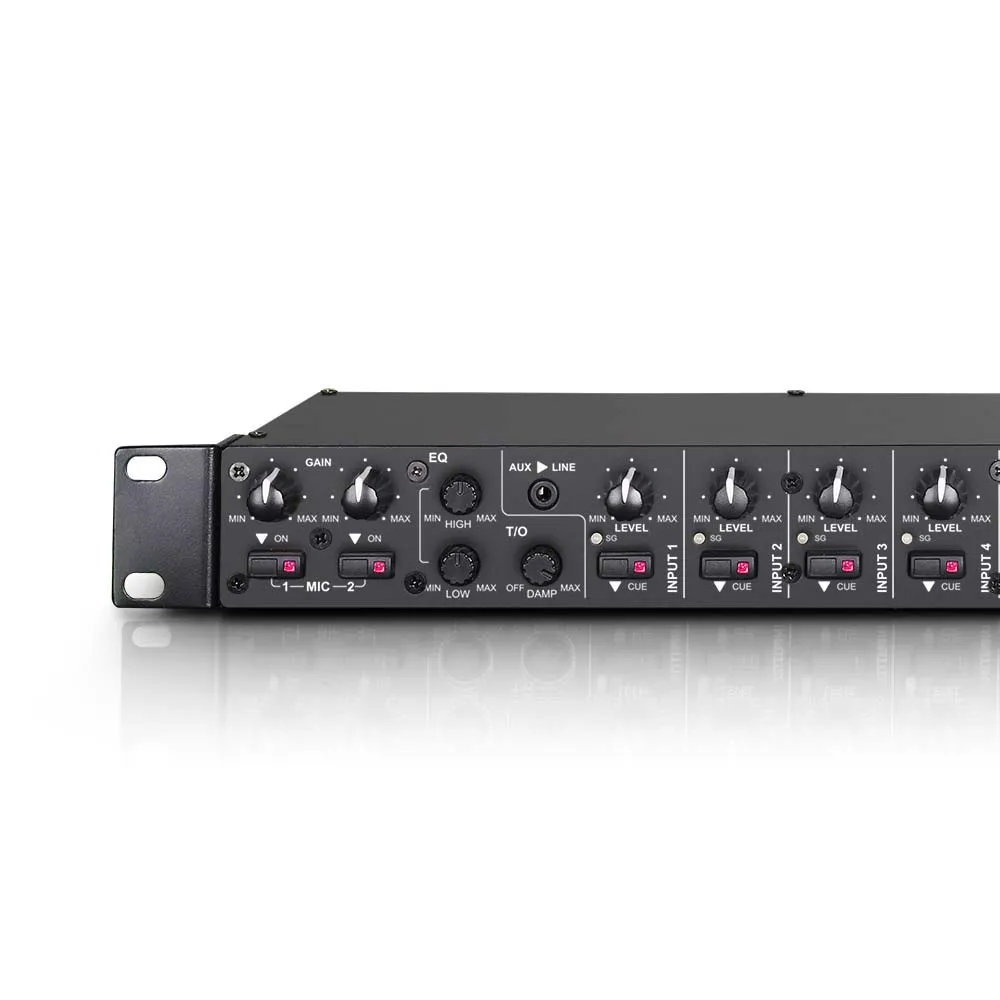

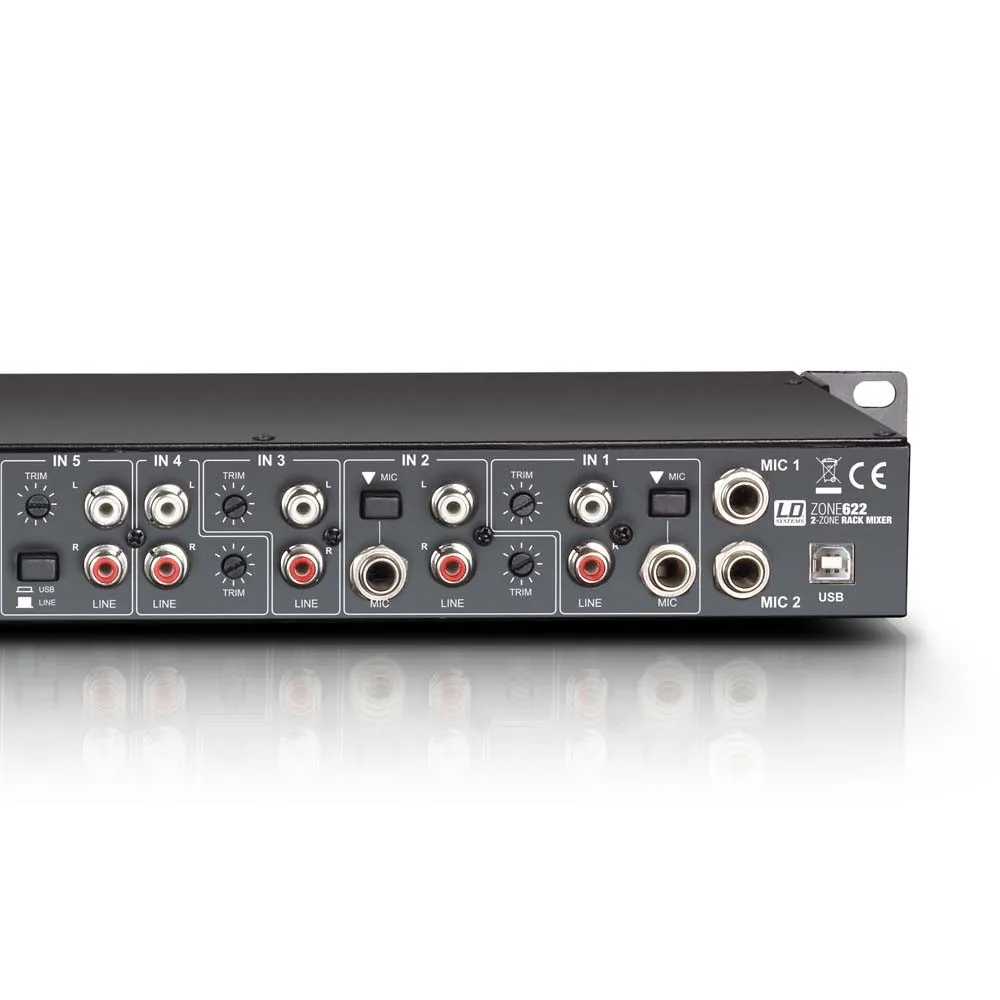

The two balanced microphone channels are equipped with controls for gain, talkover volume, talkover attenuation, and a shared 2-band equalizer. Line channels 1 and 2 can also be used for unbalanced microphone connections, while channel 6 is specifically designed for balanced FOH signals. Additionally, the ZONE 622 features a 3.5 mm mini-jack input and a USB port that serves as a stereo input and output, allowing it to be used as an external audio interface.

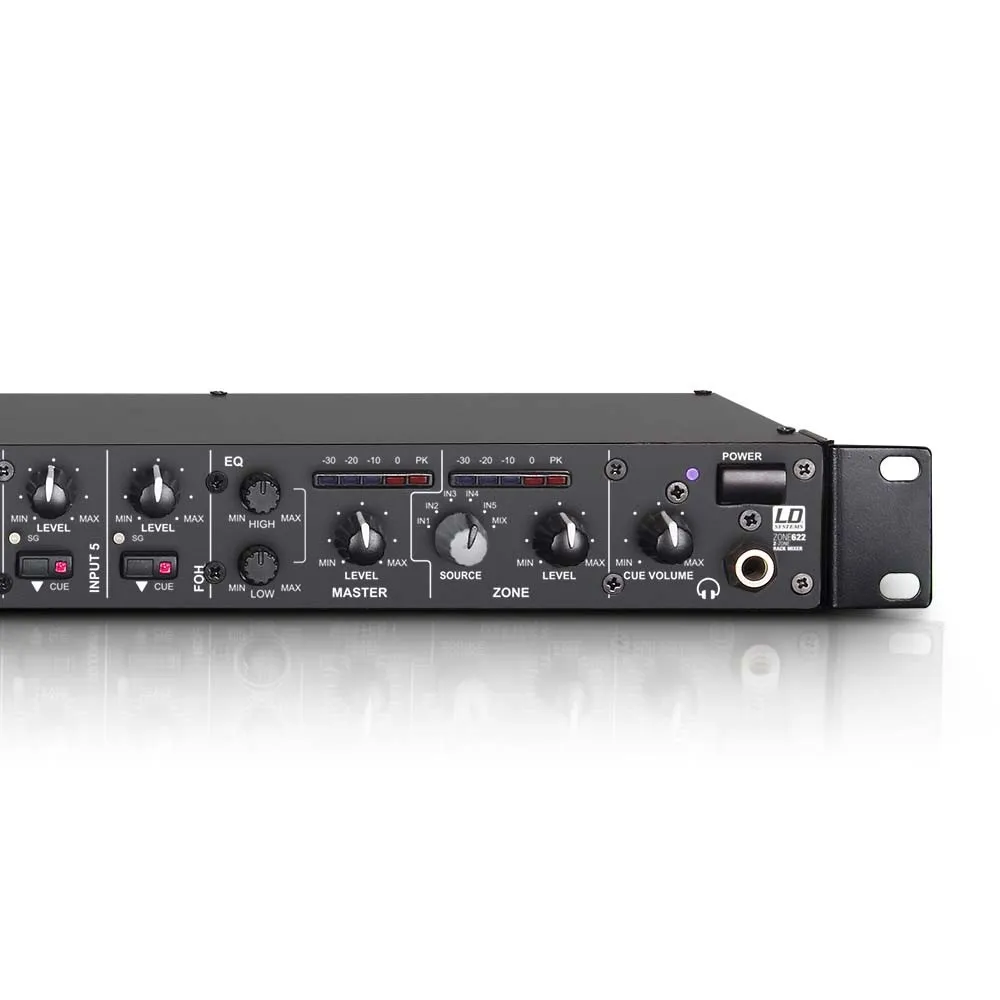

The output sections provide individual level meters, a 2-band equalizer, and trimmers for adjusting the maximum output levels. With an adjustable headphone output for monitoring and a recording output, the ZONE 622 is the perfect solution for professional audio applications.
