LD Systems ZONE 423 - 19" 2-Zone Mixer 2U

LD Systems ZONE 423 - 19" 2-Zonen Mixer 2HE

LD Systems ZONE 423 - 19" 2-Zone Mixer 2U

Brand:

LD Systems ZONE 622 - 19" 2-Zone Mixer 1U

Features

Product Type: Mixers
Type: Installations
Number of Zones: 2 (Master, Zone)
Type: Stereo
Rack Height: 2 HE
Total Input Channels: 6 (2x Mic, 1x Line/Aux, 2x Line/Phono, 1x Line/FOH)
Frequency Response: 20 - 40,000 Hz

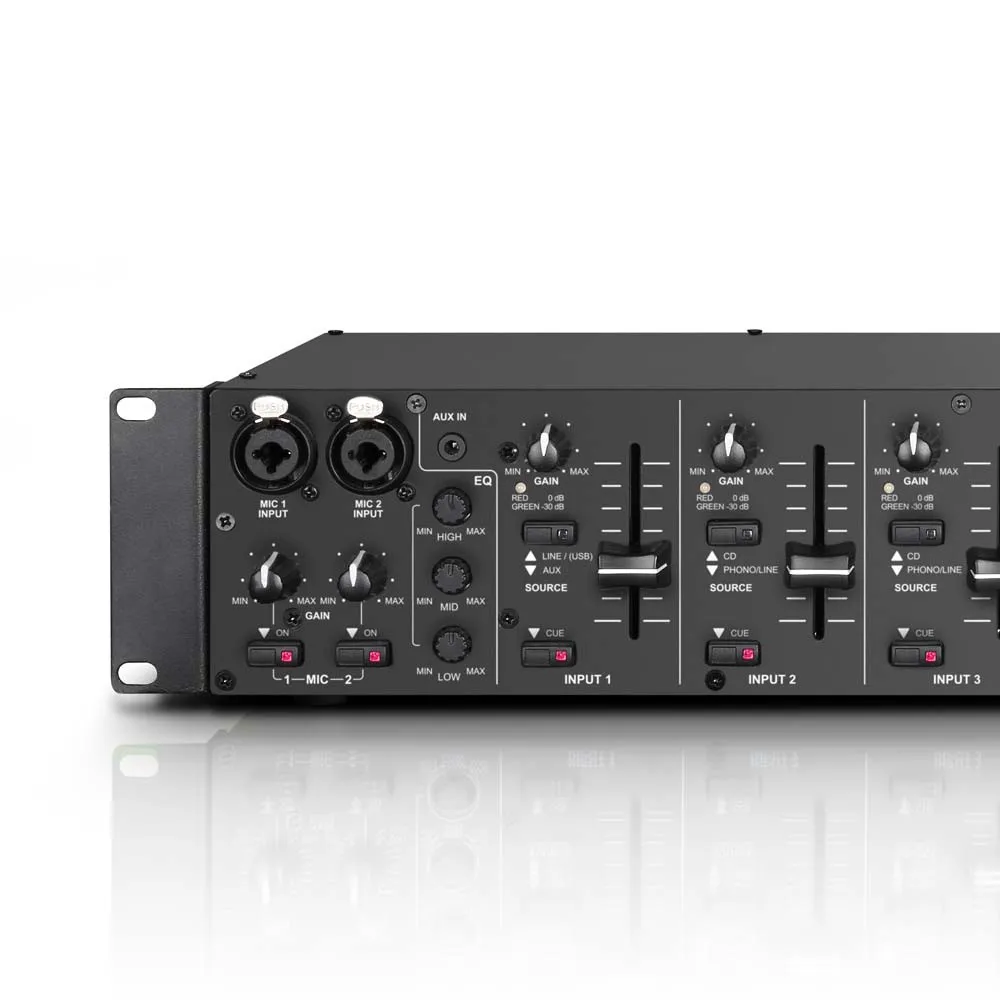

Microphone Channels: 2 (with Phantom Power 12 V)
Microphone Channel Connectors: 6.3 mm Jack (balanced), XLR
Microphone Channel Controls: 1 x Hi EQ, 1 x Low EQ, 1 x Talkover, 1 x Talkover Level, Gain, On / Off
Microphone Channel Indicators: LED (ON)
Microphone Channel Input Impedance: 4 kOhm
Microphone Channel Input Sensitivity: 8 mV
Microphone Channel THD: 0.07%
Line Channels: 4 (Input 1: USB/Line, Input 2 + 3: Line/Phono/CD, Input 4: Line/FOH)

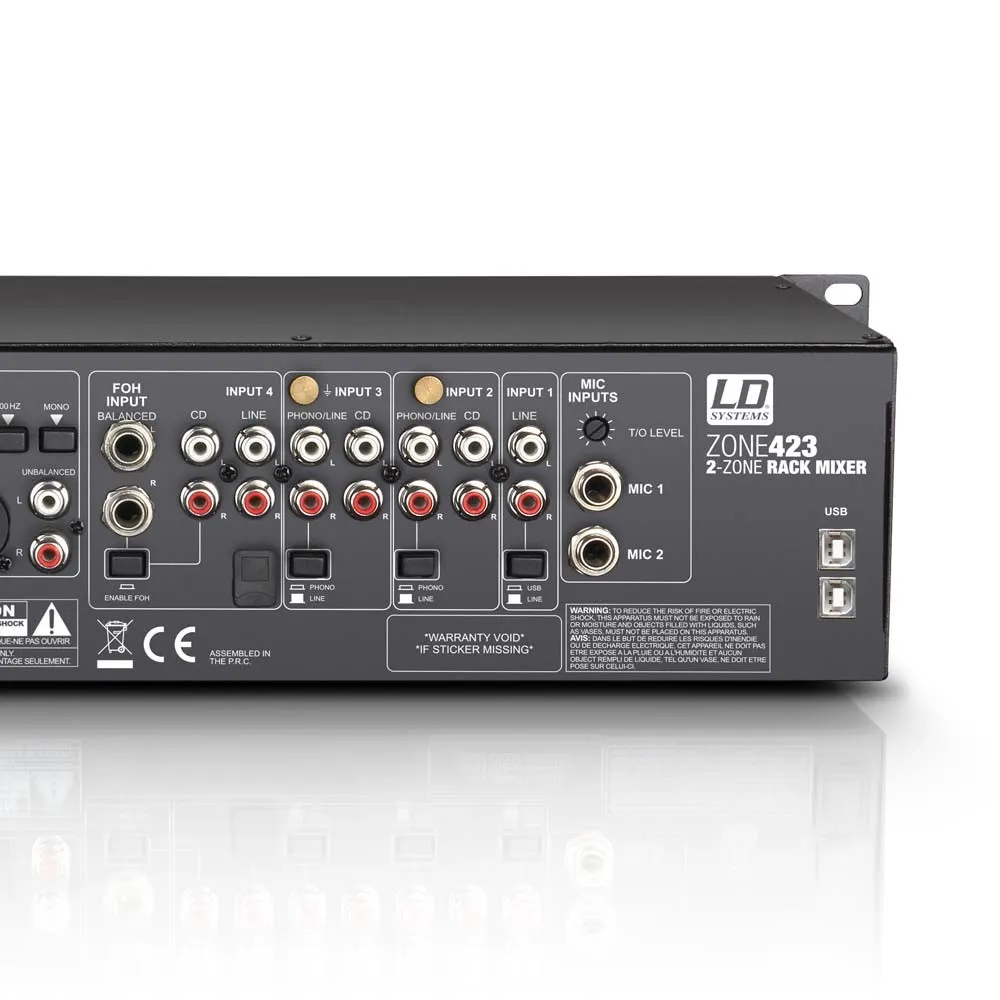

Line Input Connectors: Input 1: 2x RCA + 3.5 mm Stereo Jack + USB, Input 2 + 3: 4x RCA, Input 4: 4x RCA + 2x 6.3 mm Jack
Line Channel Controls: Cue, Enable FOH, Gain, Level, Source
Line Channel Indicators: LED (Cue), LED (Signal/0 dB)
Line Channel Input Impedance: (Phono) 60 kOhm, 6 kOhm
Line Channel Input Sensitivity: (Phono) 10 mV, 1 V
Line Channel THD: (Phono) 0.05%, 0.03%
AUX/Line Input Sensitivity: 3 V
Line Outputs: 3 (Master - Stereo, Zone - Stereo/Mono, Rec - Stereo)

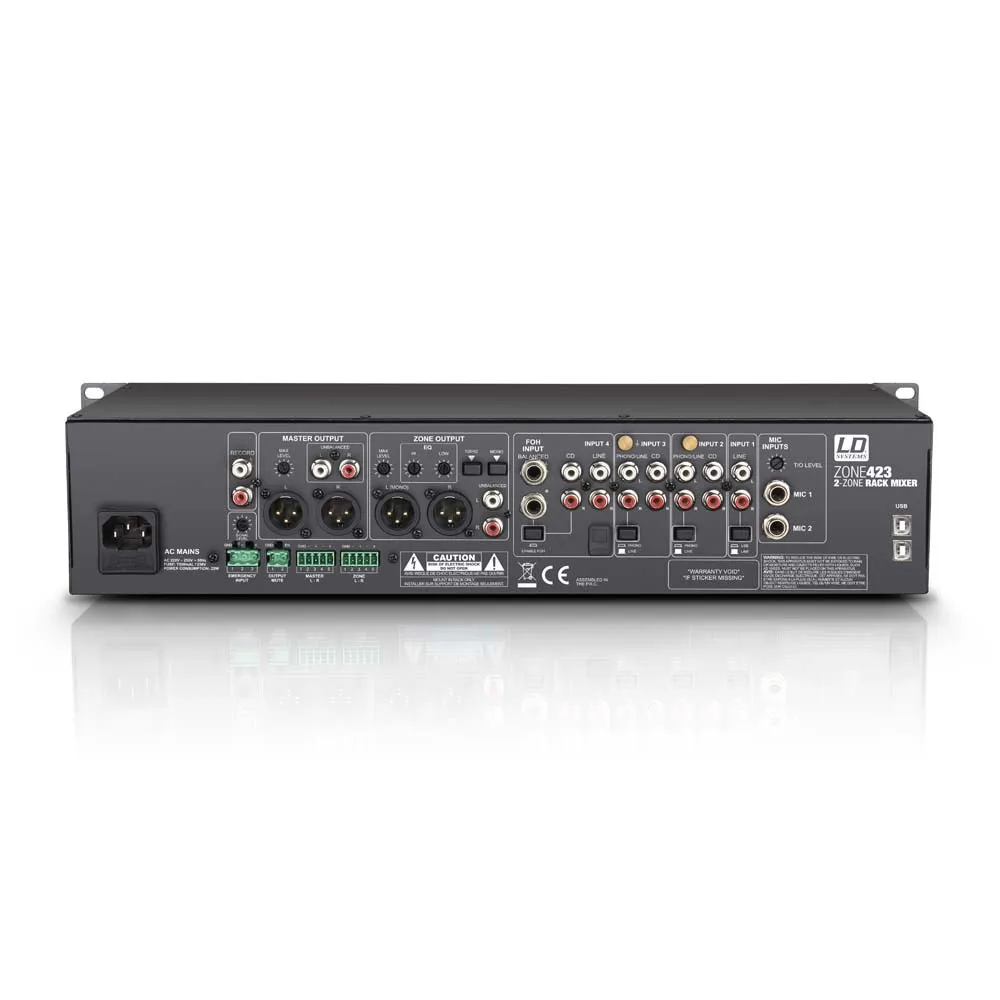

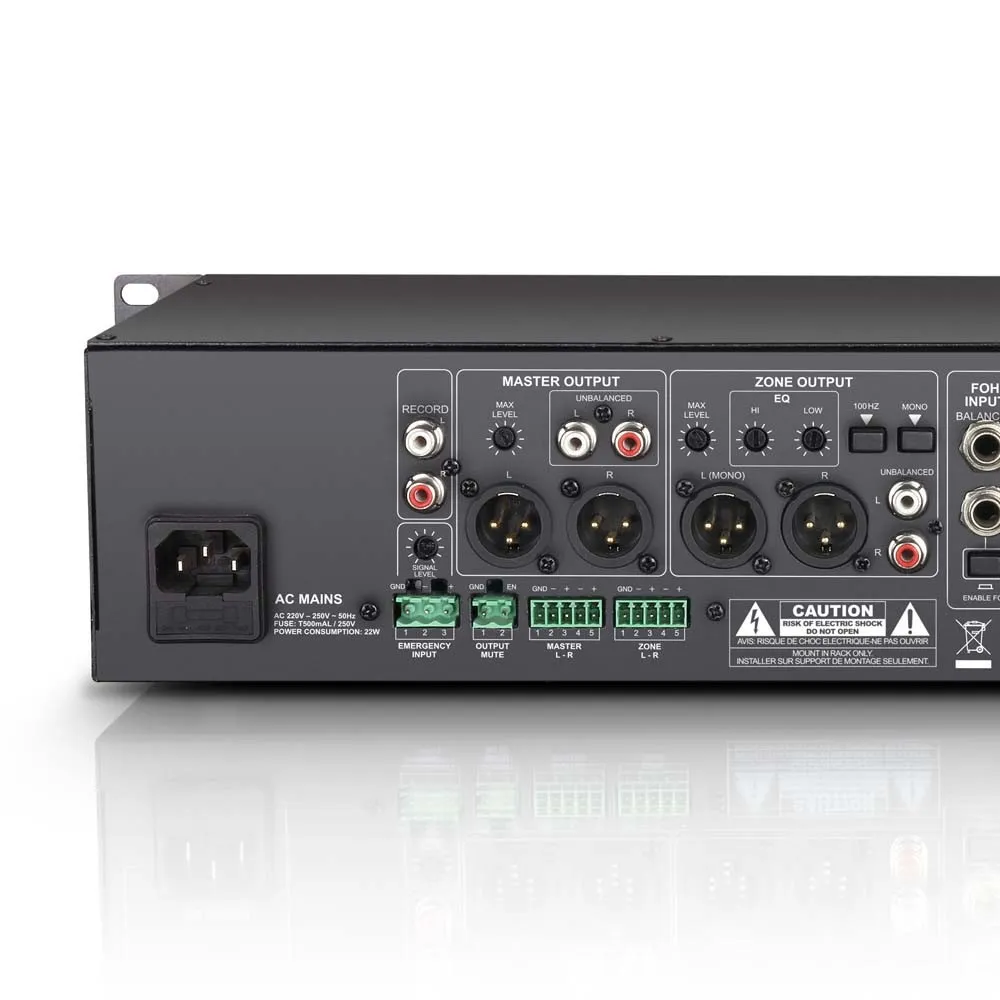

Master Output Connectors: RCA (2 x), Terminal Block, XLR (2 x, balanced)

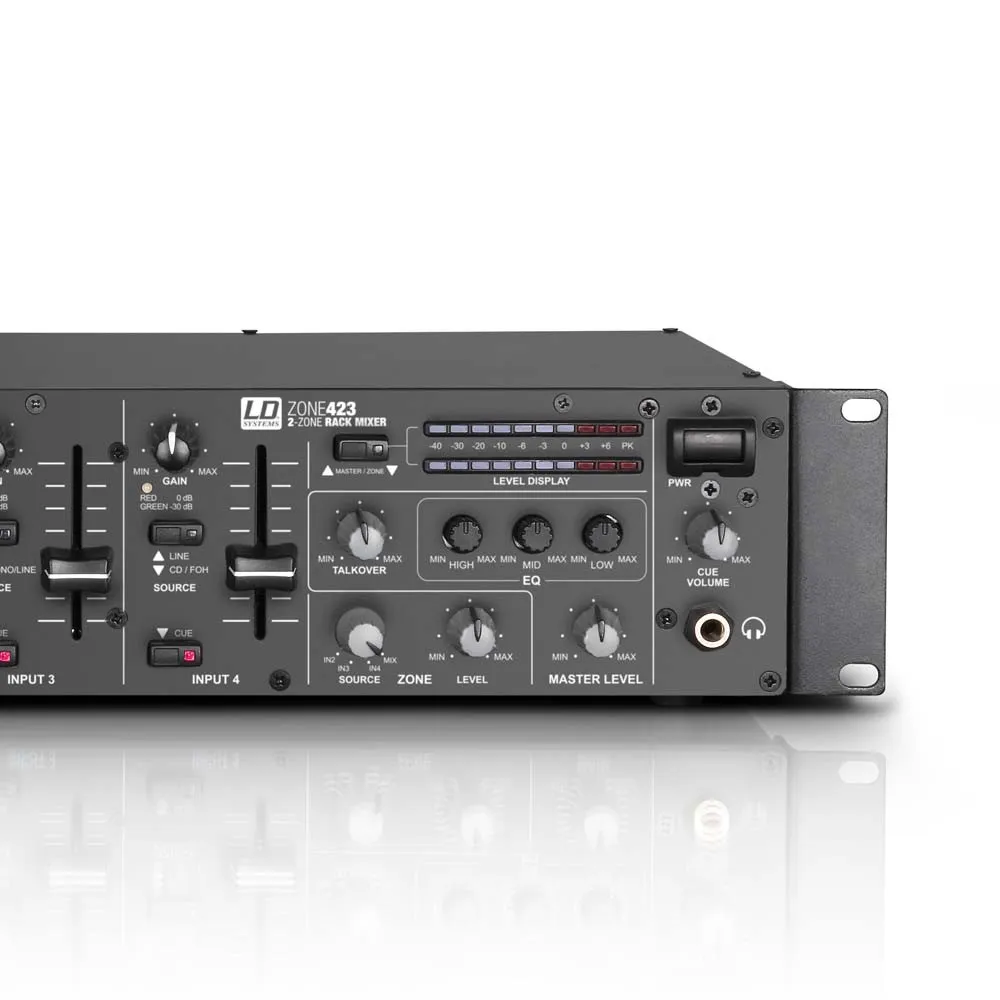

Master Controls: Hi EQ, Low EQ, Mid EQ, Level, Max Level
Master Indicators: 2 x 10 Segment Level Meter (switchable Master/Zone)
Master Output Level: (balanced) 21 dBu, (unbalanced) 18 dBu
Zone Output Connectors: RCA (2 x), Terminal Block, XLR (2 x, balanced)
Zone Controls: 100 Hz High Pass, Hi EQ, Low EQ, Level, Max Level, Mono
Zone Indicators: 2 x 10 Segment Level Meter (switchable Master/Zone)
Zone Output Level: (balanced) 21 dBu, (unbalanced) 18 dBu
Rec Output Connectors: 2 x RCA
Headphone Output: 1
Headphone Output Connector: 6.3 mm Stereo Jack
Headphone Output Controls: Cue Volume
Headphone Output Voltage: (@ 32 Ohm) 1.2 V
Additional Inputs: 2 (Emergency Input, Output Mute)
Additional Input Connectors: Terminal Block

LD Systems ZONE 423 - 19" 2-Zone Mixer 2U

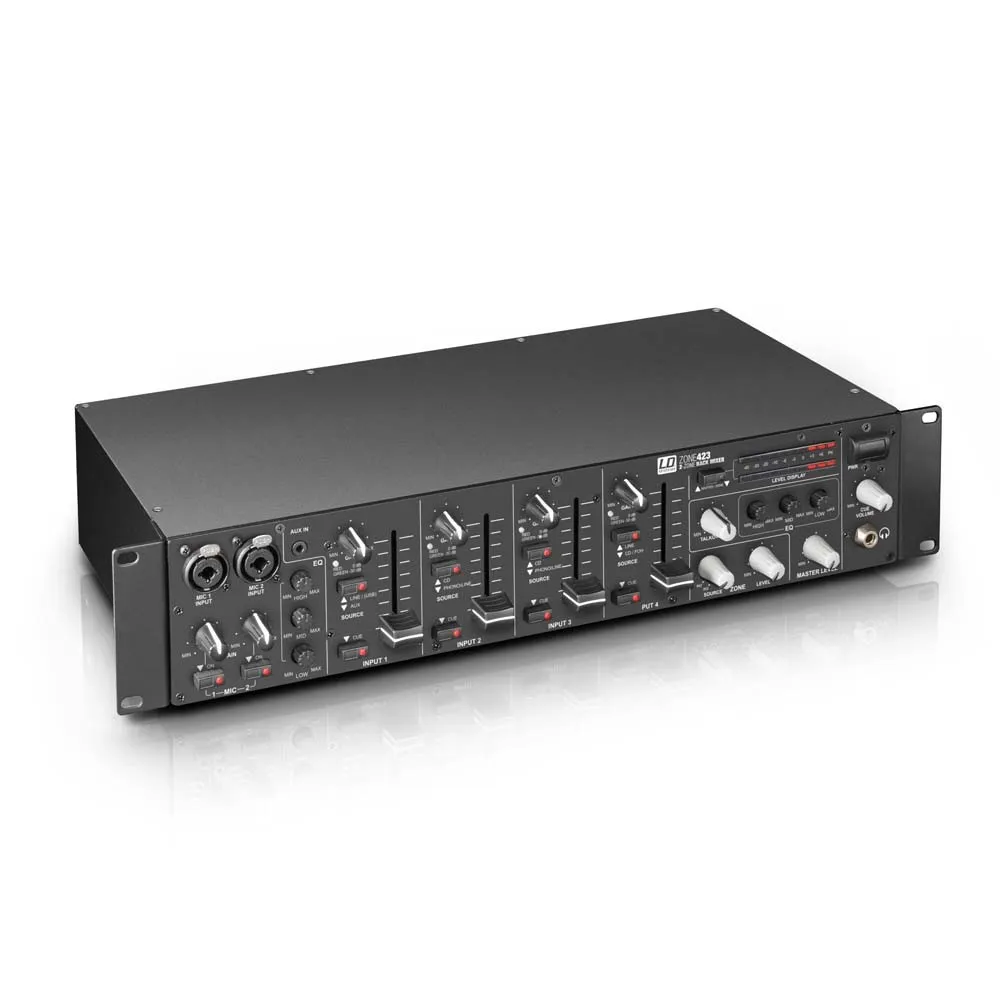

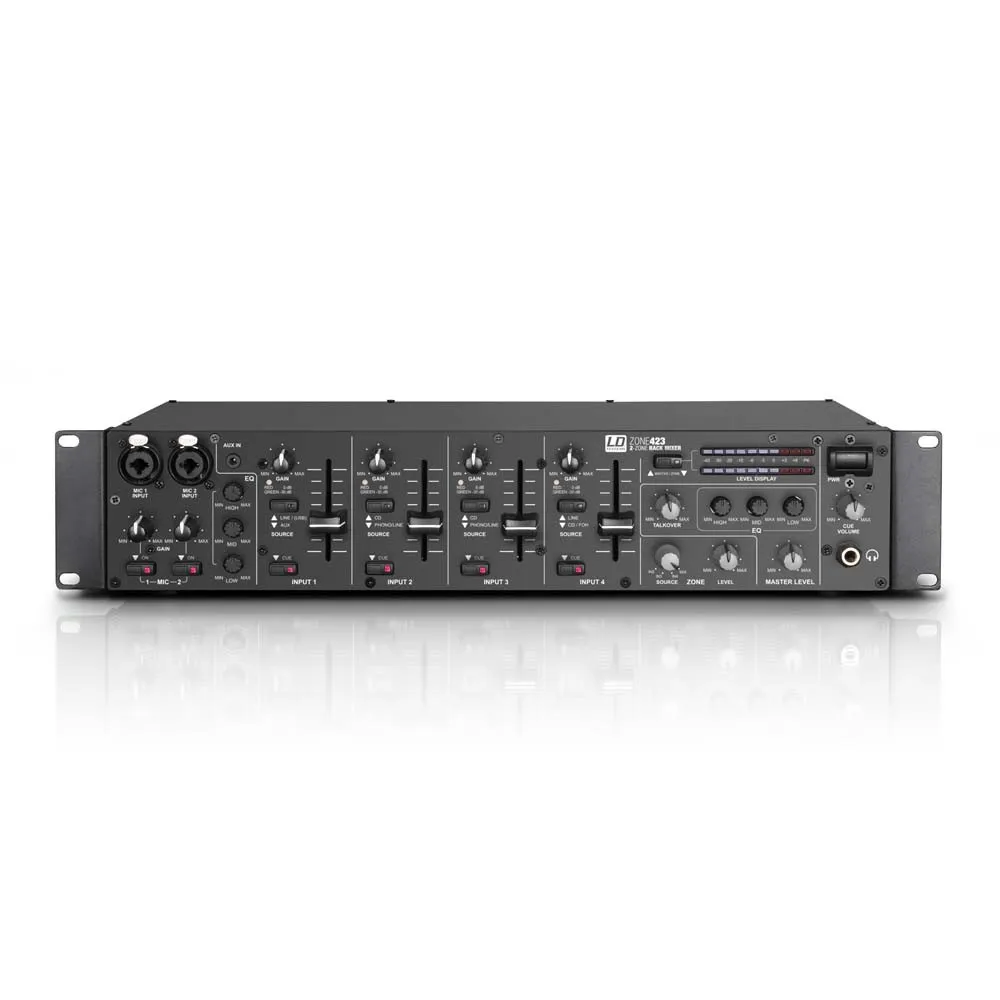

The LD Systems ZONE 423 is a highly advanced zone mixer equipped with 4 line and 2 microphone channels. These can be assigned to a master and a zone output, making it the ideal control center for sound systems in restaurants, clubs, hotels, and fitness centers. It is also excellently suited for DJs and presentations.

With two balanced microphone inputs, adjustable gain and talkover level, as well as 12V phantom power, the ZONE 423 offers comprehensive sound control. The versatile connectivity options include line, phono, and aux stereo connections in RCA format, a FOH input, and USB and 3.5 mm mini-jack connections. The USB port allows the mixer to be used as an external audio interface.

The master and zone sections feature their own sound controls and various output connections, including balanced XLR and unbalanced RCA outputs. With an adjustable headphone output and a recording output, the ZONE 423 is perfect for all applications where quality and flexibility are essential. It is compact, lightweight, and easy to use, making it the perfect choice for professional audio applications.
