Features
- Practical distributor with 2 inputs and 5 outputs
- Expands any mixer with additional outputs
- 2 stereo XLR inputs

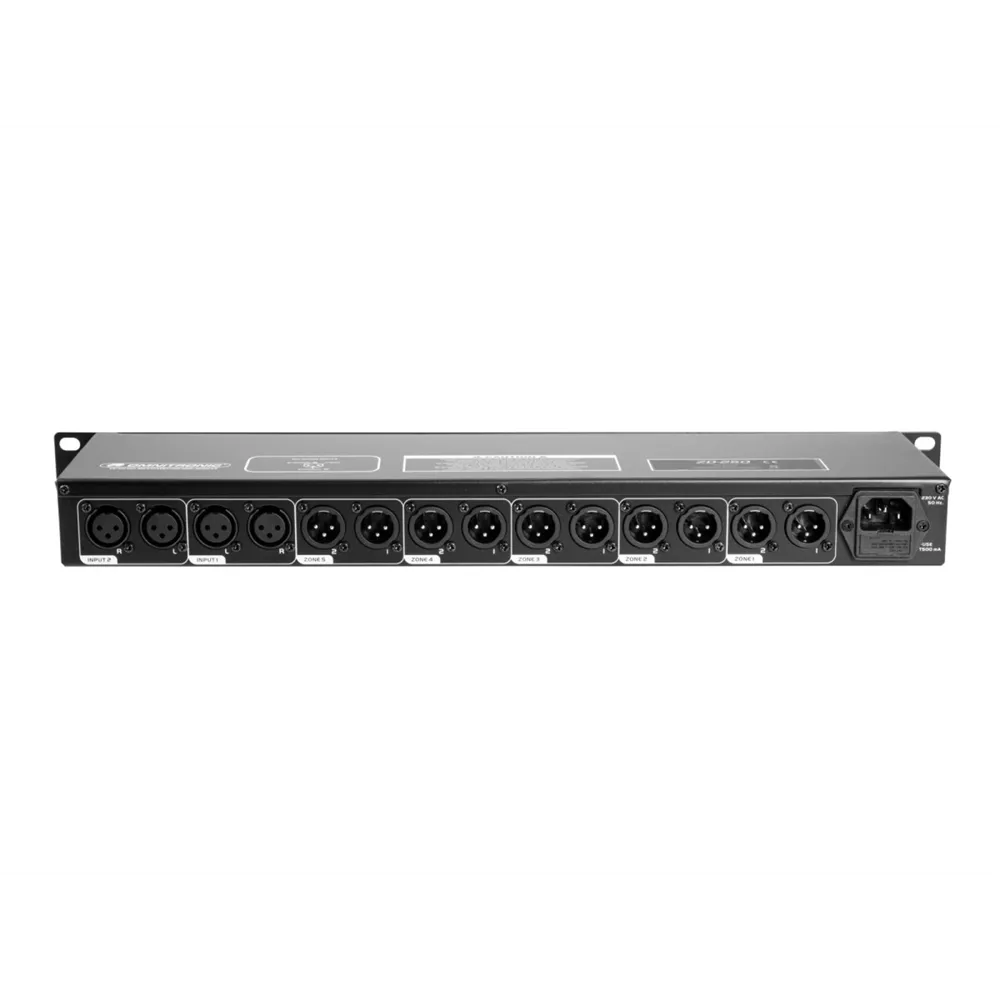

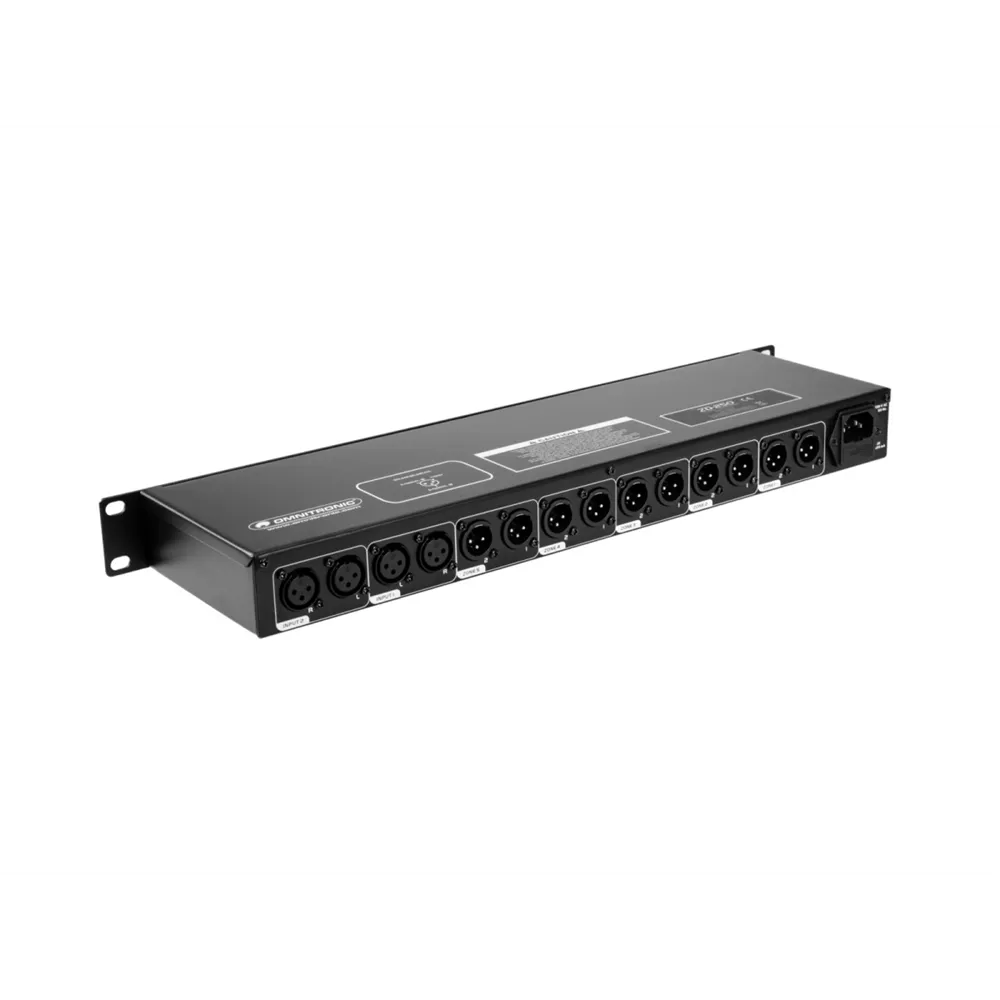

- 5 stereo zone outputs via XLR connectors
- Each zone equipped with volume control for both inputs and mono switch
- LED indicators for signal input, overload, and mono/stereo mode
- (19") 48.3 cm rack-mountable, 1U
- Ideal for applications such as: installations; restaurants, bars, and hotels; sports centers/gyms
- Power supply: 115/230 V AC, 50/60 Hz
- Total power consumption: 7.00 W
- Power connection: Power supply via IEC connector (male), includes power cable with protective contact plug
- Signal-to-noise ratio: >69 dB
- Impedance: Input: 45.1 kOhm, Output: 125 Ohm
- Gain: 15 dB
- Max. level: Input: +9 dB, Output: +22 dB
- Color: Black
- Enclosure type: (19") 48.3 cm rack-mountable, 1U
- Dimensions: Width: 48.3 cm, Depth: 12.6 cm, Height: 4.45 cm
- Weight: 2.34 kg

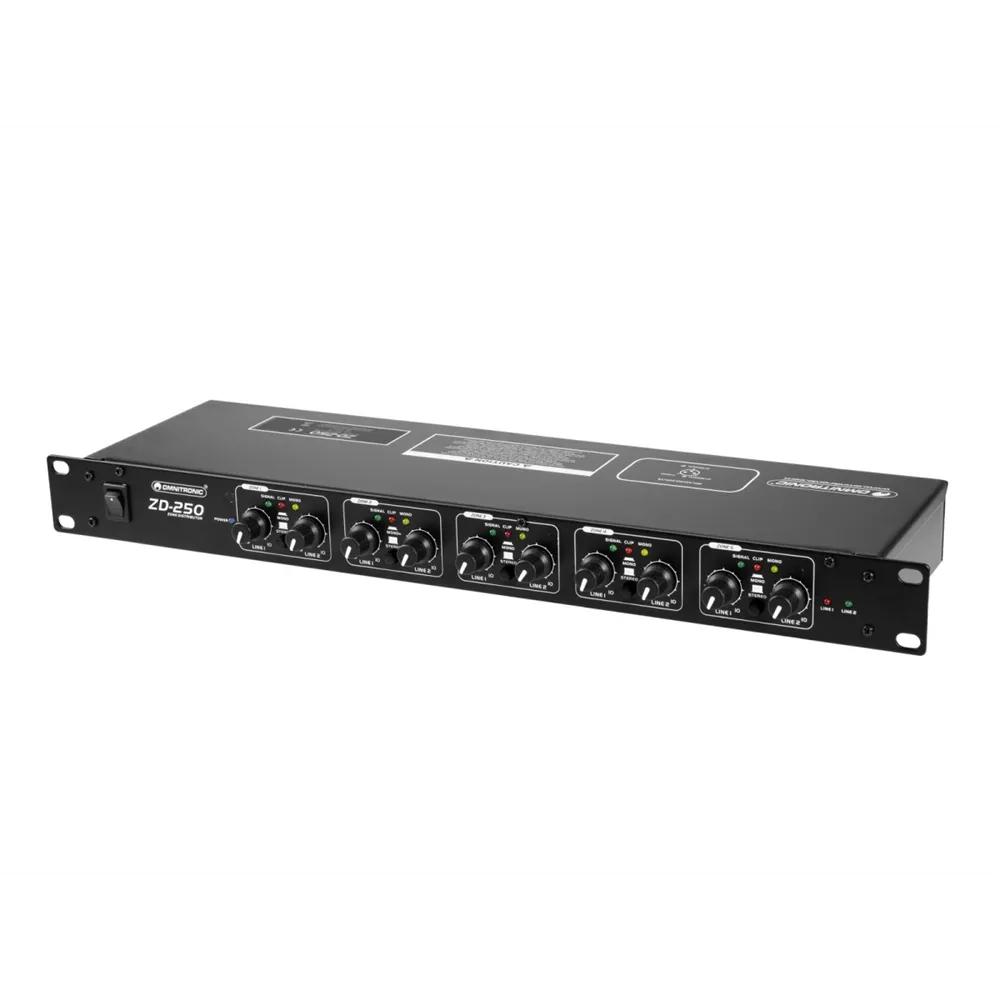

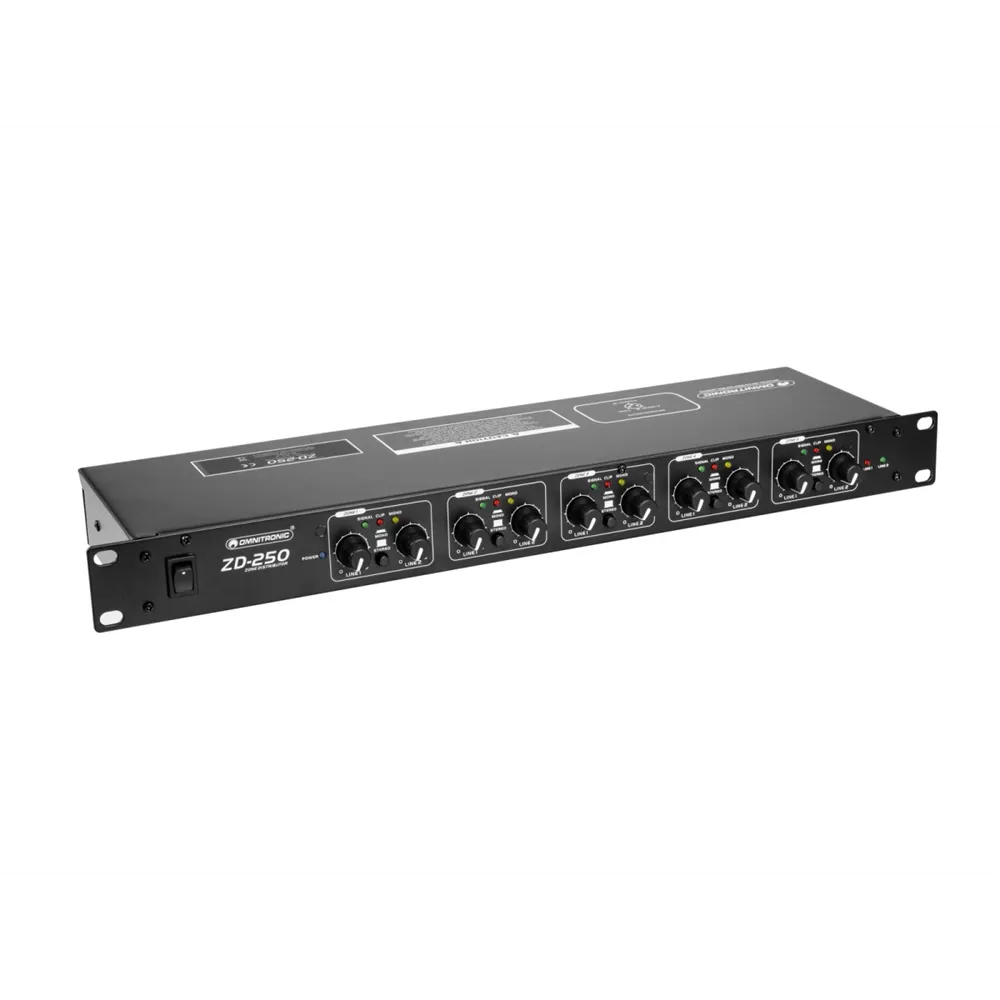

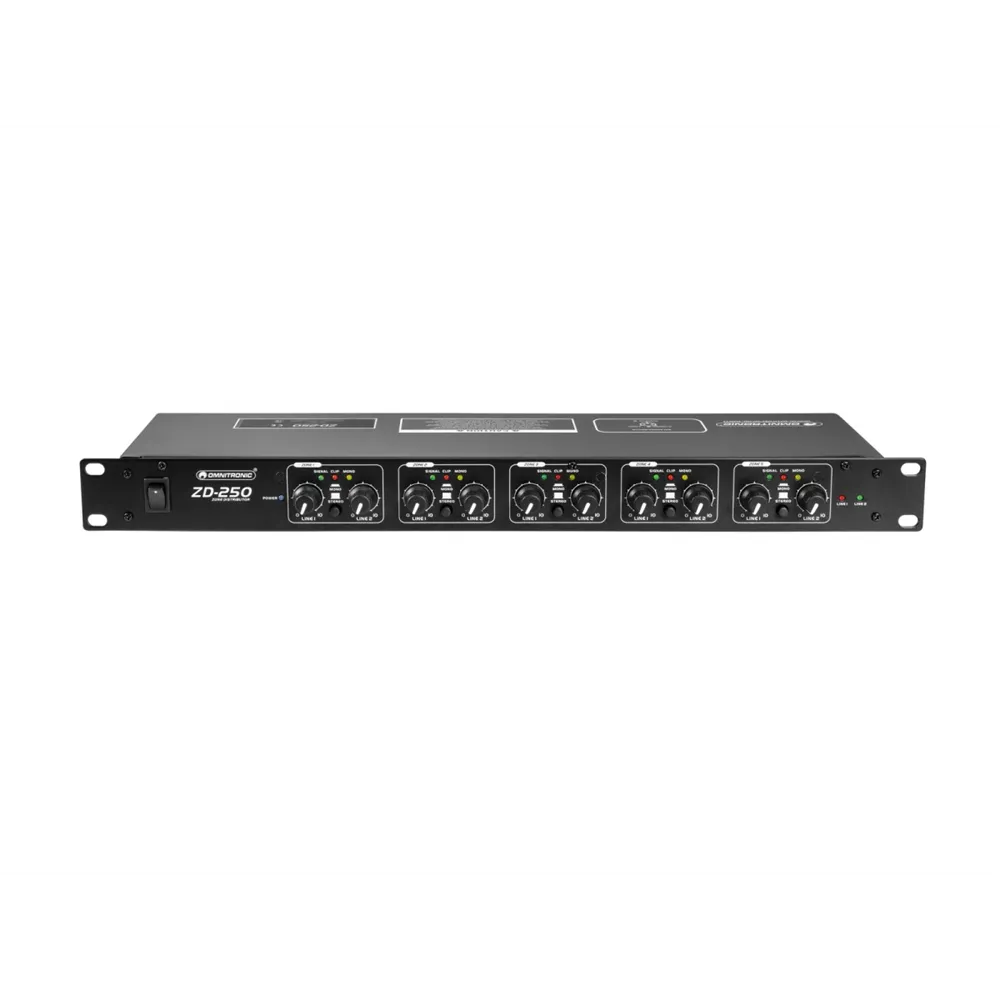

OMNITRONIC ZD-250B Zone Distributor
The OMNITRONIC ZD-250B Zone Distributor is the ideal solution for anyone looking to expand their audio installations. Featuring two stereo XLR inputs and five stereo zone outputs via XLR connectors, this practical distributor offers a flexible way to enhance any mixing console with additional outputs. Each zone is equipped with its own volume control, allowing you to individually adjust the sound quality in different areas. Additionally, the mono switch enables easy adaptation to various audio requirements.
LED indicators for signal input, overload, and mono/stereo mode ensure that you always have a clear overview of your audio source. The ZD-250B is designed for 19" rack mounting and occupies only 1U of space, making it perfect for installations in restaurants, bars, hotels, as well as sports centers and fitness studios.
Included in the package are the device itself, a power cable, and a user manual. With a total power consumption of only 7.00 W and a signal-to-noise ratio of over 69 dB, the OMNITRONIC ZD-250B is both powerful and efficient.
