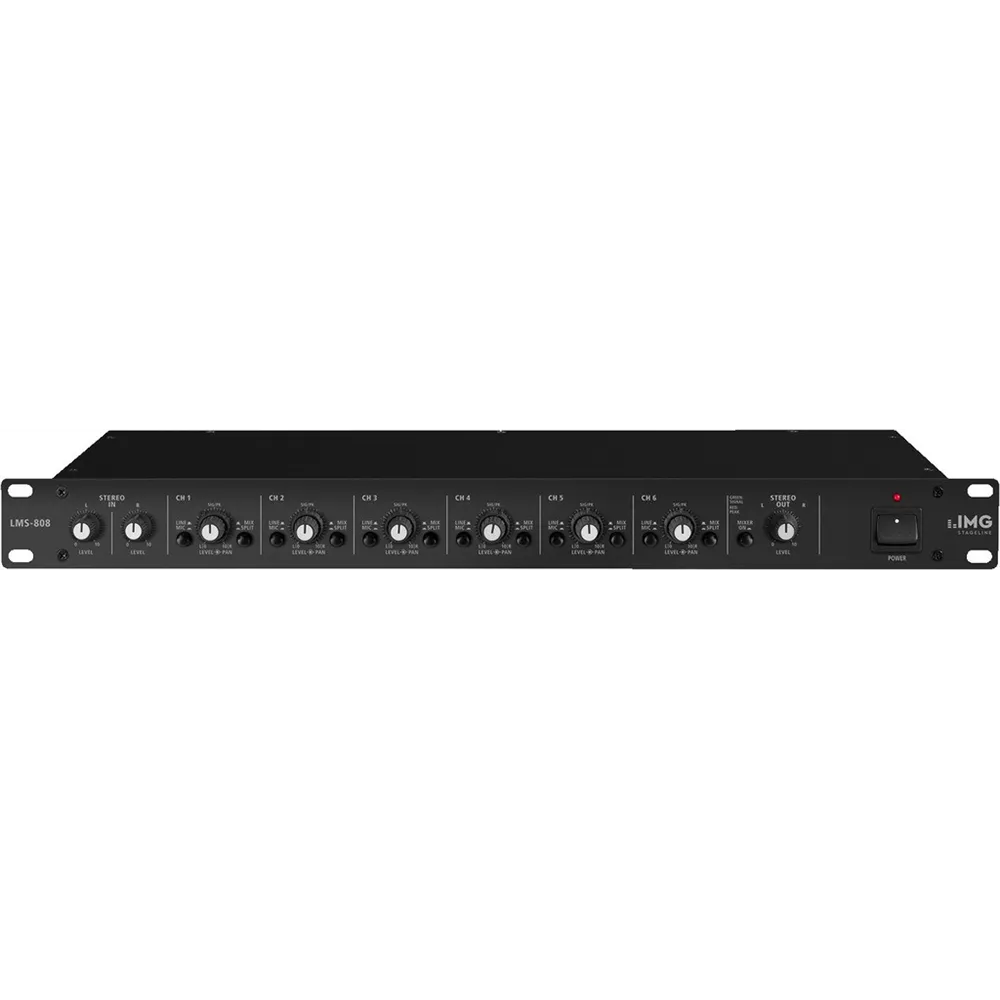

IMG STAGELINE 8-Channel Microphone Line Mixer/Splitter

Features

• Multifunction device with three selectable operating modes:
• Mixer mode for mixing up to 8 mono input signals (6 x Line/Mic and 2 x Line) into 1 stereo output
• Line splitter mode for distributing 2 mono line inputs to 6 mono outputs
• Make-up amplifier mode for amplifying up to 6 input signals
• 6 mono input channels, each with switchable 12V phantom power, pan control, signal/clip LED, and individual mode selection
• 2 mono line input channels with level control and signal/clip LED
• Number of channels: 8
• Number of inputs: 8
• Mic input: 1 mV/6.6 kΩ, 6 x XLR, balanced
• Line input: 250 mV/30 kΩ, 2 x XLR, balanced (100 mV/40 kΩ, 6 x XLR, balanced)

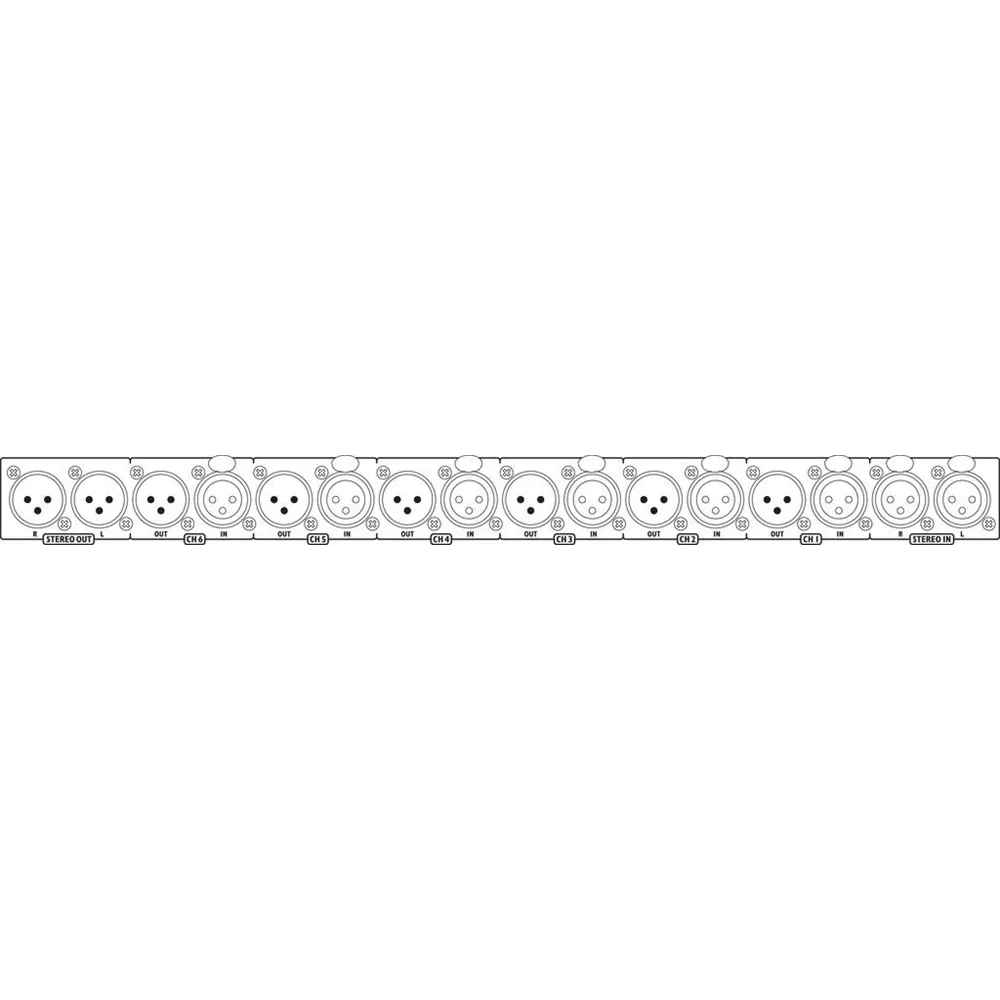

• Master output: 1 V/200 Ω, 6 x XLR, balanced (mono), 1 x XLR L/R, balanced (stereo)
• Frequency range: 10-30,000 Hz
• THD (Total Harmonic Distortion): 0.02%
• Signal-to-noise ratio: 81 dB, rated
• Crosstalk attenuation: -63 dB
• Power supply: ~ 230 V/50 Hz/10 VA
• Line voltage: ~ 230 V
• Line frequency: 50 Hz
• Power consumption in operation: 10 VA
• Permissible operating temperature: 0-40 °C
• Width: 482 mm
• Height: 48 mm
• Depth: 200 mm
• Rack units (HE): 1
• Weight: 2.9 kg
• Packaging dimensions (W x H x L): 0.25 x 0.09 x 0.535 m
• Gross weight: 3.88 kg
• Net weight: 3.14 kg
