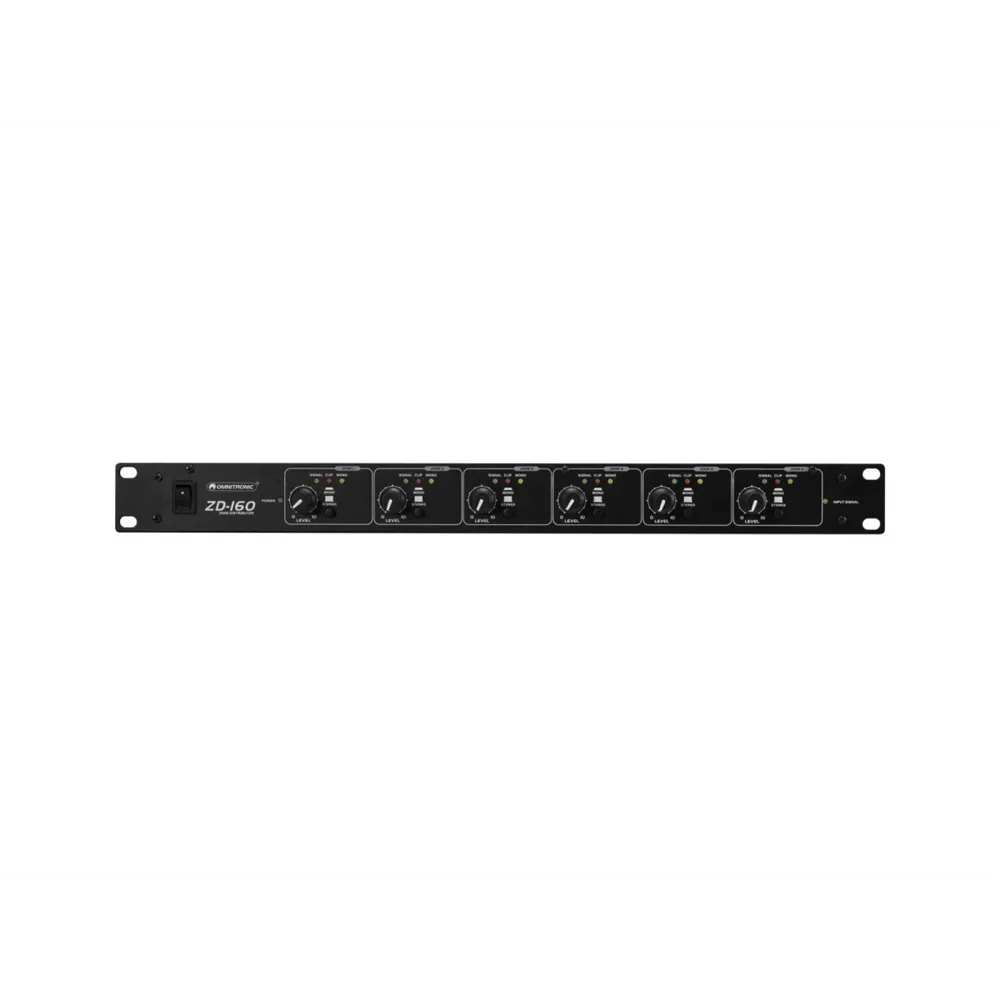

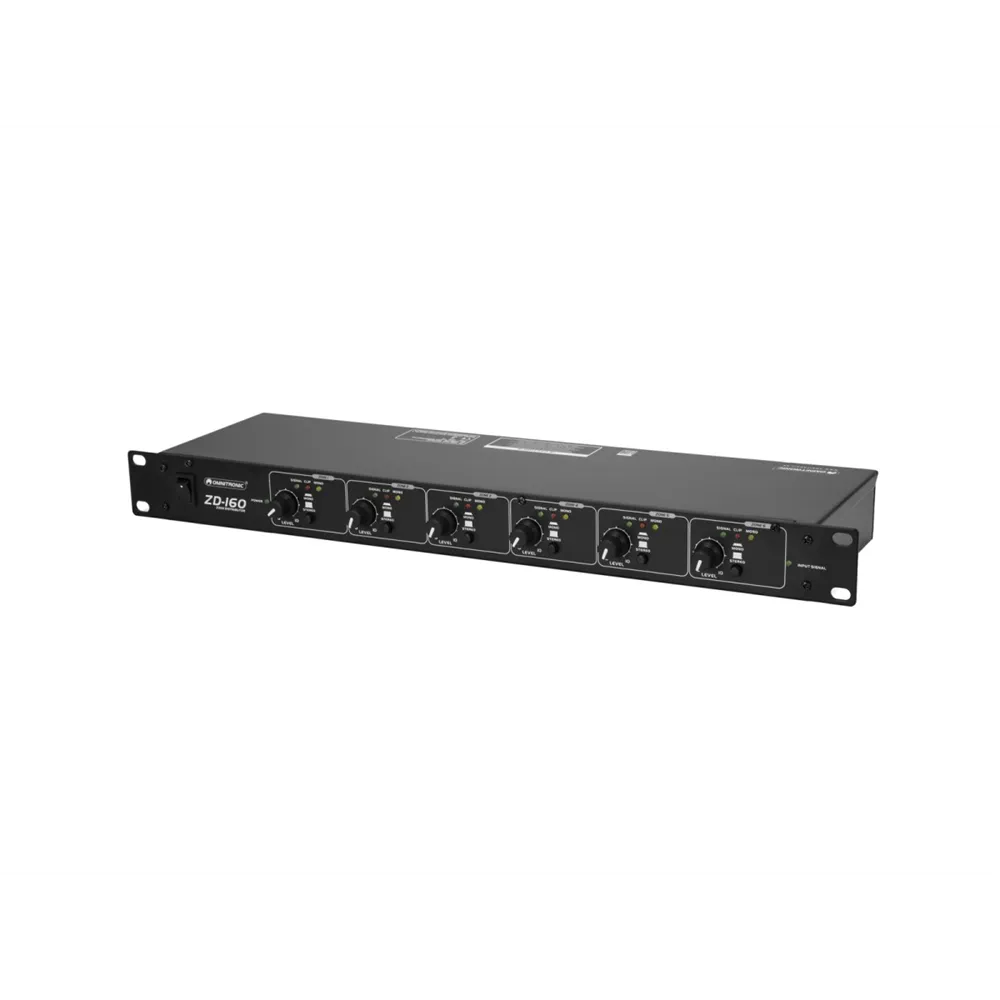

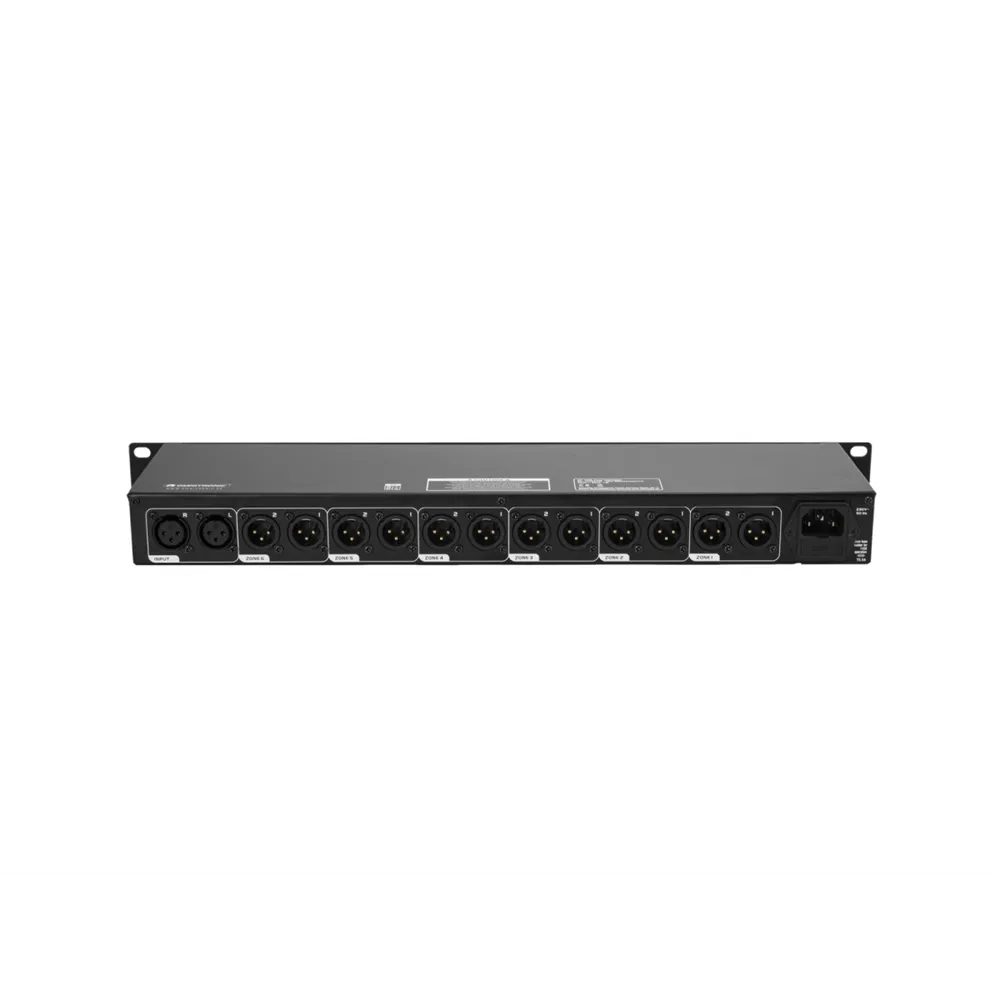

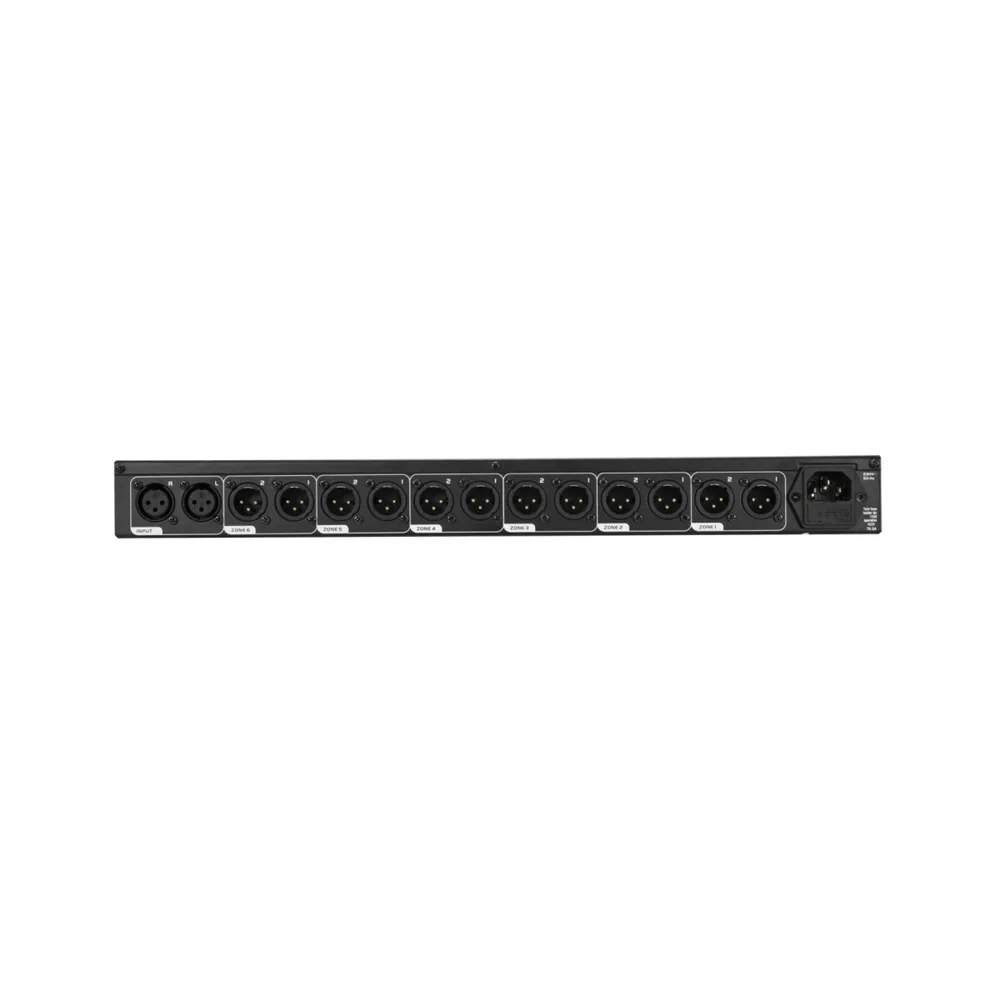

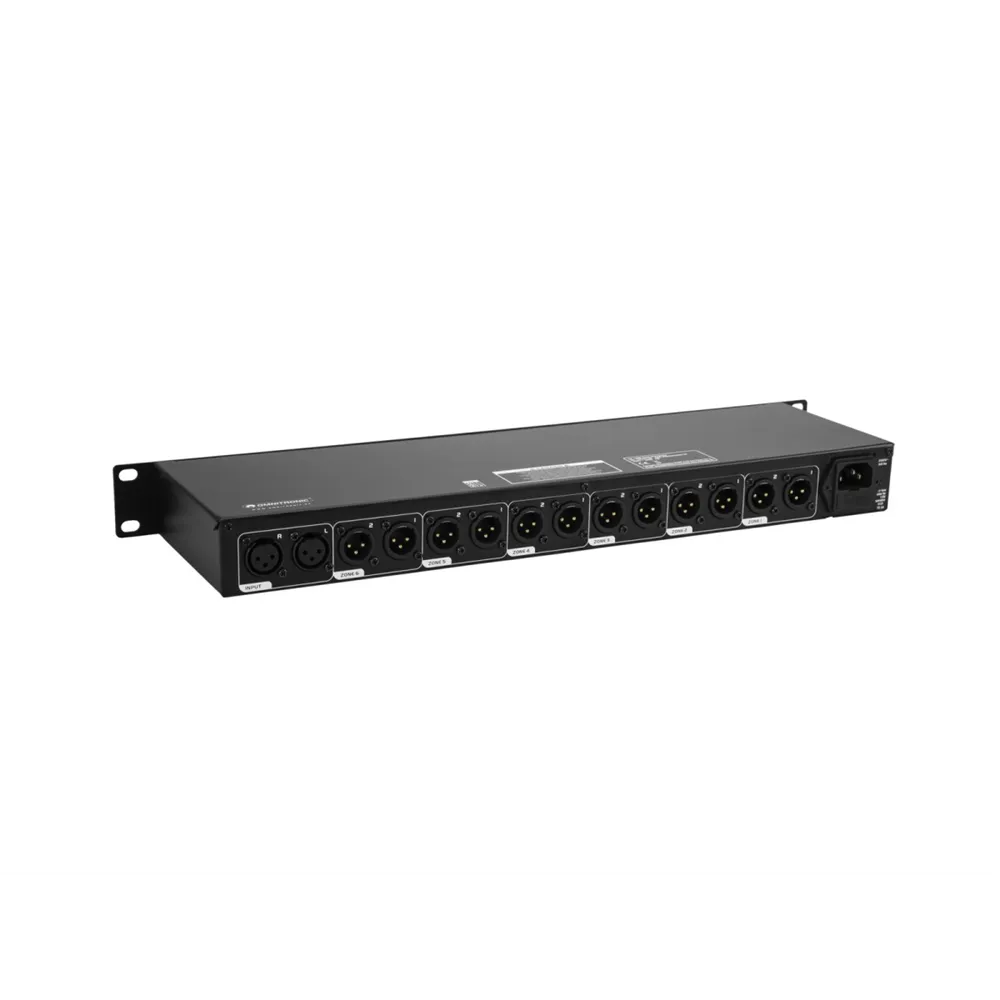

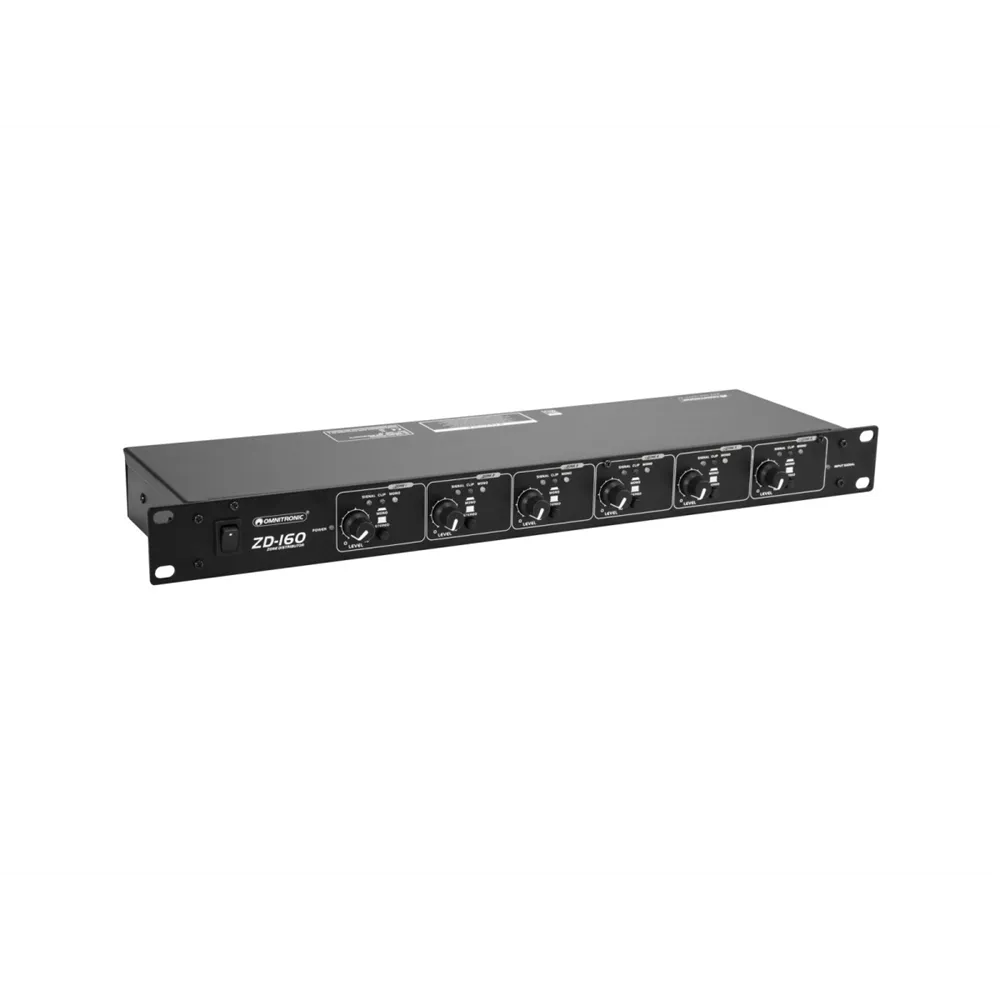

OMNITRONIC ZD-160B Zone Distributor

Brand:

Features

  • Practical distributor with 1 input and 6 outputs
  • Expands any mixing console with additional outputs
  • 1 stereo XLR input
  • 6 stereo zone outputs via XLR connectors
  • Each zone equipped with volume control and mono switch
  • LED indicators for signal input and mono/stereo mode
  • (19") 48.3 cm rack mountable, 1U
  • Applications: Installations; Restaurants, Bars, and Hotels; Sports Centers/Fitness Studios
  • Power supply: 115/230 V AC, 50/60 Hz
  • Total power consumption: 7 W
  • Power connection: Power supply via IEC (C14) connector, includes power cable with protective contact plug
  • Signal-to-noise ratio: >69 dB
  • Impedance: Input: 45.1 kOhm, Output: 125 Ohm
  • Gain: 15 dB
  • Max level: Input: +9 dBV, Output: +22 dB
  • Color: Black
  • Housing type: (19") 48.3 cm rack mountable, 1U
  • Dimensions: Width: 48.3 cm, Depth: 12.6 cm, Height: 4.45 cm
  • Weight: 2.33 kg
Read moreShow less
229.00 (tax incl.)
Reference:
ST10304106
Love0
Add to compare0
Description

OMNITRONIC ZD-160B Zone Distributor

The OMNITRONIC ZD-160B Zone Distributor is the ideal solution for anyone looking to expand their audio installations. With one input and six outputs, this practical distributor allows for easy distribution of audio signals to various zones. It features a stereo XLR input and six stereo zone outputs, which can be connected via XLR sockets. Each zone is equipped with its own volume control and a mono switch, providing maximum flexibility in sound management.

The LED display keeps you informed about the signal input as well as the mono/stereo mode, ensuring you always have a clear overview. The ZD-160B is designed for 19" rack mounting and occupies only 1U of space, making it perfect for professional applications in restaurants, bars, hotels, and fitness studios.

The package includes the unit itself, a power cable, and a user manual. With a total power consumption of only 7 W and a signal-to-noise ratio of over 69 dB, the zone distributor delivers outstanding sound quality. Trust the OMNITRONIC ZD-160B for your audio distribution needs!

Read moreShow less
Product Details
ST10304106
Delivery and shipping costs
Reviews
No comments
