Features
- Multi-frequency microphone system with UHF-PLL technology
- 1 handheld microphone transmitter, 1 receiver, 1 power supply unit
- True diversity system
- 80 adjustable UHF channels (672.000-691.750 MHz)
- ACT function for transferring the selected frequency to the handheld microphone via infrared signal
- Automatic frequency scan
- Volume and squelch control
- Switchable transmission power on the handheld microphone (high/low)
- Display for channel, antenna A/B, ACT status, and audio level (receiver); channel and battery status (handheld microphone)
- Sturdy metal housing (receiver)
- Carrier frequency range: 672-692 MHz
- Audio frequency range: 50-18,000 Hz
- Dynamic range: 120 dB
- RF signal-to-noise ratio: 105 dB
- Permissible operating temperature: 0-40 °C
- Range: ≈ 50 m
- Power supply for transmitter: 2 x 1.5V AA batteries
- Width of transmitter: 52 mm
- Height of transmitter: 52 mm
- Depth of transmitter: 275 mm
- Weight of transmitter: 235 g
- Audio signal output (receiver): 350 mV/10 kΩ (jack), 25 mV/10 kΩ (XLR, balanced)
- Power supply for receiver: via included power supply unit
- Width of receiver: 152 mm
- Height of receiver: 38 mm
- Depth of receiver: 120 mm
- Weight of receiver: 482 g
- Receiver connections: 1 x 6.3 mm jack, unbalanced; 1 x XLR, balanced

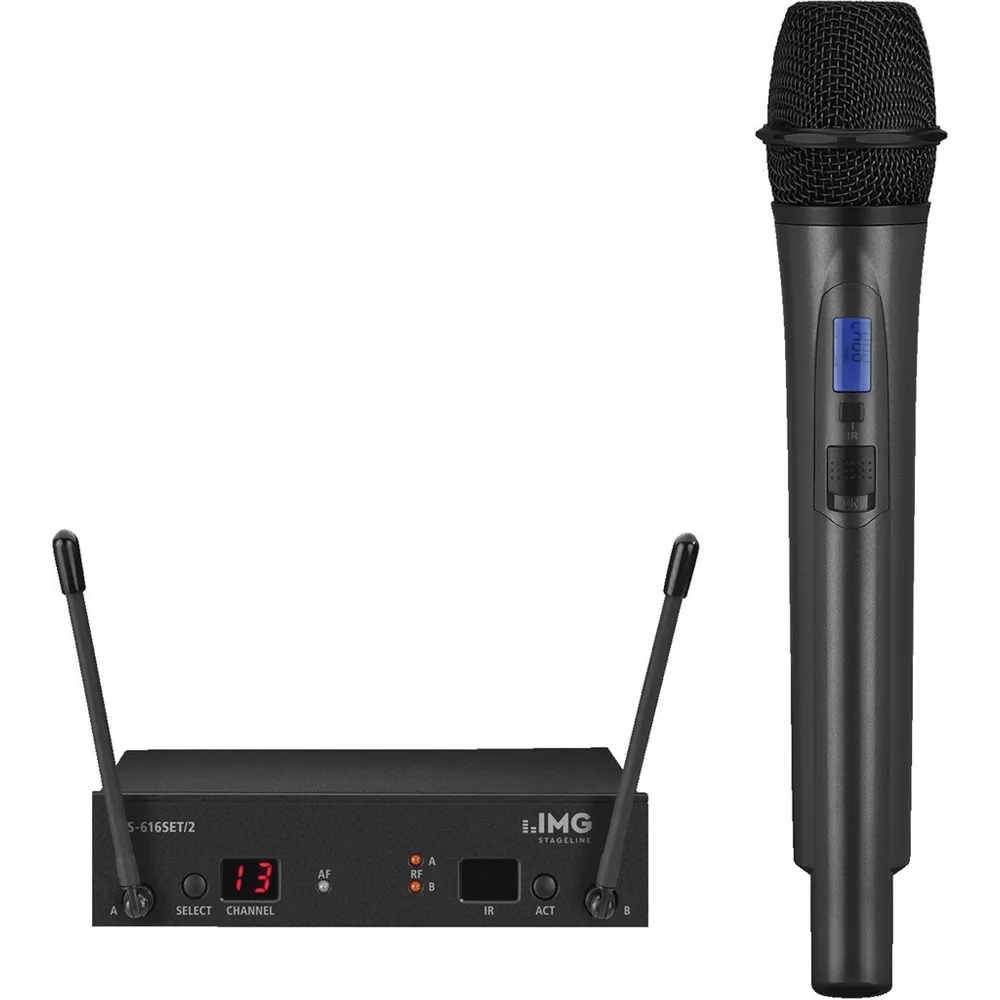

IMG STAGELINE TXS-616SET/2 Multi-Frequency Microphone System, 672.000-691.750 MHz
Experience the freedom of wireless communication with the IMG STAGELINE TXS-616SET/2 Multi-Frequency Microphone System. This high-quality UHF-PLL microphone system offers an impressive range of up to 50 meters and is equipped with 80 adjustable UHF channels within the frequency range of 672.000 to 691.750 MHz. Thanks to True Diversity technology, you can enjoy stable and uninterrupted transmission, even in challenging environments.
The set includes a handheld microphone transmitter, a receiver, and a power adapter. The innovative ACT function allows for easy frequency transfer between the receiver and handheld microphone via infrared signal. With automatic channel scanning and controls for volume and squelch, you have full control over your audio quality. The robust metal housing of the receiver ensures durability and reliability.
Enjoy premium sound quality with a frequency range of 50 to 18,000 Hz and a dynamic range of 120 dB. The IMG STAGELINE TXS-616SET/2 is the ideal choice for professional applications, whether at live events, presentations, or in the studio.
