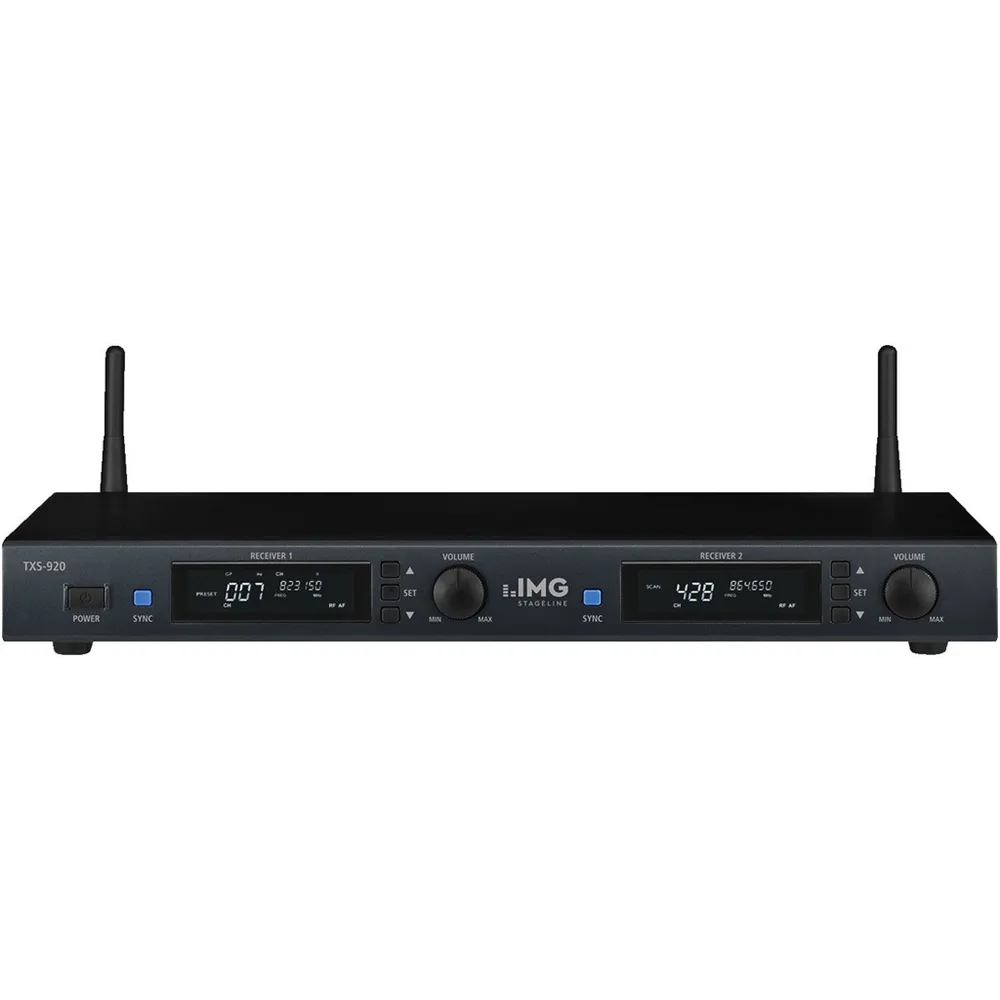

IMG STAGELINE TXS-920 Wireless Receiver Unit 2K 823-832 MHz + 863-865 MHz

Brand:

Features

  • 2-channel multi-frequency receiver unit with UHF PLL technology
  • 2 license-free frequency bands (E-Band: 823-832 MHz and 863-865 MHz)
  • 442 adjustable channels
  • Intermodulation-free presets, 4 groups with 8 channels each
  • Up to 12 intermodulation-free channels can be used in parallel (Auto Scan)
  • SYNC function for transmitting the selected frequency to the pocket transmitter TXS-900HSE or handheld microphone TXS-900HT via radio signal
  • Automatic scan with intermodulation detection
  • True diversity system with detachable antennas (BNC connector)
  • Pilot tone squelch
  • Adjustable volume and squelch
  • LCD display for group/channel, frequency, RF reception level, and audio level
  • XLR output (balanced) and 6.3 mm jack output (unbalanced) per channel, switchable Mic/Line
  • 6.3 mm jack output for mixed signal (Line)
  • 8V power supply for active antennas or antenna amplifiers (e.g., TXS-875B) available
  • Sturdy metal housing
  • Power supply included
  • 482 mm rack mount (19") possible with included mounting brackets
  • Audio frequency range: 80-18,000 Hz
  • Dynamic range: > 100 dB
  • RF signal-to-noise ratio: > 100 dB
  • Permissible operating temperature: 0-40 °C
  • Weight: 2 kg
  • Dimensions: 420 mm (W) x 42 mm (H) x 183 mm (D)
  • Audio signal receiver: Line: 75 mV, Mic: 7 mV (jack, unbalanced), Line: 150 mV, Mic: 15 mV (XLR, balanced), 75 mV (Mix)
  • Power supply via included plug-in power supply
Read moreShow less
590.00 (tax incl.)
Reference:
MCTXS-920
Love0
Add to compare0
Description

IMG STAGELINE TXS-920 Wireless Receiver Unit 2K 823-832 MHz + 863-865 MHz

Experience the next level of wireless audio transmission with the IMG STAGELINE TXS-920 Wireless Receiver Unit. This 2-channel multi-frequency receiver unit utilizes state-of-the-art UHF-PLL technology and offers two license-free frequency ranges (E-Band: 823-832 MHz and 863-865 MHz) with a total of 442 adjustable channels. Thanks to the intermodulation-free presets and the auto-scan function, you can use up to 12 channels simultaneously without worrying about interference.

The SYNC function allows for easy transmission of the selected frequency to the bodypack transmitters TXS-900HSE or handheld microphones TXS-900HT. With a robust metal housing and the option for rack mounting (482 mm), the TXS-920 is perfectly suited for professional use on large stages as well as for smaller events. The LCD display provides information on group/channel, frequency, and reception level, while the adjustable volume and squelch function ensure optimal sound quality. Rely on the IMG STAGELINE TXS-920 for interference-free and reliable audio transmission!

Read moreShow less
Product Details
MCTXS-920
