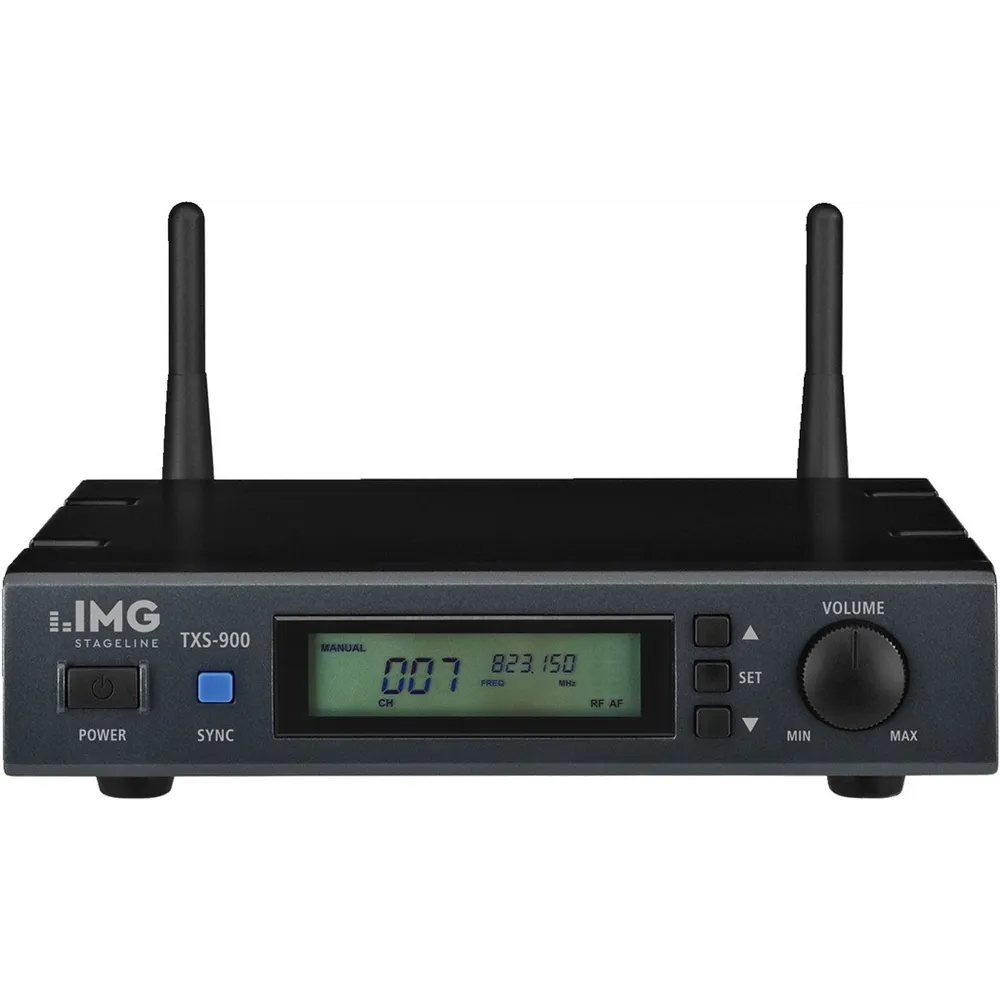

IMG STAGELINE TXS-900 Wireless Receiver Unit 823-832 MHz + 863-865 MHz

Features

• Multi-frequency receiver unit with UHF PLL technology
• 2 license-free frequency bands (E-Band: 823-832 MHz and 863-865 MHz)
• 442 adjustable channels
• Intermodulation-free presets, 4 groups with 8 channels each
• Up to 12 intermodulation-free channels usable in parallel (Auto-scan)
• SYNC function for transmitting the selected frequency to the pocket transmitter TXS-900HSE or handheld microphone TXS-900HT via radio signal
• Automatic scan with intermodulation detection
• True diversity system with detachable antennas (BNC connector)
• Pilot tone squelch
• Adjustable volume and squelch
• LCD display for group/channel, frequency, RF reception level, and audio level
• XLR output (balanced) and 6.3 mm jack output (unbalanced), switchable Mic/Line
• 8V power supply for active antennas or antenna amplifiers (e.g., TXS-875B) available
• Sturdy metal housing
• Power supply included
• 482 mm rack mount (19") possible with included mounting brackets
• Audio frequency range: 80-18000 Hz
• Dynamic range: > 100 dB
• RF signal-to-noise ratio: > 100 dB
• Permissible operating temperature: 0-40 °C
• Audio signal receiver: Line: 75 mV, Mic: 7 mV (jack, unbalanced), Line: 150 mV, Mic: 15 mV (XLR, balanced)
• Power supply for receiver: via included plug-in power supply
• Receiver width: 200 mm
• Receiver height: 42 mm
• Receiver depth: 183 mm
• Receiver weight: 1.1 kg
• Receiver connections: 1 x XLR, balanced, 1 x 6.3 mm jack, unbalanced
