Cameo SB 6 DUAL - 6-Channel DMX Splitter / Booster (3-Pin and 5-Pin)

Cameo SB 6 DUAL - 6-Kanal DMX Splitter / Booster (3-Pol und 5-Pol)

Cameo SB 6 DUAL - 6-Channel DMX Splitter / Booster (3-Pin and 5-Pin)

Brand:

Cameo SB 6 T RDM - 6-Channel DMX/RDM Splitter/Booster (3-Pin and 5-Pin)

Features

Professional 6-channel DMX Splitter / Booster
1U 19” rack-mountable housing
6 galvanically isolated XLR (3-pin/5-pin) outputs

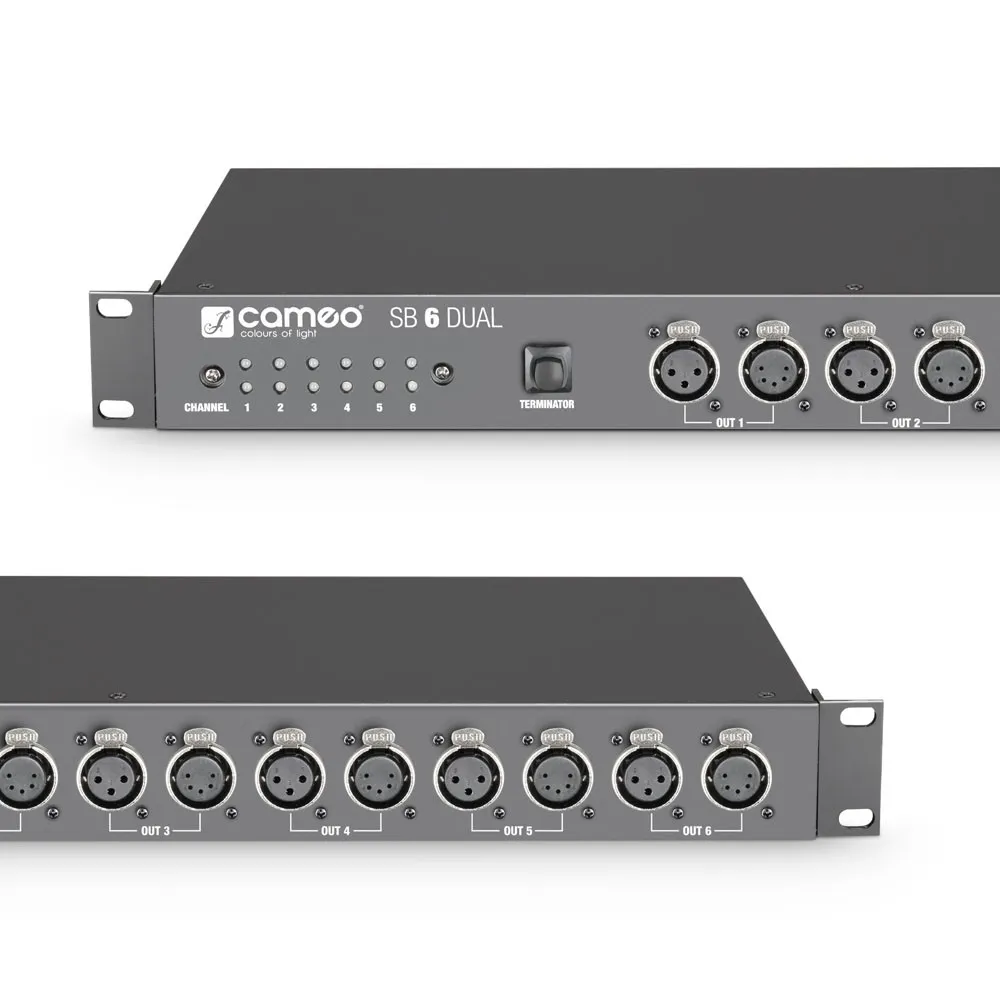

DMX status indicator for each channel
Power status indicator
Switchable 120 Ohm termination resistor for the DMX THRU output socket

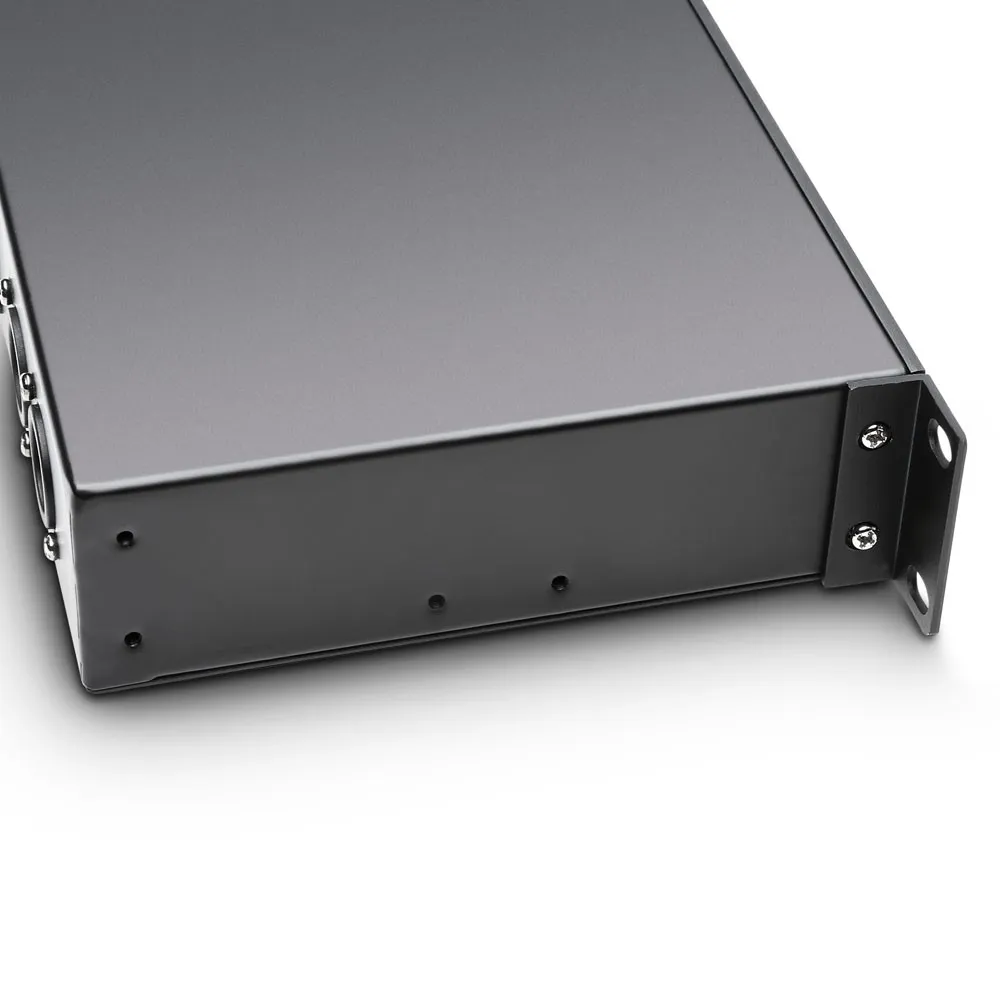

Rack ears can be mounted on the front or rear
DMX inputs: 2 (parallel)
DMX input connectors: XLR 3-pin male and XLR 5-pin male
DMX THRU outputs: 2 (parallel)
DMX THRU output connectors: XLR 3-pin female and XLR 5-pin female
DMX outputs: 6
Controls: DMX THRU terminator and Power On/Off
Indicators: 6 x Power LED and 6 x Signal LED

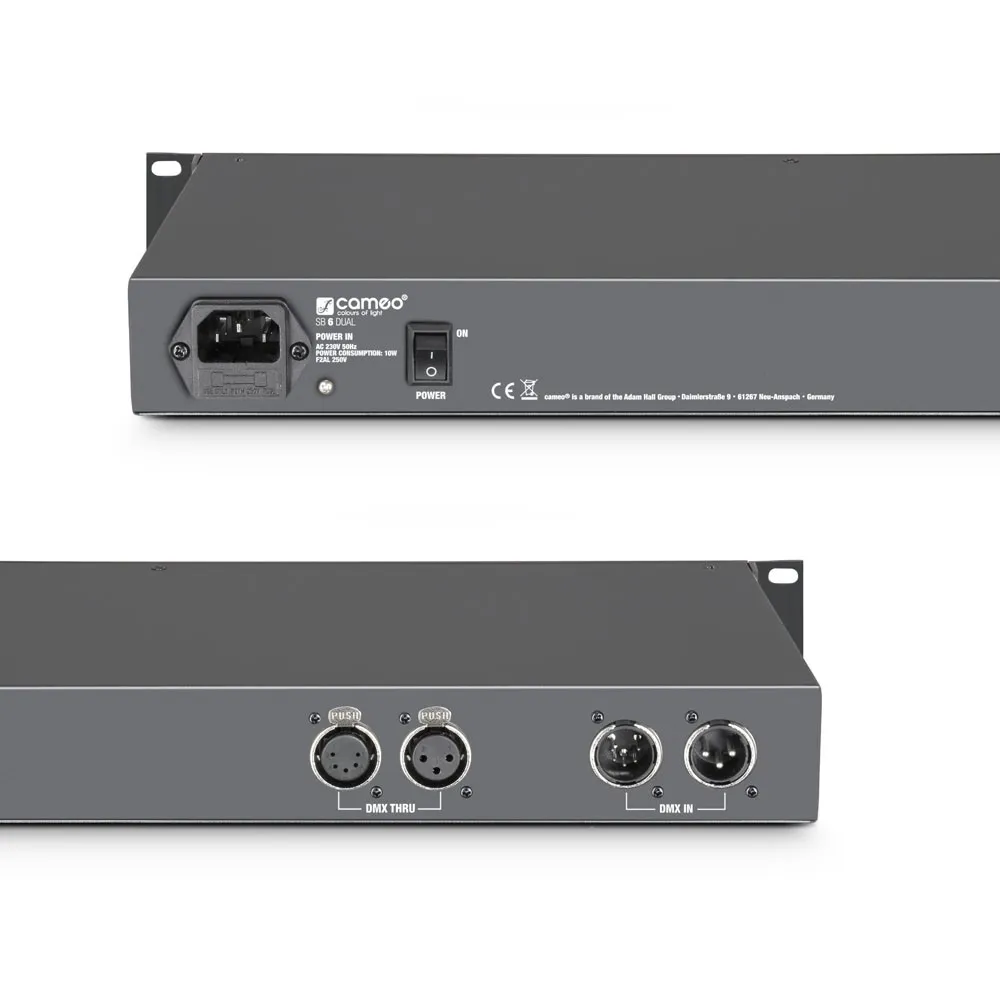

Power connection: IEC device socket
Power supply: Transformer
Operating voltage: 230 V AC, 50 Hz
Power consumption: 15 W
Dimensions: Width 483 mm, Height 44 mm, Depth 160 mm
Weight: 2.976 kg
Included accessories: Power cable

Cameo SB 6 DUAL - 6-Channel DMX Splitter / Booster (3-Pin and 5-Pin)

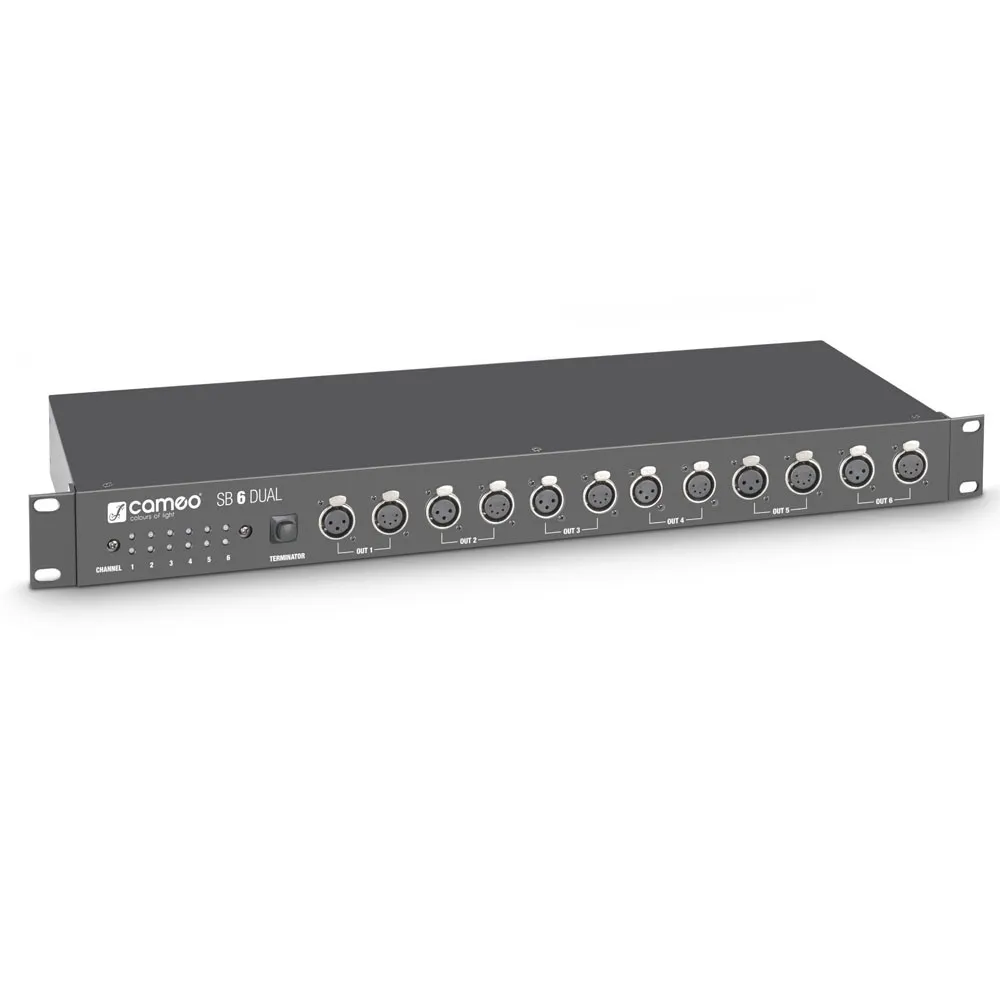

The Cameo SB 6 DUAL is the ideal solution for professional lighting technicians who require a reliable and powerful DMX network. With its compact 19" format and only 1U height, this 6-channel DMX splitter and booster is perfectly suited for rack mounting. It amplifies the DMX input signal and distributes it to six galvanically isolated outputs, equipped with both 3-pin and 5-pin XLR connectors.

The SB 6 DUAL features a clear DMX status indicator for each channel, as well as a power status indicator, providing you with an overview of the operational status at all times. A switchable 120 Ohm termination resistor for the DMX THRU output ensures optimal signal transmission. The rack ears can be mounted on either the front or rear, allowing for flexible installation. An IEC power cable is included, so you can start working right away. Trust the Cameo SB 6 DUAL to elevate your lighting shows to the next level!
