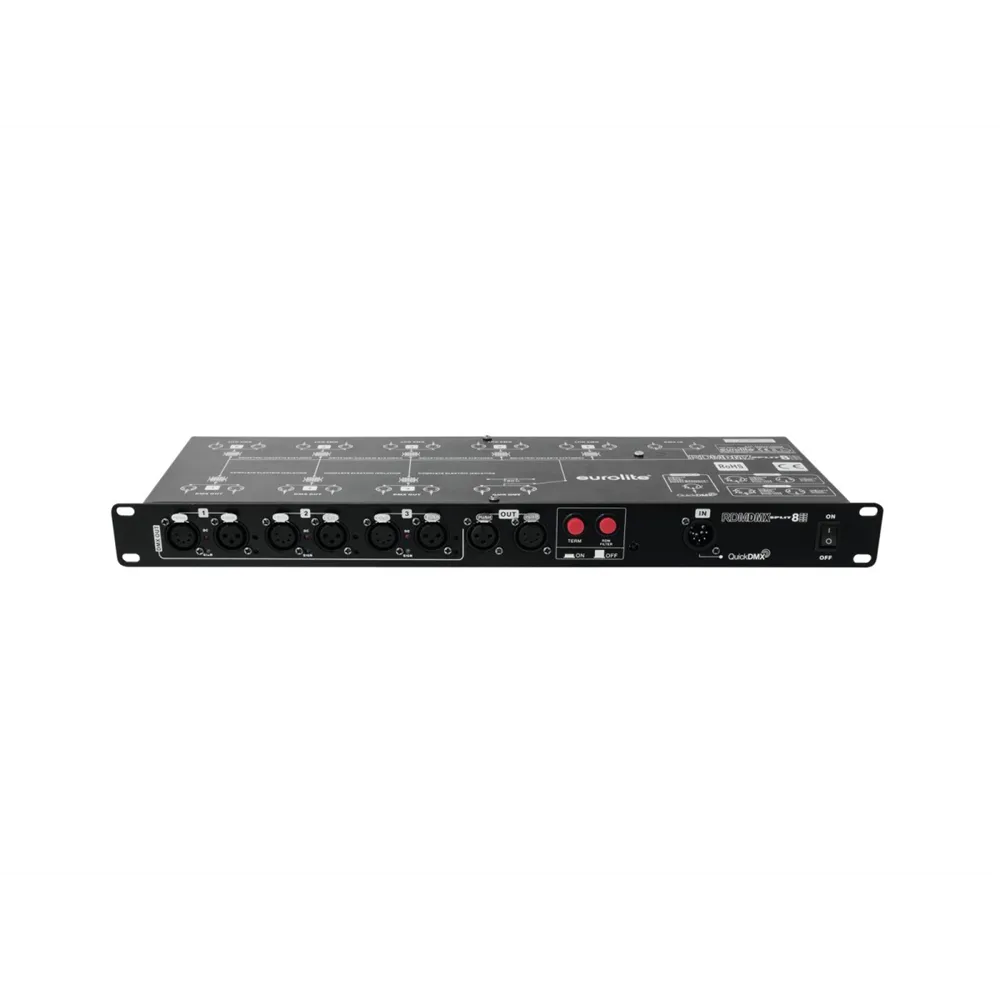

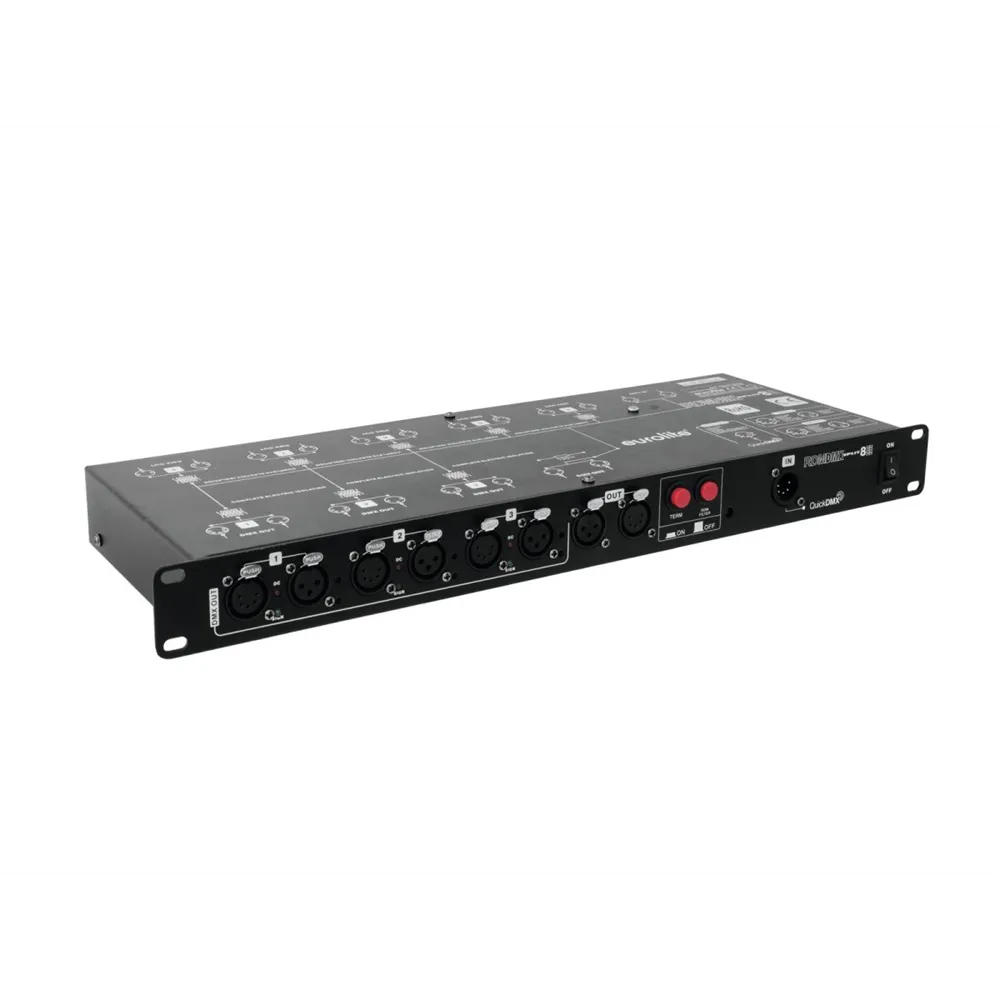

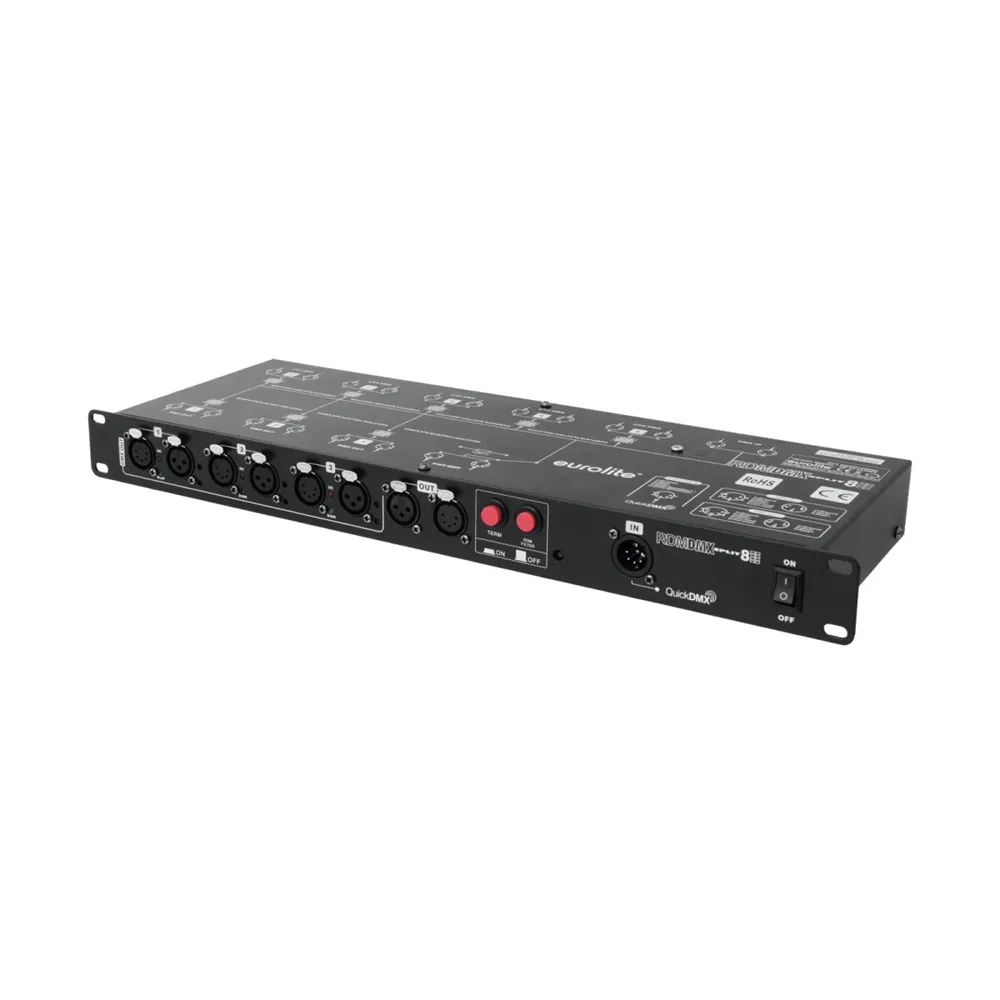

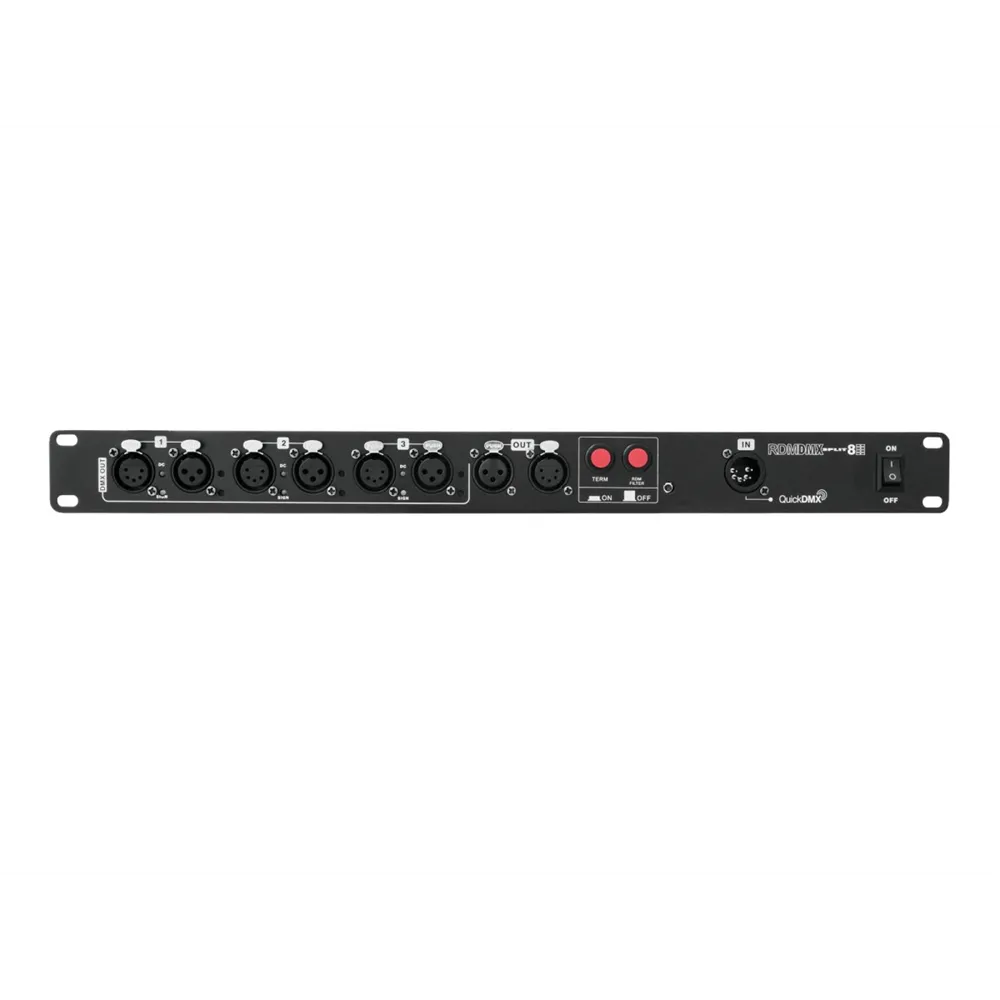

EUROLITE DMX Split 8X RDM Splitter

EUROLITE DMX Split 8X RDM Splitter

Brand:

Features

DMX splitter for distributing a DMX input signal to 8 DMX outputs
Switchable filter mode to eliminate RDM data, preventing issues when operating with devices that do not support RDM
Input and outputs with 3-pin and 5-pin XLR connectors
Each DMX output equipped with independent driver and status indicator
Galvanically isolated input and output
Input and outputs protected by internal 500 mA fuse
Switchable termination resistor
Controllable via QuickDMX using 5-pin XLR (M) installation version (optional); RDM
19" rack mountable, 1U height (48.3 cm)
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 5 W
Power connection: Power supply via IEC connector (M) installation version with power cable and protective contact plug (included)

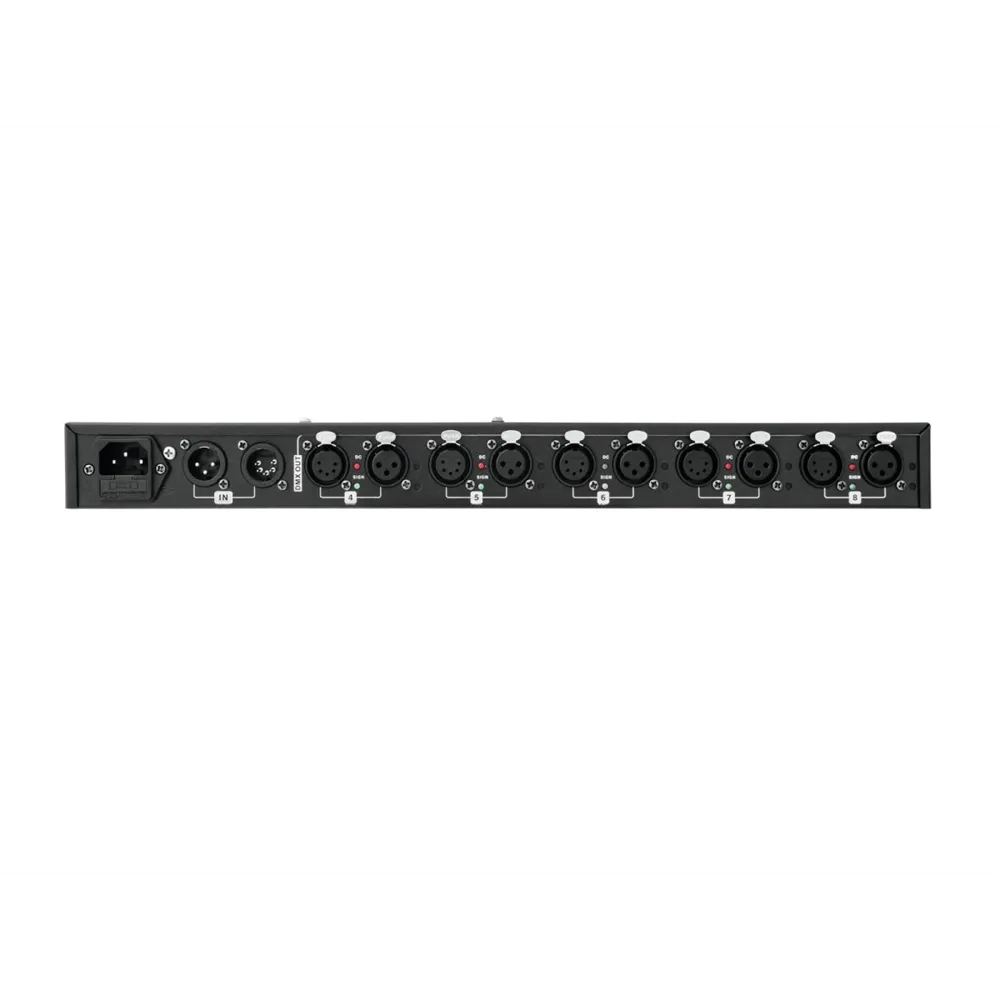

DMX input: 1 x 3-pin XLR (M) installation version, 1 x 5-pin XLR (M) installation version
DMX output: 8 x 3-pin XLR (F) installation version, galvanically isolated with independent driver and status indicator; 8 x 5-pin XLR (F) installation version, galvanically isolated with independent driver and status indicator; 1 x 5-pin XLR (F) installation version bypass; 1 x 3-pin XLR (F) installation version bypass
Controls: Bypass/termination resistor switch, power switch
Dimensions: Width: 48.3 cm, Depth: 14.5 cm, Height: 4.45 cm
Weight: 2.55 kg

EUROLITE DMX Split 8X RDM Splitter

The EUROLITE DMX Split 8X RDM Splitter is the ideal solution for anyone looking to distribute a DMX input signal to up to eight galvanically isolated outputs. Equipped with both 3-pin and 5-pin QuickDMX XLR sockets, this splitter offers maximum flexibility for your lighting control.

A standout feature is the switchable filter mode, which filters out RDM data, thereby avoiding issues when used with devices that do not support RDM. Each DMX output has an independent driver and a status indicator, allowing for easy monitoring and control. Additionally, both the input and outputs are equipped with an internal 500 mA fuse to ensure maximum safety.

The splitter is designed for 19" rack mounting and occupies only 1 U of rack space. With a total power consumption of just 5 W, it is energy-efficient and easy to integrate. Included in the package are the device itself, a user manual, and a power cable. The EUROLITE DMX Split 8X RDM Splitter is the perfect choice for professional lighting technicians and event planners.
