EUROLITE DMX Power Splitter 4x4 5-Pin XLR

EUROLITE DMX Power Splitter 4x4 5-pol XLR

EUROLITE DMX Power Splitter 4x4 5-Pin XLR

Brand:

EUROLITE DMX Power Splitter 4x4 3-Pin XLR

Features

1 P-Con input to 4 outputs, max. 16 A
1 DMX input to 4 outputs
1 DMX loop-through output
Switchable RDM filter mode
Selectable termination resistor
Galvanically isolated input and output
Each DMX output with independent driver and status indicator
Controllable via RDM
19" rack mountable, 1U
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 5 W
Output current: Max. 4 x 4 A per channel
Power connection: Via P-Con (blue), installation version
Power output: 4 x P-Con (gray), installation version
DMX input: 1 x 5-pin XLR (F)

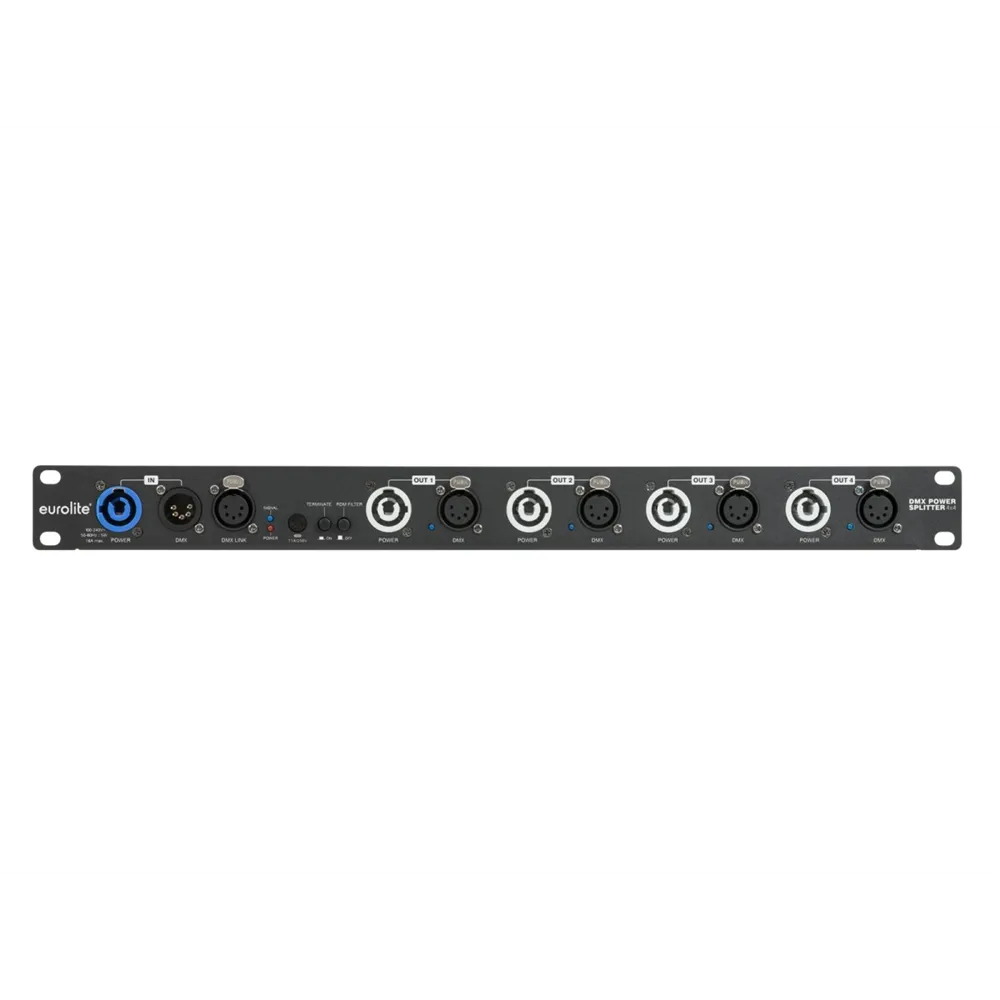

DMX output: 4 x 5-pin XLR (F) with independent driver and status indicator
Enclosure design: 19" rack mountable, 1U
Dimensions: Width: 48.3 cm, Depth: 13.8 cm, Height: 4.3 cm
Weight: 2.55 kg

EUROLITE DMX Power Splitter 4x4 5-Pin XLR

The EUROLITE DMX Power Splitter 4x4 is the ideal solution for anyone needing reliable distribution of DMX512 signals and power supply. With a maximum current of 16 A, this powerful splitter allows for the simultaneous control of up to four DMX devices. Equipped with one DMX input and four DMX outputs, it also features a DMX loop-through output for connecting additional splitters. The LED status indicators on each output provide easy monitoring of operational status.

The splitter supports RDM (Remote Device Management) for bidirectional communication over the DMX line and is designed for mounting in a 19" equipment rack. With a switchable RDM filter mode and a selectable termination resistor, it offers additional flexibility. Each DMX output is equipped with an independent driver, ensuring optimal signal transmission.

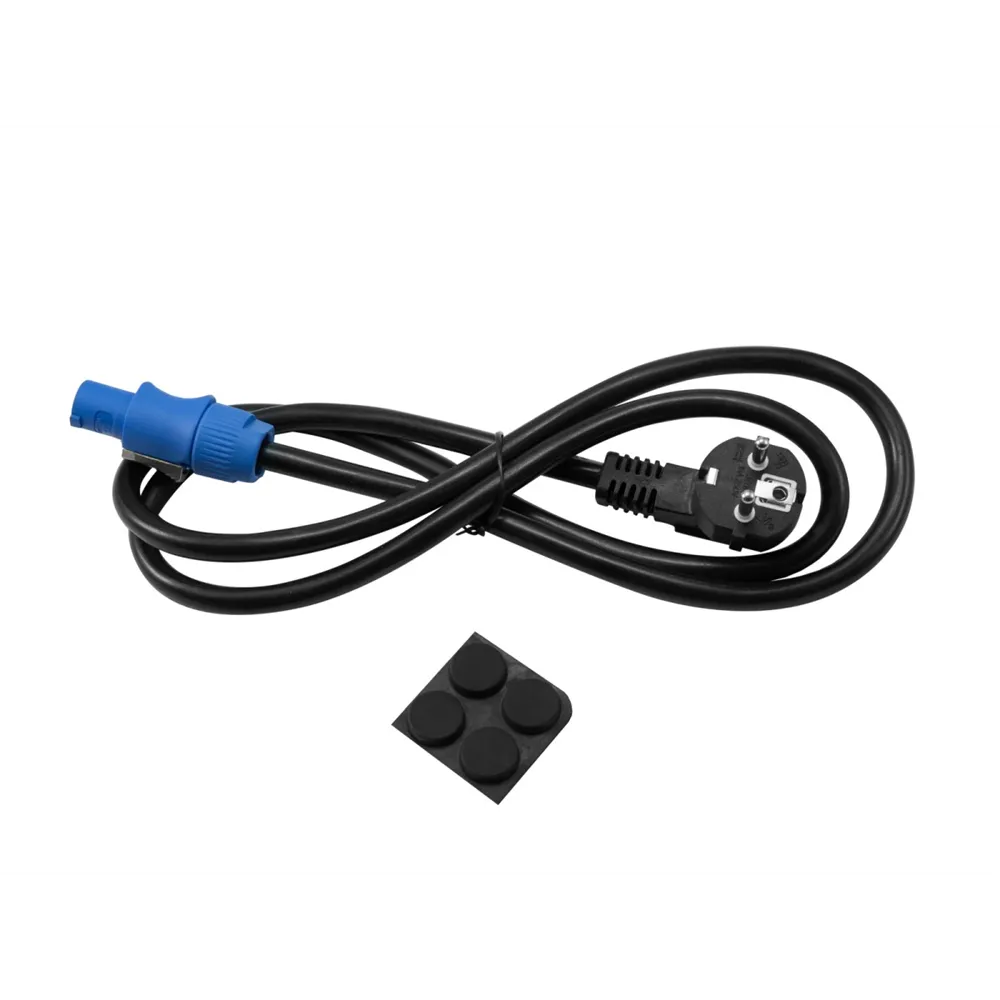

Included in the package are the device itself, a user manual, and a power cable. With a compact design and a weight of only 2.55 kg, the EUROLITE DMX Power Splitter 4x4 is the perfect choice for professional applications in event technology.
