Features
- Weatherproof splitter with 8 galvanically isolated outputs, 3-pin IP-XLR sockets
- DMX distributor for splitting a DMX input signal into 8 DMX outputs
- Galvanically isolated input and output
- Suitable for outdoor use, IP65 rated
- Includes mounting bracket for wall installation
- DMX controllable
- Equipped with pressure equalization membrane
- Mounting options: wall-mounted; suspended; standing
- Applications include: installation; mobile use; stage; architecture
- Silent operation
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 4 W
- Protection class: IP65
- Protection rating: Class I

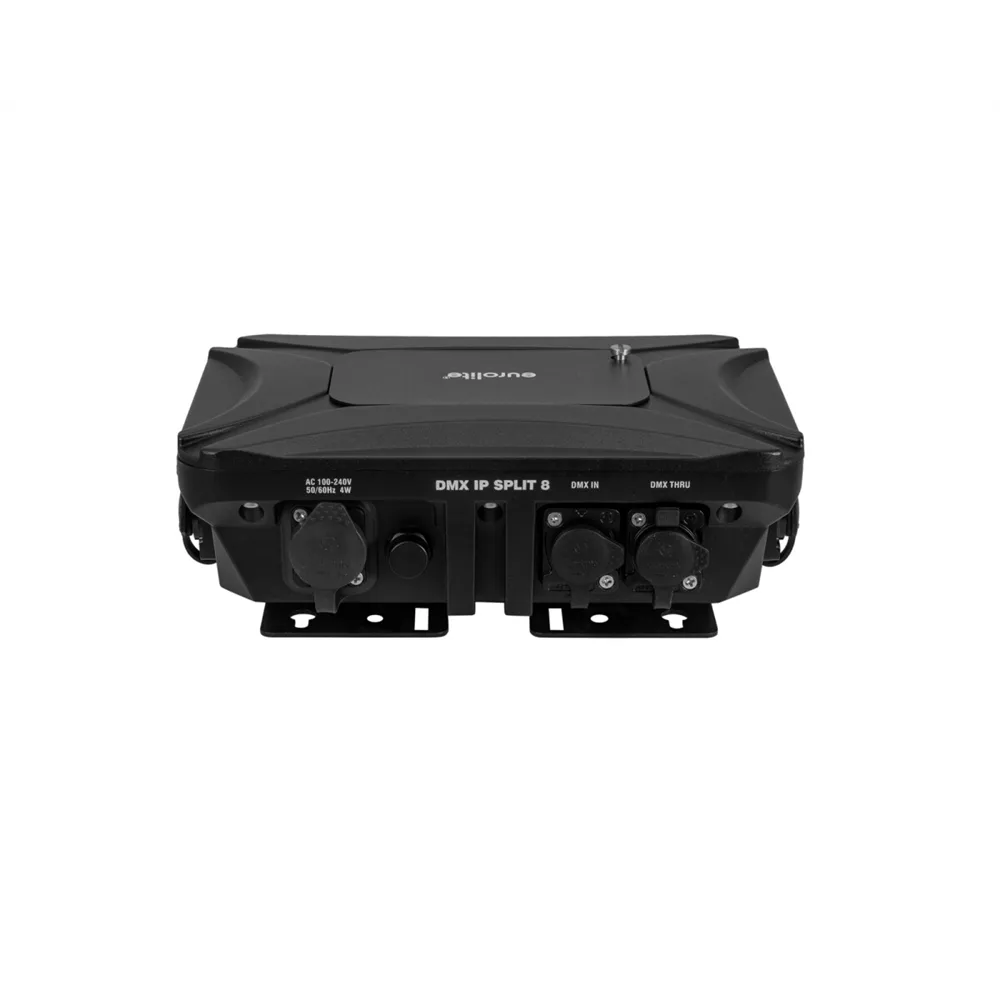

- Power connection: Power supply via IP T-Con (M) installation version with protective contact plug
- Fuse: T 1 A fuse fixed (e.g., mounted on the circuit board)
- DMX input: 1 x 3-pin XLR (M) installation version IP
- DMX output: 1 x 3-pin XLR (F) installation version IP; 8 x 3-pin XLR (F) installation version IP galvanically isolated
- Control: DMX

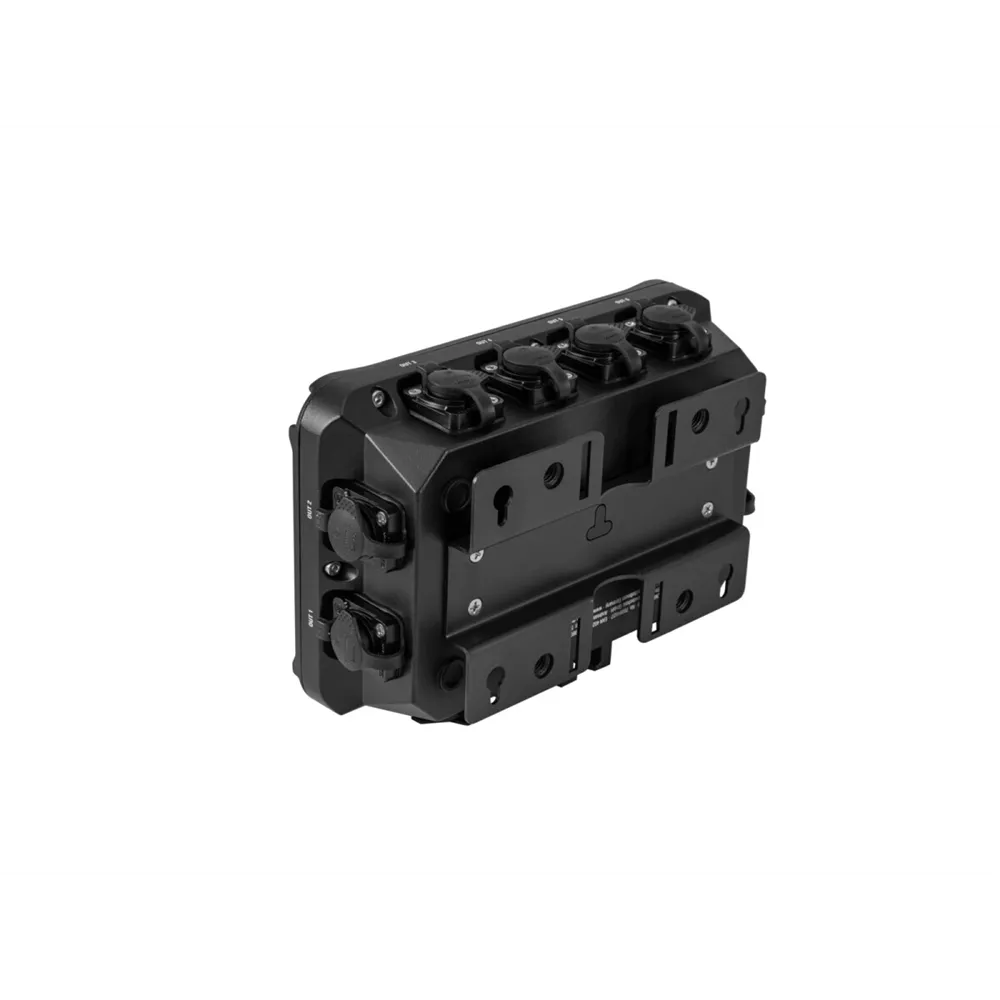

- Mounting system: M10 thread; mounting bracket for wall installation

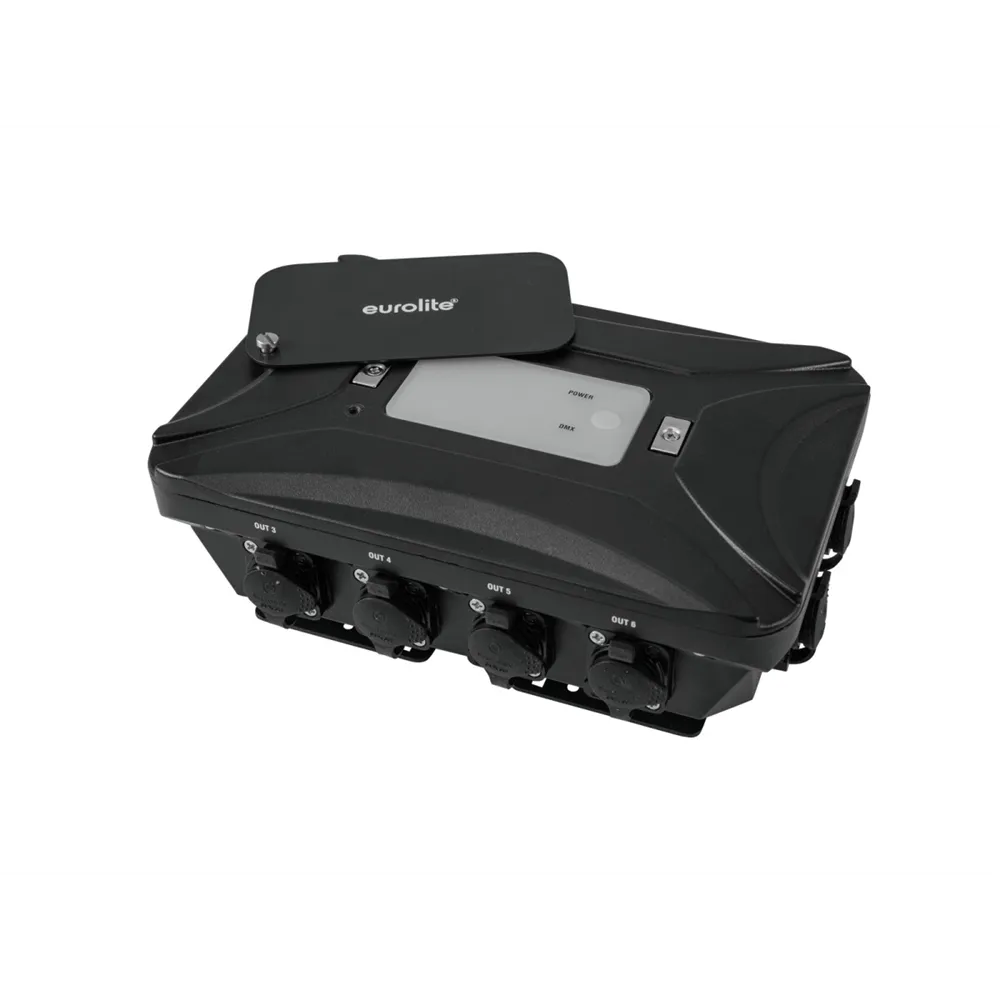

- Status LED: Power, DMX
- Material: Die-cast aluminum
- Color: Black
- Dimensions: Length: 22.5 cm; Width: 15.0 cm; Height: 8.5 cm
- Weight: 2.13 kg
- Noise classification: Class 0 (no noise)

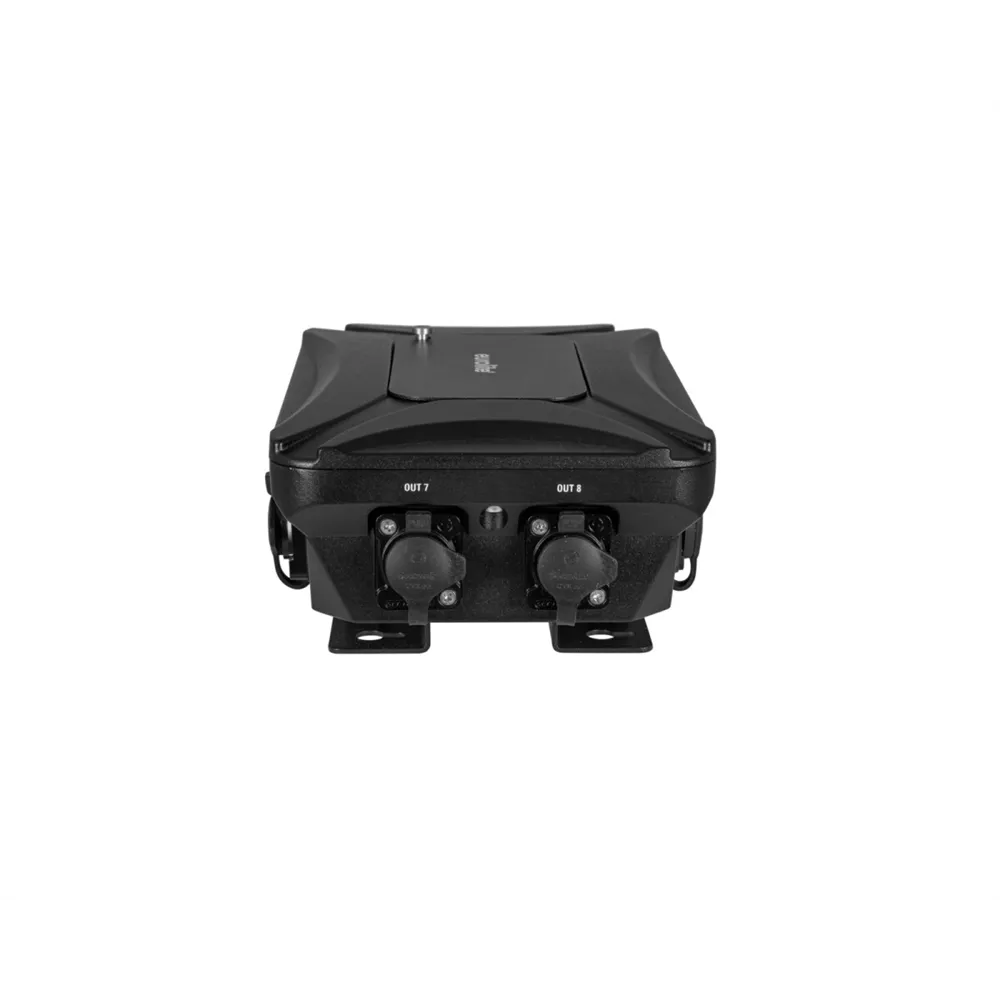

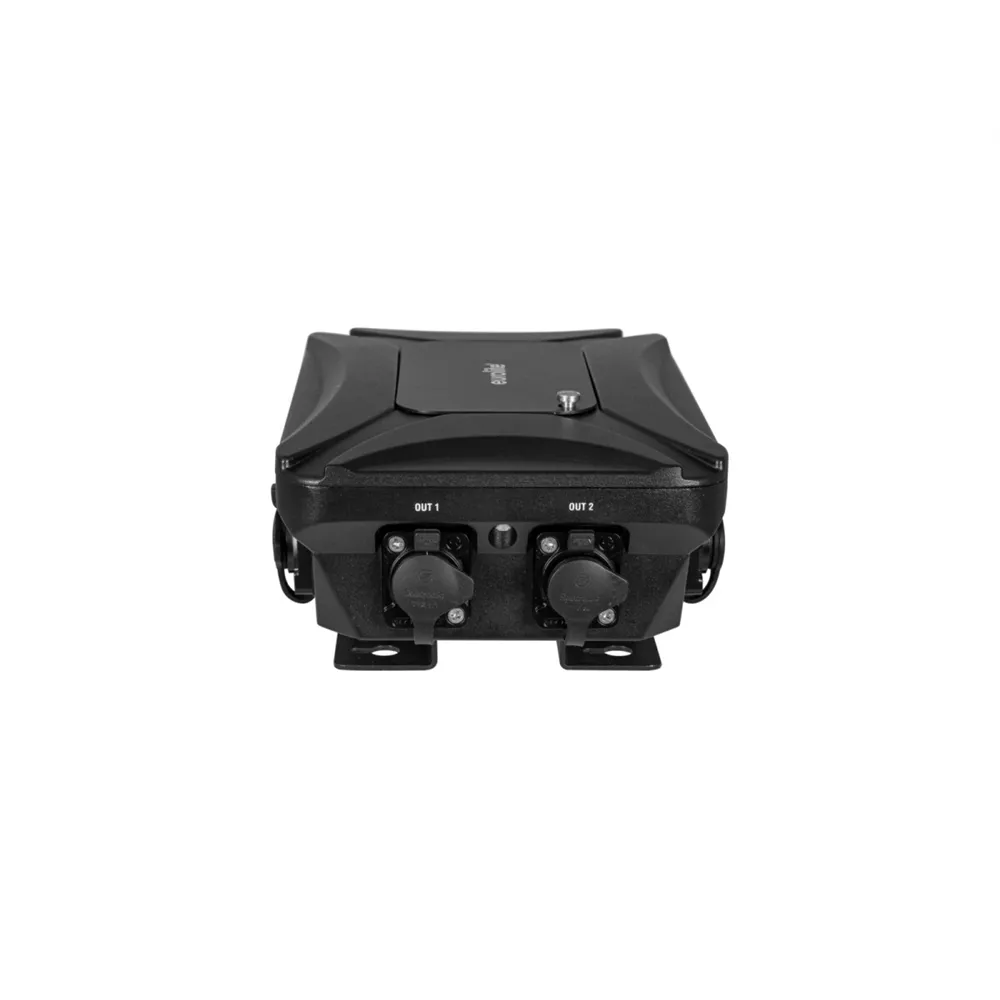

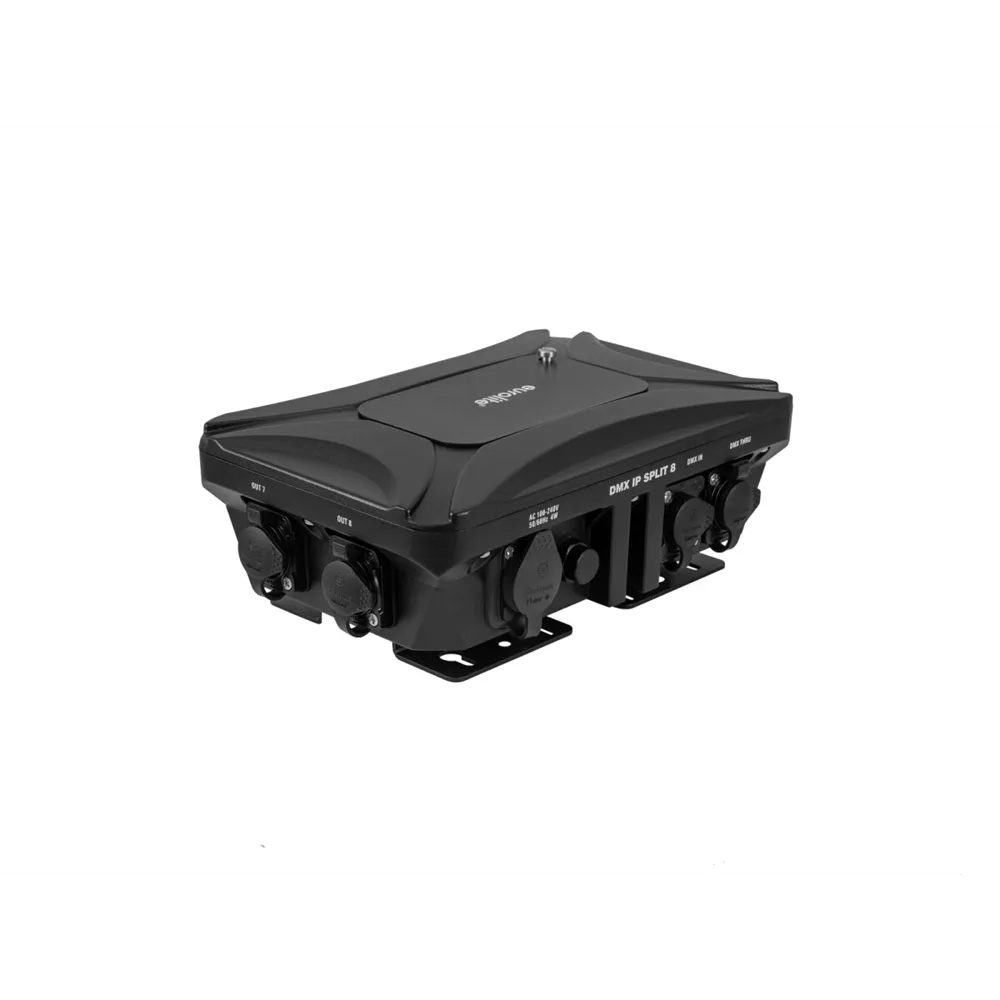

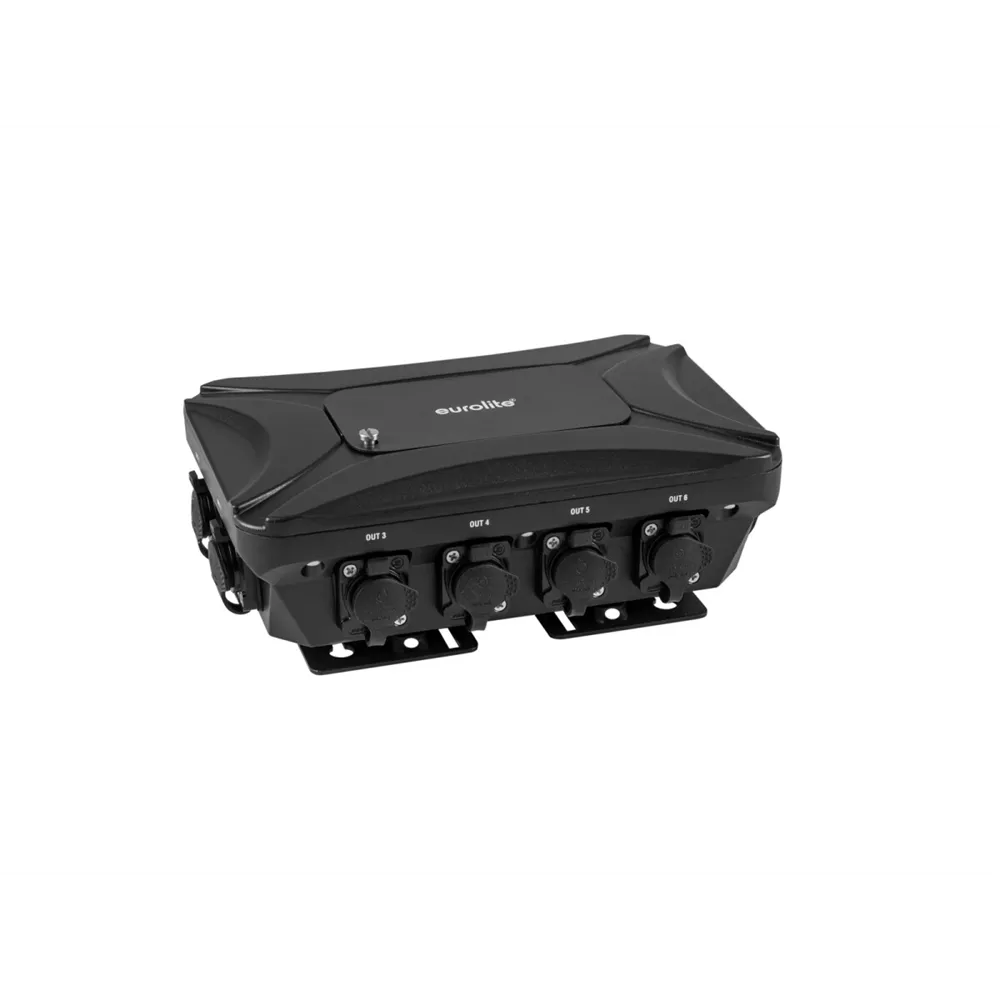

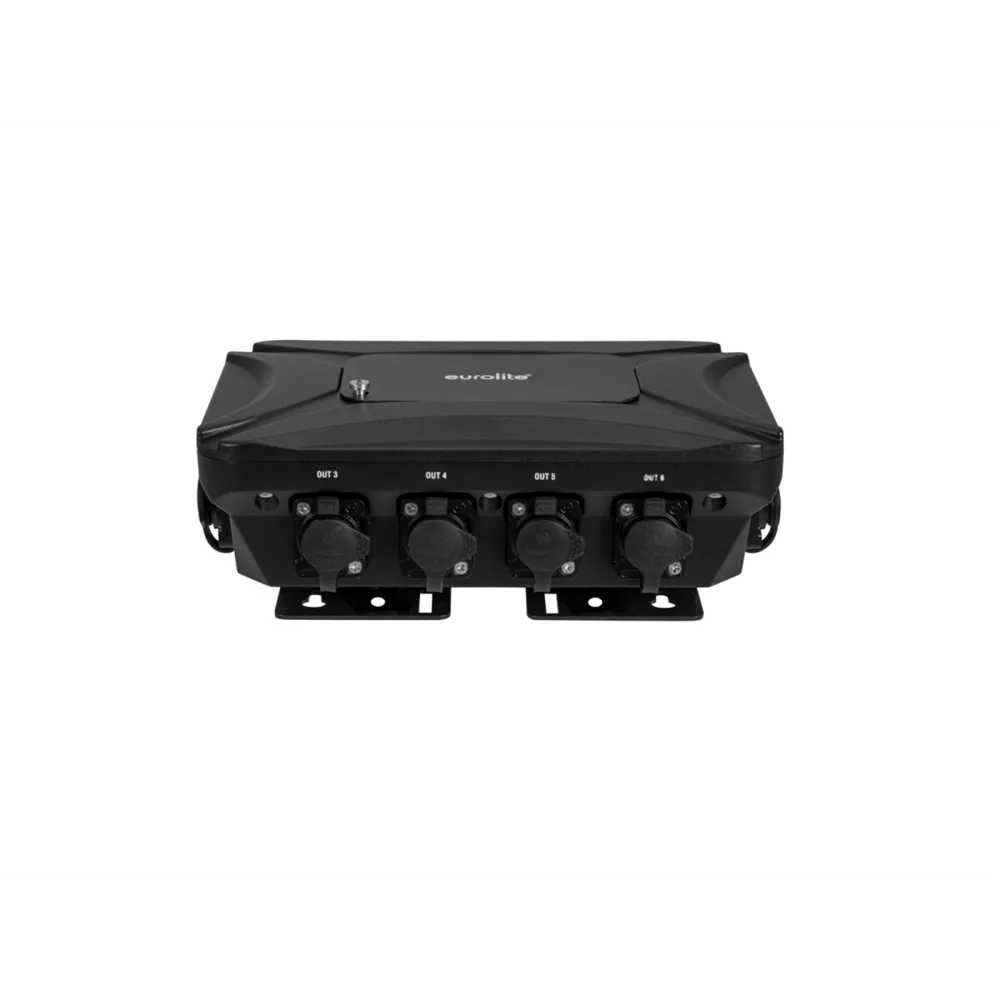

EUROLITE DMX IP Split 8 DMX Splitter 3-Pin
The EUROLITE DMX IP Split 8 DMX Splitter is the ideal solution for anyone in need of a reliable and weatherproof DMX distribution system. Featuring eight galvanically isolated outputs and robust 3-pin IP-XLR connectors, this splitter is perfectly suited for outdoor use and meets the IP65 protection rating. It allows for the distribution of a DMX input signal to eight DMX outputs, ensuring flexible and efficient signal distribution.
The splitter is designed not only for wall mounting but can also be used in a flying or standing configuration, making it a versatile choice for installations, mobile applications, stages, and architectural uses. With a noise classification of Class 0, the splitter operates silently, ensuring it does not disrupt the atmosphere of your event.

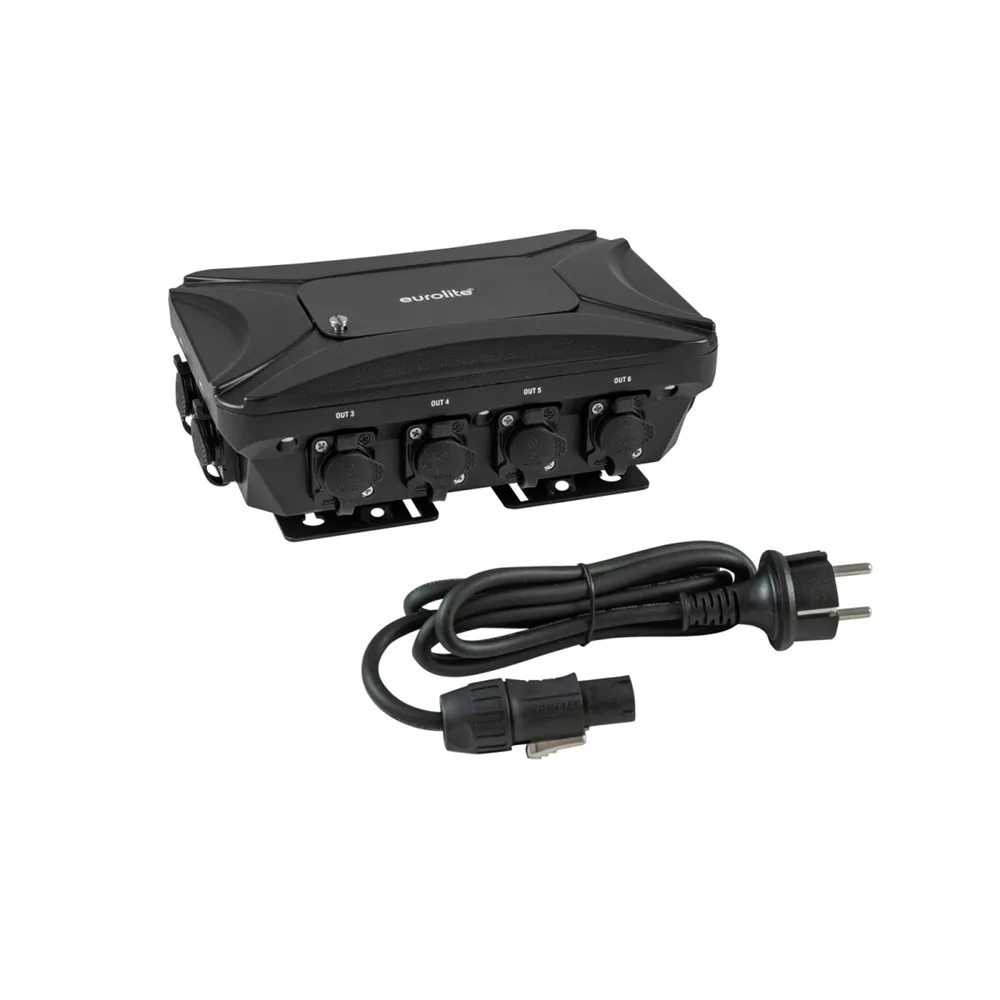

Included in the package are the device itself, a power cable, and a user manual. The splitter is made from high-quality aluminum die-cast and is elegantly finished in black. With compact dimensions of 22.5 cm in length, 15.0 cm in width, and 8.5 cm in height, as well as a lightweight design of only 2.13 kg, it is easy to transport and install.
