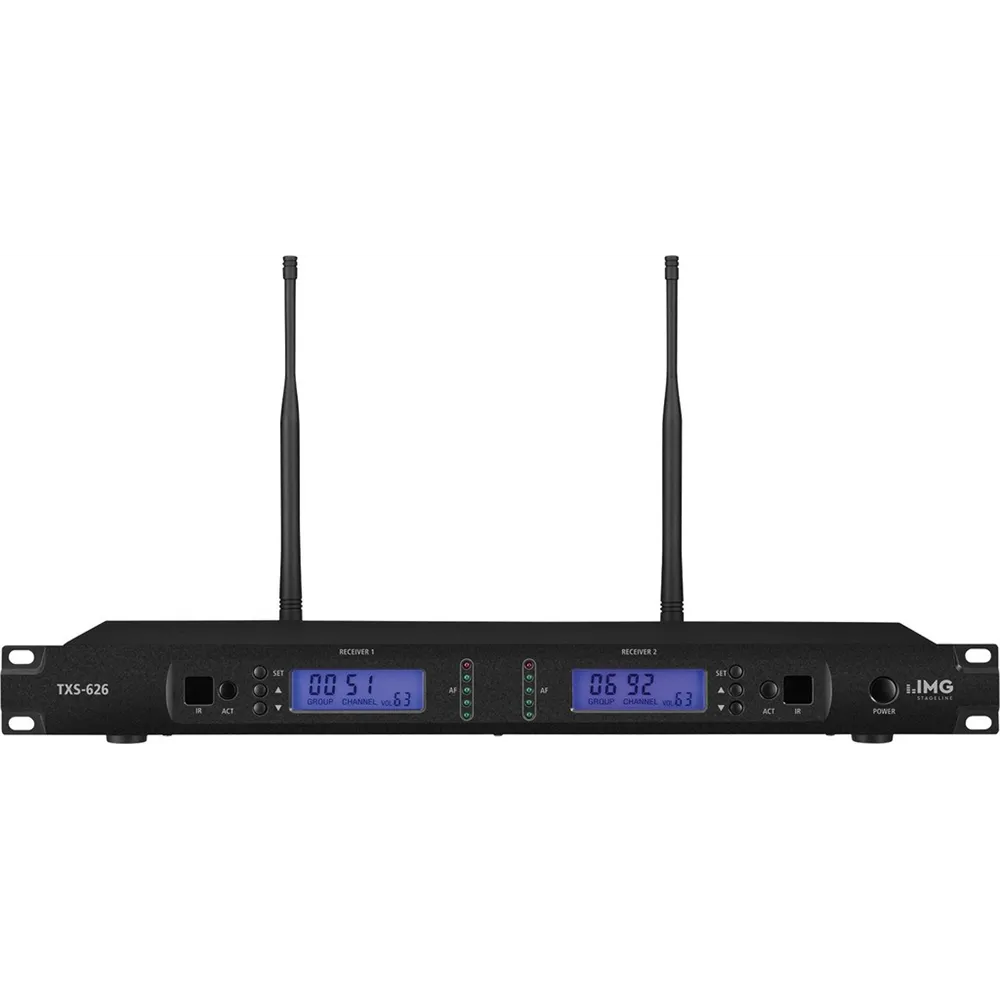

IMG TXS-626 2-Channel Multi-Frequency Receiver Unit

Features

• 2-channel multi-frequency receiver unit with UHF PLL technology
• 1000 UHF frequencies (672.000-696.975 MHz) adjustable per channel (10 groups with 100 frequencies each)
• ACT function for transferring the selected frequency to the bodypack transmitter TXS-60HSE/2, lavalier microphone transmitter TXS-606LT/2, desktop microphone transmitter TXS-606DT/2, or handheld microphone TXS-606HT/2 via infrared signal
• Automatic frequency scan
• True diversity system with detachable antennas (BNC connector)
• Adjustable volume and squelch per channel
• LCD display for group/channel, antenna A/B, RF reception level, audio level, and additional LED level indicator for audio level per channel
• XLR output per channel, balanced
• 6.3 mm jack output for mixed signal
• 8V power supply for active antennas or antenna amplifiers (e.g., TXS-875B) available
• Sturdy metal housing
• Power supply included
• 482 mm rack mount (19"), 1U
• Carrier frequency range: 672.000-696.975 MHz
• Audio frequency range: 30-18,000 Hz
• Channels: 2
• Dynamic range: 100 dB
• RF signal-to-noise ratio: 105 dB
• Permissible operating temperature: 0-40 °C
• Audio signal receiver: 350 mV/600 Ω (jack), 25 mV/600 Ω (XLR, balanced)
• Power supply for receiver: via included plug-in power supply
• Width of receiver: 482 mm
• Height of receiver: 45 mm
• Depth of receiver: 195 mm
• Weight of receiver: 1.8 kg
• Connections of receiver: 2 x XLR, balanced, 1 x 6.3 mm jack, unbalanced
