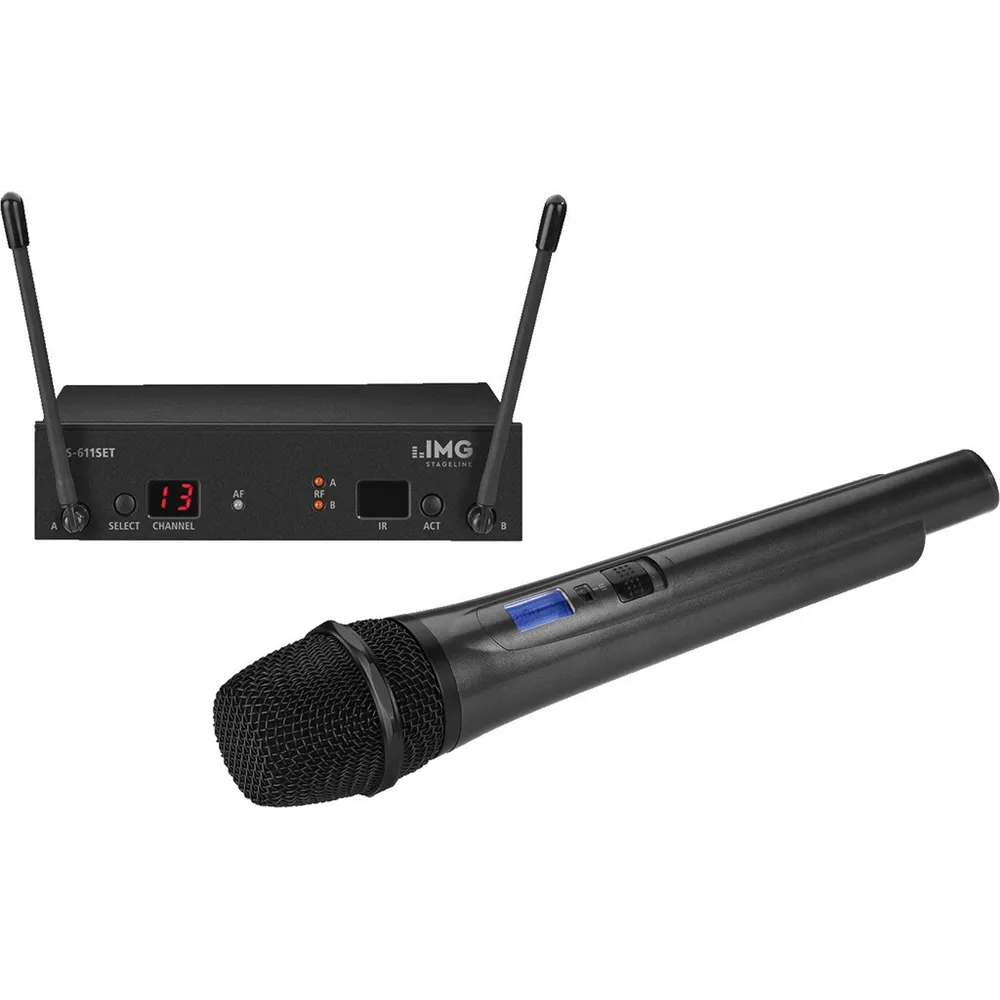

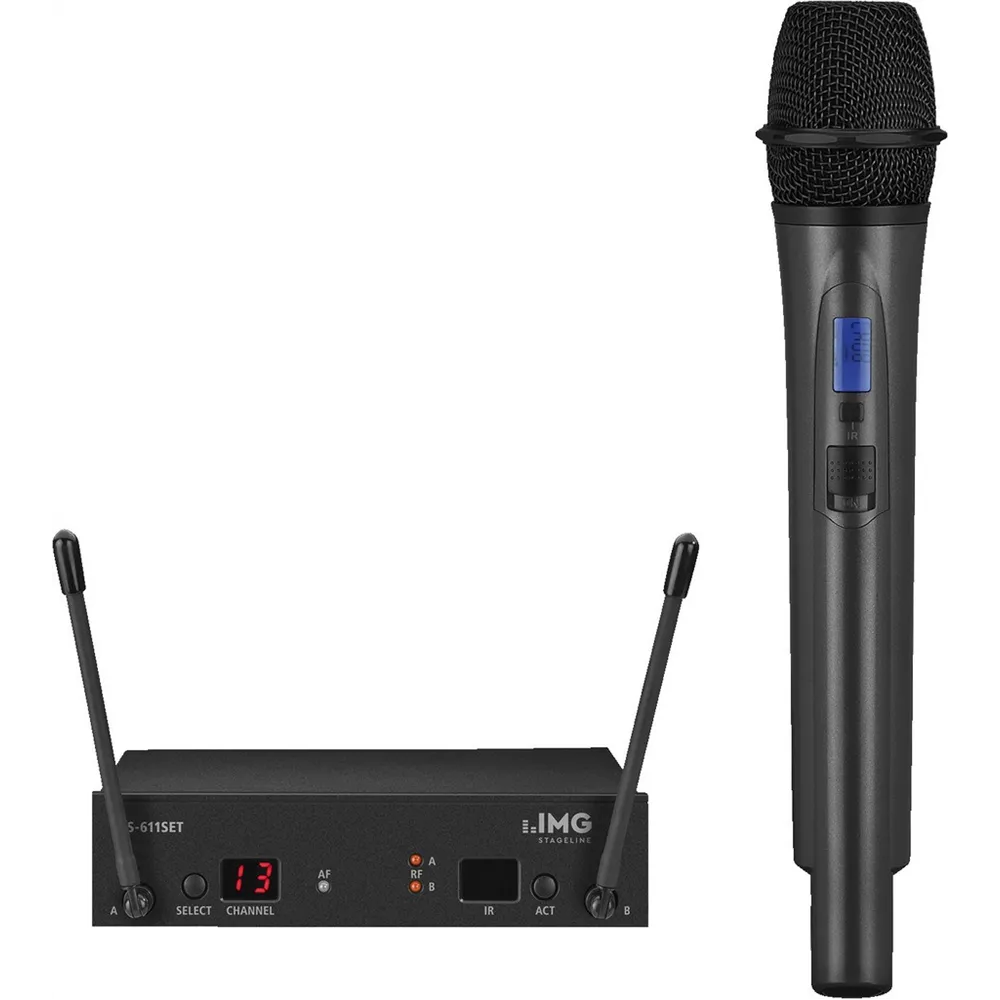

IMG STAGELINE Microphone System True Diversity 863-865 MHz

Features

• Multi-frequency microphone system with UHF-PLL technology
• 1 handheld microphone transmitter (cardioid pattern), 1 receiver, 1 power adapter
• True diversity system
• 80 adjustable UHF channels (863-865 MHz)
• ACT function for transferring the selected frequency to the handheld microphone via infrared signal
• Automatic channel scan
• Volume and squelch control
• Switchable transmission power on the handheld microphone (high/low)
• Display for channel, antenna A/B, ACT status, and audio level (receiver), channel and battery status (handheld microphone)
• Durable metal housing (receiver)
• Type: Wireless microphone system
• Carrier frequency range: 863-865 MHz
• Audio frequency range: 50-18,000 Hz
• Channels: 1
• Dynamic range: 120 dB
• RF signal-to-noise ratio: 105 dB
• Permissible operating temperature: 0-40 °C
• Range: ≈ 30 m
• Power supply for transmitter: 2 x 1.5V AA batteries
• Width of transmitter: 52 mm
• Height of transmitter: 52 mm
• Depth of transmitter: 275 mm
• Weight of transmitter: 235 g
• Audio output from receiver: 350 mV/10 kΩ (jack), 25 mV/10 kΩ (XLR, balanced)
• Power supply for receiver: via included power adapter
• Width of receiver: 152 mm
• Height of receiver: 38 mm
• Depth of receiver: 120 mm
• Weight of receiver: 482 g
• Receiver connections: 1 x 6.3 mm jack, unbalanced and 1 x XLR, balanced
