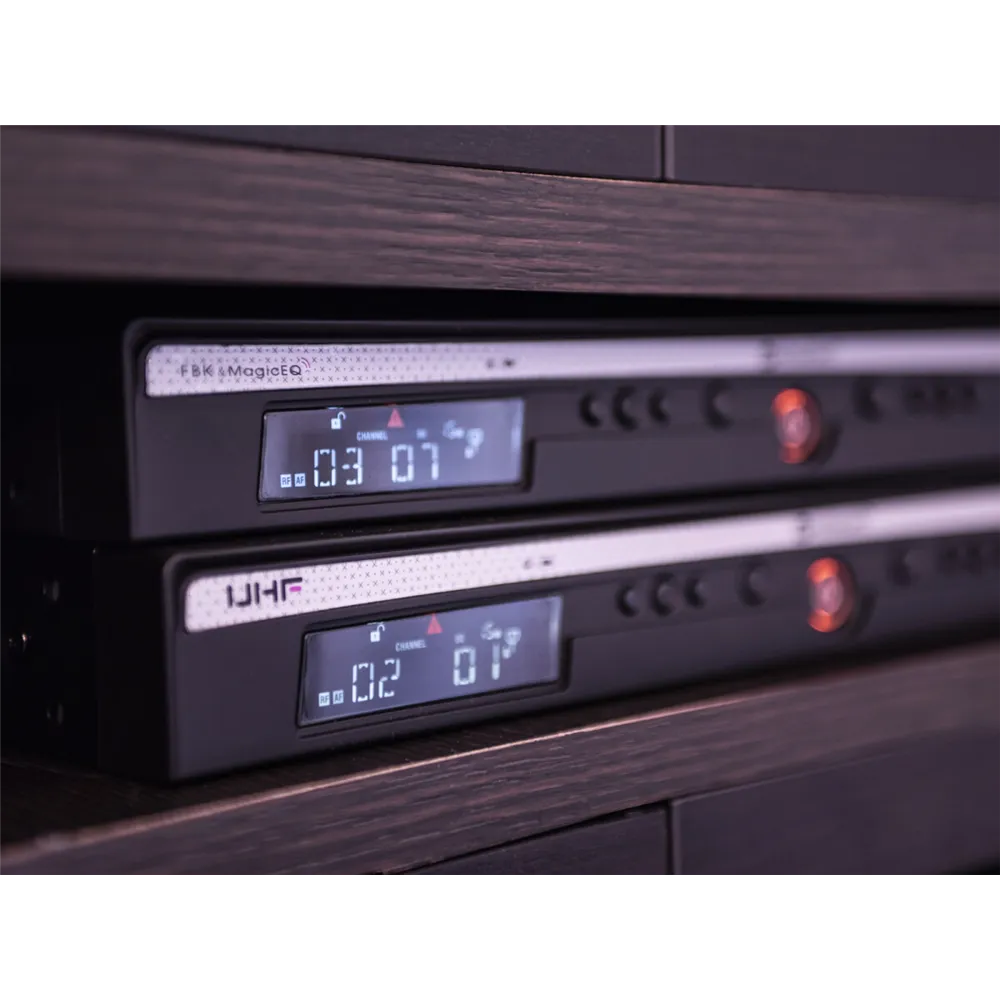

RELACART UR-260D 2-Channel UHF System 823-832 + 863-865 MHz
Features
- 2-channel multi-frequency wireless receiver with 24-bit processor for superior sound quality
- Integrated MagicEQ enables spectacular microphone modeling of handheld microphones
- 7 presets featuring popular microphones (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-defined presets
- Built-in feedback killer for automatic feedback suppression and crystal-clear sound quality at maximum gain
- DSP processing and management via Ethernet interface and intuitive PC software
- Antenna diversity technology for optimal reception quality
- 10 groups with 90 fixed frequencies within an 11 MHz switching bandwidth
- Pilot frequency squelch technology to eliminate wireless RF interference
- Automatic frequency scan (AFS) to find interference-free reception channels
- Infrared interface for quick and error-free synchronization between transmitter and receiver
- Cascading multiple receivers via network cable is possible
- Lock function prevents accidental changes to settings
- 2 detachable antennas (BNC) allow combination with the antenna splitter R-14D
- Sturdy metal housing
- Digital signal processor 96kHz, 24 bit
- Multicolor LCD display
- UHF 863 - 865 MHz registration-free and fee-free in Europe
- UHF 823 - 832 MHz registration-free and fee-free in large parts of Europe
- Range of up to 80m

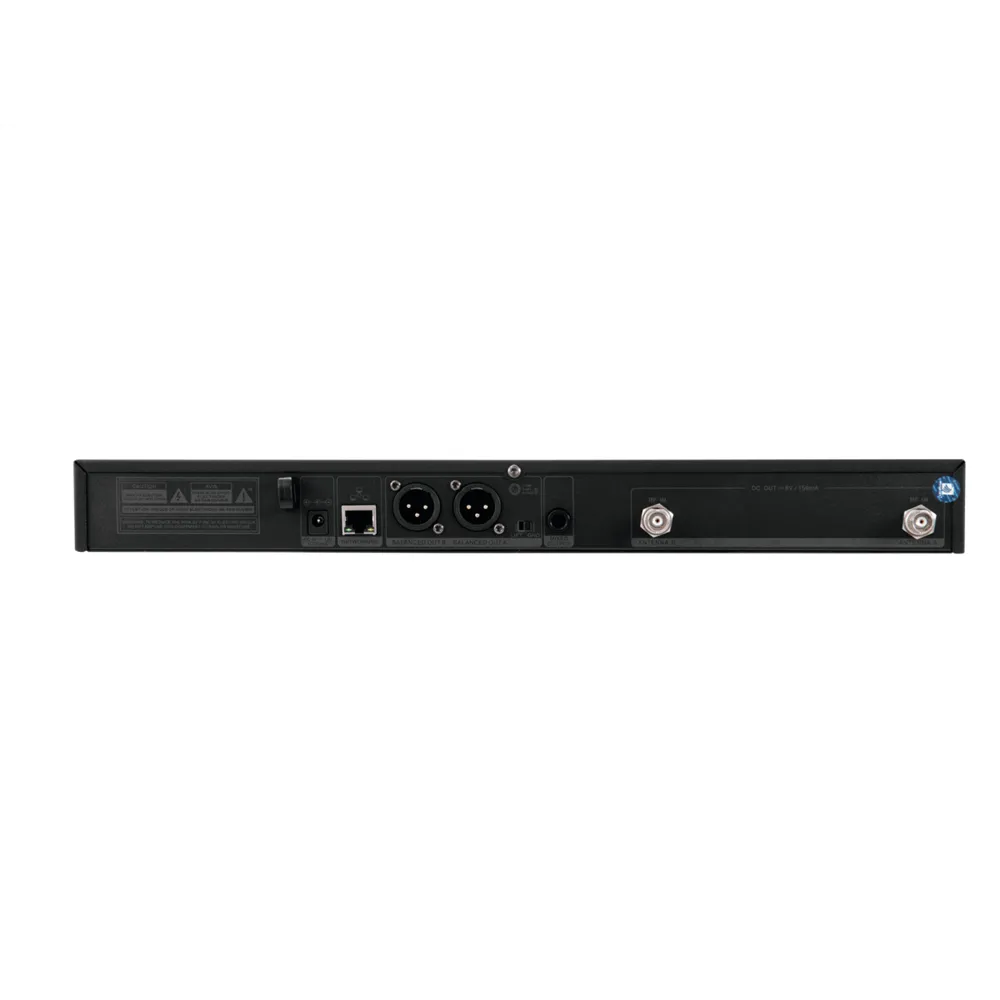

- PC connection via RJ-45 (W) with RELACART Magic EQ software
- Desktop housing, 19" rack mountable (1U)
- Up to 9 transmitters can operate interference-free in parallel
- Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
- Total connection value: Max. 9 W
- Frequency range: 45 - 18000 Hz
- Signal-to-noise ratio: >100 dB
- Frequency band: UHF 863 - 865 MHz; UHF 823 - 832 MHz
- Diversity: Antenna diversity
- Switching bandwidth: 11 MHz
- Frequency stability: ± 0.0005 %
- Modulation: FM
- Frequency selection: 90 frequencies switchable in 10 groups with up to 10 preset frequencies each
- Display type: Multicolor LCD display
- Material: Metal
- Color: Black
- Dimensions: Width: 41 cm, Depth: 26 cm, Height: 4.3 cm
- Weight: 2.40 kg
RELACART UR-260D Dual-Channel UHF System 823-832 + 863-865 MHz
The RELACART UR-260D is a state-of-the-art dual-channel true diversity UHF system designed for professional applications. With a frequency range of 823-832 MHz and 863-865 MHz, it ensures interference-free transmission thanks to its automatic frequency scanning feature. The integrated feedback suppression system delivers crystal-clear sound, even at maximum gain.
A standout feature of the UR-260D is the MagicEQ, which allows users to simulate or customize various sound characteristics of well-known microphone capsules. Presets can be conveniently adjusted via the included PC software during live operation. With a range of up to 80 meters and the capability to operate up to 9 transmitters simultaneously, this system is ideal for concerts, events, and studio applications.

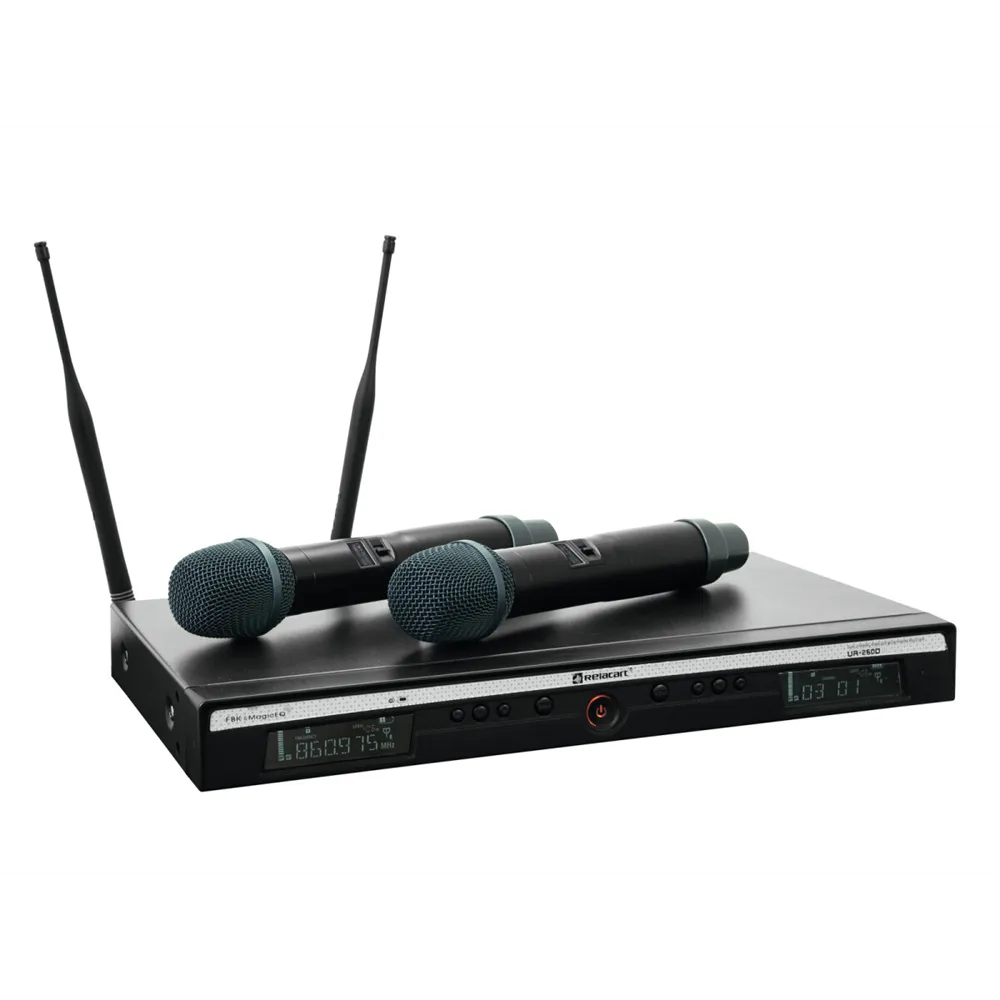

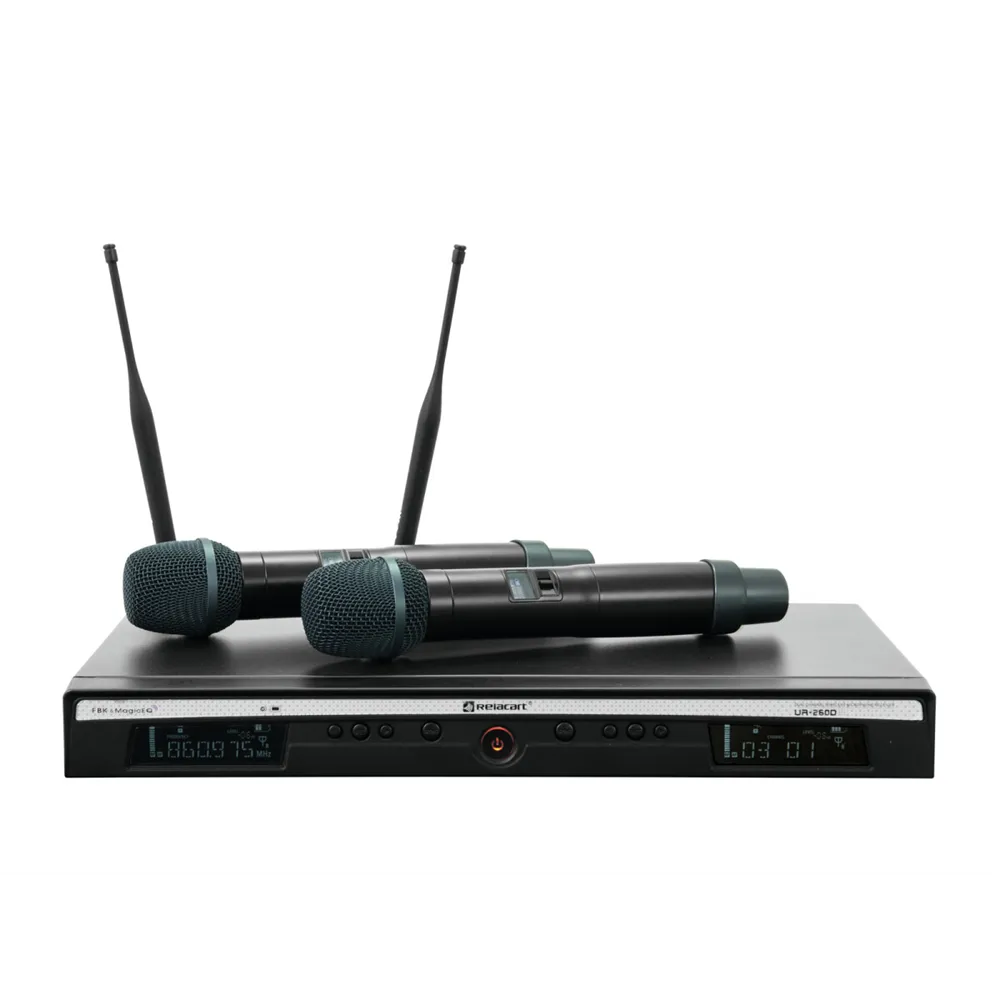

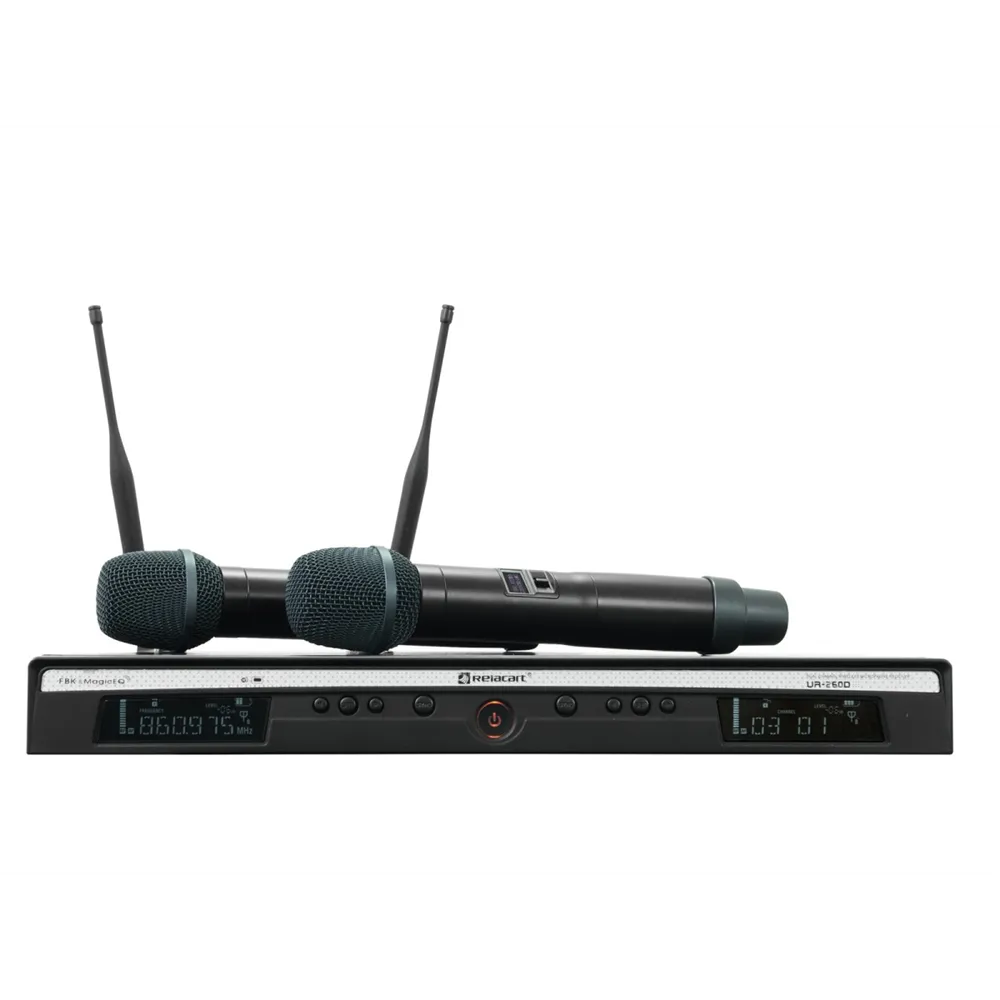

The robust metal housing and detachable antennas ensure high durability and flexibility. The package includes a receiver, two microphones, antennas, an external power supply, and additional accessories. Experience top-notch sound quality and innovative technology with the RELACART UR-260D!
