IMG STAGELINE Digital Amplifier 700W Max

Features

• Class-D design with HYPEX amplifier modules
• 482 mm rack-mountable (19"), 1U, with included mounting brackets
• Silent operation due to temperature-controlled fans
• Weight-reduced construction with compact switch-mode power supply
• Energy-efficient design with high efficiency
• Powerful bass response thanks to generously sized filter capacitors (high power reserve)

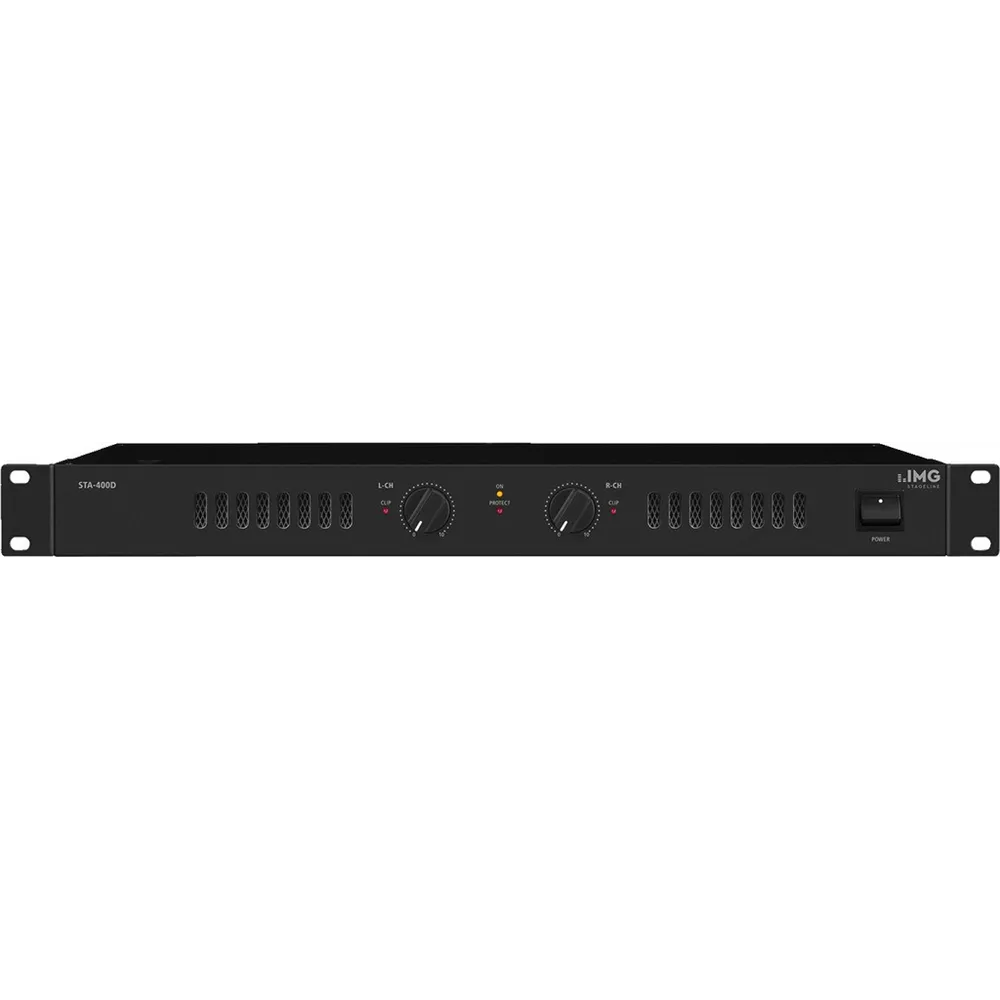

• 2 level controls
• Protection circuits against short circuits and overheating
• LED indicators for Power, Overload (CLIP), and Protect
• Ultra-slim form factor
• NEUTRIK SPEAKON connectors
• Total output power: 700 W
• Rated power: 540 W
• Power at 4 Ω: 2 x 270 W
• Power at 8 Ω: 2 x 180 W
• Channels: 2
• Inputs: 1 V/10 kΩ (XLR, balanced), 1 V/4.7 kΩ (RCA)
• Frequency range: 20-20,000 Hz
• Integrated limiter: no
• Signal-to-noise ratio: > 110 dBA
• Power supply voltage: ~ 230 V
• Power supply frequency: 50 Hz
• Power consumption in operation: 600 VA
• Permissible operating temperature: 0-40 °C
• Width: 482 mm
• Height: 52 mm
• Depth: 277 mm
• Rack units (U): 1
• Weight: 3.5 kg

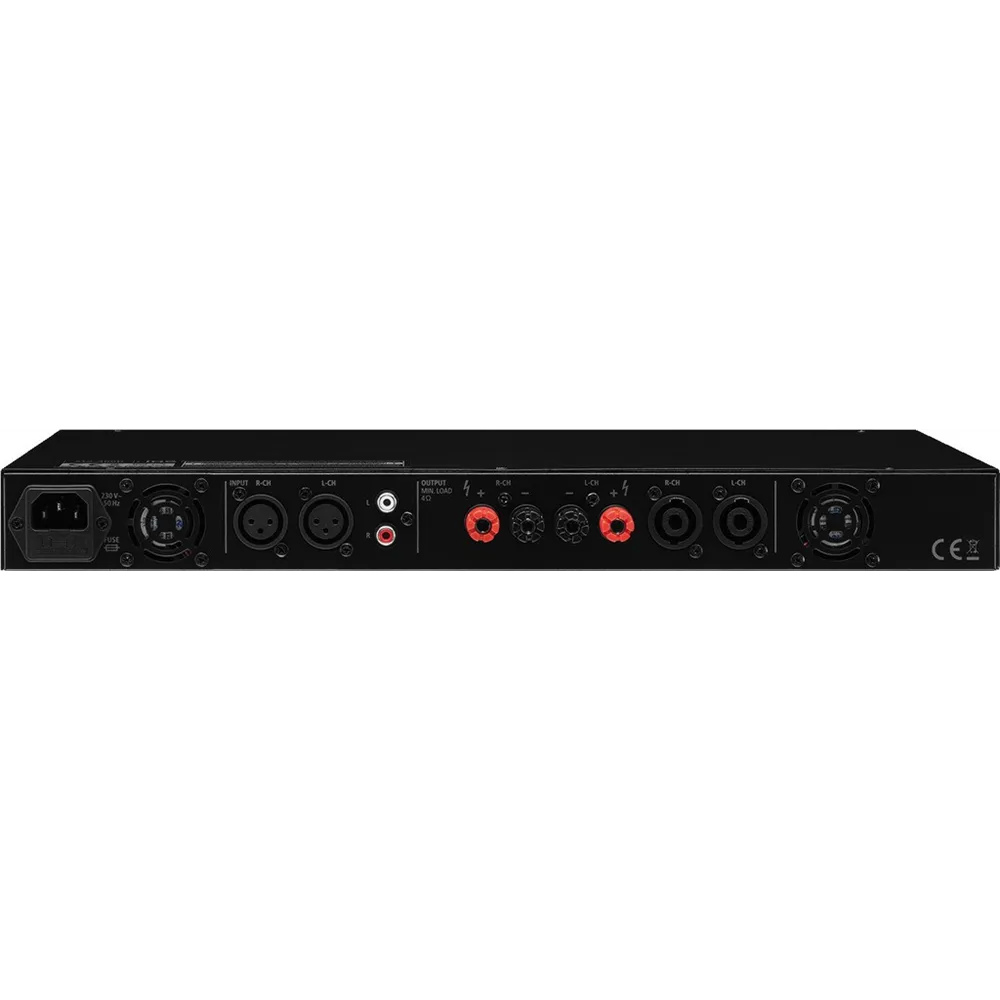

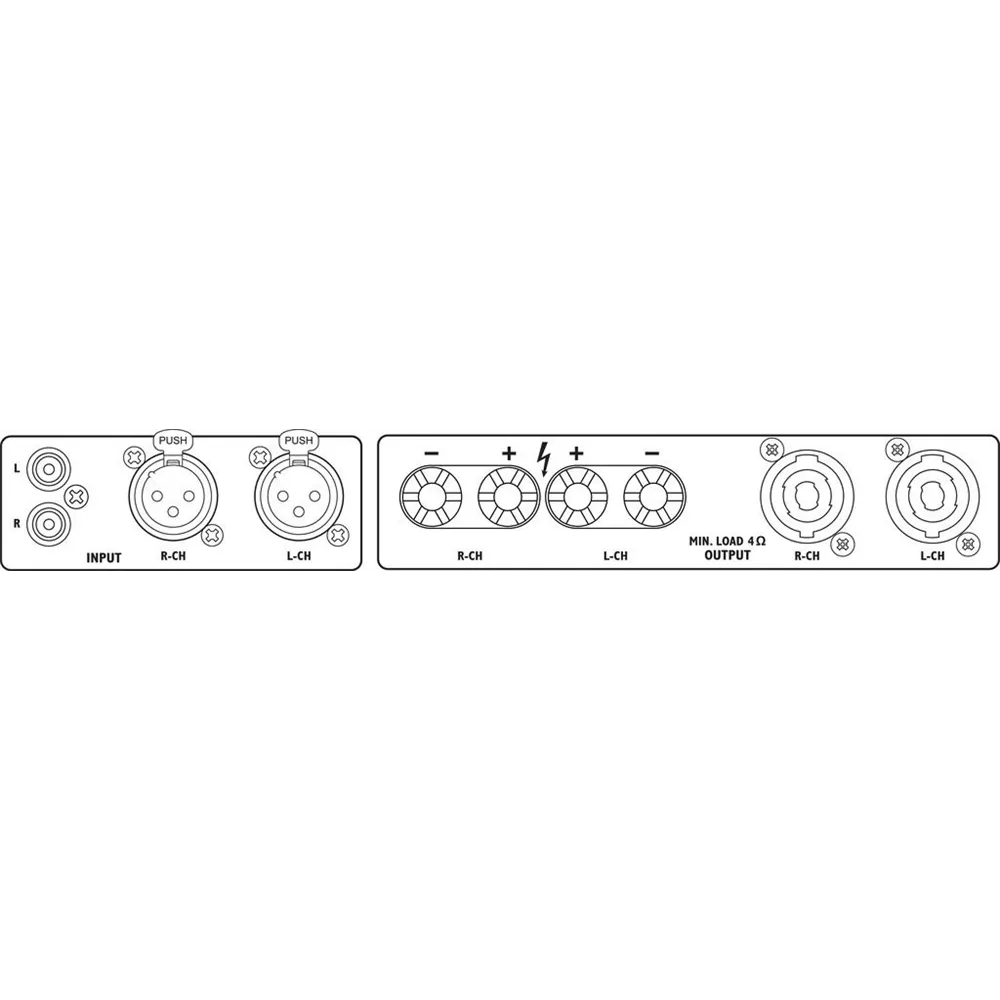

• Connections: 1 x 3-pin XLR L/R, 1 x RCA L/R, 1 x NEUTRIK SPEAKON L/R, 2 x screw terminal pairs
• Packaging dimensions (W x H x L): 0.32 x 0.095 x 0.53 m
• Gross weight: 4.31 kg
• Net weight: 3.56 kg
