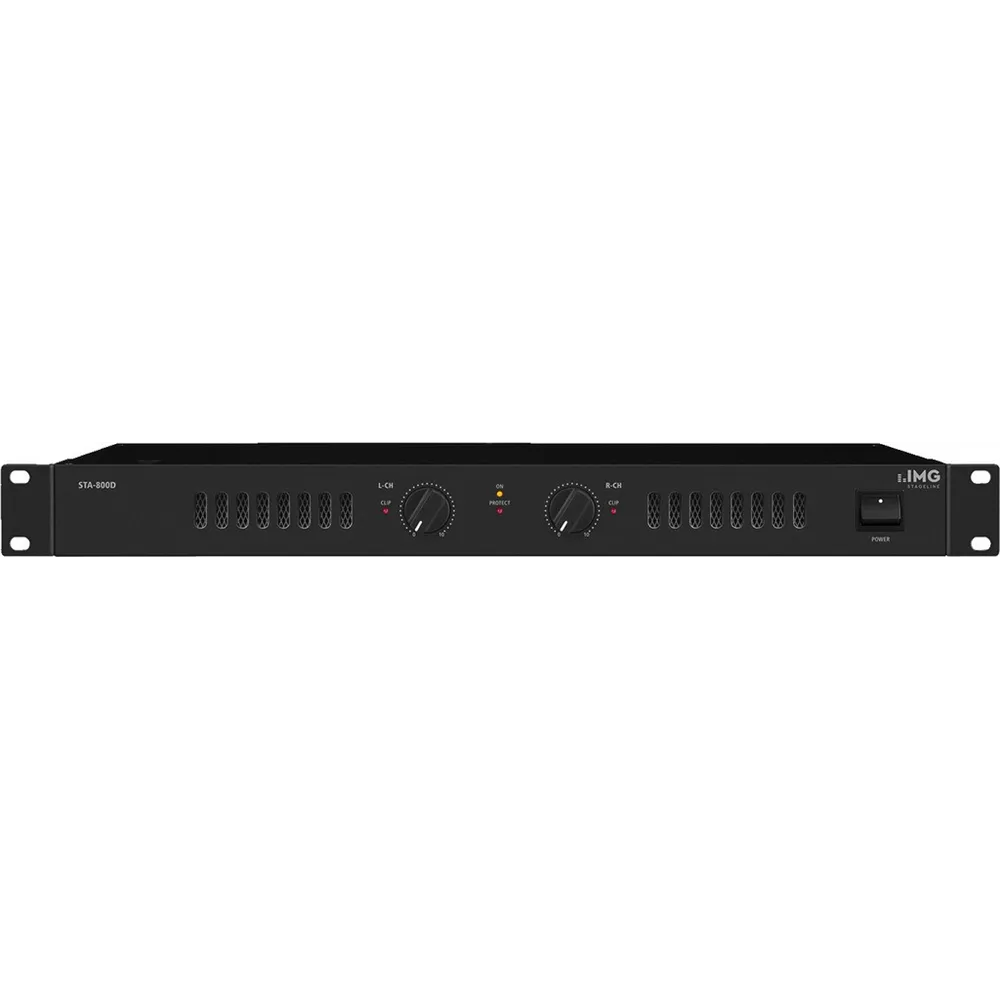

IMG STAGELINE Digital Amplifier

Brand:

Features

Stereo PA Class-D Amplifier
Class-D design with HYPEX power amplifier modules
Silent operation with temperature-controlled fans
Weight-reduced construction due to compact switch-mode power supply
Energy-efficient design with high efficiency
High peak load capacity through the use of two switch-mode power supplies
Powerful bass response thanks to generously sized filter capacitors (high power reserve)
2 level controls
Protection circuits against short circuits and overheating
LED indicators for Power, Overload (CLIP), and Protect
Ultra-slim form factor
NEUTRIK SPEAKON connectors
Total output power: 1000 W
Rated power: 800 W
Power at 4 Ω: 2 x 400 W
Power at 8 Ω: 2 x 210 W
Channels: 2
Inputs: 1 V/10 kΩ (XLR, balanced), 1 V/4.7 kΩ (RCA)
Frequency range: 20-20,000 Hz
Integrated limiter: no
Signal-to-noise ratio: > 110 dBA
Power supply voltage: ~ 230 V
Power supply frequency: 50 Hz
Power consumption in operation: 920 VA
Permissible operating temperature: 0-40 °C
Width: 482 mm
Height: 52 mm
Depth: 298 mm
Rack units (HE): 1
Weight: 4 kg

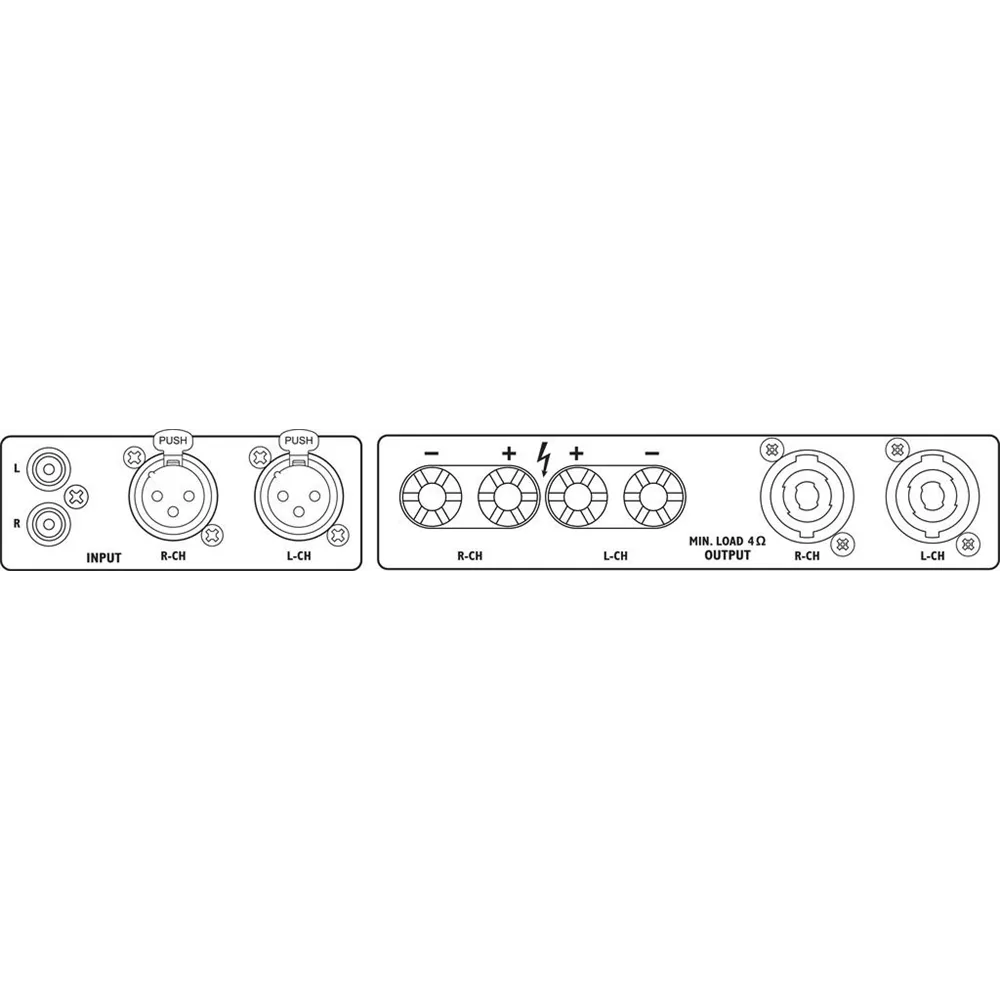

Connections: 1 x 3-pin XLR L/R, 1 x RCA L/R, 1 x NEUTRIK SPEAKON L/R, 2 x screw terminal pairs
Packaging dimensions (W x H x L): 0.34 x 0.095 x 0.53 m
Gross weight: 5.16 kg
Net weight: 4.37 kg

IMG STAGELINE Digital Amplifier

The IMG STAGELINE Digital Amplifiers represent the new generation of PA Class-D amplifiers, impressing with their remarkable performance and high energy efficiency. Weighing only 4 kg and featuring a particularly slim design, these amplifiers are ideal for both permanent installations and mobile applications.

The amplifiers utilize an advanced Class-D concept with HYPEX power amplifier modules, ensuring quiet operation thanks to temperature-controlled fans. High peak load capacity is achieved through the use of two switch-mode power supplies, while generously sized filter capacitors deliver powerful bass. With two level controls and protection circuits against short circuits and overheating, they are both user-friendly and safe.

The technical specifications speak for themselves: With a total output of 1000 W and a nominal power of 800 W, the amplifiers provide 400 W per channel at 4 Ω. The NEUTRIK SPEAKON connectors guarantee a reliable connection. Trust in the quality and performance of the IMG STAGELINE Digital Amplifiers for your next event!
