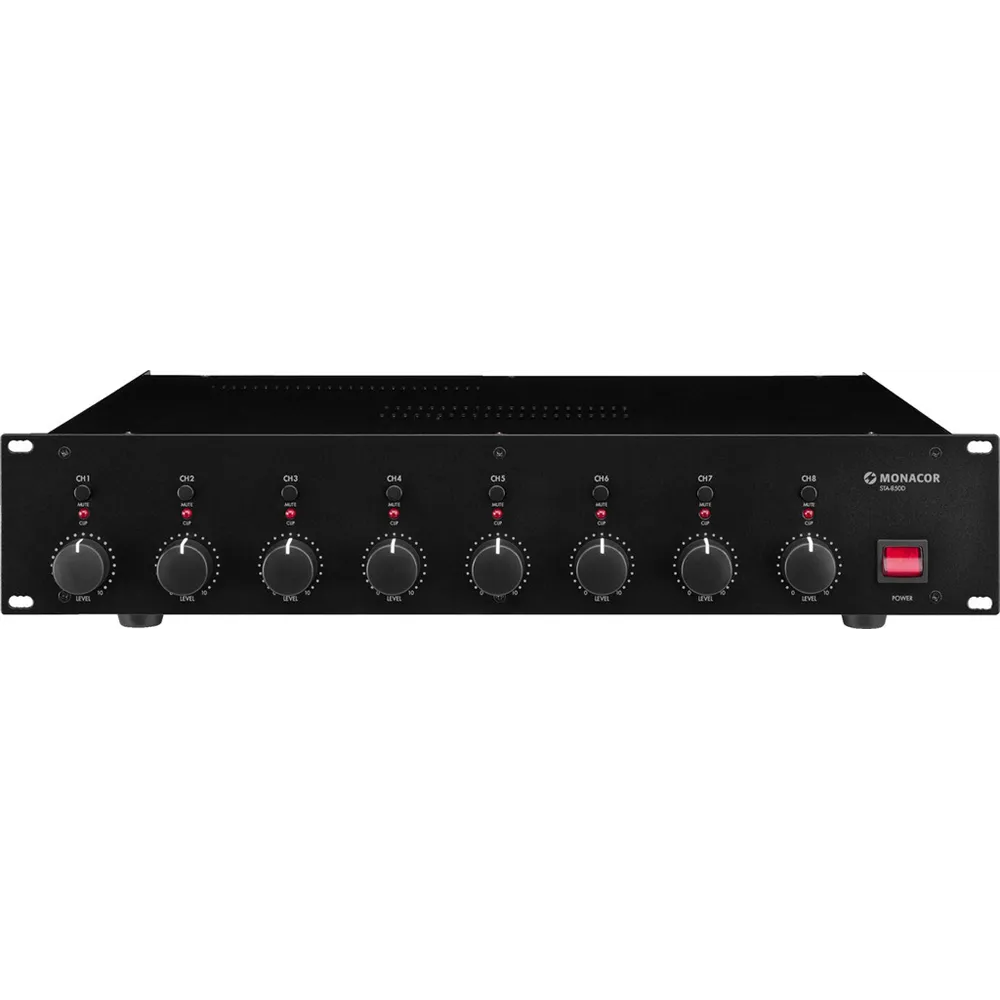

MONACOR Amplifier, 8 Channel, Max. 300W

Brand:

Monacor

Features

8-Channel Class D Amplifier
Silent operation due to fanless cooling design
Bridged operation at 8 Ω possible
Mute function per channel
8 Level Controls
1 LED per channel for clipping indication
Short circuit protection
Total output power: 600 W
Rated power: 400 W
Power at 4 Ω: 8 x 50 W
Power at 8 Ω: 8 x 30 W
Power in 8-Ω bridged mode: 4 x 100 W
Channels: 8
Inputs: 1 V/20 kΩ unbalanced, 550 mV/20 kΩ balanced
Frequency range: 10-20,000 Hz
Crosstalk attenuation: > 45 dB
Power supply voltage: ~ 230 V
Power supply frequency: 50 Hz
Power consumption in operation: 600 VA
Permissible operating temperature: 0-40 °C
Width: 483 mm
Height: 90 mm
Depth: 330 mm
Rack units (RU): 2
Weight: 10.5 kg

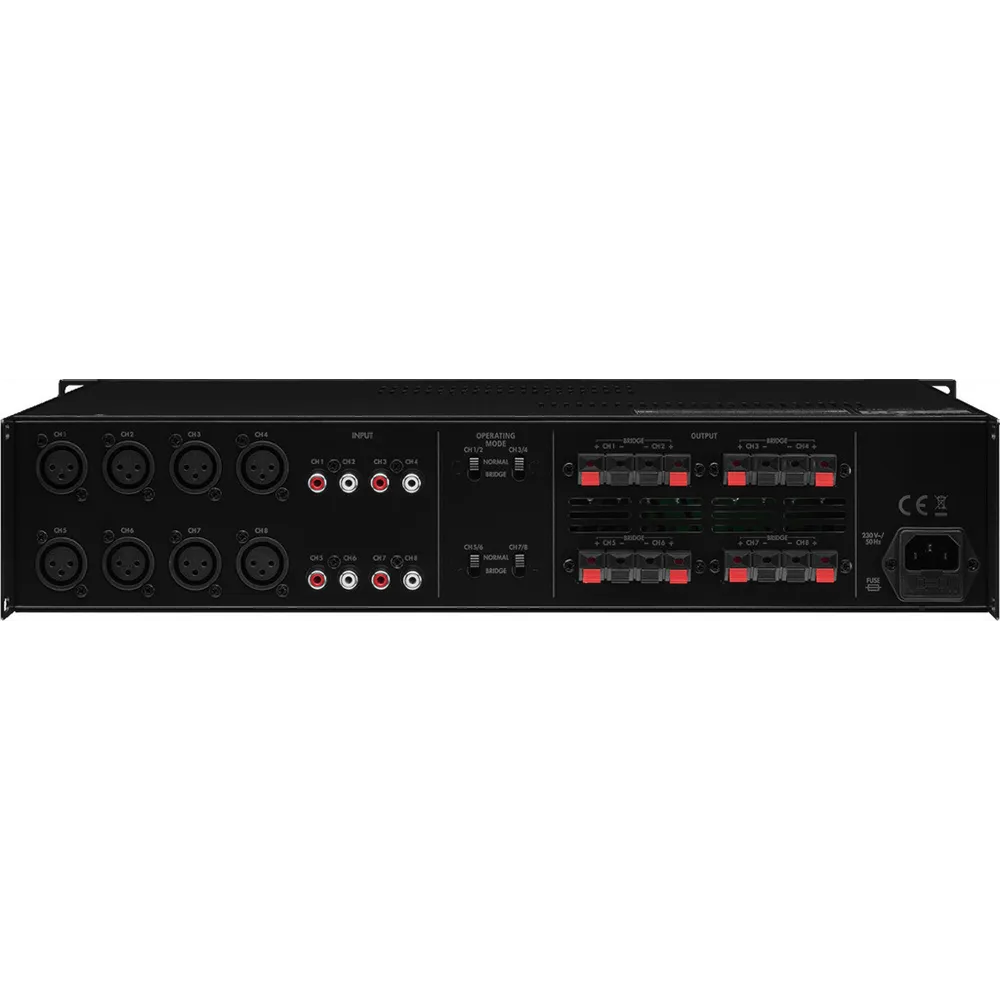

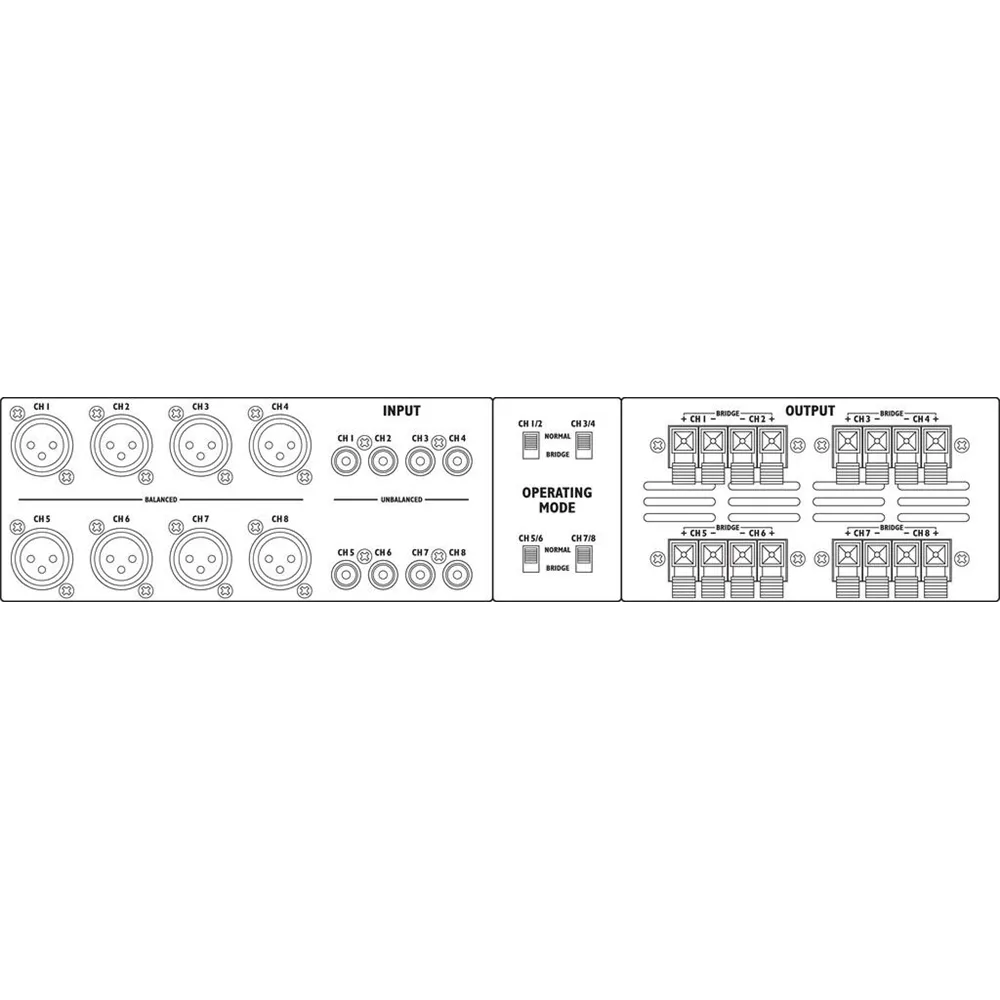

Connections: 8 x XLR balanced, 8 x RCA, speaker terminal L/R
Packaging dimensions (W x H x D): 0.4 x 0.175 x 0.56 m
Gross weight: 13.22 kg
Net weight: 10.68 kg

MONACOR Amplifier, 8 Channels, Max. 300W

Discover the powerful MONACOR amplifier with 8 channels, offering a maximum output power of 300W. This Class-D amplifier impresses with its fanless cooling design, ensuring silent operation, making it ideal for professional applications. With the option for 8-ohm bridged operation and a mute function for each channel, you have complete control over your audio output.

The amplifier is equipped with 8 level controls, allowing for precise volume adjustments. Each of the 8 channels features a clip LED indicator, so you can always keep track of the performance. Additionally, the MONACOR amplifier is protected against short circuits, providing extra safety.

Technically, the amplifier boasts a rated power of 400W and a frequency range of 10-20,000 Hz. Weighing only 10.5 kg and featuring compact dimensions, it is easy to transport and install. Ideal for events, conferences, or as part of your professional audio setup – the MONACOR amplifier is the perfect choice for the highest demands.
