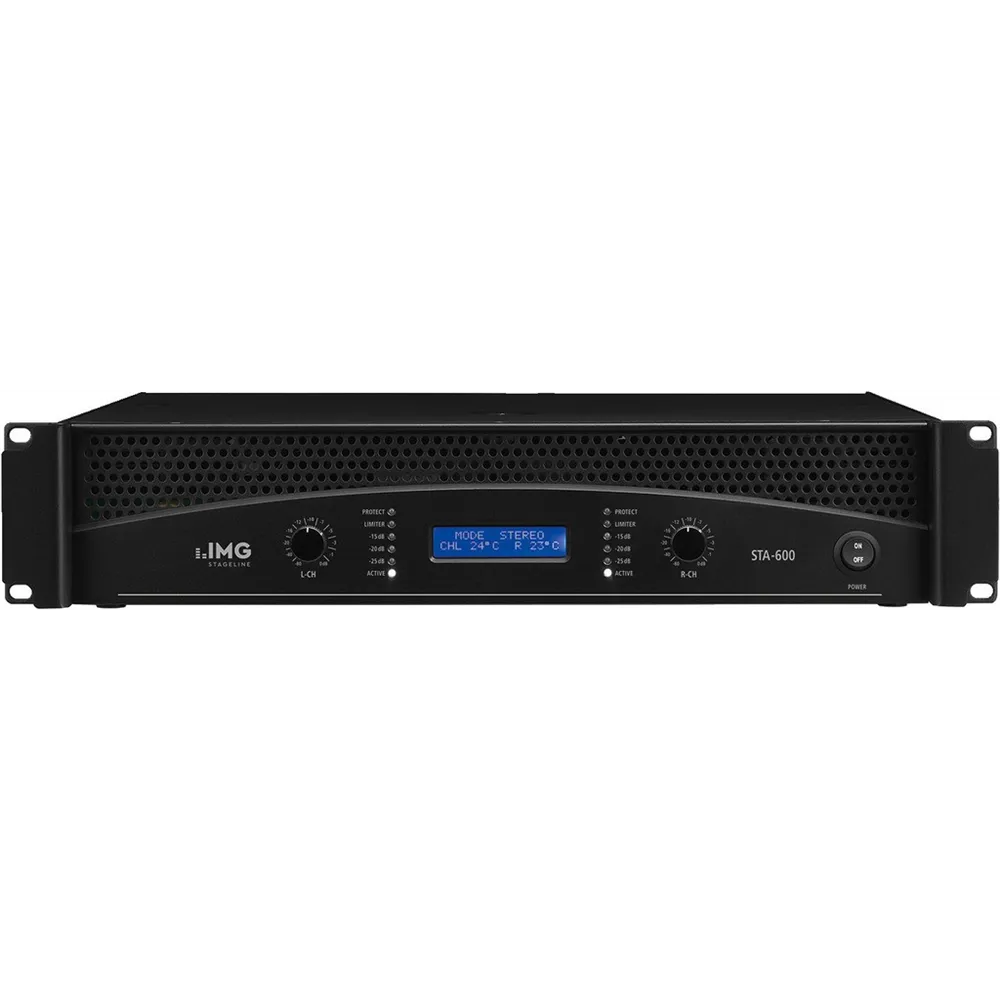

IMG STAGELINE Professional Stereo PA Amplifier, 1000 W Max

Features

• Professional stereo PA amplifier with integrated crossover and limiter
• LCD display for temperature, operating mode, and protection function
• Internal crossover at 120 Hz, 24 dB/oct., switchable for subwoofer, full range, or satellite operation
• 3 adjustable operating modes (Stereo, Parallel, or Bridge)
• Temperature-controlled fan
• 2 level controls
• Ground lift function
• Speaker turn-on delay
• Protected against short circuits, overheating, and DC offset at the outputs through protection circuitry with LED indication
• Per channel LEDs for operating voltage, level, and limiter
• NEUTRIK SPEAKON connectors
• Total output power: 1000 W
• Rated power: 600 W
• Power at 4 Ω: 2 x 300 W
• Power at 8 Ω: 2 x 200 W
• Power in 8-Ω bridge mode: 1 x 550 W
• Channels: 2
• Inputs: 1 V/20 kΩ
• Frequency range: 20-20,000 Hz
• Crossover: 24 dB/oct.
• Crossover frequency: 120 Hz
• Integrated limiter: yes
• Signal-to-noise ratio: > 95 dB
• Crosstalk attenuation: > 60 dB
• Power supply voltage: ~ 230 V
• Power supply frequency: 50 Hz
• Power consumption in operation: 1000 VA
• Permissible operating temperature: 0-40 °C
• Width: 482 mm
• Height: 88 mm
• Depth: 418 mm
• Rack units (HE): 2
• Weight: 12.5 kg

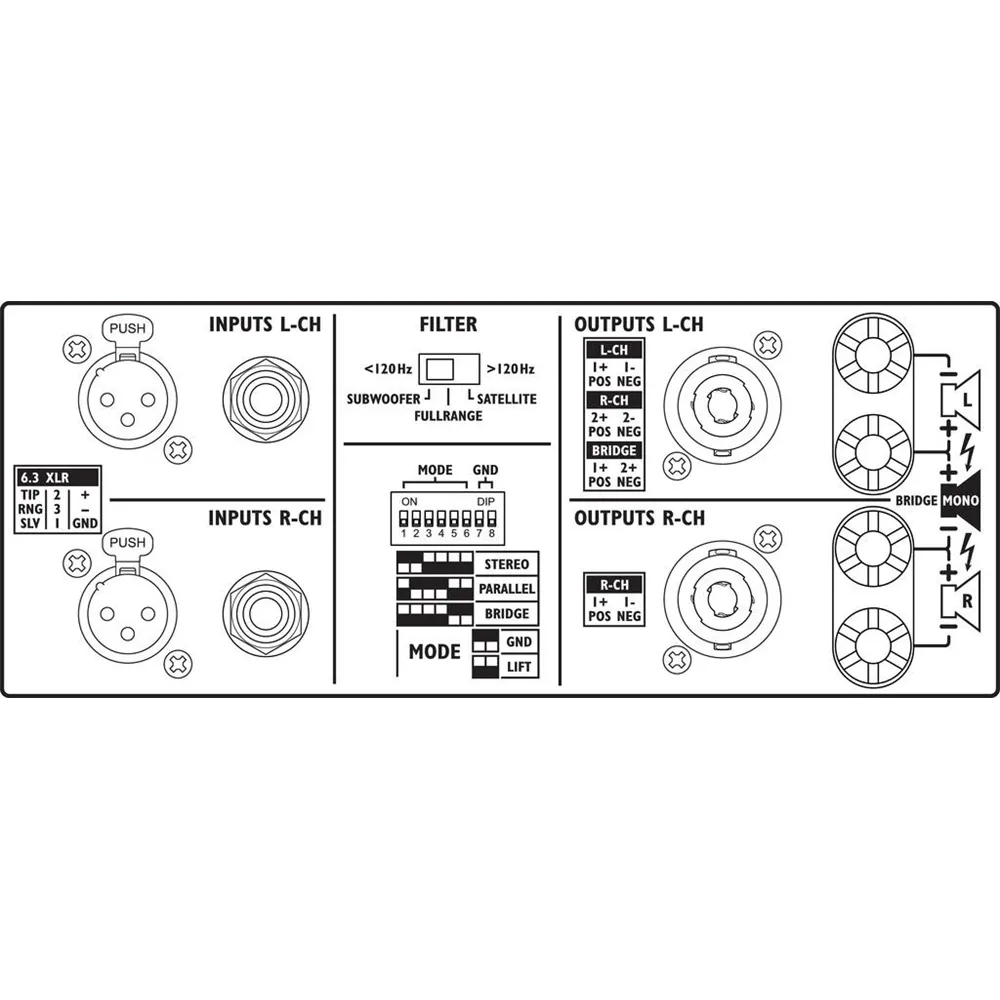

• Connections: 1 x 3-pin XLR L/R, balanced, 1 x 6.3 mm jack L/R, balanced, 1 x NEUTRIK SPEAKON L/R, 2 x screw terminal pairs
• Packaging dimensions (W x H x L): 0.57 x 0.16 x 0.58 m
• Gross weight: 16.56 kg
• Net weight: 13.16 kg
