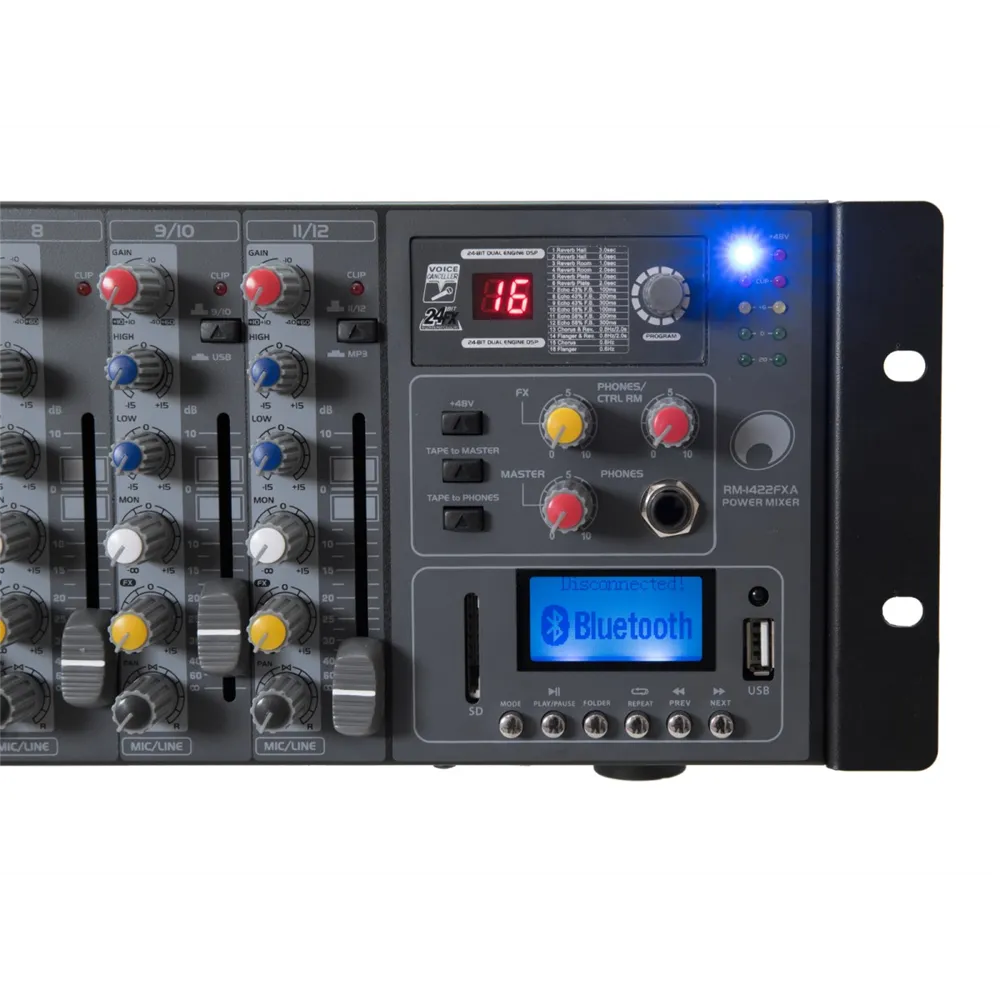

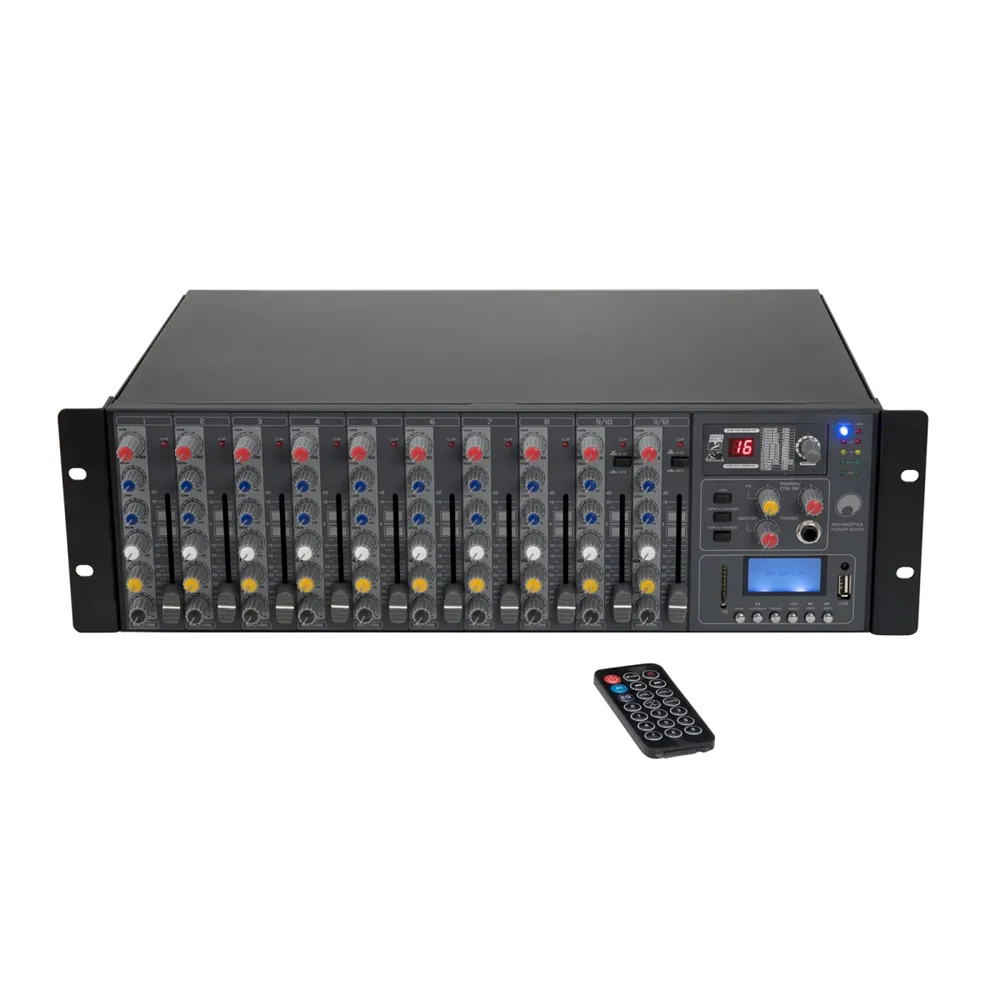

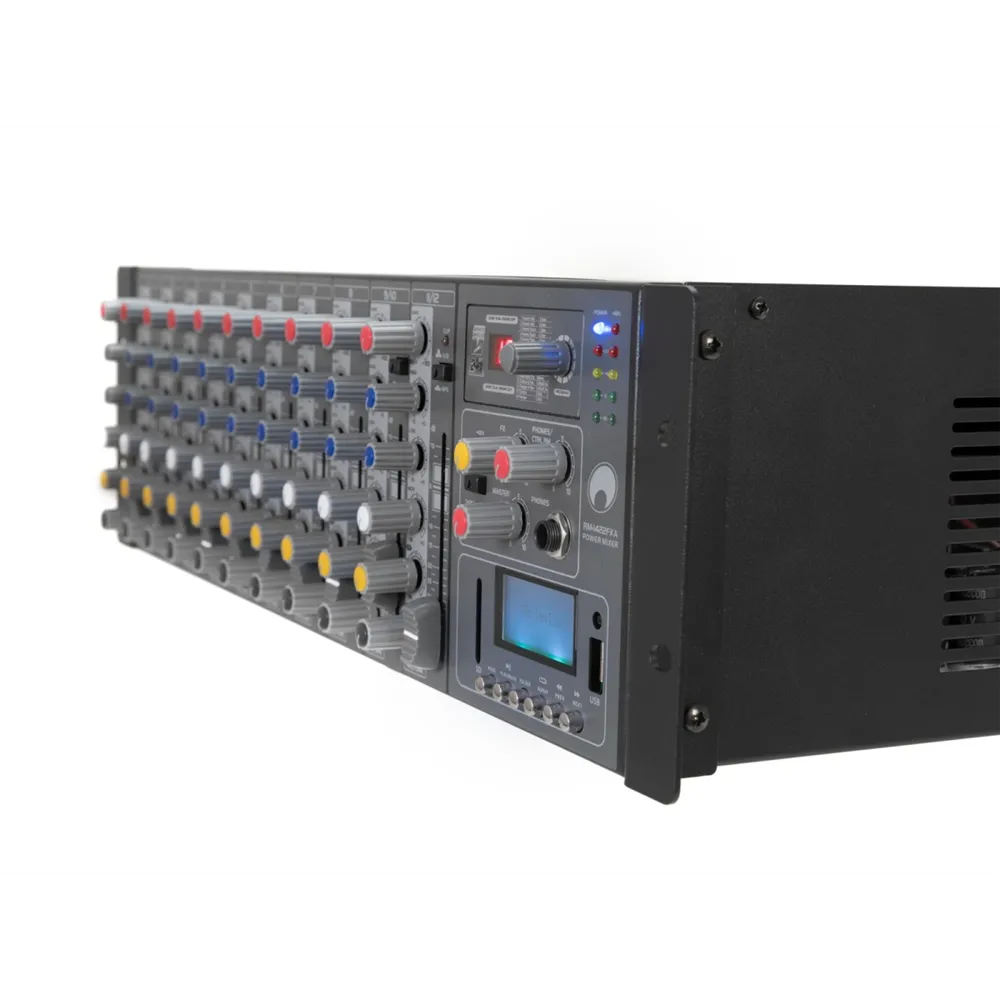

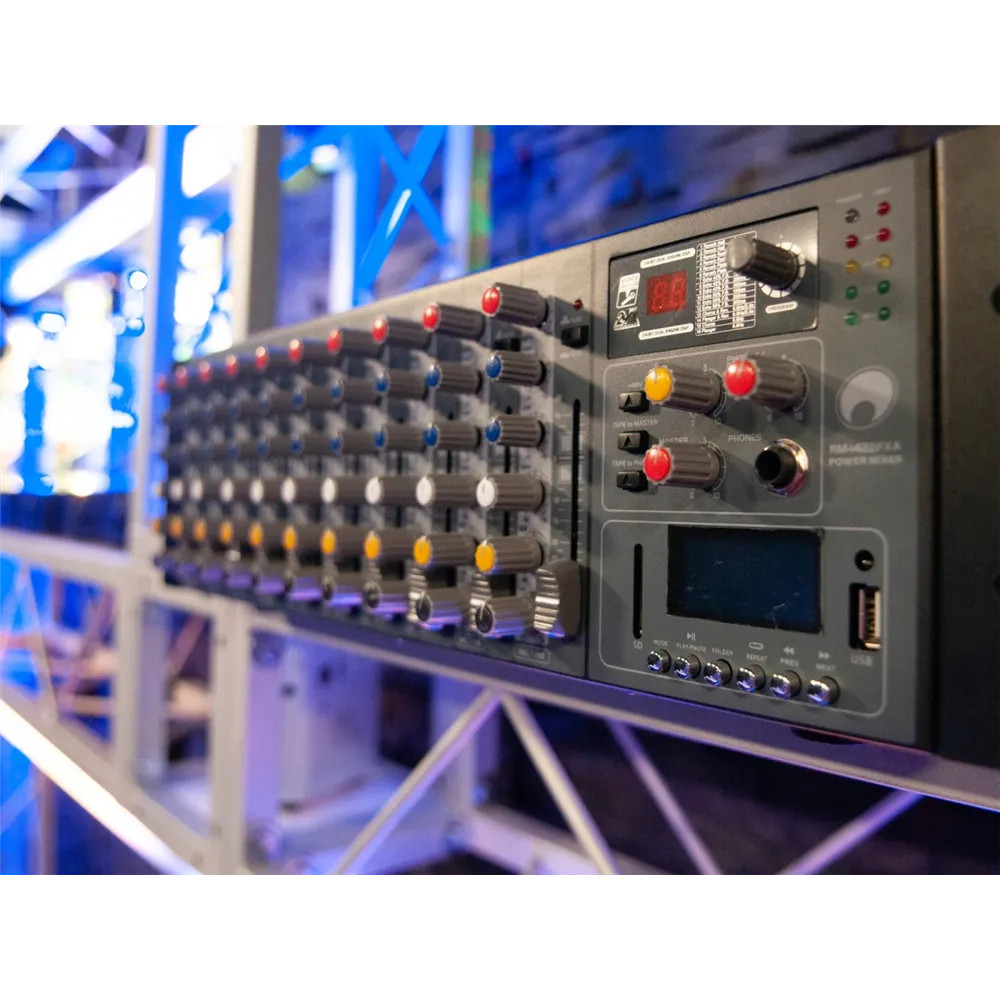

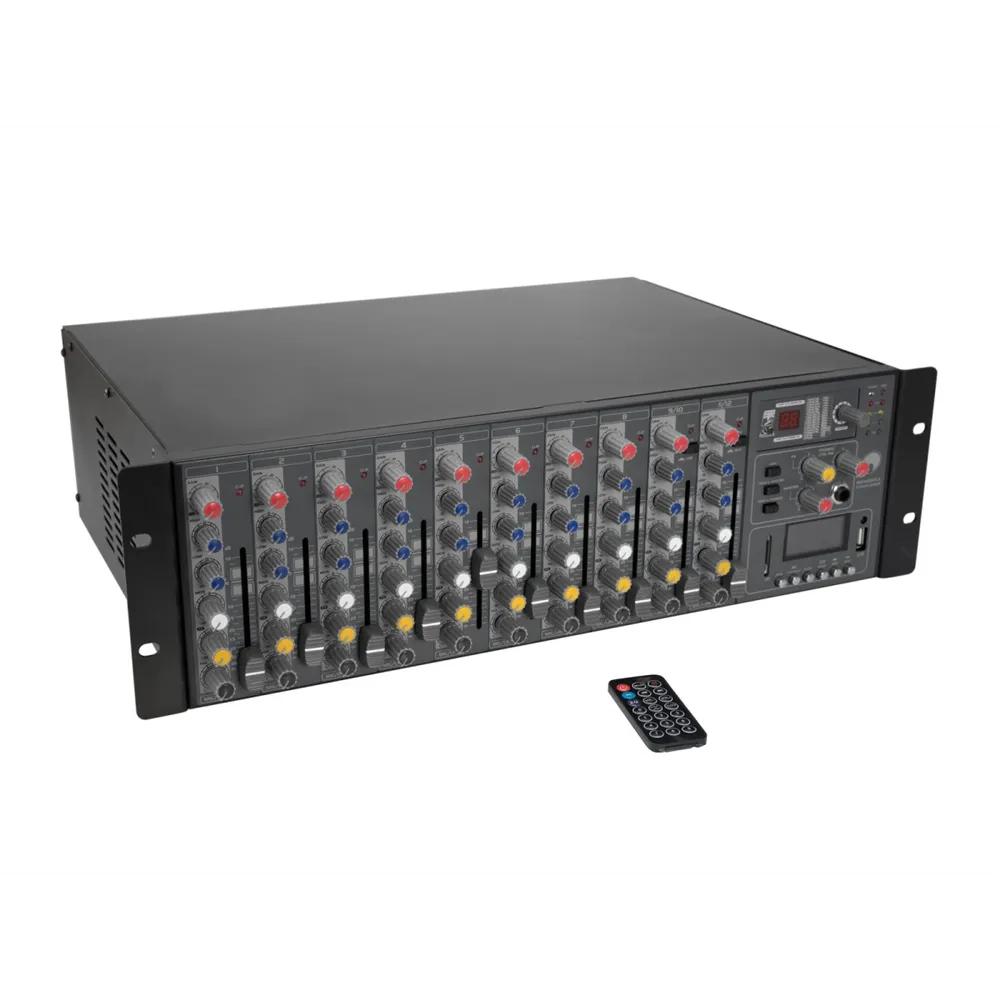

OMNITRONIC RM-1422FXA USB Rack-Mount Power Mixer
Features
- 19" Powered Mixer, 2 x 400 W, with 12 channels, DSP effects unit, and MP3 player
- Audio mixing console and digital amplifier in a 19" housing
- Integrated USB audio interface allows for recording and playback with a computer (PC and Mac)
- 8 mono input channels with gain control, 2-band EQ, pan control, and channel fader
- 2 stereo input channels with 2-band EQ, balance control, and channel fader
- 8 channel inserts
- Tape input and output
- Separate outputs for main mix and control room
- 2 AUX send outputs
- Adjustable headphone output
- +48 V phantom power, centrally switchable
- 4-digit stereo LED level meter
- 24-bit digital signal processor with 16 effects
- Controllable via IR remote; Bluetooth
- (19") 48.3 cm rack mountable, 3 HE
- Suitable for applications such as clubs/dance schools, stage, theater, concerts/FOH, rental companies
- Power supply: 230 V AC, 50 Hz
- Total power consumption: 115 W at 1/8 power
- Protection class: Class I
- Output power: 2 x 250 W RMS (8 Ohm), 2 x 400 W RMS (4 Ohm)
- Battery: 1 x 3.0 V CR2025 lithium-manganese button cell built-in
- Frequency range: 20 - 20,000 Hz
- Signal-to-noise ratio: >89 dB
- DSP: 24-bit digital signal processor with 16 effects
- Phantom power: 48 V DC
- Bluetooth device name: Bluetooth
- Audio player: USB + SD + Bluetooth
- Controls: Volume control per channel, master control, tone control, phantom power switch

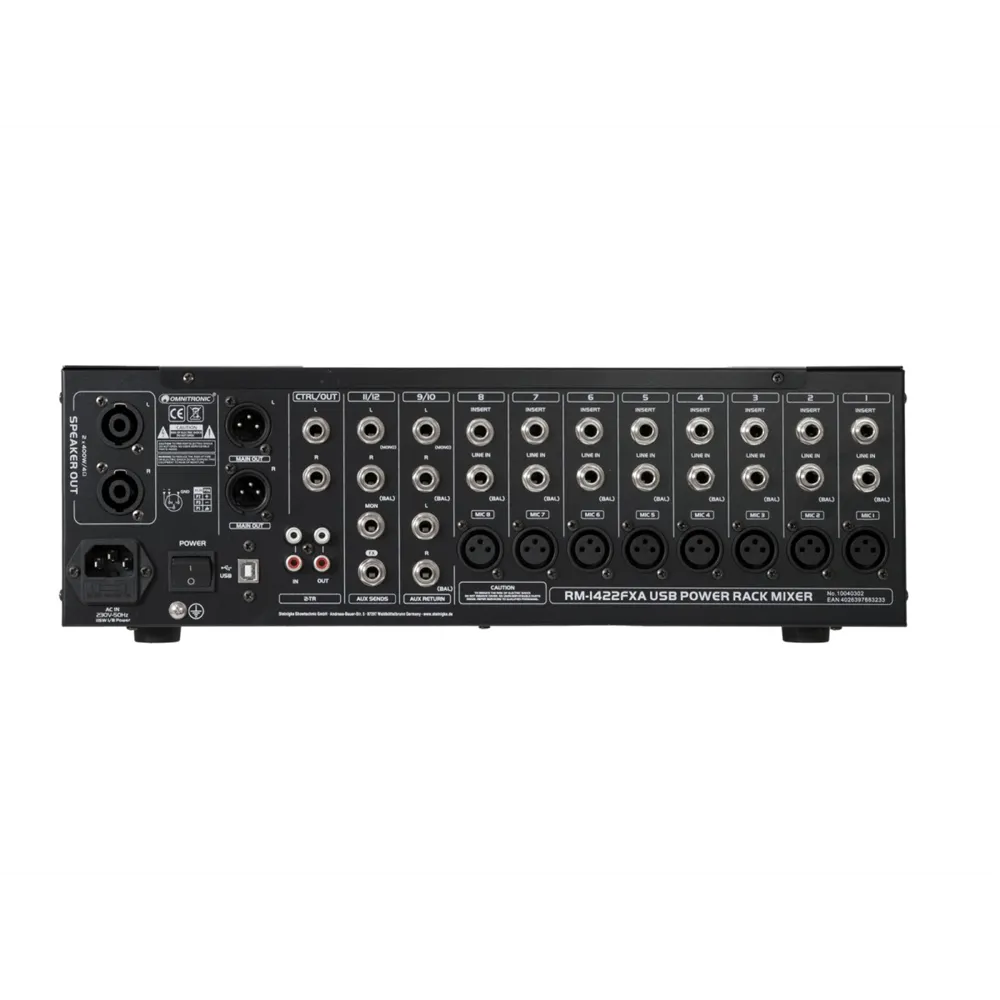

- Connections: Microphone via 8 x 3-pin XLR, line via 12 x 6.3 mm jack (stereo), AUX via 2 x 6.3 mm jack (stereo), master via 2 x 3-pin XLR
- Input channels: 8 x mono via XLR or jack
- Equalizer: 8 x 2-band mono controls
- Compatible storage media: USB devices/SD cards
- USB connection: Type A
- Color: Black
- Housing design: (19") 48.3 cm rack mountable, 3 HE
- Dimensions: Width: 48.3 cm, Depth: 34 cm, Height: 13.35 cm
- Weight: 6.55 kg
OMNITRONIC RM-1422FXA USB Rack Power Mixer
The OMNITRONIC RM-1422FXA is a powerful 19" rack power mixer equipped with 2 x 400 W output and 12 channels. Ideal for professional applications in clubs, dance schools, theaters, and concerts, this mixer offers a variety of features that elevate your audio experience to a new level.
With an integrated USB audio interface, the RM-1422FXA allows for easy recording and playback of audio on PC and Mac. The 8 mono input channels are equipped with gain controls, a 2-band EQ, pan controls, and channel faders, while the 2 stereo input channels feature a 2-band EQ and balance control. The digital signal processor with 16 effects enables creative sound design.
Additionally, the mixer includes an IR remote control, Bluetooth connectivity, and an adjustable headphone output. With a compact design of just 3 U and a weight of 6.55 kg, the RM-1422FXA is both portable and space-saving. Experience top-notch sound and versatile applications with the OMNITRONIC RM-1422FXA USB Rack Power Mixer!
