Features
- 1-Channel Phono Preamp (Stereo)
- RIAA Equalization Preamp for Connecting a Turntable via Stereo RCA Input
- RCA Output for Connection to Stereo Systems or Active Speakers
- Direct Connection to the Power Amplifier via 6.3 mm Jack Possible
- Grounding Terminal to Prevent Hum Loops
- Suitable for Applications such as Installation, Mobile Use, Mobile DJs / Solo Entertainers
- Power Supply: 100-240 V AC, 50/60 Hz, 12V 150 mA
- Power Connection: Power Supply via Barrel Connector (M), Built-in Version with Power Supply Cable and Adapter (Included)
- Frequency Range: 20 - 20,000 Hz
- Signal-to-Noise Ratio: >84 dB
- Impedance: Input: 47 kOhm
- Gain: 30 dB
- Connections: Input: Phono via 1 x Stereo RCA, Output: Line via 1 x Stereo RCA, Output: Line via 1 x 6.3 mm Jack (Stereo) Built-in Version
- Max Level: Output: +4 V
- Material: Metal
- Color: Silver
- Dimensions: Width: 9.5 cm, Depth: 8.9 cm, Height: 4 cm
- Weight: 0.46 kg
- External Power Supply: Power Supply: 230 V AC, 50 Hz

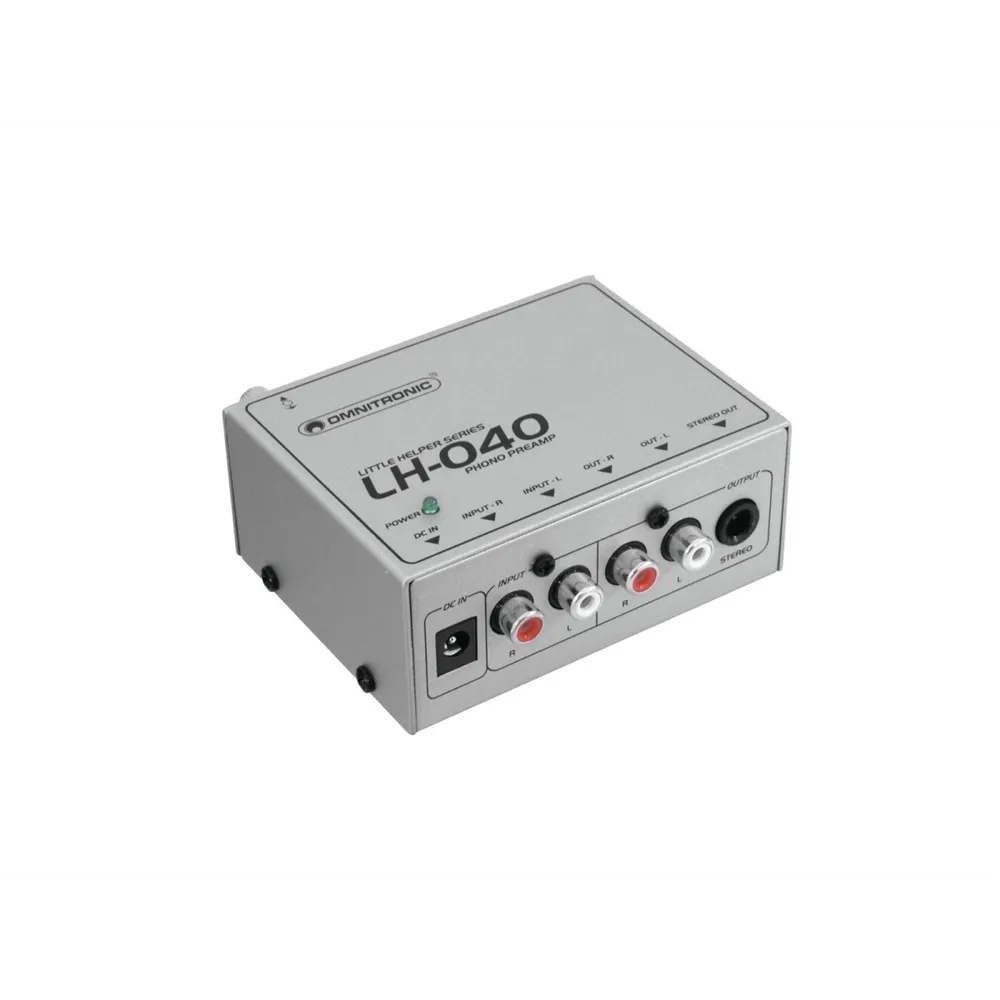

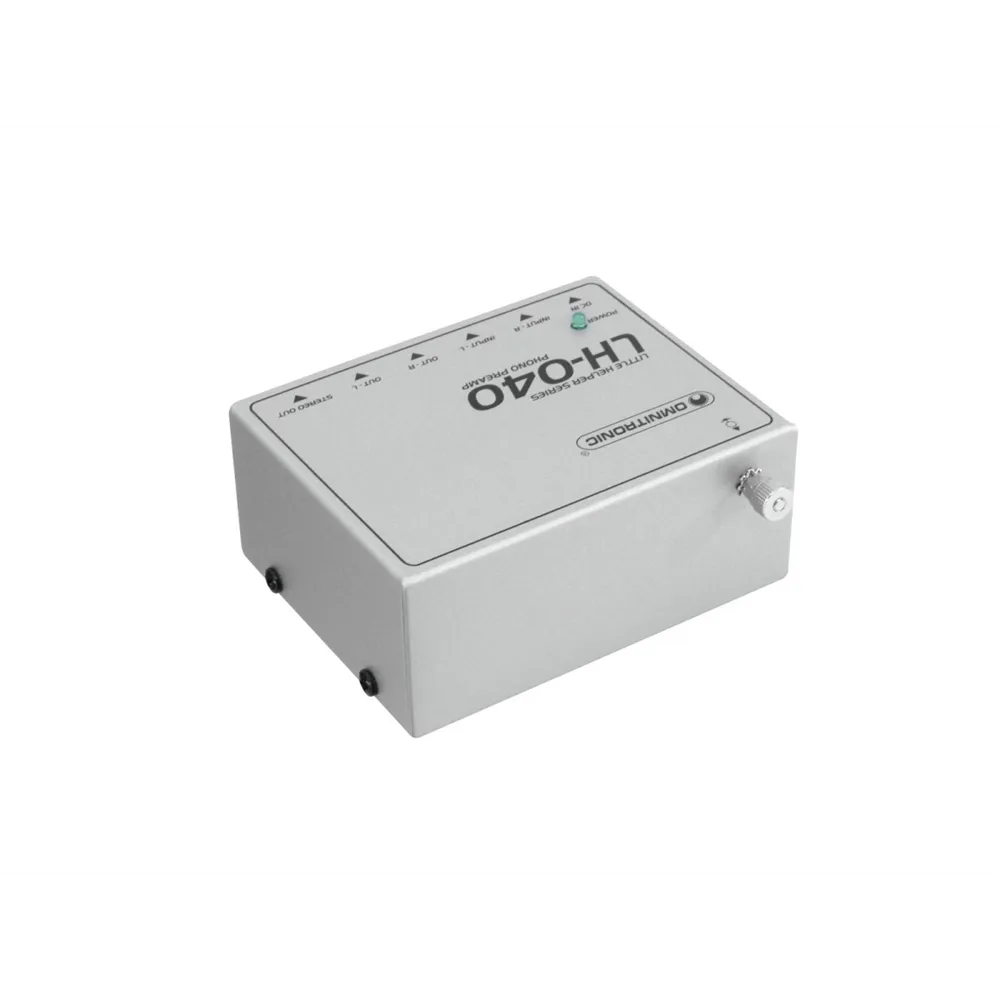

OMNITRONIC LH-040 Phono Preamplifier
The OMNITRONIC LH-040 Phono Preamplifier is the ideal solution for all vinyl enthusiasts looking to connect their turntables optimally. This single-channel phono preamplifier features a high-quality RIAA equalization preamp that connects to your turntable via a stereo RCA input. The RCA output allows for easy connection to stereo systems or active speakers, while a direct connection to the power amplifier is also possible via a 1/4" jack.
A standout feature of the LH-040 is the grounding terminal, which effectively eliminates ground loops, ensuring clear sound quality. With a frequency range of 20 to 20,000 Hz and a signal-to-noise ratio of over 84 dB, this preamplifier delivers outstanding audio performance. The gain of 30 dB ensures that your music is always optimally amplified.

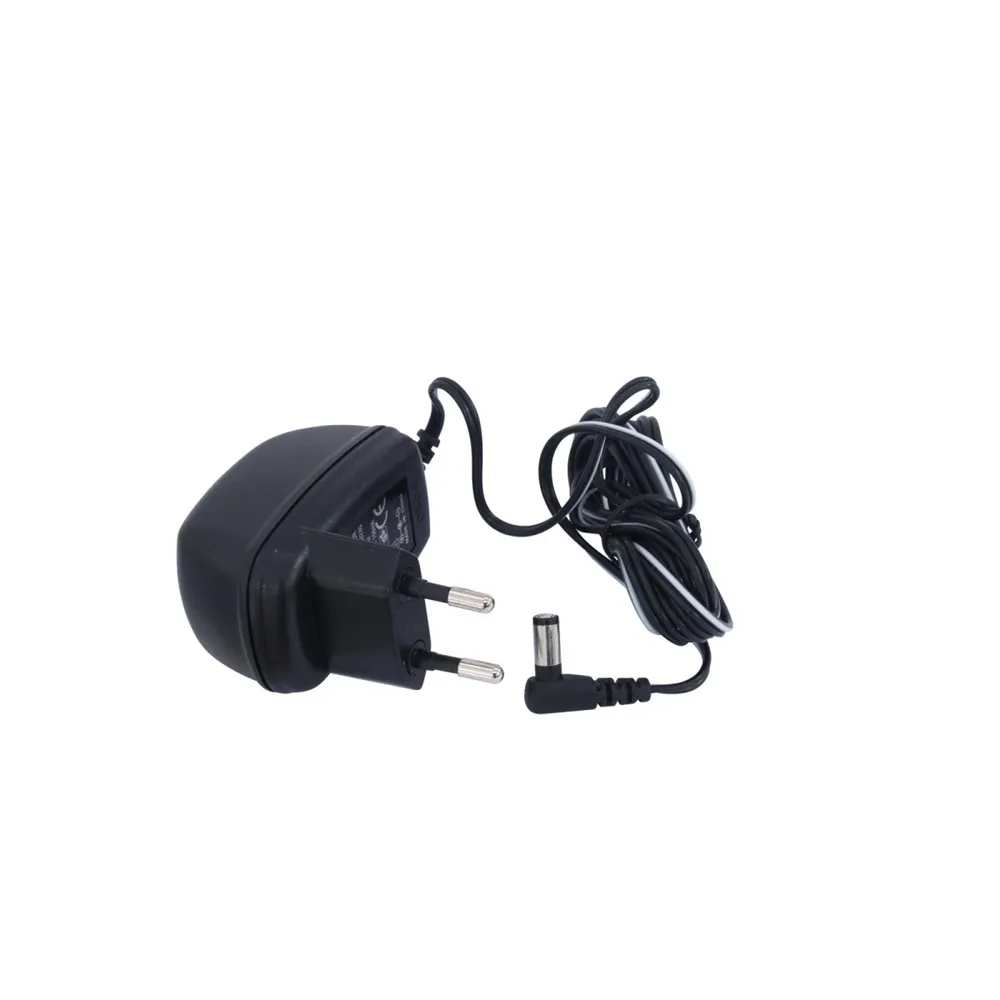

The OMNITRONIC LH-040 is not only suitable for stationary use but is also perfect for mobile applications, such as for DJs or solo entertainers. Included in the package are the unit itself, an external power supply, four feet, and a user manual. With its compact dimensions and robust metal housing, this phono preamplifier is both functional and aesthetically pleasing.
