IMG STAGELINE PA-Lautsprecher-Array, aktiv, DSP, schwarz

IMG STAGELINE PA Speaker Array, Active, DSP, Black

Brand:

Features

Active/Passive: Active
Transmission Technology: Wired
Total Output Power: 1000 W
Rated Power: 700 W (350 W + 350 W)

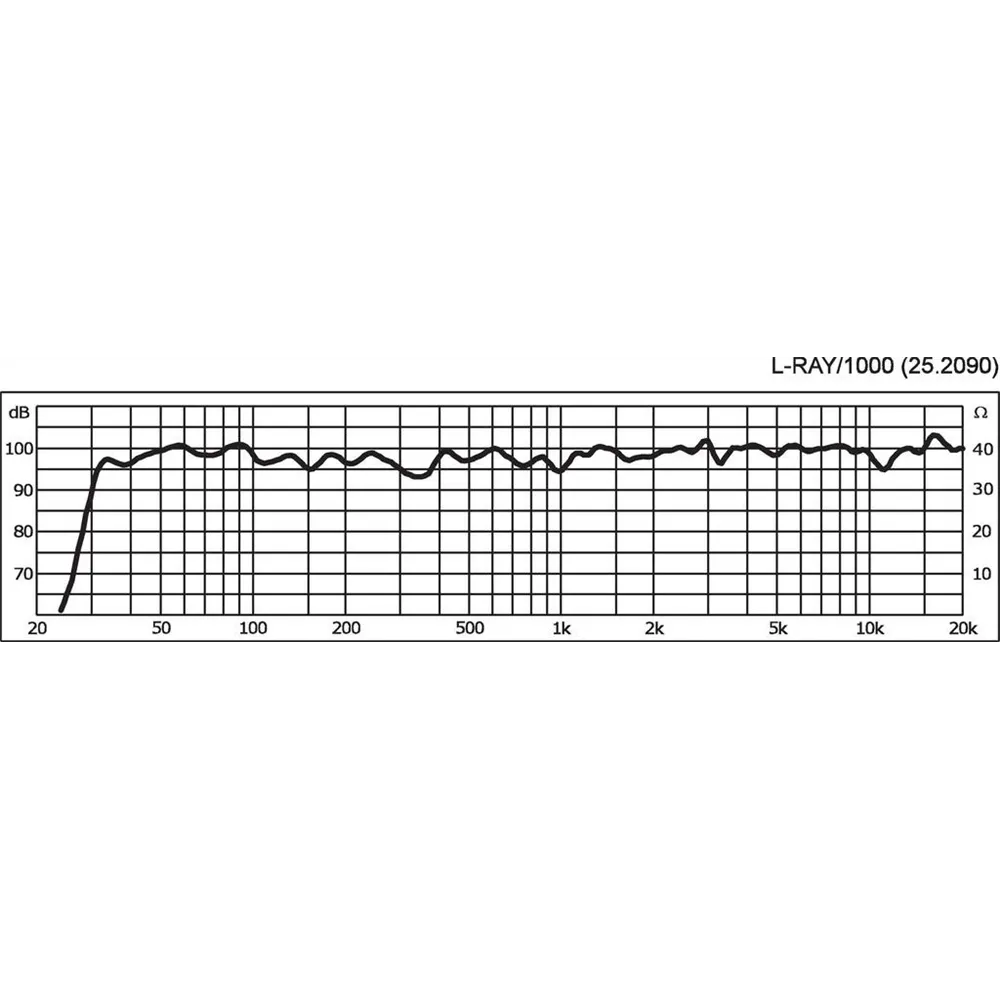

Frequency Range: 50-25000 Hz
Signal-to-Noise Ratio: 80 dB
Input Signal: 1-10 V/30 kΩ
System: Compact Line Array

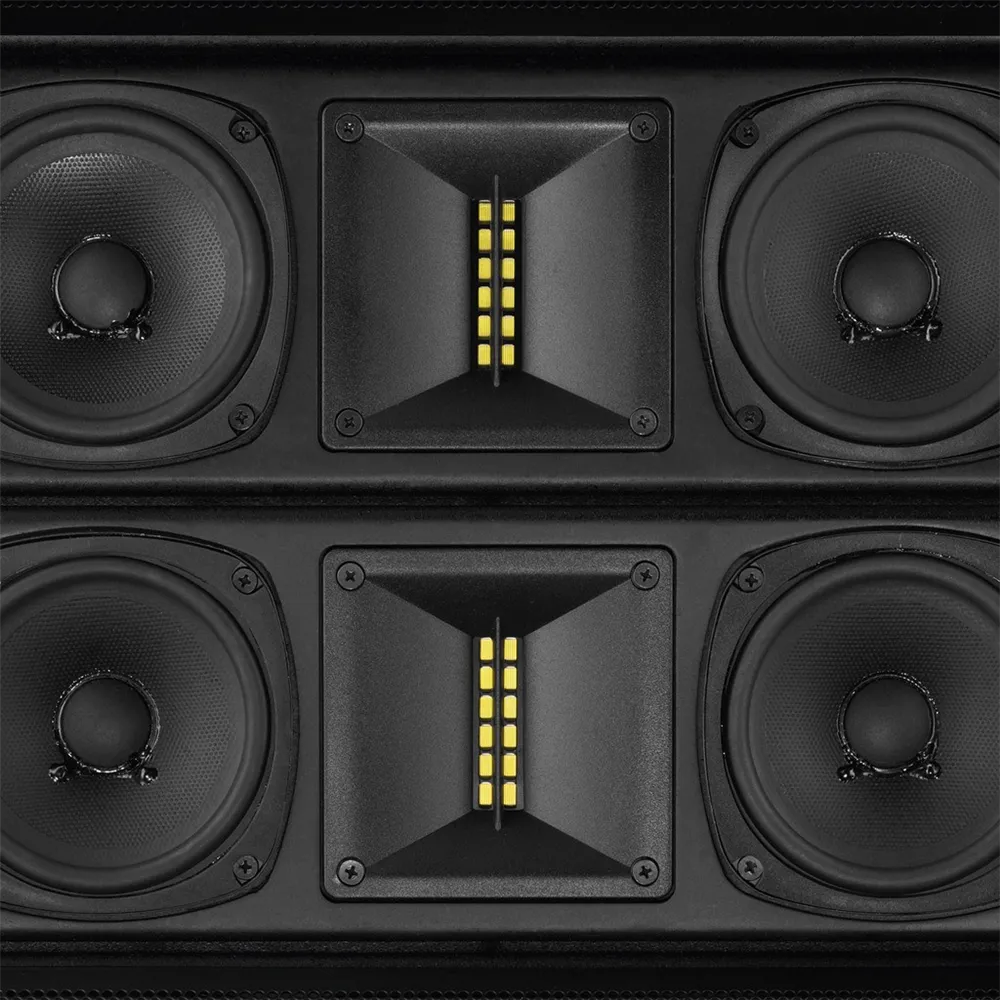

Woofers: 2 x 20 cm (8")
Midrange Drivers: 8 x 10 cm (4")
Tweeters: 4 x Magnetostat
Sound Pressure Level: 98 dB/W/m
Max. Rated Sound Pressure Level: 121 dB
Dispersion Angle: Horizontal 120°, Vertical 30°-90° variable
Enclosure Material: Wood
Color: Black
Permissible Operating Temperature: 0-40 °C
Power Supply: ˜ 230 V/50 Hz/1400 VA
Width: 495 mm
Height: 850 mm
Depth: 610 mm
Weight: 47.88 kg

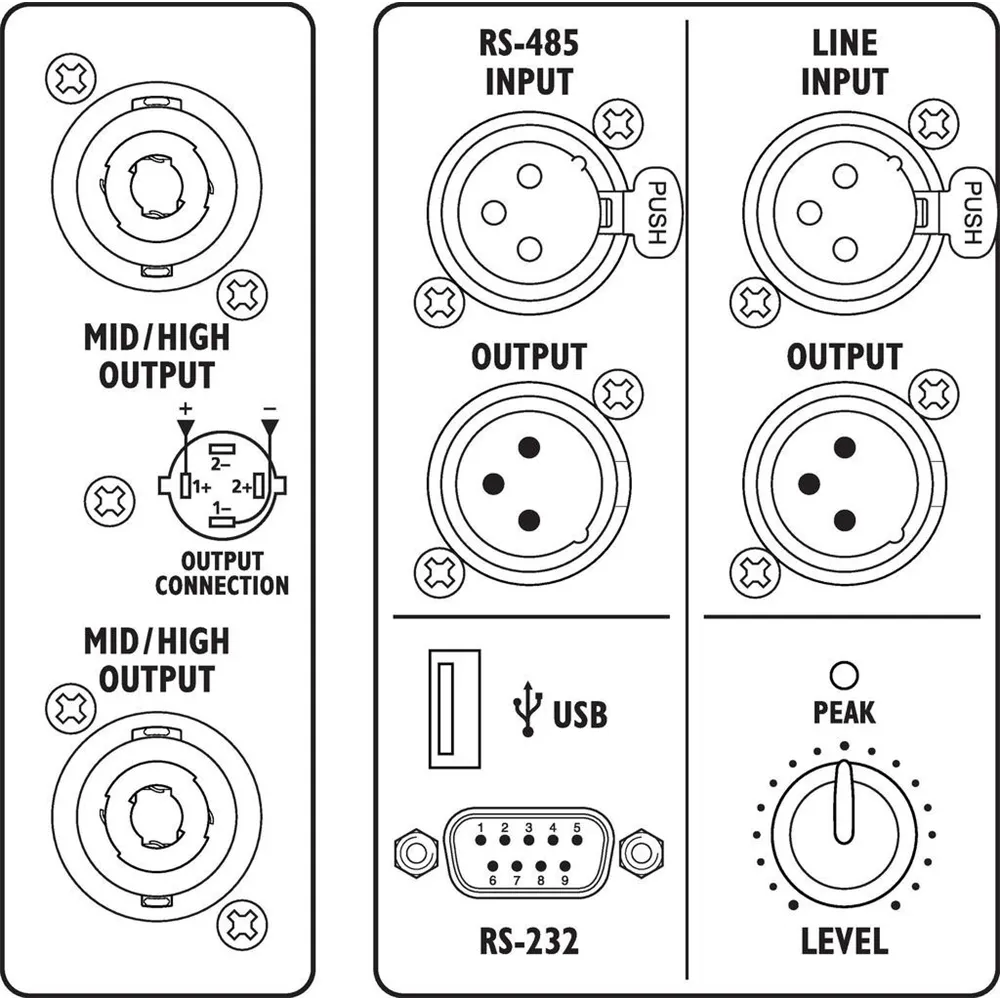

Inputs: XLR Socket (Line), NEUTRIK SPEAKON (Speaker), PowerCon (Power Supply)
Outputs: XLR Parallel Out (Line), NEUTRIK SPEAKON Parallel Out (Speaker)
Additional: Interface for DSP Programming: USB, RS-232, RS-485 IN & OUT, extremely user-friendly and powerful software included
Packaging Dimensions (W x H x L): 0.72 x 0.64 x 0.72 m
Gross Weight: 55.76 kg
Net Weight: 47.88 kg

IMG STAGELINE PA Speaker Array, Active, DSP, Black

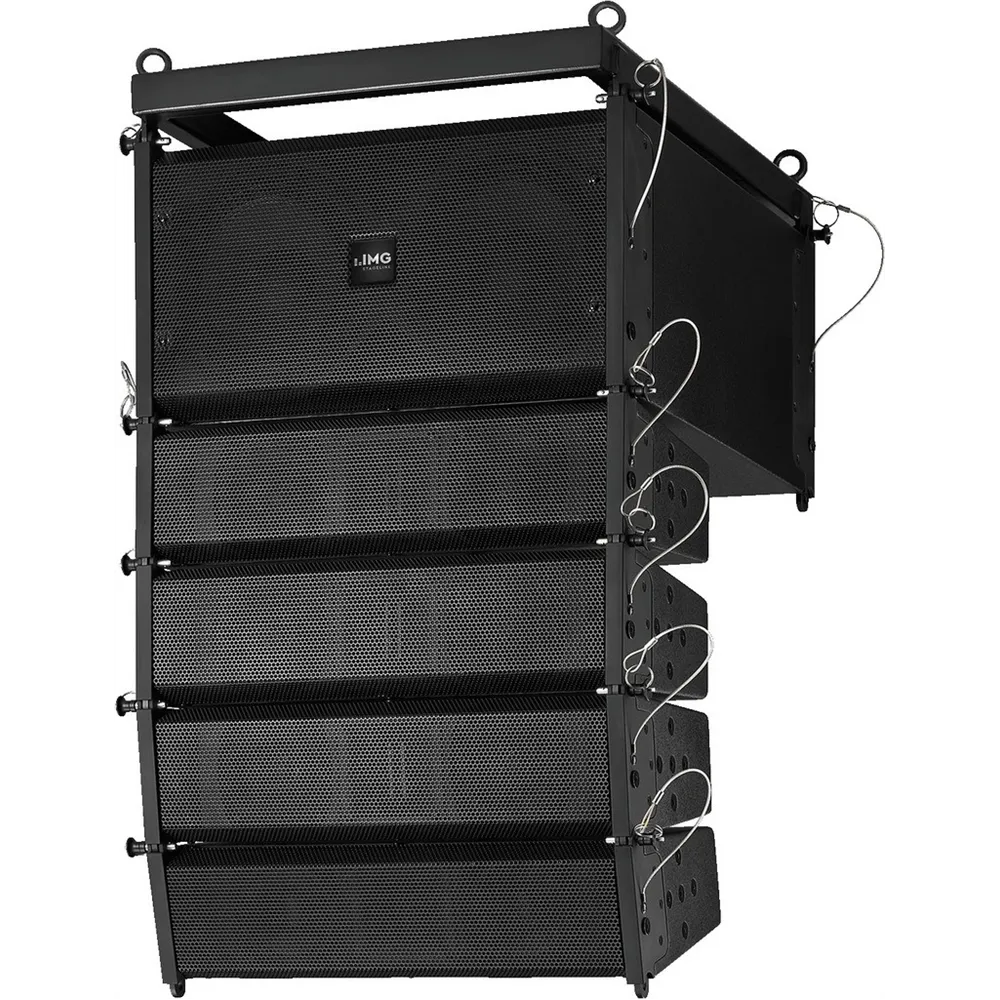

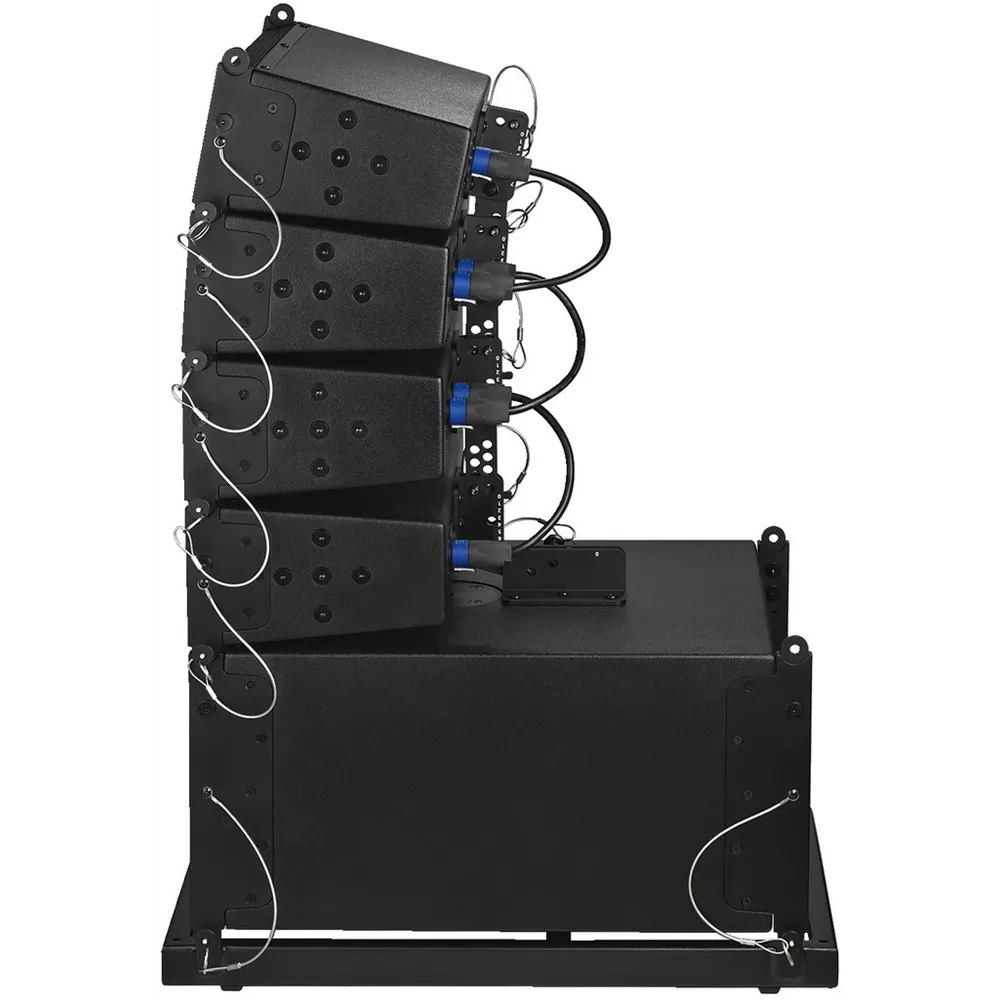

Experience cutting-edge professional sound reinforcement technology with the active speaker array L-RAY/1000 from IMG STAGELINE. This compact system impresses with powerful sound and professional adjustment options that ensure optimal sound dispersion. With a total output of 1000 W and high-quality craftsmanship, the L-RAY/1000 delivers remarkable sound pressure levels and audio quality.

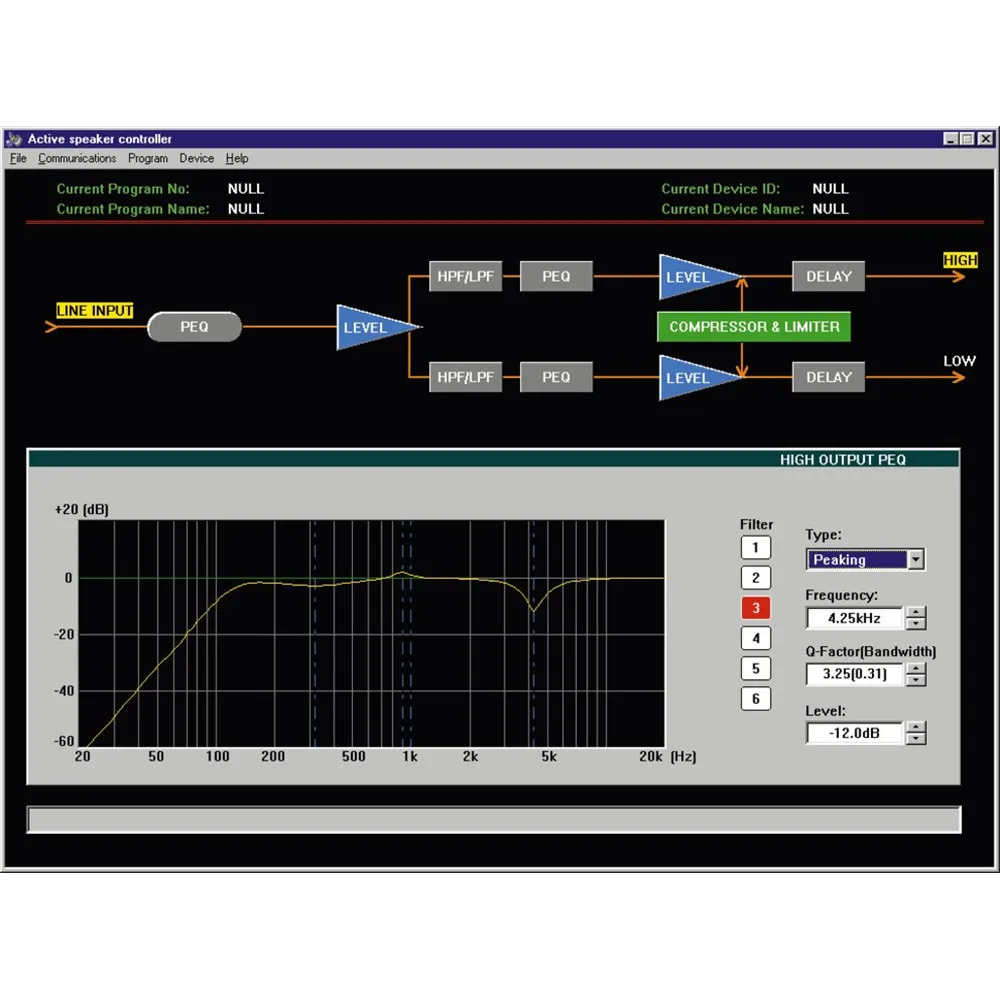

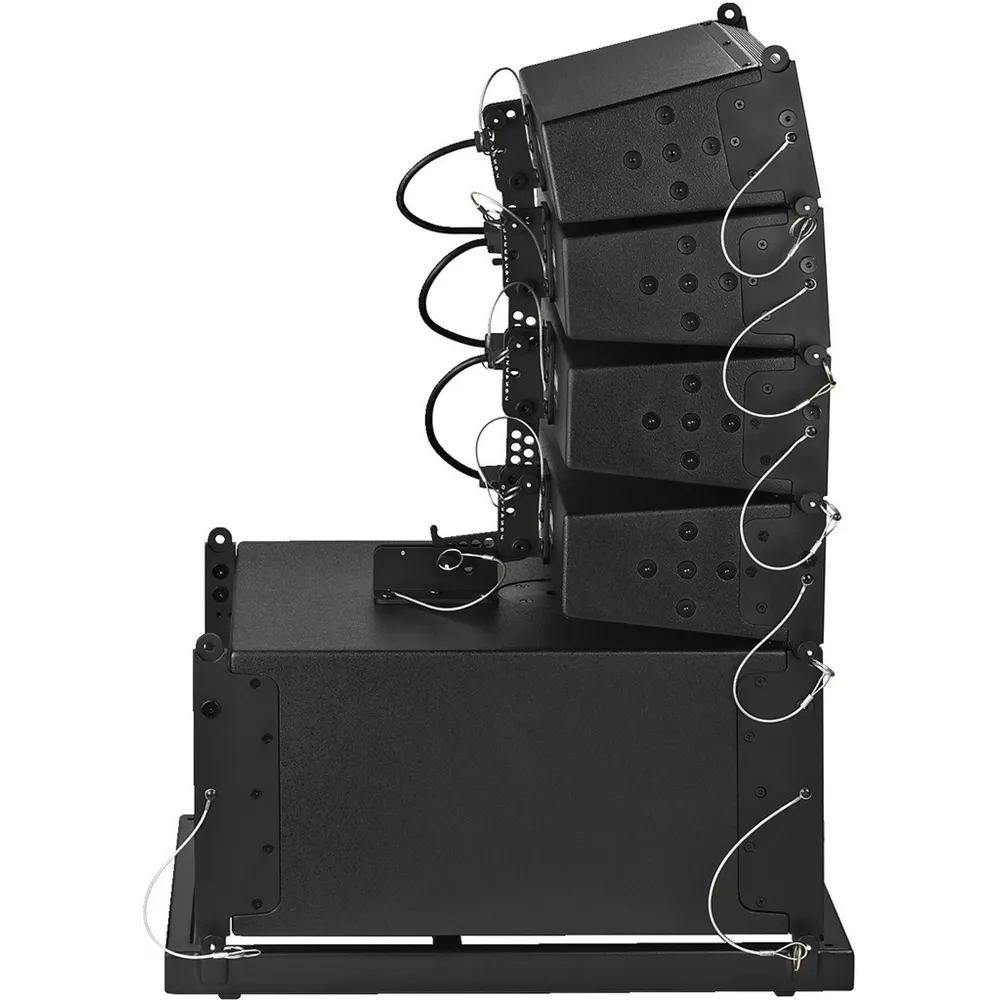

The speaker array is equipped with four mid-high units and a dual bass module, with each unit featuring its own 350 W power amplifier. The DSP software-controlled configuration allows for easy customization to meet your needs, while the comprehensive software offers parametric EQs, filters, and compression. Up to ten L-RAY systems can be connected via an RS-485 data bus, enhancing flexibility and scalability.

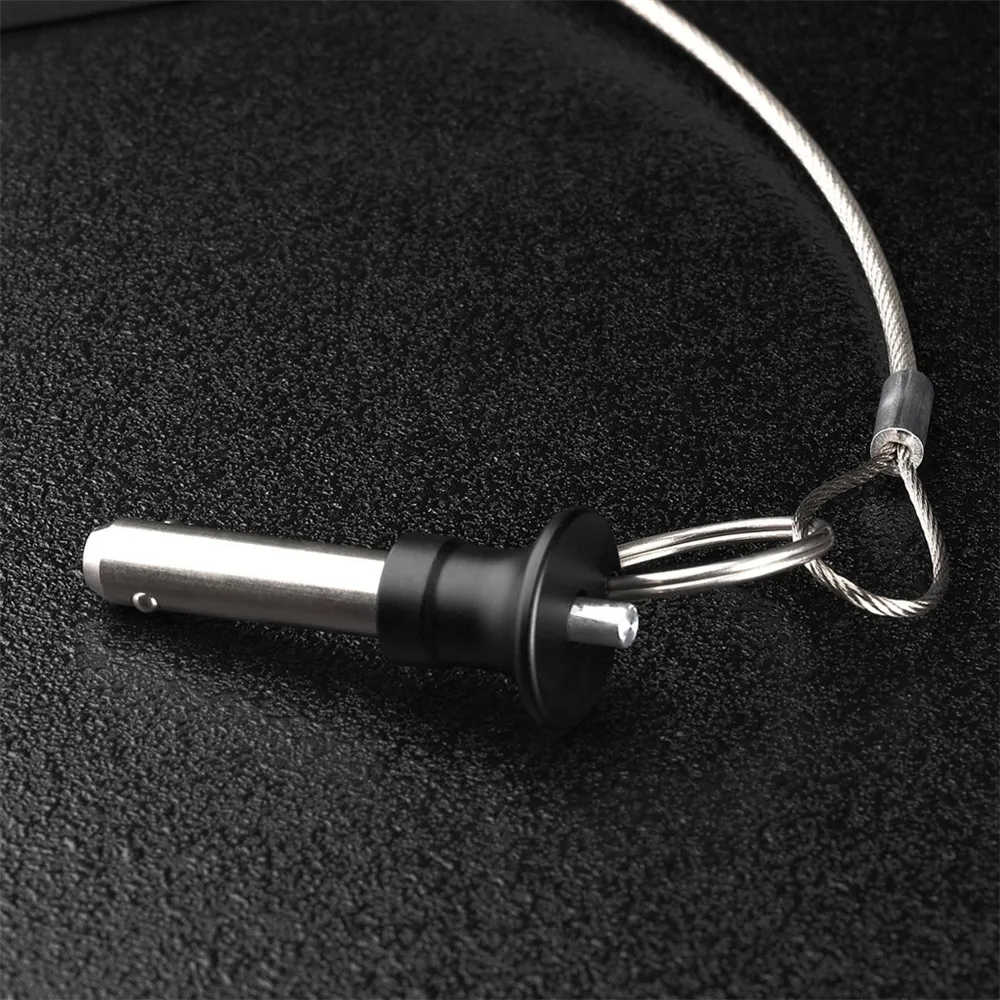

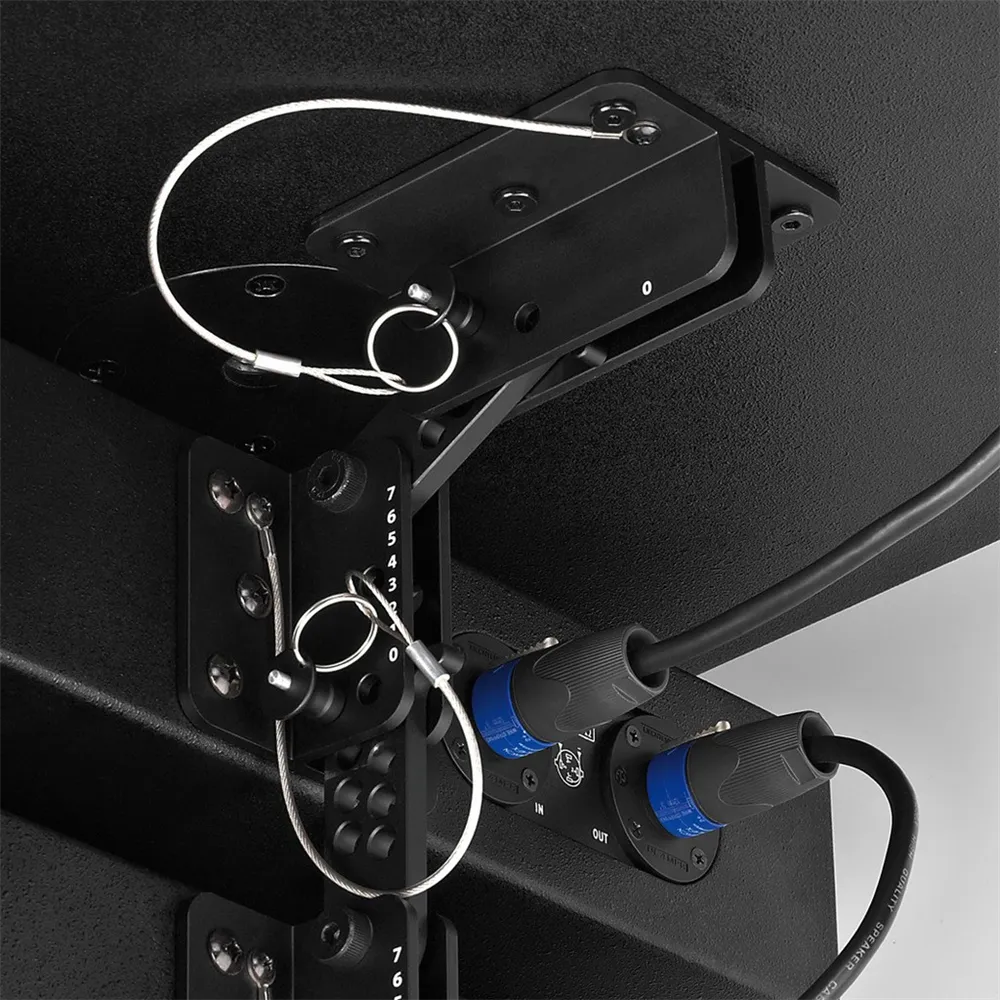

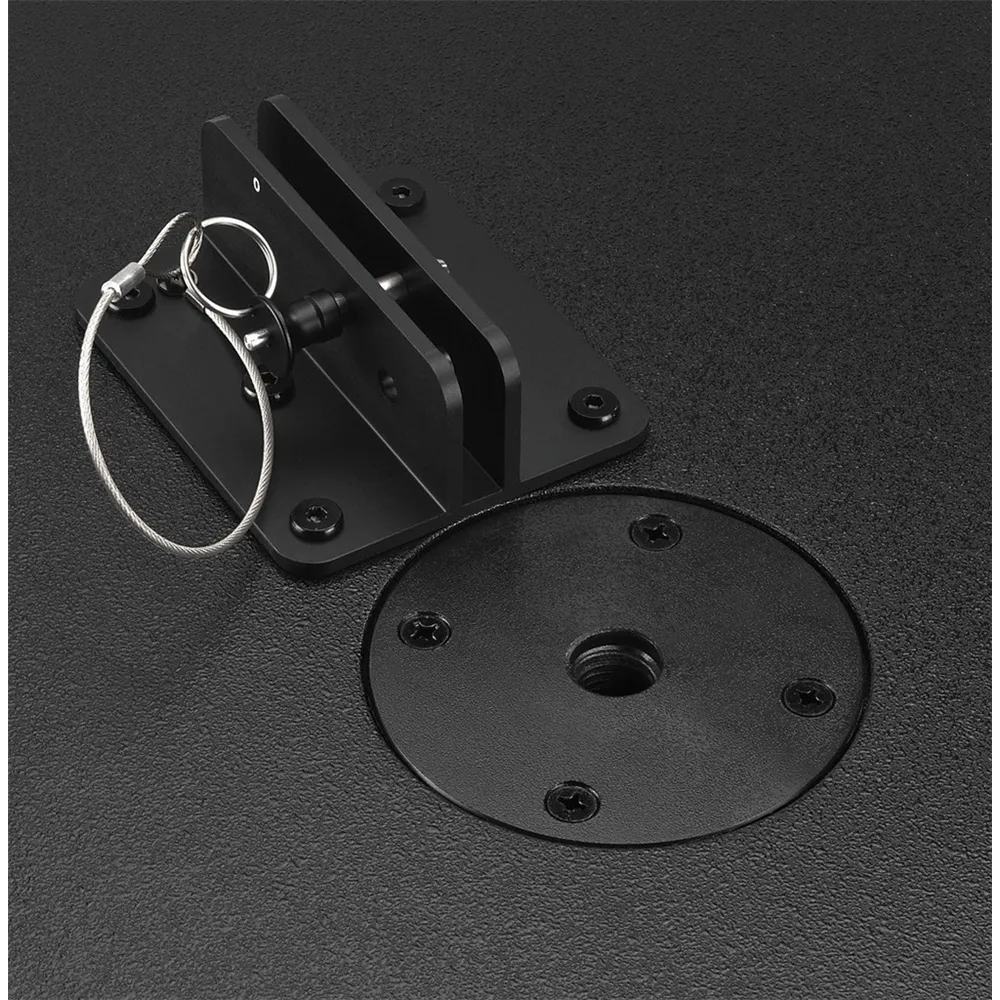

The robust wooden enclosure in elegant black is suitable for both hanging installation and stage use. With a sturdy mounting frame and quick-release fasteners for easy handling, the L-RAY/1000 is the ideal solution for clubs, nightclubs, and mobile stage applications. Enjoy perfect sound and optimal spatial coverage with this outstanding speaker array!
