IMG STAGELINE Stereo-PA-Verstaerker, 1400W, 2HE

IMG STAGELINE Stereo PA Amplifier, 1400W, 2U

Brand:

IMG STAGELINE Stereo PA Amplifier, 1000W, 2U

IMG STAGELINE Digital Amplifier 700W Max

Features

Stereo PA Amplifier with Integrated Limiter
LCD Display for Temperature, Operating Mode, and Power
Adjustable Operating Modes (Stereo or Bridge)
Switchable Limiter Function
Temperature-Controlled Fan
2 Level Controls
Ground Lift Function
Speaker Turn-On Delay
Protected Against Short Circuit and Overheating with LED Indicator
Per Channel LEDs for Clipping, Level, and Signal
Total Output Power: 1400 W
Rated Power: 1000 W
Power at 4 Ω: 2 x 500 W
Power at 8 Ω: 2 x 400 W
Power in 8-Ω Bridge Mode: 1 x 1000 W
Channels: 2
Inputs: 1.2 V/10 kΩ
Frequency Range: 10-50,000 Hz
Integrated Limiter: Yes
Signal-to-Noise Ratio: > 80 dB
Crosstalk Attenuation: > 50 dB
Power Supply Voltage: ~ 230 V
Power Supply Frequency: 50 Hz
Power Consumption in Operation: 2000 Hz
Permissible Operating Temperature: 0-40 °C
Width: 482 mm
Height: 100 mm
Depth: 330 mm
Rack Units (RU): 2
Weight: 11.5 kg

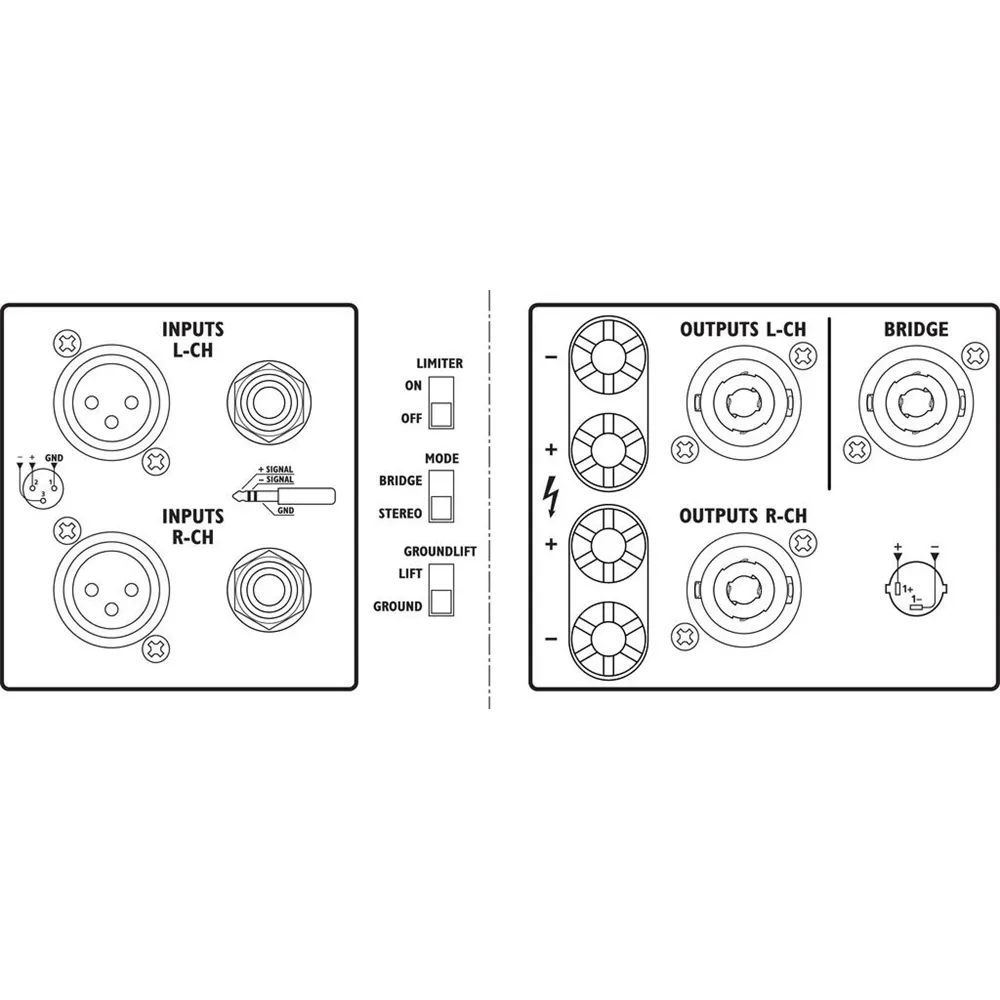

Connections: 1 x 3-Pin XLR L/R, Balanced, 1 x 6.3 mm Jack L/R, Balanced, 3 x SPEAKER, 2 x Screw Terminal Pair
Packaging Dimensions (W x H x L): 0.37 x 0.14 x 0.51 m
Gross Weight: 13.52 kg
Net Weight: 12.6 kg

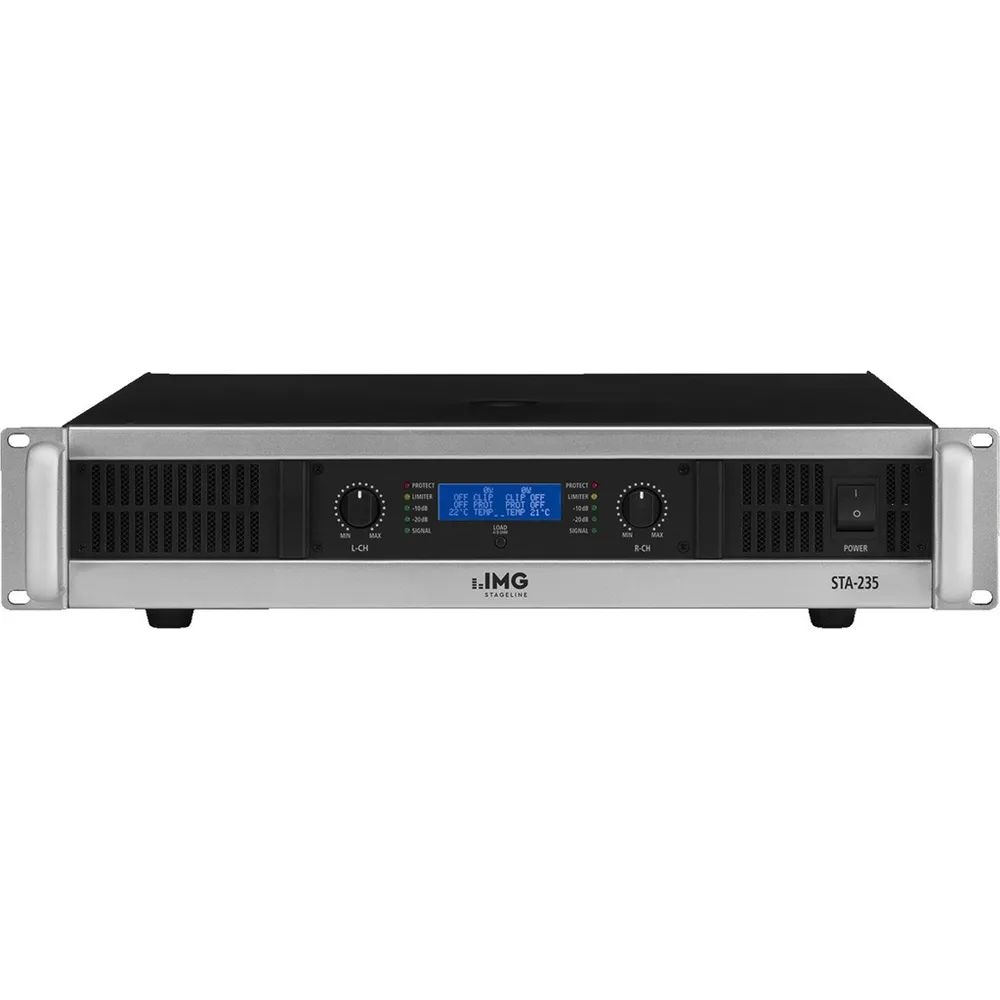

IMG STAGELINE Stereo PA Amplifier, 1400W, 2U

Experience the power and clarity of the IMG STAGELINE Stereo PA Amplifier with an impressive total output of 1400W. This high-performance amplifier is ideal for professional applications and offers the flexibility to switch between stereo and bridged operation. With an integrated limiter and temperature-controlled fan, it ensures safe operation even under demanding conditions.

The user-friendly LCD display provides information on temperature, operating mode, and output, while the two level controls allow for precise volume adjustments. The amplifier is also equipped with a ground lift function and a speaker turn-on delay to minimize noise interference and protect your speakers.

With a frequency range of 10-50,000 Hz and a high signal-to-noise ratio of over 80 dB, the IMG STAGELINE amplifier delivers outstanding sound quality. Its robust construction and compact dimensions (2U) make it the perfect choice for mobile applications and fixed installations. Trust in the quality of IMG STAGELINE and elevate your audio performance to the next level!

Delivery areas

We only deliver to addresses within Switzerland and the Principality of Liechtenstein.

Shipping & delivery

Your parcels are usually dispatched via UPS 2 days after receipt of payment. You will receive a tracking number so that you can track the status of your delivery online at any time. Delivery is made without a signature.

If you would like a UPS shipment by registered mail, please contact us before placing your order, as this will incur additional costs.

Shipping costs & packaging

The flat-rate shipping fee is CHF 10.00 per order and covers both packaging and postage costs. To save shipping costs, we recommend combining several items in one order, as separate orders are charged individually. Your parcel is sent at your risk, but we always pack fragile goods with special care. Our shipping boxes are generously sized and offer optimum protection for your products.

Collection from our shop

You are also welcome to collect your ordered goods directly from our shop in [insert location XXXX].

Reviews

No comments
