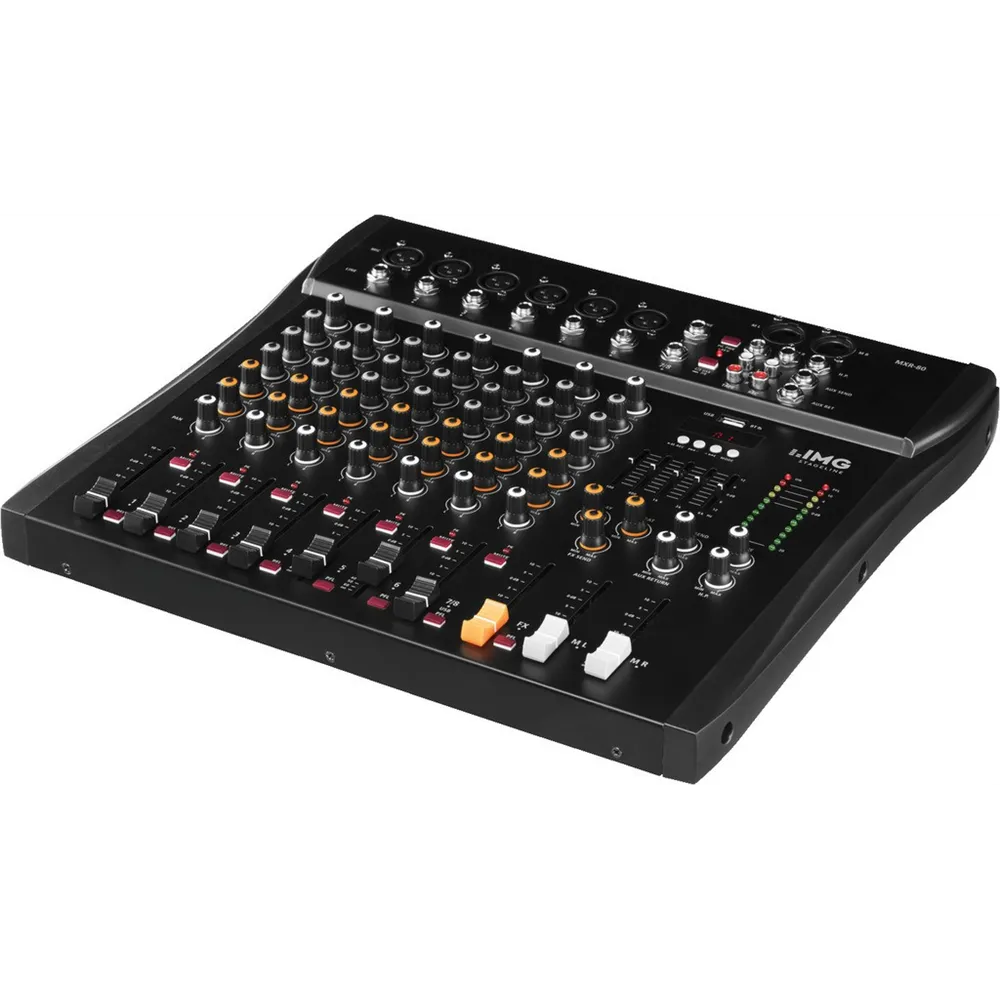

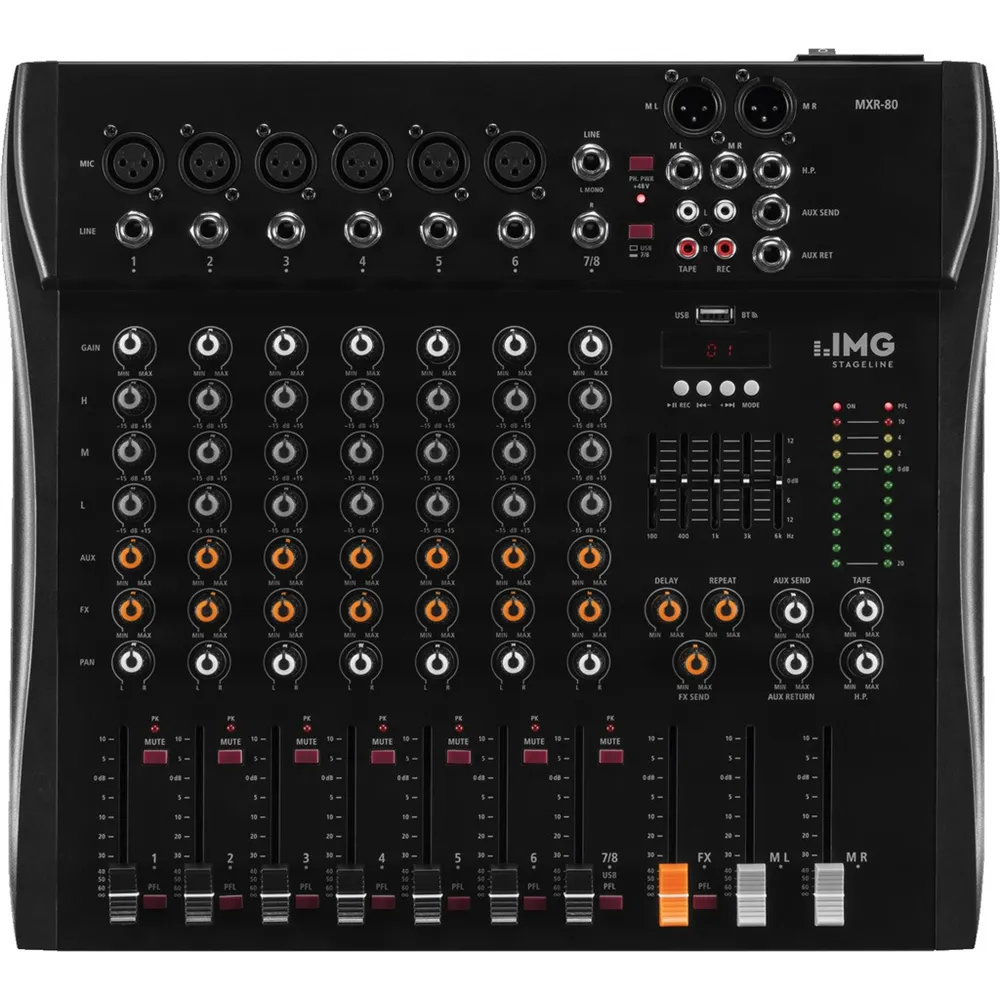

IMG STAGELINE 8-Channel Audio Mixer

Features

• Integrated USB audio interface (recognized and operated as an external sound card)
• Full-duplex USB port (simultaneous recording and playback possible) for playback of digital audio data from the computer and recording of the mix onto the computer
• 6 mono input channels with gain control, 3-band EQ, and pan pot
• 1 stereo input channel with 3-band EQ and balance control
• MP3 player
• USB interface
• Bluetooth receiver
• Adjustable DSP delay
• Adjustable aux return input and FX send output
• Tape record/play connections
• 5-band stereo graphic equalizer
• +48V phantom power, centrally switchable
• Pre-listening (PFL) of stereo input channels via adjustable headphone output
• Stereo LED level indicator
• Input channels: 8
• Number of mic/mono: 6
• Number of stereo: 1
• Mic input: 2.2 mV, balanced 8 x XLR
• Line input: 50 mV (stereo), 1 x 6.3 mm jack L/R; 30 mV (mono), 8 x 6.3 mm jacks
• Tape (play): 290 mV, 1 x RCA L/R
• Aux input: 420 mV, 1 x 6.3 mm jack L/R
• Master output: 880 mV, balanced 1 x XLR L/R; 880 mV, 1 x 6.3 mm jack L/R
• Effect send: 9 V, 1 x 6.3 mm jack
• Tape (rec): 400 mV, 1 x RCA L/R
• Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
• USB: yes
• Bluetooth: yes
• Frequency range: 20-20,000 Hz
• THD (Total Harmonic Distortion): < 0.03 %
• Signal-to-noise ratio: > 82 dBA
• Low frequency control: ±15 dB/80 Hz
• Mid frequency control: ±15 dB/2.5 kHz
• High frequency control: ±15 dB/12 kHz
• Equalizer: 5-band EQ
• Phantom power: +48 V
• Power supply: ˜ 230 V/50 Hz/25 VA
• Line voltage: ~ 230 V
• Line frequency: 50 Hz
• Power consumption in operation: 25 VA
• Permissible operating temperature: 0-40 °C
• Width: 382 mm
• Height: 53 mm
• Depth: 340 mm
• Weight: 3.4 kg
