OMNITRONIC XDA-1206 6-Kanal Class-D-Verstärker

OMNITRONIC XDA-1206 6-Channel Class-D Amplifier

Brand:

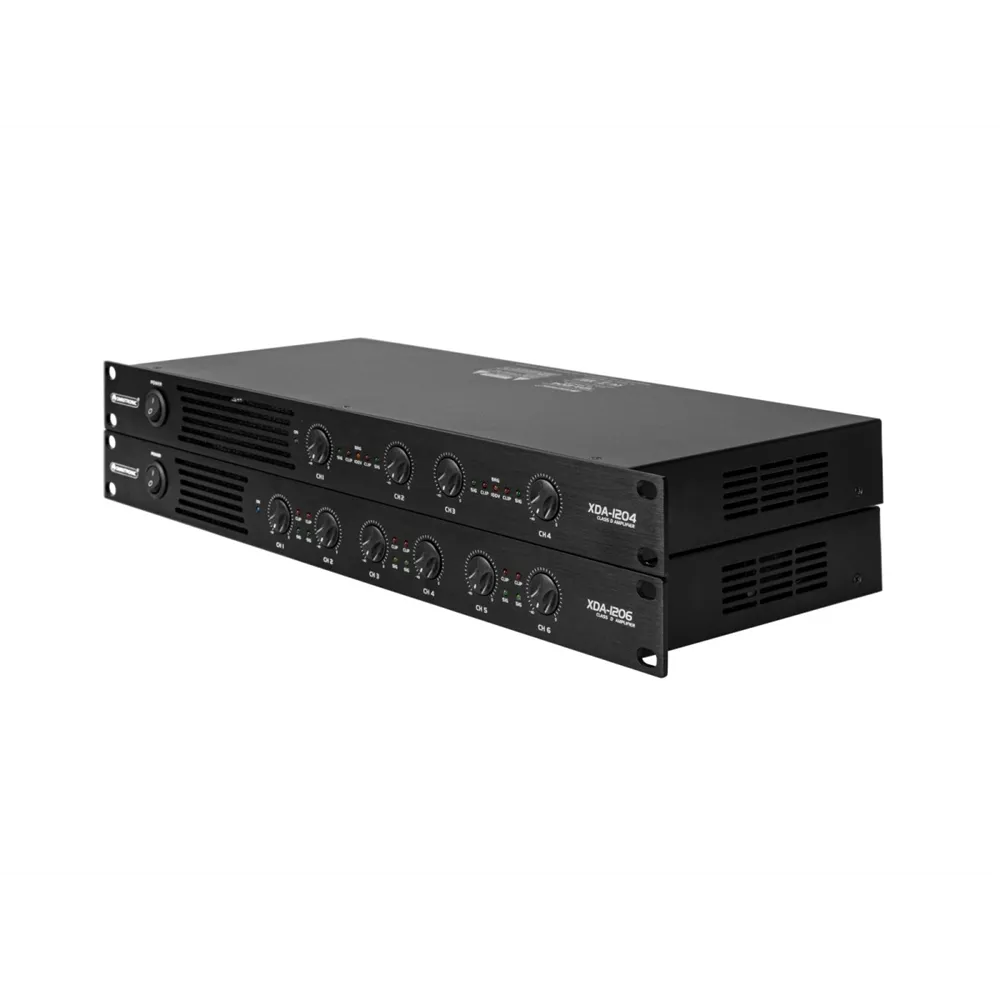

OMNITRONIC XDA-1204 4-Channel Class-D Amplifier

Features

Class D Multi-Channel PA Amplifier with Switching Power Supply
Output Power: 6 x 200 W RMS (4 Ohm), 6 x 150 W RMS (8 Ohm)
Very lightweight and compact height due to integrated switching power supply
Level control per channel
(19") 48.3 cm Rack Mountable, 1 U
Power Supply: 230 V AC, 50 Hz
Total Power Consumption: 1440 W
Protection Class: Class I
Frequency Range: 20 - 20,000 Hz
Signal-to-Noise Ratio: >100 dB
Impedance: Input: 20 kOhm, balanced / 10 kOhm, unbalanced
Circuitry: Class D
Controls: Power Switch, Volume Control per Channel
Protection Circuitry: Soft Start; Overheating; Overload; Short Circuit; DC Protection
Status LEDs: Power, Signal, Clip

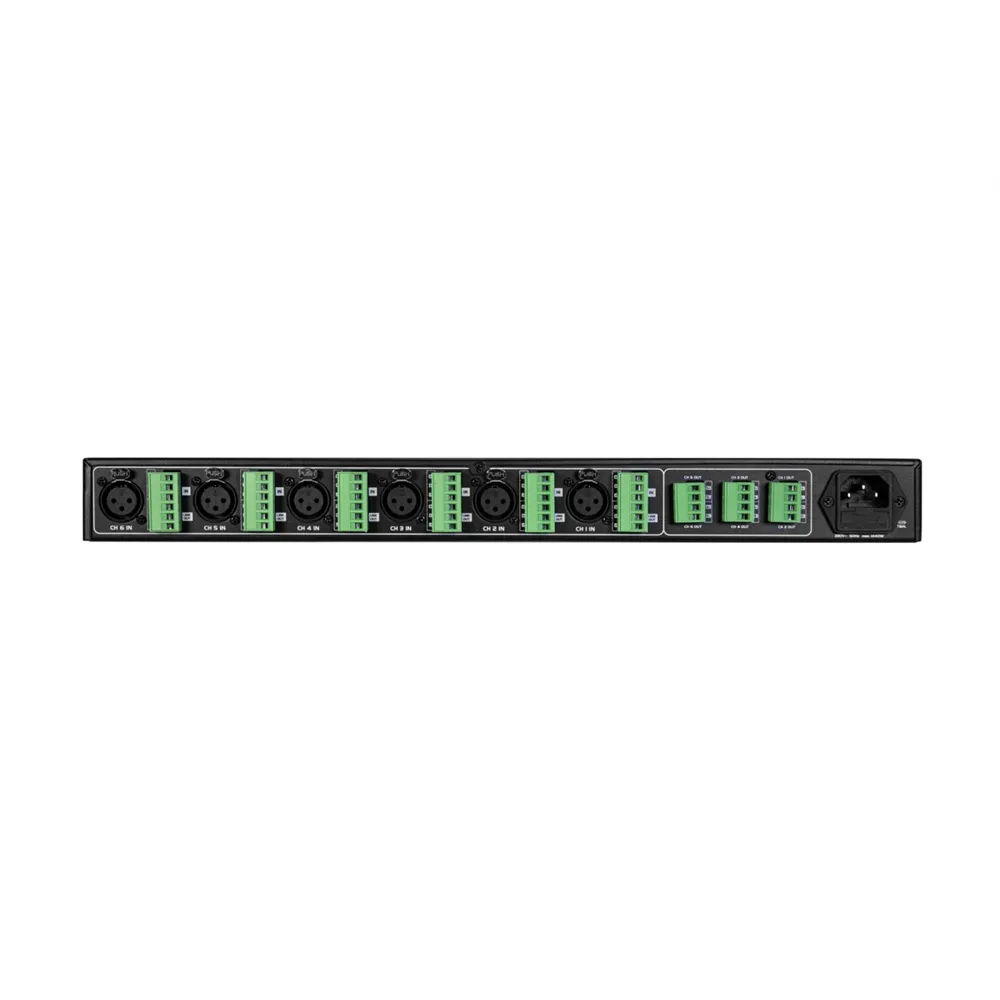

Connections: Input: Line via 6 x 3-pin XLR, 6 x Screw Terminal; Link: Line via 6 x Screw Terminal; Output: Speaker via 6 x Screw Terminal
Enclosure Type: (19") 48.3 cm Rack Mountable, 1 U
Dimensions: Width: 48.3 cm, Depth: 20.5 cm, Height: 4.4 cm
Weight: 3.75 kg

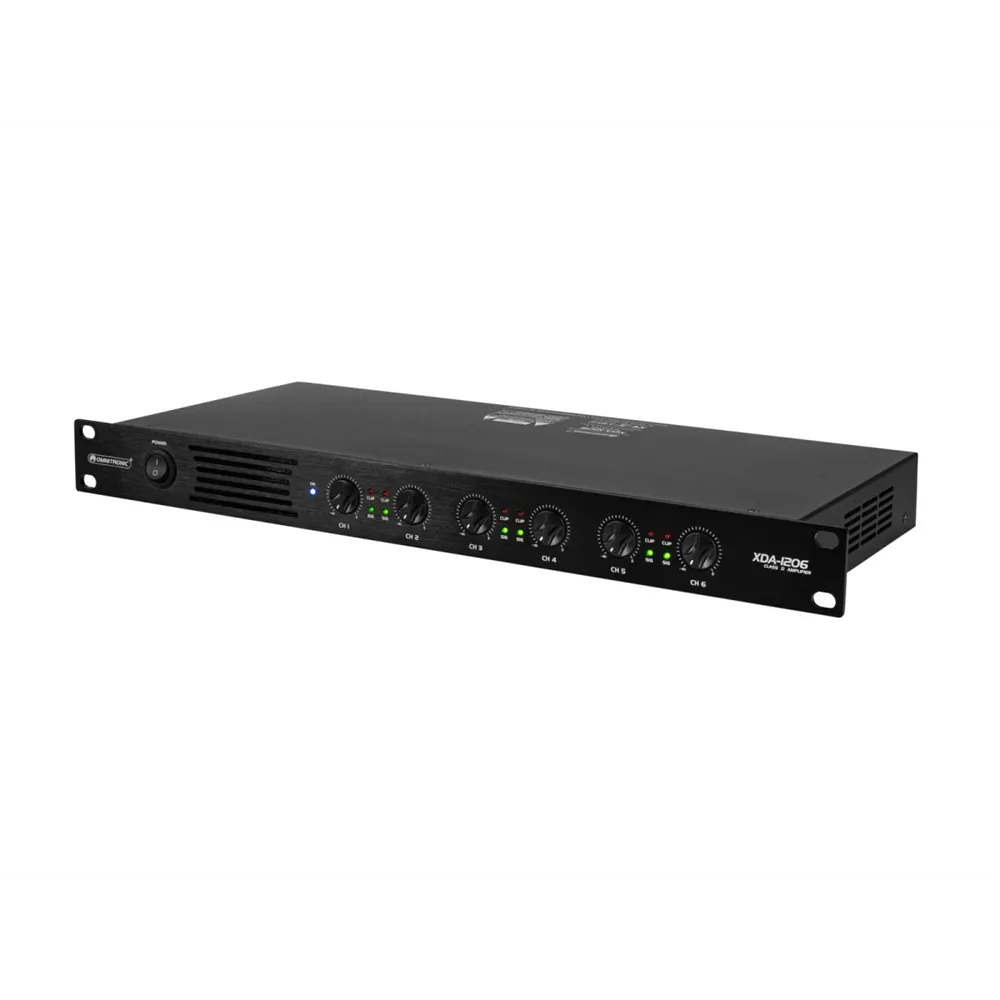

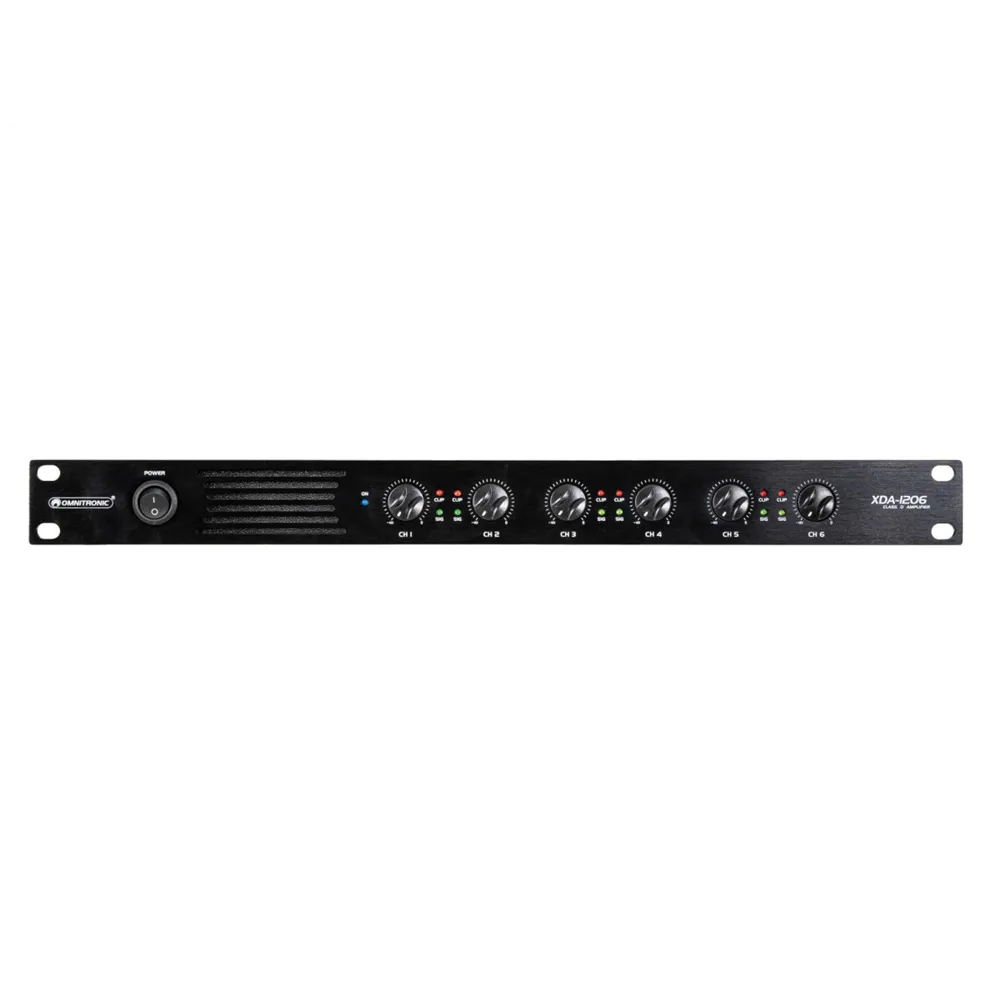

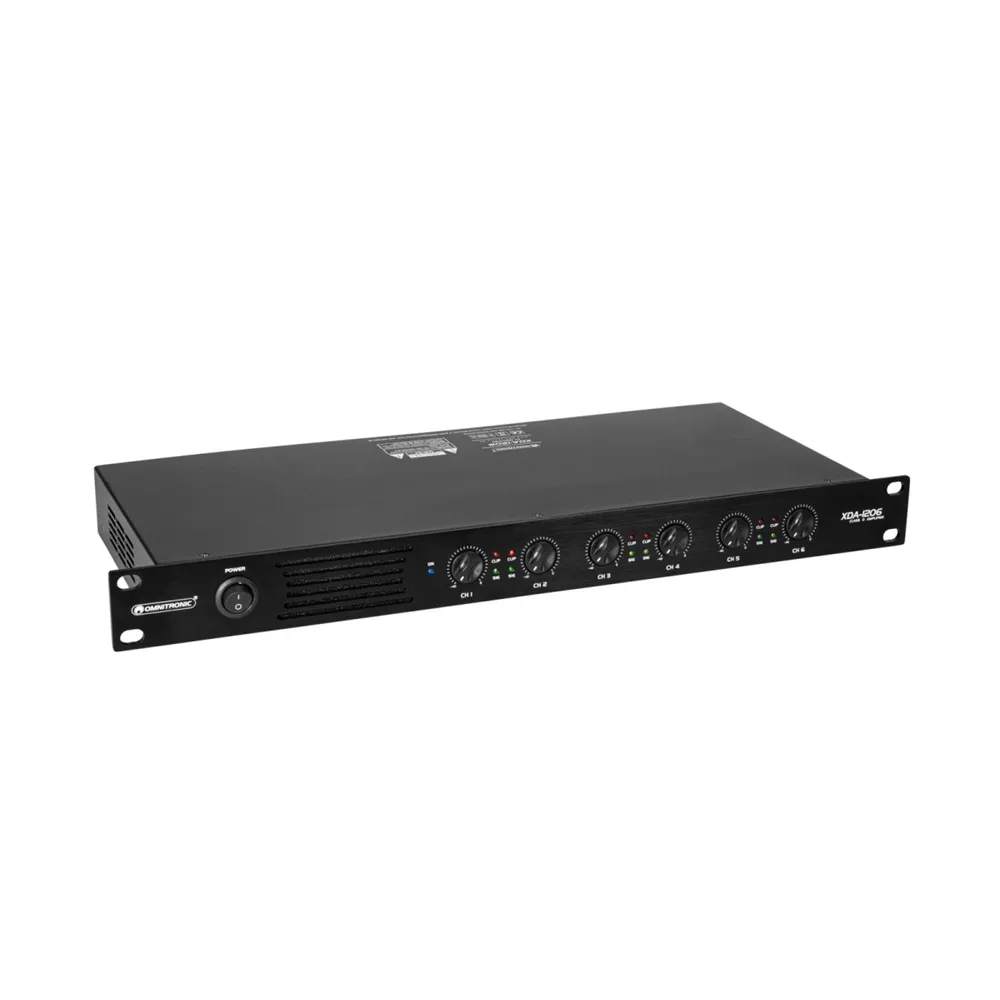

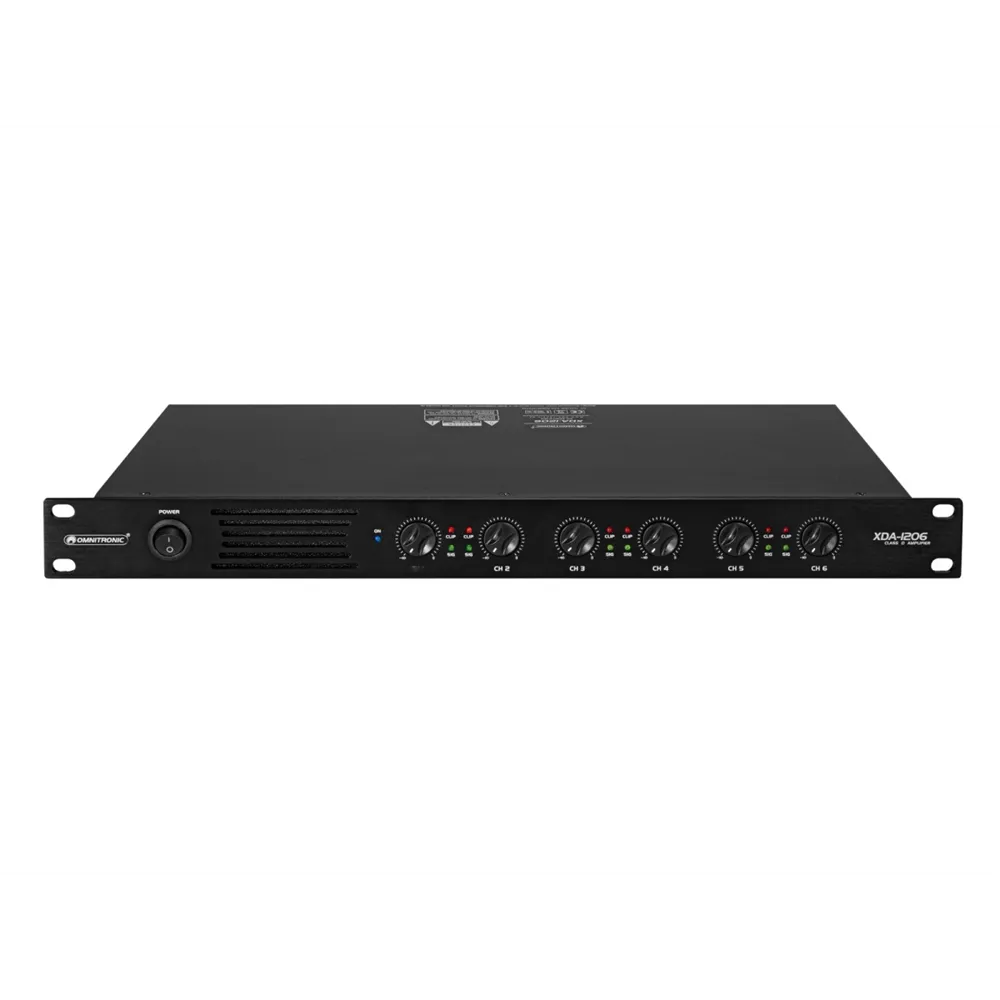

OMNITRONIC XDA-1206 6-Channel Class-D Amplifier

Discover the OMNITRONIC XDA-1206, a powerful 6-channel Class-D amplifier designed for professional audio applications. With an impressive output power of 6 x 200 W RMS at 4 Ohms and 6 x 150 W RMS at 8 Ohms, this amplifier provides the necessary power to deliver sound for even the most demanding events.

Thanks to its integrated switch-mode power supply, the XDA-1206 is not only lightweight but also compact, making it ideal for rack mounting (1U, 19"). Each channel features its own level control, allowing you to adjust the volume individually. With a frequency range of 20 to 20,000 Hz and a signal-to-noise ratio of over 100 dB, this amplifier guarantees outstanding sound quality.

The robust protection circuitry ensures safety against overheating, overload, and short circuits. The package includes the amplifier itself, a user manual, a power cable, and screw terminal connectors. Weighing only 3.75 kg, the OMNITRONIC XDA-1206 is the perfect choice for mobile DJs, bands, and venues that prioritize quality and performance.
