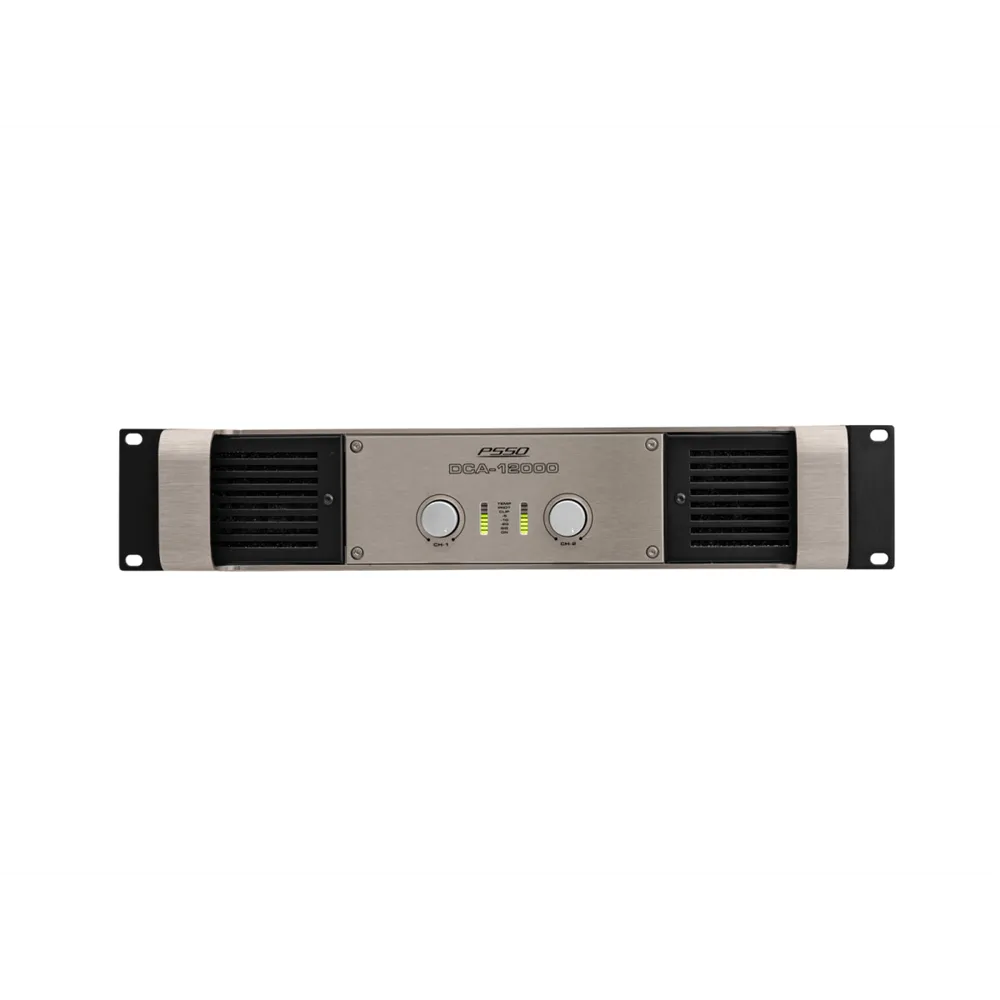

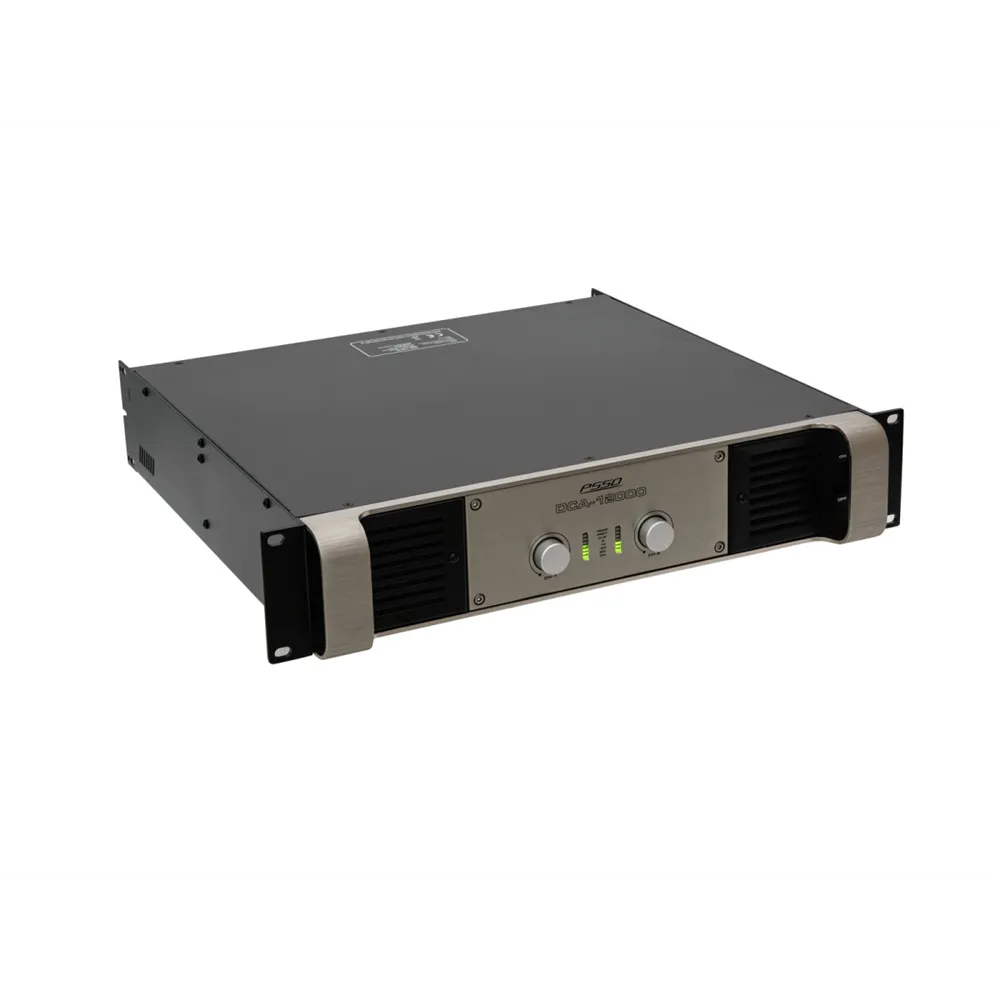

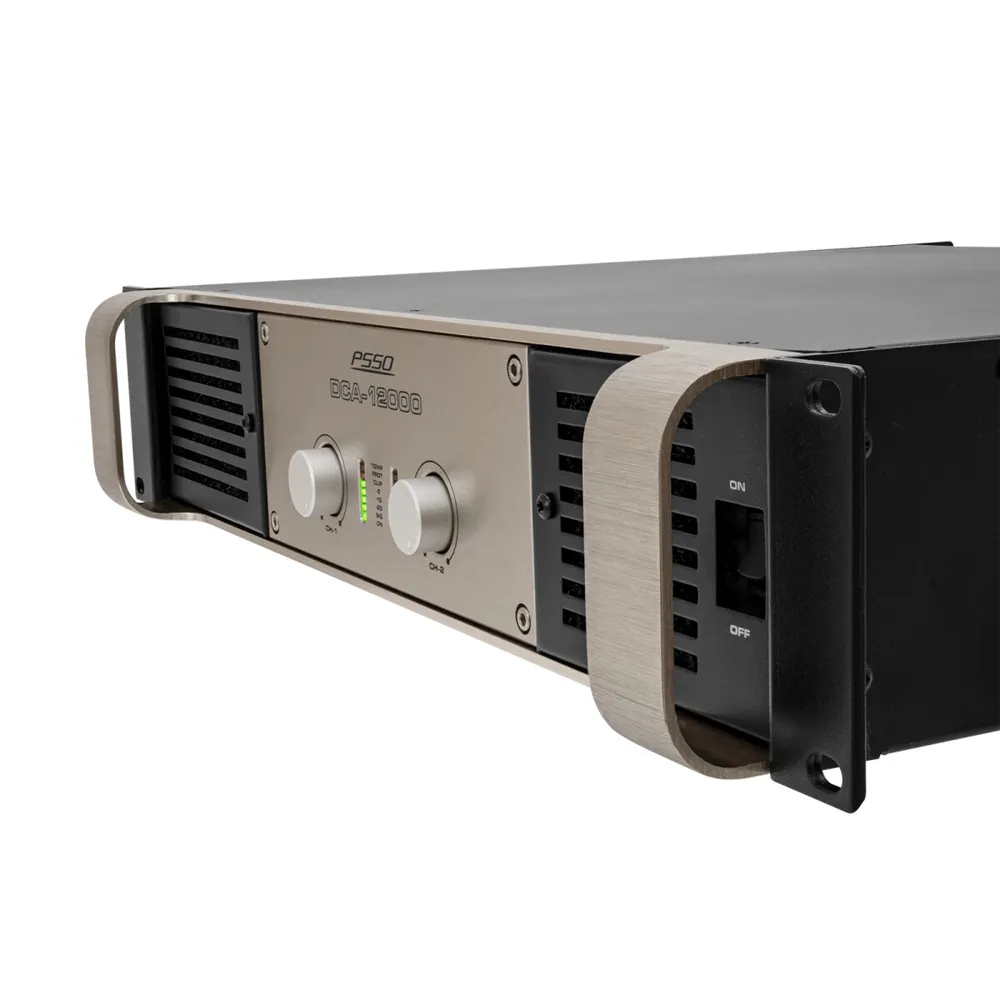

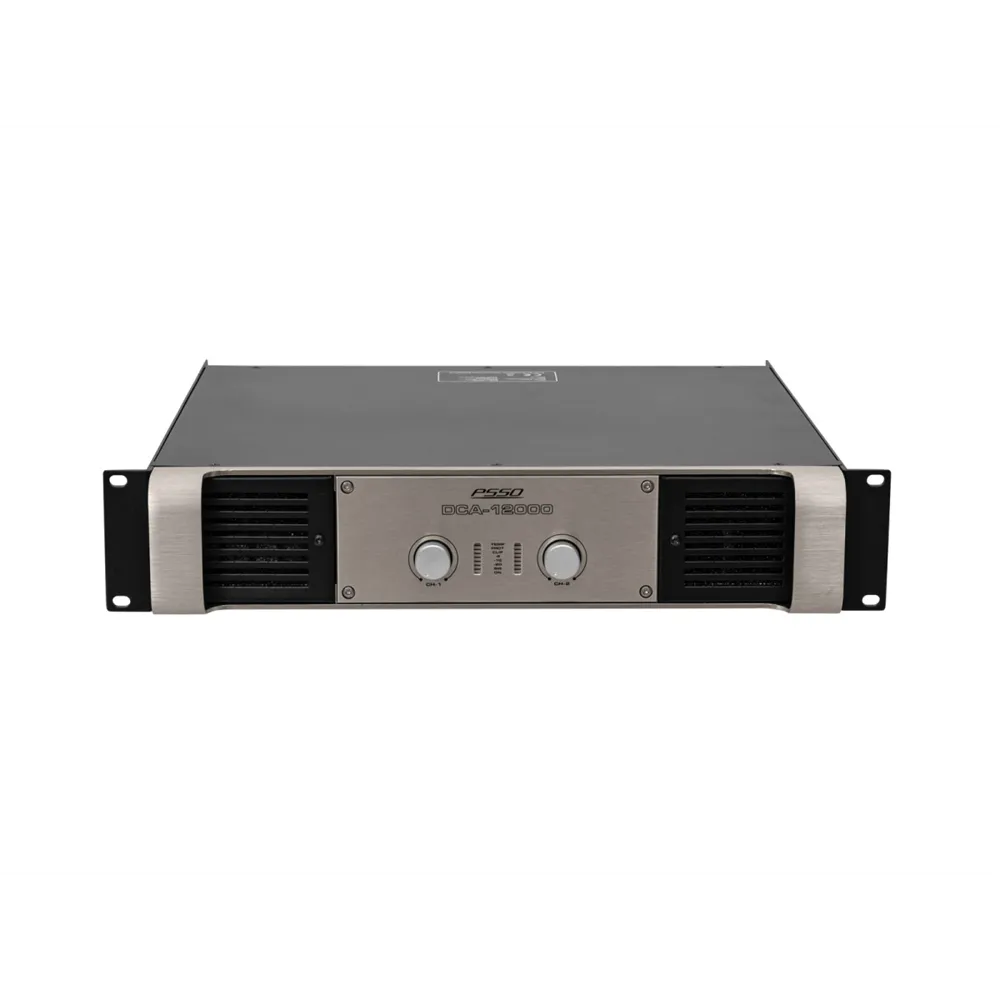

PSSO DCA-12000 2-Channel Power Amplifier SMPS

Features

• Class I Stereo PA Amplifier with Switching Power Supply, 2 x max. 6000 W (2 Ohm), 2 x max. 3900 W (4 Ohm)
• Lightweight and low-profile design due to integrated switching power supply
• Reliable workhorse with high impulse strength for a wide range of applications (e.g., compact PAs, multi-way PAs, concerts)
• Limiter and speaker turn-on delay
• 3 selectable operating modes (Stereo, Parallel, or Bridged)
• Level control per channel
• Adjustable input sensitivity
• Per channel LED VU meter and LEDs for activated protection circuit (Protect) and clipping (Clip)
• Electronically balanced inputs via XLR connectors with XLR loop-through outputs
• Speaker outputs via lockable speaker connectors
• Robust steel chassis with aluminum front panel
• High-efficiency airflow from front to rear
• Device cooling via temperature-controlled fans
• NEUTRIK connectors installed
• (19") 48.3 cm rack mountable, 2 HE
• Suitable for applications such as: stage; concerts/FOH; rental companies; mobile DJs/entertainers; restaurants, bars, and hotels; sports centers/gyms
• Power supply: 230 V AC, 50 Hz
• Total power consumption: 1050 W at 1/8 power
• Protection class: Class I
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >90 dB
• Cooling: 3 x temperature-controlled fans, airflow from front to rear
• Impedance: Input: 10 kOhm, unbalanced; Input: 20 kOhm, balanced
• Gain: 38 dB/0.775 V; 32 dB/1.0 V; 26 dB/1.4 V
• Chassis color: Black
• Circuitry: Class I
• Rise times: >10 V/µs
• Damping factor: >200
• Controls: Power switch, volume control per channel, operating mode switch (Stereo/Parallel/Bridged), input sensitivity switch, limiter switch
• Protection circuitry: Overheating; overload; short circuit; soft start; DC; VHF; limiter
• Status LEDs: Power, level indication, clip, protect

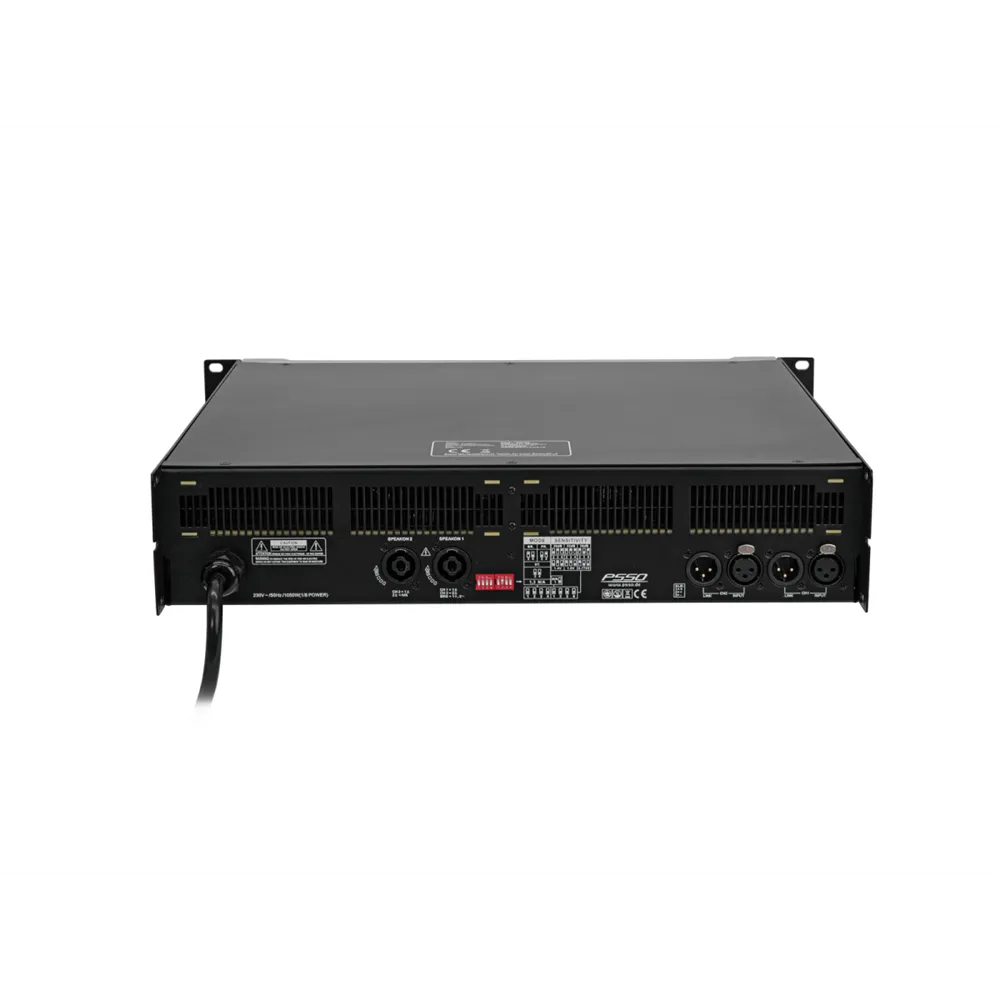

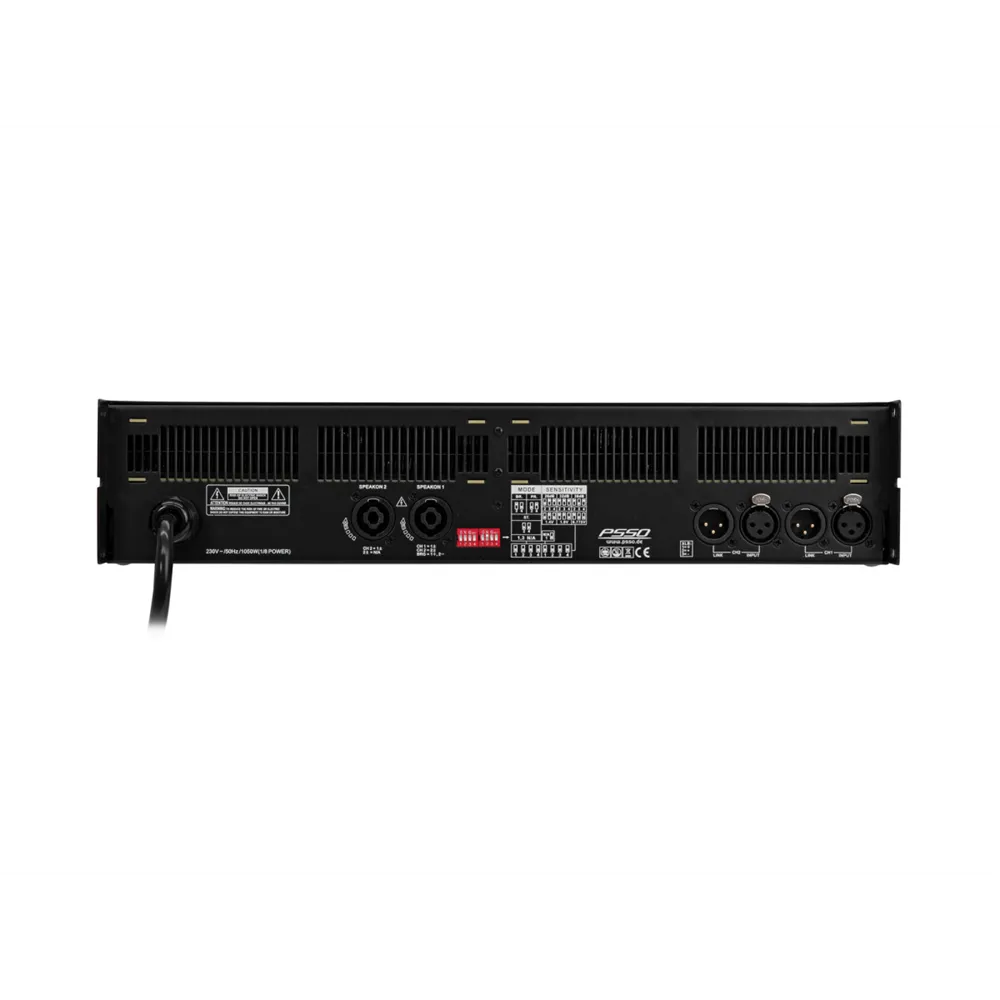

• Connections: Input: Line via 2 x 3-pin XLR (F) panel mount; Output: Line via 2 x 3-pin XLR (M) panel mount; Output: Speaker via 2 x speaker panel mount connectors (F)
• Input sensitivity: 0.775 V; 1.0 V; 1.4 V, switchable; 26 dB; 32 dB; 38 dB, switchable
• Material: Steel
• Chassis design: (19") 48.3 cm rack mountable, 2 HE
• Dimensions: Width: 48.3 cm; Depth: 44.0 cm; Height: 8.9 cm
• Weight: 14.20 kg
