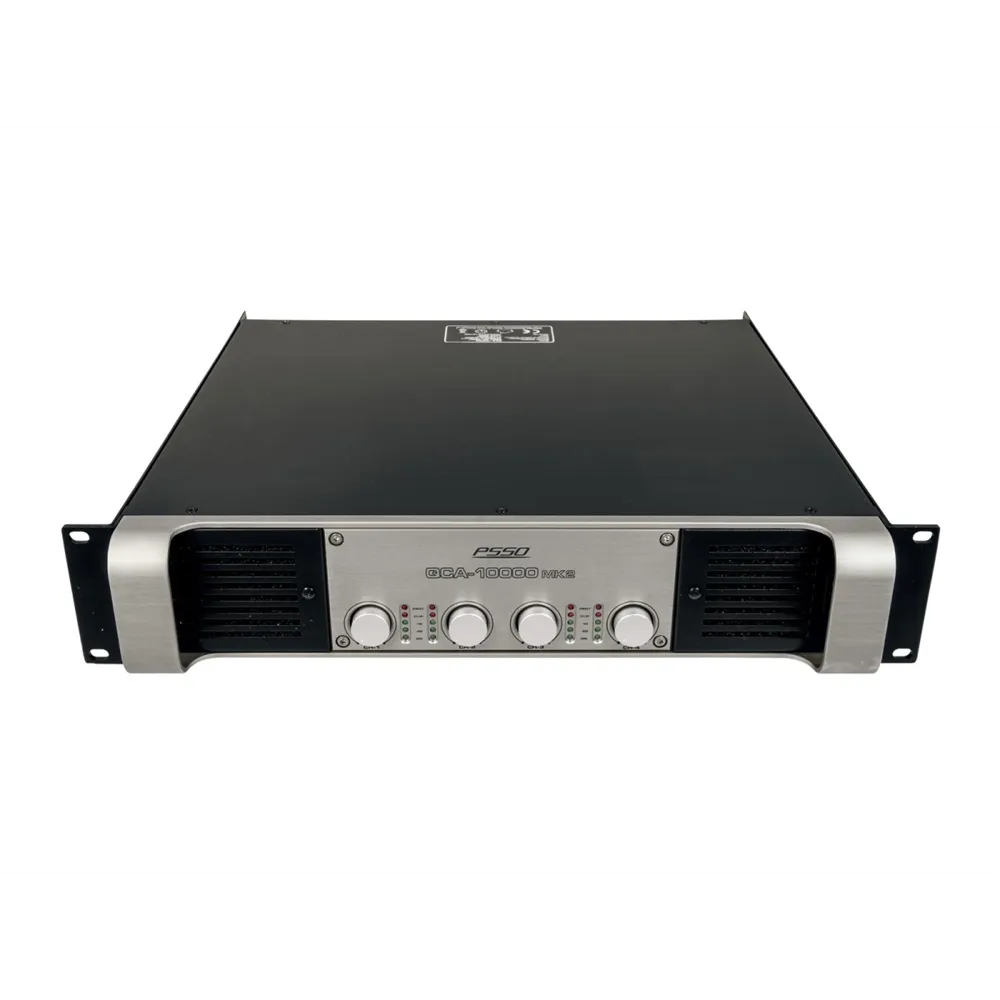

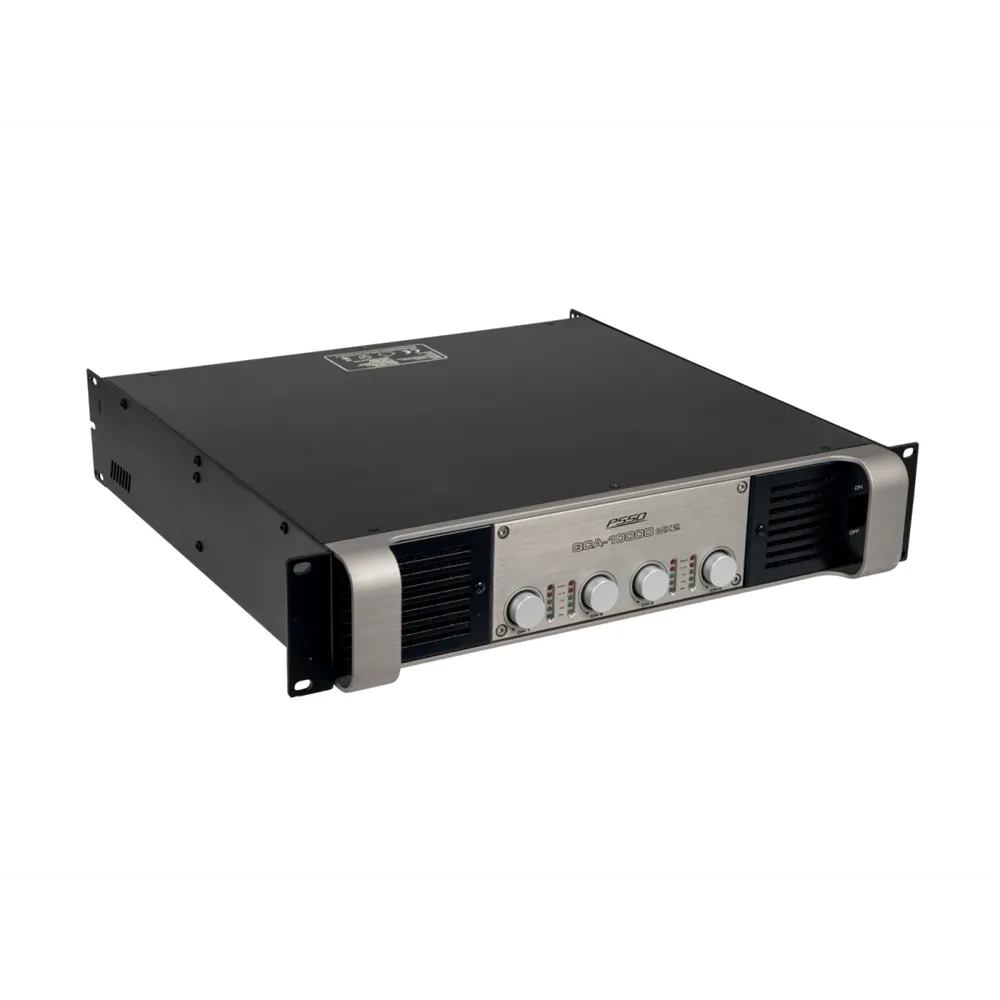

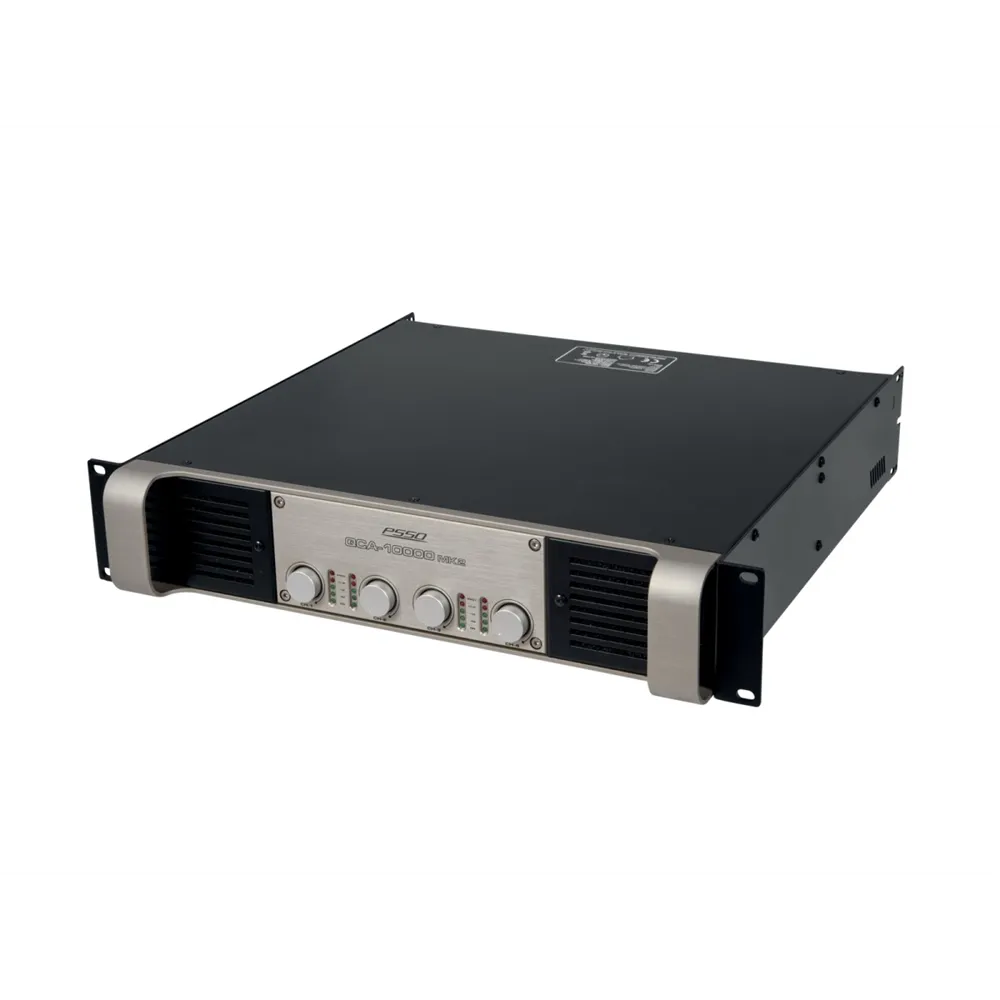

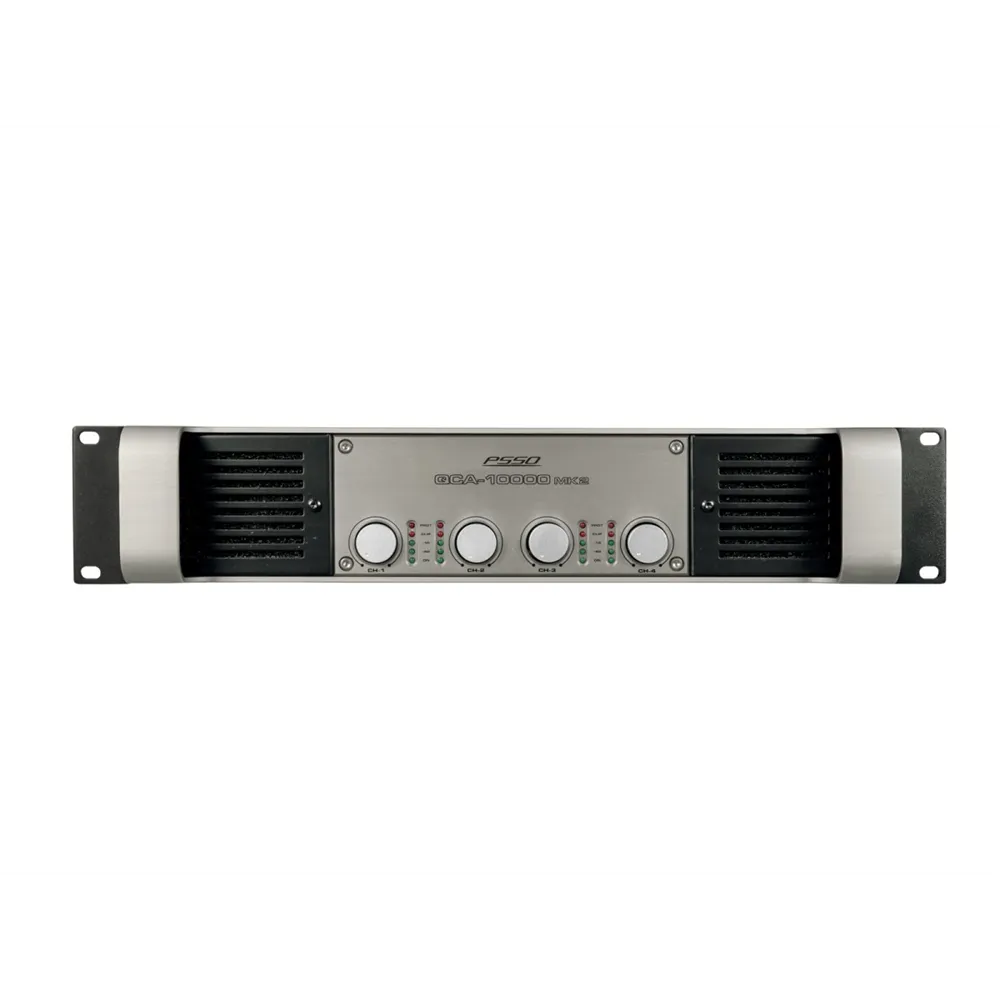

PSSO QCA-10000 MK2 4-Channel Power Amplifier SMPS

Features

• 4-channel PA amplifier with Class I technology
• Lightweight and low profile due to integrated switch-mode power supply
• Reliable workhorse with high impulse strength for a wide range of applications (e.g., compact PAs, multi-way PAs, concerts)
• 3 selectable operating modes (Stereo, Parallel, or Bridged)
• Level control for each channel
• Adjustable input sensitivity
• Per channel LED VU meter and LEDs for activated protection circuit (Protect) and clipping (Clip)
• Electronically balanced inputs via XLR connectors with XLR loop-through outputs
• Speaker outputs via lockable speaker connectors
• Robust steel chassis with aluminum front panel
• High-efficiency airflow from front to back
• Device cooling via temperature-controlled fans
• Equipped with NEUTRIK connectors
• (19") 48.3 cm rack mountable, 2 HE
• Suitable for applications such as clubs/dance schools, installations, mobile use, mobile DJs/entertainers, restaurants, bars, hotels, rental services, sports centers/gyms
• Power supply: 230 V AC, 50 Hz
• Total connection value: 1150 W at 1/8 power
• Protection class: Class I
• Output power: 4 x 2500 W RMS (2 Ohm), 4 x 2100 W RMS (4 Ohm), 4 x 1300 W RMS (8 Ohm), 2 x 5000 W RMS bridged (4 Ohm), 2 x 4200 W RMS bridged (8 Ohm)
• Power connection: Fixed power connection cable with protective contact plug
• Cable length: 1.5 m
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >80 dB
• Cooling: 3 x temperature-controlled fans, airflow from front to back
• Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
• Gain: 40.3 dB/0.775 V, 38 dB/1.0 V, 35.1 dB/1.4 V
• Circuitry: Class I
• Rise times: >10 V/µs
• Damping factor: >800
• Crosstalk attenuation: >65 dB
• Controls: Power switch, volume control per channel, operating mode selector (Stereo/Parallel/Bridged), input sensitivity switch
• Protection circuitry: Overheating, overload, short circuit, soft start, DC, VHF
• Status LEDs: Power, level indication, clip, protect

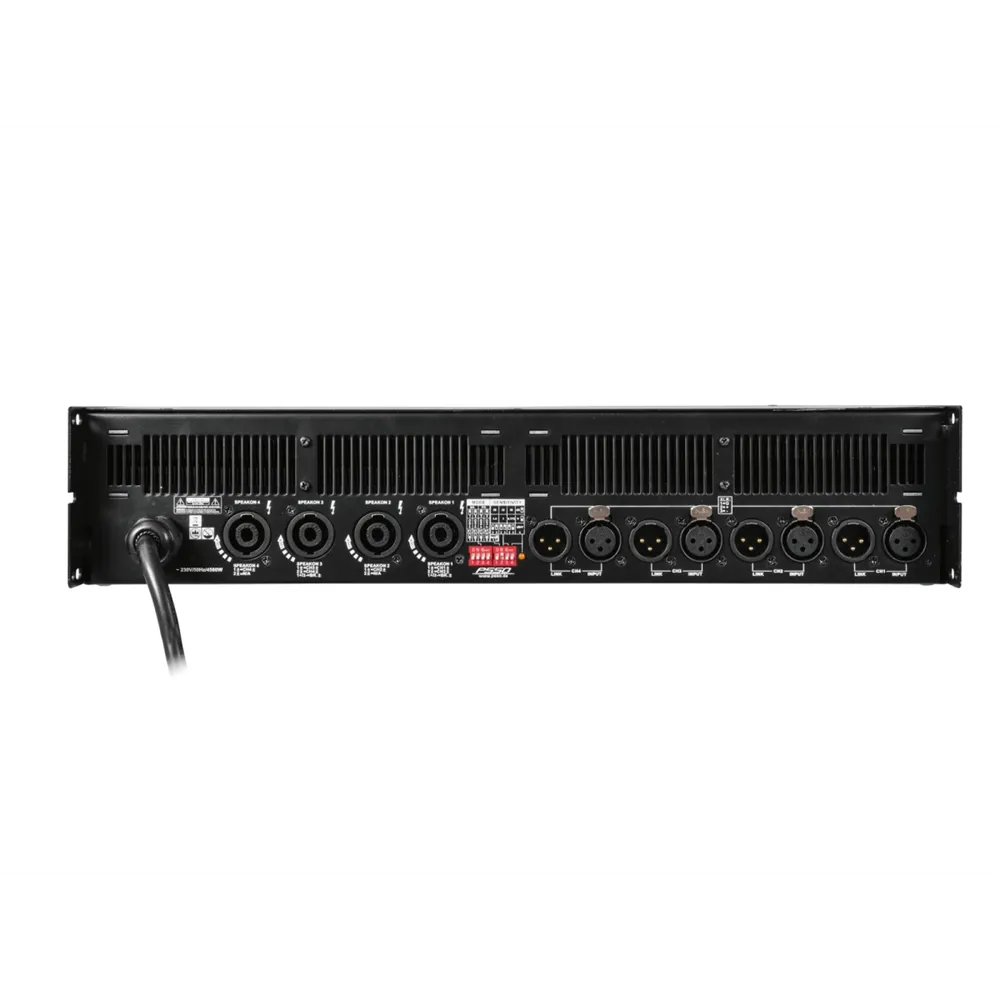

• Connections: Input: Line via 4 x 3-pin XLR (F) panel mount; Output: Line via 4 x 3-pin XLR (M) panel mount; Output: Speaker via 4 x speaker panel socket (F)
• Input sensitivity: 0.775 V; 1.0 V; 1.4 V, switchable; 26 dB; 32 dB; 38 dB, switchable
• Color: Black
• Enclosure type: (19") 48.3 cm rack mountable, 2 HE
• Dimensions: Width: 48.3 cm, Depth: 44.5 cm, Height: 8.9 cm
• Weight: 13.90 kg
