OMNITRONIC XDA-1204 4-Kanal Class-D-Verstärker

OMNITRONIC XDA-1204 4-Channel Class-D Amplifier

Brand:

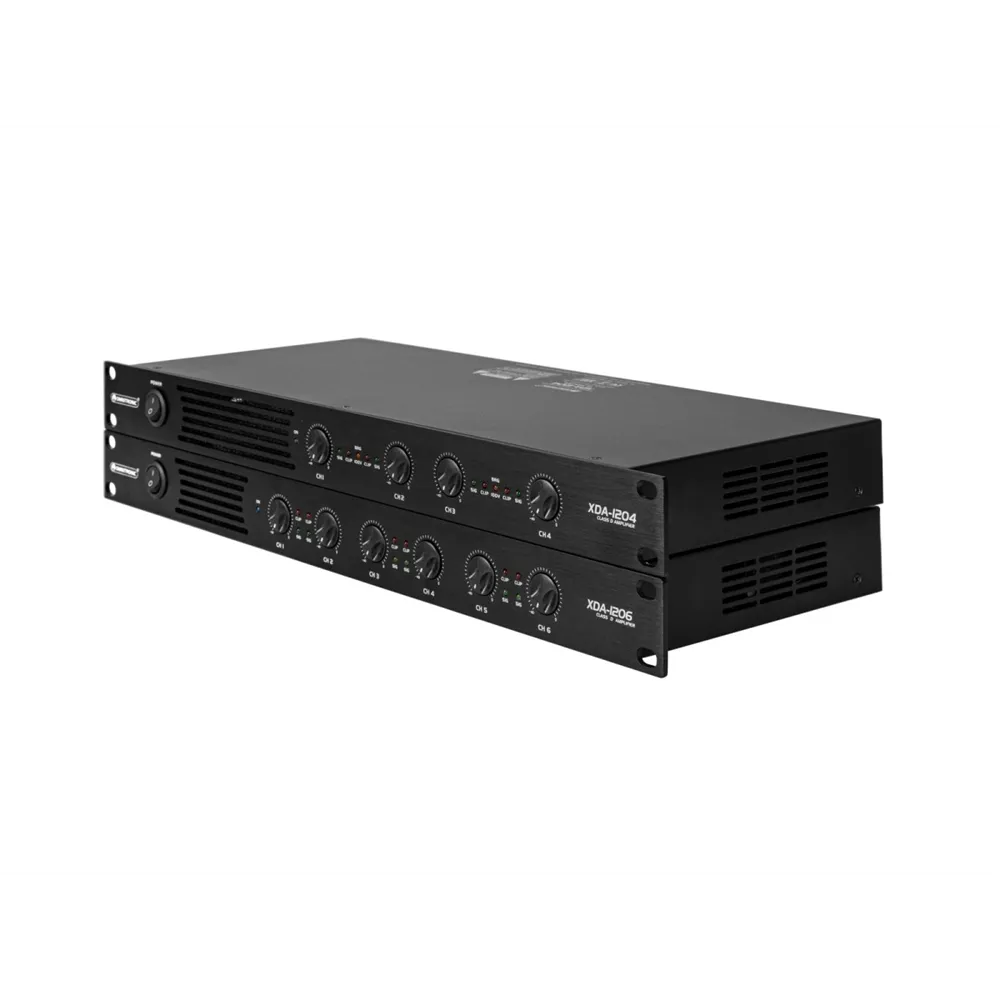

OMNITRONIC XDA-1206 6-Channel Class-D Amplifier

Features

Class D Multi-Channel PA Amplifier with Switching Power Supply, 4 x 300 W RMS (4 Ohm), 4 x 180 W RMS (8 Ohm)
Very lightweight and compact height due to integrated switching power supply
3 selectable operating modes (Stereo, Parallel, or Bridged)
Level control for each channel
19" (48.3 cm) Rack Mountable, 1U
Ideal for applications such as clubs/dance schools, installations, mobile use, mobile DJs/entertainers, restaurants, bars, hotels, rental services, sports centers/fitness studios
Power Supply: 230 V AC, 50 Hz
Total Power Consumption: 1440 W
Protection Class: Class I
Output Power: 4 x 300 W RMS (4 Ohm), 4 x 180 W RMS (8 Ohm), 2 x 600 W RMS Bridged (8 Ohm), 2 x 600 W RMS Bridged (100 V)
Power Connection: Power input via P-Con (blue), installation version power connection cable with protective contact plug (included)
Device Fuse: 5 x 20 mm, T 8 A replaceable fuse
Frequency Range: 20 - 20,000 Hz
Signal-to-Noise Ratio: >100 dB
Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
Housing Color: Matte Black
Circuit Type: Class D
Controls: Power switch, operating mode selector (Stereo/Parallel/Bridged), volume control per channel
Protection Circuitry: Soft start, overheating, overload, short circuit, DC protection
Status LEDs: Power, Signal, Clip, Bridged

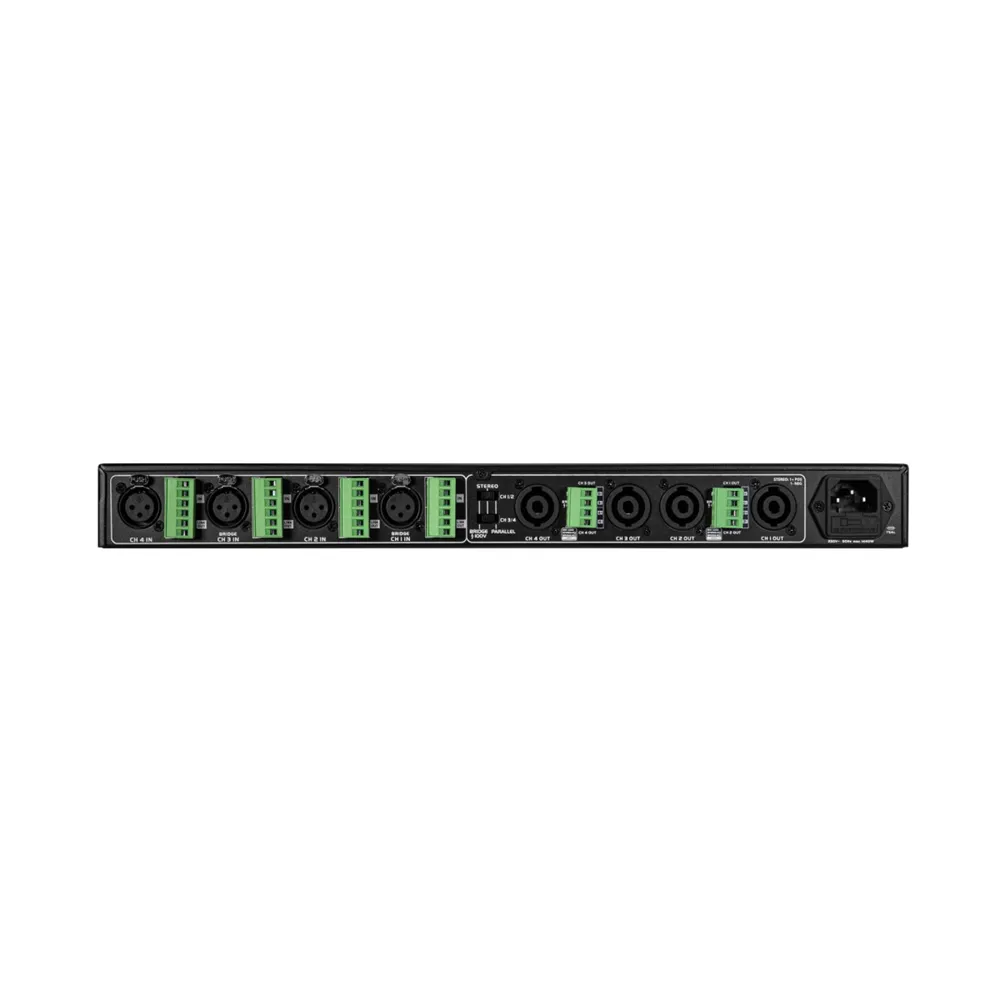

Connections: Input: Line via 4 x 3-pin XLR, Output: Line via 4 x 3-pin XLR, Output: Speaker via 4 x Speaker terminal (W), Output: Speaker via 4 x screw terminal, Input: Line via 4 x screw terminal
Housing Design: 19" (48.3 cm) Rack Mountable, 1U
Dimensions: Width: 48.3 cm, Depth: 20.5 cm, Height: 4.4 cm
Weight: 3.33 kg

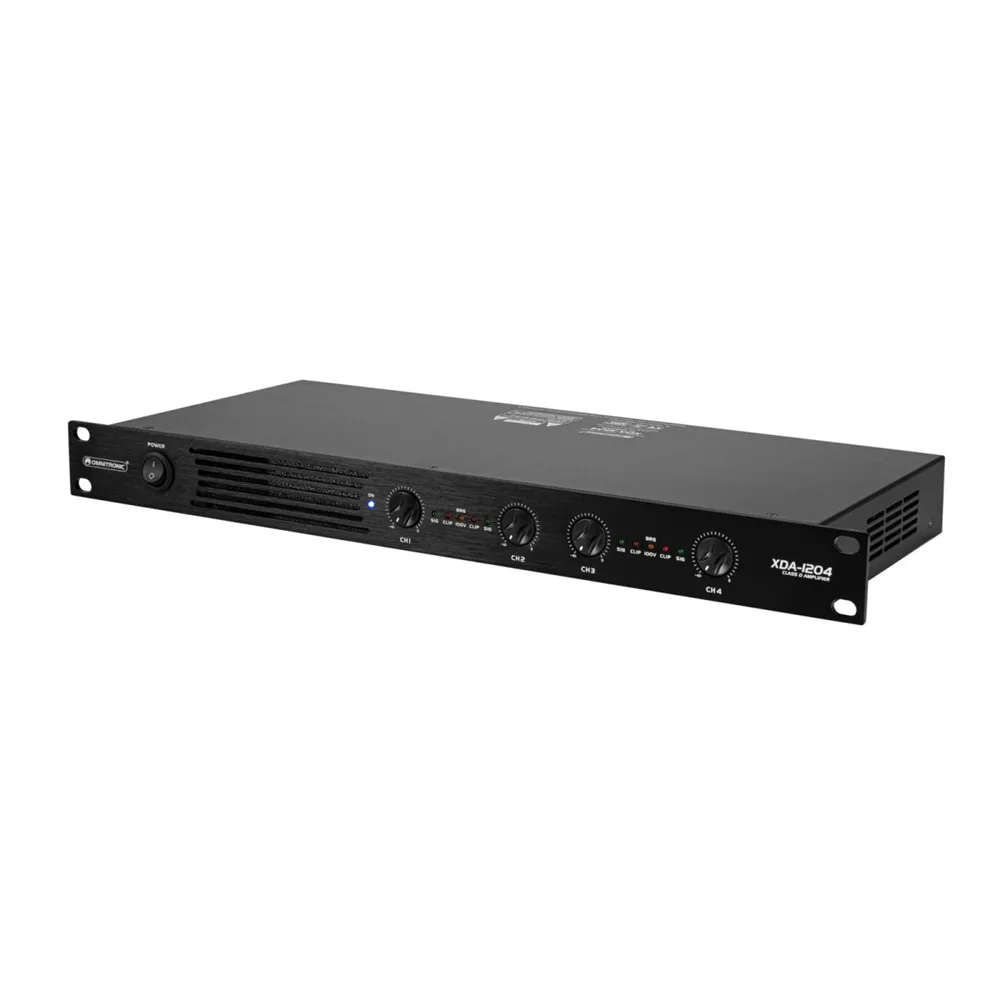

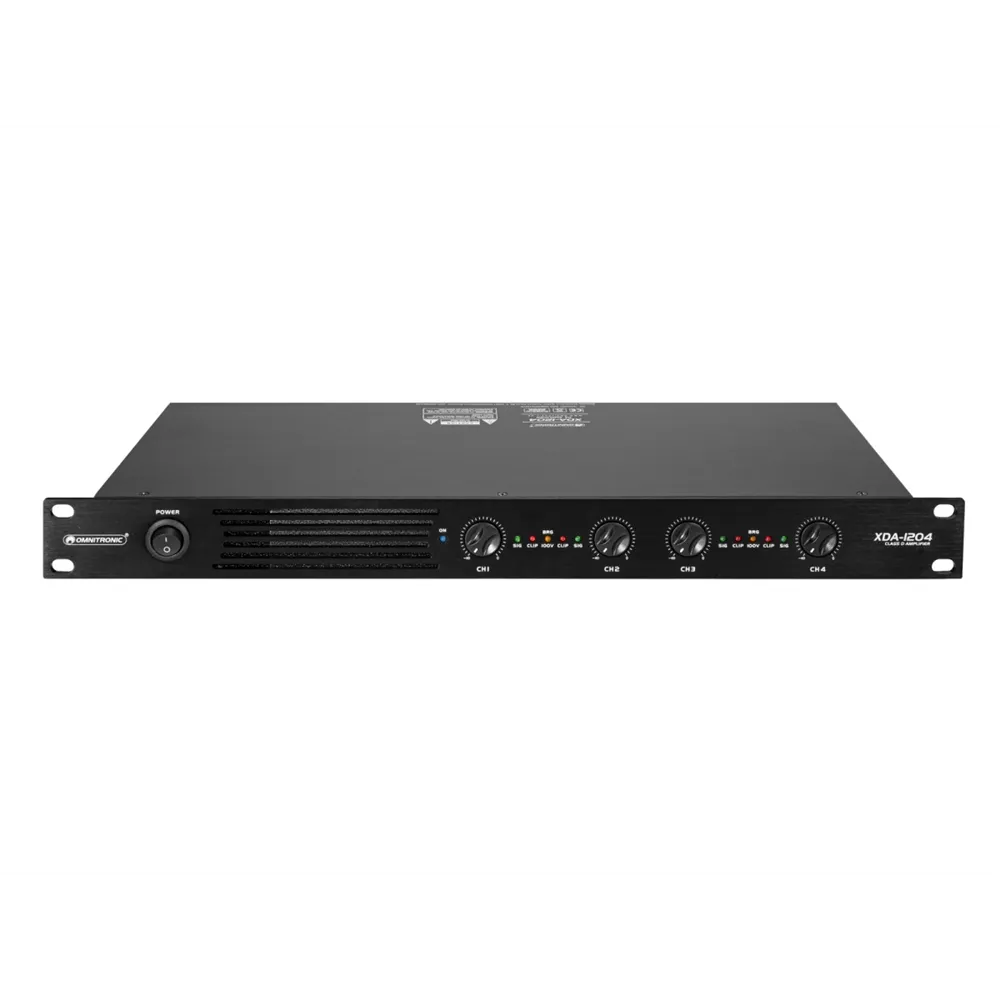

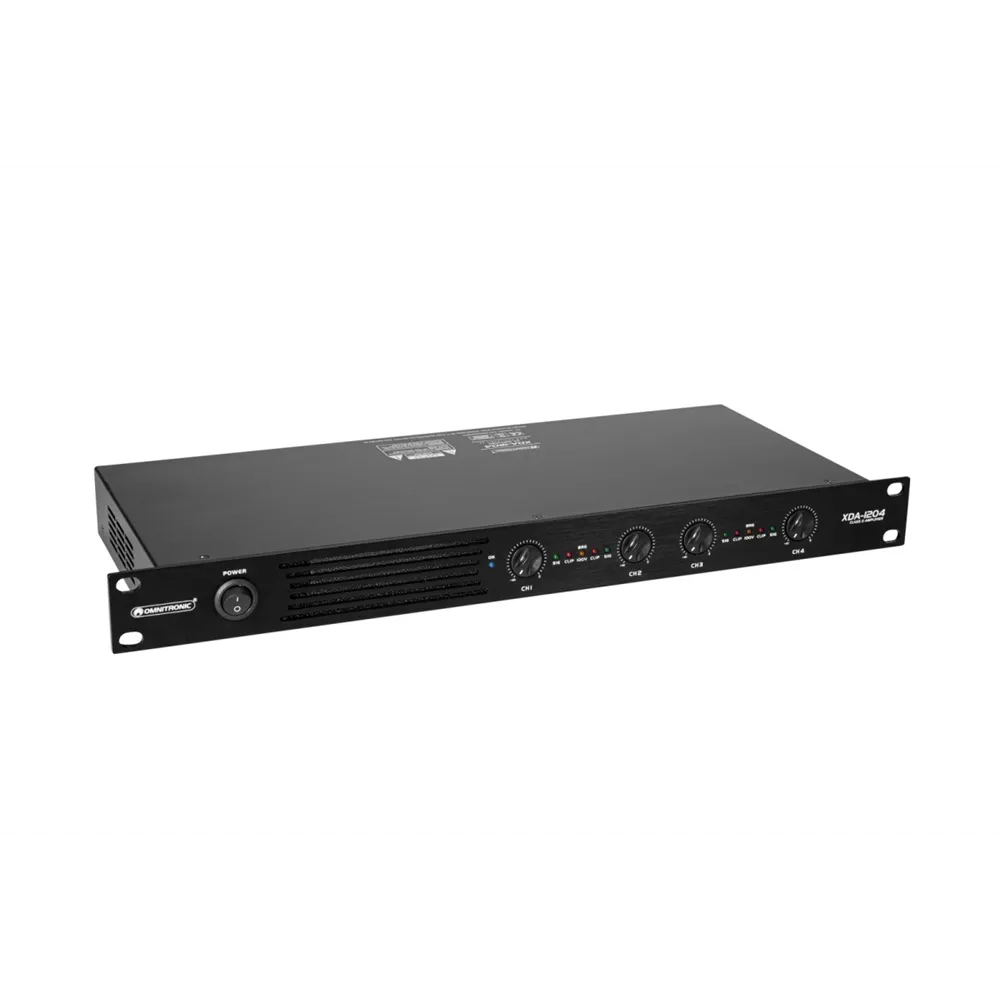

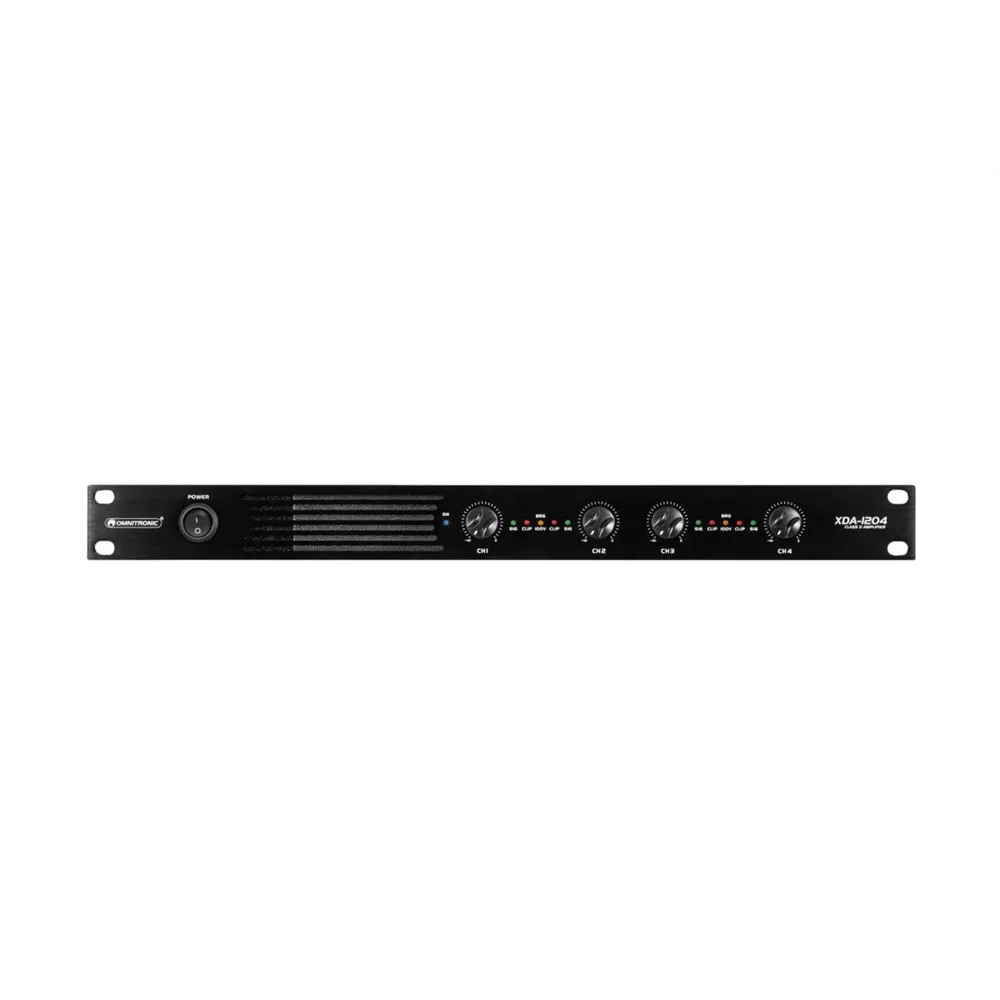

OMNITRONIC XDA-1204 4-Channel Class-D Amplifier

The OMNITRONIC XDA-1204 is a powerful 4-channel Class-D amplifier equipped with an integrated switch-mode power supply, delivering an impressive output power of 4 x 300 W RMS at 4 ohms and 4 x 180 W RMS at 8 ohms. Weighing only 3.33 kg and featuring a compact height of 1U, this amplifier is ideal for mobile use in clubs, dance schools, restaurants, and fitness studios.

The XDA-1204 offers three operating modes: Stereo, Parallel, and Bridge, allowing you to flexibly adjust the power to meet your needs. Each channel is equipped with its own level control for precise volume management. Its robust construction and built-in protection circuits against overheating, overload, and short circuits ensure reliable operation.

Included in the package are the amplifier itself, a user manual, a power cable, as well as screw terminal connectors and feet for easy installation. With a frequency range of 20 Hz to 20 kHz and a signal-to-noise ratio of over 100 dB, the OMNITRONIC XDA-1204 delivers outstanding sound quality for any event.
