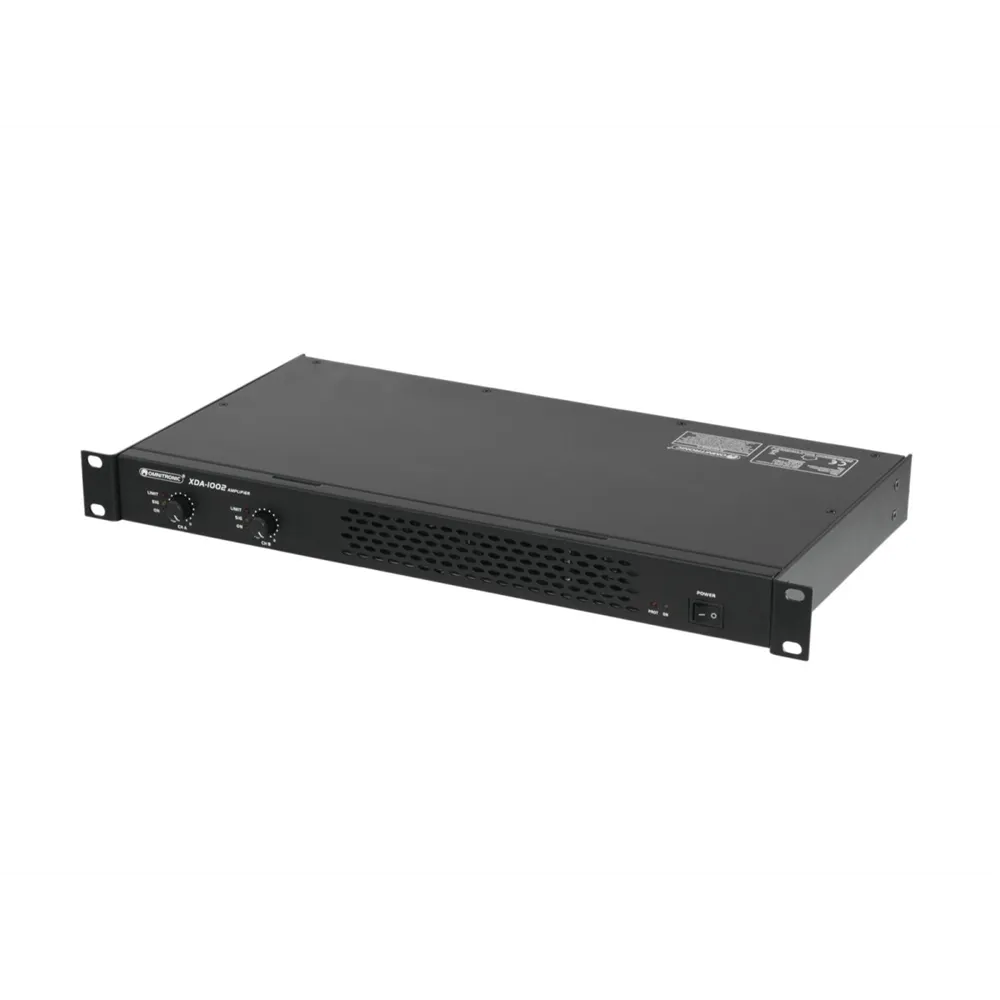

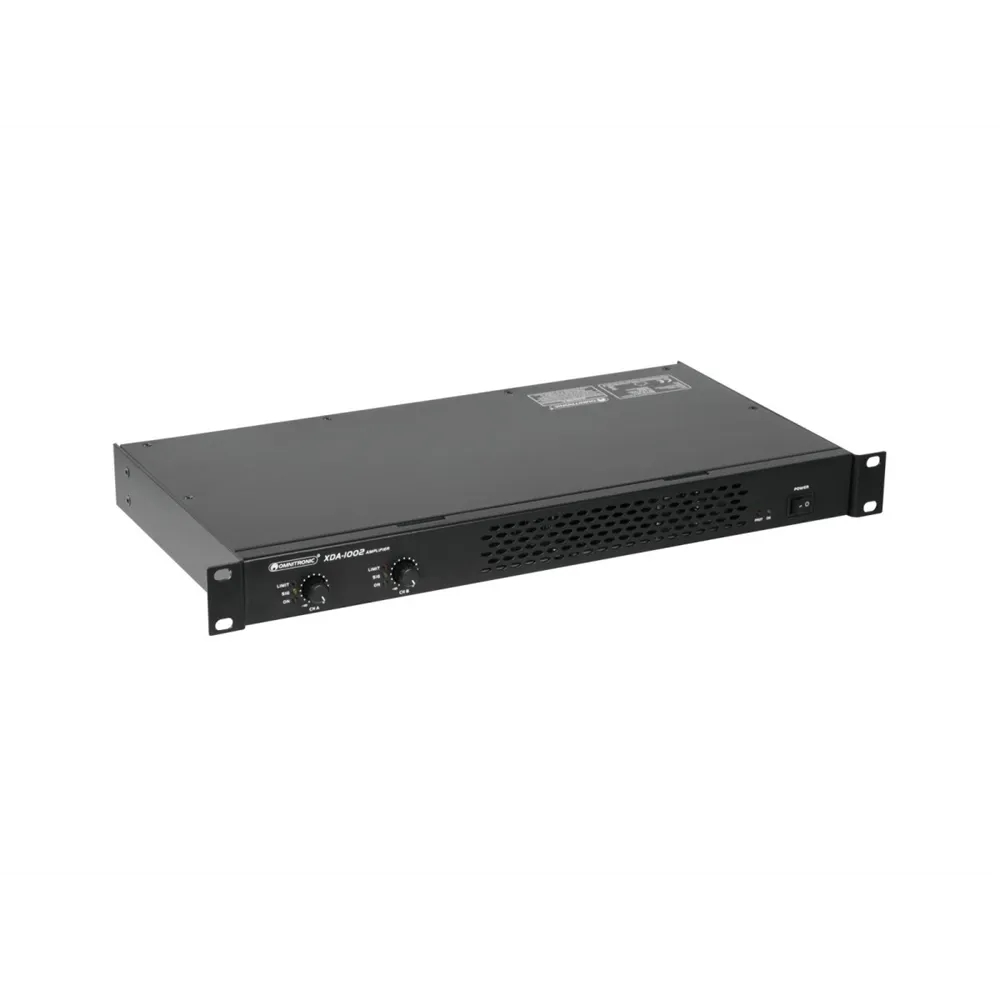

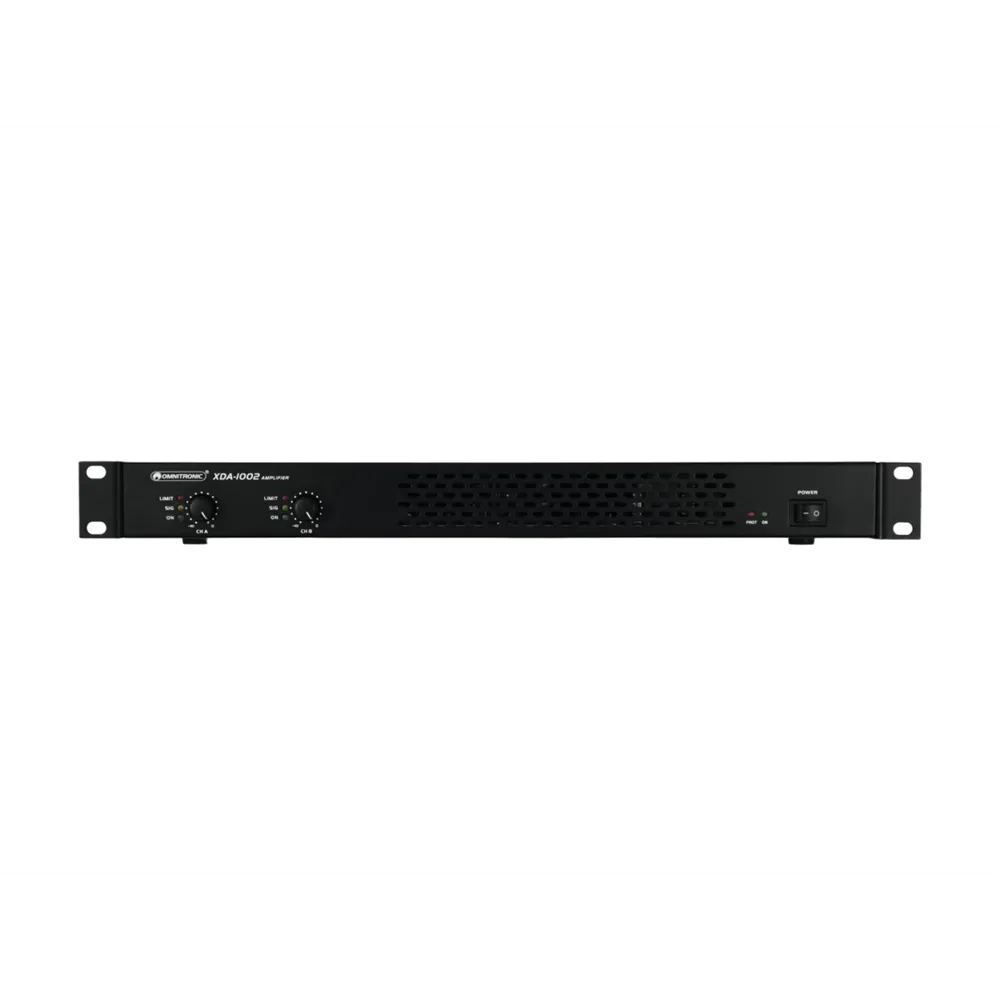

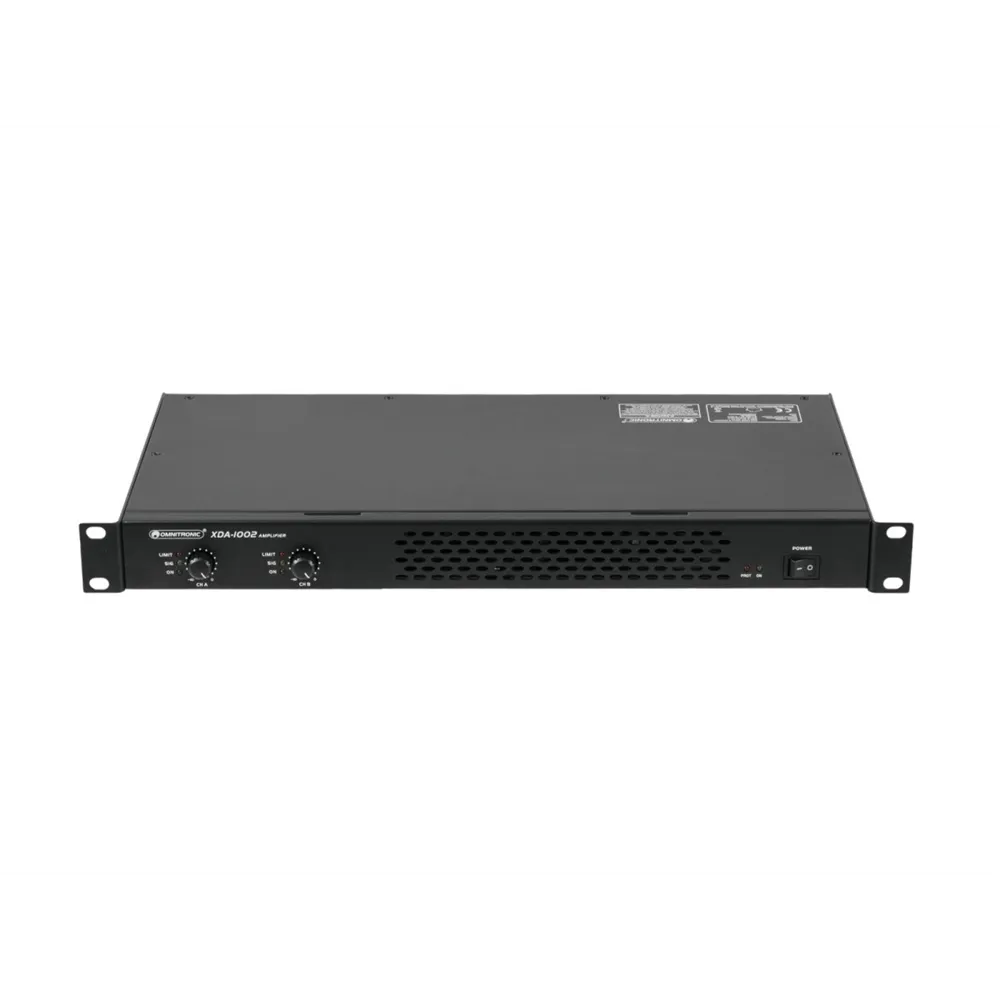

OMNITRONIC XDA-1002 Class-D Amplifier

Features

• Class D Stereo PA Amplifier with Switching Power Supply
• 2 x 510 W RMS (4 Ohm), 2 x 300 W RMS (8 Ohm)
• Lightweight and low profile due to integrated switching power supply
• 2 selectable operating modes (Stereo or Bridge)
• 2 level controls
• Electronically balanced inputs via XLR connectors with XLR loop-through outputs
• Speaker outputs via lockable speaker connectors
• Device cooling via fan
• (19") 48.3 cm rack mountable, 1U
• Applications: Clubs/Dance Schools, Installations, Mobile Use, Mobile DJs/Entertainers, Restaurants, Bars and Hotels, Rental Services, Sports Centers/Fitness Studios
• Power Supply: 100-240 V AC, 50/60 Hz
• Total Power Consumption: 210 W at 1/8 Power
• Protection Class: Class I
• Output Power: 1000 W RMS bridged (8 Ohm)
• Power Connection: Power input via P-Con (blue), installation version power connection cable with protective contact plug (included)
• Frequency Range: 30 - 20,000 Hz
• Signal-to-Noise Ratio: >100 dB
• Cooling: Fan
• Impedance: Input: 20 kOhm, balanced / Input: 10 kOhm, unbalanced
• Gain: 36 dB
• Housing Color: Black
• Circuit Type: Class D

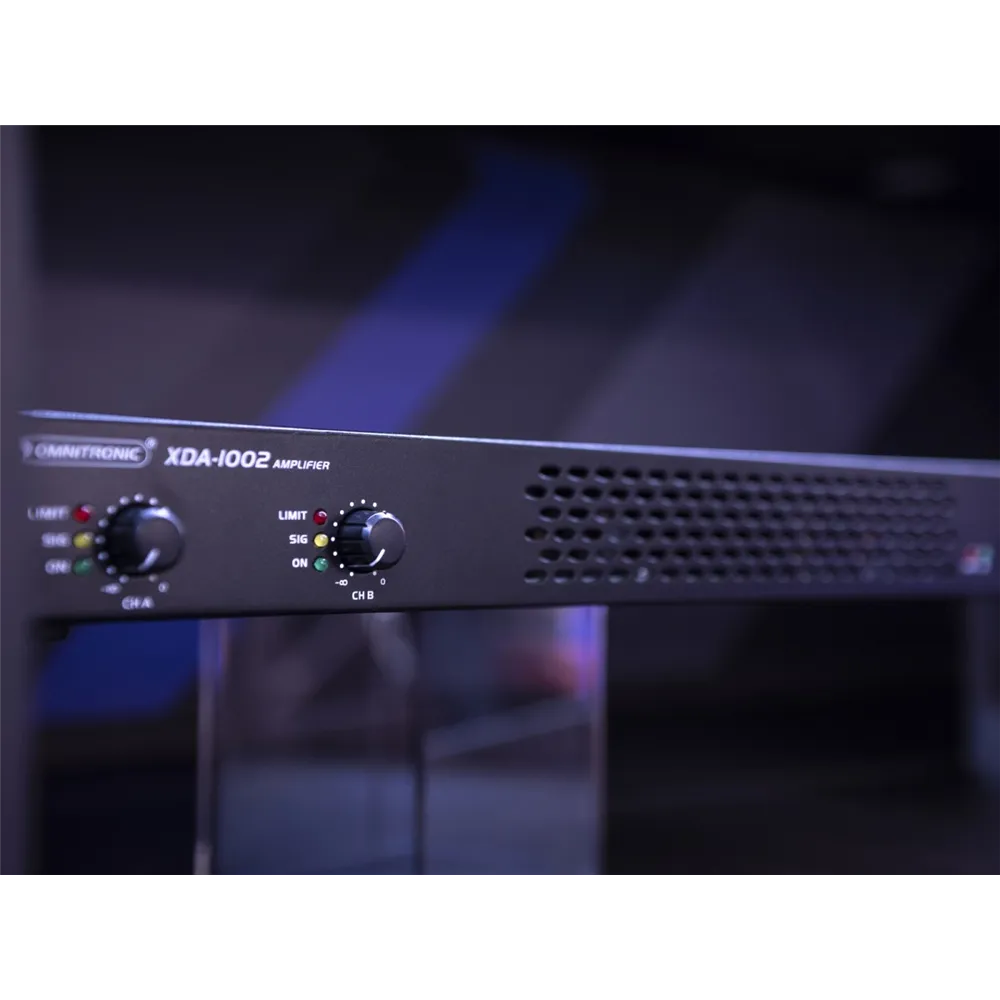

• Controls: Power switch, volume control per channel, operating mode switch (Stereo/Bridge), ground lift switch
• Protection Circuitry: Short circuit, overheating, DC, inrush transients, soft start, power-on delay, limiter
• Status LEDs: Power, Signal, Protect, Limit

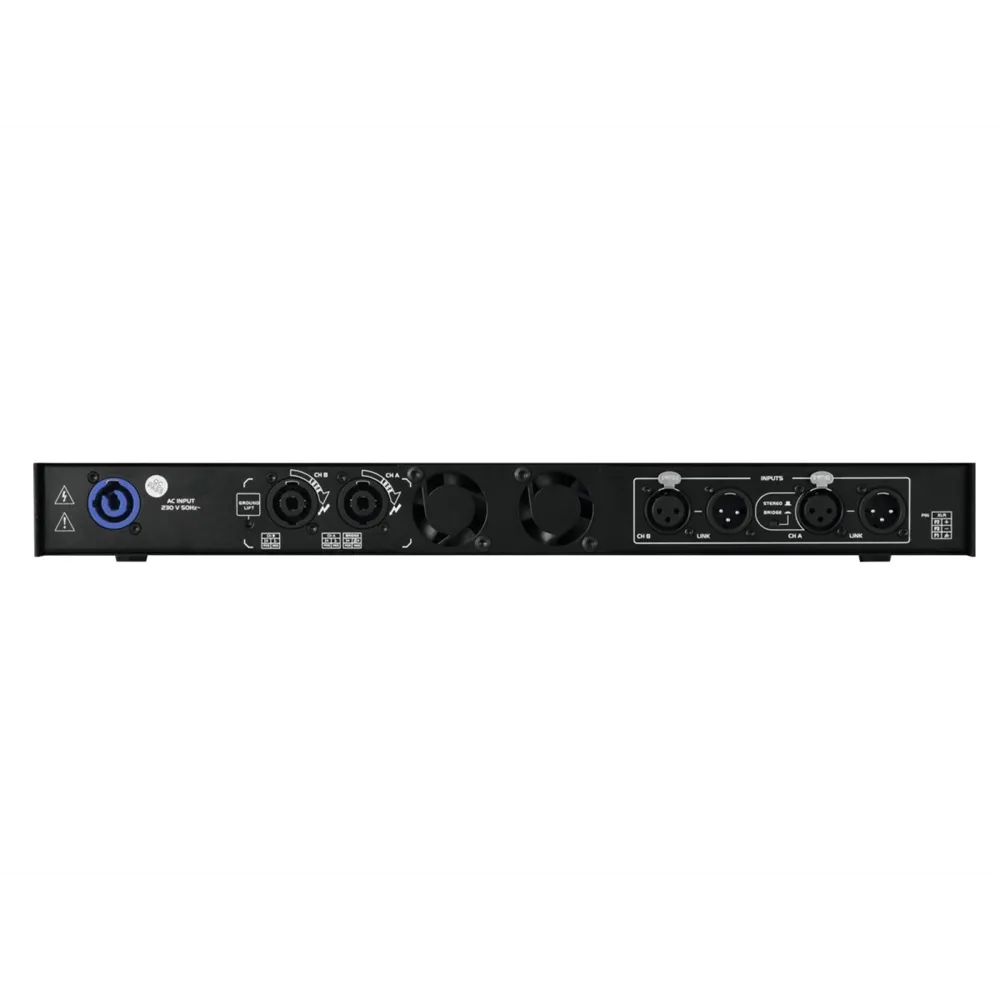

• Connections: Input: Line via 2 x 3-pin XLR, Link: Line via 2 x 3-pin XLR, Output: Speaker via 2 x speaker mounting socket (W)
• Input Sensitivity: 1.25 V
• Housing Form Factor: (19") 48.3 cm rack mountable, 1U
• Dimensions: Width: 48.3 cm, Depth: 24 cm, Height: 4.45 cm
• Weight: 4.03 kg
