OMNITRONIC PKD-352 Class-D Studioverstärker

OMNITRONIC PKD-352 Class-D Studio Amplifier

Brand:

OMNITRONIC DJP-900P MK2 Class-D Amplifier

Features

2-channel studio amplifier with switch-mode power supply, 2 x 175 W / 4 Ohm, 2 x 100 W / 8 Ohm
Lightweight and low-profile design due to integrated switch-mode power supply
Two operating modes selectable (Stereo or Bridge)
Two level controls
Electronically balanced inputs via XLR connectors with XLR loop-through outputs
Speaker outputs via lockable speaker connectors
Passive convection cooling
(19") 48.3 cm rack mountable, 1 U
Suitable for installation, home recording, studios, restaurants, bars, hotels, sports centers/gyms
Power supply: 230 V AC, 50 Hz
Total power consumption: 70 W at 1/8 power
Protection class: Class I
Output power: 2 x 175 W RMS (4 Ohm), 2 x 100 W RMS (8 Ohm), 350 W RMS bridged (8 Ohm)
Power input via IEC connector (M) with protective contact plug (included)
Cable length: 1 m detachable
Frequency range: 20 - 20,000 Hz
Signal-to-noise ratio: >105 dB
Impedance: Input: 20 kOhm, balanced / Input: 10 kOhm, unbalanced
Gain: 38 dB
Housing color: Black
Circuit type: Class D
Rise times: 20 V/µs
Damping factor: >300

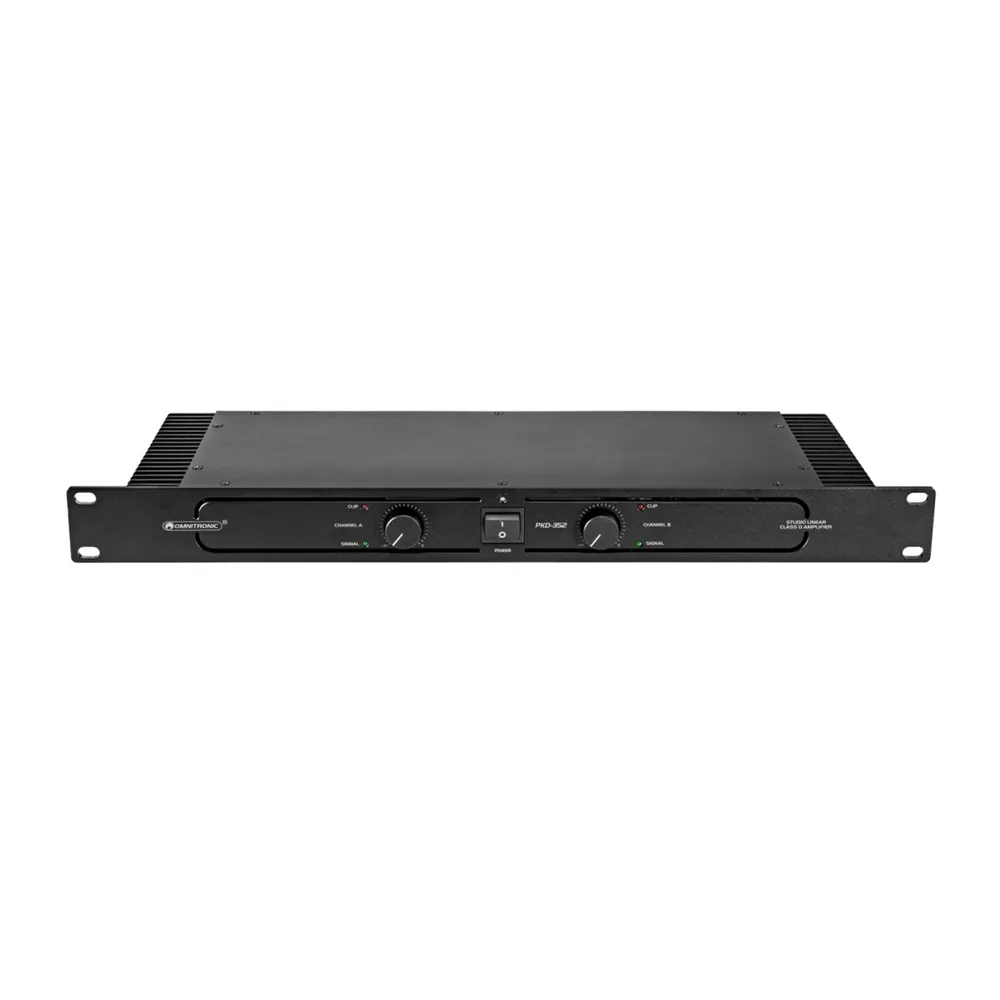

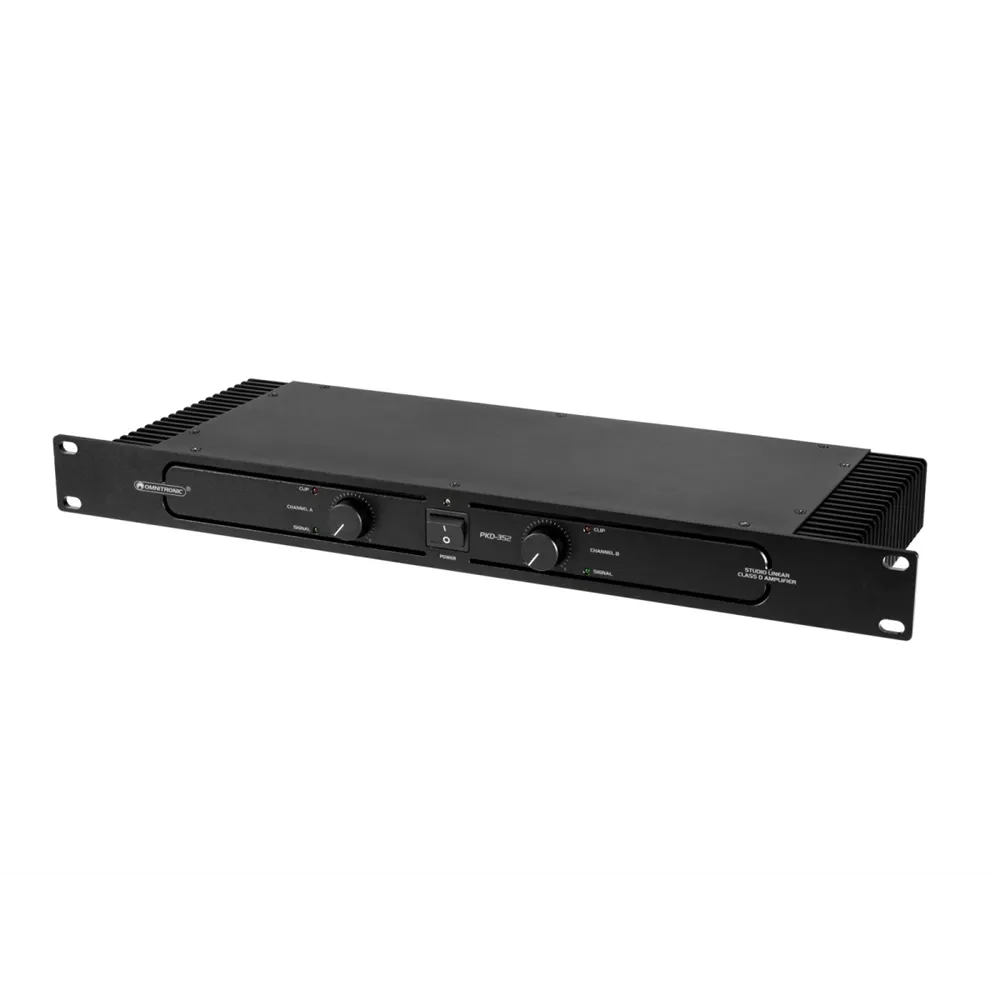

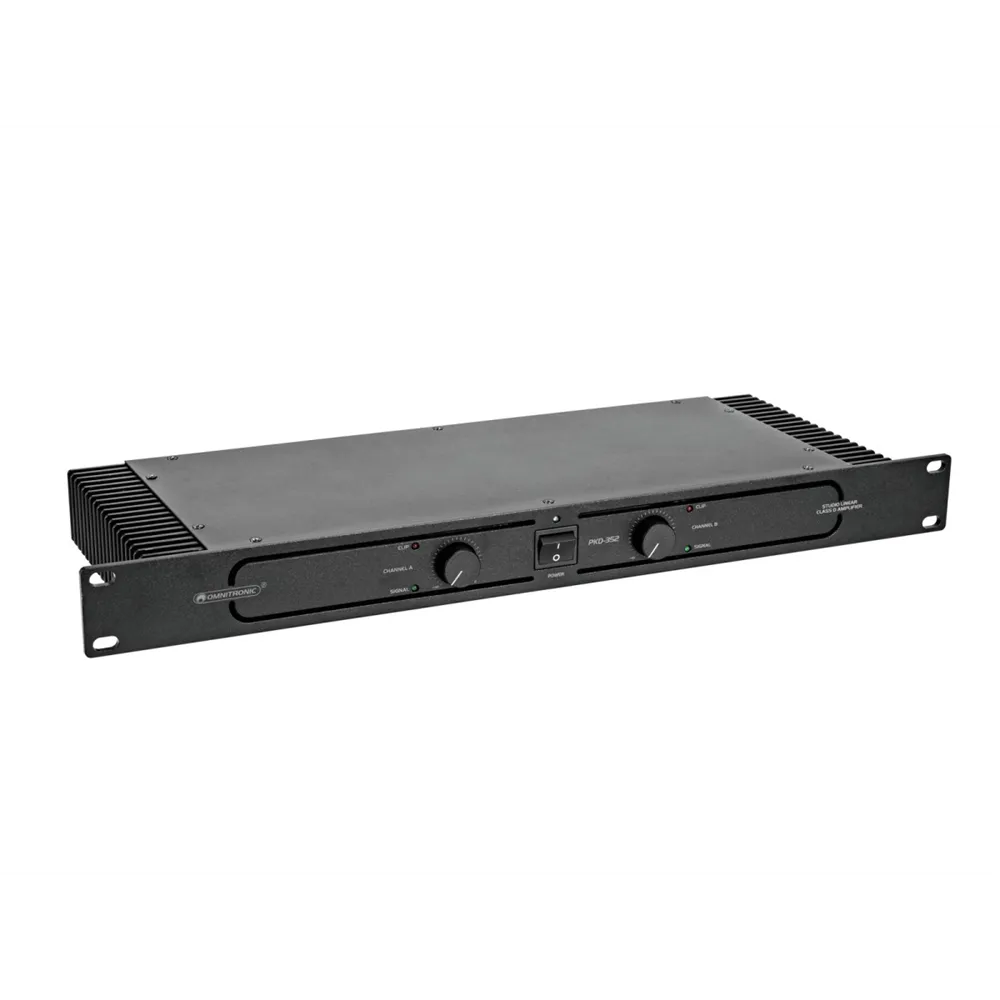

Controls: Power switch, volume control per channel, mode switch (Stereo/Bridge), input sensitivity switch
Protection circuitry: Soft start, DC, VHF, current limiting, short circuit, limiter, overheating
Status LEDs: Power, Signal, Clip

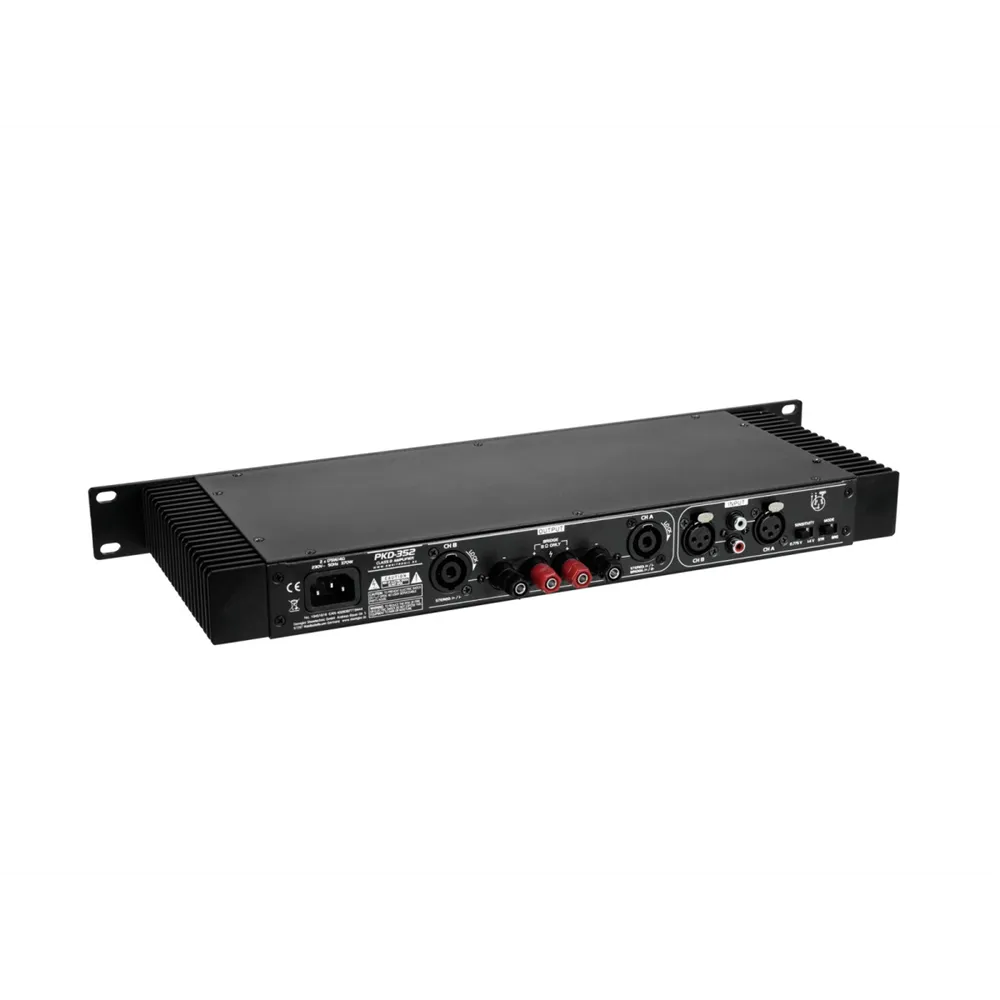

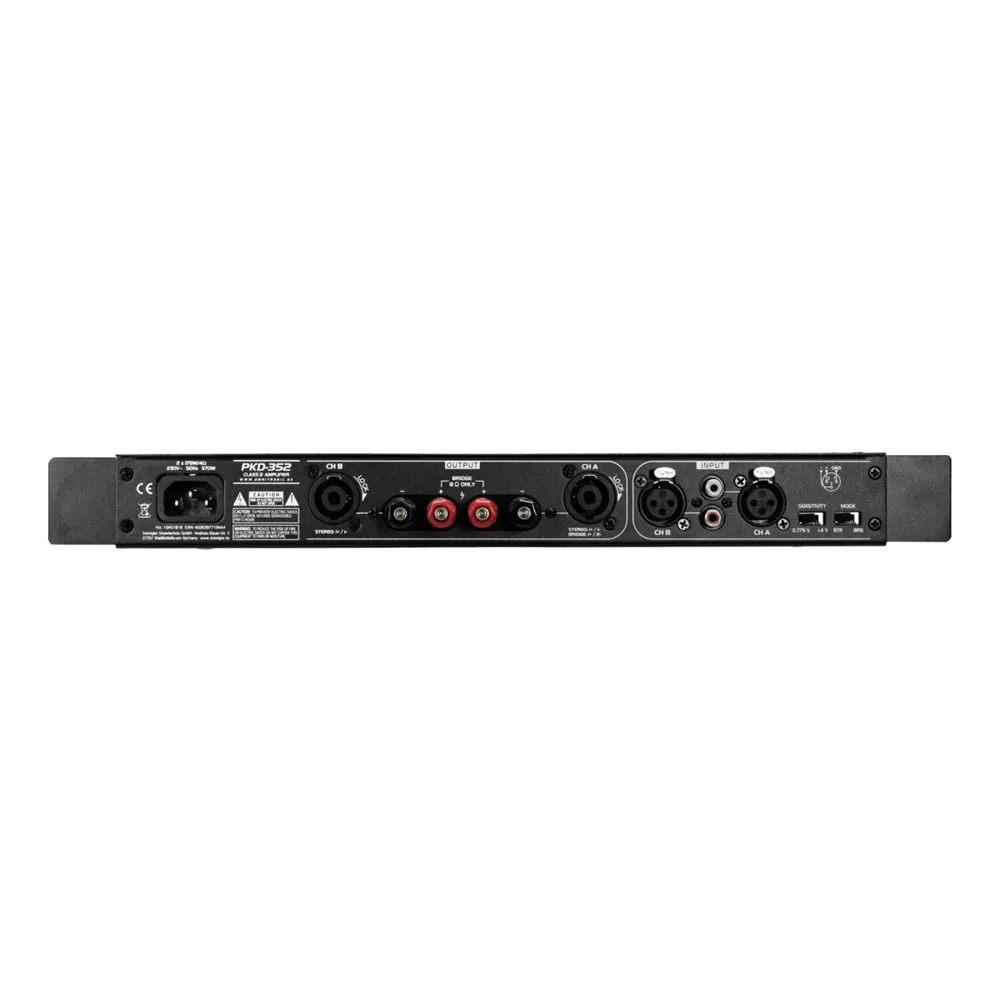

Connections: Input: Line via 2 x 3-pin XLR, Input: Line via 2 x RCA (female) for installation version, Output: Speaker via 2 x speaker mounting socket (female), Output: Speaker via 2 x screw terminal
Input sensitivity: 0.775 V; 1.4 V, switchable
Housing design: (19") 48.3 cm rack mountable, 1 U
Dimensions: Width: 48.3 cm, Depth: 19 cm, Height: 4.4 cm
Weight: 2.81 kg

OMNITRONIC PKD-352 Class-D Studio Amplifier

The OMNITRONIC PKD-352 is a powerful 2-channel Class-D studio amplifier equipped with an integrated switch-mode power supply, delivering an impressive output power of 2 x 175 W at 4 ohms and 2 x 100 W at 8 ohms. With a lightweight design of only 2.81 kg and a compact height of just 1U, it is ideally suited for 19" rack mounting.

The amplifier features two operating modes that can be easily switched between stereo and bridge, along with two level controls for precise volume adjustment. The electronically balanced inputs via XLR connectors with loop-through outputs ensure high signal quality. The speaker outputs are connected via lockable speaker connectors, providing a secure and reliable connection.

Passive convection cooling ensures efficient heat dissipation, while integrated protection circuits such as soft start, overheating protection, and short circuit protection guarantee the longevity of the device. The OMNITRONIC PKD-352 is the perfect choice for applications in home recording studios, restaurants, bars, hotels, and fitness centers.

Included in the package: 1 x amplifier, 1 x power cable, 1 x user manual.
