OMNITRONIC DJP-604 4-Kanal Class-D Endstufe

OMNITRONIC DJP-604 4-Channel Class-D Power Amplifier

Brand:

OMNITRONIC DJP-900NET Class-D Amplifier with Internet Radio

OMNITRONIC DJP-900P MK2 Class-D Amplifier

Features

4-channel Class D amplifier in a 9.5" chassis, 4 x 150 W / 4 Ohm, 4 x 80 W / 8 Ohm
Very lightweight and compact height due to integrated switch-mode power supply
Level control for each channel
Linkable inputs for flexible configuration
Robust steel chassis with aluminum front panel
Desktop housing

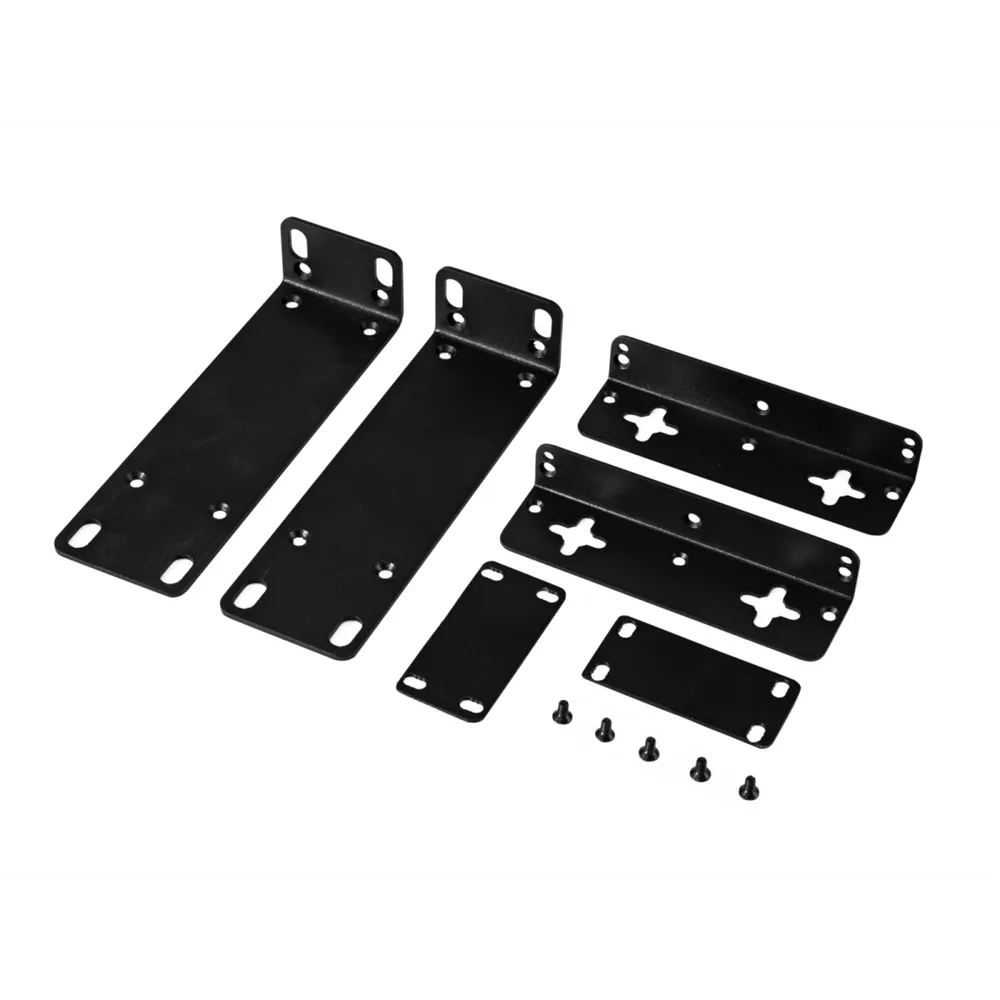

(19") 48.3 cm rack mountable
Suitable for applications such as: installations; restaurants, bars, and hotels; sports centers/gyms
Power supply: 230 V AC, 50 Hz
Total power consumption: 185 W at 1/8 power
Output power: 4 x 150 W RMS (4 Ohm), 4 x 80 W RMS (8 Ohm)
Power connection: Power input via IEC connector (M) with included power cable and protective contact plug
Frequency range: 20 - 20,000 Hz
Signal-to-noise ratio: >105 dB
Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
Chassis color: Black
Circuit type: Class D
Rise times: 20 V/µs
Damping factor: >300

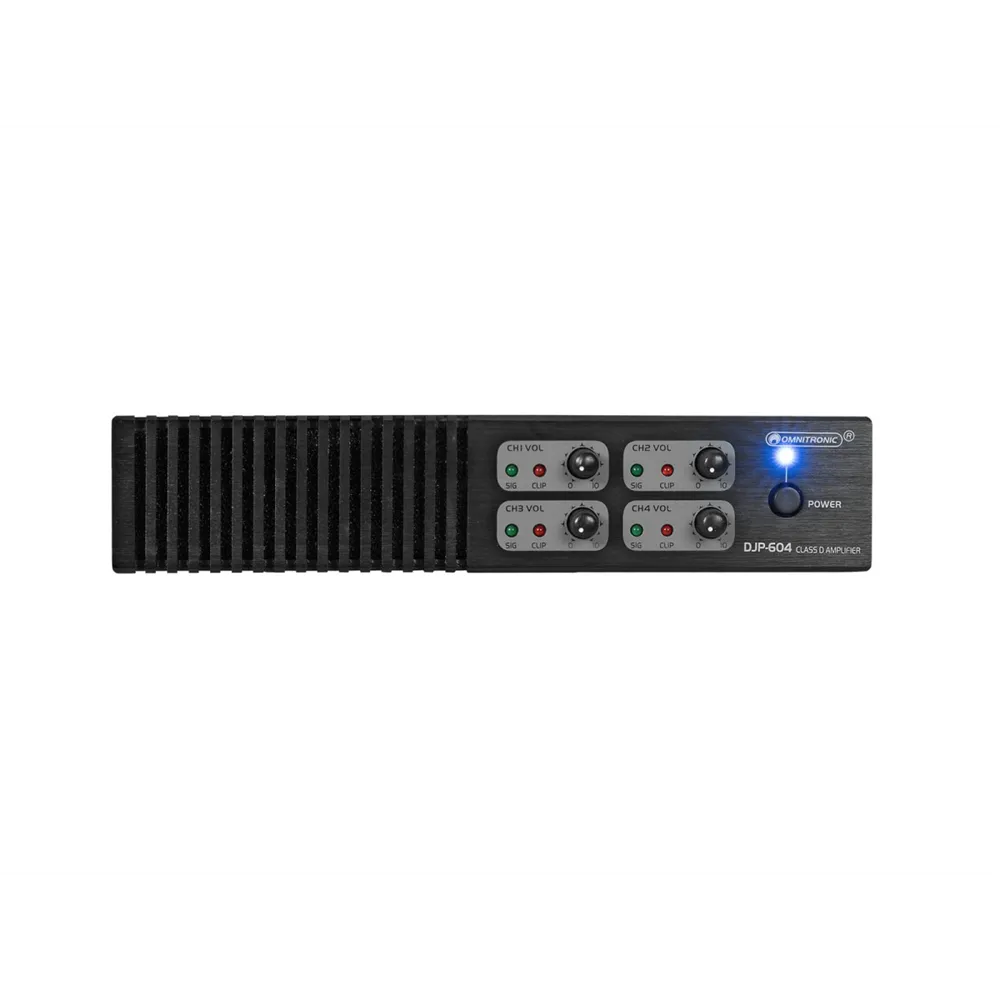

Controls: Power switch, volume control per channel
Protection circuitry: Soft start; short circuit; overheating; overload; VHF; DC
Status LEDs: Power, Signal, Clip

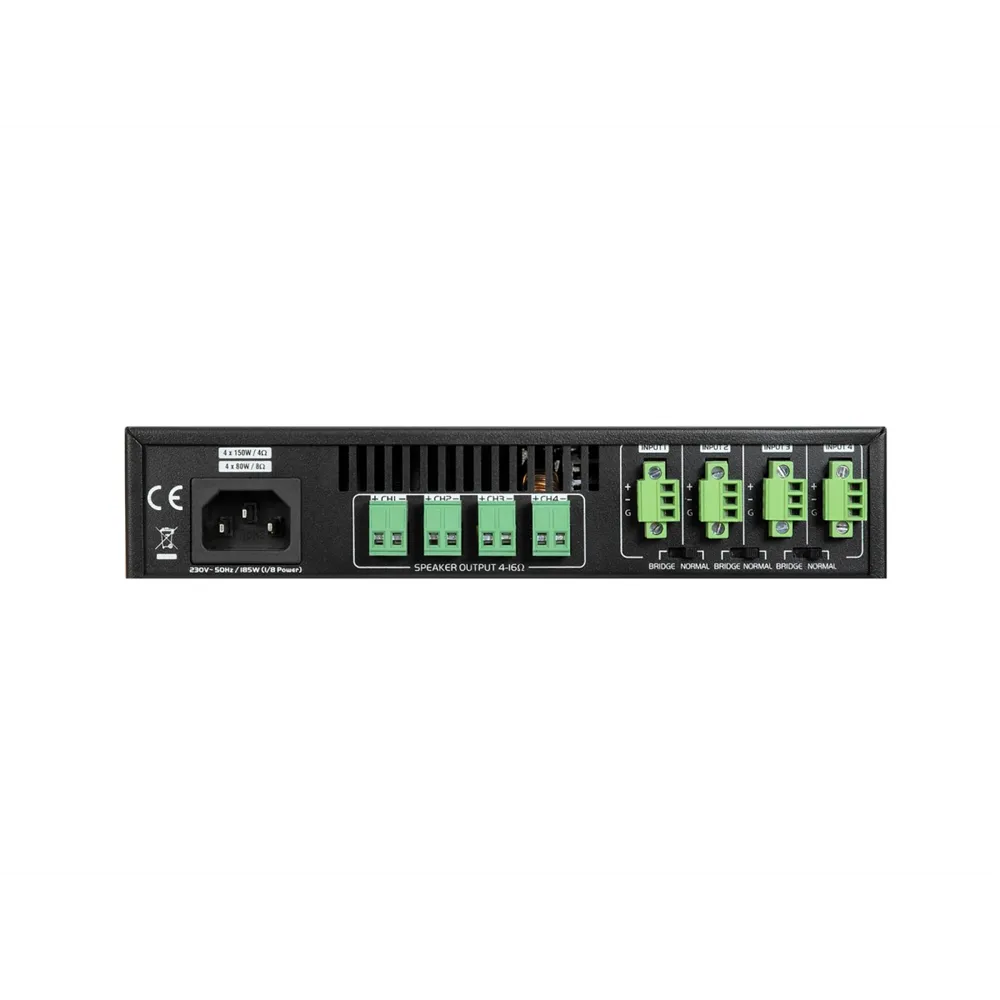

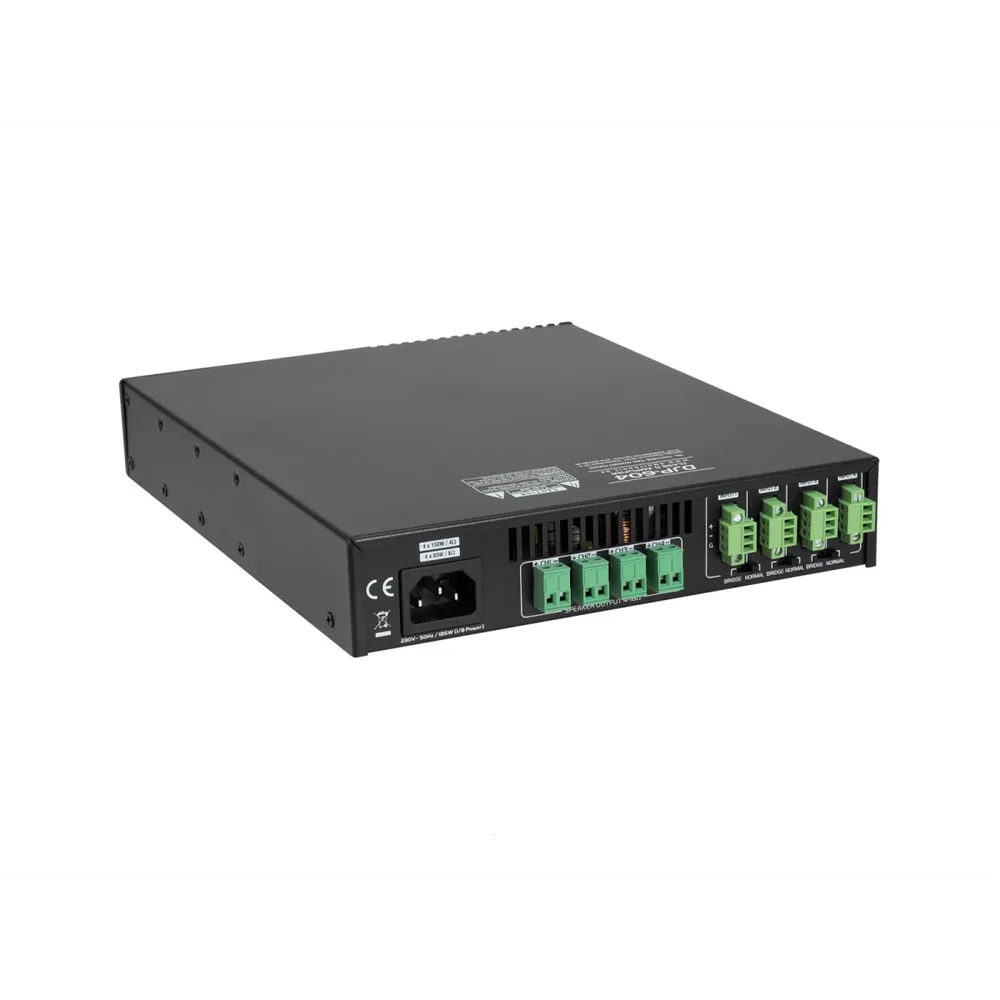

Connections: Input: Line via 4 x screw terminal; Output: Speaker via 4 x screw terminal
Material: Metal
Chassis design: Desktop housing (19") 48.3 cm rack mountable
Dimensions: Width: 21.4 cm, Depth: 26.5 cm, Height: 4.4 cm
Weight: 2.46 kg

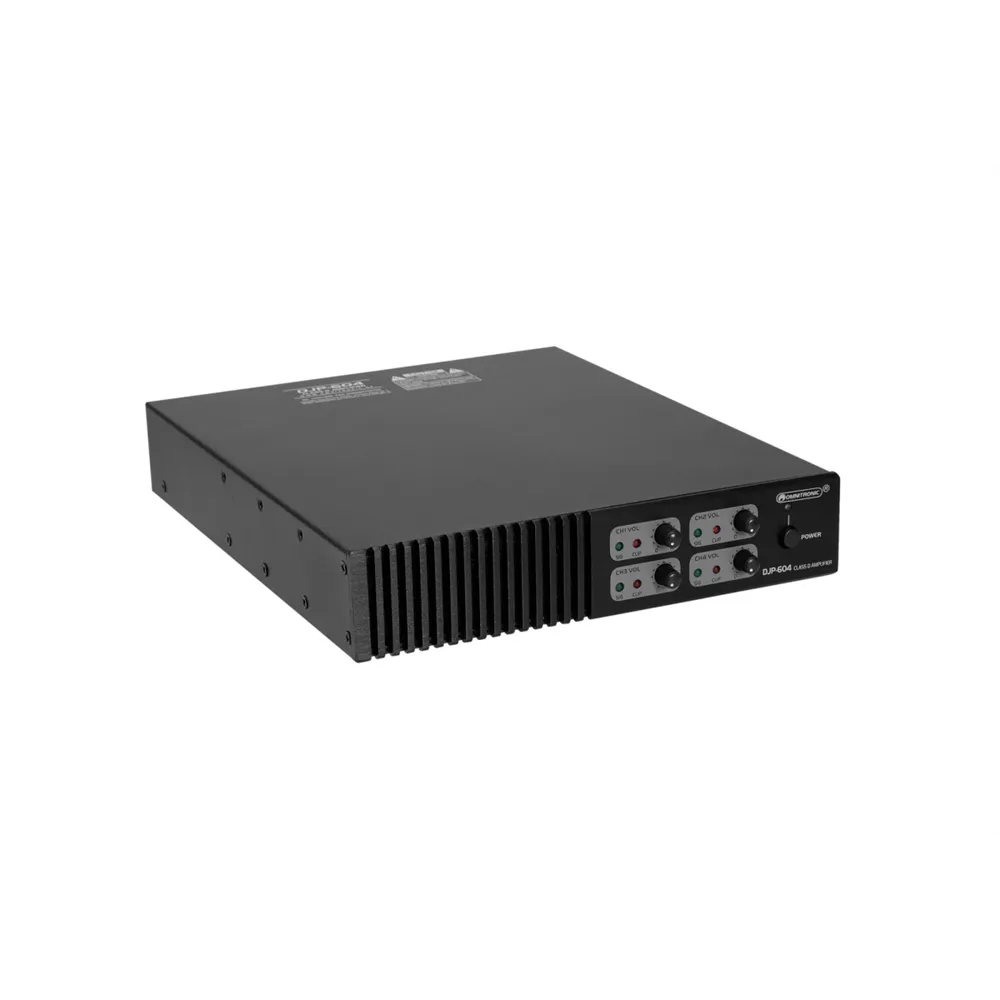

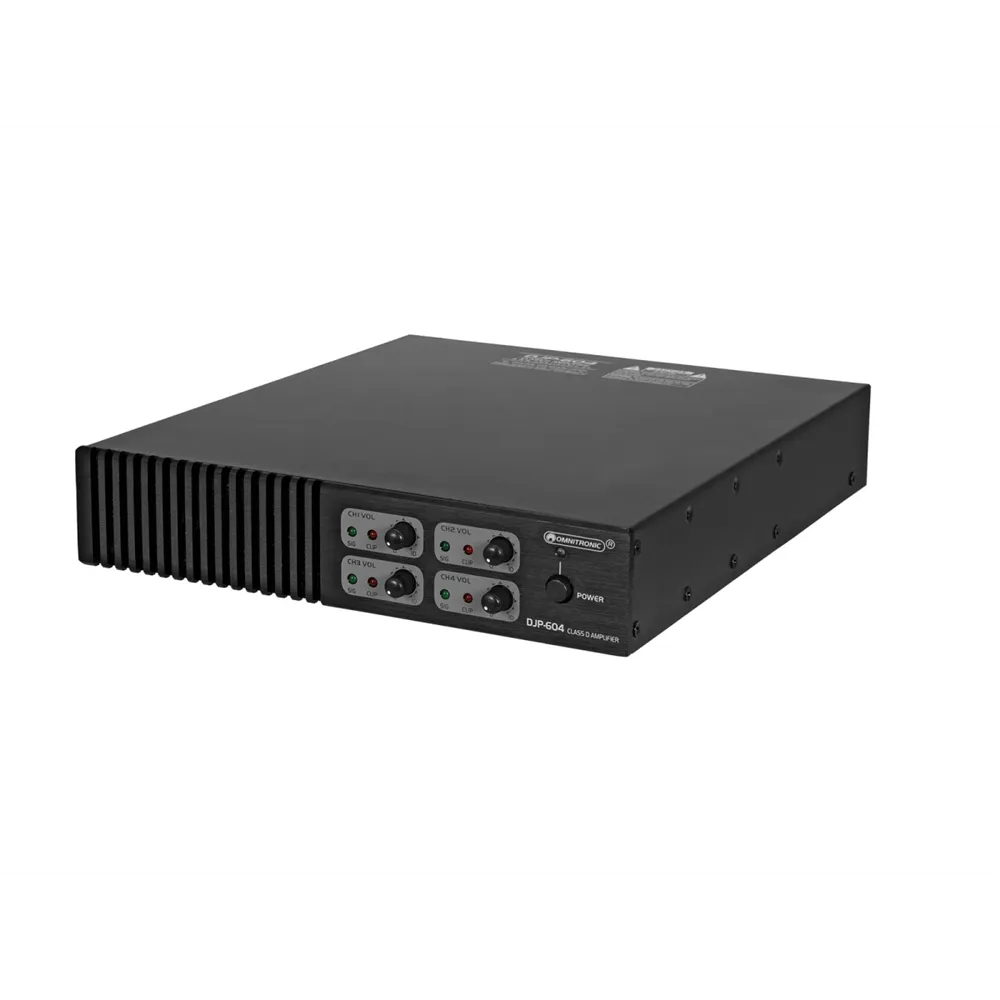

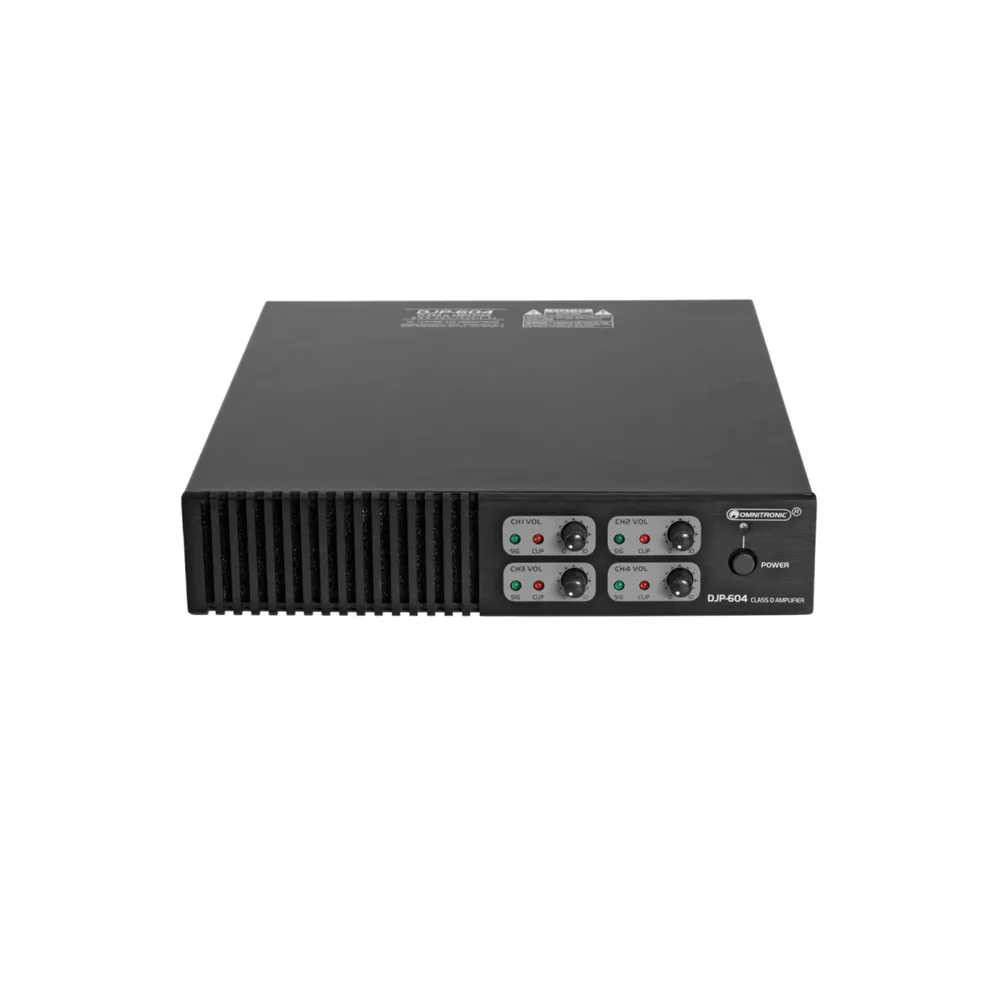

OMNITRONIC DJP-604 4-Channel Class-D Power Amplifier

The OMNITRONIC DJP-604 is a powerful 4-channel Class-D power amplifier housed in a compact 9.5" chassis. With an output power of 4 x 150 W at 4 ohms and 4 x 80 W at 8 ohms, it delivers impressive sound quality for various applications. Thanks to the integrated switch-mode power supply, the amplifier is lightweight and allows for space-saving installation.

Individual level controls for each channel ensure optimal adjustment to your needs.
The inputs are linkable, allowing for flexible configuration.
The robust steel chassis with aluminum front panel guarantees durability and stability.
Ideal for use in restaurants, bars, hotels, as well as sports centers and fitness studios.

The amplifier features a variety of protection circuits, including soft start, short circuit, and overheating protection, to ensure safe operation. With a frequency range of 20 Hz to 20 kHz and a signal-to-noise ratio of over 105 dB, the DJP-604 delivers outstanding audio performance. Its compact design and lightweight of only 2.46 kg make it the perfect choice for mobile DJs and installations.
