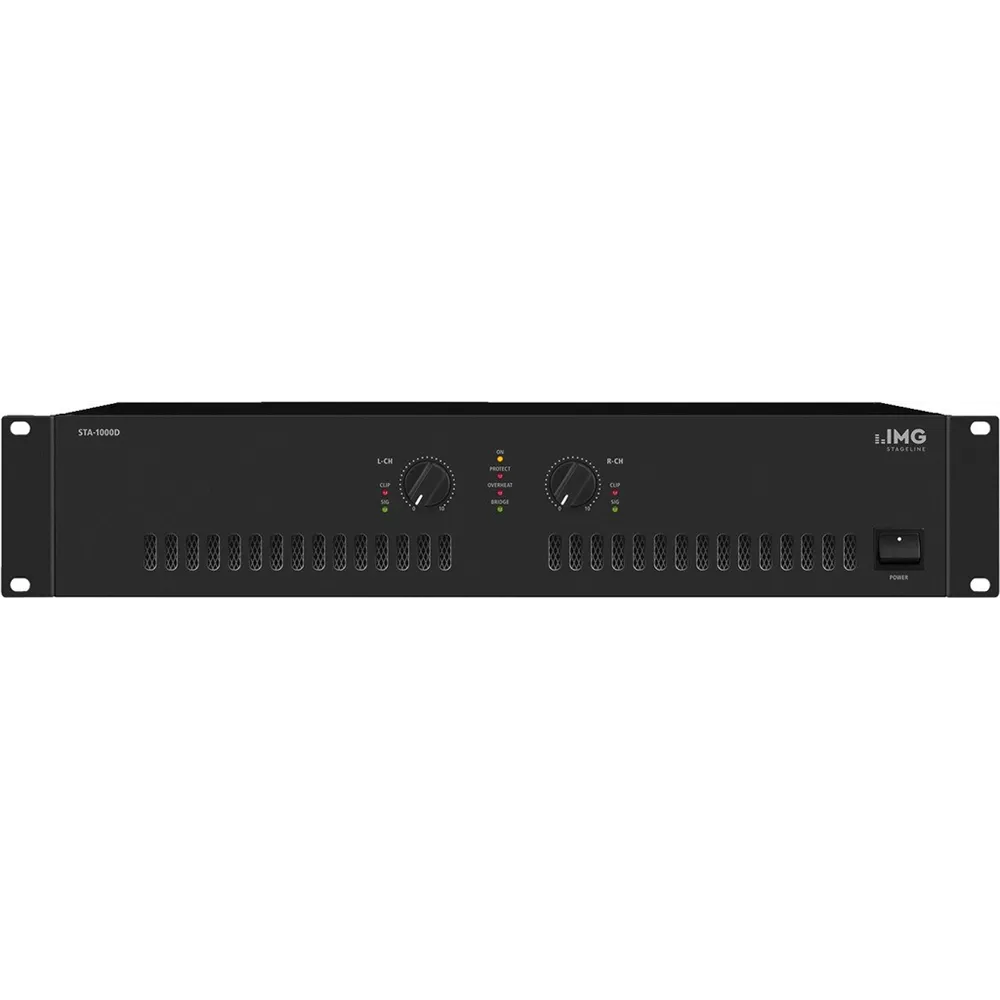

IMG STAGELINE Digital Amplifier 1200 W Max

Features

• Class-D design with PASCAL amplifier modules
• Outstanding acoustic performance
• Exceptional dynamic range with very low distortion
• Excellent pulse fidelity even in the bass range
• 482 mm rack mount (19"), 2U
• Silent operation with temperature-controlled fans that activate only at 85 °C
• Weight-optimized construction with a compact switching power supply
• Energy-efficient design with high efficiency
• 2 level controls
• Protection circuits against short circuit, overtemperature, DC at output, and overload
• LED indicators for Power, Signal, Bridge, Clip, Overheat, and Protect
• Bridge operation
• 100V transmission technology possible in bridge mode
• Wide mains voltage range of approximately 85-265 V
• NEUTRIK POWERCON and SPEAKON connectors
• Total output power: 1200 W
• Power at 4 Ω: 2 x 500 W
• Power at 8 Ω: 2 x 280 W
• Power in 4-Ω bridge mode: 1 x 1000 W
• Power in 8-Ω bridge mode: 1 x 1000 W
• Channels: 2
• Inputs: 1 V/10 kΩ (XLR, balanced), 1 V/5 kΩ (RCA)
• Frequency range: 20-20,000 Hz
• Integrated limiter: no
• Signal-to-noise ratio: > 119 dBA
• Mains voltage: ~ 85-265 V
• Mains frequency: 50 Hz
• Power consumption in operation: 1160 VA
• Permissible operating temperature: 0-40 °C
• Width: 482 mm
• Height: 89 mm
• Depth: 335 mm
• Rack units (U): 2
• Weight: 5 kg

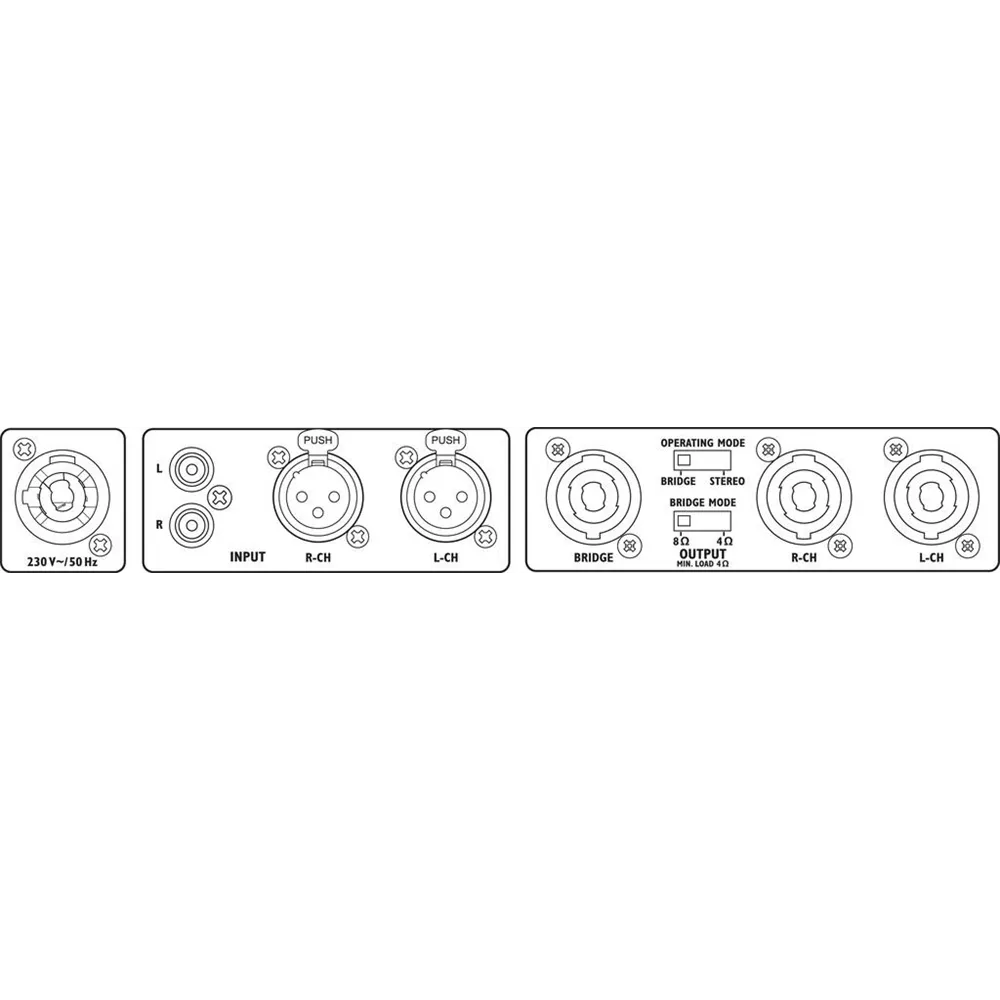

• Connections: 1 x NEUTRIK POWERCON, 1 x 3-pin XLR L/R, 1 x RCA L/R, 1 x NEUTRIK SPEAKON L/R, 1 x NEUTRIK SPEAKON Bridge
• Packaging dimensions (W x H x L): 0.56 x 0.14 x 0.36 m
• Gross weight: 6.21 kg
• Net weight: 5.04 kg
