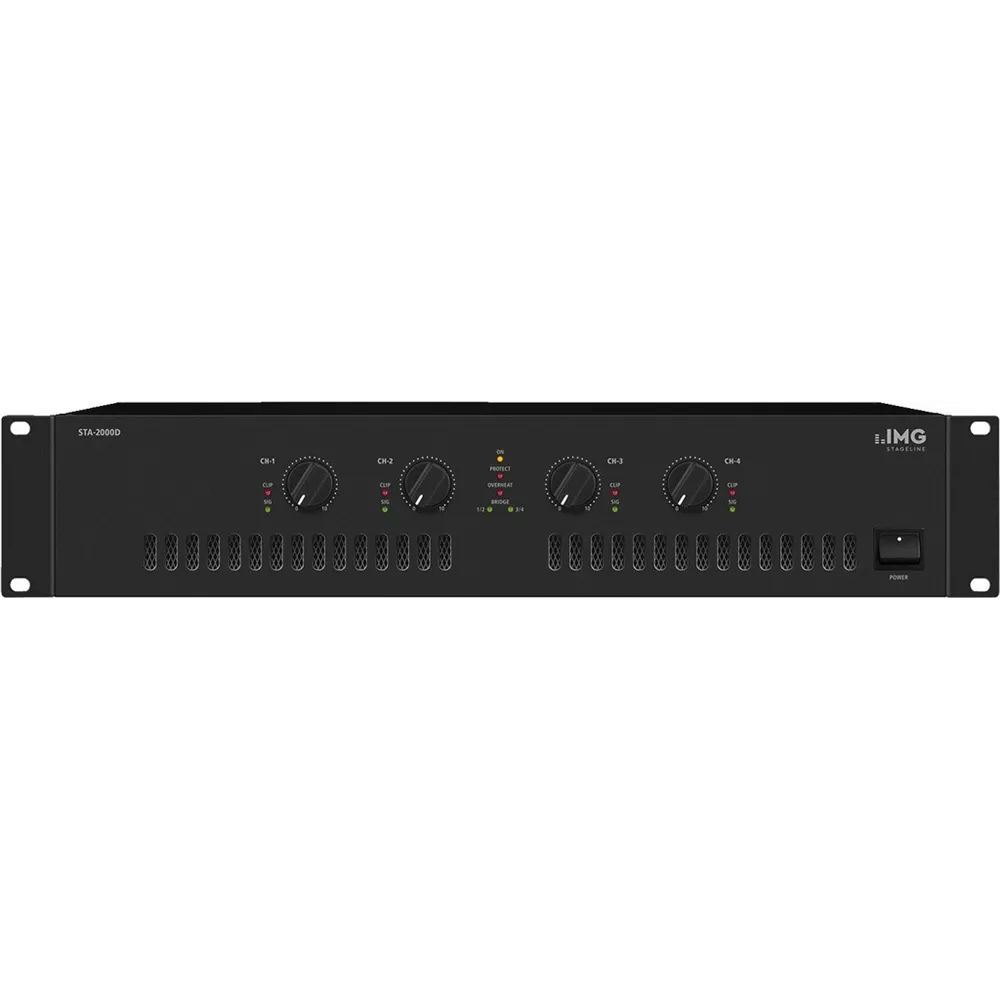

IMG STAGELINE Digitalverstaerker 2400Wmax

IMG STAGELINE Digital Amplifier 2400W Max

Brand:

MONACOR Stereo Amplifier, 1U, Class D, 2 x 100W

Features

4-Channel PA Class-D Amplifier with 2400 W Maximum Output Power
Class-D Design with PASCAL Power Amplifier Modules
Outstanding Acoustic Performance
Exceptional Dynamic Range with Very Low Distortion
Excellent Pulse Fidelity Even in the Bass Range
482 mm Rack Mount (19"), 2 U
2 or 4 Channels with Bridging Capability
100 V Transmission Technology Possible in Bridged Mode
Silent Operation with Temperature-Controlled Fans Activating at 85 °C
Weight-Optimized Design with Compact Switching Power Supply
Energy-Efficient Concept with High Efficiency
4 Level Controls
Protection Circuits Against Short Circuit, Overtemperature, DC at Output, and Overload
LED Indicators for Power, Signal, Bridge, Clipping (CLIP), Overheat, and Protect
Wide Mains Voltage Range of Approximately 85-265 V

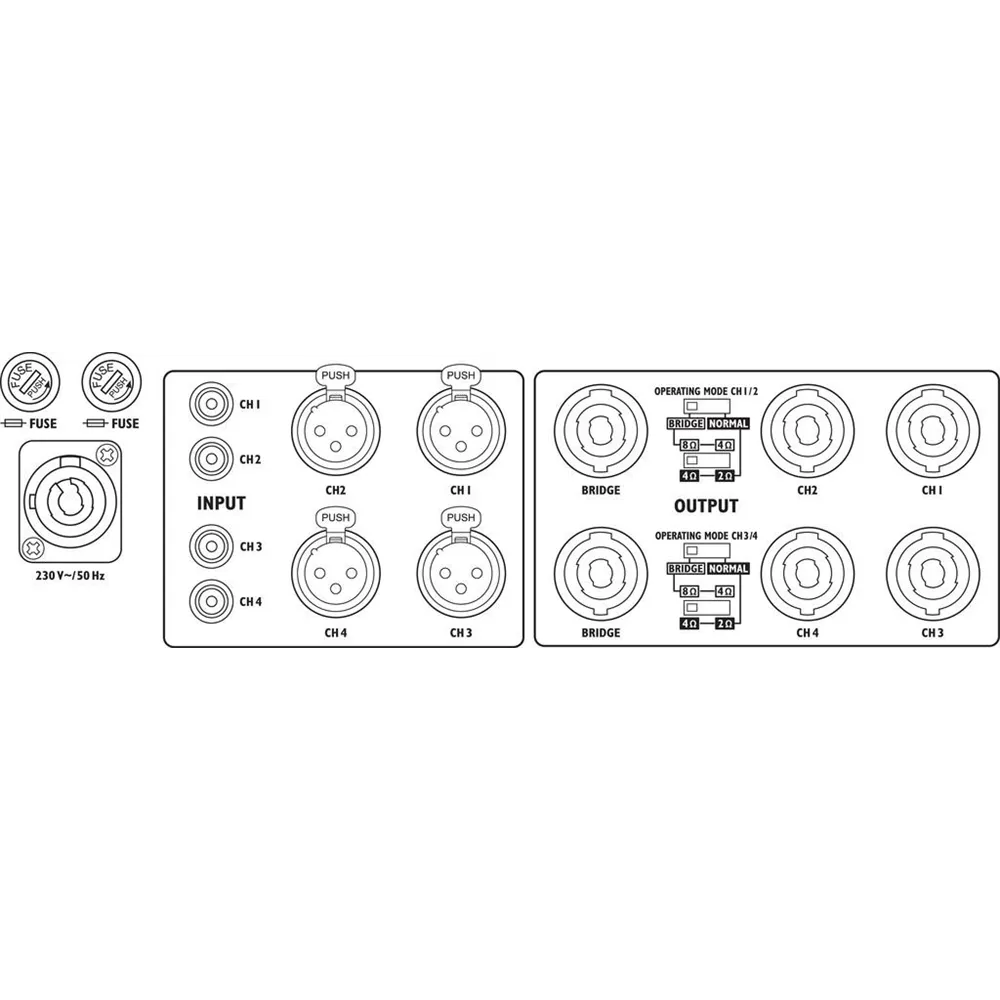

NEUTRIK POWERCON and SPEAKON Connectors
Frequency Range: 20-20,000 Hz
Signal-to-Noise Ratio: > 119 dBA
Power Consumption in Operation: 2320 VA
Permissible Operating Temperature: 0-40 °C
Dimensions (W x H x D): 482 mm x 89 mm x 335 mm
Weight: 6.4 kg
Packaging Dimensions (W x H x L): 0.58 m x 0.16 m x 0.375 m
Gross Weight: 8.24 kg

IMG STAGELINE Digital Amplifier 2400W Max

The IMG STAGELINE Digital Amplifier 2400W Max represents the new generation of PA Class-D amplifiers, delivering impressive performance and high energy efficiency. With a total output of 2400 W and a rated power of 2000 W, this amplifier is ideal for both mobile and permanently installed applications. Its lightweight and compact design allows for easy integration into 19-inch racks.

The amplifier offers excellent acoustic performance with a high dynamic range and minimal distortion. It features four channels, each capable of delivering up to 500 W per channel at 4 Ω. Additionally, the bridge mode function allows for an output of 1000 W at 4 Ω. Temperature-controlled fans ensure quiet operation, while protection circuits against short circuits and overheating guarantee safety.

Equipped with NEUTRIK POWERCON and SPEAKON connectors, the IMG STAGELINE Digital Amplifier offers versatile connectivity options. It is the perfect choice for small to medium-sized entertainment events, conferences, and speech amplification. Trust in the quality and performance of IMG STAGELINE for your audio needs!
