IMG STAGELINE Professioneller Stereo-PA-Verstaerker, 1600 Wmax

IMG STAGELINE Professional Stereo PA Amplifier, 1600 W Max

Brand:

JTS XLR-Einbaubuchse, Koerperschalldaempfer

IMG STAGELINE Digital Amplifier 1200 W Max

Features

LCD display for temperature, operating mode, and protection function
Internal crossover at 120Hz, 24dB/octave, switchable between subwoofer, full range, or satellite operation
3 adjustable operating modes (Stereo, Parallel, or Bridge)
Temperature-controlled fan
2 level controls
Ground lift function
Speaker turn-on delay
Protected against short circuit, overheating, and DC offset at the outputs through protection circuitry with LED indicator
Per channel LEDs for operating voltage, level, and limiter
NEUTRIK SPEAKON connectors
Sine power Stereo 4Ω: 2x500W RMS
Sine power Stereo 8Ω: 2x350W RMS
Bridge operation 8Ω: 1x1000W RMS
Max. power: 1600W MAX
Inputs: 1V/20kΩ
Frequency range: 20-20000Hz
Signal-to-noise ratio: > 95dB
Crosstalk attenuation: > 60dB
THD (Total Harmonic Distortion): < 0.1%
Power supply: 230V~/50Hz/1600VA
Permissible operating temperature: 0-40 °C
Dimensions: 482x88x418mm, 2U
Weight: 15kg

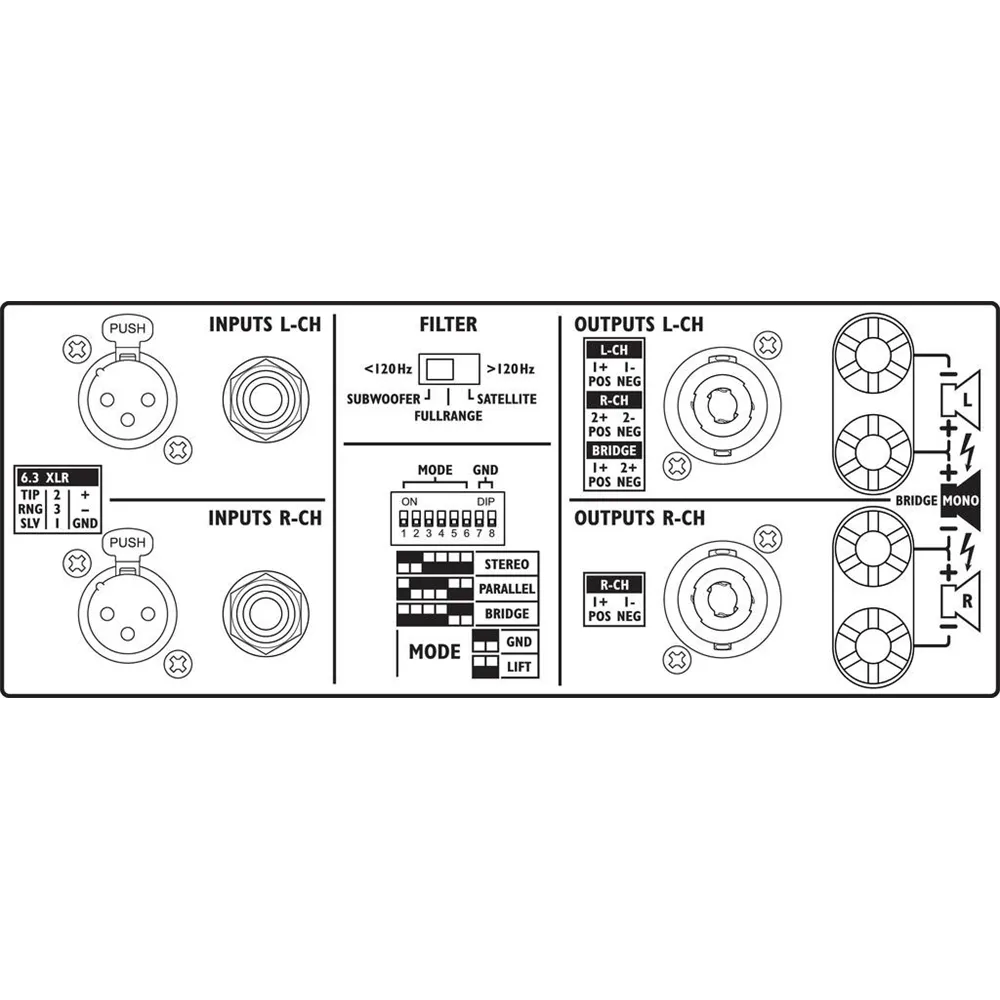

Inputs (per channel): XLR, balanced, 6.3mm jack, balanced
Outputs (per channel): NEUTRIK SPEAKON, speaker terminal blocks

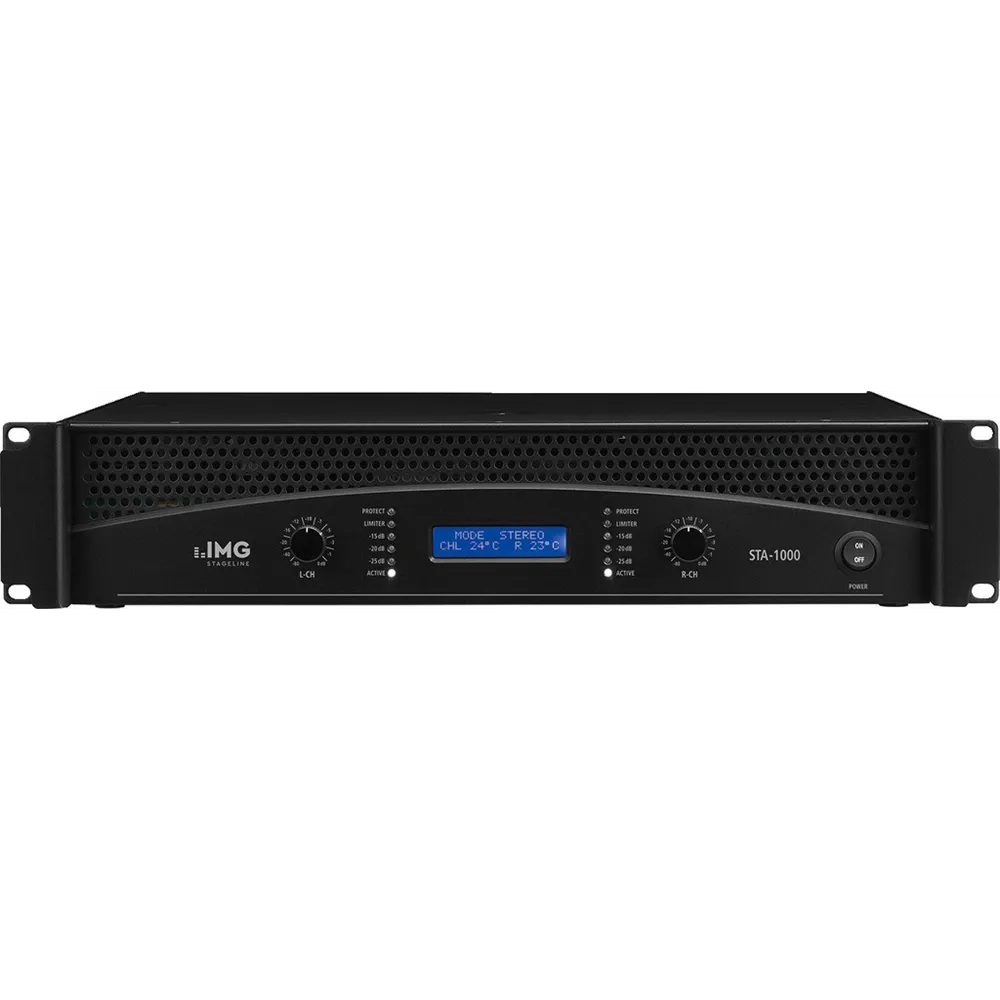

IMG STAGELINE Professional Stereo PA Amplifier, 1600 W Max

Experience the power and precision of the IMG STAGELINE Professional Stereo PA Amplifier with a maximum output of 1600 W. This amplifier is the ideal solution for professional audio applications, whether at live events, in clubs, or for fixed installations. With an integrated crossover and limiter, it ensures optimal sound quality while protecting your speakers from overload.

The amplifier delivers a continuous power output of 2x500W RMS at 4Ω and 1x1000W RMS in bridged mode at 8Ω. Thanks to the temperature-controlled fans and protection circuitry against short circuits, overheating, and DC offset, you can rely on consistent performance. The LCD display provides information on temperature, operating mode, and protection features.

With adjustable operating modes (Stereo, Parallel, or Bridge) and NEUTRIK SPEAKON connectors, the IMG STAGELINE amplifier is extremely versatile. Its robust dimensions of 482x88x418mm and a weight of 15kg make it a reliable companion for any event. Choose quality and performance with the IMG STAGELINE Professional Stereo PA Amplifier!
