MONACOR 4-Channel Amplifier 900W Max

Brand:

IMG STAGELINE Digital Amplifier 1200 W Max

Features

4-channel PA amplifier with integrated limiter
Balanced inputs
Selectable high-pass and low-pass filters per channel
Rear, tamper-proof level adjustment
8 Ω bridge operation possible

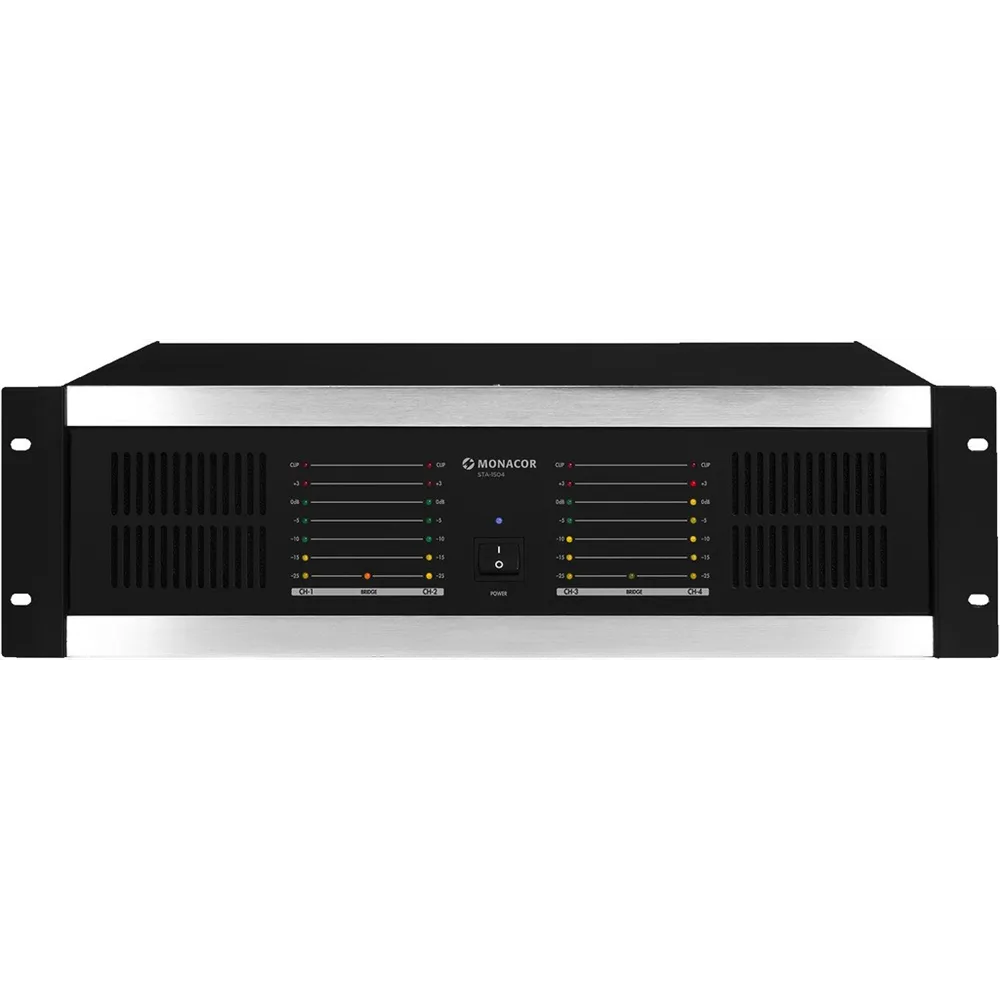

LED VU meter and clipping indicator (Clip) per channel
Soft start
Ground lift switch
Speaker turn-on delay
Fan cooling
Protected against short circuits, overheating, and DC offset at the outputs
Total output power: 900 W
Rated power: 640 W
Power at 4 Ω: 4 x 160 W
Power at 8 Ω: 4 x 100 W
Power in 8 Ω bridge mode: 2 x 320 W
Frequency range: 12-20,000 Hz
Crossover: yes
Crossover frequency: 240 Hz
Signal-to-noise ratio: > 80 dB
Crosstalk attenuation: > 60 dB
Power supply voltage: ~ 230 V
Power supply frequency: 50 Hz
Power consumption in operation: 1200 VA
Permissible operating temperature: 0-40 °C
Width: 482 mm
Height: 132 mm
Depth: 310 mm
Rack units (HE): 3
Weight: 14 kg

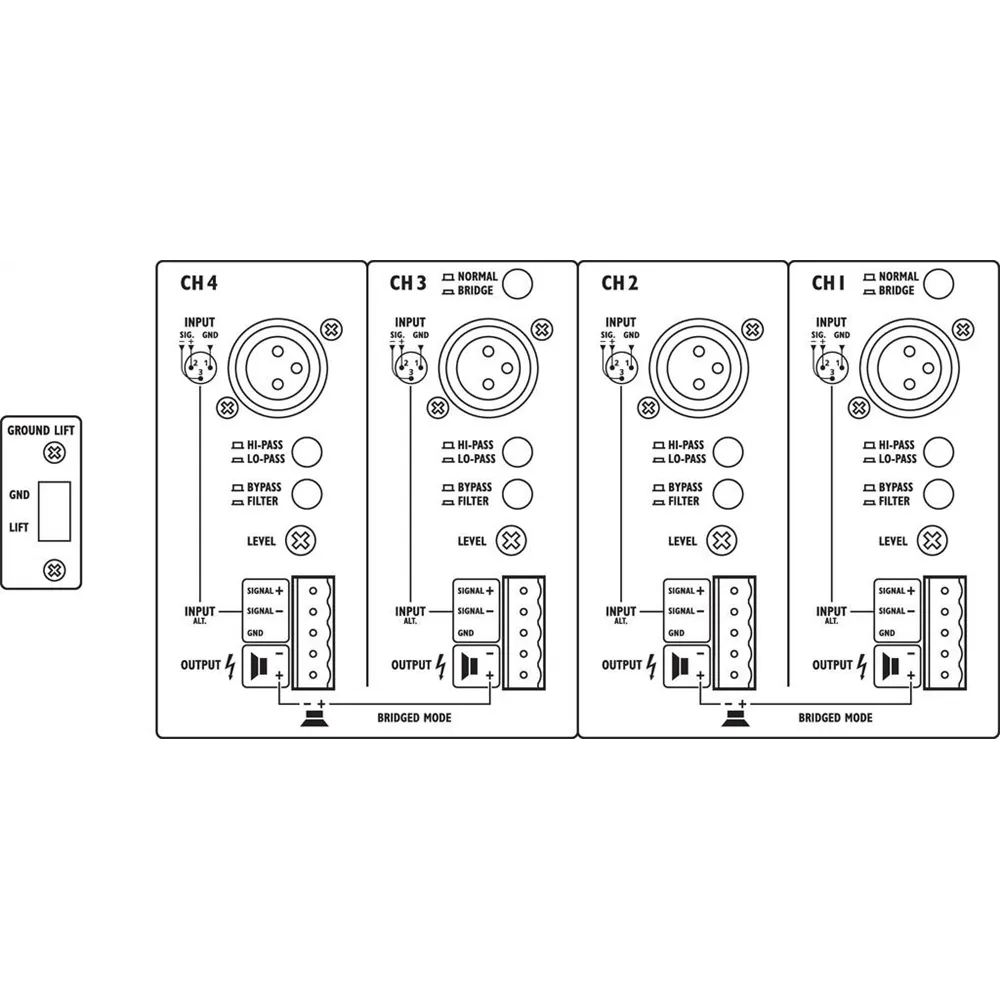

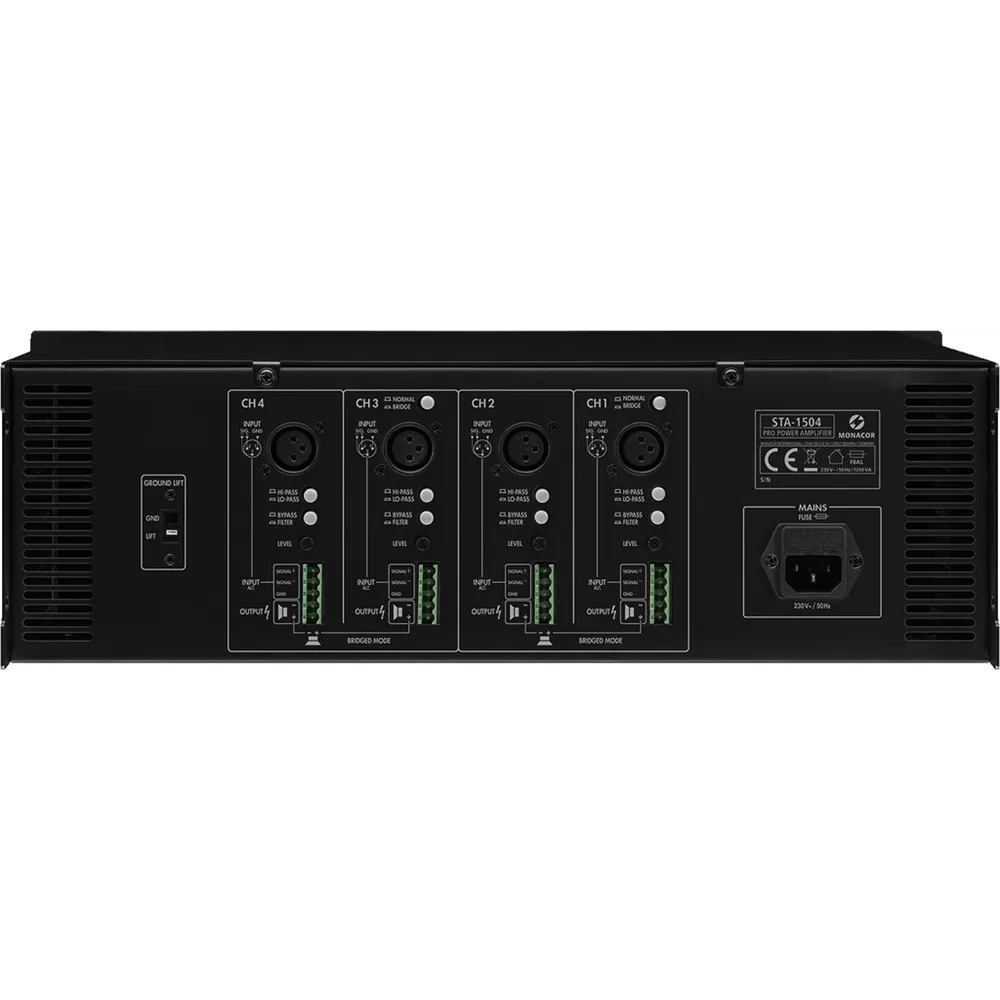

Connections: 4 x 3-pin XLR, balanced and 4 x screw terminal
Packaging dimensions (W x H x D): 0.43 x 0.23 x 0.51 m
Gross weight: 15.84 kg
Net weight: 14.6 kg

MONACOR 4-Channel Amplifier 900W Max

Discover the MONACOR 4-Channel Amplifier with an impressive total output of 900 W, ideal for professional audio applications. This powerful PA amplifier features balanced inputs and allows for flexible adjustments with switchable high-pass and low-pass filters per channel. The tamper-proof level adjustment on the back ensures easy and secure handling.

With a nominal power of 640 W and the capability to deliver up to 640 W in 8-ohm bridged mode, this amplifier is perfect for any event. The integrated protection circuit safeguards against short circuits, overheating, and DC offset, while the soft start and speaker turn-on delay ensure smooth operation. The LED VU meters and overload indicators for each channel enable precise monitoring of performance.

Thanks to its robust fan cooling and ground lift switch, the MONACOR 4-Channel Amplifier is not only powerful but also reliable. With a frequency range of 12-20,000 Hz and a signal-to-noise ratio of over 80 dB, this amplifier is the perfect choice for those seeking the highest audio quality.
