Features
- PRO Beam Moving Head with 100W COB LED, 1° beam angle, gobo and color wheel, 2 prisms, and QuickDMX socket
- Bidirectional rotating 6-facet linear prism and 8-facet prism with variable speed, combinable for multifaceted effects
- 1 powerful 100W COB (Chip-on-Board) cool white (CW) LED
- Positioning within 540° PAN and 230° TILT
- Auto-position correction (feedback)
- Precise positioning (16-bit resolution)
- Gobo wheel with static gobos; 8-facet prism; 6-facet linear prism; frost filter; motorized focus
- Color wheel with 14 dichroic colors and open, rainbow effect with variable speed in both directions
- Gobo wheel with static gobos, 17 gobos and open, shake effect
- Integrated show programs
- Device cooling via temperature-controlled fan
- Controllable via DMX; stand-alone; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; music control via microphone
- Flicker-free
- With a beam angle of 1°
- With Omega bracket
- Multicolor LCD display, optionally upgradable with battery backup for easy operation
- Variable pulse width modulation; dimmer curves with adjustable response; user-defined scenes; dimmer speed (response time) adjustable
- Strobe effect
- Pre-programmed with Light Captain
- Rubber feet
- Power input and output for easy daisy chaining of up to 8 devices
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 150 W
- Protection class: IP20
- Protection category: Class I
- Power connection: Power supply via IP T-Con (M) power connection cable with protective contact plug (included)
- Power output: IP T-Con (W)
- Fuse: 5 x 20 mm, T 3.15 A replaceable fuse
- Type of lamp: LED lamp
- Max. tilt movement: 230° precise positioning (16-bit resolution) auto-position correction (feedback)
- Max. pan movement: 540° precise positioning (16-bit resolution) auto-position correction (feedback)
- Equipment: Gobo wheel with static gobos; 8-facet prism; 6-facet linear prism; frost filter; motorized focus
- Color generation: Color wheel with 14 dichroic colors and open, rainbow effect with variable speed in both directions
- DMX channels: 14; 16

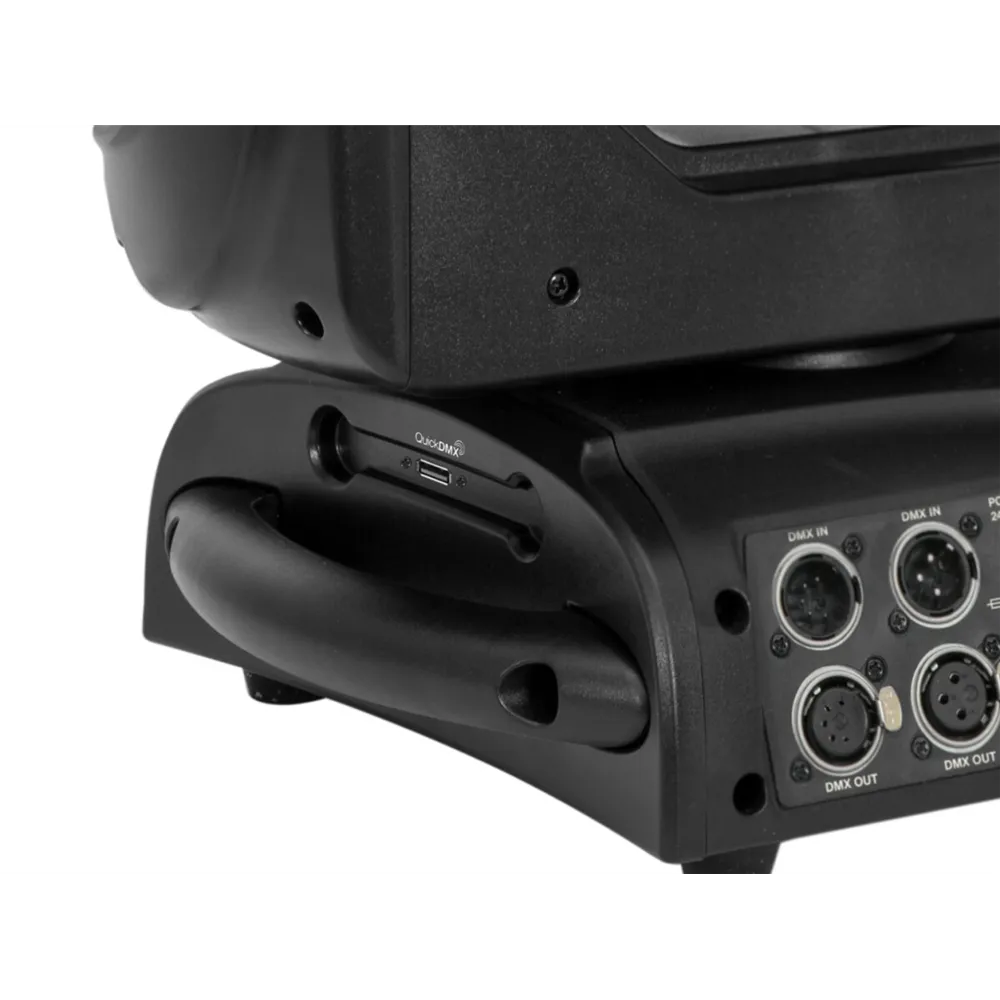

- DMX input: 3-pin XLR (M) built-in version, 5-pin XLR (M) built-in version
- DMX output: 3-pin XLR (W) built-in version, 5-pin XLR (W) built-in version
- Cooling: temperature-controlled fan
- Control: DMX; stand-alone; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM; music control via microphone
- Pre-programmed with: Light Captain
- Housing color: Black

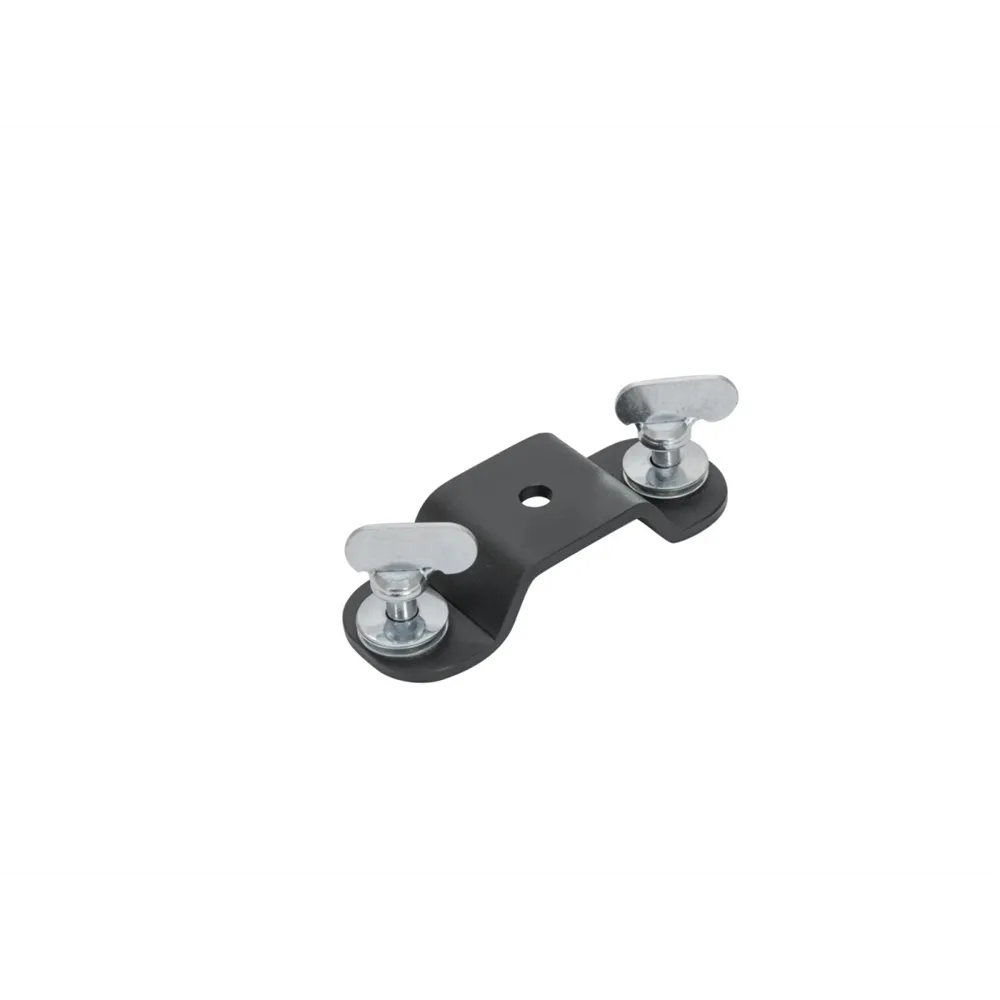

- Mounting system: 2x Omega brackets
- Display type: Multicolor LCD display, battery backup upgradeable
- Transport aid: Rubber feet
- Dimensions: Width: 33,

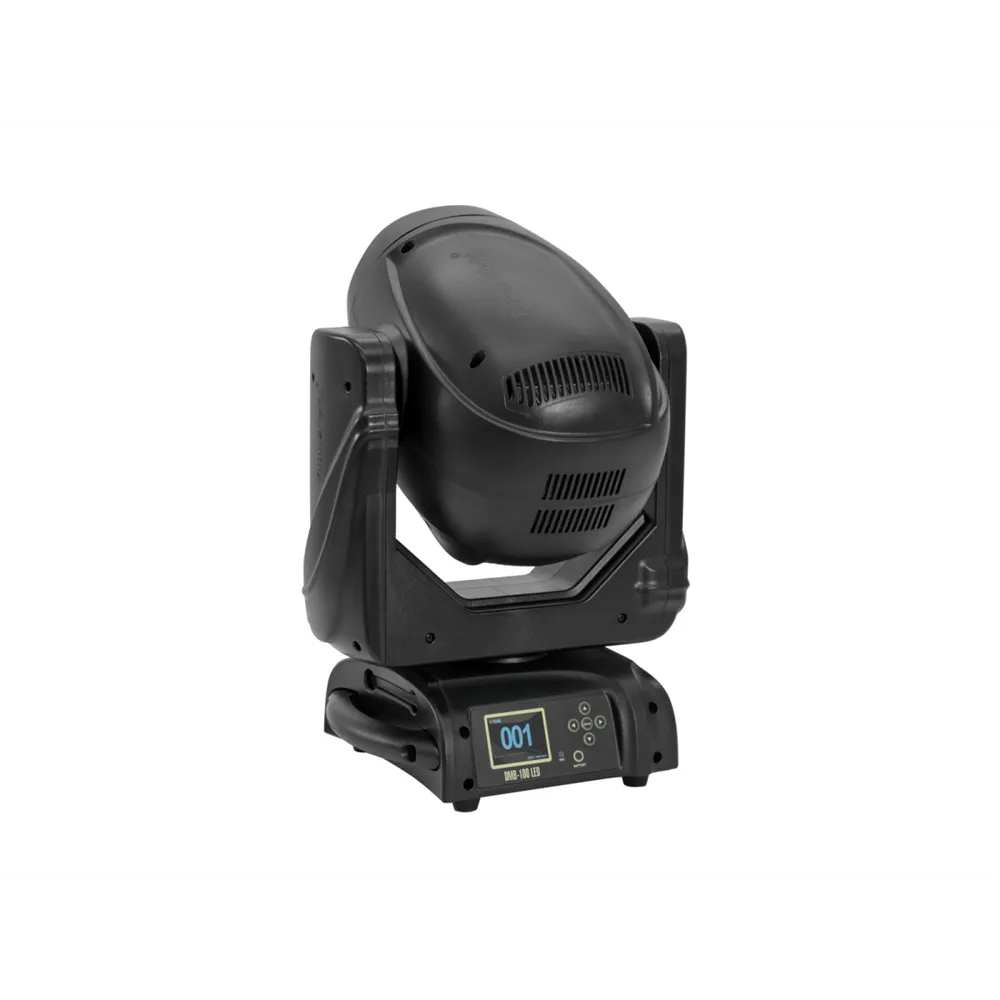

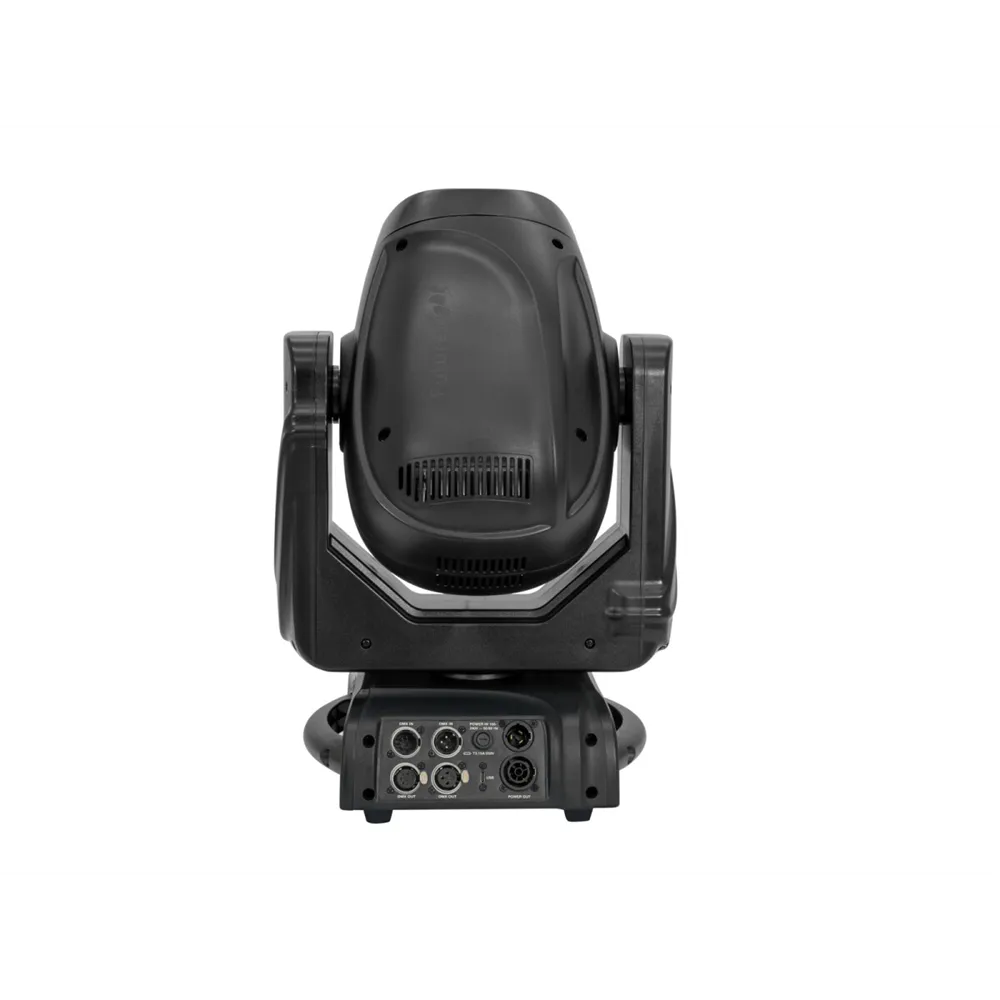

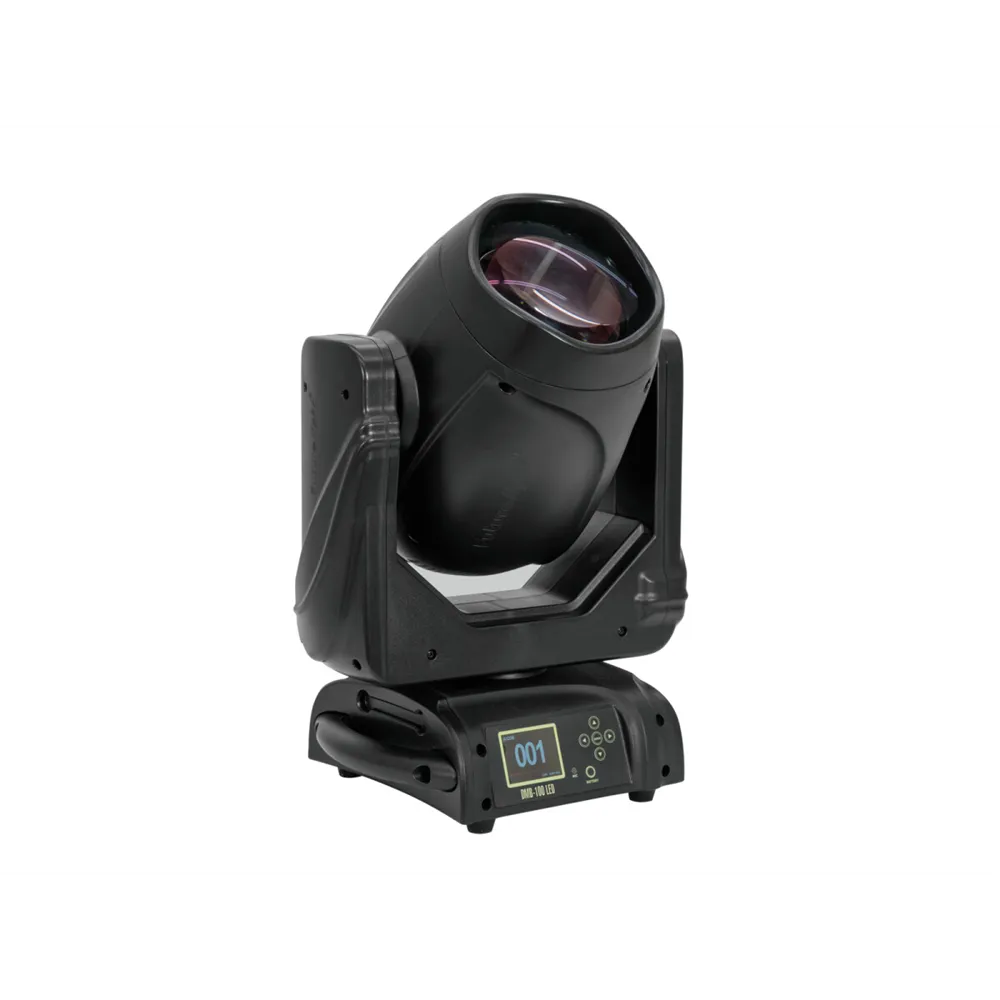

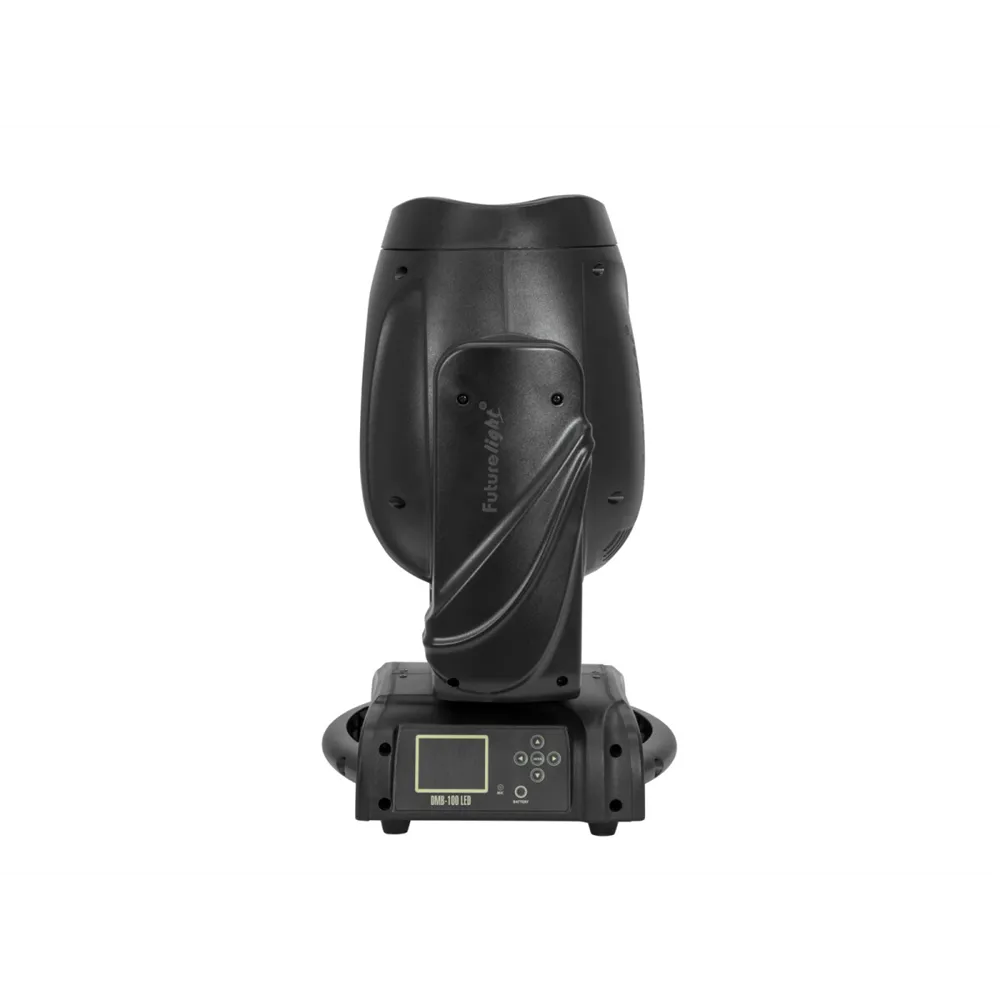

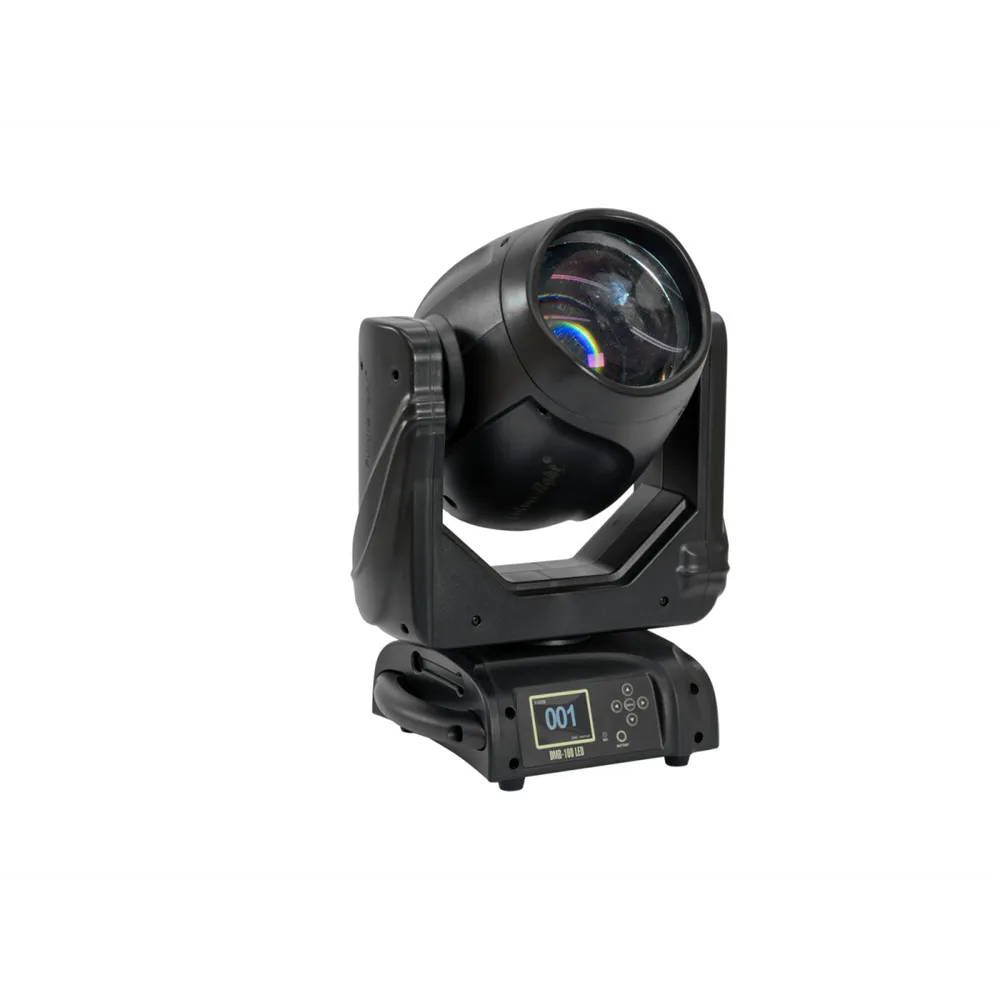

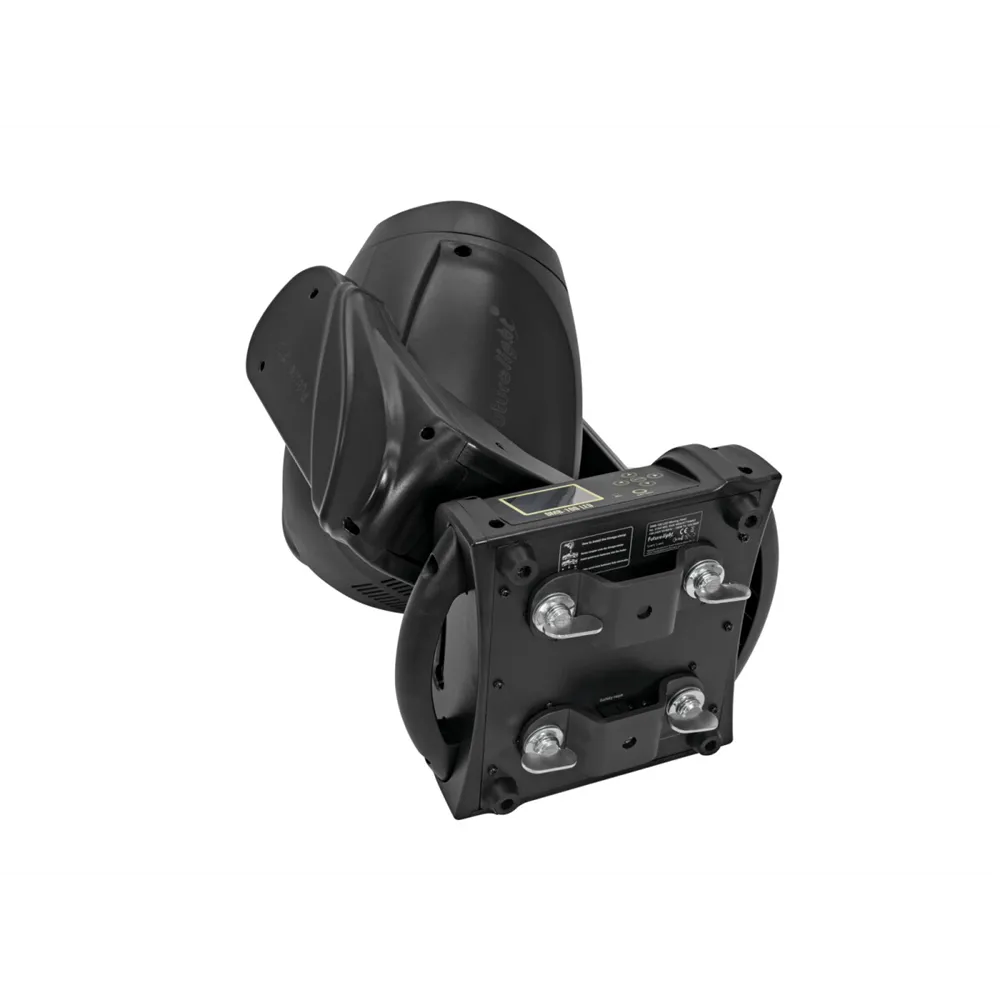

FUTURELIGHT DMB-100 LED Moving Head
The FUTURELIGHT DMB-100 LED Moving Head is the perfect choice for impressive light shows and stage productions. Equipped with a powerful 100W COB LED and a narrow beam angle of just 1°, this moving head delivers exceptional light intensity and precision. With a maximum pan movement of 540° and a tilt movement of 230°, it allows for precise positioning thanks to its 16-bit resolution and auto-position correction.
The DMB-100 features a versatile gobo wheel with 17 static gobos and a frost filter, as well as a color wheel with 14 dichroic colors and a variable rainbow effect that can rotate in both directions. The bidirectionally rotating prisms (6-facet linear and 8-facet) create stunning multi-faceted effects. Additionally, the moving head is flicker-free and offers built-in show programs for easy operation.
Control options include DMX, stand-alone, or QuickDMX, and the device is cooled by a temperature-controlled fan. With a robust housing and a weight of only 13.90 kg, the FUTURELIGHT DMB-100 is suitable for both mobile use and permanent installations. Experience the future of lighting technology with the DMB-100!
