Features
- Beam effect; Spot effect; Wash effect
- Light source: Osram Sirius HRI 371W discharge lamp
- Light source pre-installed and adjusted at the factory
- Additional frost filter for wide, homogeneous, and soft light
- Positioning within 540° PAN, 230° TILT
- Auto-position correction (feedback)
- Precise 16-bit resolution for zoom and focus
- Exact positioning (16-bit resolution)
- 16-facet prism; 8-facet rotating prism; 16-facet rotating prism; gobo wheel with static gobos; gobo wheel with rotating gobos; motorized focus; motorized zoom; frost filter; dimmer
- Color wheel with 13 dichroic colors and open
Rainbow effect with variable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
Shake effect - Slot-in gobo system for easy gobo changes
- Interchangeable gobos
- Gobo wheel with static gobos, 11 gobos and open
Shake effect - Gobo wheel with static gobos, 5 gobos and open
Shake effect - Integrated show programs
- Device cooling via fans
- Controllable via stand-alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Beam angle of 4° - 35°
- Multicolor LCD display,
with battery backup for easy operation - Power input and output for easy linking of up to 4 devices
- Color animations; patterns
- Pre-programmed with Light Captain
- Suitable for applications such as: clubs/dance schools; stage; rental companies
- Usage options: standing; hanging
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 490 W
- Protection class: IP20
- Protection rating: Class I

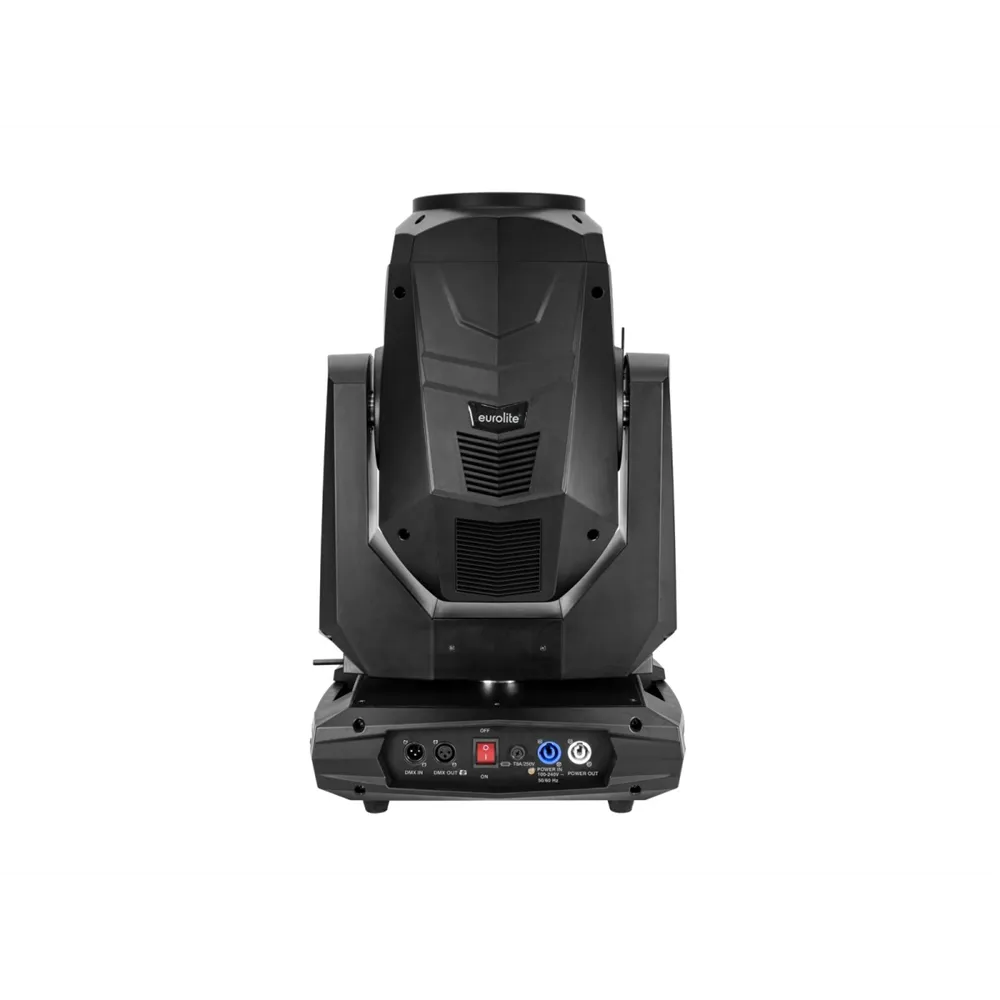

- Power connection: Power input via P-Con (blue), built-in version power connection cable with protective contact plug (included)
- Power output: P-Con (gray), built-in version
- Fuse: 5 x 20 mm, T 8 A
- Type of lamp: Discharge lamp
- Max. tilt movement: 230° precise positioning (16-bit resolution) auto-position correction (feedback)
- Max. pan movement: 540° precise positioning (16-bit resolution) auto-position correction (feedback)
- Flash rate: 1 - 18 Hz
- Cooling: Fan
- DMX channels: 22; 26
- DMX input: 3-pin XLR (M) built-in version
- DMX output: 3-pin XLR (F) built-in version
- Housing color: Black
- Dimensions: Width: 39.5 cm; Depth: 30.5 cm; Height: 63.0 cm
- Weight: 22.70 kg
- Noise classification: Class 3 (clearly audible noise)
- Special product: Not intended for room lighting in households
- Purpose: Lighting for show effects

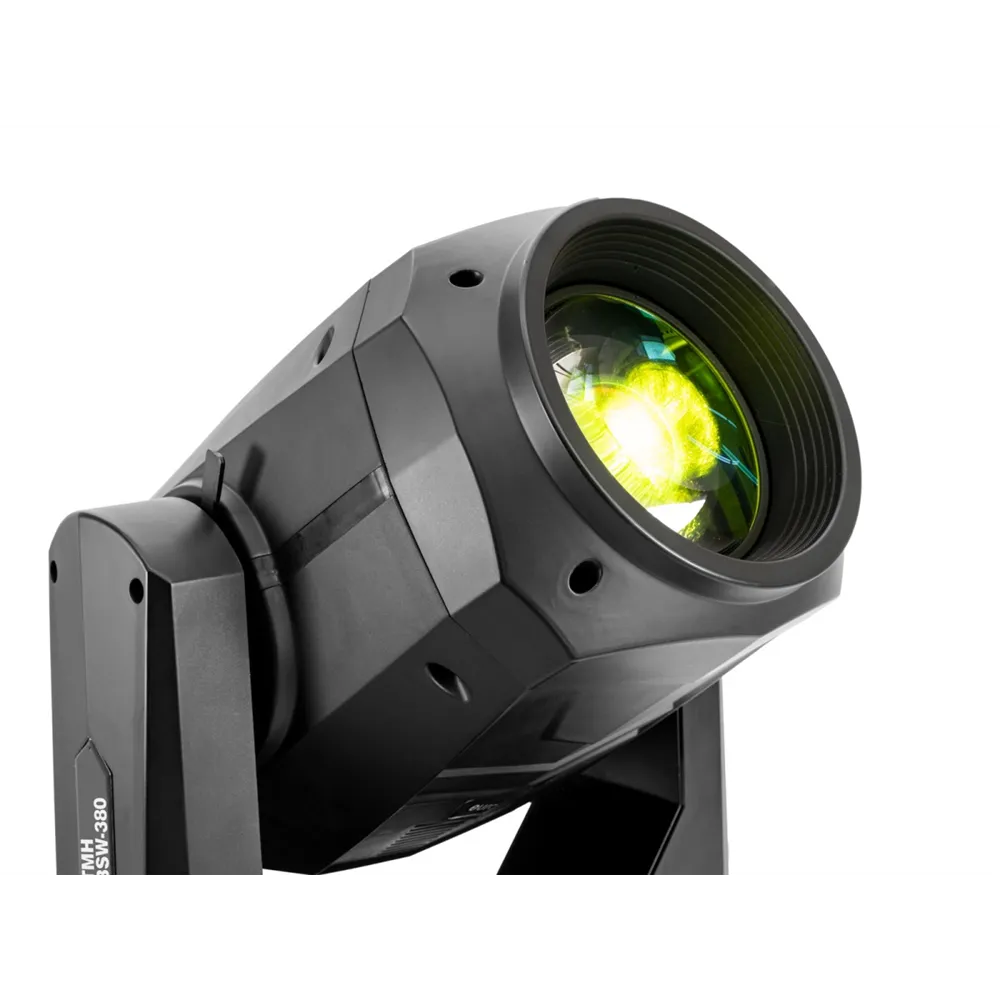

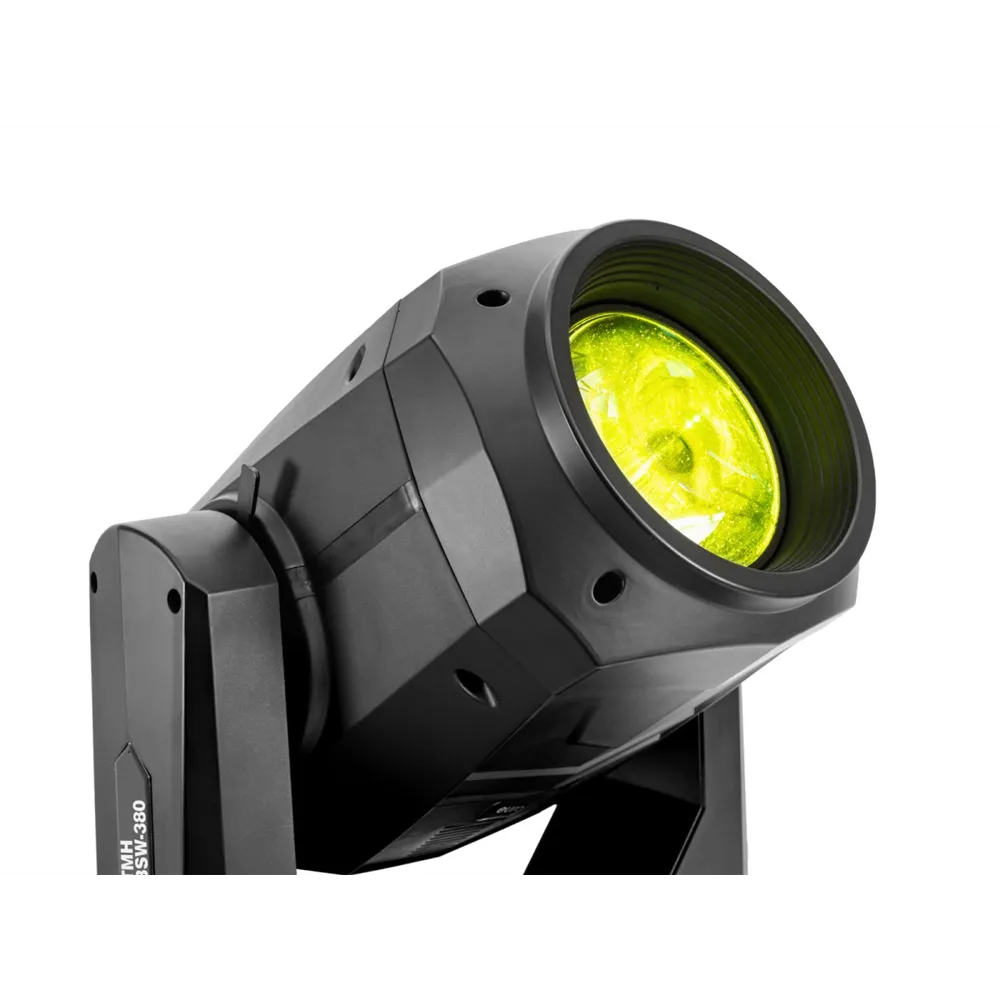

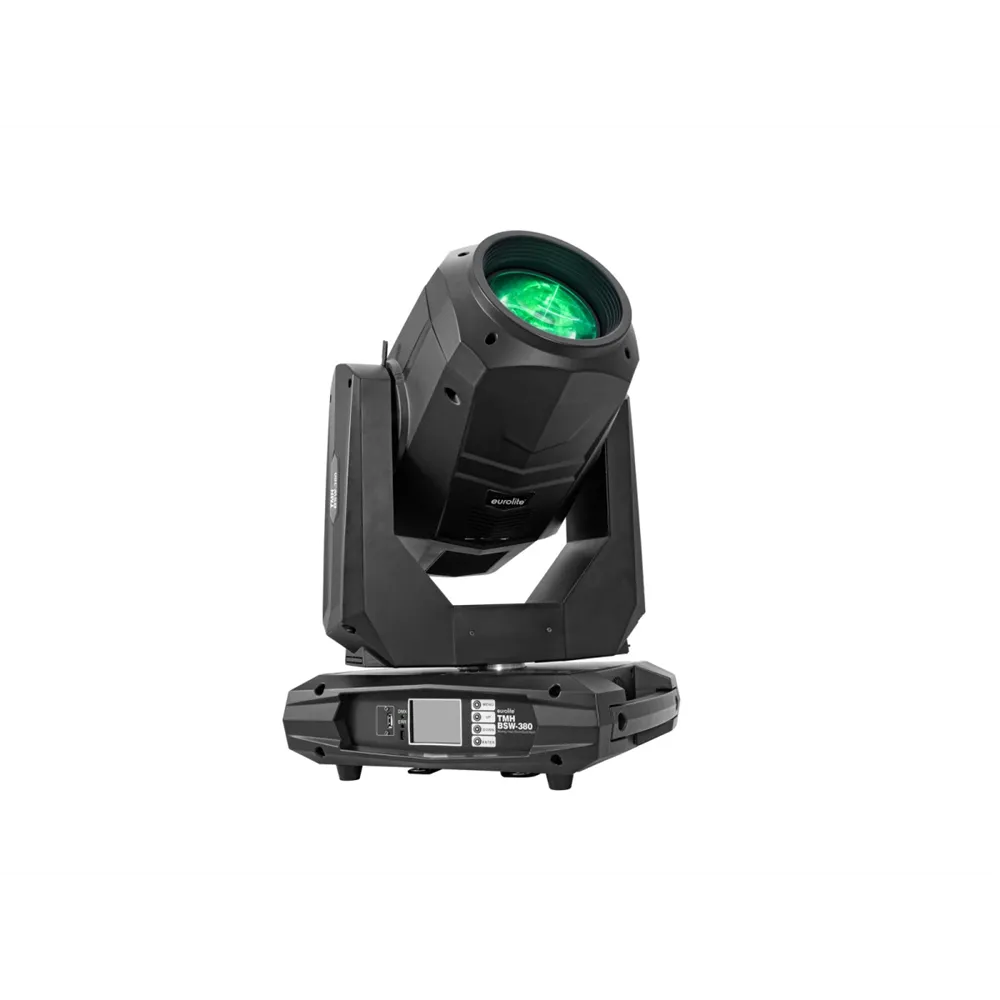

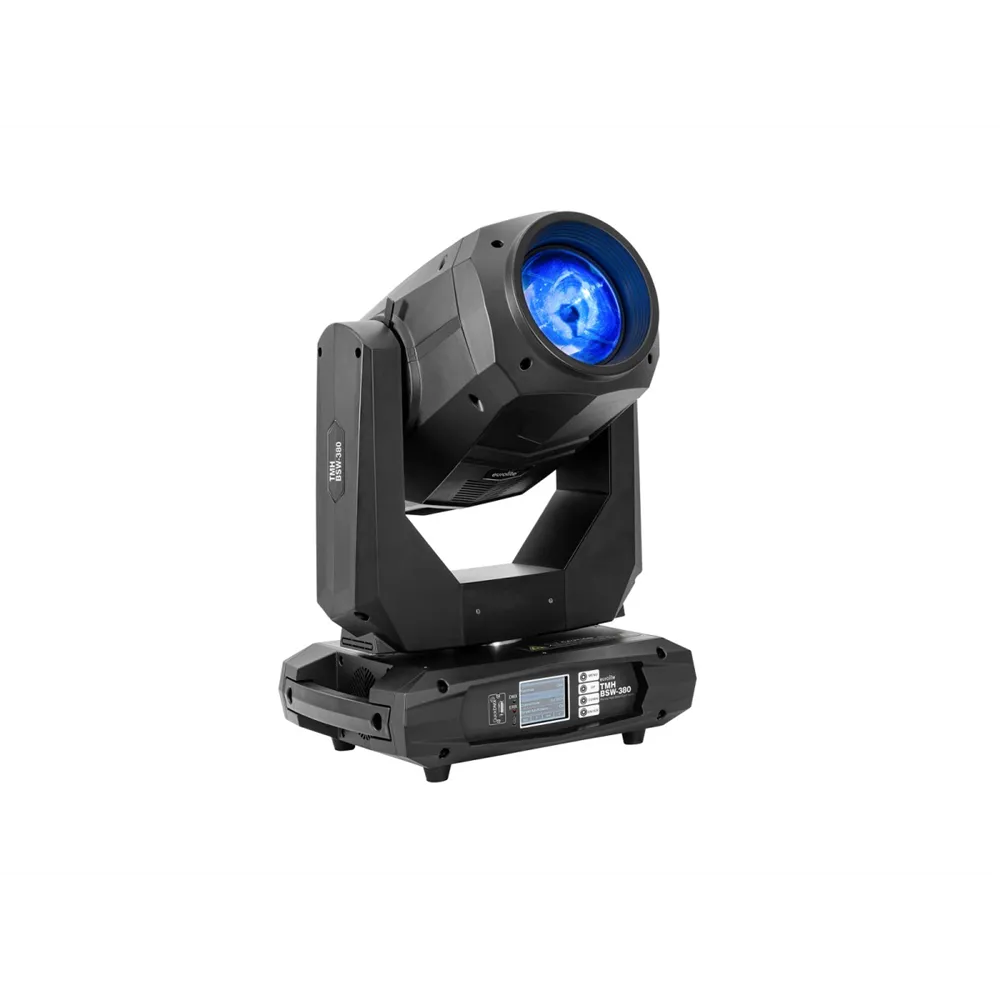

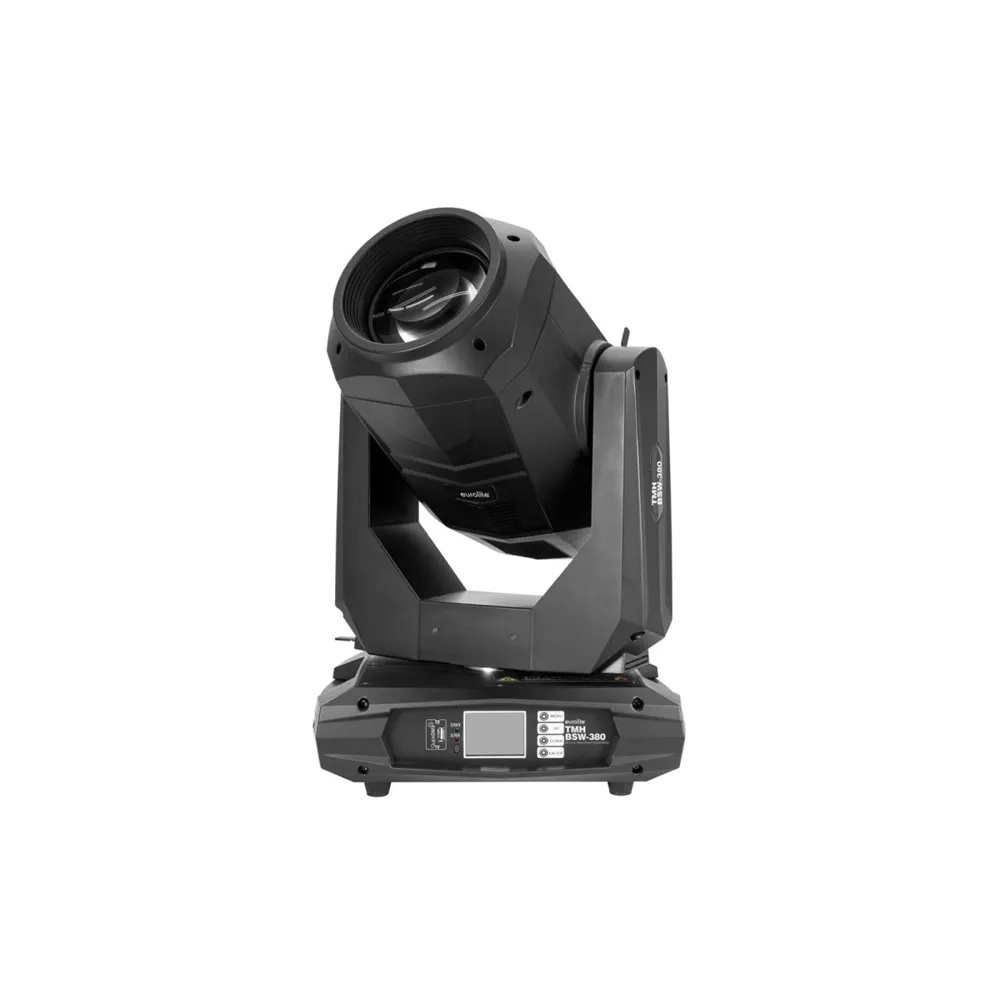

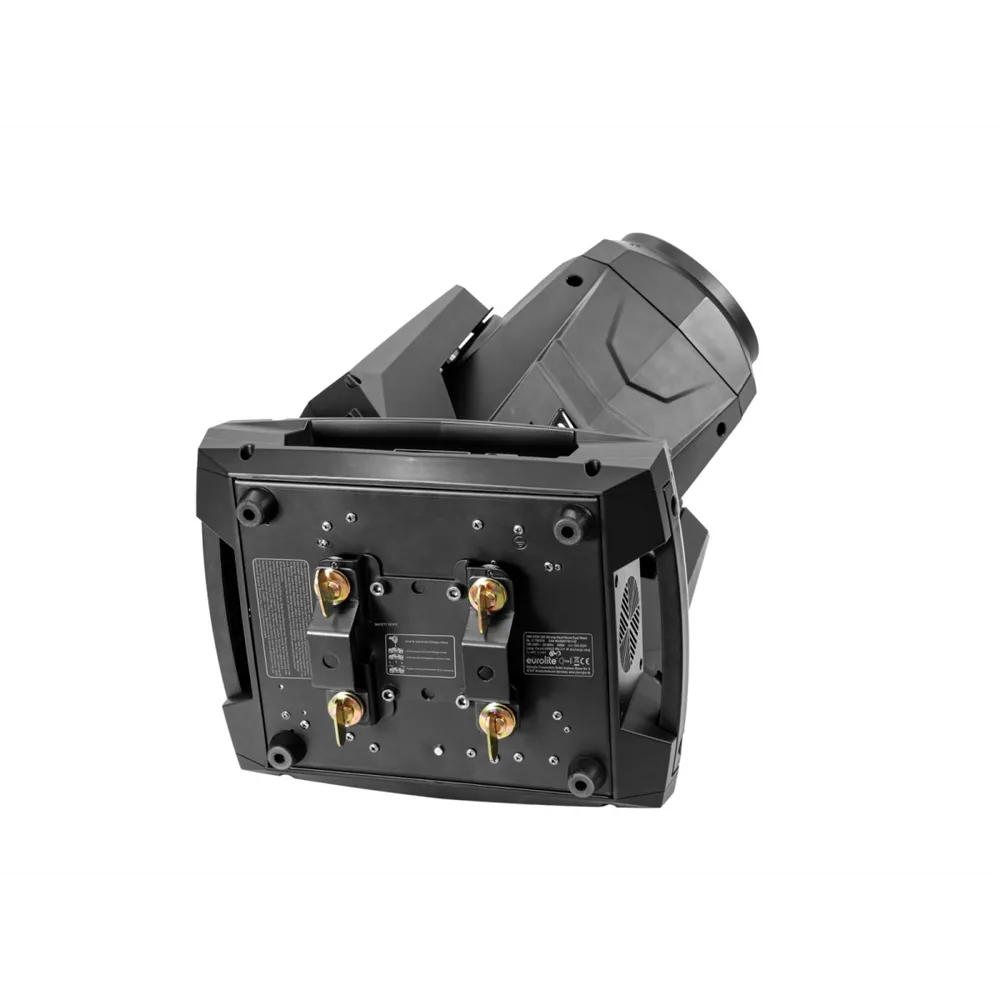

EUROLITE TMH BSW-380 Moving Head Beam/Spot/Wash
The EUROLITE TMH BSW-380 is a versatile moving head that combines beam, spot, and wash effects in a compact unit. Equipped with a powerful 371W discharge lamp from Osram, this moving head delivers impressive light output and a wide range of creative possibilities. With a beam angle ranging from 4° to 35° and precise 16-bit resolution for zoom and focus, you can create accurate lighting accents.
The TMH BSW-380 features an extensive color wheel with 13 dichroic colors, as well as static and rotating gobos, ensuring dynamic light shows. Thanks to its built-in show programs and the ability to be controlled via DMX, stand-alone, or music control, it is ideal for clubs, stages, and rental companies. The auto-position correction and fan cooling system ensure reliable performance during operation.

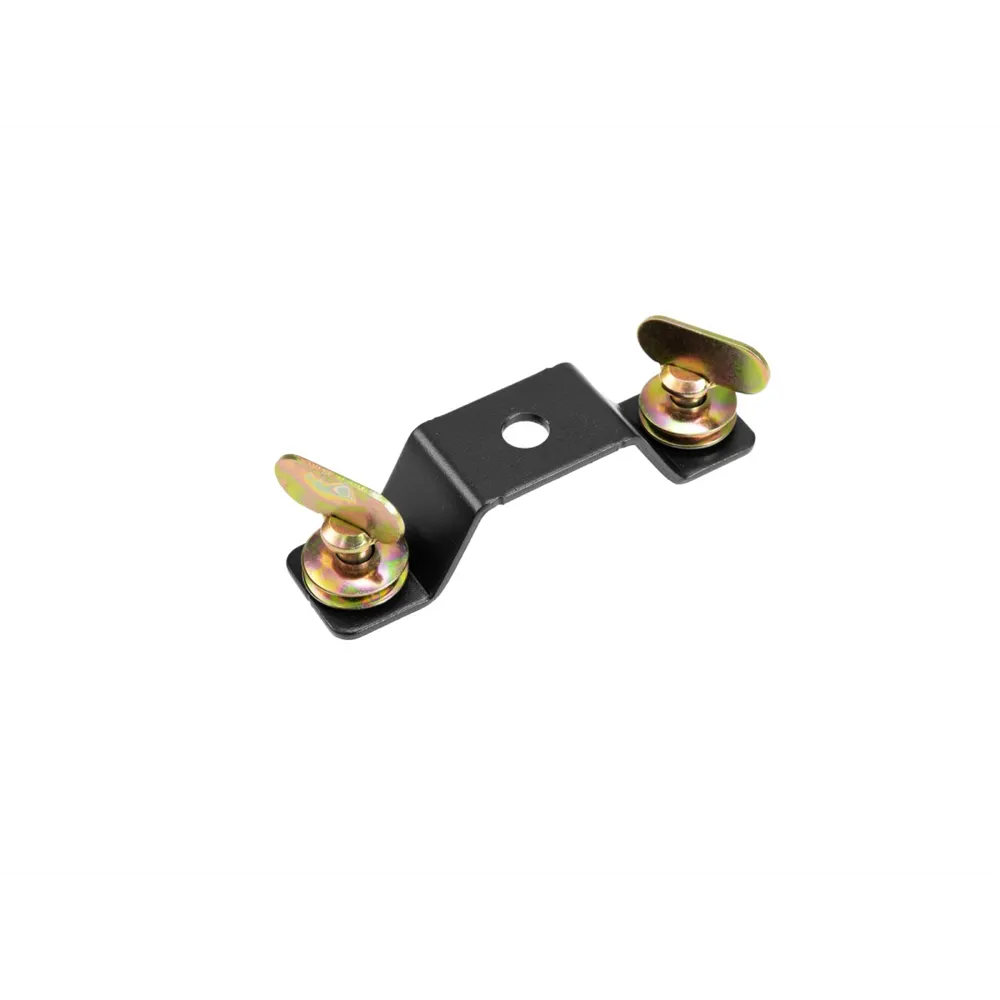

With a robust housing and a weight of 22.7 kg, the EUROLITE TMH BSW-380 is suitable for both stationary and flying applications. It comes with a user manual, power cable, and omega bracket, allowing you to start your light show right away!
