Features
- PRO Moving Head with 200W COB LED and extensive features
- Effect wheel with rotating 3-facet prism and 8-facet prism, as well as frost filter
- Scenes can be individually customized and stored via the control board or external controller
- Number of scenes can be adjusted as needed
- 1 powerful 200W COB (Chip-on-Board) cool white (CW) LED
- Positioning within 630° PAN and 270° TILT
- Continuous iris; gobo wheel with rotating gobos; gobo wheel with static gobos; 3-facet prism; 8-facet prism; motorized focus; frost filter; color wheel

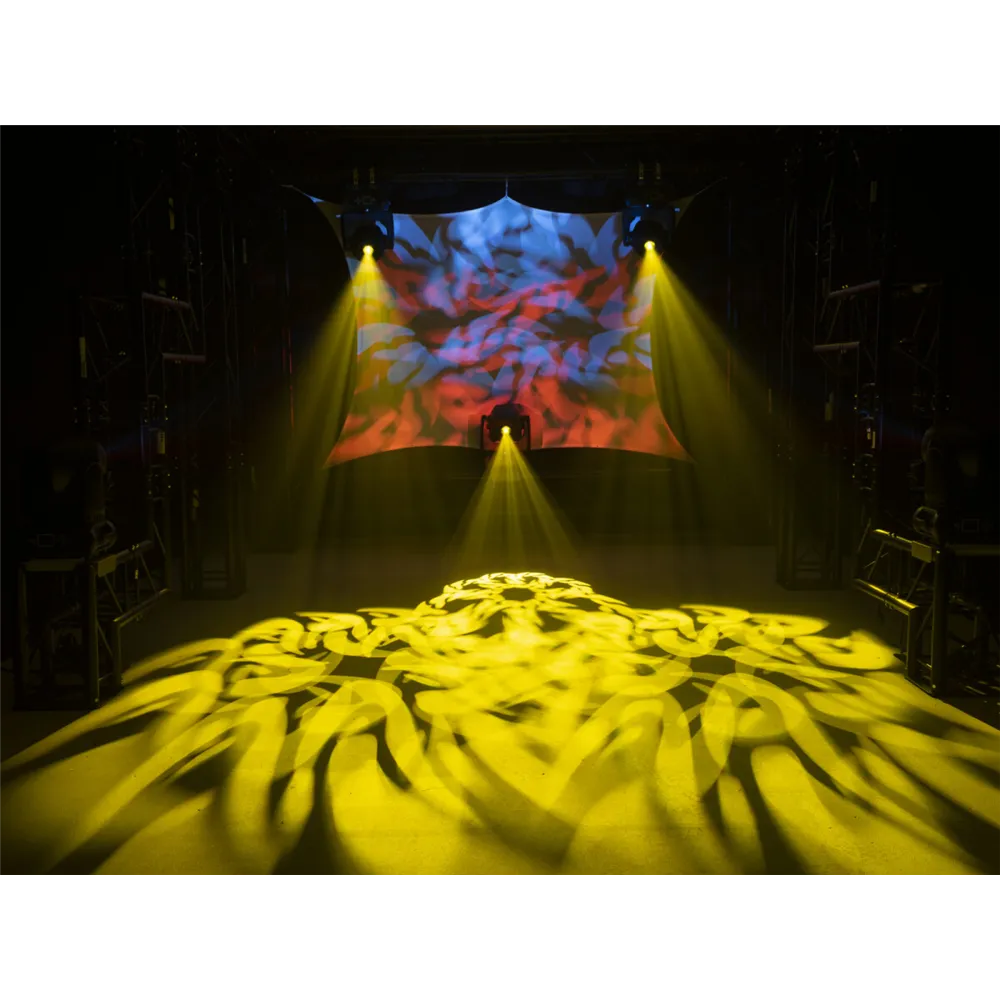

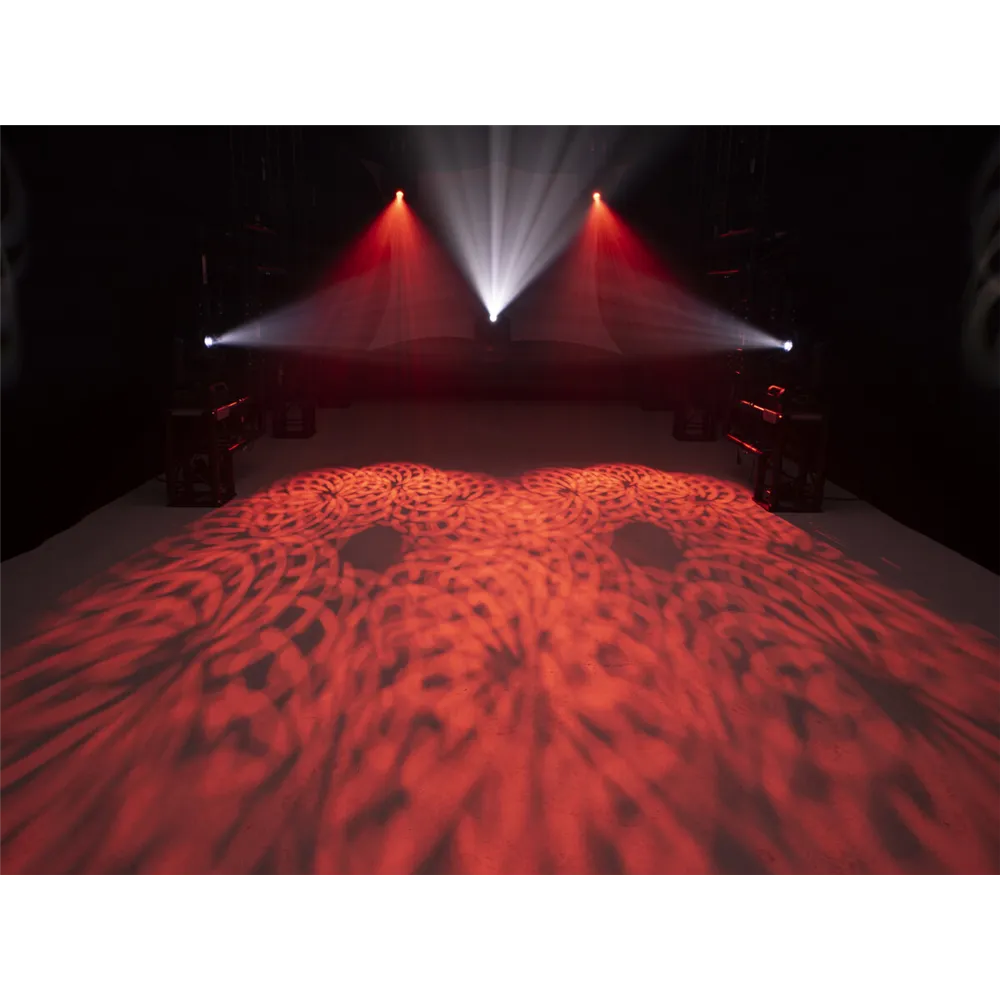

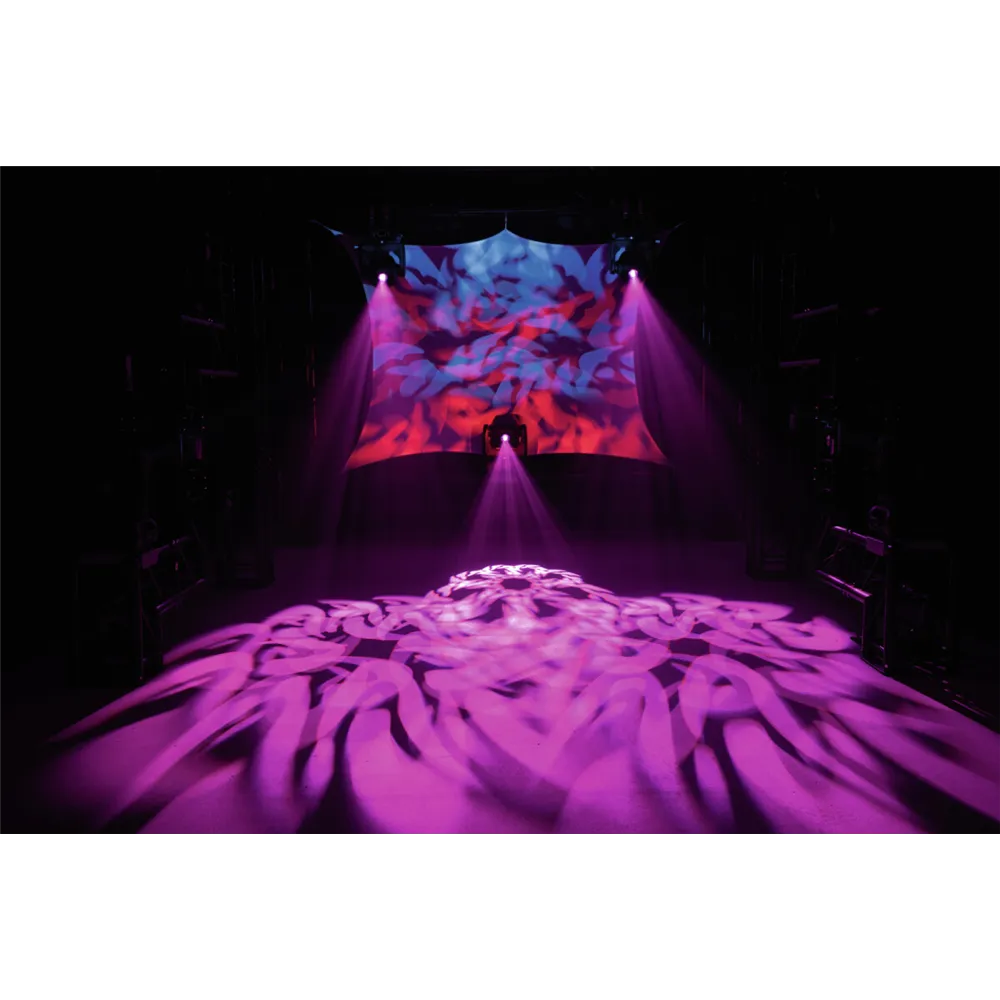

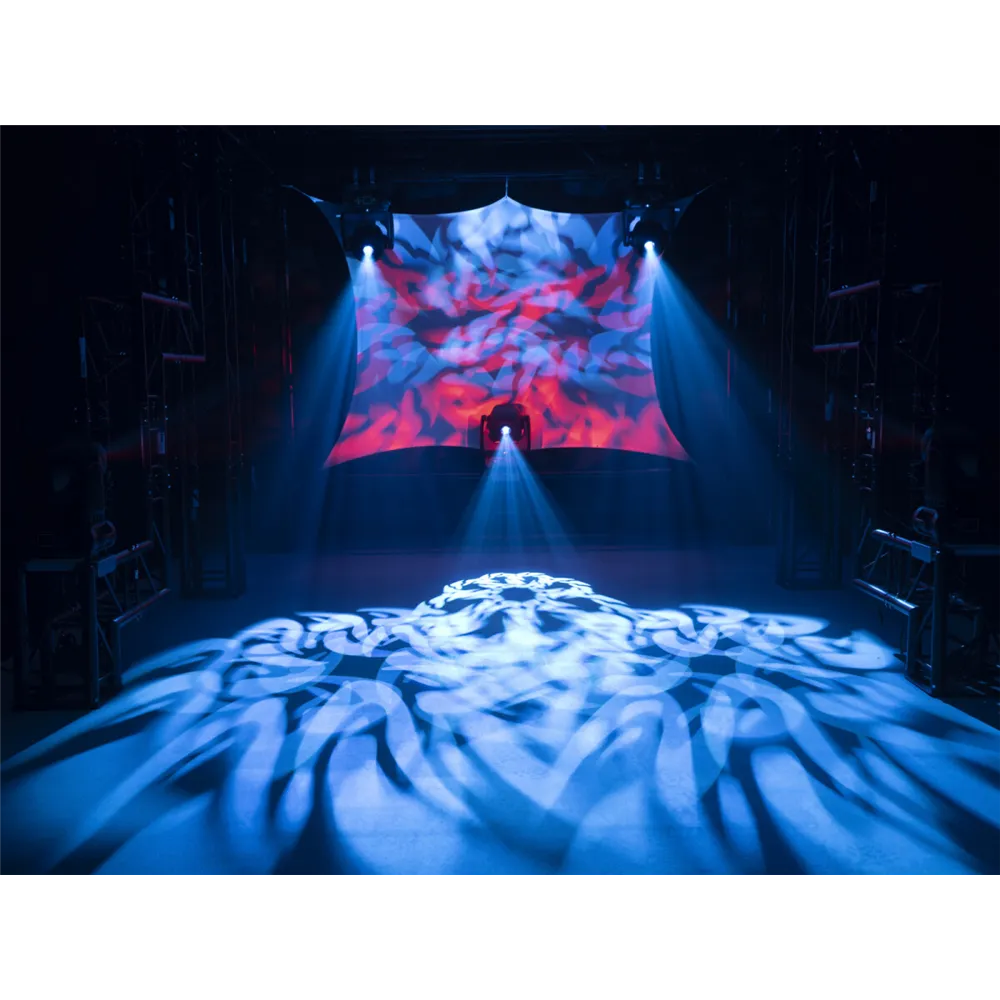

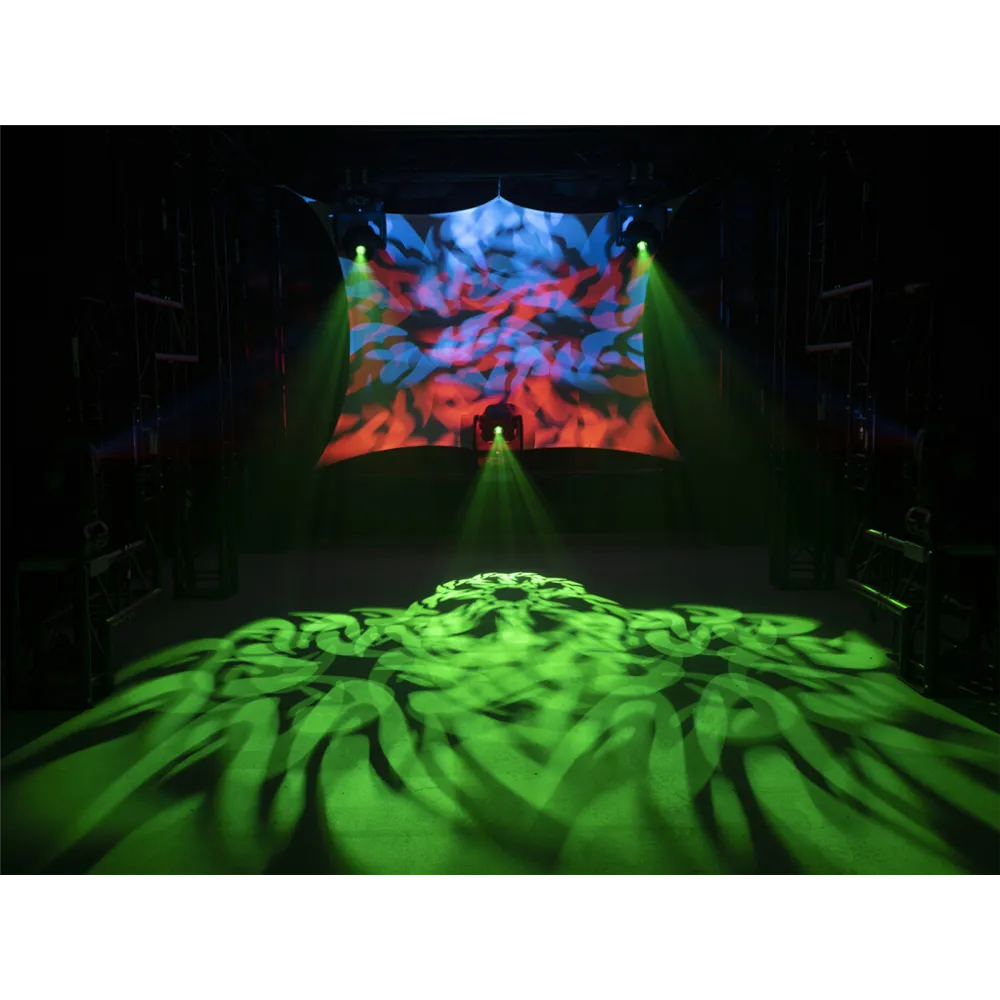

- Gobo effect; beam effect; strobe effect

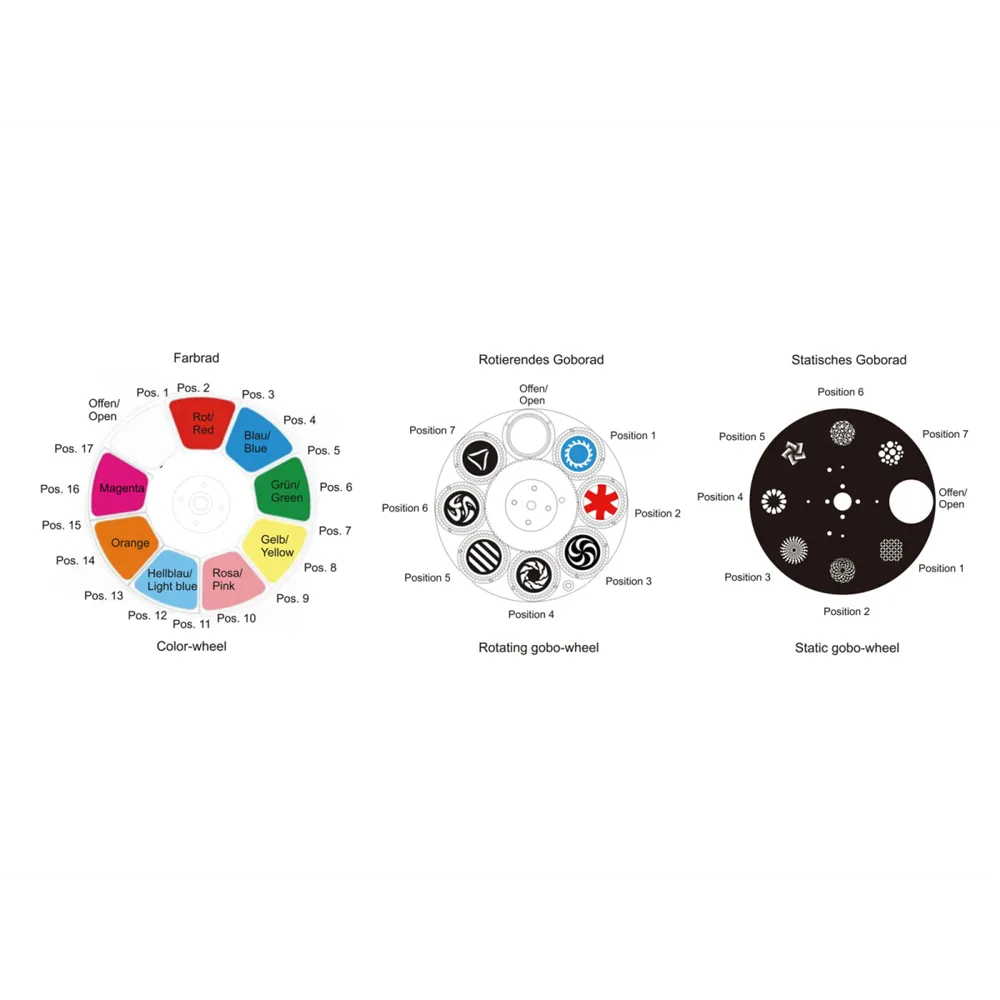

- Color wheel with 8 dichroic colors and open; rainbow effect with variable speed in both directions
- Gobo wheel with static gobos, 7 gobos and open
- Shake effect
- Gobo wheel with rotating gobos, 7 gobos and open; interchangeable gobos
- Slot-in gobo system for easy gobo changes
- Device cooling via temperature-controlled fan
- Controllable via stand-alone; RDM; DMX; music control via microphone; W-DMX by Wireless Solution can be retrofitted
- Flicker-free
- With a beam angle of 11°
- LCD display, with battery backup for easy operation can be retrofitted
- NEUTRIK connector installed
- Precise 16-bit resolution for dimmer
- Variable pulse width modulation
- Pre-programmed for LED PC-Control 512; Light Captain
- With Omega bracket
- Power input and output for easy daisy chaining of up to 8 devices
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 285 W
- Protection class: IP20
- Protection rating: Class I

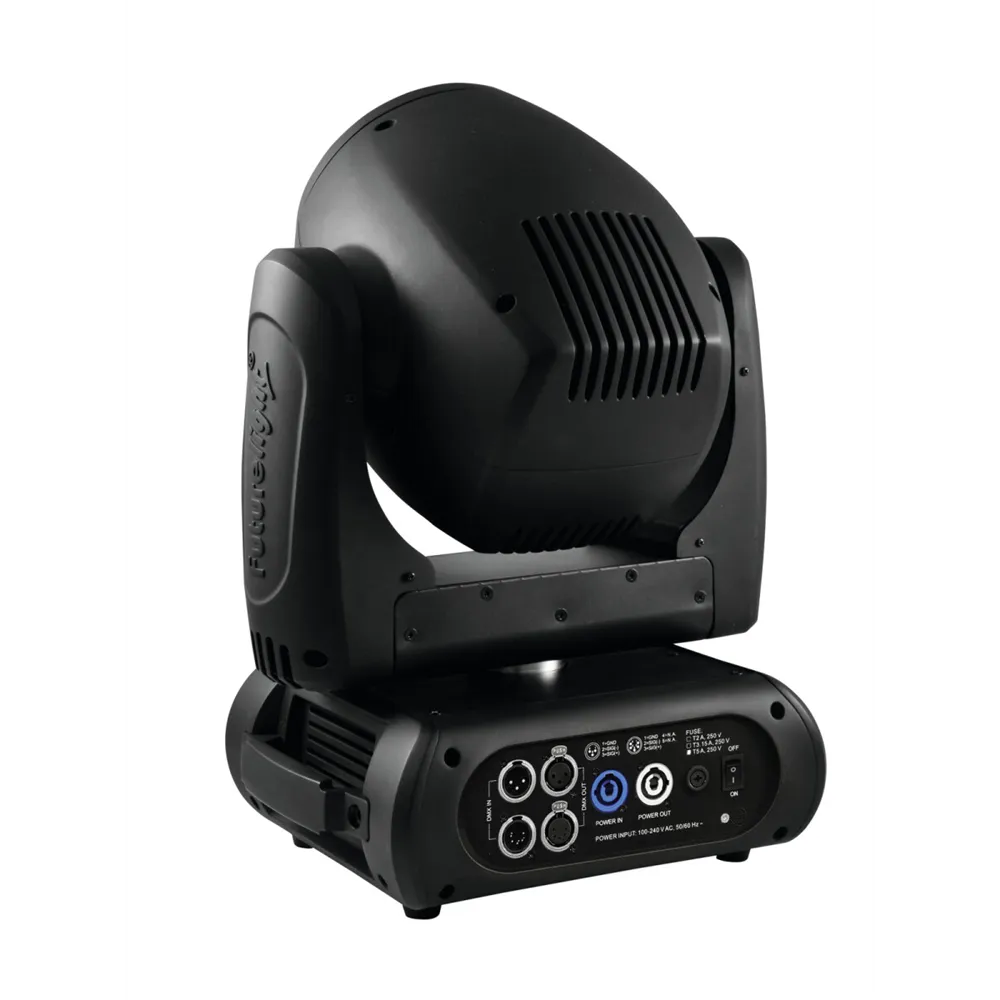

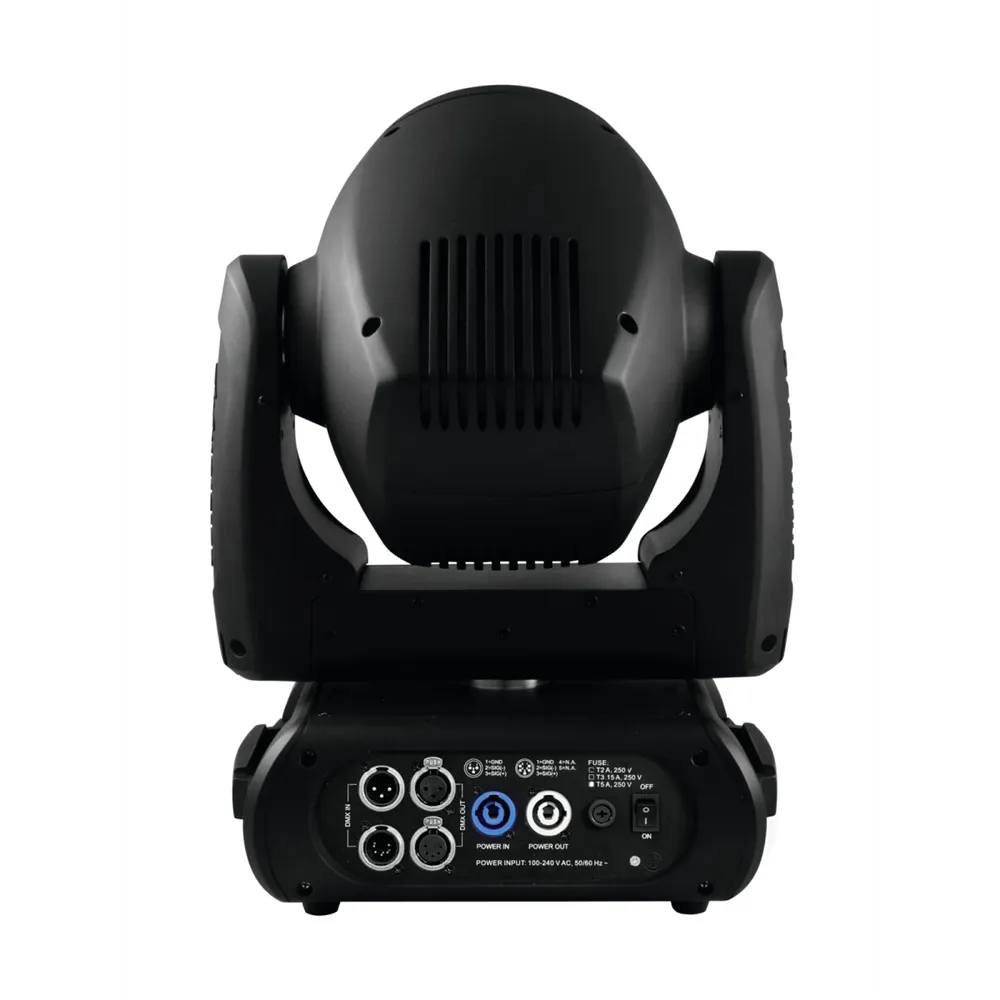

- Power connection: Power input via PowerCON (blue)
- Power output: 1 x PowerCON (gray)
- Fuse: 5 x 20 mm, T 3.15 A
- Type of lamp: LED lamp
- Max. tilt movement: 270°
- Max. pan movement: 630°
- Illuminance in Lux (lx): Cool white (CW) at 3m: 27074 lx, at 6m: 6796 lx
- Housing color: Black
- Dimensions: Width: 34.3 cm, Depth: 26.2 cm, Height: 44.1 cm
- Weight: 15.85 kg
- Noise classification: Class 2 (light noise)
- Special product: Not intended for room lighting in households
- Intended use: Lighting for show effects

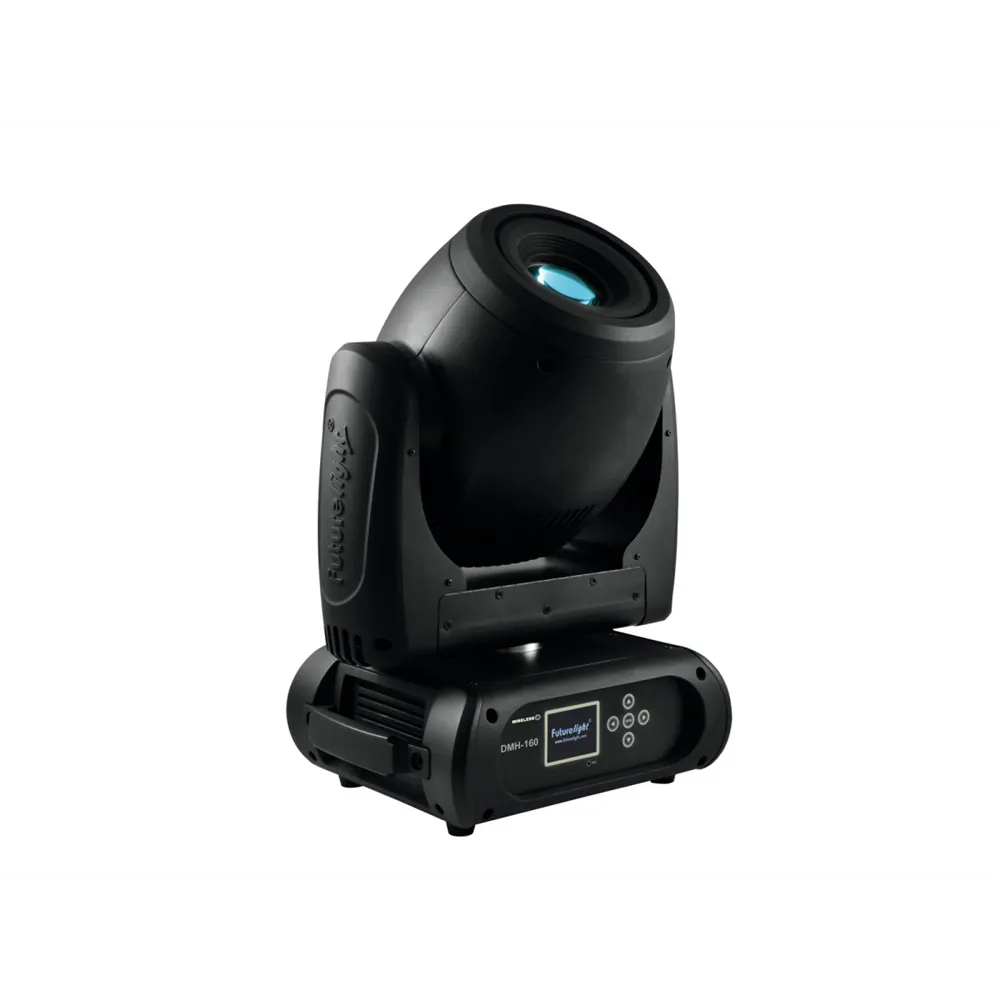

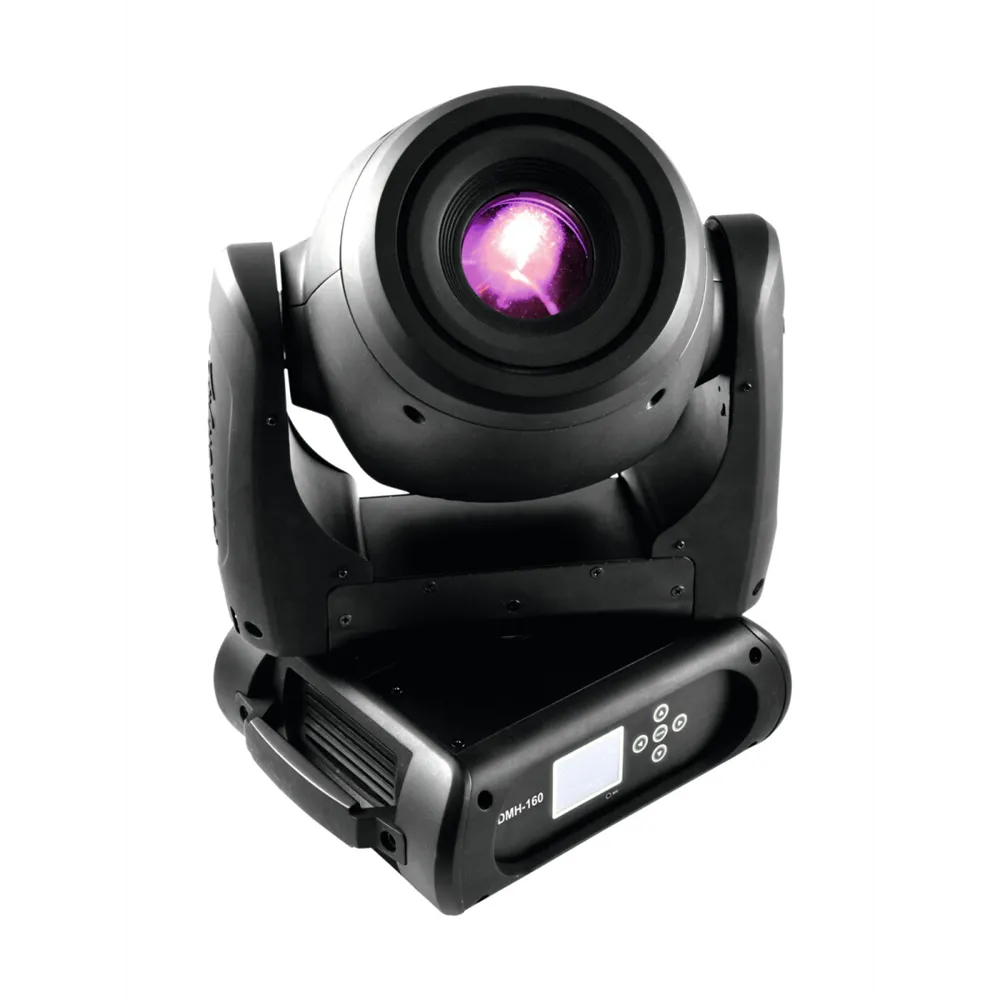

FUTURELIGHT DMH-160 MK2 LED Moving Head
The FUTURELIGHT DMH-160 MK2 is a powerful moving head equipped with a 200W COB LED, offering a wide range of impressive features. With a beam angle of 11° and a maximum pan movement of 630° and tilt of 270°, this moving head allows for precise and dynamic lighting design. The effects wheel includes a rotating 3-facet and 8-facet prism, as well as a frost filter to create creative lighting atmospheres.
Control is facilitated through a user-friendly control board or external controllers, allowing for individual scene customization and storage. With a gobo system that includes both static and rotating gobos, along with a color wheel featuring 8 dichroic colors, the possibilities for lighting design are virtually limitless. The DMH-160 MK2 is also flicker-free and offers precise 16-bit dimming resolution.
The device is cooled by a temperature-controlled fan, and it can be operated in stand-alone mode, RDM, DMX, or music control. With a robust housing and a weight of 15.85 kg, the FUTURELIGHT DMH-160 MK2 is ideal for professional applications in event and show lighting.
