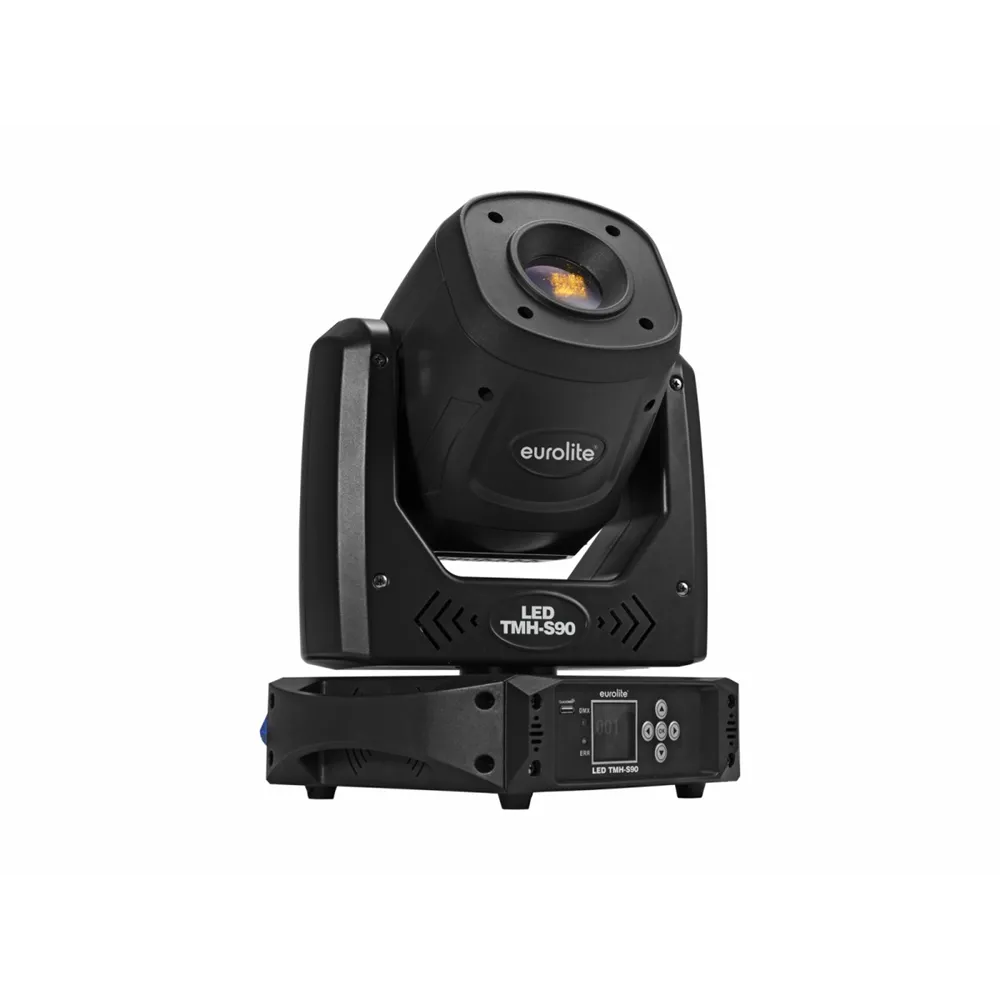

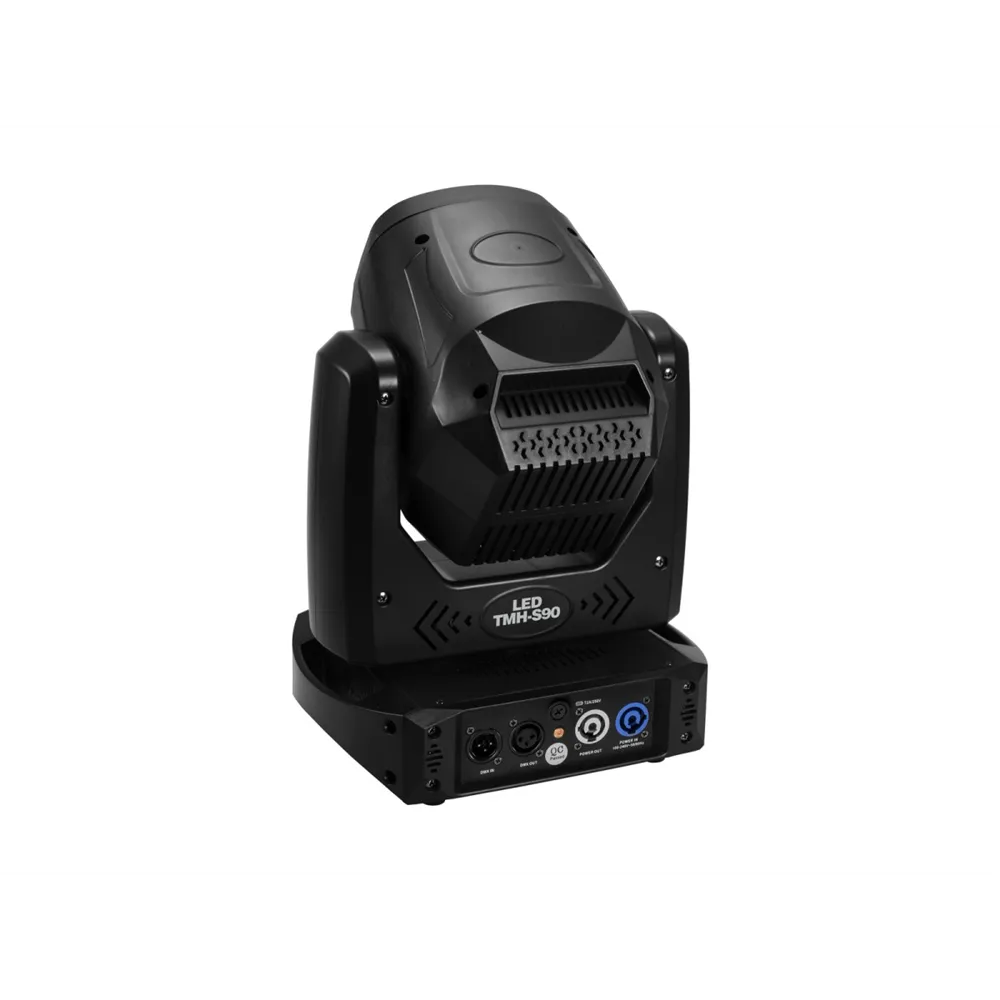

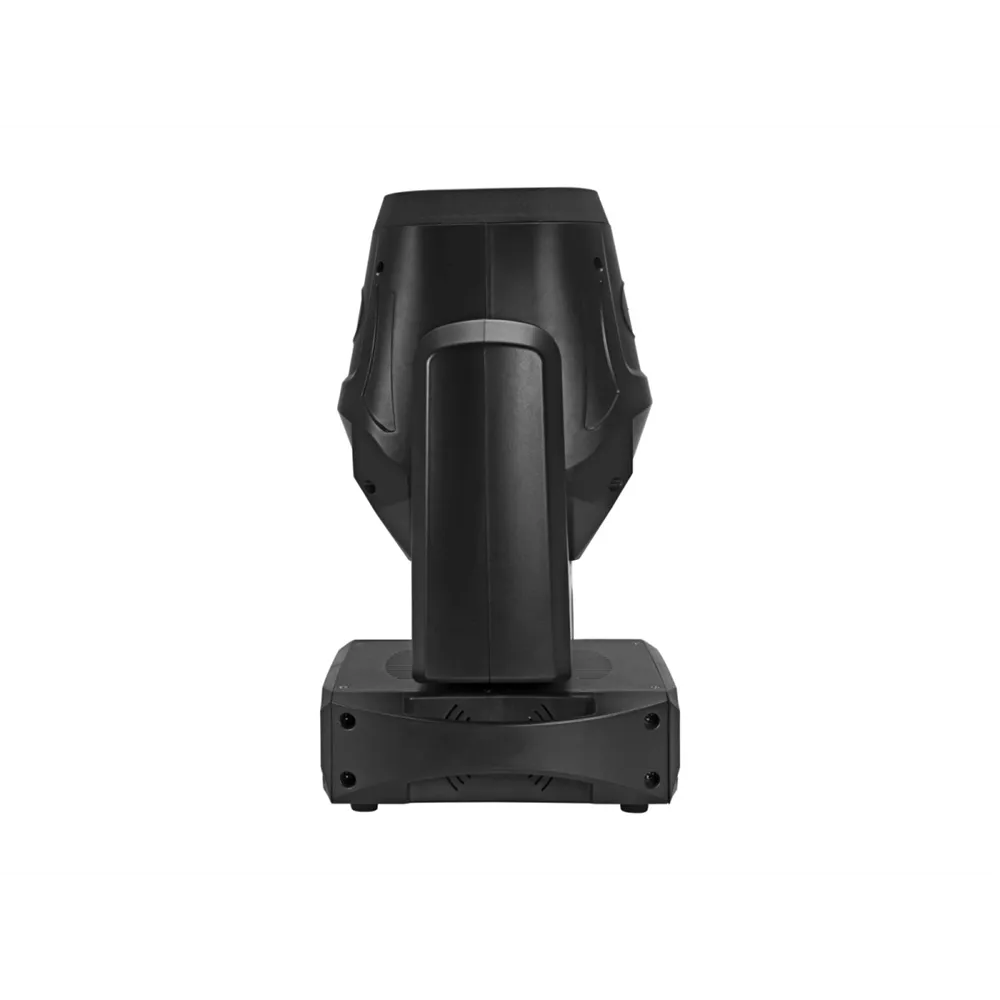

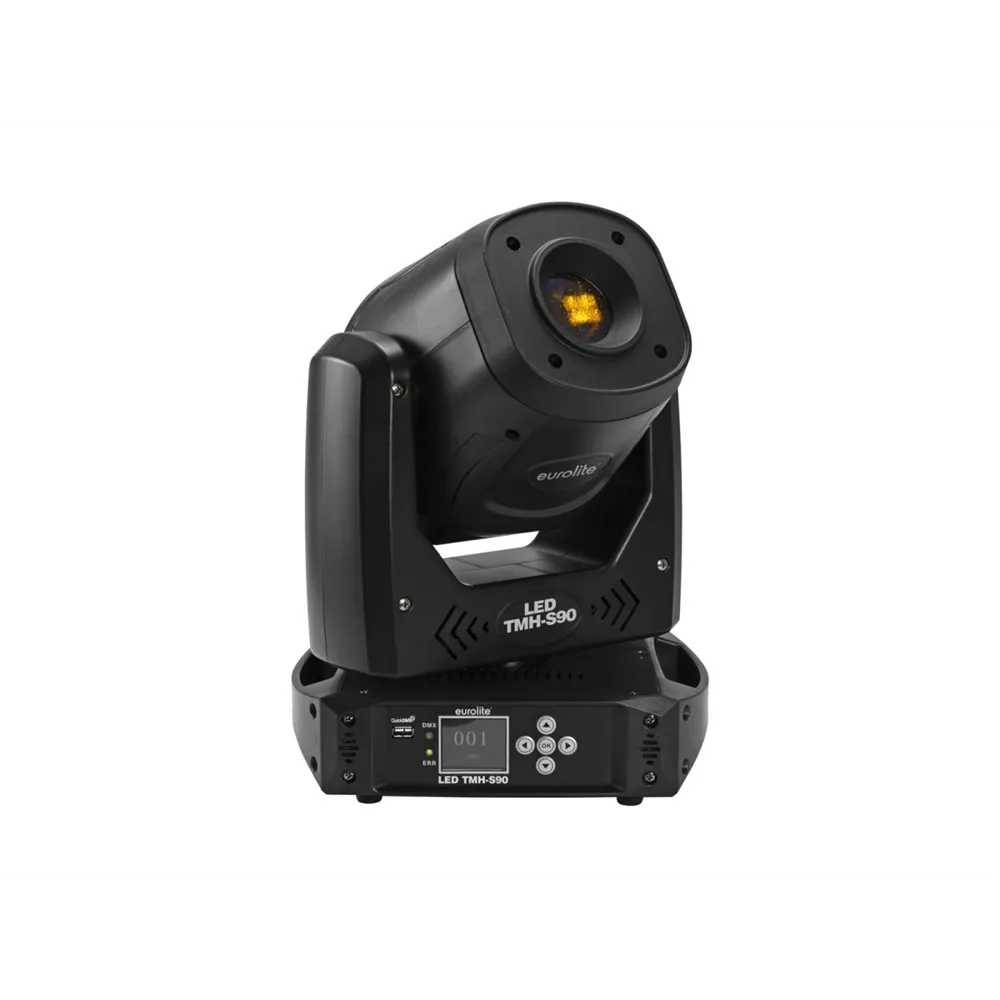

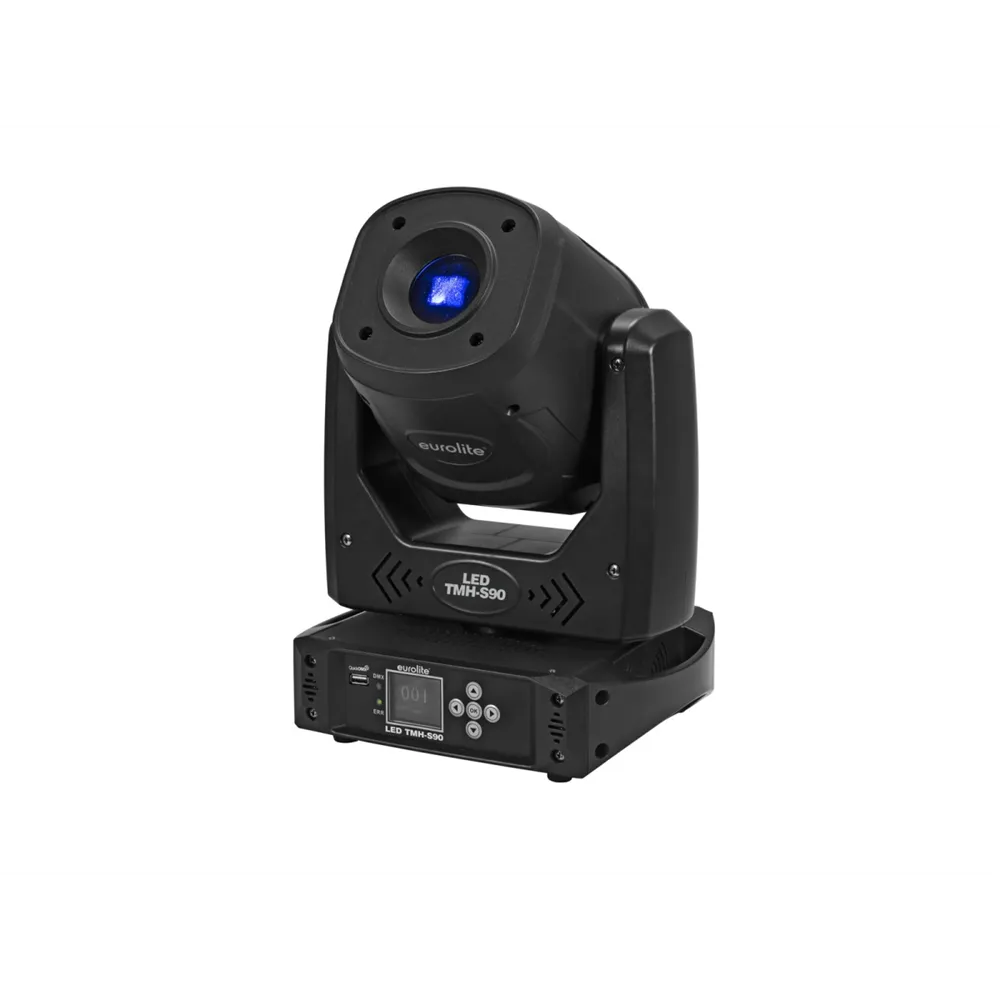

EUROLITE LED TMH-S90 Moving Head Spot

Features

• LED Moving Head Spot with color wheel, static and rotating gobo wheel, prism, and focus
• Rotating 3-facet prism with variable speed
• 1 powerful 90 W COB (Chip-on-Board) cool white (CW) LED
• Positioning within 540° PAN, 200° TILT
• Auto-position correction (feedback)
• Precise positioning (16-bit resolution)
• 3-facet prism; gobo wheel with rotating gobos; gobo wheel with static gobos; motorized focus; color wheel
• Color wheel with 7 dichroic colors and open; selectable half colors, rainbow effect with variable speed in both directions
• Gobo wheel with static gobos, 7 gobos and open; shake effect
• Gobo wheel with rotating gobos, 5 gobos, 1 multicolor gobo, and open; shake effect
• Interchangeable gobos
• Slot-in gobo system for easy gobo changes
• Integrated show programs
• Device cooling via fan
• Controllable via DMX; music control via microphone; stand-alone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional)
• Flicker-free
• Beam angle of 12°
• Electronic dimmer
• Pre-programmed for EASY SHOW 1; Light Captain; EASY SHOW 3
• Suitable for applications such as clubs/dance schools; weddings/gala/events; stage; mobile DJs/solo entertainers

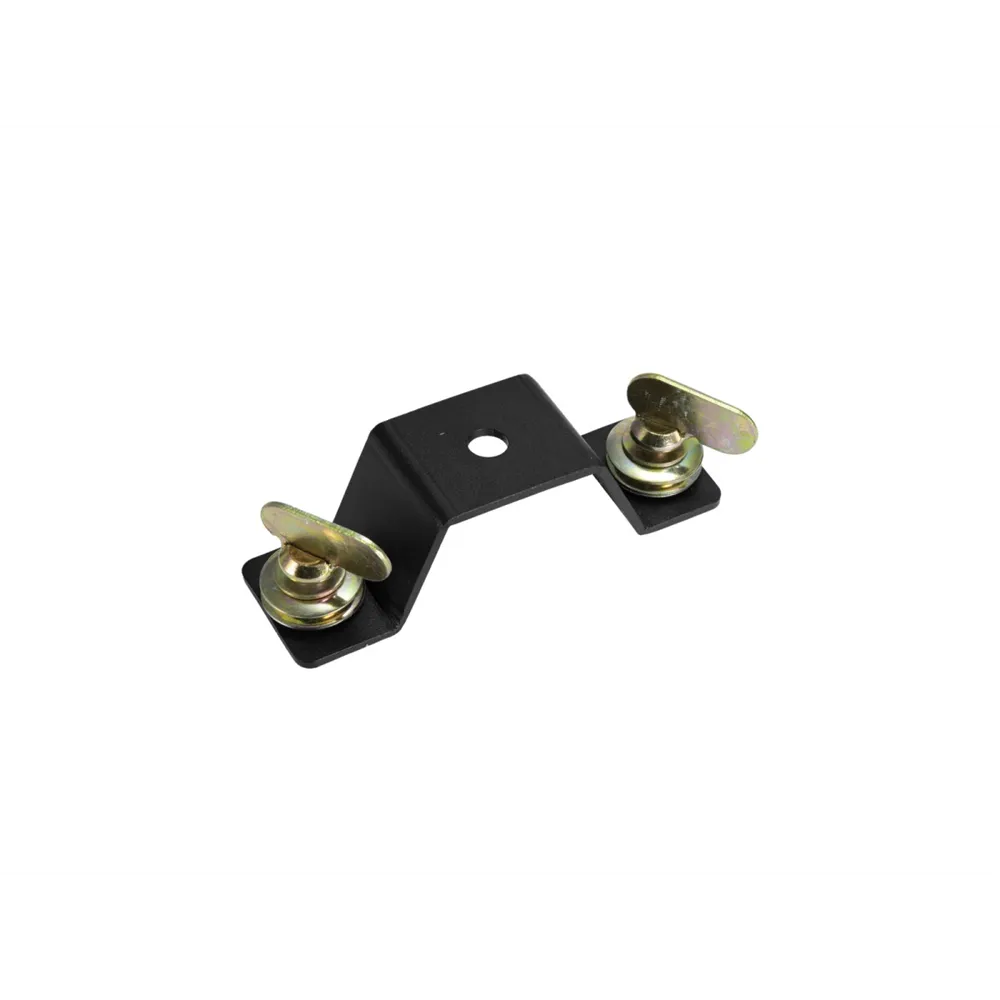

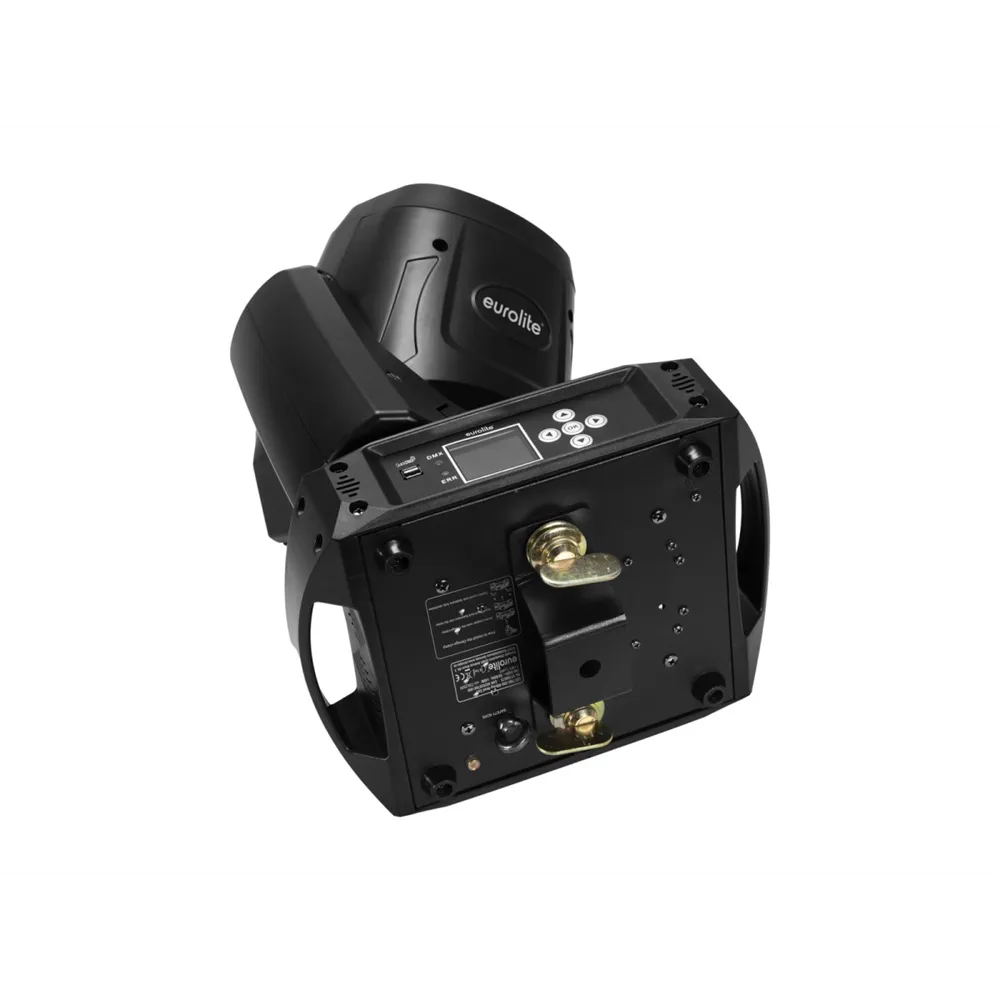

• Usage options: standing; hanging
• Power supply: 100-240 V AC, 50/60 Hz
• Total power consumption: 140 W
• Protection class: IP20
• Protection category: Class I

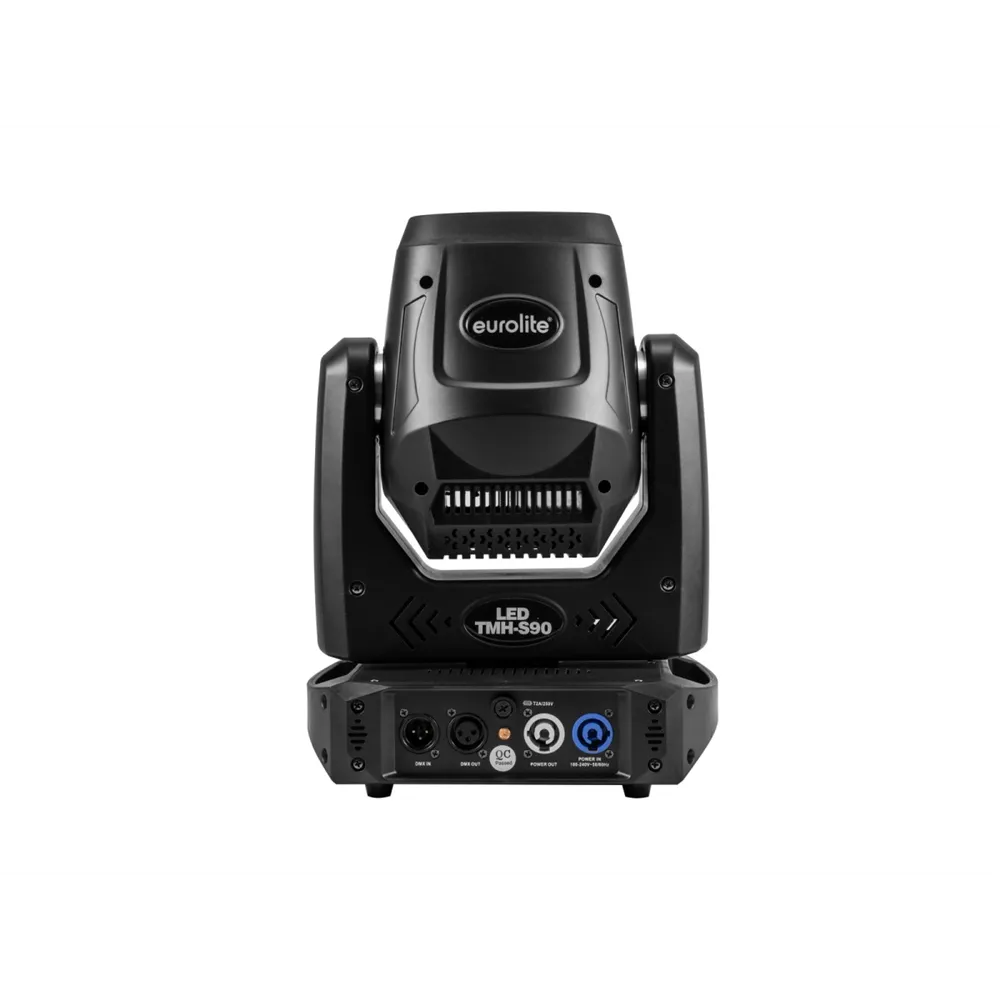

• Power connection: Power input via P-Con (blue), built-in version power connection cable with protective contact plug
• Power output: P-Con (gray), built-in version
• Fuse: 5 x 20 mm, T 2 A
• Type of lamp: LED lamp
• Max. tilt movement: 200° precise positioning (16-bit resolution) auto-position correction (feedback)
• Max. pan movement: 540° precise positioning (16-bit resolution) auto-position correction (feedback)
• Flash rate: 1.5 - 15 Hz
• DMX channels: 15
• DMX input: 3-pin XLR (M) built-in version
• DMX output: 3-pin XLR (F) built-in version
• Cooling: Fan
• Projection: Flicker-free
• PWM frequency: 15600 Hz
• Illuminance in lux (lx): Cool white (CW) 1m: 52772 lx, 3m: 6198 lx, 6m: 1543 lx
• Housing color: Black
• Dimensions: Width: 25.0 cm; Depth: 20.5 cm; Height: 35.0 cm
• Weight: 6.20 kg
• Noise classification: Class 3 (clearly audible noise)
• Photobiological safety: Risk group 0
• Special product: Not intended for room lighting in households
• Purpose: Lighting for show effects
