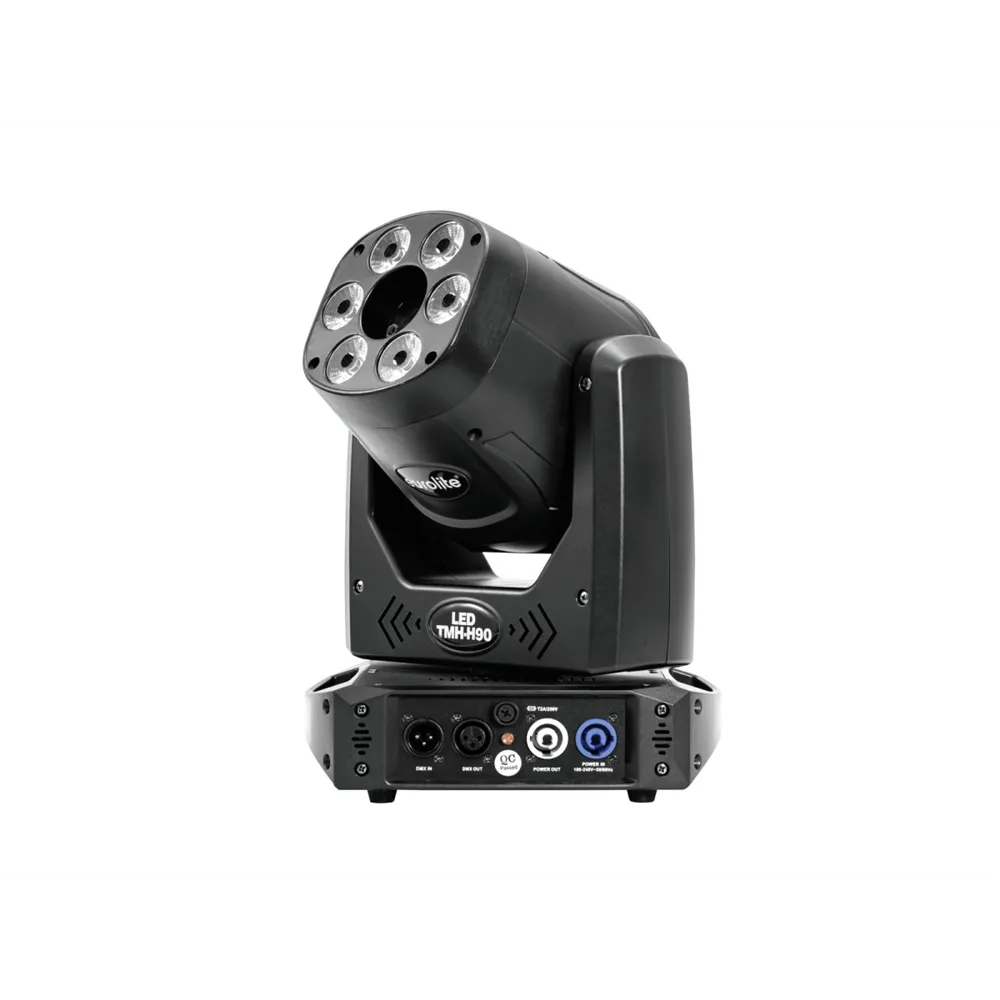

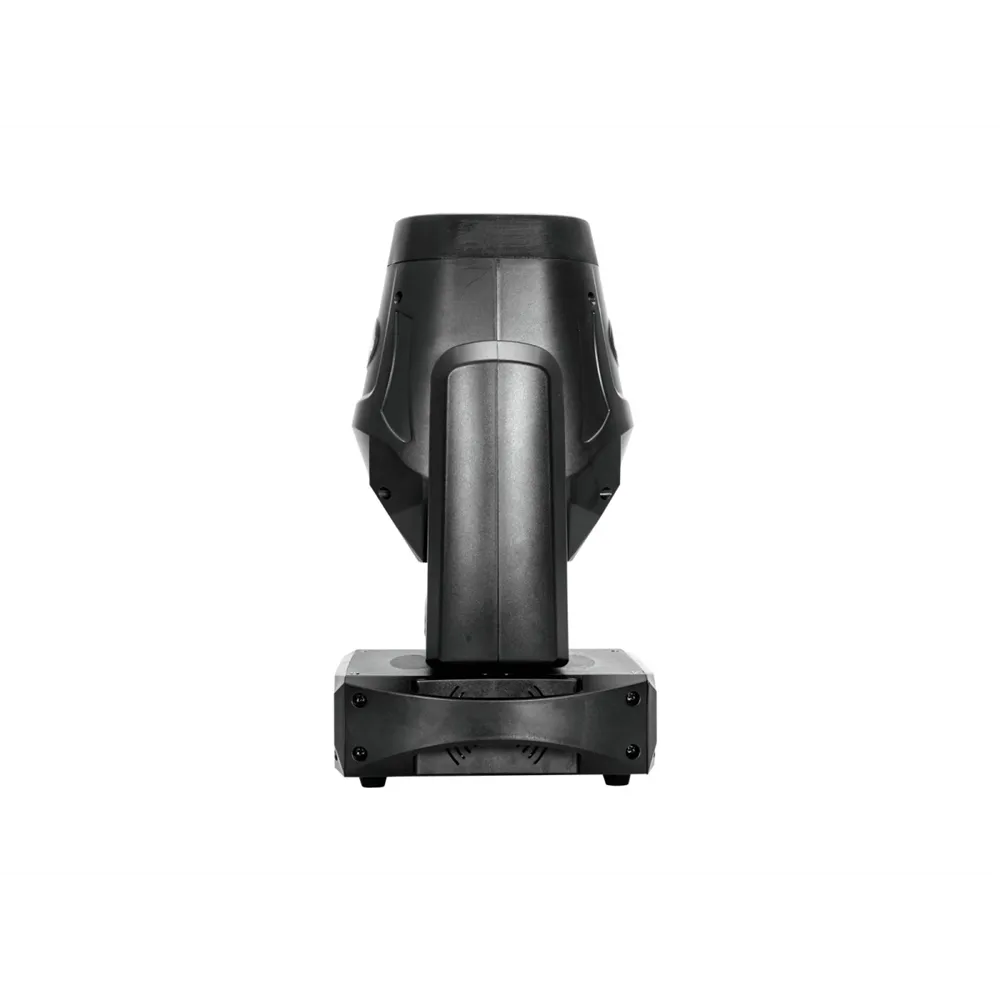

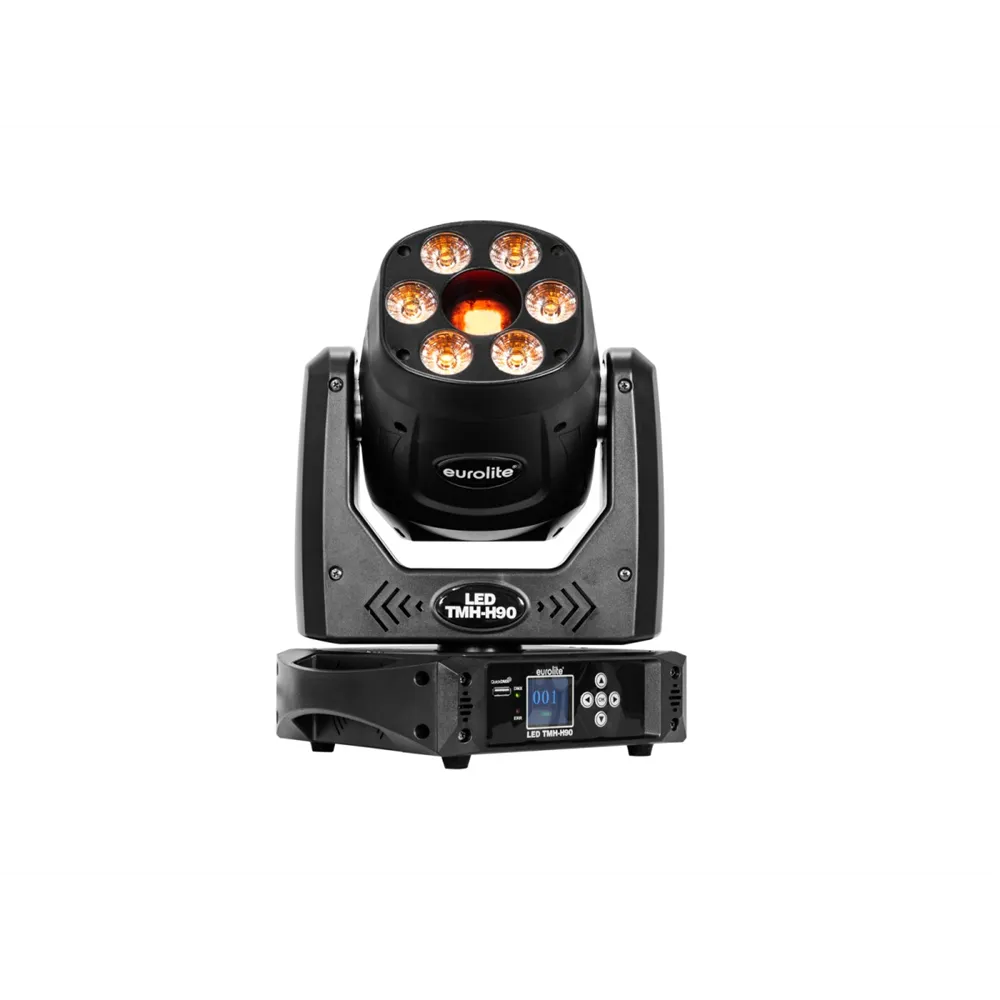

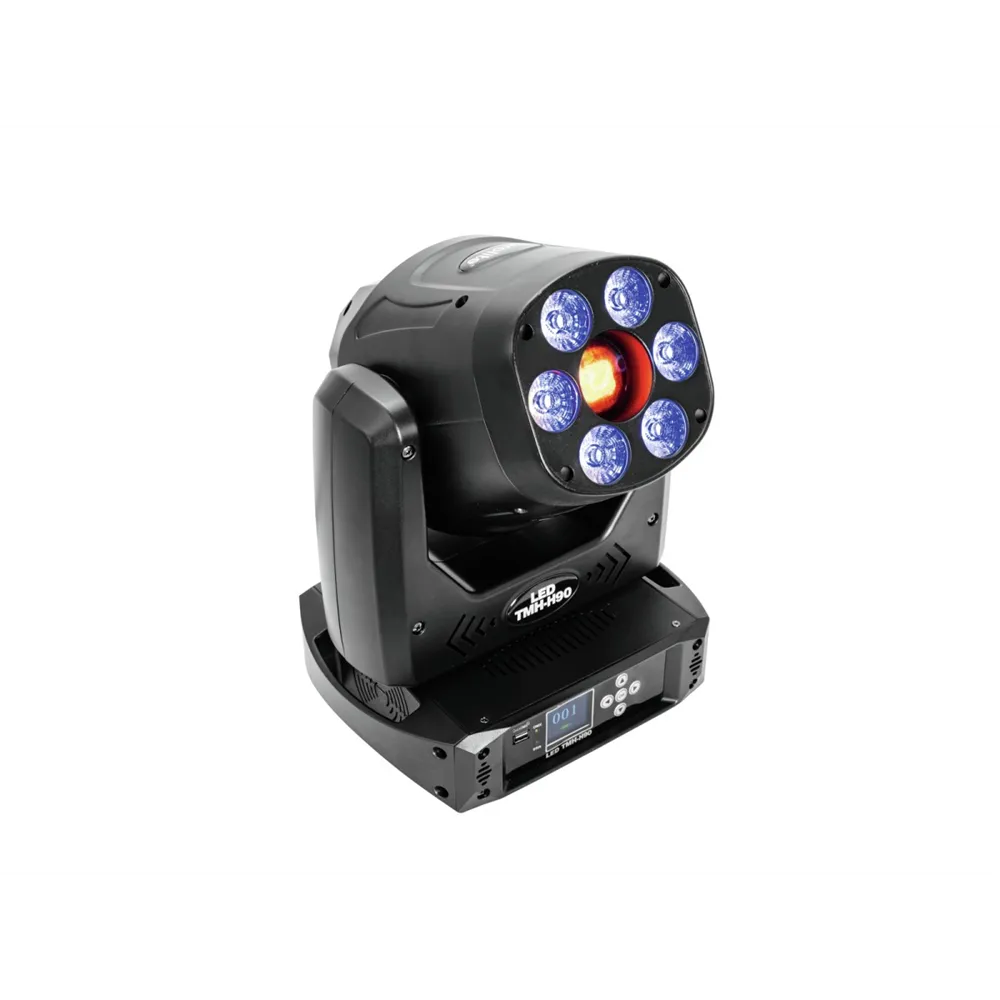

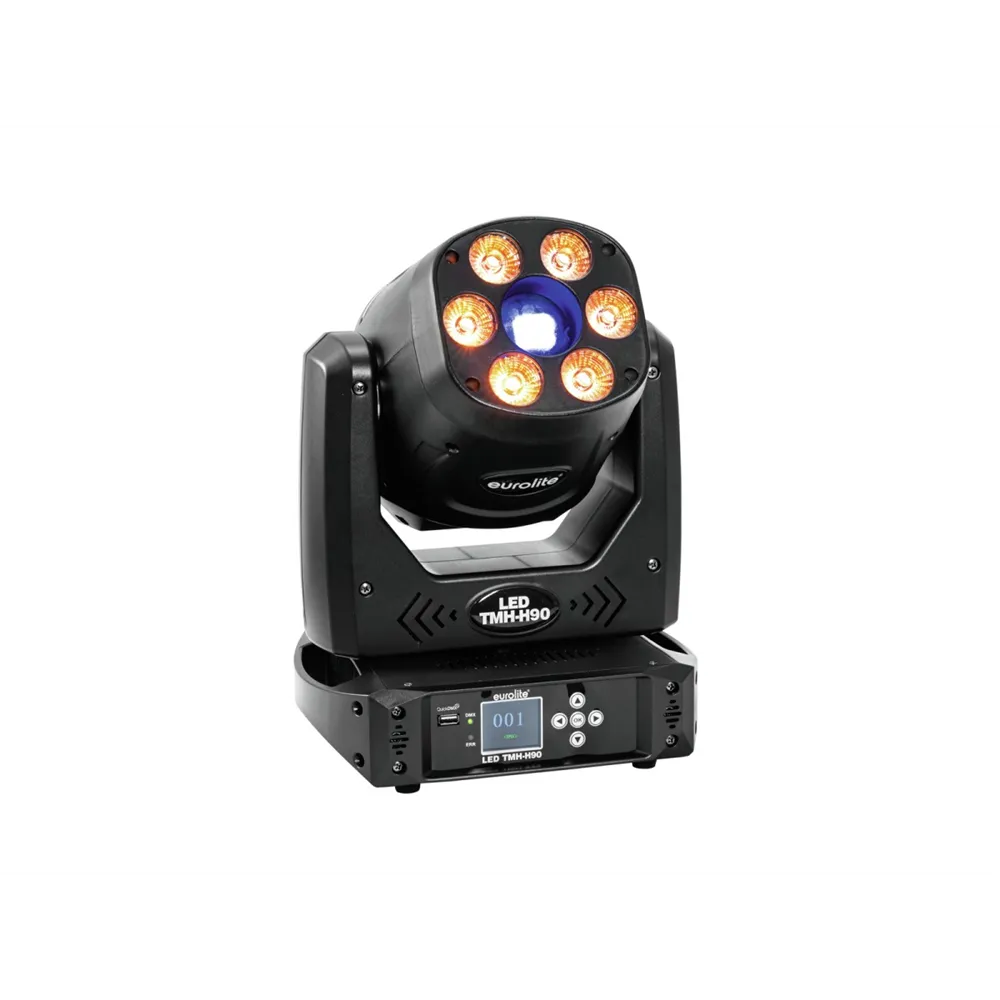

EUROLITE LED TMH-H90 Hybrid Moving Head Spot/Wash COB

Features

• LED Moving Head Hybrid Spot/Wash with color wheel, static and rotating gobo wheel, prism, and focus
• Powerful spotlight and full-featured wash light in one device
• 1 high-performance 90 W COB (Chip-on-Board) cool white (CW) LED
• 6 high-power 10 W 6in1 HCL RGBWA/UV LEDs (homogeneous color mixing)
• Positioning within 540° PAN, 200° TILT
• Auto-position correction (feedback)
• Precise positioning (16-bit resolution)
• 3-facet prism; gobo wheel with rotating gobos; gobo wheel with static gobos; motorized focus; color wheel
• Gobo effect
• Color wheel with 7 dichroic colors and open; selectable half colors, rainbow effect with variable speed in both directions
• Gobo wheel with static gobos, 7 gobos and open; shake effect
• Gobo wheel with rotating gobos, 6 gobos and open; shake effect
• Interchangeable gobos
• Slot-in gobo system for easy gobo changes
• Integrated show programs
• Device cooling via fans
• Controllable via stand-alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free
• Beam angle of 13°

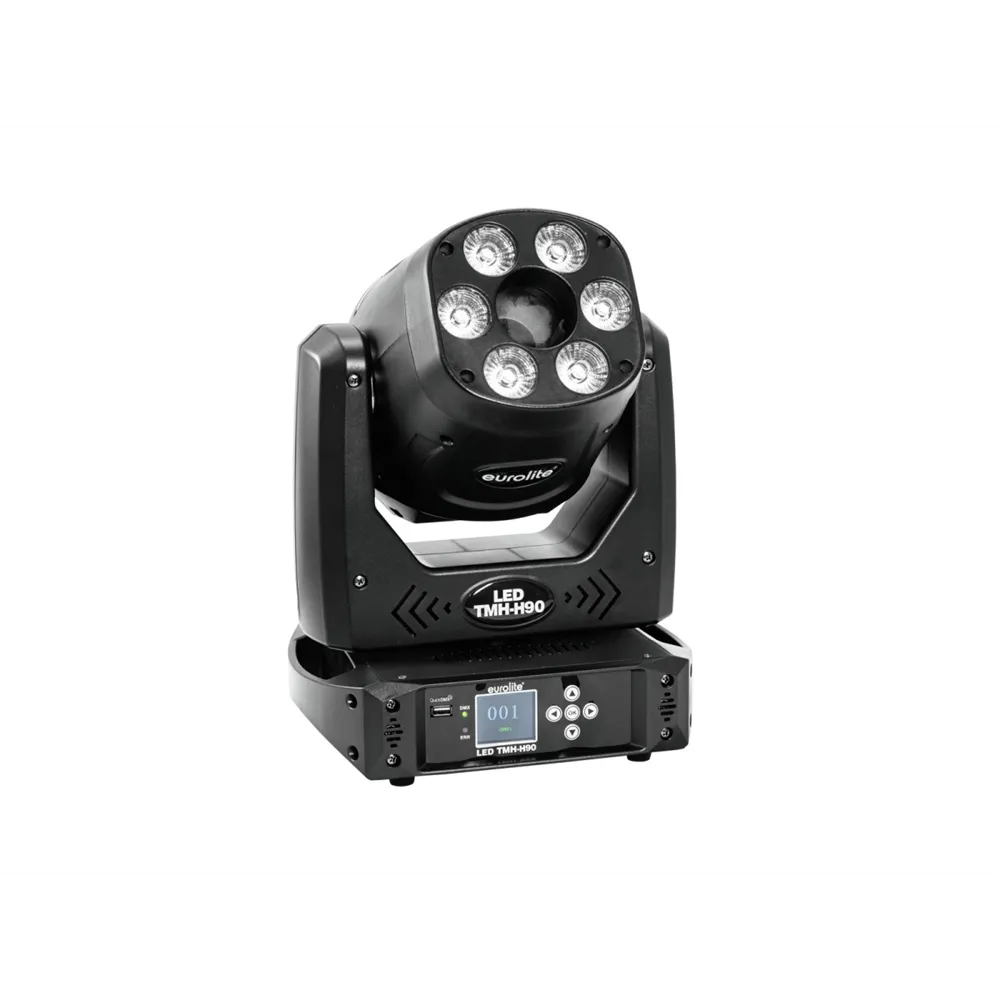

• Multicolor LCD display
• Electronic dimmer
• Pre-programmed with Light Captain; EASY SHOW 3
• Suitable for applications such as: clubs/dance schools; weddings/gala/events; stage; mobile DJs/solo entertainers

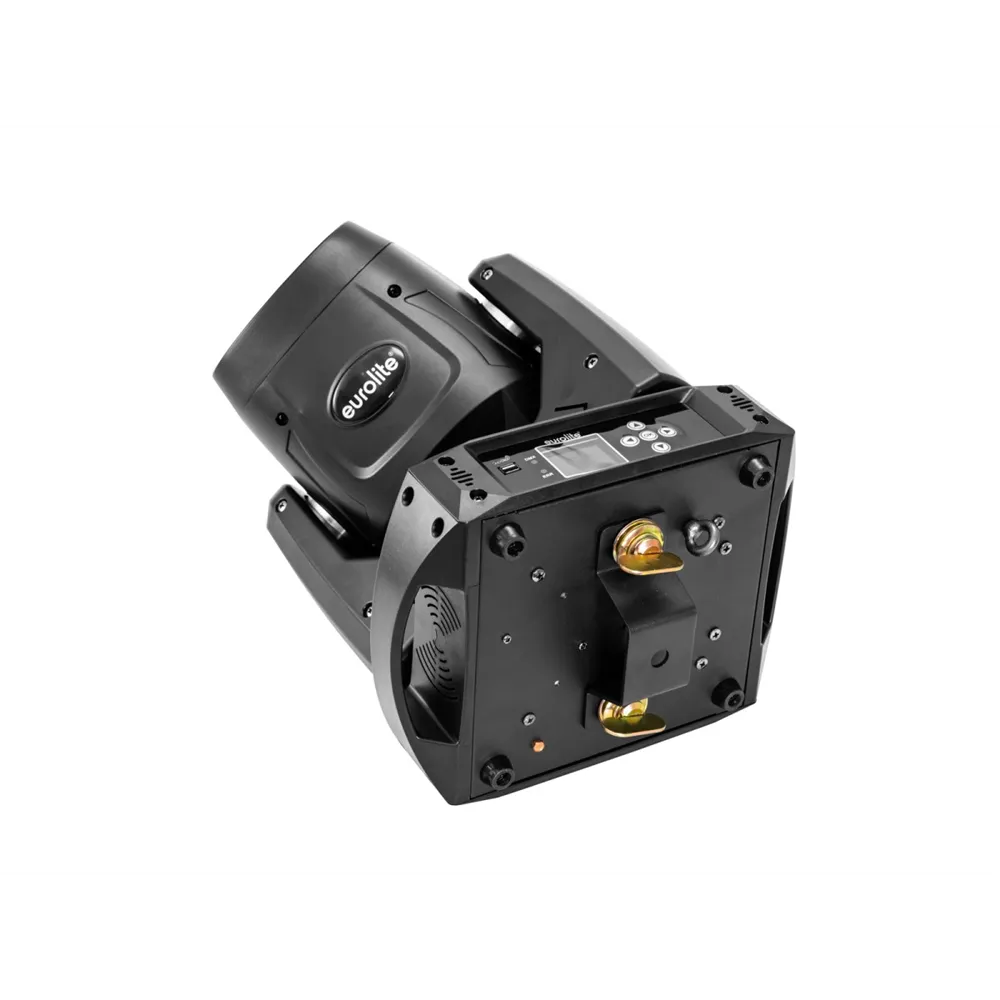

• Mounting options: standing; flying
• Power supply: 100-240 V AC, 50/60 Hz
• Total power consumption: 135 W
• Protection class: IP20
• Protection category: Class I
• Power connection: Power input via P-Con (blue), built-in version power connection cable with protective contact plug (included)
• Power output: P-Con (gray), built-in version
• Fuse: 5 x 20 mm, T 2 A replaceable fuse
• Type of lamp: LED lamp
• Max. tilt movement: 200° precise positioning (16-bit resolution) auto-position correction (feedback)
• Max. pan movement: 540° precise positioning (16-bit resolution) auto-position correction (feedback)
• Flash rate: 2 - 30 Hz
• Equipment: 3-facet prism; gobo wheel with rotating gobos; gobo wheel with static gobos; motorized focus; color wheel
• Color generation: Color wheel with 7 dichroic colors and open; selectable half colors, rainbow effect with variable speed in both directions
• DMX channels: 25
• DMX input: 3-pin XLR (M) built-in version
• DMX output: 3-pin XLR (F) built-in version
• Cooling: Fan
• Pre-programmed with: Light Captain; EASY SHOW 3
• Projection: Flicker-free
• Beam angle: 13°
• Beam angle (1/2 peak): Spot 13°, wash effect 20°
• Beam angle (1/10 peak): Wash effect 38°
• Illuminance in lux (lx): Spot cool white (CW) 1m: 49373 lx, 3m: 6186 lx, 6m
