Features
- Motorized tiltable LED effect bar with 12 high-performance LEDs
- 12 powerful 40 W 4in1 QCL RGBW LEDs (homogeneous color mixing), individually controllable
- Beam angle of 2° - 28°

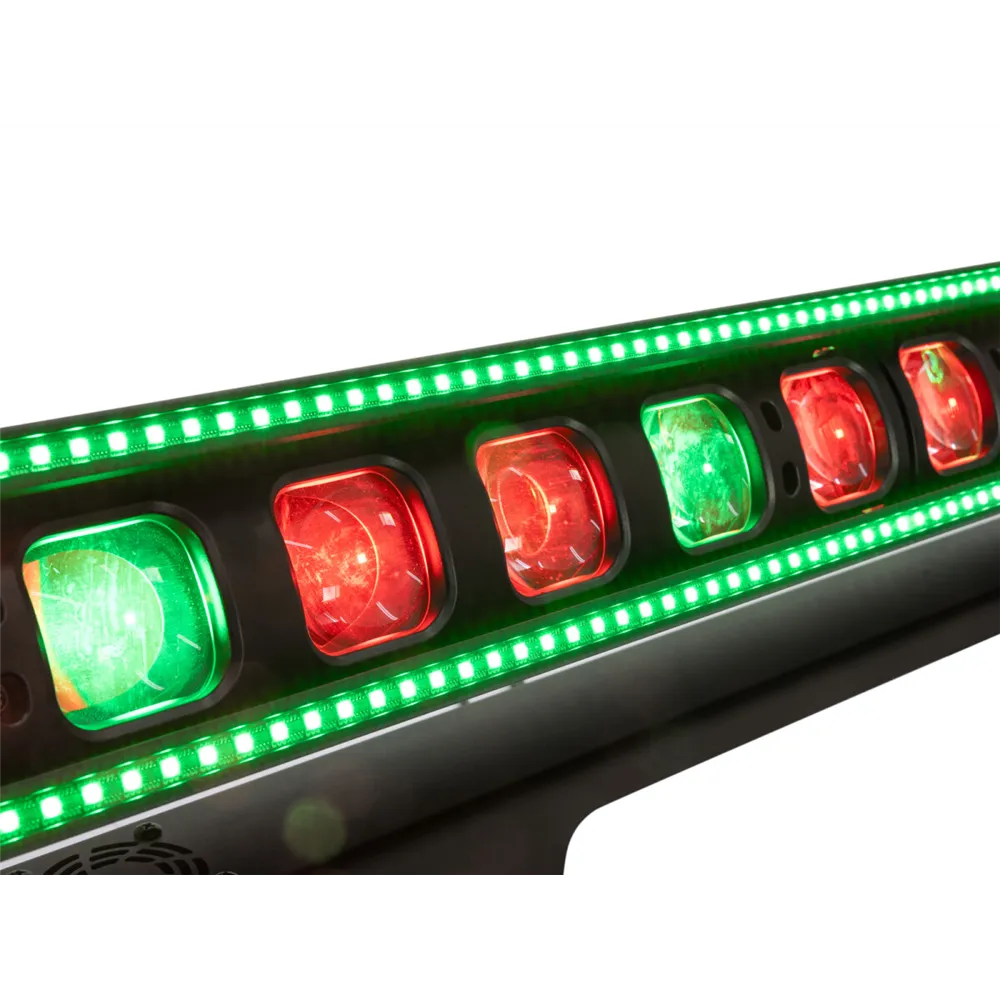

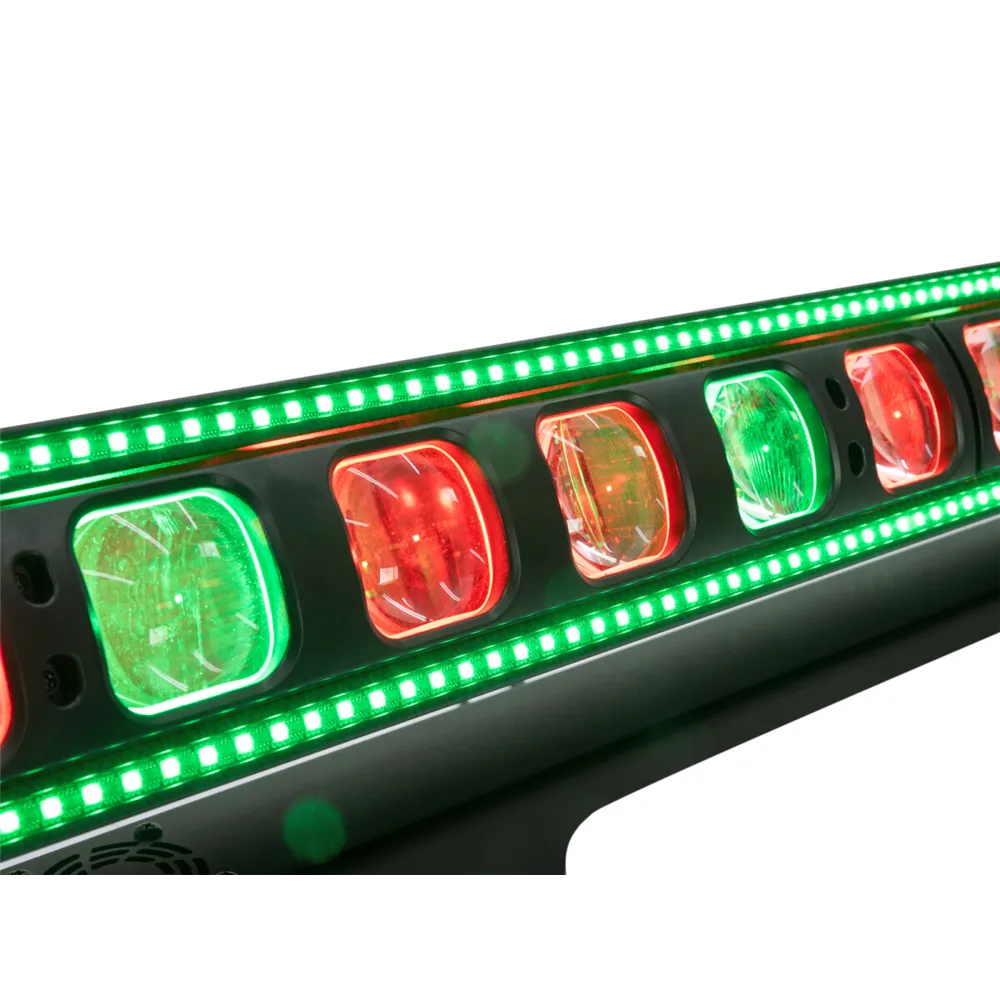

- 164 high-performance 0.2 W SMD 5050 3in1 TCL RGB LEDs (homogeneous color mixing)
- Beam angle of 120°

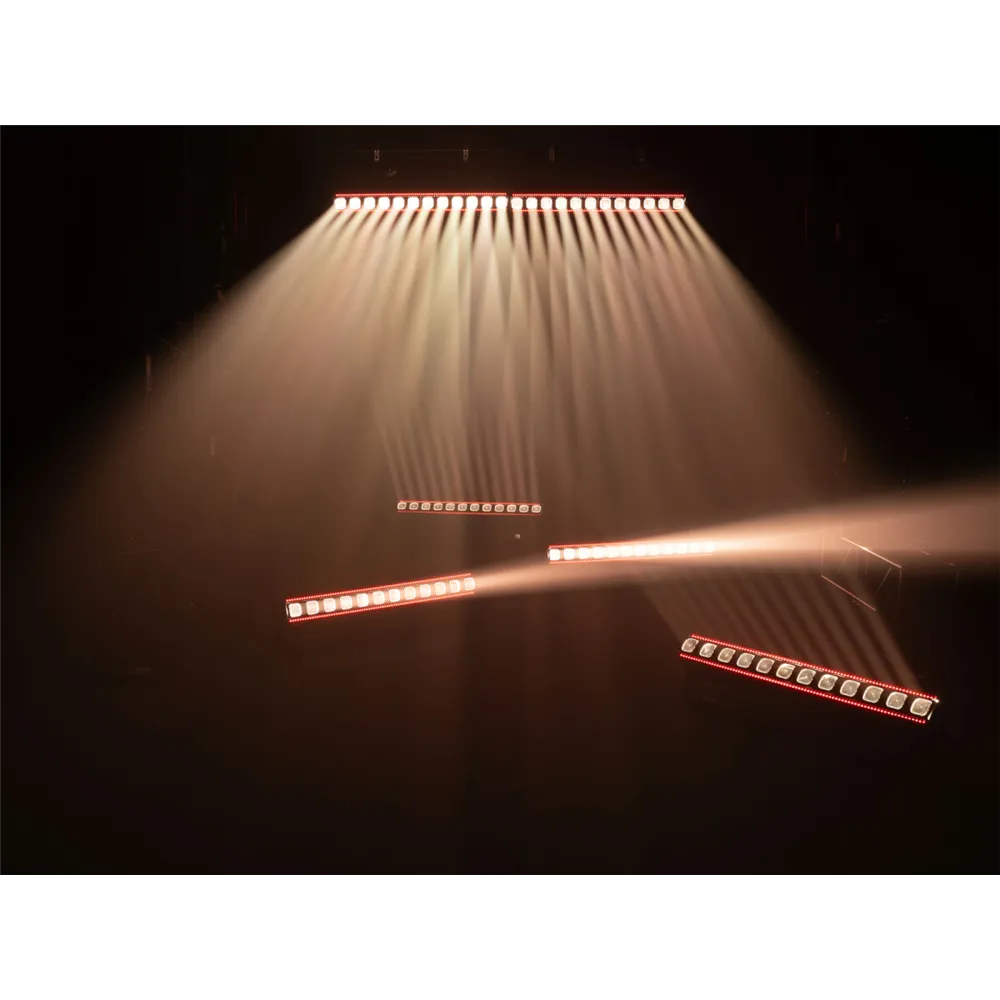

- Beam effect, strobe effect, uplight effect
- Positioning within 180° TILT
- Precise 16-bit resolution for dimming
- Motorized zoom
- Seamless color mixtures; adjustable background colors; adjustable fade speed; adjustable chase effects; adjustable dimmer curves; adjustable dimmer speed; variable pulse width modulation
- 6 built-in show programs
- Controllable via stand-alone, master/slave function, DMX, QuickDMX via USB (optional), W-DMX by Wireless Solution via USB (optional), CRMX by LumenRadio via USB (optional), Art-Net, RDM
- DMX failure mode (Hold, Blackout, Auto)
- Device cooling via fan in the base
- Flicker-free operation
- Includes Omega bracket

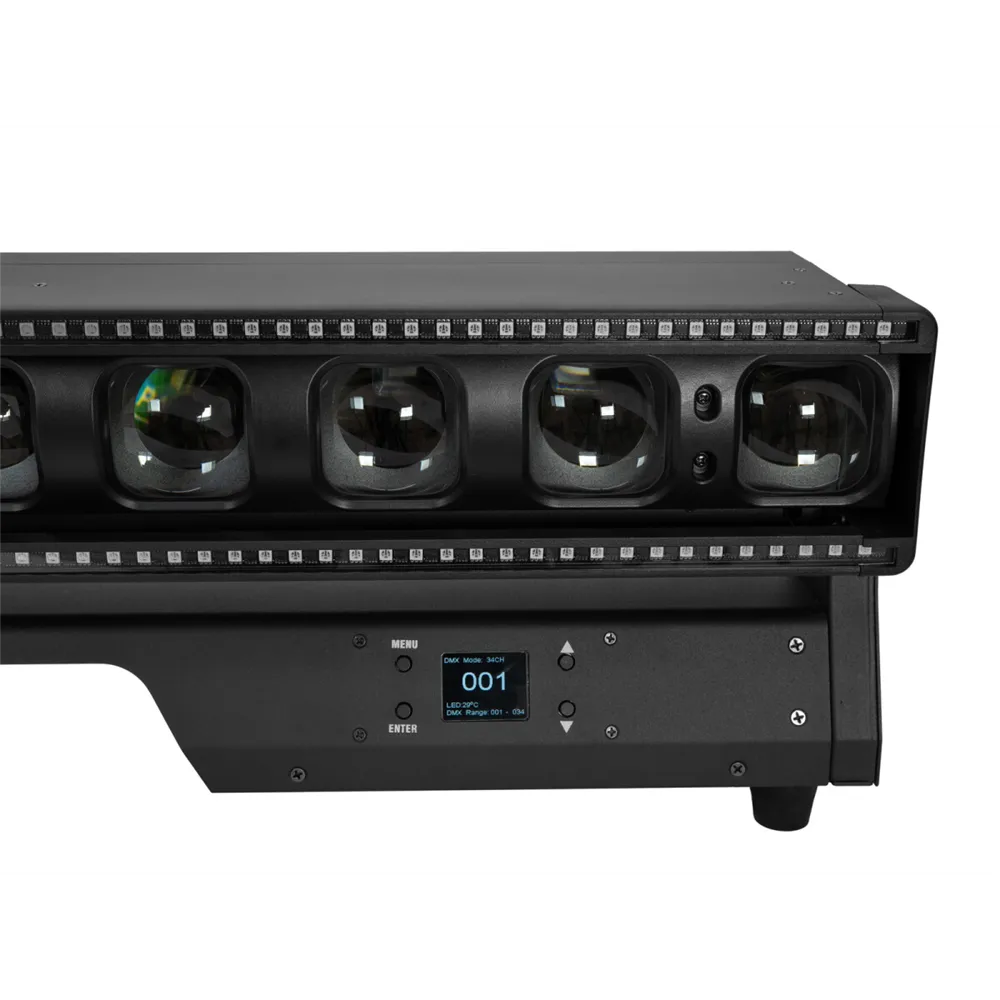

- Single-color LCD display
- 4 rubber feet
- Power input and output for easy linking of up to 8 devices
- Pre-programmed with Light Captain
- Suitable for clubs, dance schools, stages, concerts, rental companies
- Usage options: Standing, flying
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 310 W
- Protection class: IP20
- Protection rating: Class I
- Device fuse: 5 x 20 mm, T 3 A, replaceable
- Type of lamp: LED lamp
- Max. tilt movement: 180° with auto-position correction
- Flash rate: 1 - 20 Hz
- DMX channels: 28, 34, 67

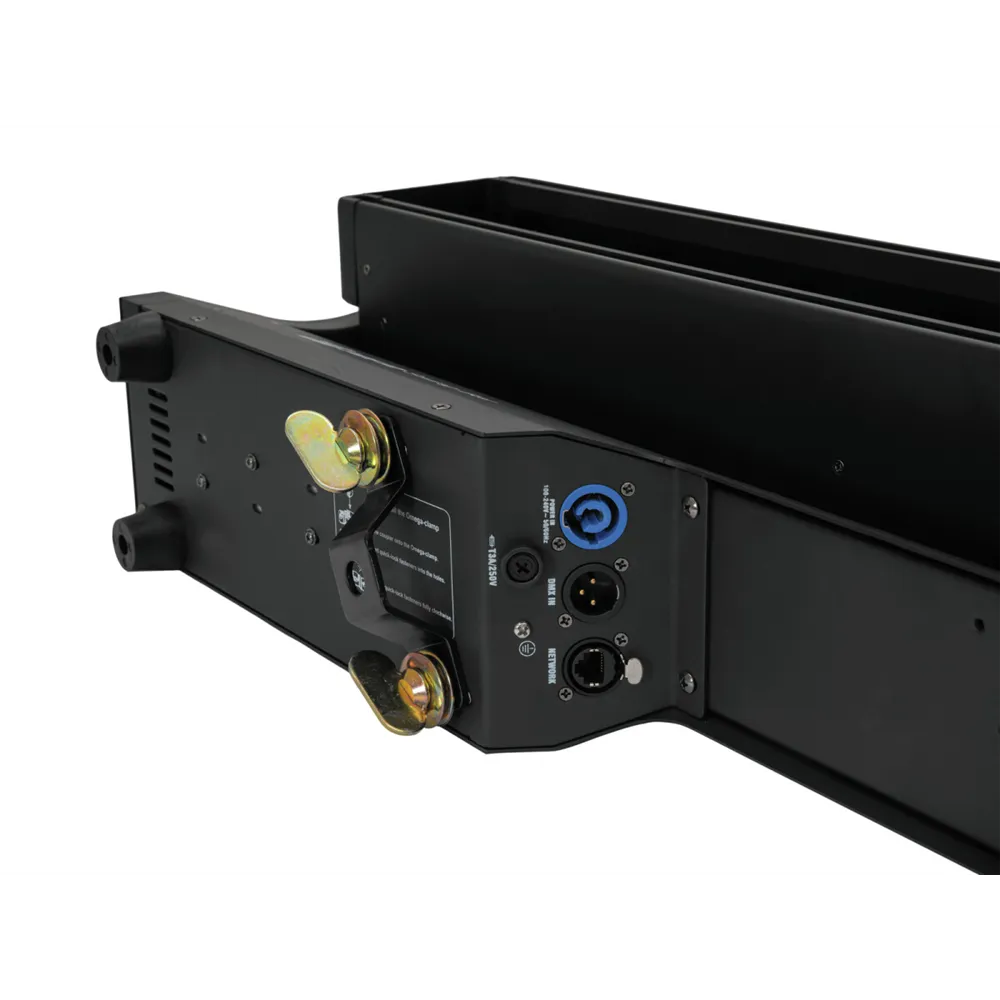

- DMX input: 3-pin XLR (M)

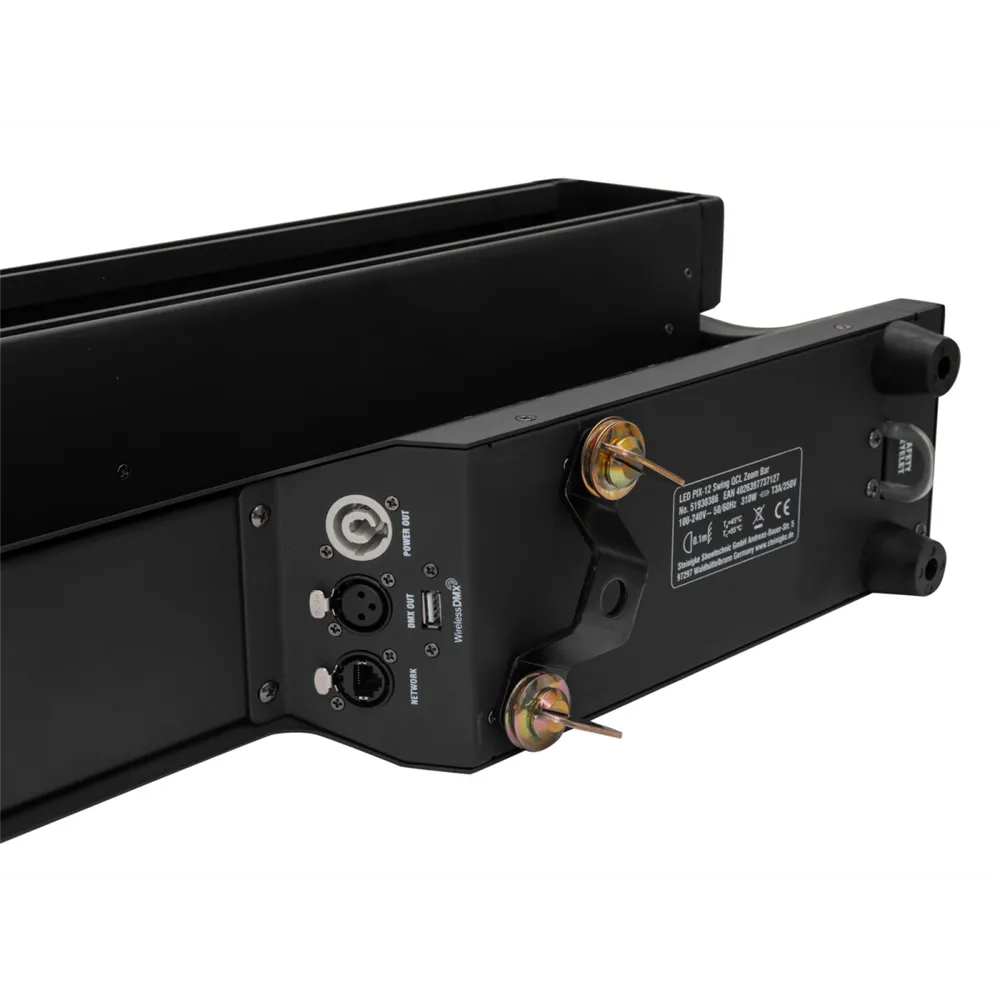

- DMX output: 3-pin XLR (F)
- Network connection: Art-Net 3 via 2x RJ-45 E-Con
- Cooling: 1 x fan in the base
- Projection: Flicker-free
- Housing color: Black
- Mounting system: 2x Omega brackets
- USB connection: Type A
- Transport aid: 4 x rubber feet
- Material: Metal, painted
- Dimensions: Width: 100 cm, Depth: 12 cm, Height: 28.5 cm
- Weight: 15.70 kg
- Special product: Not intended for household room lighting
- Purpose: Lighting for show effects

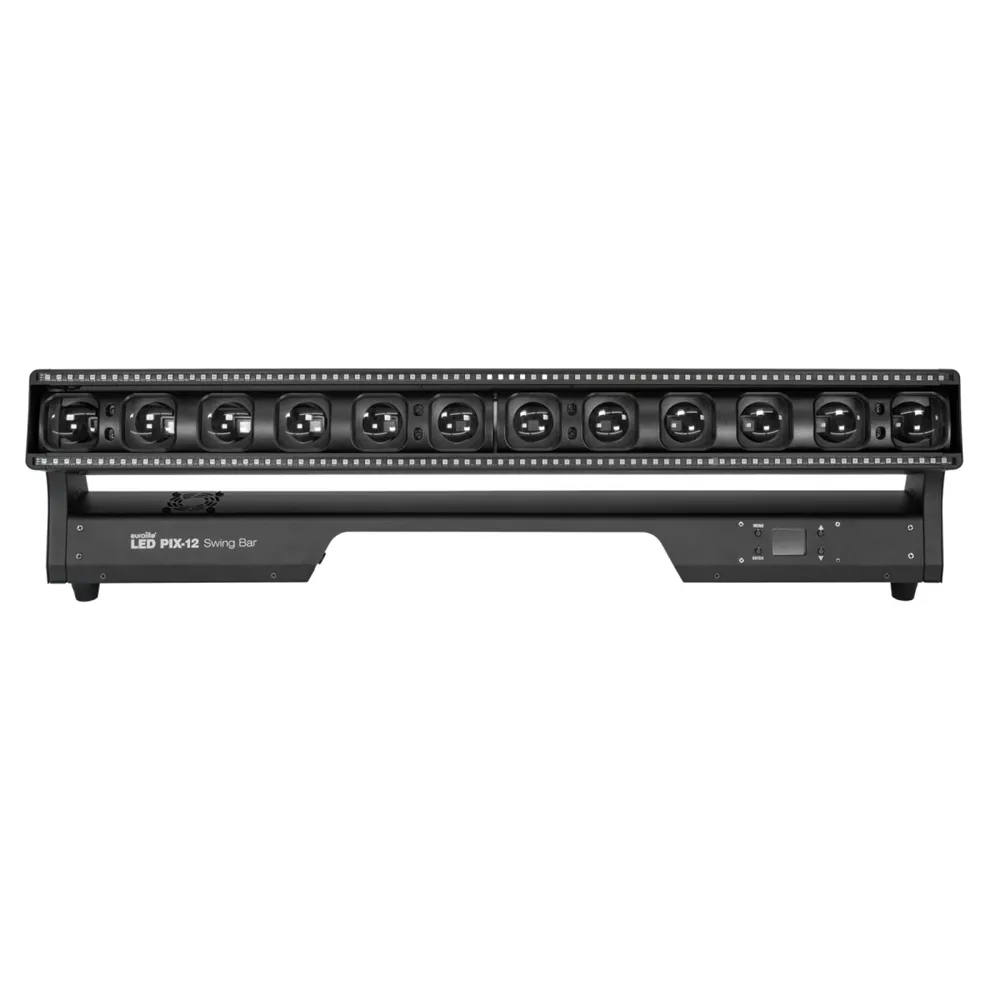

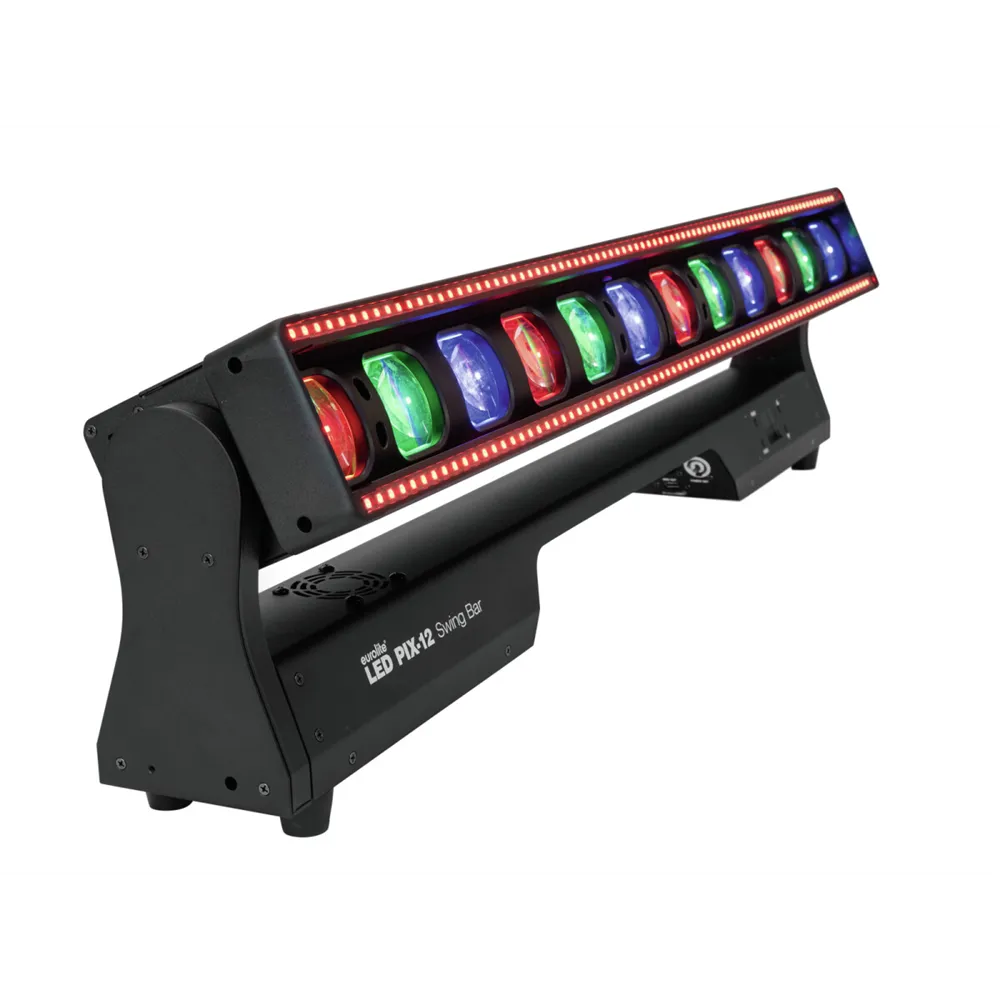

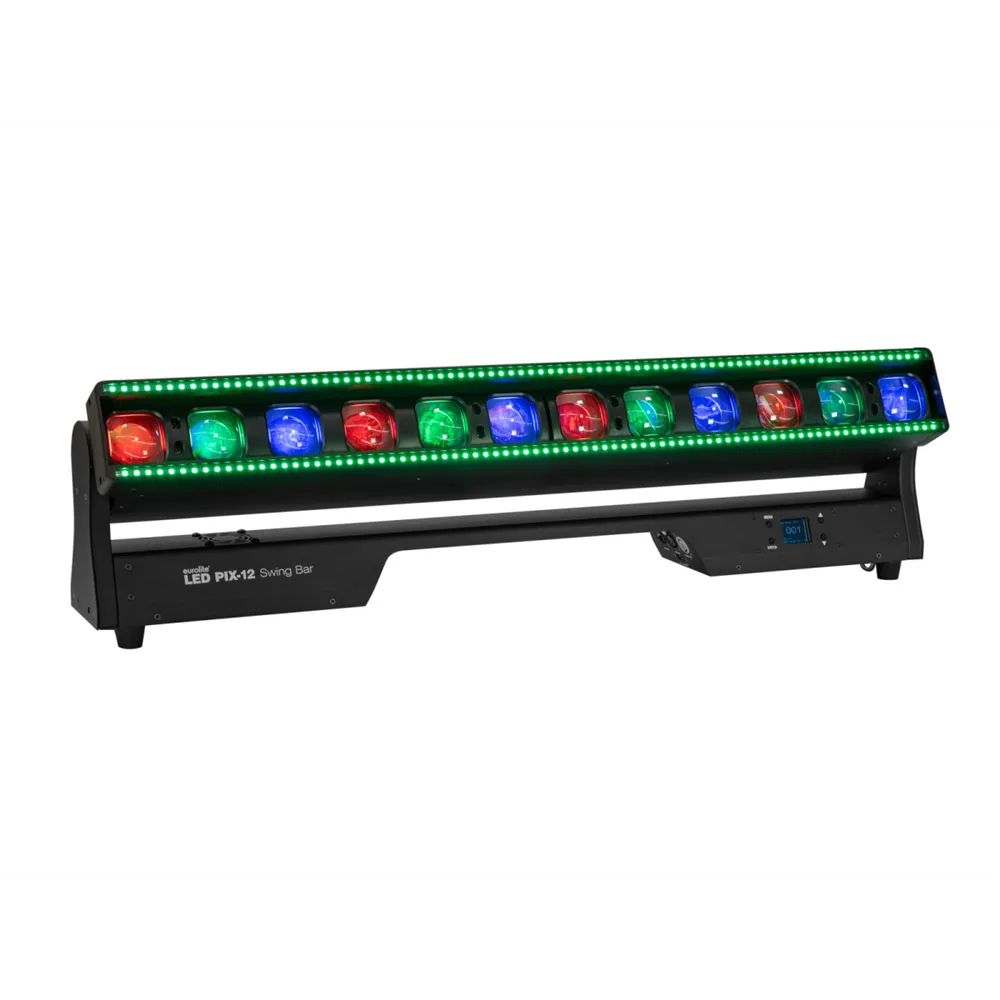

EUROLITE LED PIX-12 Swing QCL Zoom Bar
Experience the impressive EUROLITE LED PIX-12 Swing QCL Zoom Bar, a motorized LED light effect bar equipped with 12 powerful 40 W 4in1 QCL RGBW LEDs. This bar offers two zoom ranges from 2° to 28° and 164 additional effect LEDs that ensure homogeneous color mixing. With a beam angle of 2° to 28°, you can create targeted light accents, while the 164 SMD 5050 3in1 TCL RGB LEDs provide a wide beam angle of 120°.
The PIX-12 Swing Bar is ideal for clubs, dance schools, stages, and concerts. It features precise 16-bit resolution for dimming and allows for seamless color and background mixing. With 6 built-in show programs and versatile control options via DMX, master/slave function, or wireless solutions, it is extremely flexible for various applications. The device is cooled by a fan, and thanks to its flicker-free design, it is perfect for any event.
The package includes the light effect bar, a user manual, a power cable, and two omega brackets. Weighing only 15.70 kg and with compact dimensions, the EUROLITE LED PIX-12 Swing QCL Zoom Bar is suitable for both standing and hanging applications.
