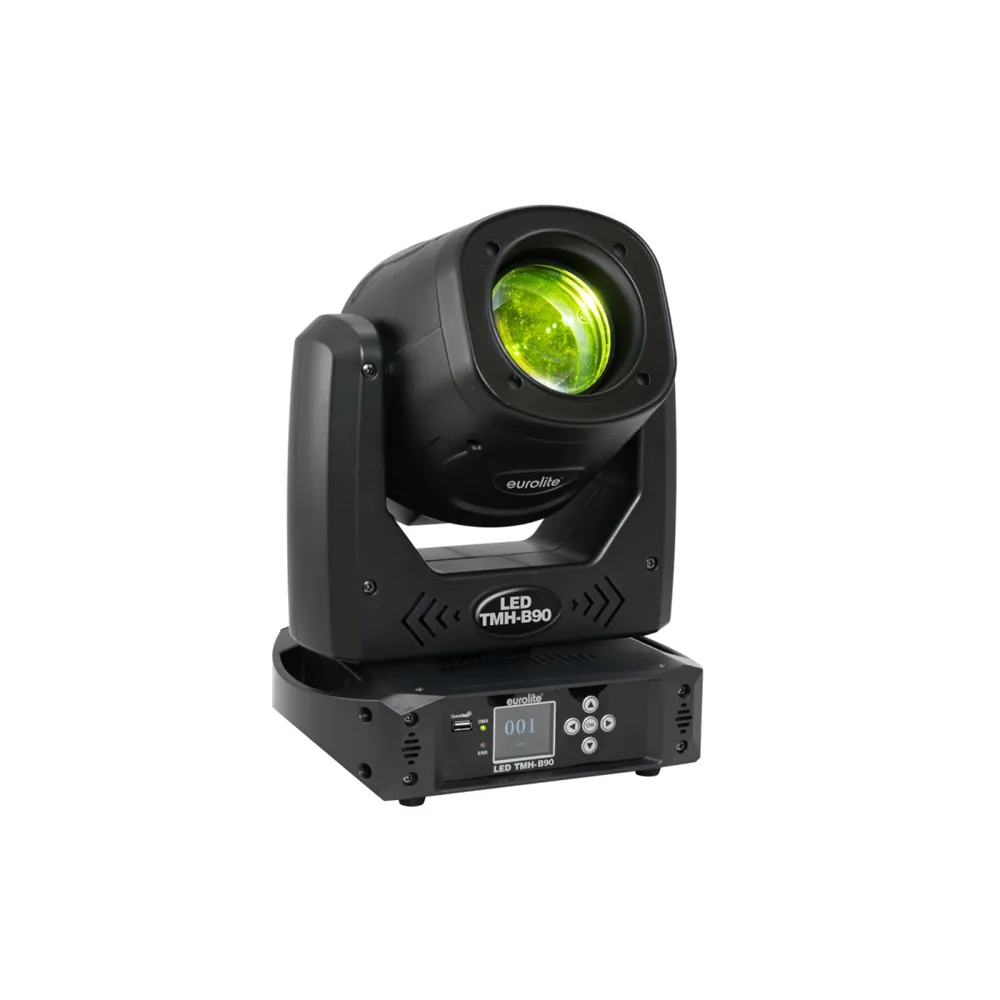

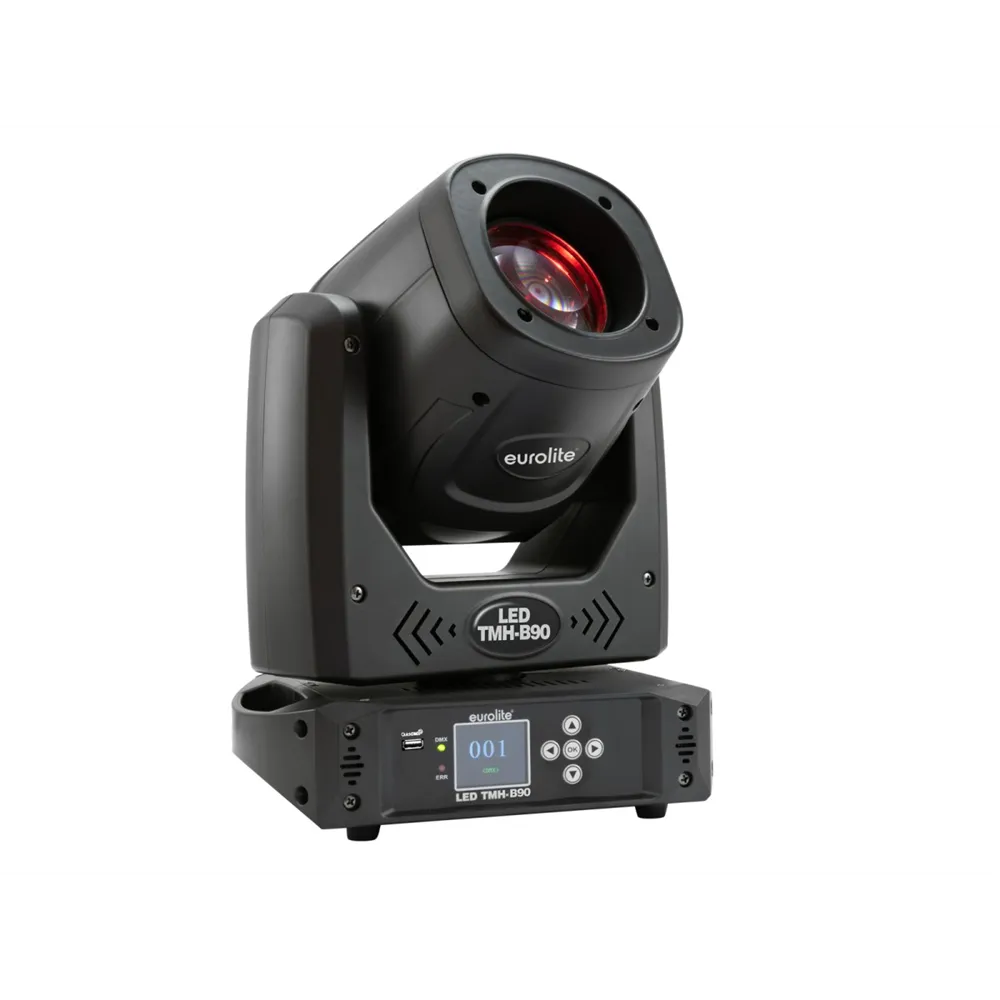

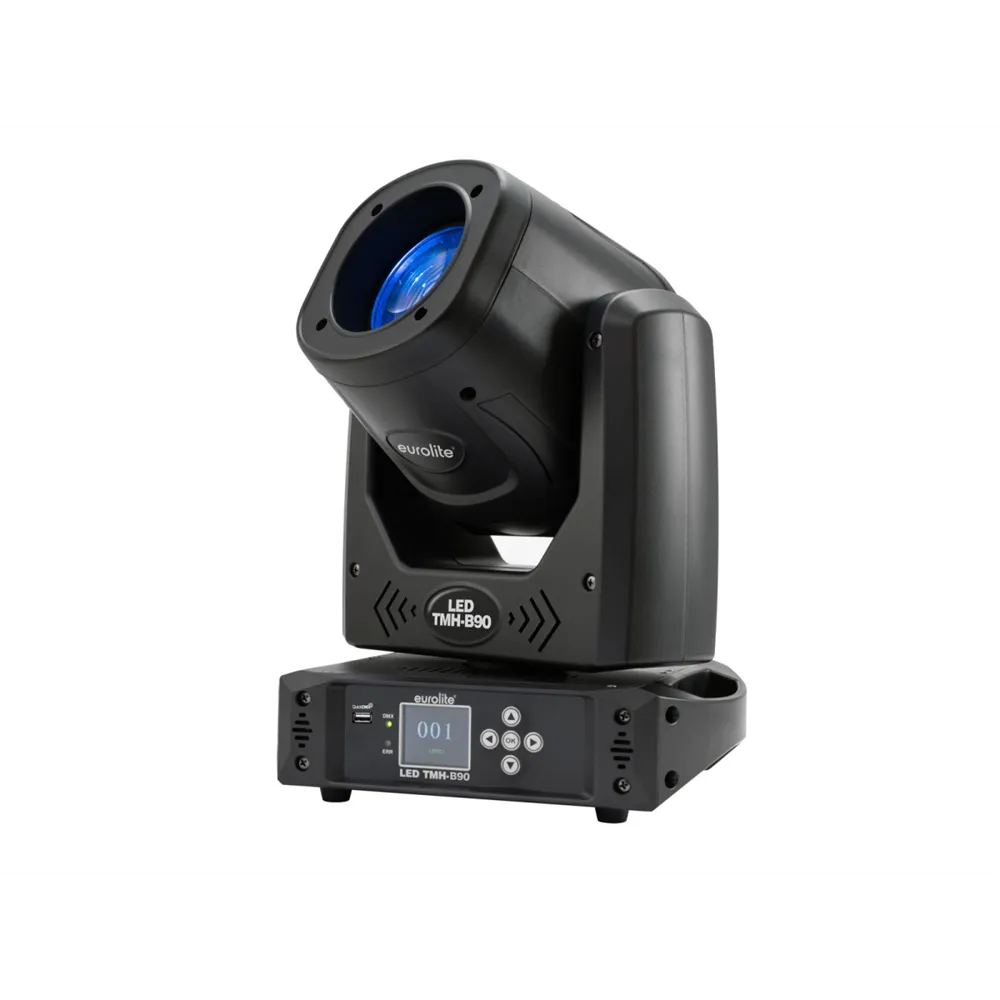

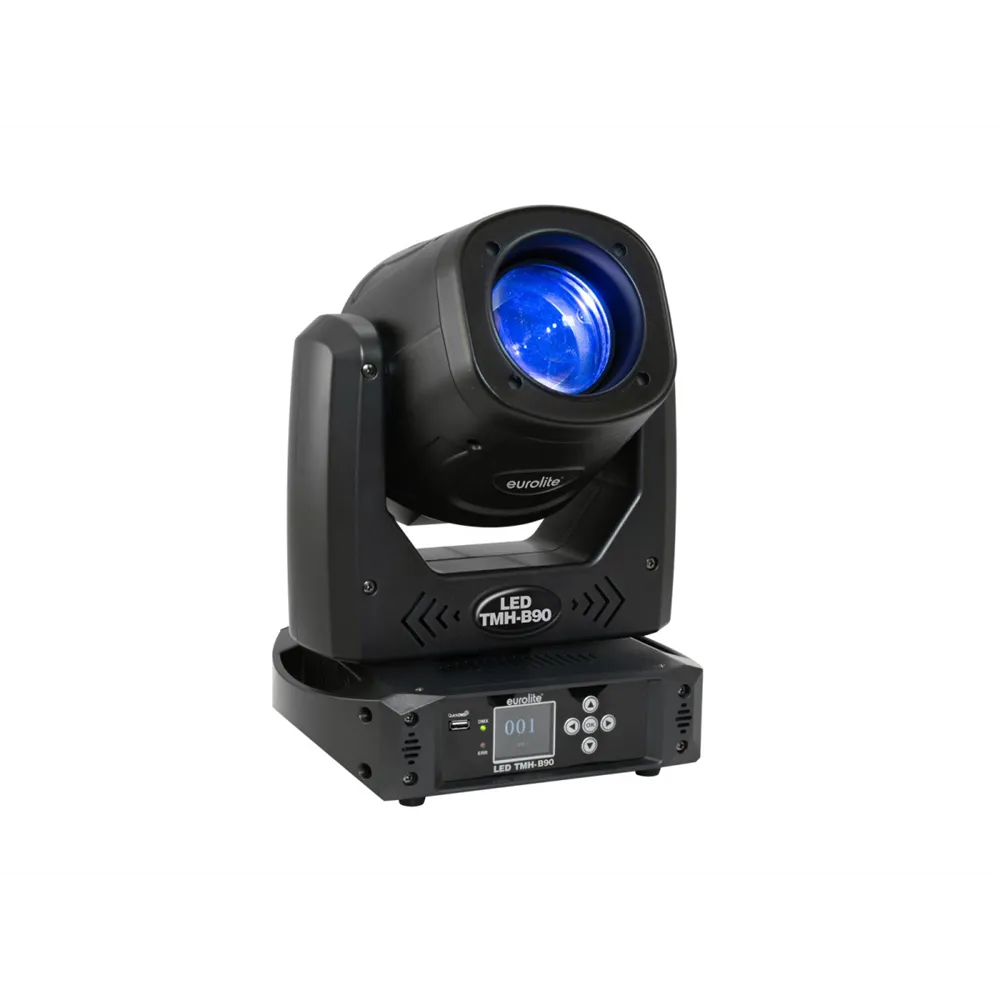

EUROLITE LED TMH-B90 Moving Head Beam

EUROLITE LED TMH-B90 Moving Head Beam

Brand:

EUROLITE LED TMH-H90 Hybrid Moving Head Spot/Wash COB White

EUROLITE LED TMH-B120 Hypno Moving Head Beam

Features

1 powerful 90 W COB (Chip-on-Board) cool white LED
Positioning within 540° PAN, 200° TILT
Auto-position correction (feedback)
Precise positioning (16-bit resolution)
Color wheel; gobo wheel with static gobos; motorized focus; 8-facet rotating prism; frost filter

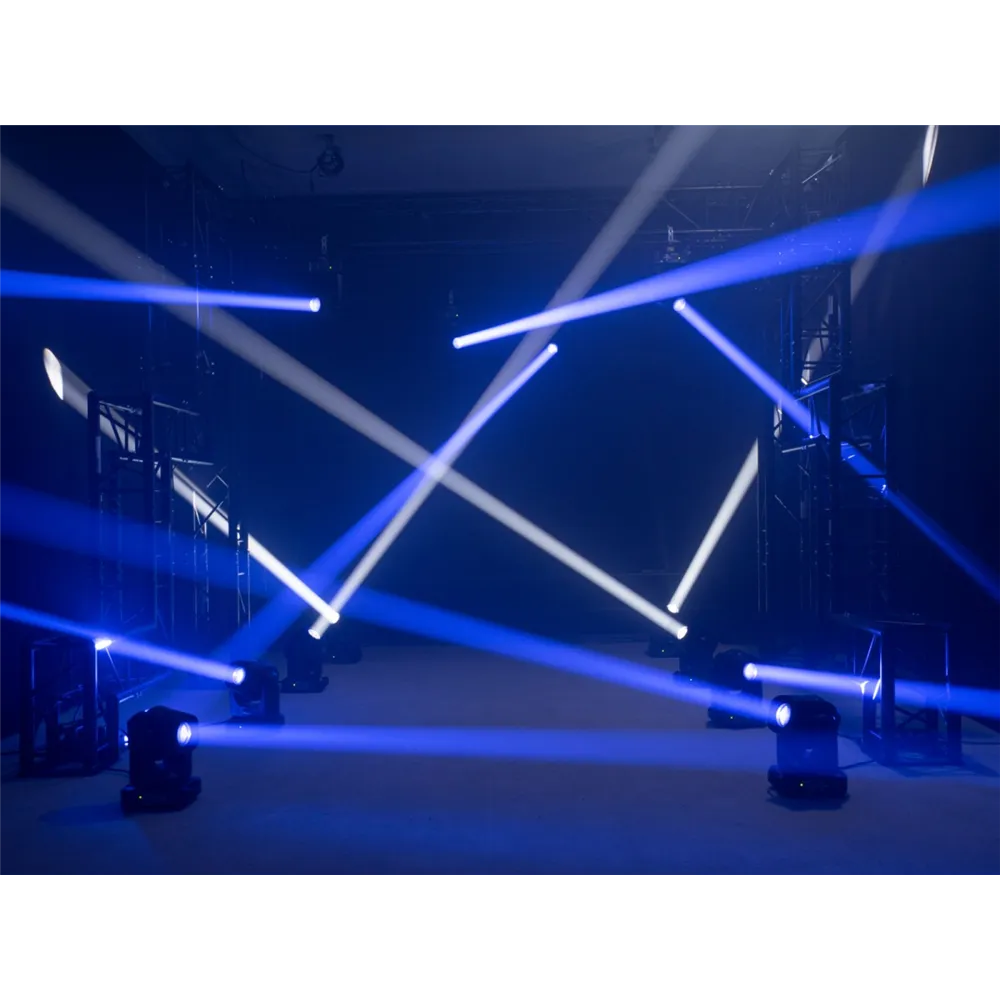

Beam effect
Color wheel with 7 dichroic colors and open; selectable half colors, rainbow effect with variable speed in both directions
Gobo wheel with static gobos, 13 gobos and open; shake effect
Integrated show programs
Device cooling via fan
Controllable via stand-alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
Beam angle of 3°
Good color rendering index (CRI)
LCD display
Electronic dimmer
Pre-programmed with Light Captain; EASY SHOW 3; Light'J
Power input and output for easy linking of up to 8 devices
Suitable for applications such as: clubs/dance schools; weddings/gala/events; stage; mobile DJs/solo entertainers

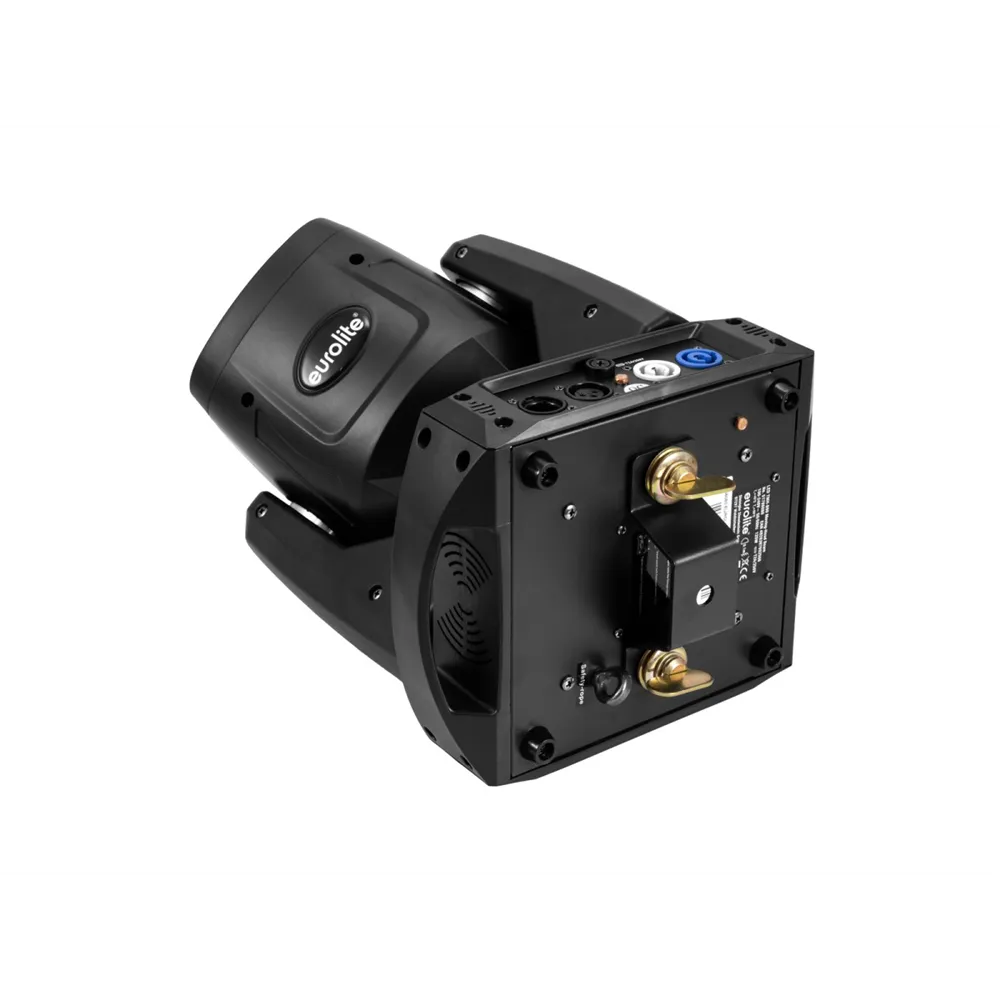

Mounting options: standing; hanging
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 125 W
Protection class: IP20
Protection rating: Class I
Device fuse: 5 x 20 mm, T 2 A replaceable fuse
Type of lamp: LED lamp
Max. tilt movement: 200° precise positioning (16-bit resolution) auto-position correction (feedback)
Max. pan movement: 540° precise positioning (16-bit resolution) auto-position correction (feedback)
Flash rate: 2 - 20 Hz
DMX channels: 14

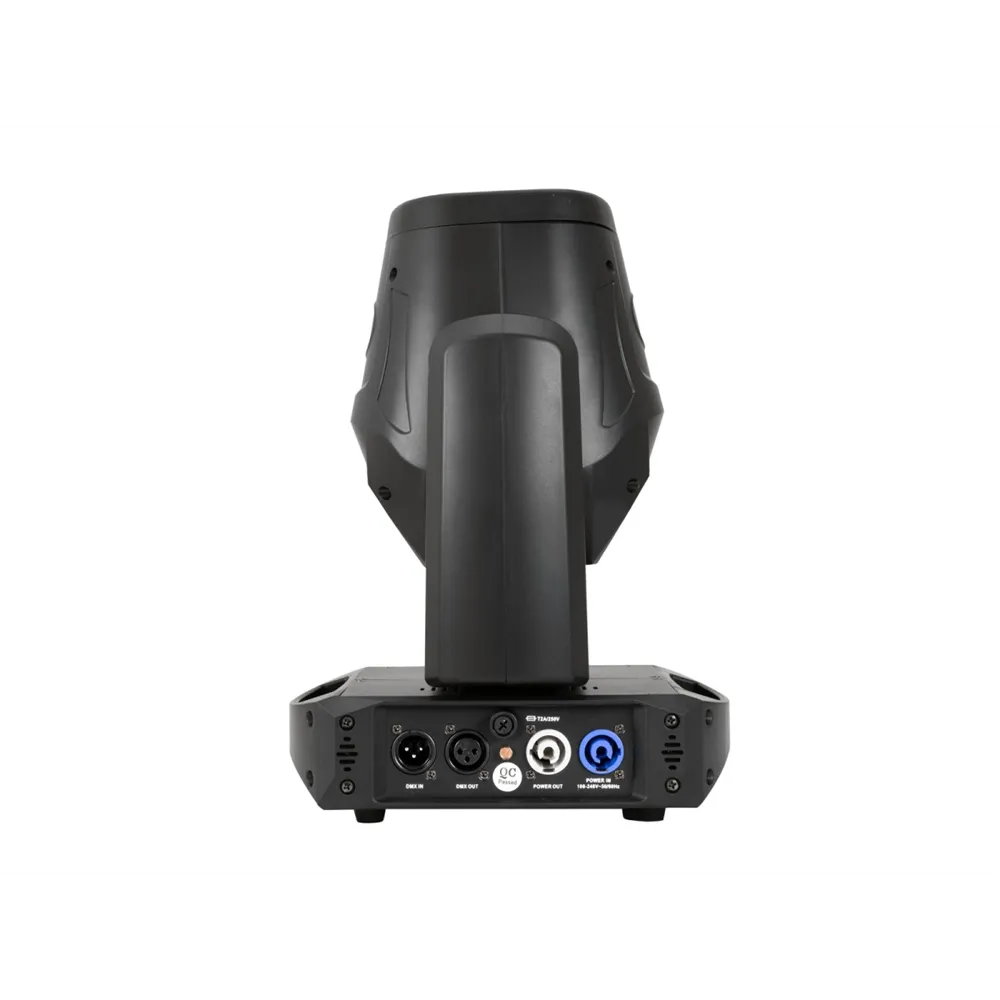

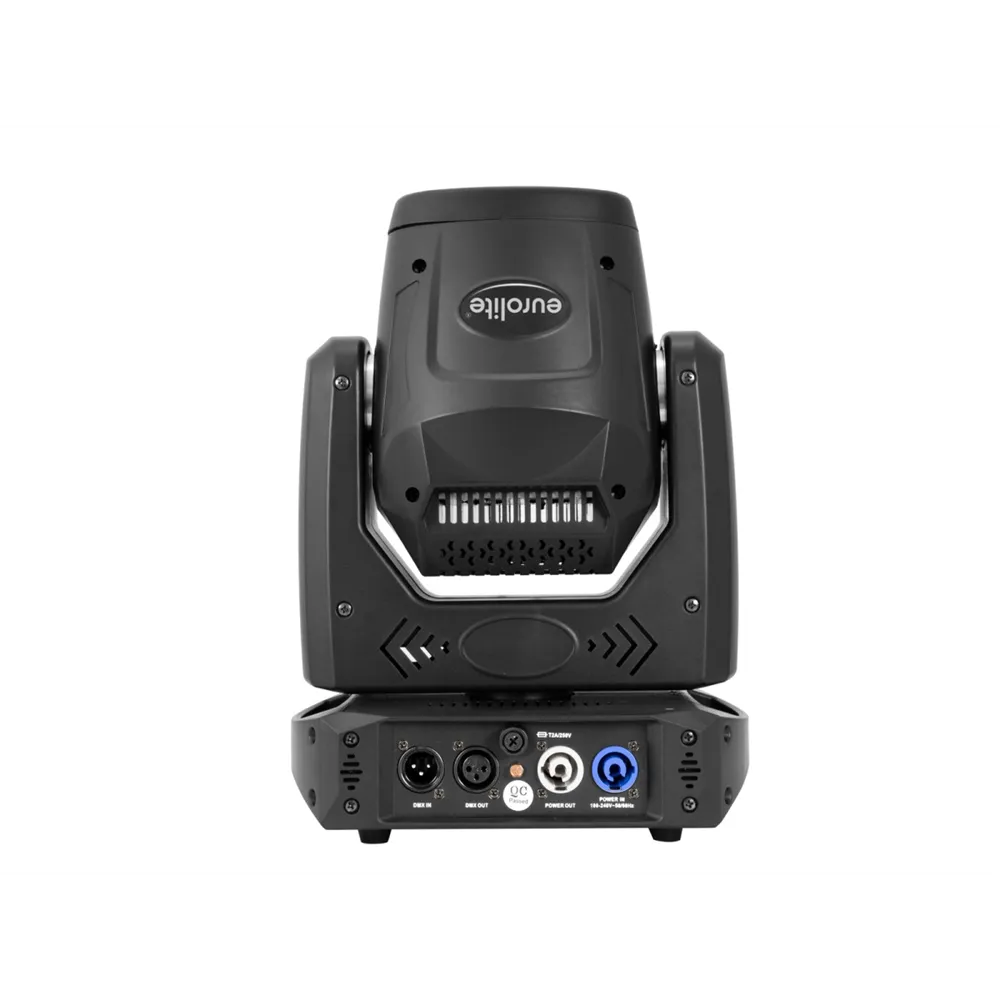

DMX input: 3-pin XLR (M) built-in version
DMX output: 3-pin XLR (F) built-in version
Cooling: fan
Projection: flicker-free
Beam angle (1/2 peak): 3°
Color rendering index (CRI): 80 Ra
Illuminance in lux (lx): Cool white (CW) at 3m: 33,839 lx, at 6m: 10,454 lx
Housing color: black
Display type: LCD display
Dimensions: Width: 25.5 cm, Depth: 20.5 cm, Height: 33.0 cm
Weight: 6.55 kg
Noise classification: Class 2 (light noise)
Special product: Not intended for household room lighting
Intended use: Lighting for show effects

EUROLITE LED TMH-B90 Moving Head Beam

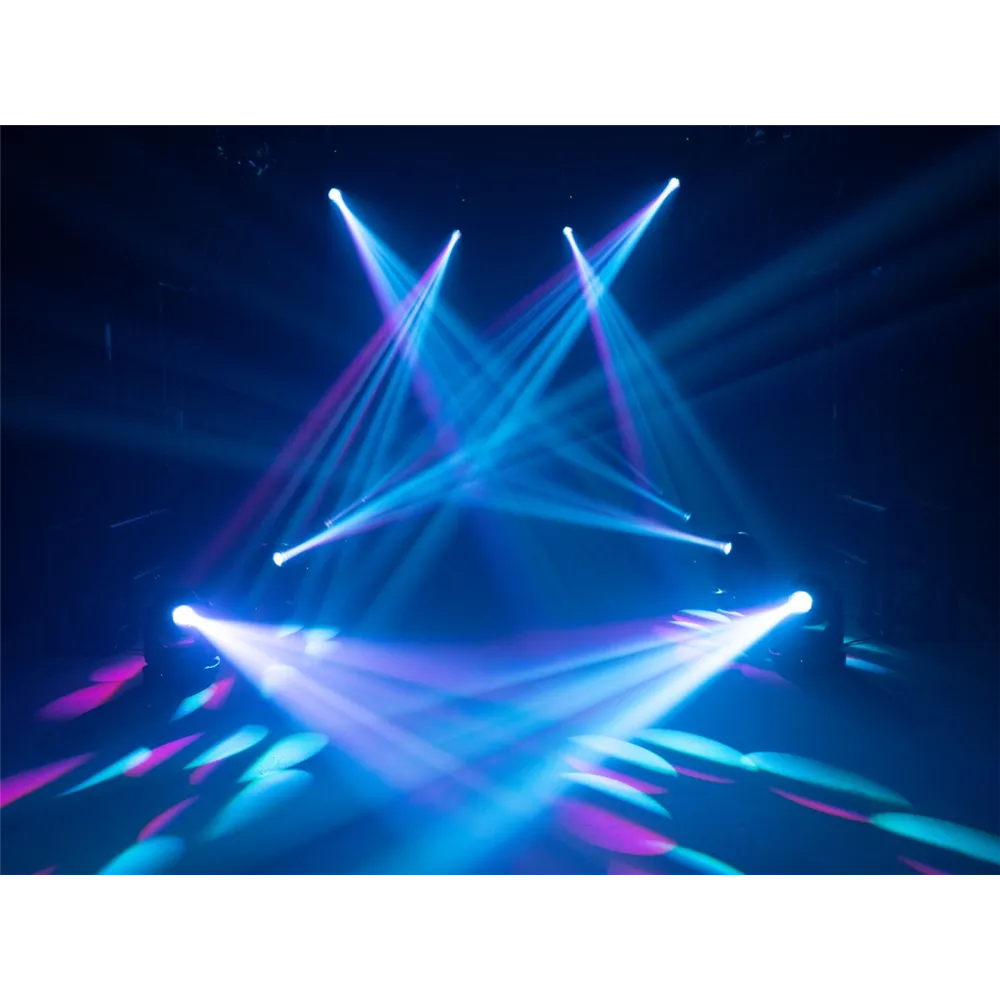

Experience the impressive performance of the EUROLITE LED TMH-B90 Moving Head Beam, equipped with state-of-the-art technology to illuminate your events. Featuring a powerful 90 W COB (Chip-on-Board) cool white LED, this moving head delivers exceptional brightness with a narrow beam angle of just 3°, making it ideal for precise beam effects.

Accurate positioning is ensured by a 16-bit resolution and auto-position correction, while the 540° pan and 200° tilt allow for flexible lighting design. The integrated color wheel with 7 dichroic colors and static gobos creates dynamic light displays, complemented by a rainbow effect with variable speed.

The TMH-B90 is versatile and can be controlled via DMX, stand-alone mode, or sound activation. With pre-programmed show programs and the ability to easily chain up to 8 units, it is perfect for clubs, weddings, stages, and mobile DJs. Enjoy flicker-free lighting and excellent color rendering with a CRI of 80 Ra. The EUROLITE LED TMH-B90 is the ideal choice for anyone looking to create stunning light shows.
