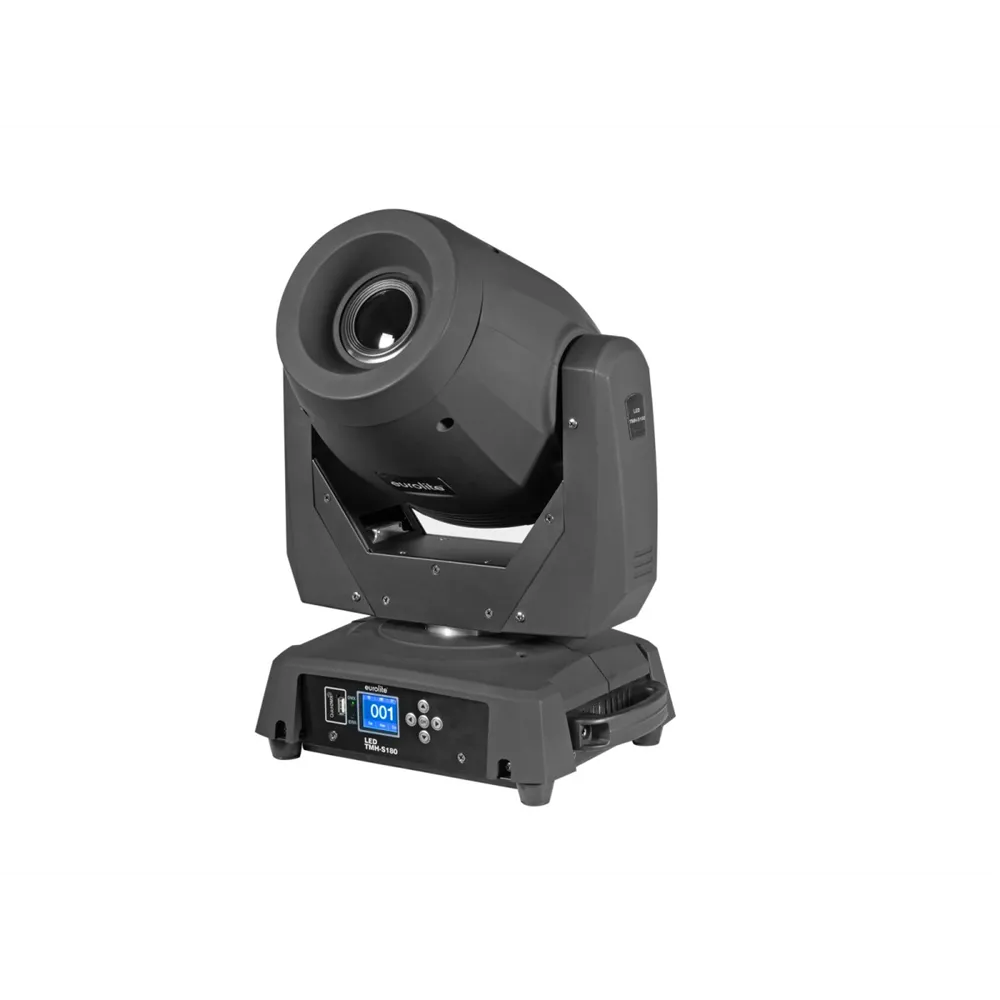

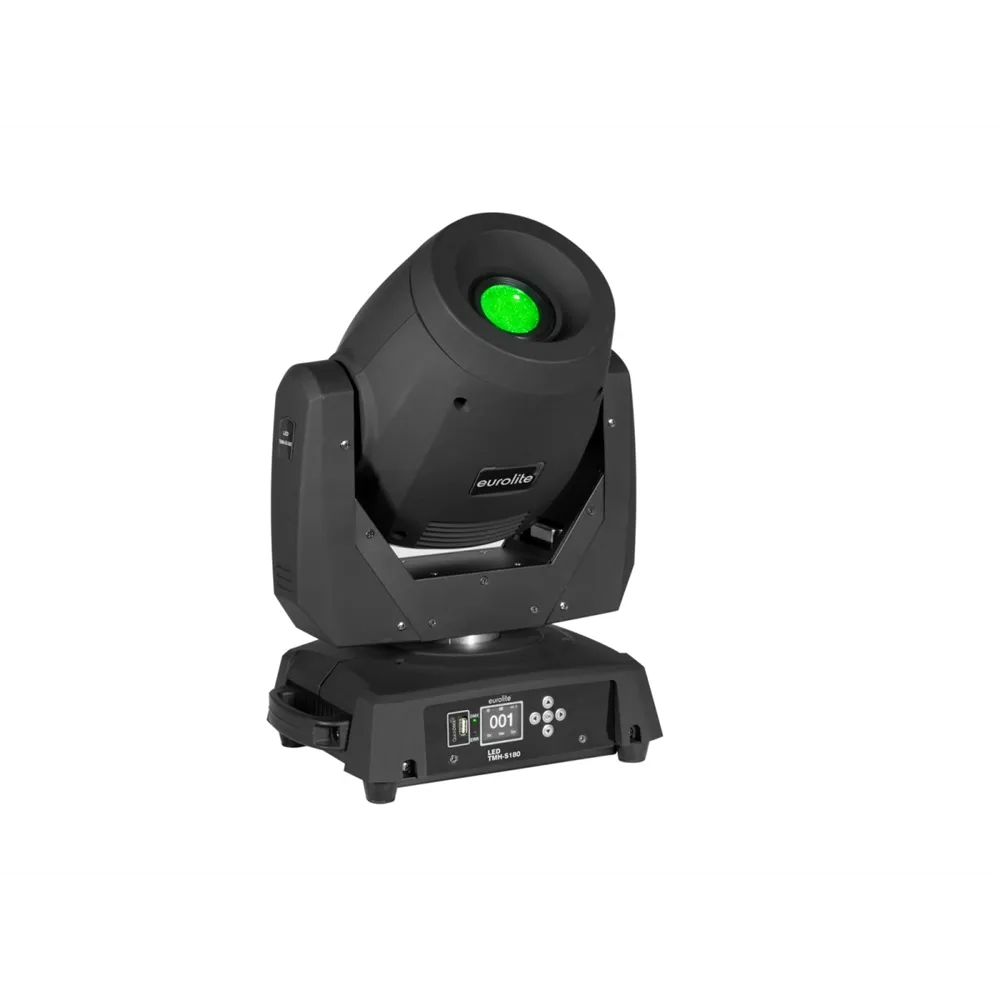

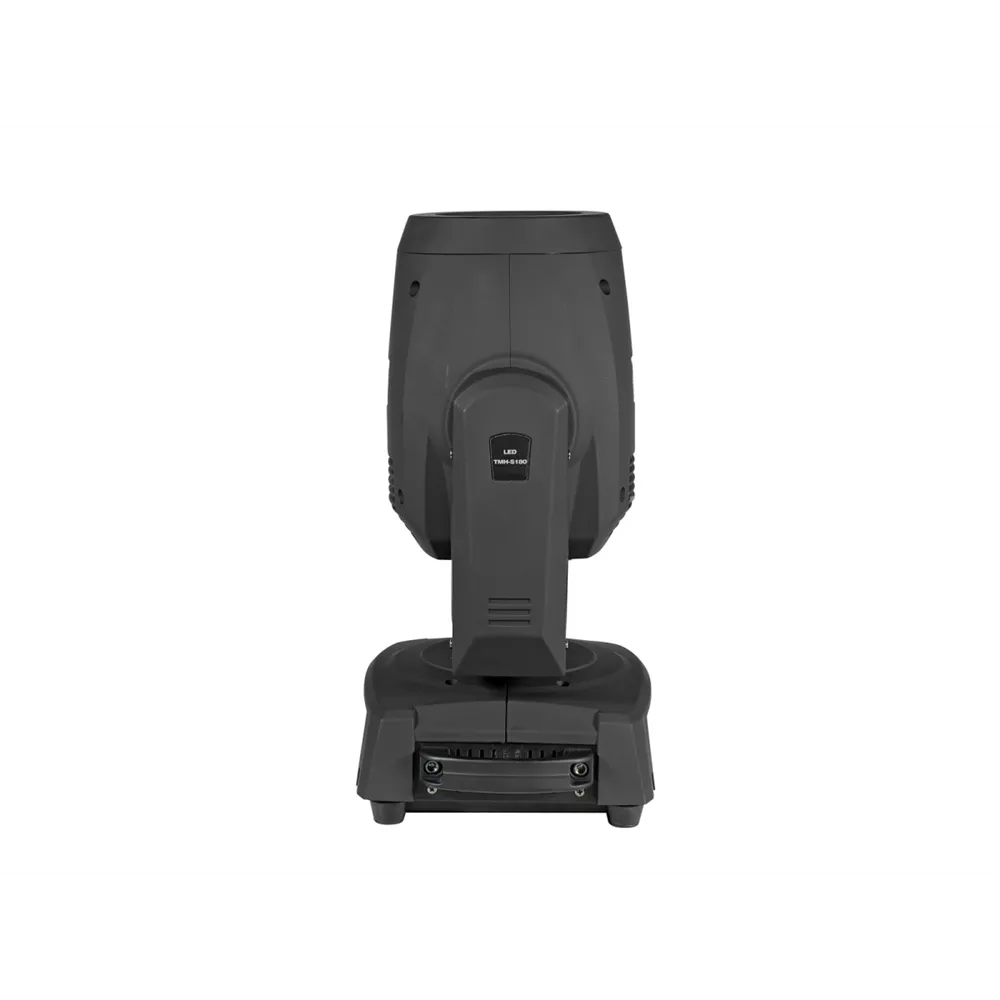

EUROLITE LED TMH-S180 Moving Head Spot

EUROLITE LED TMH-S180 Moving Head Spot

Brand:

EUROLITE LED TMH-H180 Hybrid Moving Head Spot/Wash COB

Features

1 powerful 200 W COB (Chip-on-Board) cool white (CW) LED
Positioning within 540° PAN, 270° TILT
Auto-position correction (feedback)
Precise positioning (16-bit resolution)
Gobo wheel with rotating gobos; 3-way rotating prism; motorized focus

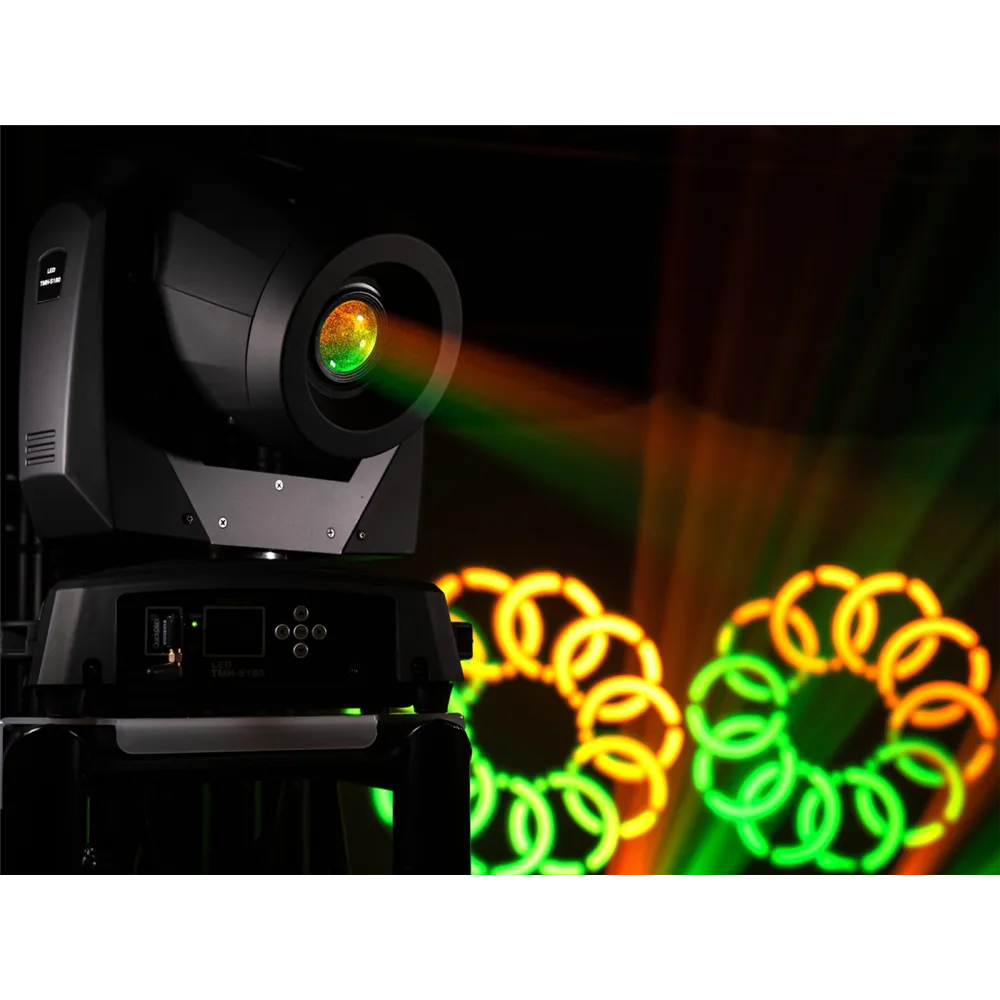

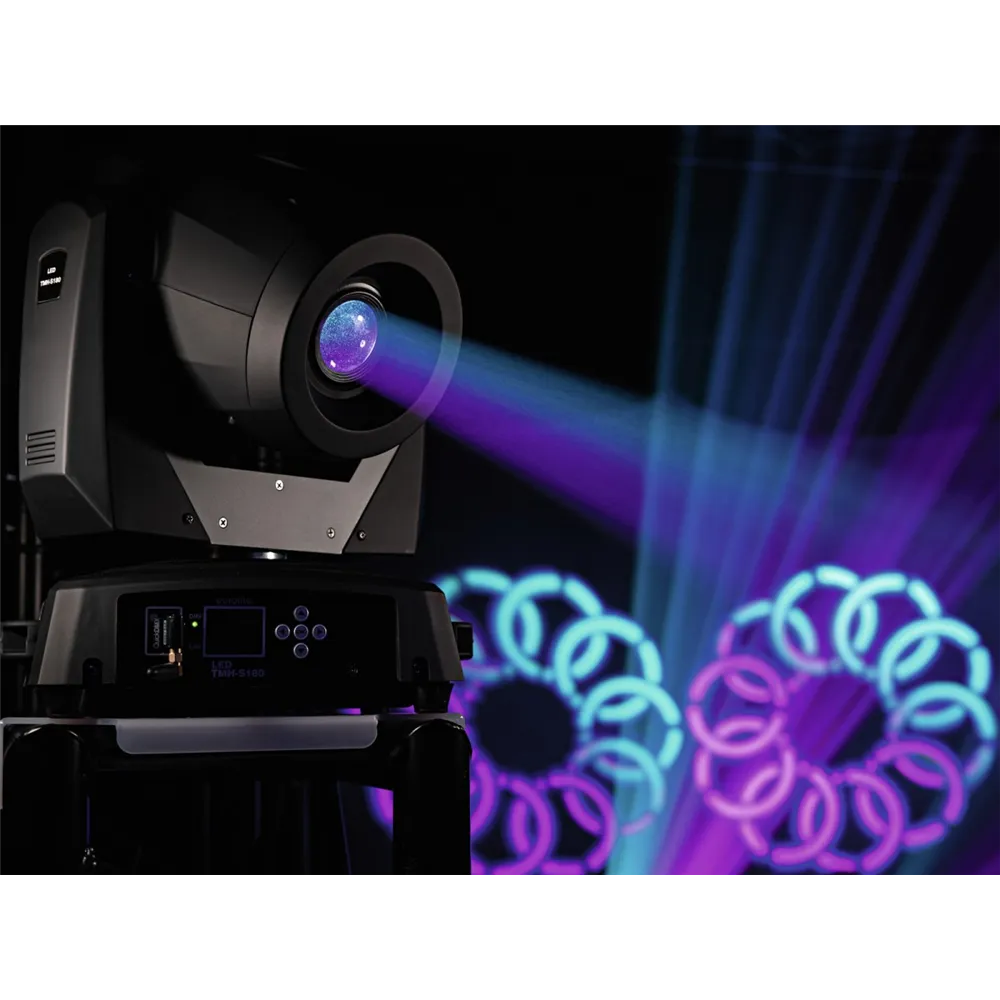

Beam effect; gobo effect
Color wheel with 8 dichroic colors and open; selectable half colors, rainbow effect with variable speed
Gobo wheel with rotating gobos, 7 gobos and open; shake effect
Interchangeable gobos
Slot-in gobo system for easy gobo changes
Integrated show programs
Device cooling via fans
Controllable via stand-alone; DMX; music control via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional); Master/Slave function
Flicker-free
Beam angle of 10°
LCD display
Electronic dimmer
Pre-programmed for LED PC-Control 512; Light Captain
Power input and output for easy linking of up to 8 devices
Suitable for applications such as: clubs/dance schools; stage; rental companies

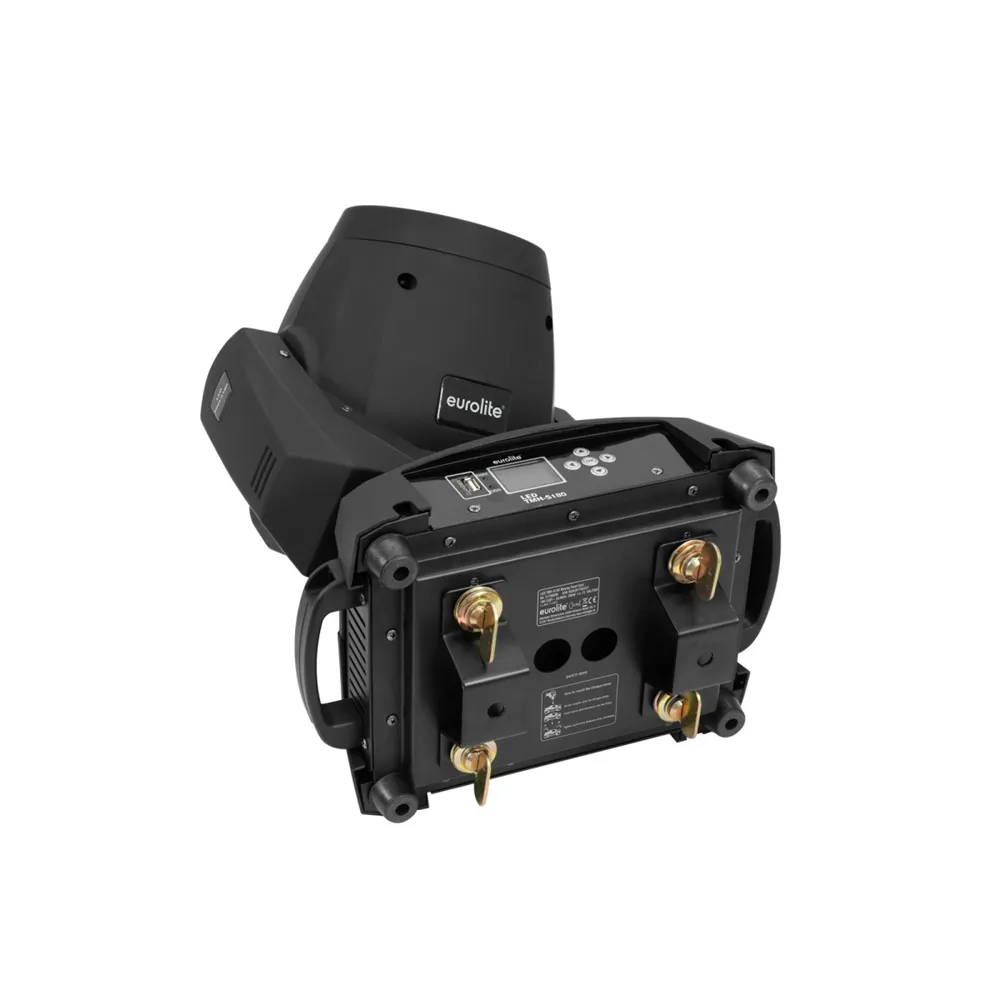

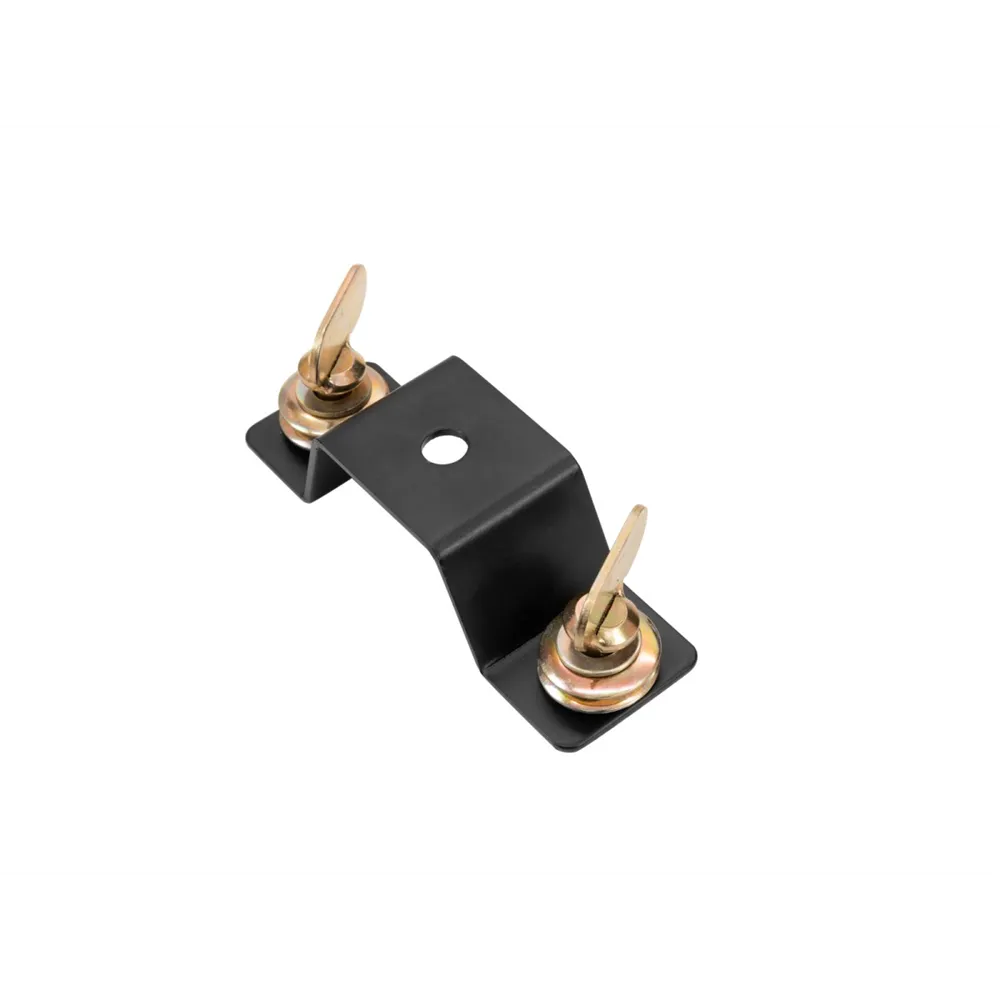

Usage options: standing; hanging
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 265 W
Protection class: IP20
Protection category: Class I
Power connection: Power input via P-Con (blue), built-in version power connection cable with protective contact plug (included)
Power output: P-Con (gray), built-in version
Fuse: 5 x 20 mm, T 3.15 A replaceable fuse
Type of lamp: LED lamp
Max. tilt movement: 270° precise positioning (16-bit resolution) auto-position correction (feedback)
Max. pan movement: 540° precise positioning (16-bit resolution) auto-position correction (feedback)
Flash rate: 0 - 18 Hz
Equipment: Gobo wheel with rotating gobos; 3-way rotating prism; motorized focus
Color generation: Color wheel with 8 dichroic colors and open; selectable half colors, rainbow effect with variable speed
Gobos: Gobo wheel with rotating gobos, 7 gobos and open; outer diameter 23.5 mm; image diameter 15 mm; shake effect; interchangeable gobos; slot-in gobo system for easy gobo changes
DMX channels: 13; 15

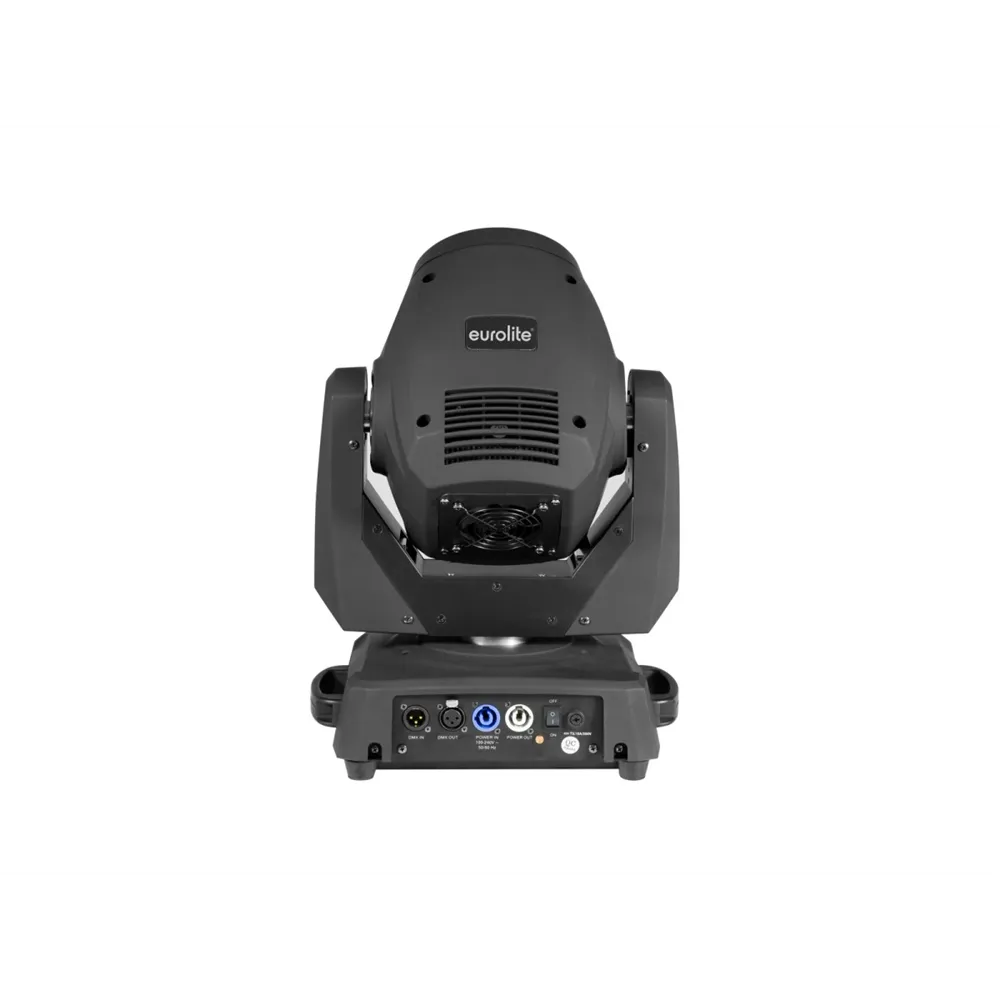

DMX input: 3-pin XLR (M) built-in version
DMX output: 3-pin XLR (F) built-in version
Cooling: Fan
Control: Stand-alone; DMX; music control via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional); Master/Slave function
Pre-programmed for: LED PC-Control 512; Light Captain
Projection: Flicker-free
Beam angle: 10°
Illuminance in lux (lx): Cool white (CW) 3m: 20700 lx, 6m: 5273 lx
Housing color: Black
Display type: LCD display
Dimensions: Width: 32.5 cm; Depth: 27.0 cm;

EUROLITE LED TMH-S180 Moving Head Spot

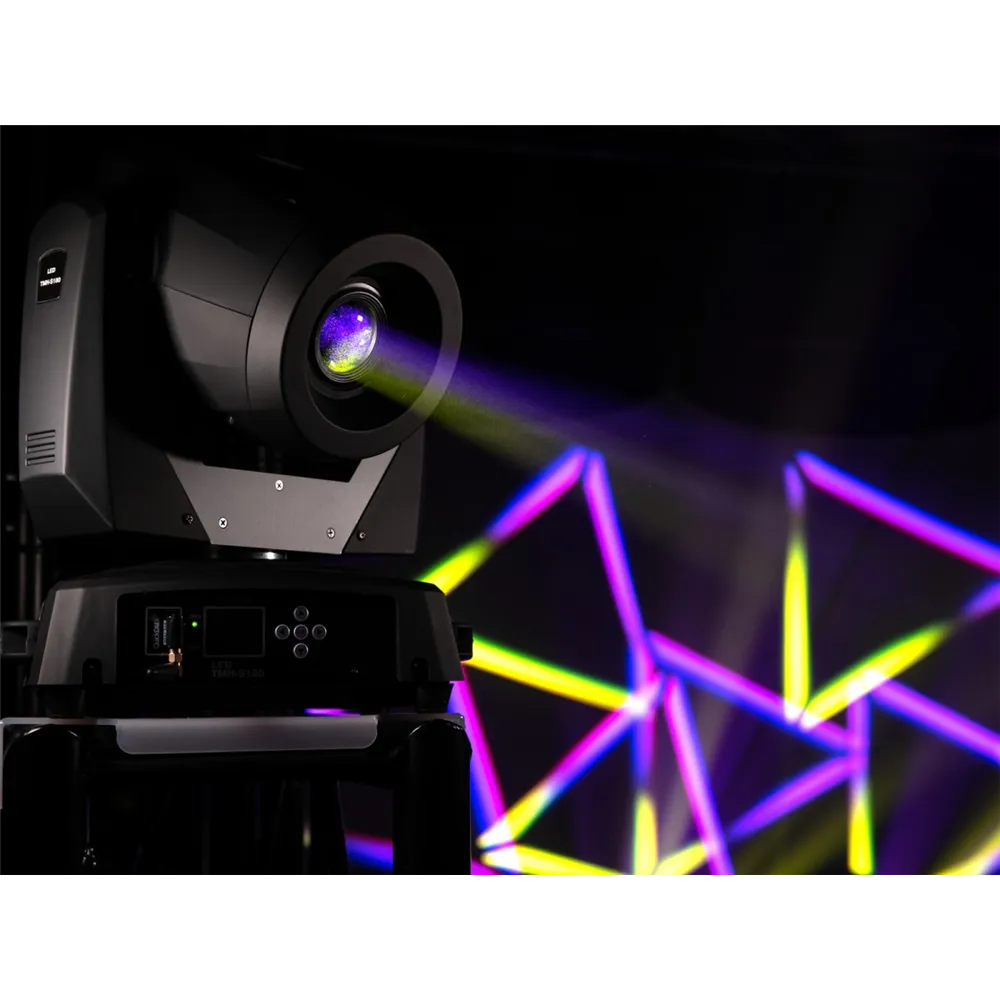

Experience the impressive performance of the EUROLITE LED TMH-S180 Moving Head Spot, equipped with a powerful 200W LED. This versatile lighting fixture offers excellent color reproduction and a variety of effects that will make your events shine. With a pan range of 540° and a tilt range of 270°, the TMH-S180 allows for precise positioning thanks to its 16-bit resolution and auto-position correction.

The gobo wheel with rotating gobos and the motorized prism create dynamic light displays, while the color wheel featuring 8 dichroic colors and a rainbow effect enables creative color transitions. The integrated show programs and the ability to control via DMX, stand-alone, or sound activation make the TMH-S180 a flexible companion for clubs, stages, and rental companies.

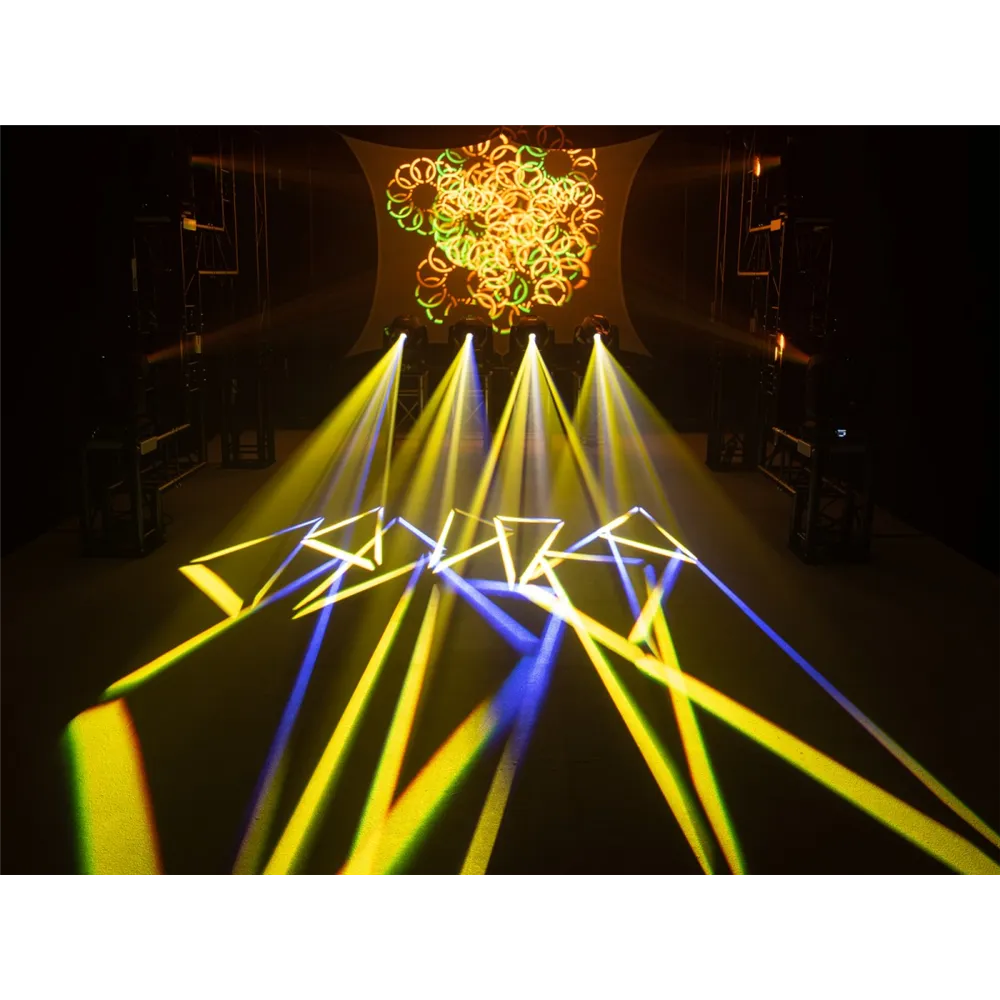

With a beam angle of 10° and an impressive illuminance of up to 20,700 lux at a distance of 3 meters, this moving head spot is ideal for striking light installations. The user-friendly operation and robust construction complete the overall package. Add a special touch to your event with the EUROLITE LED TMH-S180 Moving Head Spot!
