PSSO WISE ONE Set + BP + Headset 823-832/863-865MHz
Features
- License-free True-Diversity wireless receiver including bodypack transmitter and headworn microphone
- Professional multi-frequency wireless receiver with True-Diversity technology for stage use
- High-quality components and thoughtful features ensure optimal performance and high reliability
- Suitable for large multi-channel systems
- Up to 26 transmitters can be operated simultaneously without interference across 3 frequency bands
- 45 preset channels in 5 channel groups
- 2.4 GHz iSync - convenient synchronization and real-time monitoring
- Automatic frequency setup
- Pilot frequency squelch technology eliminates wireless RF interference
- Multifunctional jog dial for menu navigation
- Lock function prevents accidental changes to settings
- Mic/Line switch
- 2 detachable antennas (BNC) allow for combination with an external antenna splitter
- 2 receivers can be powered by a single power supply
- Multicolor LCD display
- UHF 823 - 832 MHz license-free in large parts of Europe
- UHF 863 - 865 MHz license-free in Europe
- Range of up to 60m in line of sight
- Desktop housing
- (19") 48.3 cm rack mountable, 1U
- Firmware update capable
- Suitable for applications such as: mobile use; stage; theater; rental companies; sports centers/gyms; concerts/FOH
- Weight: 2.01 kg
- Power supply: 100-240 V AC, 50/60 Hz; 12-15V DC 800 mA
- Total power consumption: 4 W
- Number of channels: 1
- Frequency range: 50 - 20000 Hz
- Signal-to-noise ratio: >96 dB
- Gain: Microphone -32 dB to +4 dB; Output: -32 dB to +4 dB
- Diversity: True-Diversity
- Modulation: FM
- Display type: Multicolor LCD display
- Material: Metal
- Color: Black
- Dimensions: Width: 21 cm; Depth: 27 cm; Height: 4.3 cm
- Receiver weight: 1.80 kg
- Bodypack transmitter type: Bodypack transmitter
- Bodypack transmitter power supply: 3V DC
- Battery: 2 x AA (not included)
- Frequency range of bodypack transmitter: 50 - 18000 Hz
- RF output power: 50 mW (HI); 10 mW (LO)
- Display type of bodypack transmitter: Multicolor LCD display
- Material of bodypack transmitter: Aluminum
- Color of bodypack transmitter: Gray
- Dimensions of bodypack transmitter: Width: 7 cm; Depth: 3 cm; Height: 13 cm
- Weight of bodypack transmitter: 0.19 kg
- Headworn microphone type: Headworn microphone
- Power supply of headworn microphone: 2-10V DC
- Cable length: 1.5 m
- Capsule type: Electret
- Polar pattern: Omnidirectional
- Frequency range of headworn microphone: 100 - 20000 Hz
- Signal-to-noise ratio of headworn microphone: >58 dB
- Sensitivity: -45 dB
- Impedance: 1 kOhm
- Connections: [Incomplete information]
PSSO WISE ONE Set + BP + Headset 823-832/863-865MHz

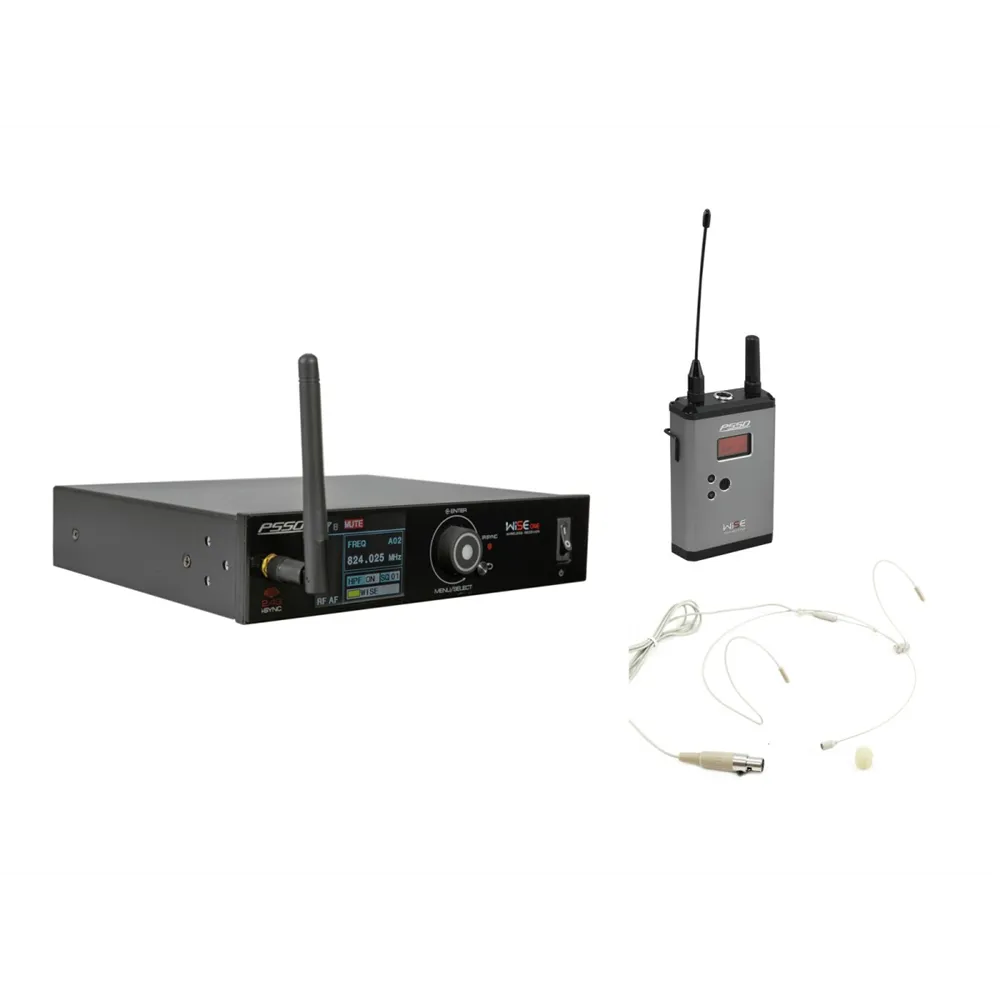

Discover the PSSO WISE ONE Set, a professional solution for wireless audio transmission, ideal for stages, theaters, sports centers, and more. This set includes a license-free true diversity wireless receiver, a bodypack transmitter, and a high-quality headset microphone, all designed to deliver outstanding sound quality and reliability.
The PSSO WISE ONE receiver operates in the frequency range of 823-832 MHz and 863-865 MHz, allowing for the simultaneous operation of up to 26 transmitters across three bands. With 45 preset channels and a range of up to 60 meters in line of sight, it is perfect for large events. The 2.4 GHz iSync technology ensures easy synchronization and real-time monitoring.
The bodypack transmitter offers an RF output power of up to 50 mW and features a multi-color LCD display. The headset microphone with a spherical pickup pattern guarantees clear voice transmission. With thoughtful features such as a lock function and a multifunctional jog dial, the PSSO WISE ONE Set is the ideal choice for professional applications.
Included in the package: 1 x receiver, 1 x bodypack transmitter, 1 x headset microphone, antennas, power supply, and additional accessories.
