Features
- High-output, narrow beam with OSD 10 280W discharge lamp
- Positioning within 540° PAN, 270° TILT
- Precise positioning (16-bit resolution)
- Color wheel; motorized focus; gobo wheel with static gobos; frost filter; 8-facet rotating prism; 24-facet rotating prism
- Color wheel with 14 dichroic colors plus open; selectable half colors, rainbow effect with variable speed in both directions
- Gobo wheel with static gobos, 13 gobos plus open; shake effect
- Device cooling via fan
- Controllable via DMX; stand-alone; master/slave function; music control via microphone; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Beam angle of 2°
- Multicolor LCD display
- Electronic dimmer
- Strobe effect
- Pre-programmed for LED PC-Control 512; Light Captain
- Applications: Clubs/dance schools; stage; rental
- Usage options: Standing; hanging
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 385 W
- Protection class: IP20

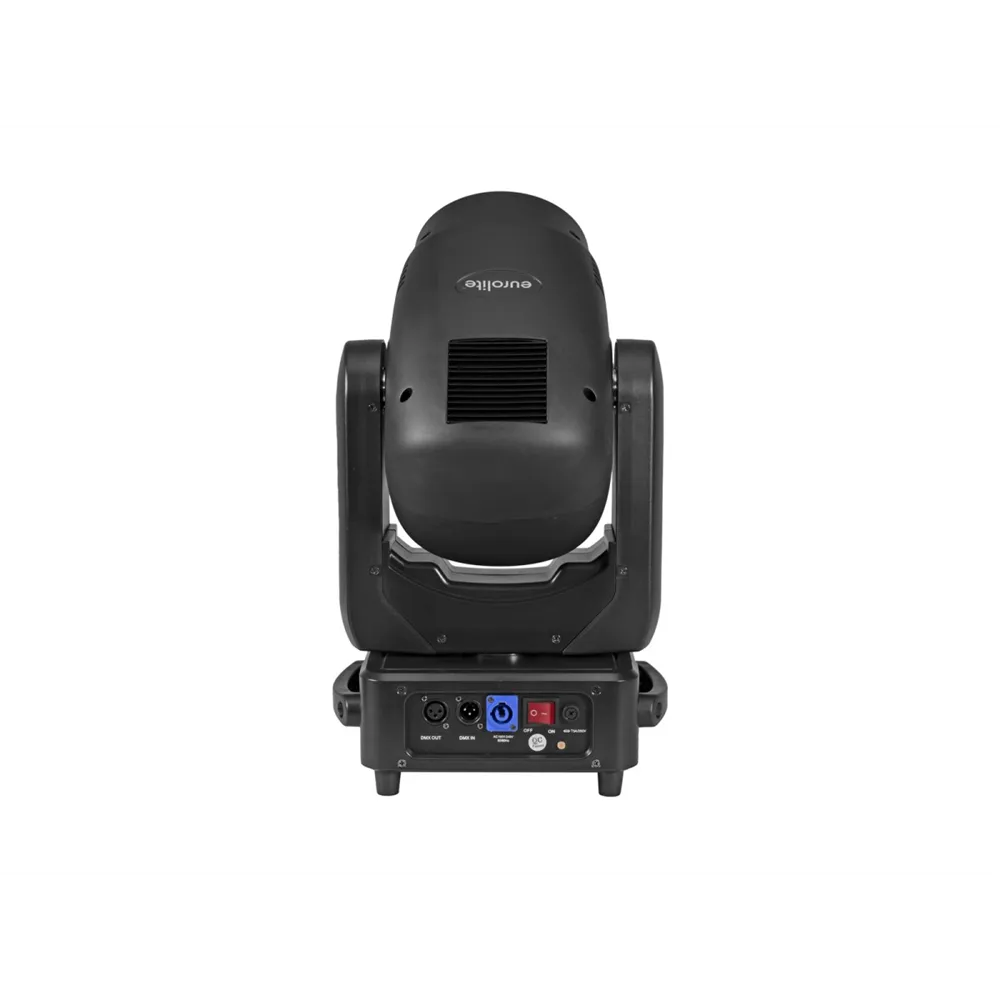

- Power connection: Power input via P-Con (blue), built-in version power connection cable with protective contact plug (included)
- Fuse: T 5 A replaceable fuse
- Type of lamp: Discharge lamp
- Max. tilt movement: 270° precise positioning (16-bit resolution)
- Max. pan movement: 540° precise positioning (16-bit resolution)
- Flash rate: 1 - 18 Hz
- DMX channels: 16; 19
- DMX input: 3-pin XLR (M) built-in version
- DMX output: 3-pin XLR (F) built-in version
- Housing color: Black
- Dimensions: Width: 30.0 cm; Depth: 20.5 cm; Height: 50.5 cm
- Weight: 14.80 kg
- Noise classification: Class 4 (loud noises)

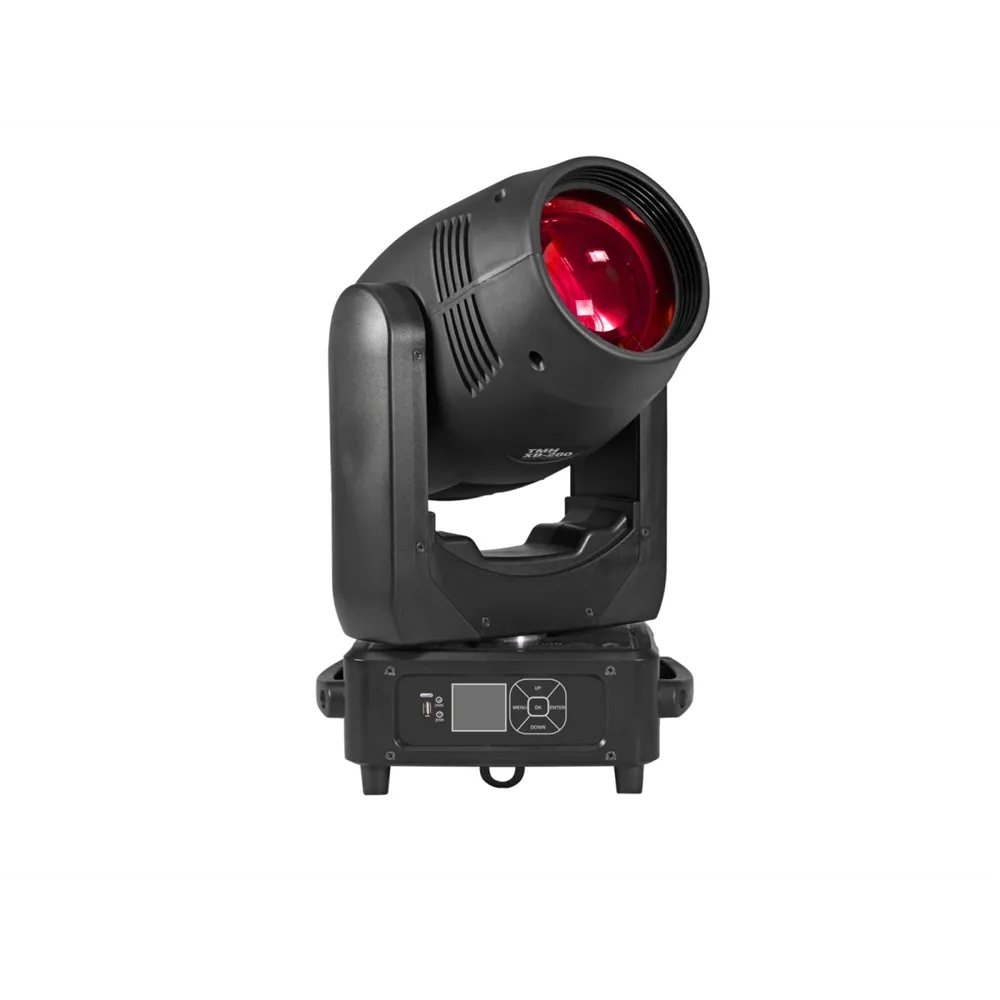

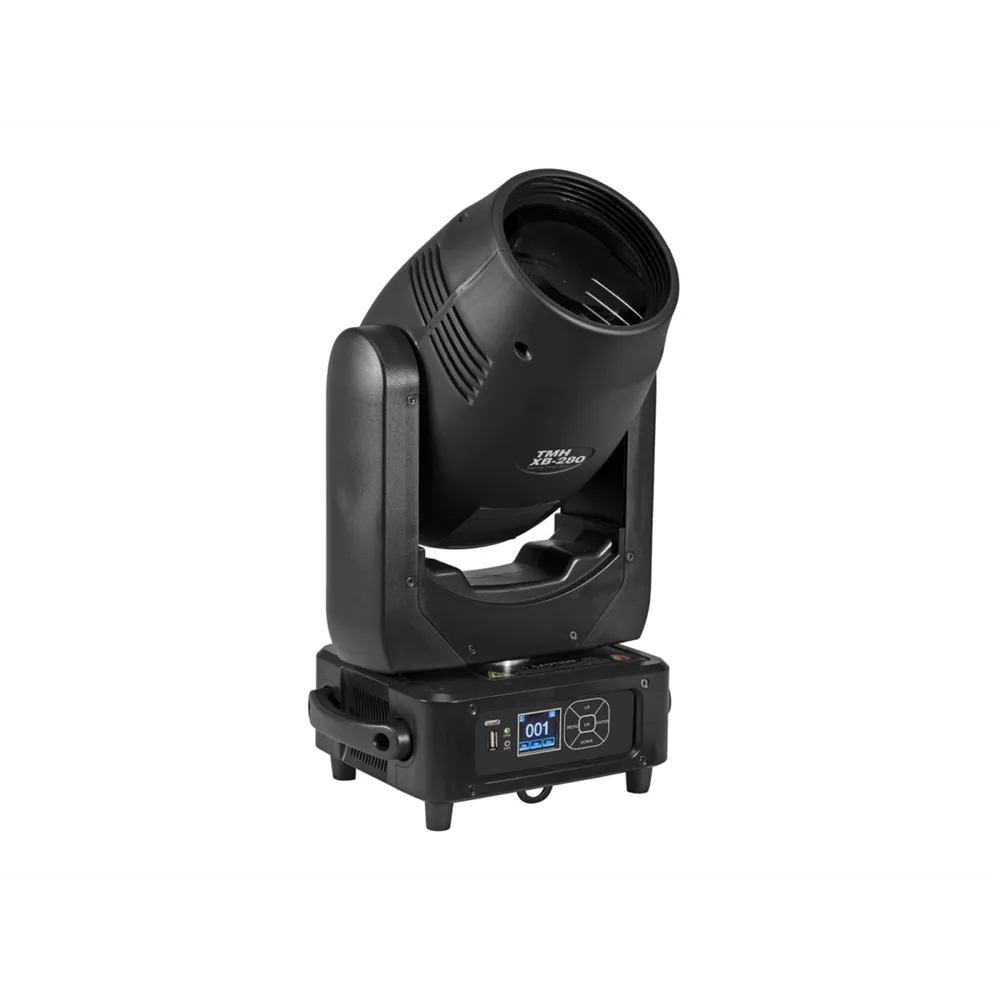

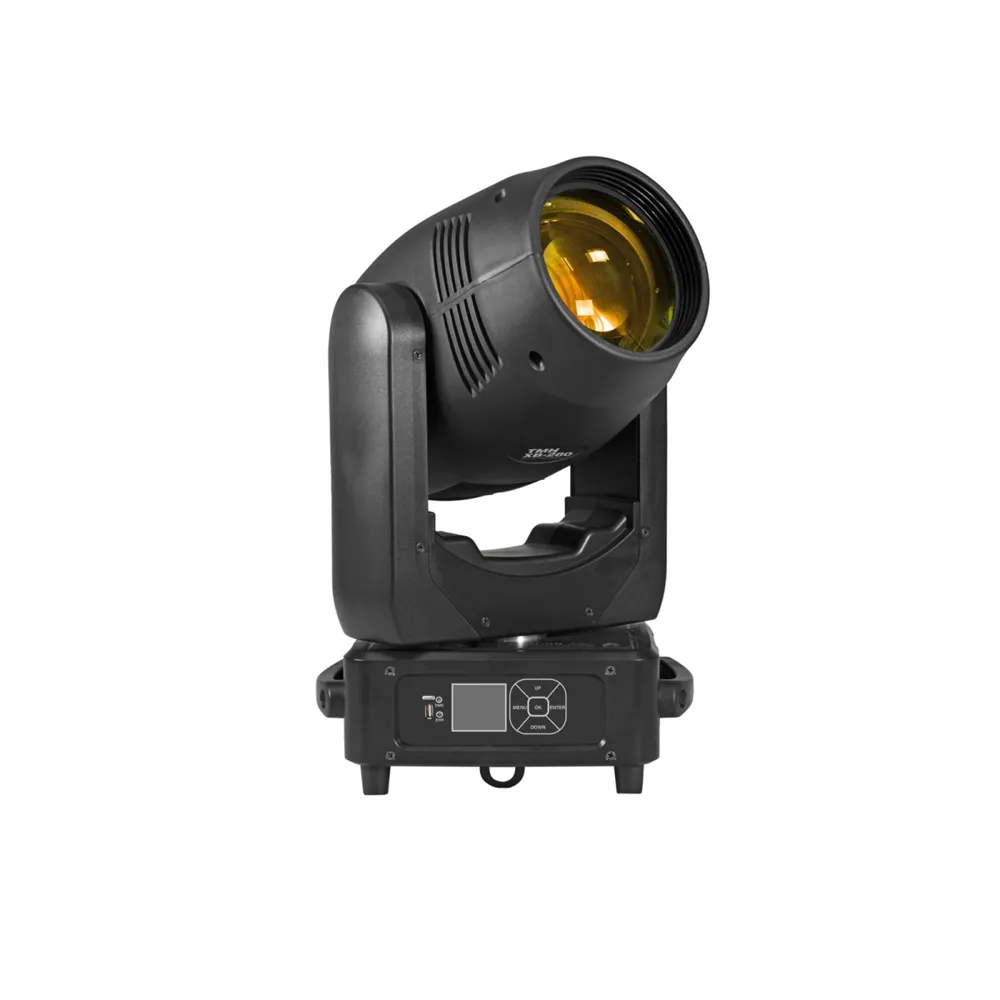

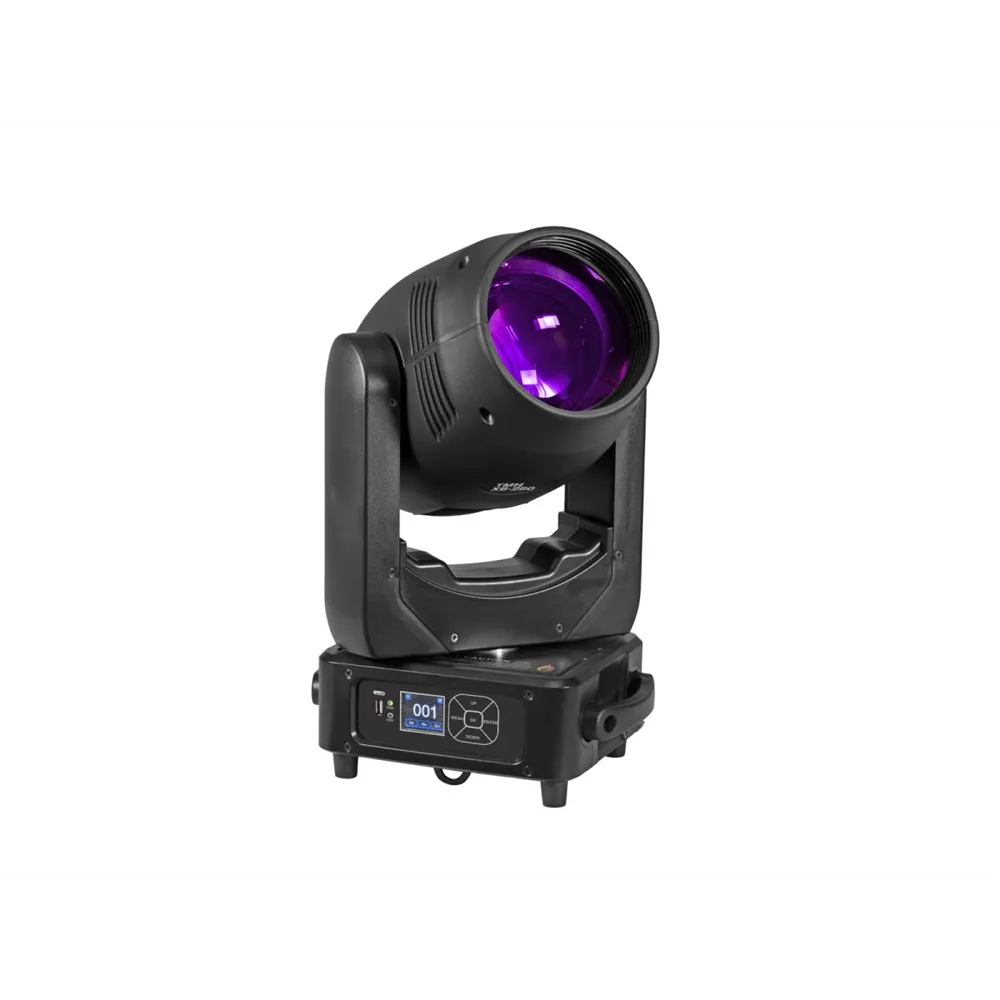

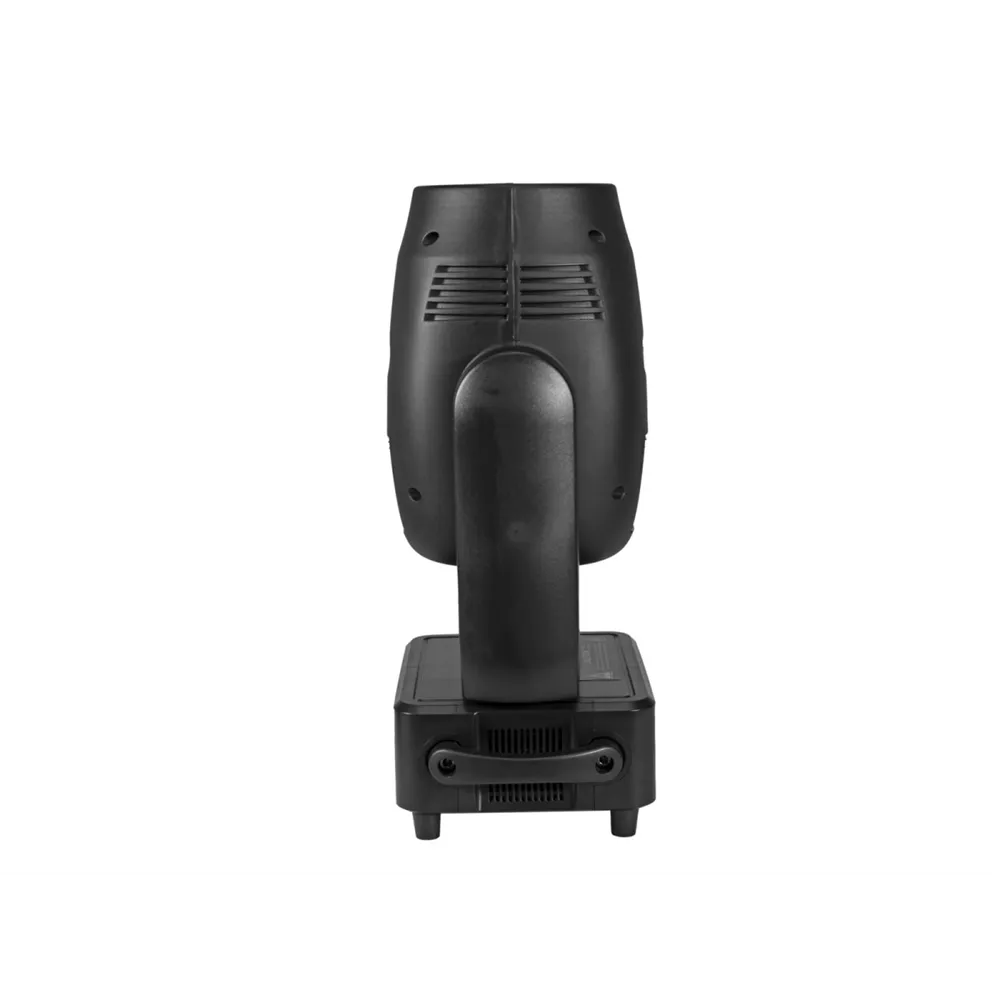

EUROLITE TMH XB-280 Moving Head Beam
Experience the impressive light intensity of the EUROLITE TMH XB-280 Moving Head Beam, equipped with a powerful OSD 10 280W discharge lamp. With a narrow beam angle of just 2°, this moving head beam creates stunning effects that will illuminate any event. The precise positioning within 540° PAN and 270° TILT ensures accurate control, while the 16-bit resolution allows for smooth movements.
The integrated color wheel offers 14 dichroic colors as well as a rainbow effect with variable speed. Additionally, 13 static gobos are available, complemented by a shake effect. The TMH XB-280 is versatile and can be controlled via DMX, stand-alone mode, master/slave function, or sound activation. Optional QuickDMX, W-DMX, and CRMX are available via USB.

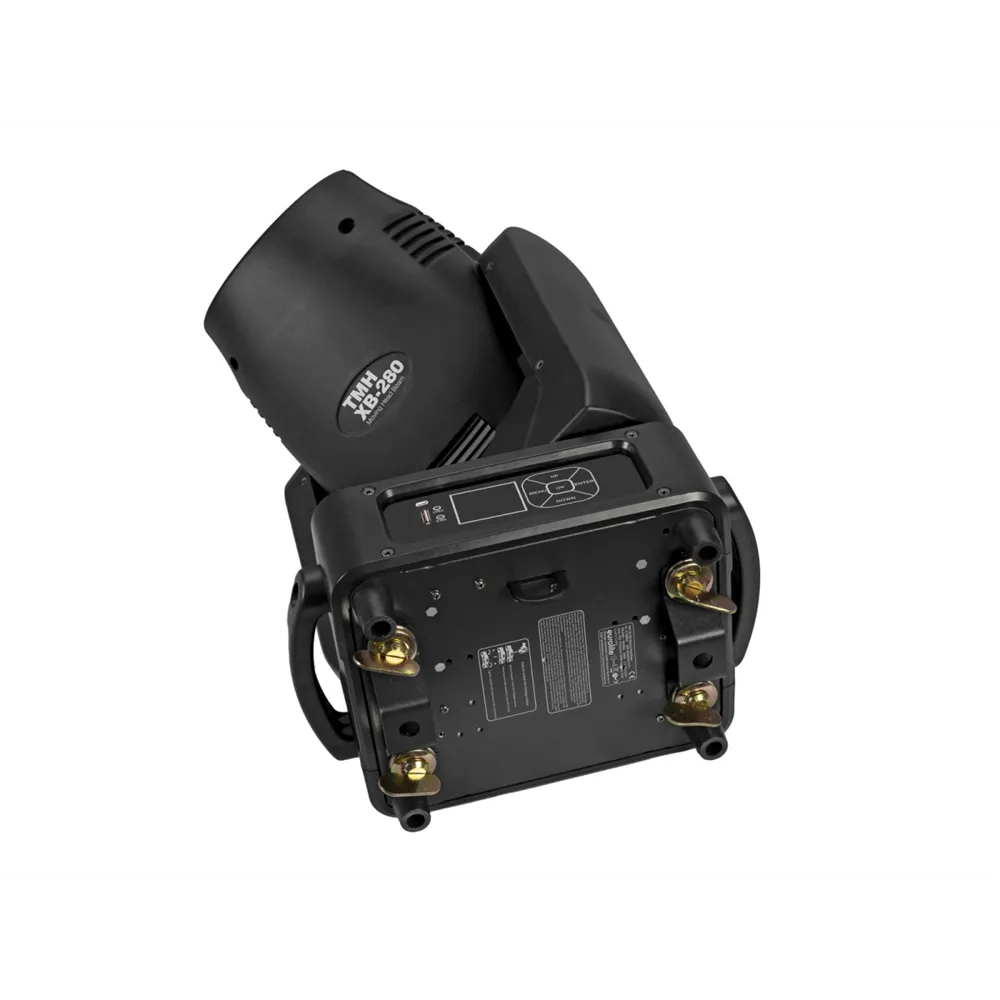

With a robust housing and a weight of 14.80 kg, this moving head beam is ideal for clubs, stages, and rental companies. The package includes the moving light, a user manual, a power cable, and two omega brackets. Set new standards in lighting design with the EUROLITE TMH XB-280!
