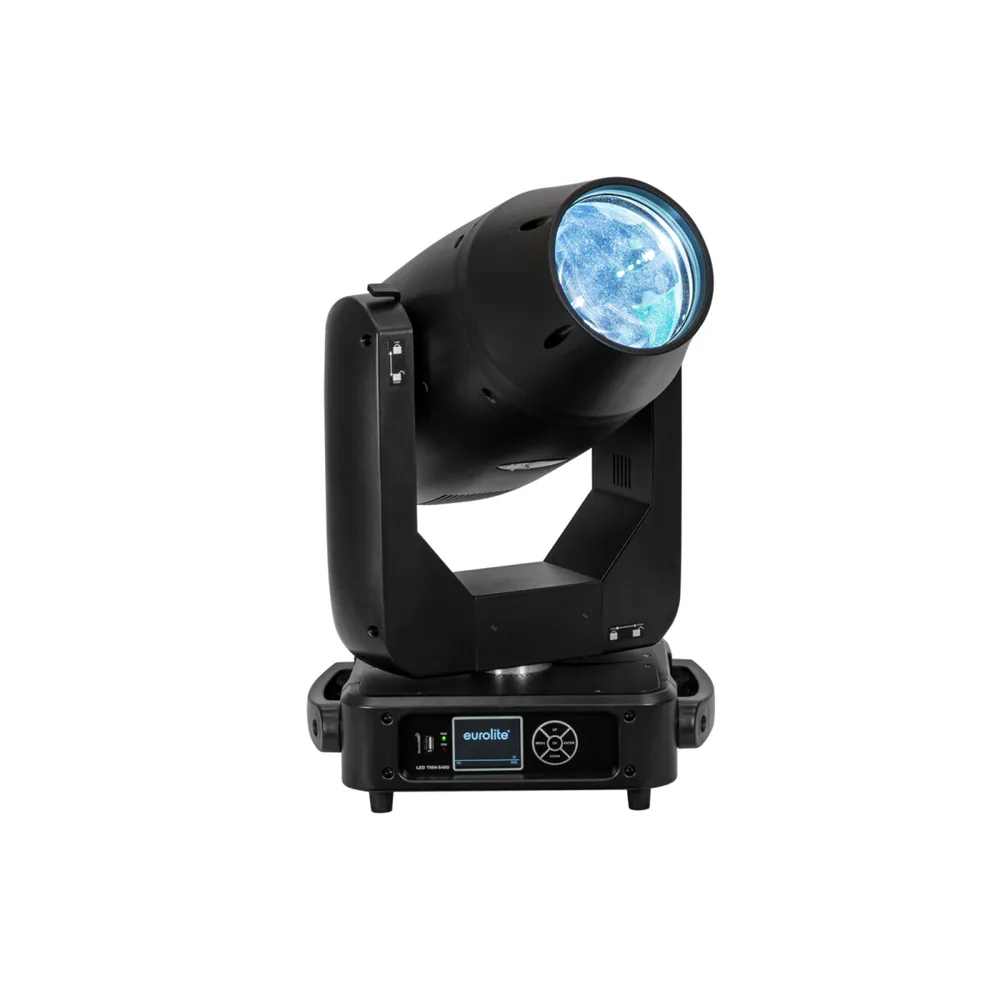

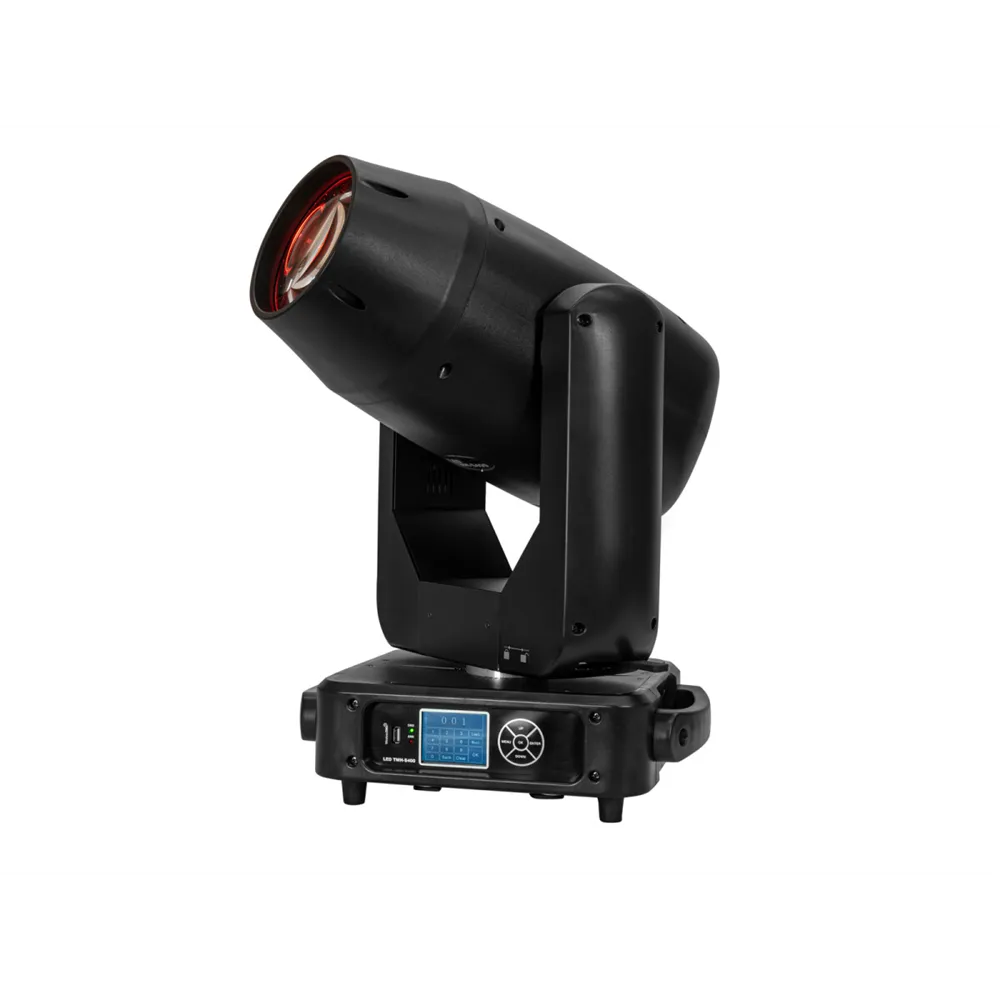

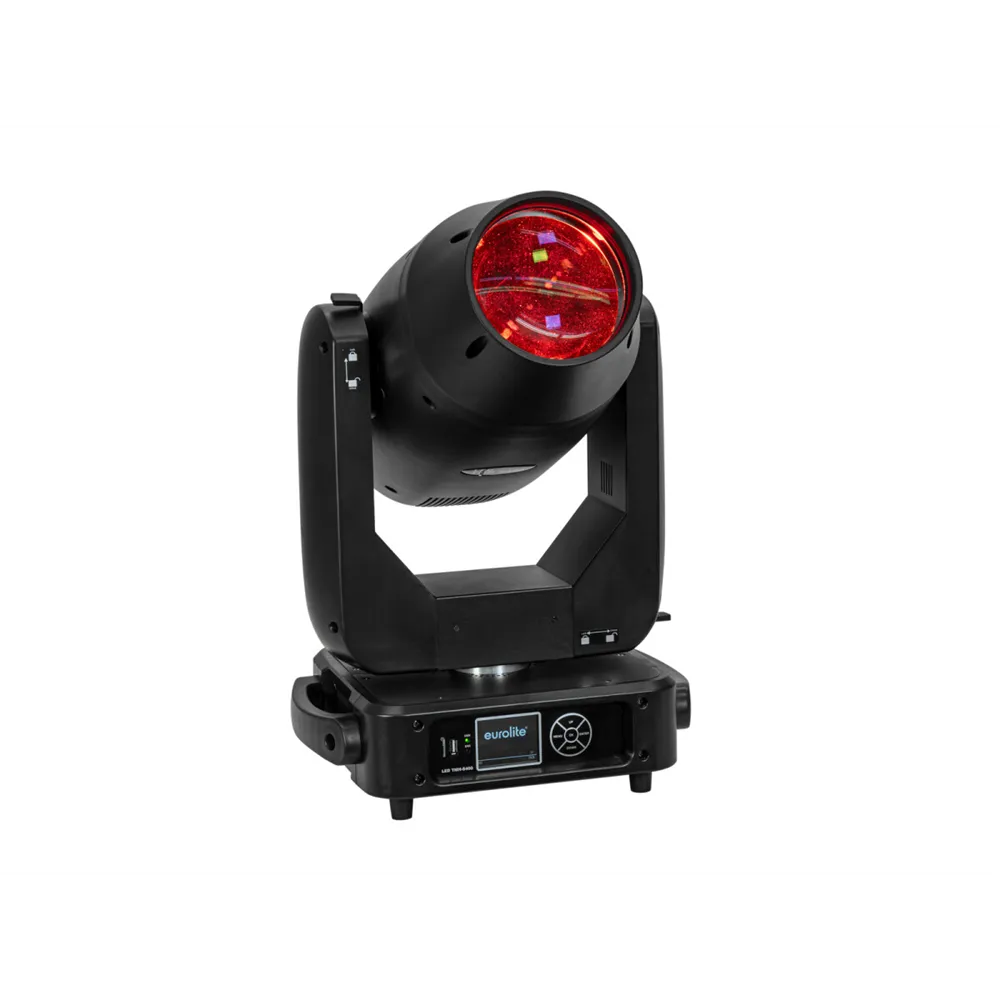

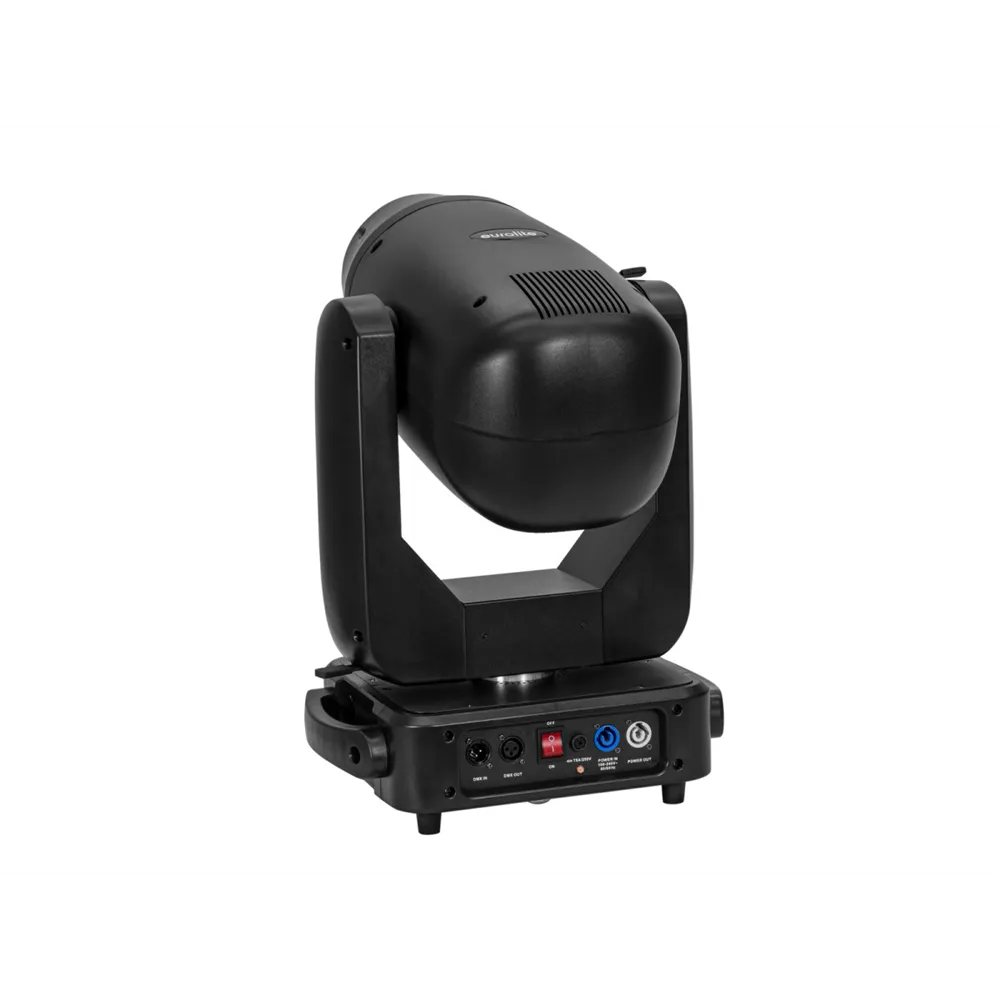

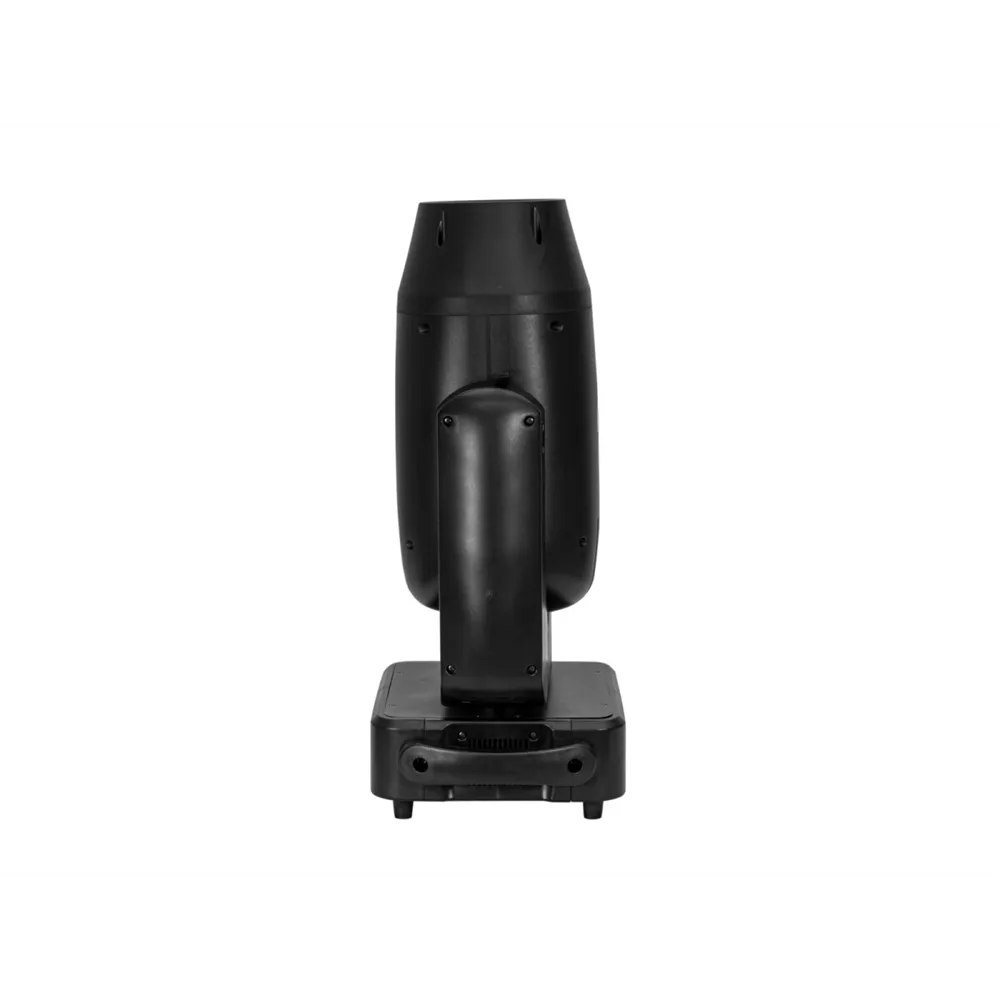

EUROLITE LED TMH-S400 CMY Moving-Head Beam/Spot/Wash

EUROLITE LED TMH-S400 CMY Moving Head Beam/Spot/Wash

Brand:

Features

1 powerful 400 W COB (Chip-on-board) cool white (CW) LED
Positioning within 540° PAN, 220° TILT
Auto-position correction (Feedback)
Precise positioning (16-bit resolution)
Color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; frost filter; motorized zoom; motorized focus; 6-facet rotating prism; 8-facet rotating prism
Adjustable dimmer curves; frost filter
Spot effect
CMY color mixing for unlimited color variations
Color wheel with 12 dichroic colors and open
Gobo wheel with rotating gobos, 7 gobos and open; slot-in gobo system for easy gobo changes
Shake effect
Gobo indexable
Gobo wheel with static gobos, 12 gobos and open; shake effect
Device cooling via fans in the base; temperature-controlled fans in the head
DMX controllable; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone; RDM; master/slave function
Flicker-free
DMX failure mode (Hold; Zero value)
Beam angle of 6° - 32°

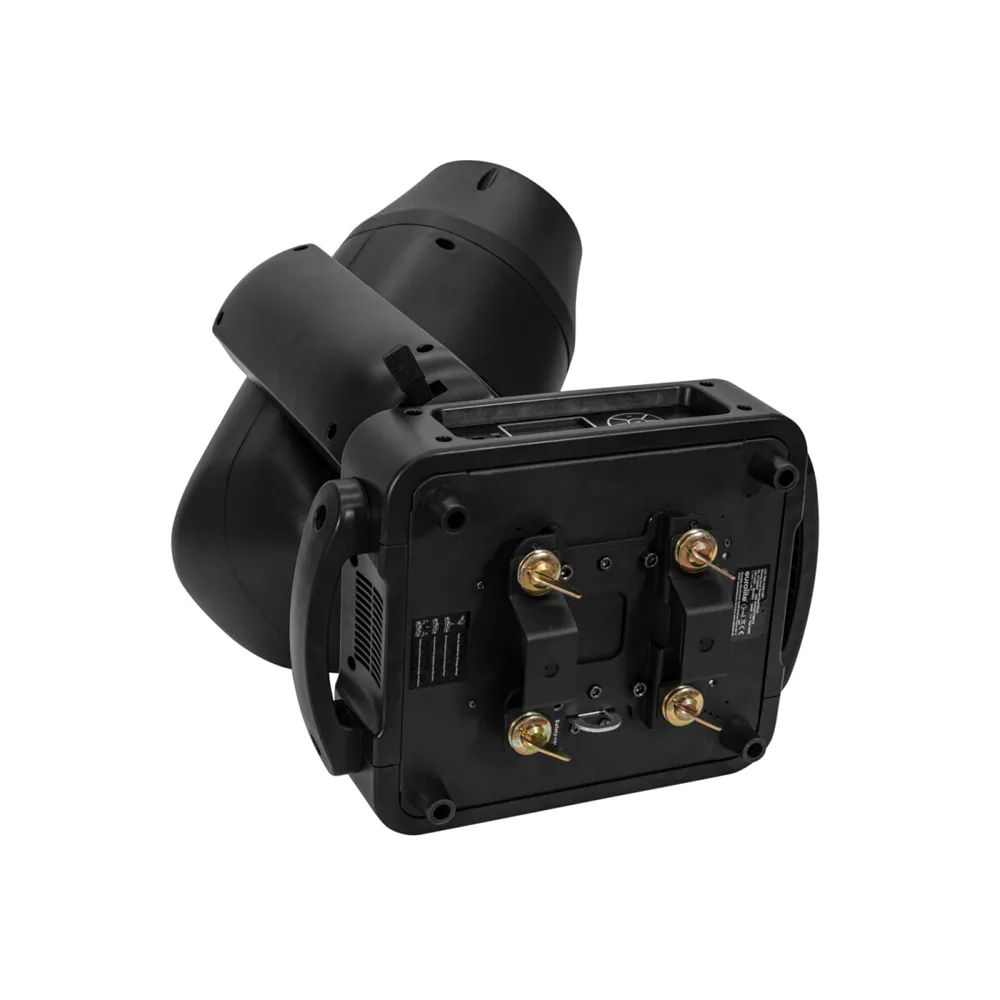

Includes Omega bracket

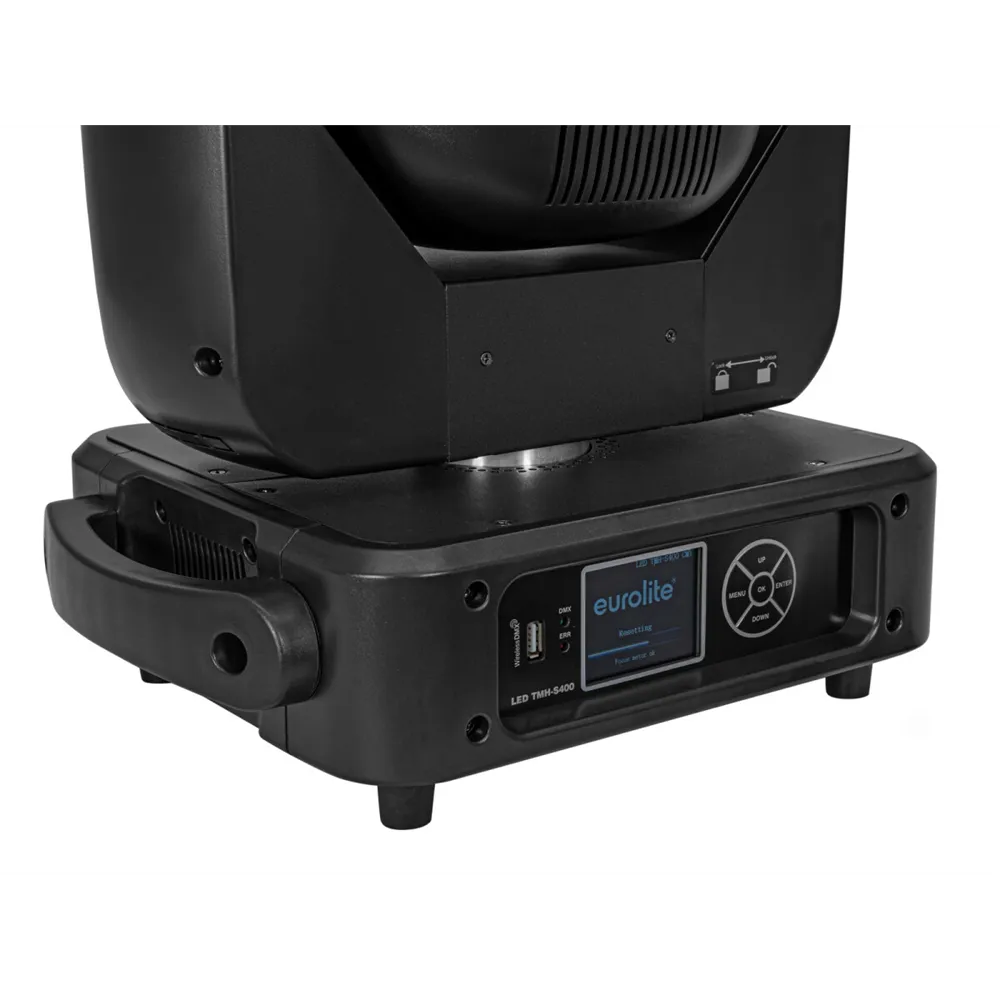

Multicolor touchscreen display
2 sturdy carrying handles
4 rubber feet
Power input and output for easy linking of up to 4 devices
Pre-programmed with Light Captain
DMX pass-through for up to 32 additional DMX devices; RDM capable for bidirectional communication over the DMX line
Suitable for applications such as weddings/gala/events; mobile use; stage; concerts/FOH
Mounting options: standing; hanging
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 460 W
Protection class: IP20
Protection rating: Class I

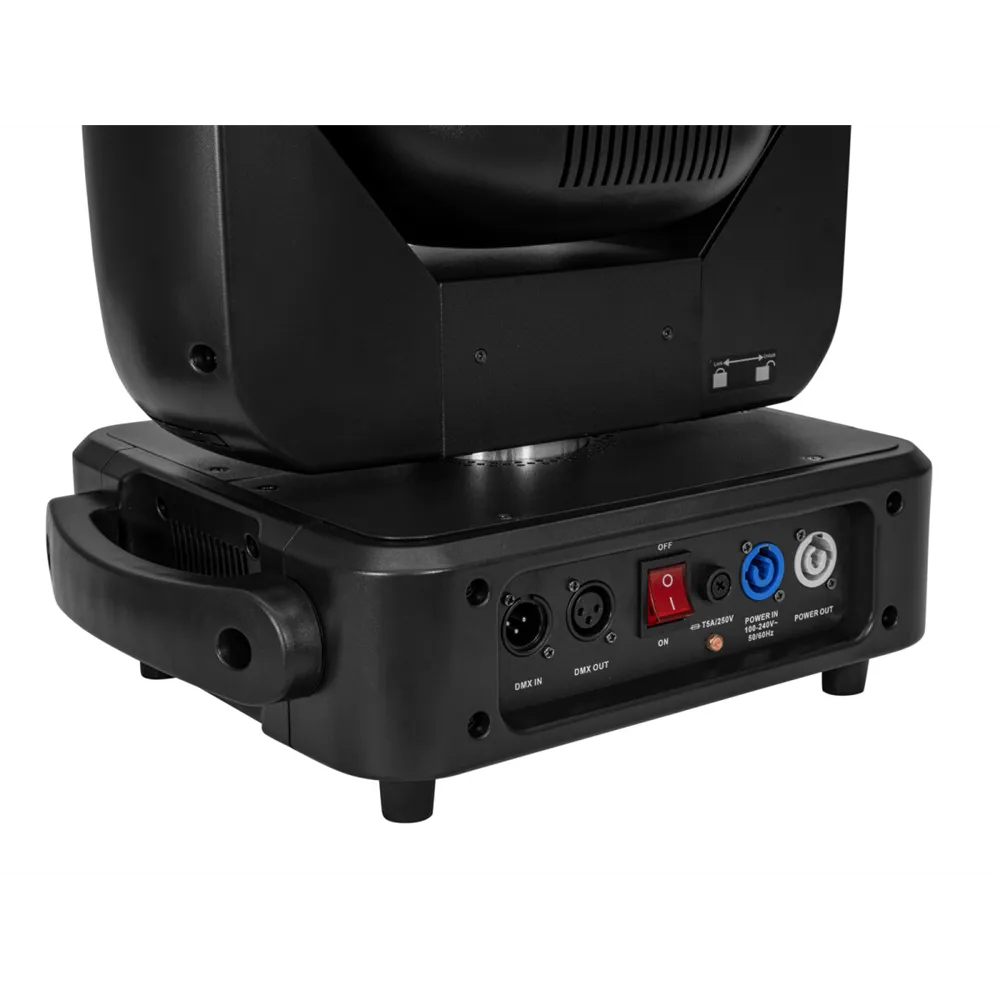

Power connection: Power input via P-Con (blue), built-in version power connection cable with protective contact plug
Cable construction: 3 x 1.0 mm² H05VV-F
Power output: P-Con (gray), built-in version
Fuse: 5 x 20 mm, T 5 A replaceable fuse
Type of lamp: LED lamp
Max. tilt movement: 220° precise positioning (16-bit resolution) auto-position correction (Feedback)
Max. pan movement: 540° precise positioning (16-bit resolution) auto-position correction (Feedback)
Flash rate: 0.3 - 19 Hz
Illuminance in Lux (lx): Wide cool white (CW) 1m: 71405 lx, 3m: 10342 lx, 6m: 2770 lx
Distance to wall: 500 mm
Housing color: Black
Mounting system: 2x Omega brackets
Display type: Multicolor touchscreen display
Controls: Power switch
Status LED: DMX, Fault
USB connection: Type A
Carrying handle: 2 pieces
Transport aid: 4 x rubber feet
Material: Metal
Dimensions: Width: 38 cm, Depth: 27 cm, Height: 64.5 cm
Weight:

EUROLITE LED TMH-S400 CMY Moving Head Beam/Spot/Wash

Experience the impressive versatility of the EUROLITE LED TMH-S400 CMY Moving Head, a powerful hybrid device that combines beam, spot, and wash effects in one unit. Equipped with a 400W COB LED (Chip-on-Board) in cool white, this moving head delivers outstanding light performance and excellent color mixing thanks to its CMY system. With a generous pan range of 540° and a tilt of 220°, it allows for precise positioning and stunning light shows.

The TMH-S400 features an extensive gobo wheel with static and rotating gobos, motorized zoom and focus, as well as a frost filter for smooth transitions. The 12 dichroic colors of the color wheel and the unlimited color variations through CMY mixing open up creative possibilities for any event. With DMX control, QuickDMX, and RDM functionality, this moving head is ideal for weddings, galas, concerts, and mobile applications.

The robust design, user-friendly operation, and pre-programmed effects make the EUROLITE LED TMH-S400 an indispensable tool for lighting technicians and event organizers.
