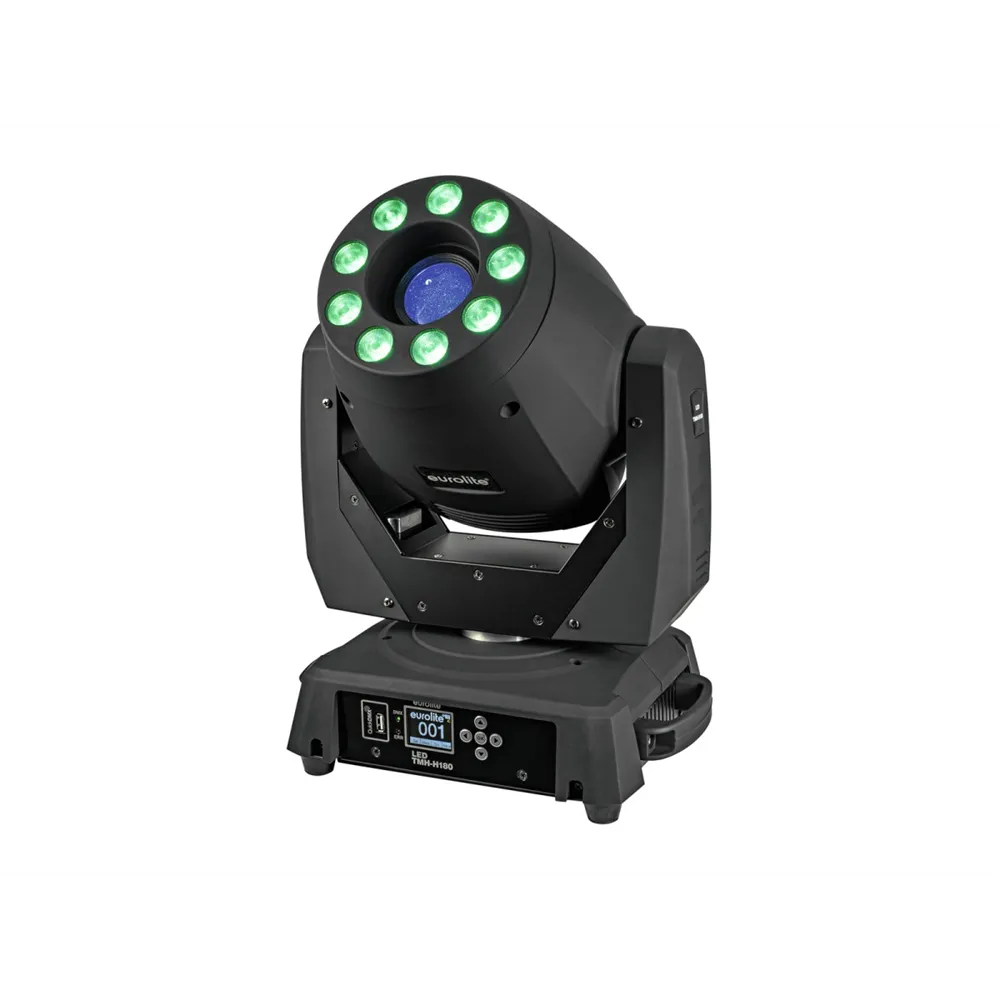

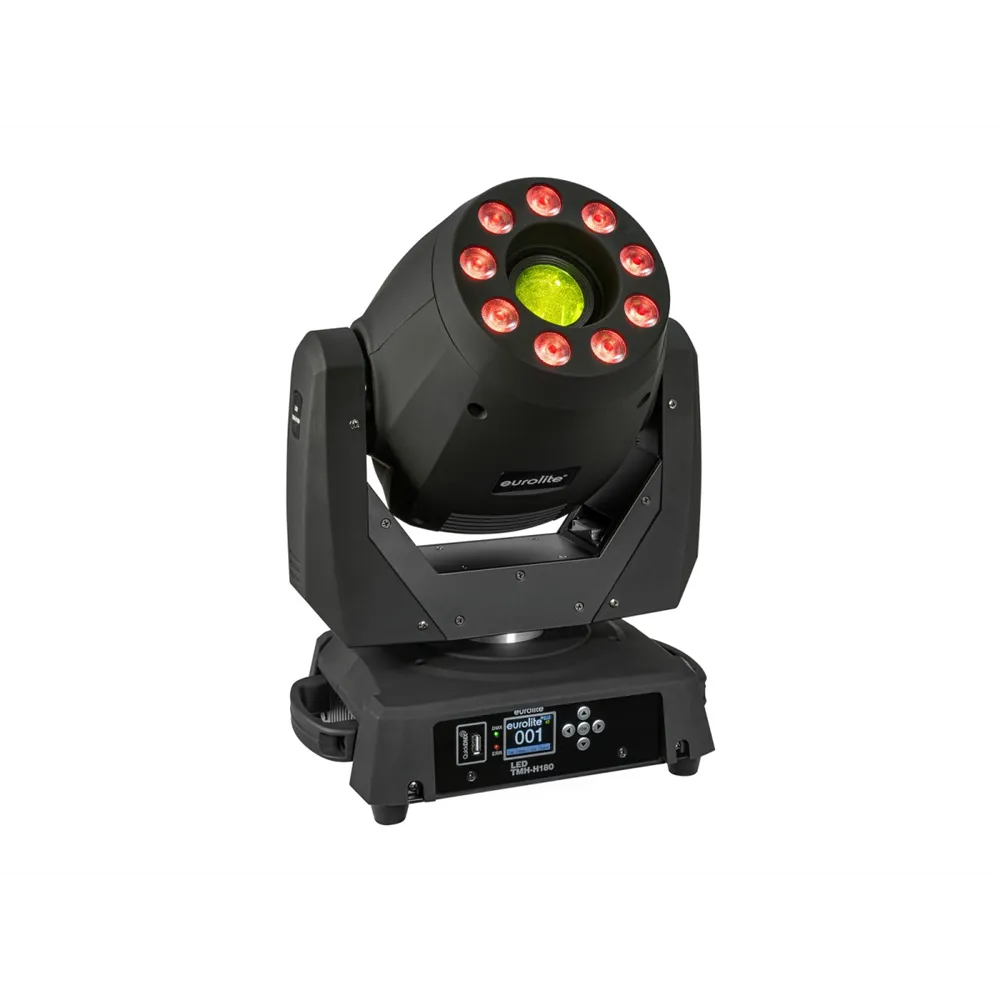

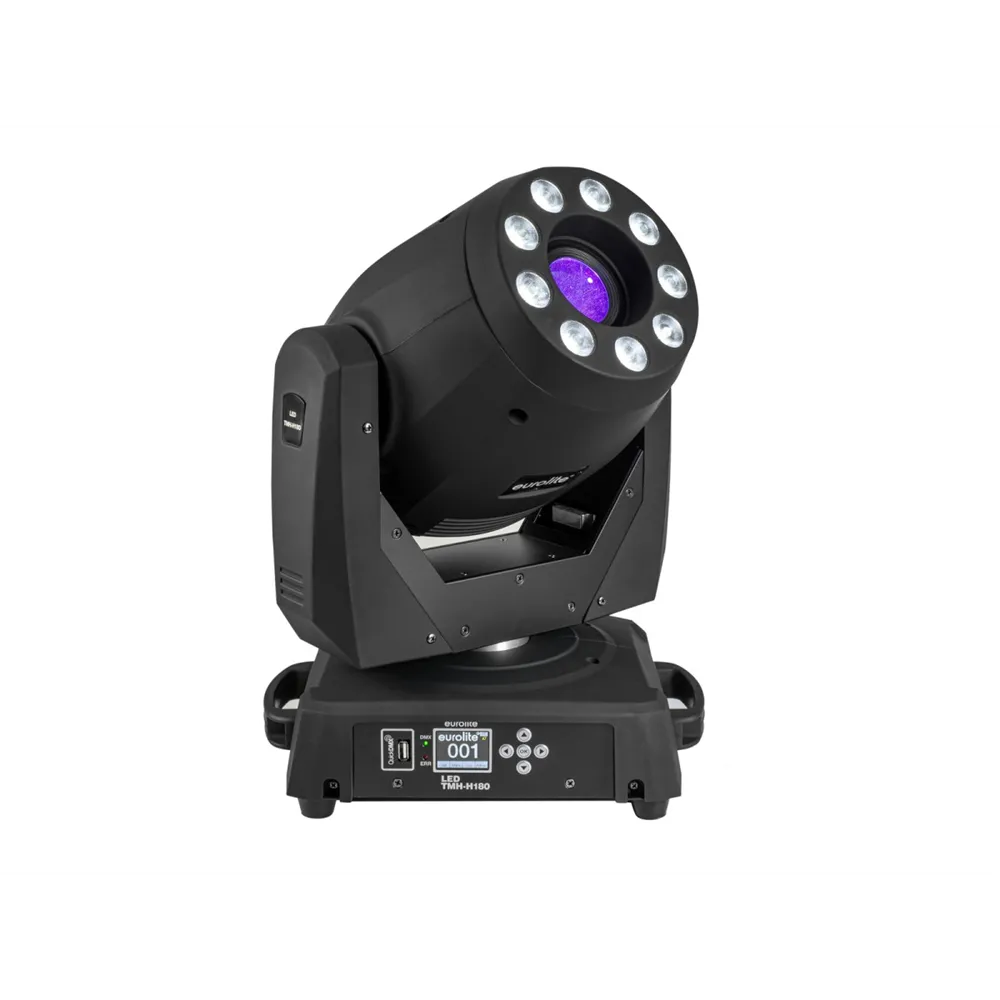

EUROLITE LED TMH-H180 Hybrid Moving Head Spot/Wash COB

EUROLITE LED TMH-H180 Hybrid Moving-Head Spot/Wash COB

EUROLITE LED TMH-H180 Hybrid Moving Head Spot/Wash COB

Brand:

Features

LED Moving Head Hybrid Spot/Wash with rotating gobos, color wheel, prism, and QuickDMX socket
Powerful spotlight and full-featured wash light in one device
1 high-performance 200 W COB (Chip-on-Board) cool white (CW) LED

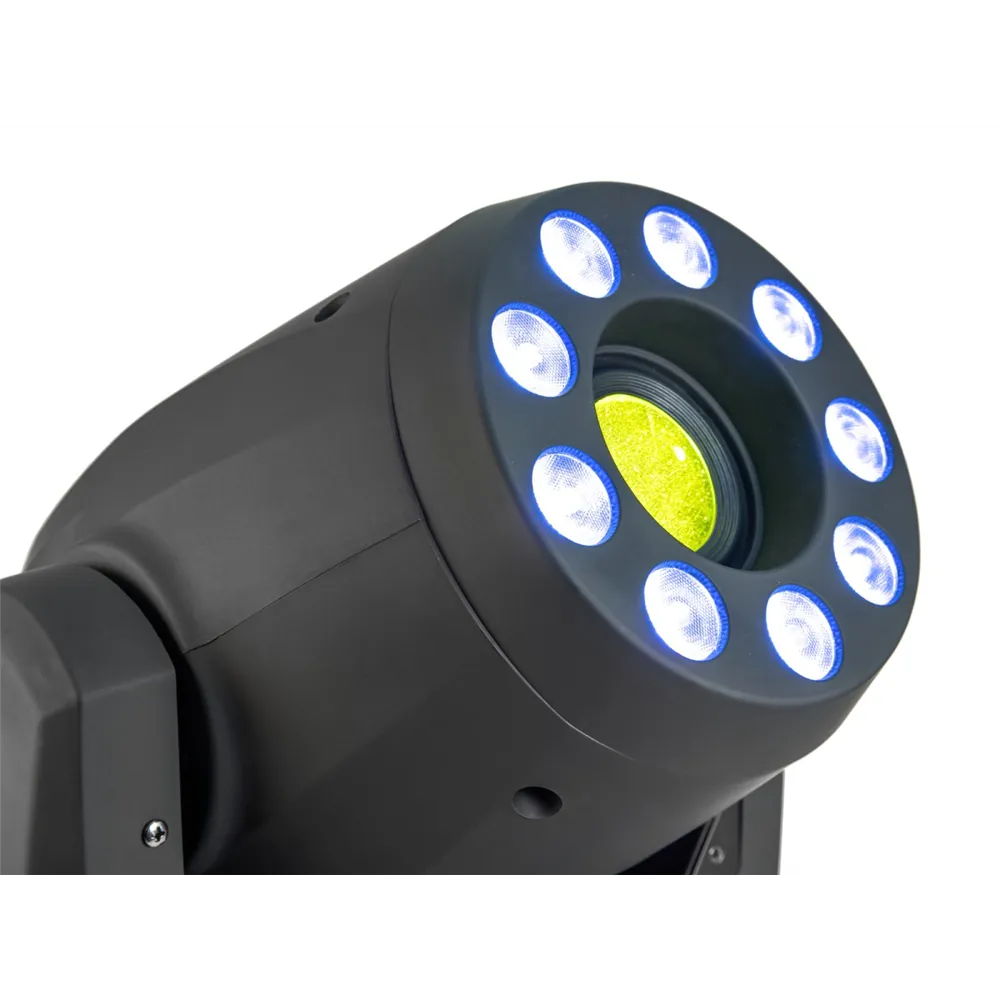

9 high-power 8 W 4in1 QCL RGBW LEDs (homogeneous color mixing)
Positioning within 540° PAN, 220° TILT
Auto-position correction (feedback)
Precise positioning (16-bit resolution)
3-way rotating prism; motorized focus; gobo wheel with rotating gobos
Color wheel with 8 dichroic colors and open; selectable half colors, rainbow effect with variable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open; slot-in gobo system for easy gobo changes
Shake effect
Integrated show programs
Device cooling via temperature-controlled fan
Pre-programmed with Light Captain; LED PC-Control 512
Flicker-free
Beam angle of 10°
Multicolor LCD display
Electronic dimmer
Controllable via stand-alone; DMX; music control via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional); Master/Slave function
Gobo effect; strobe effect

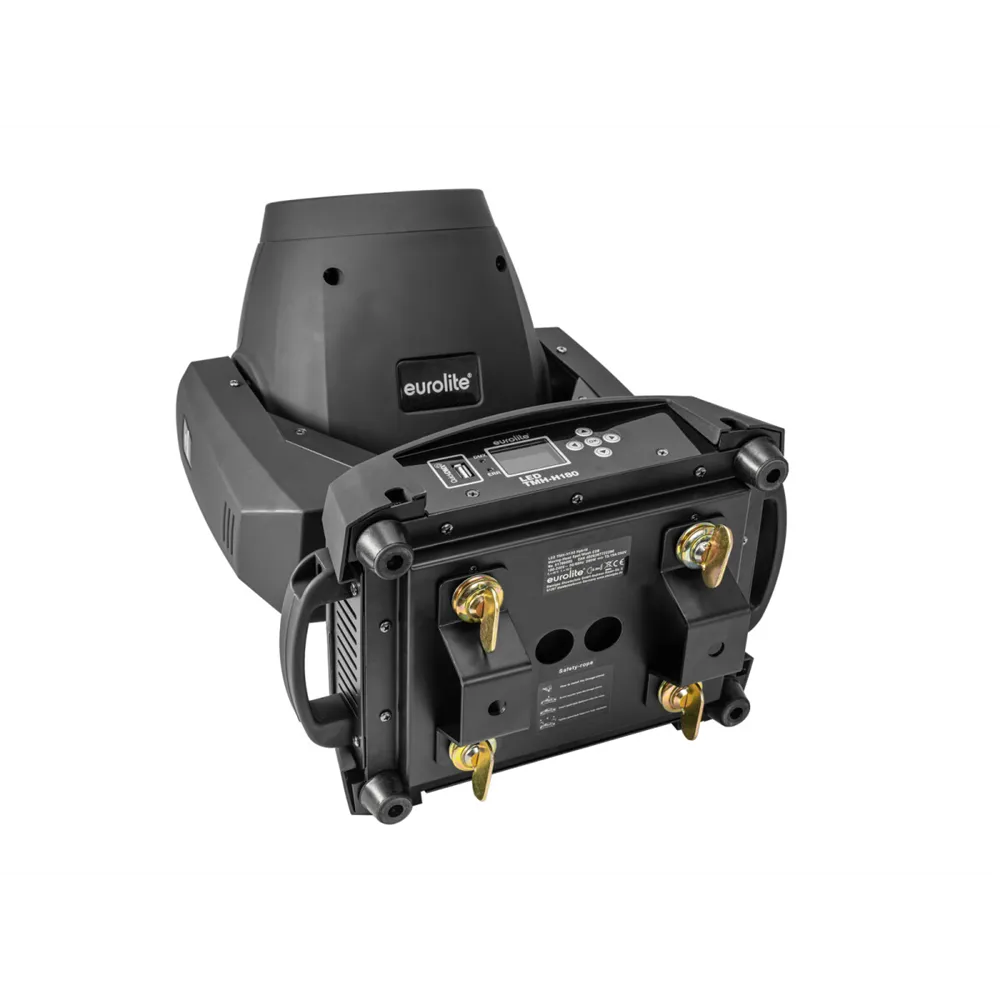

Includes Omega bracket
Power input and output for easy linking of up to 8 devices
Suitable for applications such as: clubs/dance schools; stage; rental companies
Usage options: standing; hanging
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 280 W
Protection class: IP20
Protection rating: Class I

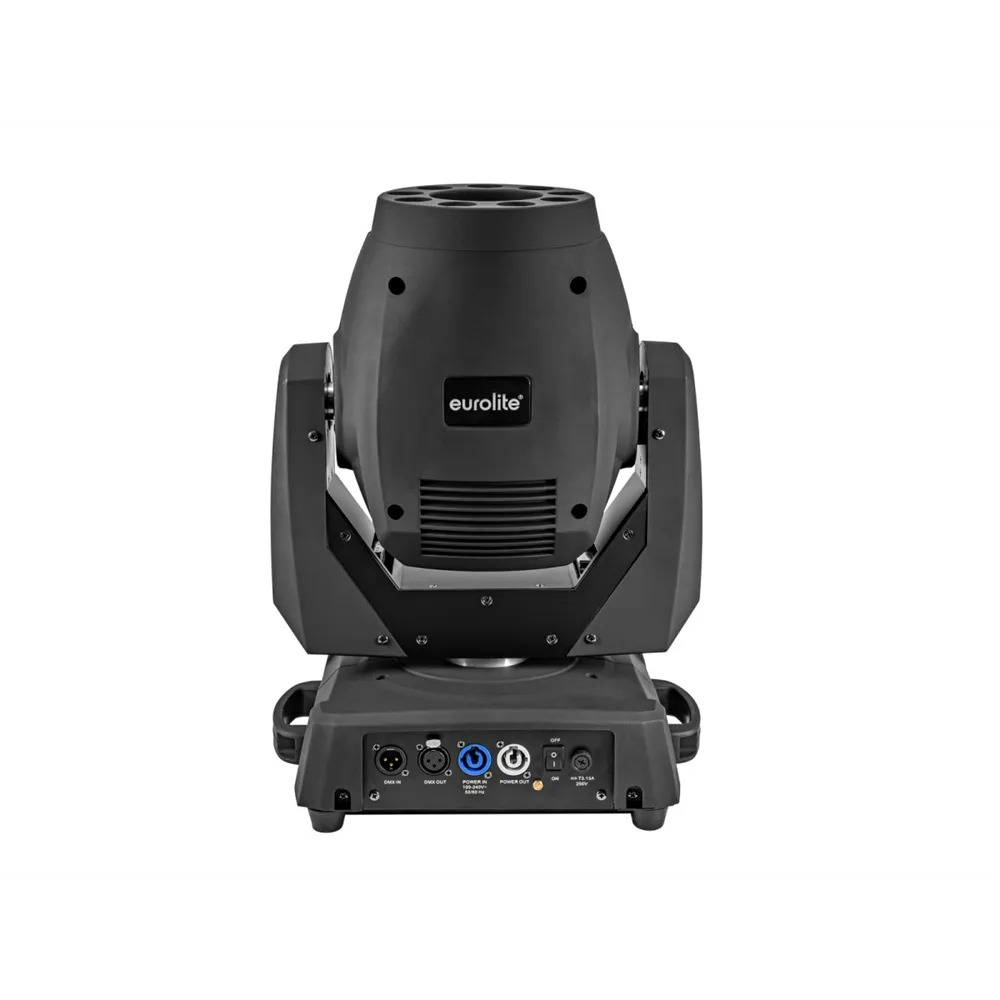

Power connection: Power input via P-Con (blue), built-in version power connection cable with protective contact plug
Power output: P-Con (gray), built-in version
Fuse: 5 x 20 mm, T 3.15 A replaceable fuse
Type of lamp: LED lamp
LED type: 1 x 200 W COB (Chip-on-Board) cool white (CW); 9 x 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)
Max. tilt movement: 220° precise positioning (16-bit resolution) auto-position correction (feedback)
Max. pan movement: 540° precise positioning (16-bit resolution) auto-position correction (feedback)
Flash rate: 1 - 20 Hz
Features: 3-way rotating prism; motorized focus; gobo wheel with rotating gobos
Color generation: Color wheel with 8 dichroic colors and open; selectable half colors, rainbow effect with variable speed in both directions
Gobos: Gobo wheel with rotating gobos, 7 gobos and open; outer diameter 24mm; image diameter 16mm; slot-in gobo system for easy gobo changes; shake effect
DMX channels: 21; 23
DMX input: 3-pin XLR (M) built-in version
DMX output: 3-pin XLR (F) built-in version
Cooling: temperature-controlled fan
Control: stand-alone; DMX; music control via microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional)

EUROLITE LED TMH-H180 Hybrid Moving Head Spot/Wash COB

Discover the EUROLITE LED TMH-H180, a powerful hybrid moving head that functions both as a spot and wash light. Featuring an impressive 200 W COB LED in cool white and nine 8 W RGBW LEDs, this device offers homogeneous color mixing and exceptional light intensity. The TMH-H180 allows for precise positioning with 540° PAN and 220° TILT, supported by auto-position correction and 16-bit resolution for accurate movements.

The unit is equipped with a rotating prism, motorized focus, and a gobo wheel with seven rotating gobos, enabling creative lighting designs. The color wheel offers eight dichroic colors as well as a rainbow effect with variable speed. The TMH-H180 is versatile and ideal for clubs, stages, and rental applications.

Thanks to its built-in show programs, flicker-free projection, and various control options (DMX, stand-alone, music control), the TMH-H180 is an essential tool for any light show. With a beam angle of 10° and a robust housing, this moving head is suitable for both stationary and flying applications.

Included in the package: 1 x Moving Light, 1 x User Manual, 1 x Power Cable, 2 x Omega Brackets.
