Features
- True Diversity UHF Wireless Systems
- Dynamic and condenser microphones with vibration-damped capsules
- Suitable for brass instruments, guitars, with lavalier and headset microphones
- Automatic channel scanning
- Easy one-touch infrared synchronization between transmitter and receiver
- Noise filter with pilot tone
- Selectable transmission power (2, 10, or 30 mW)
- Robust housing
- High-contrast OLED displays
- Radio frequency range: 584 - 608 MHz
- 96 channels (8 groups of 12 channels)
- Polar pattern: Cardioid
- Frequency response: 30 - 16,000 Hz
- Signal-to-noise ratio: > 100 dB
- RF output power: Variable (2mW, 10mW, 30mW)

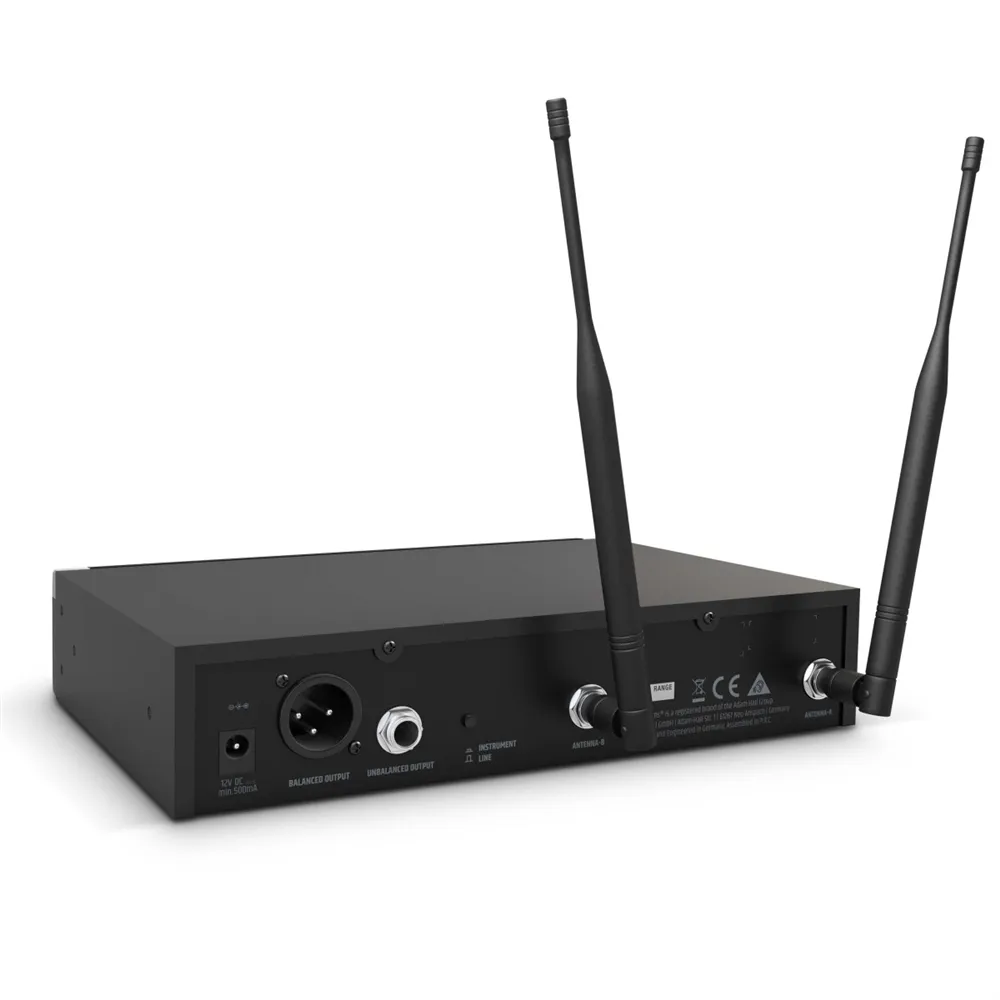

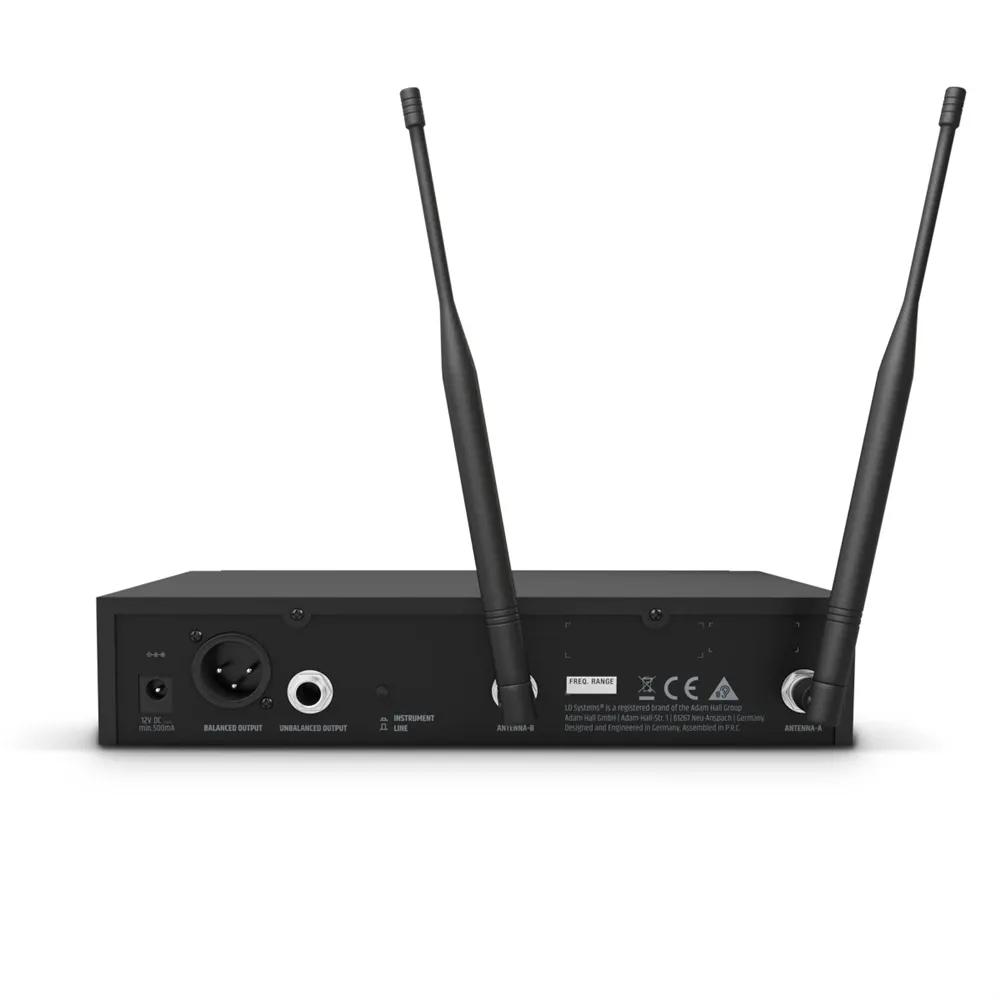

- Symmetrical audio output: XLR
- Asymmetrical audio output: 6.3 mm jack
- Operating time: > 10 hours (with alkaline batteries)
- Weight: 2.589 kg
- Includes batteries
- IR frequency synchronization
- Channel search function
- Pilot tone

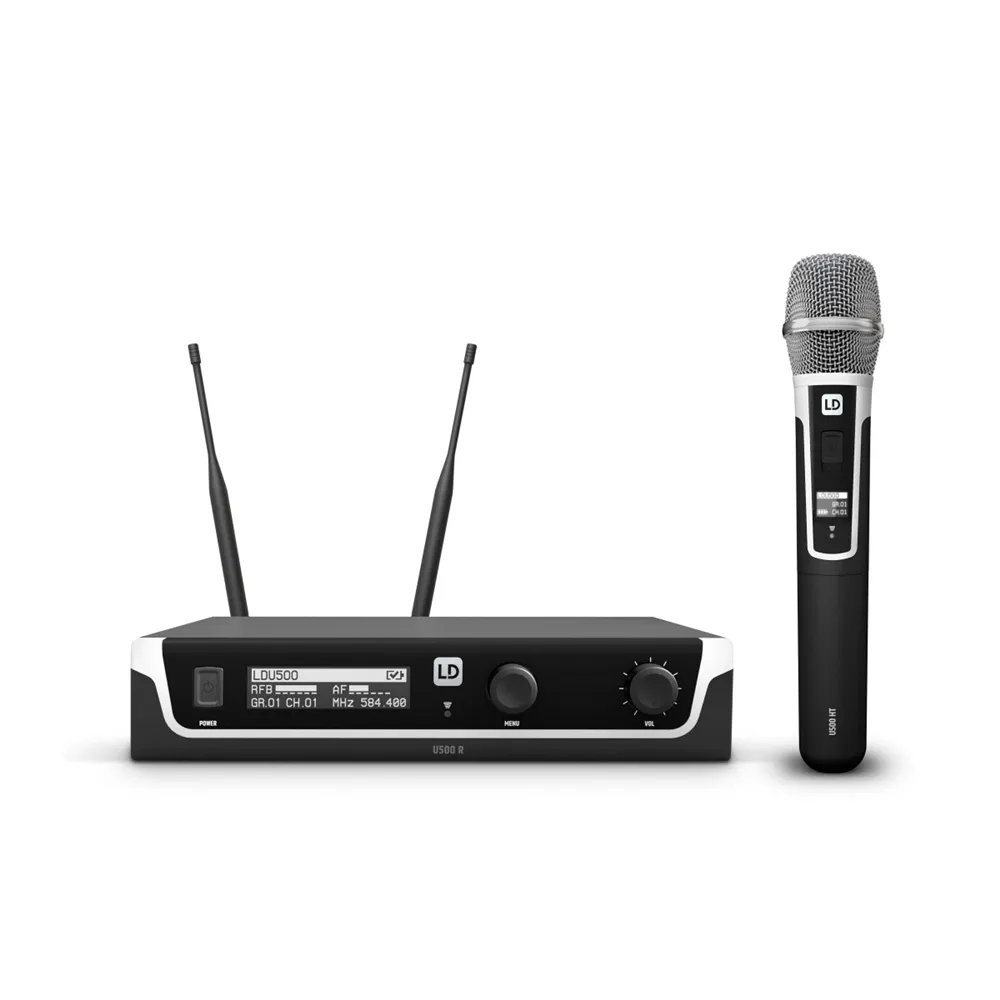

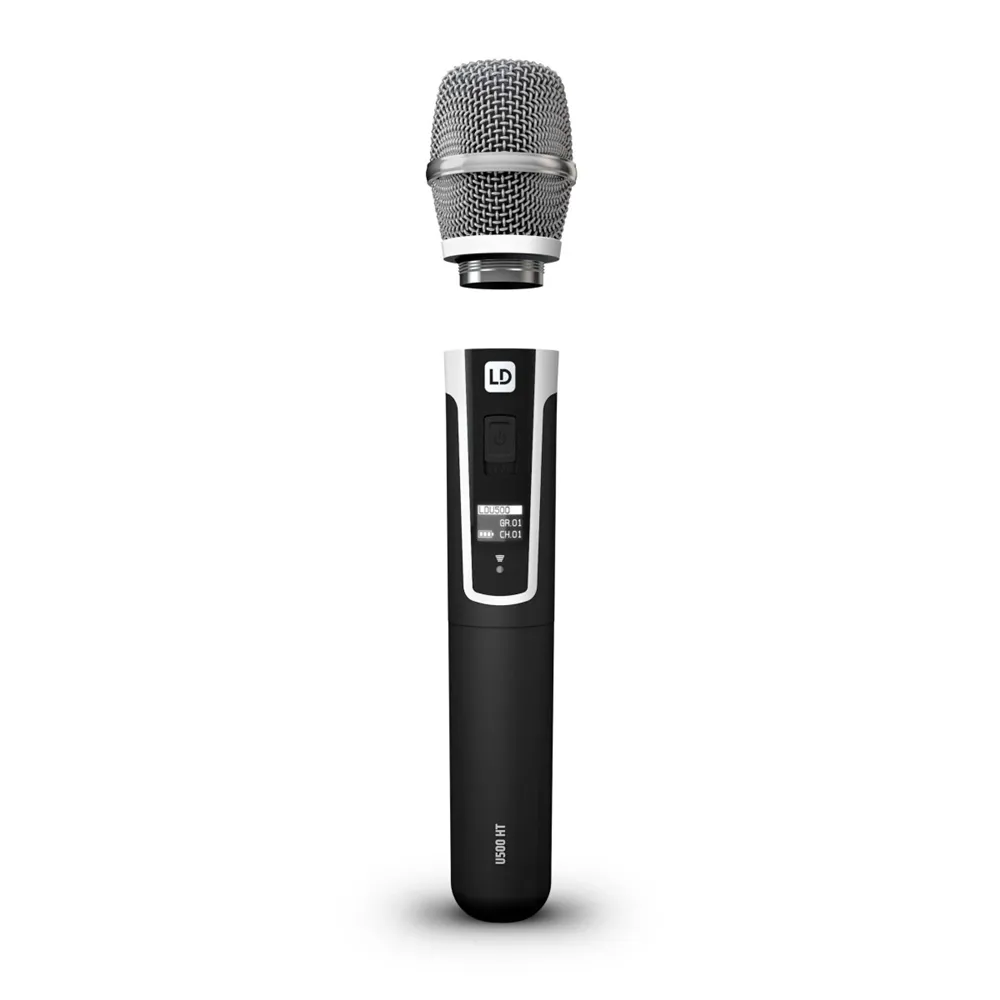

LD Systems U505 HHC - Wireless Microphone System with Handheld Condenser Microphone
The LD Systems U505 HHC is a state-of-the-art wireless microphone system designed specifically for professional applications. Featuring a True Diversity UHF wireless system, it delivers outstanding sound quality and an impressive range of over 100 meters in open field conditions. The dynamic and condenser-based microphones are equipped with vibration-dampened capsules that ensure clear and distortion-free transmission.

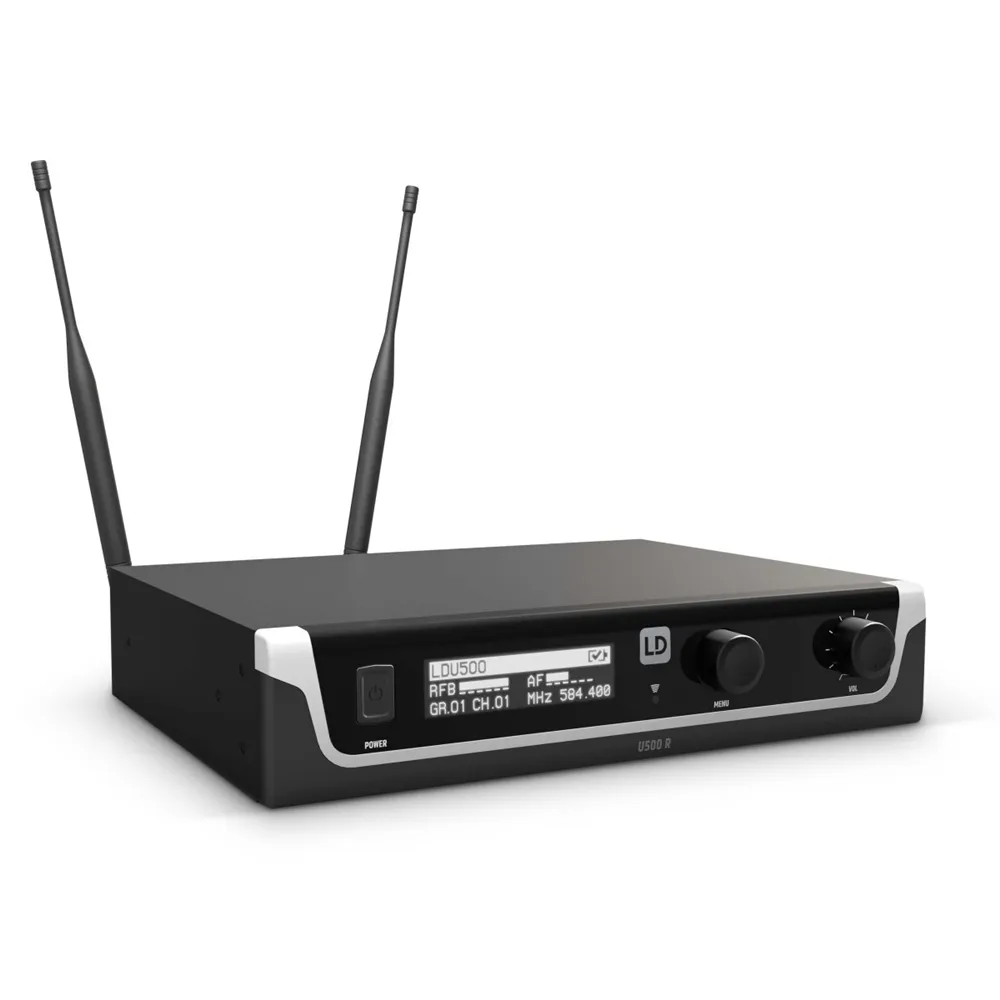

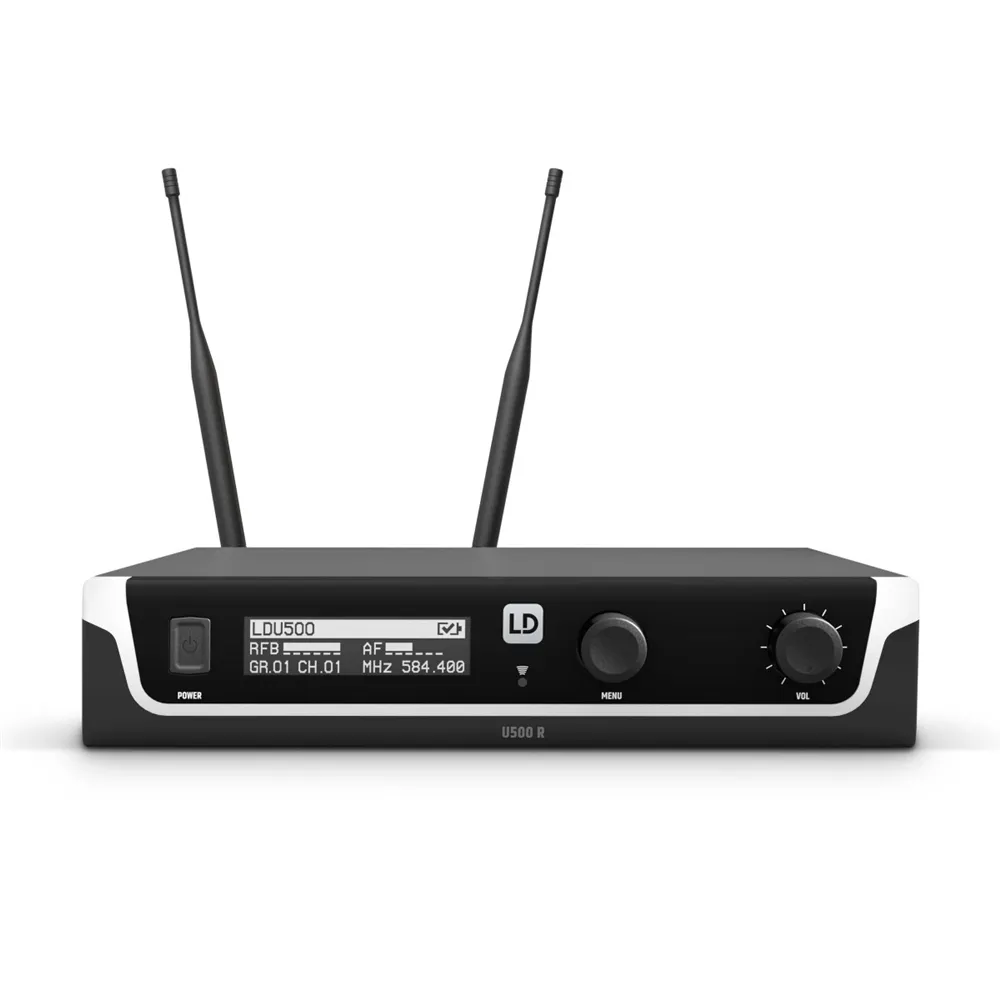

The easy one-touch infrared synchronization between transmitter and receiver allows for quick setup, while the automatic channel scan finds the best available frequency. With selectable transmission power of 2, 10, or 30 mW, you can tailor the output to your needs. The high-contrast OLED displays provide a clear overview of group, channel, radio frequency, signal strength, and battery status.

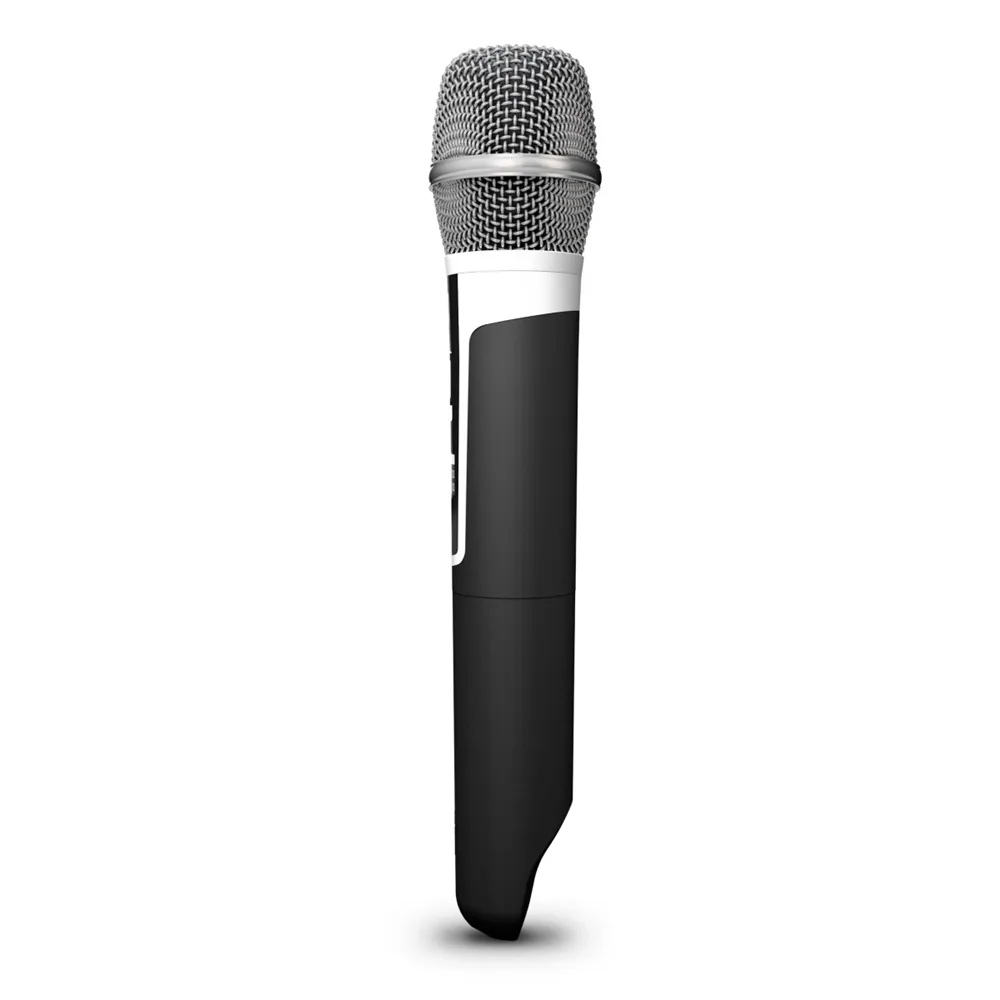

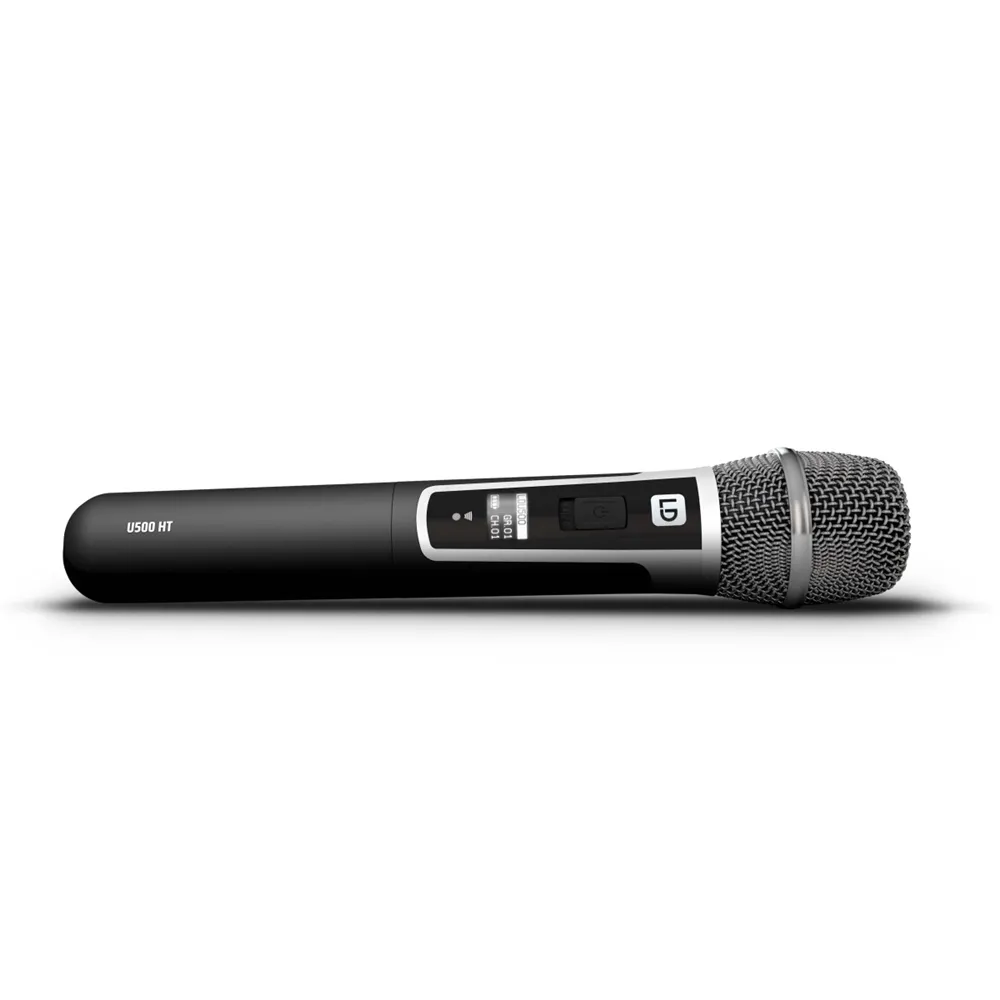

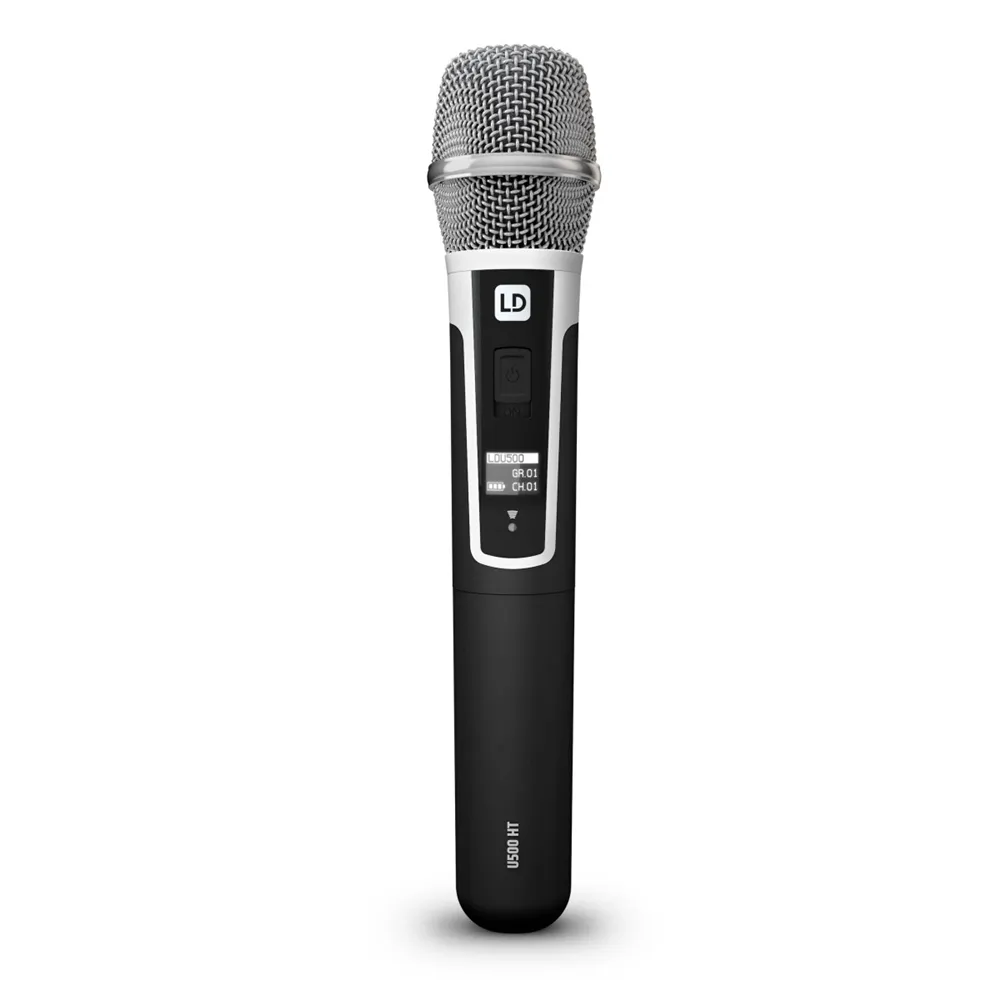

The U500® series is suitable not only for vocals but also for brass instruments and guitars. Thanks to the flexible handheld transmitters with interchangeable microphone capsules, you can customize the system to your preferences. With a battery life of over 10 hours and a robust housing, the U505 HHC is the ideal choice for any live performance.
