Cameo DVC CUE - USB to DMX Interface with Up to 2048 DMX Channels and Illuminated Control Panel
Features
- Programmable 1024-channel DMX interface with illuminated control panel
- 2x DMX512 universes in live mode (computer/tablet) and standalone mode
- Expandable from two to four DMX512 universes (2048 DMX channels)
- Intuitive illuminated keyboard with 10 buttons for direct scene recall
- 99 scenes across 5 zones
- USB & Ethernet for programming/control
- 16 dry contact ports via HE20 connector

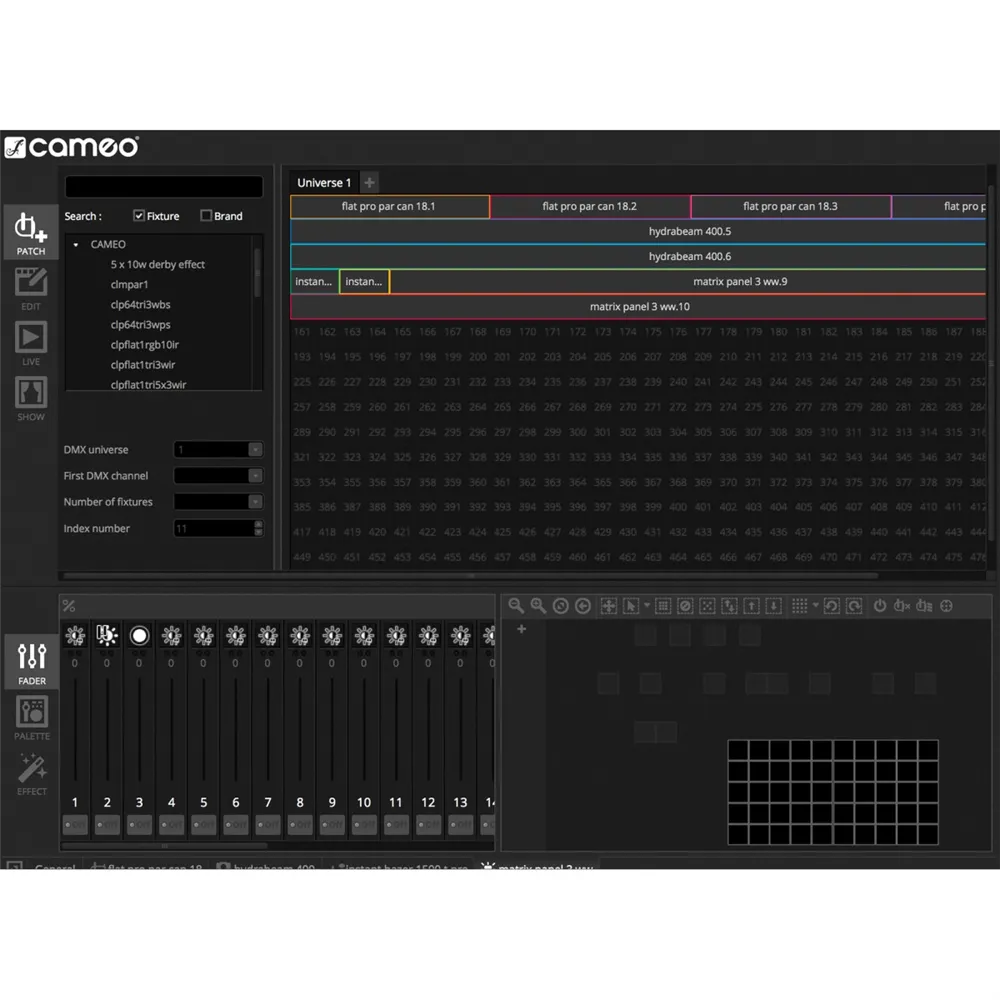

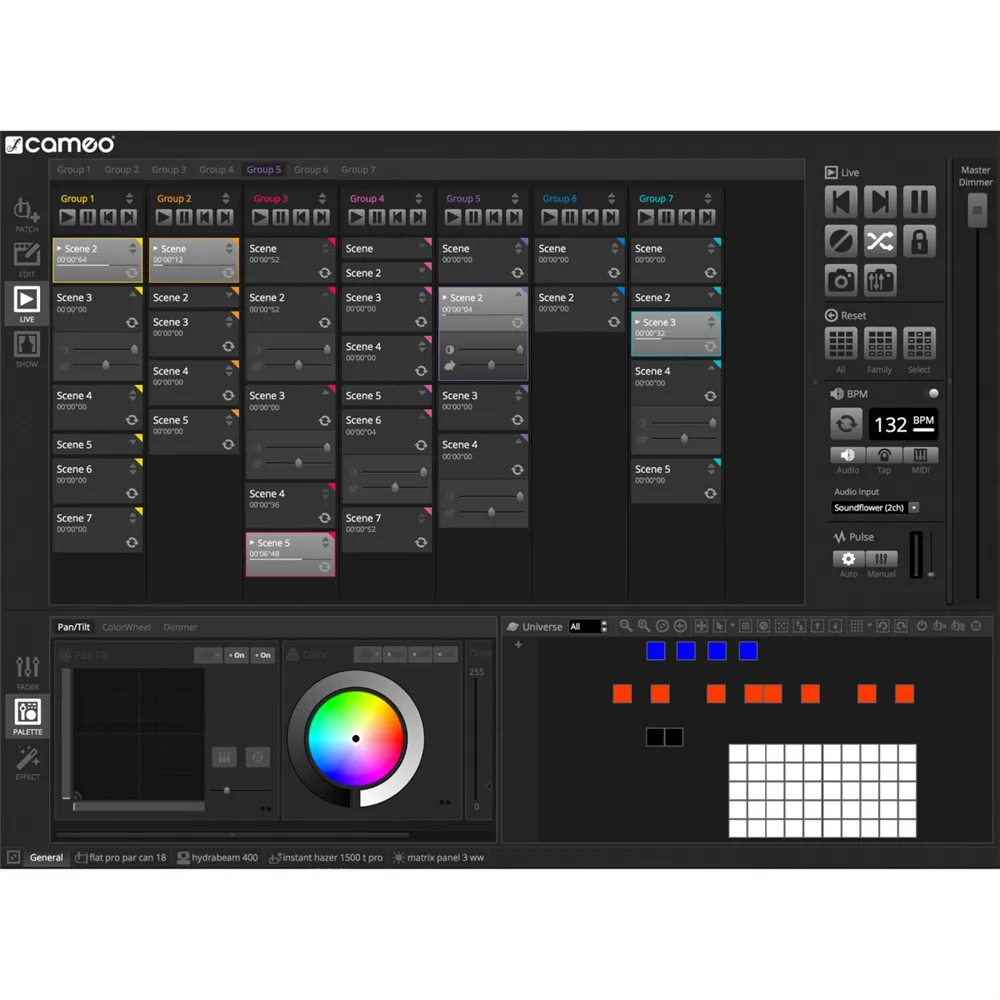

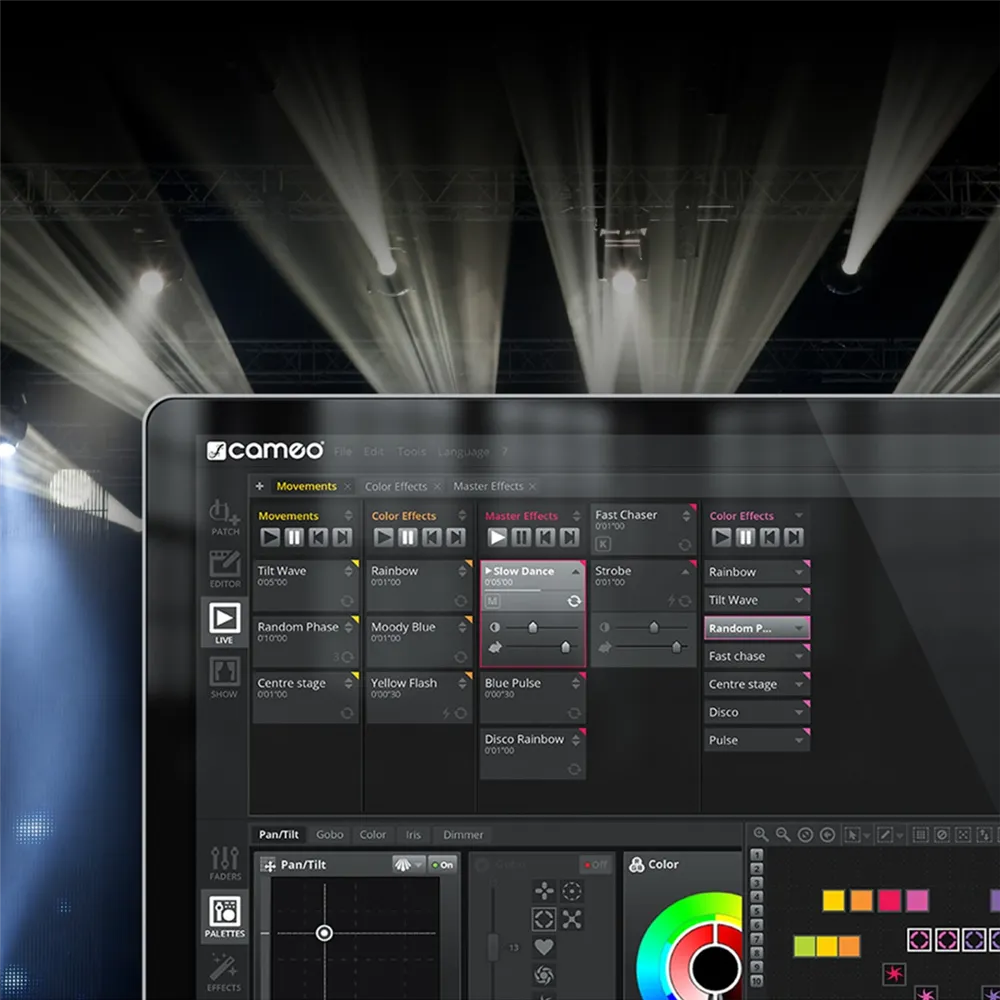

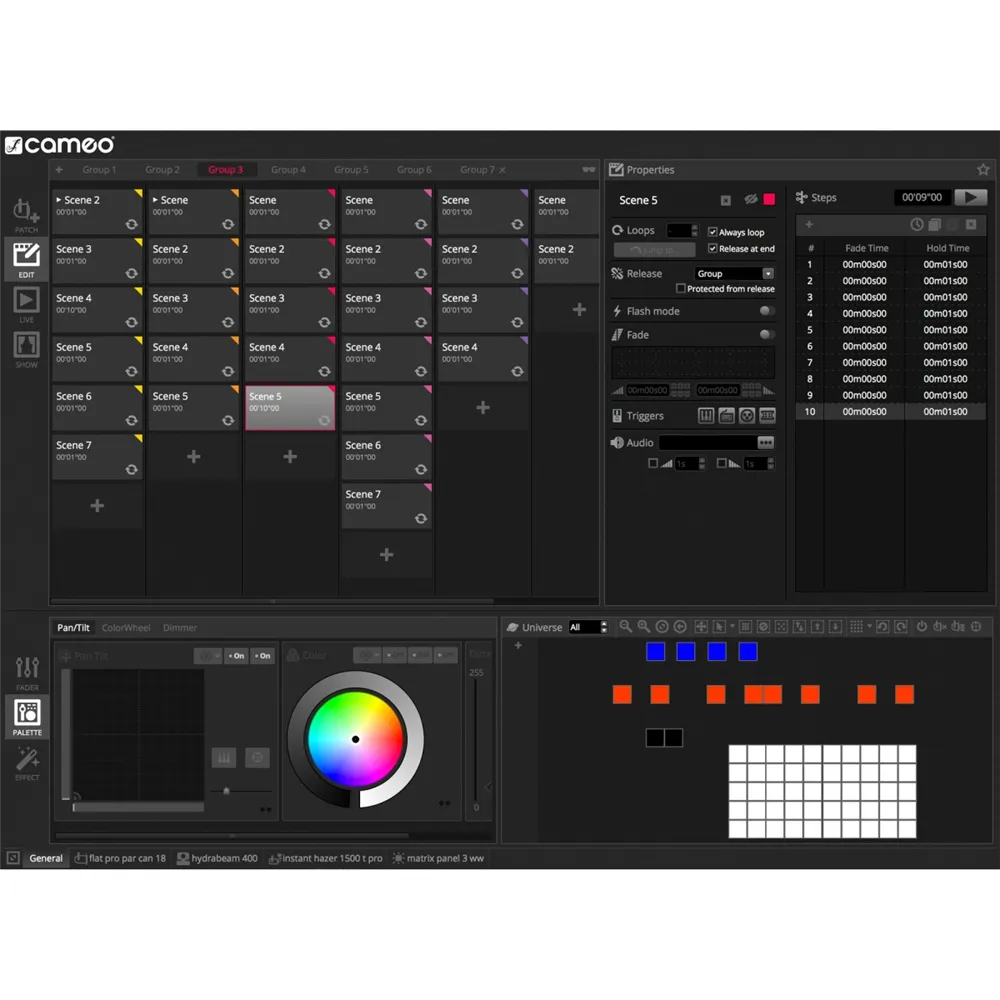

- User-friendly, intuitive Cameo DMX software "by Daslight" for Windows and Mac OS X available for free download
- Metal bracket for wall or under-desk mounting
- Advanced triggering options (TCA)
- Smart Upgrade Technology (SUT)
- USB-C port for power supply and connection to computer

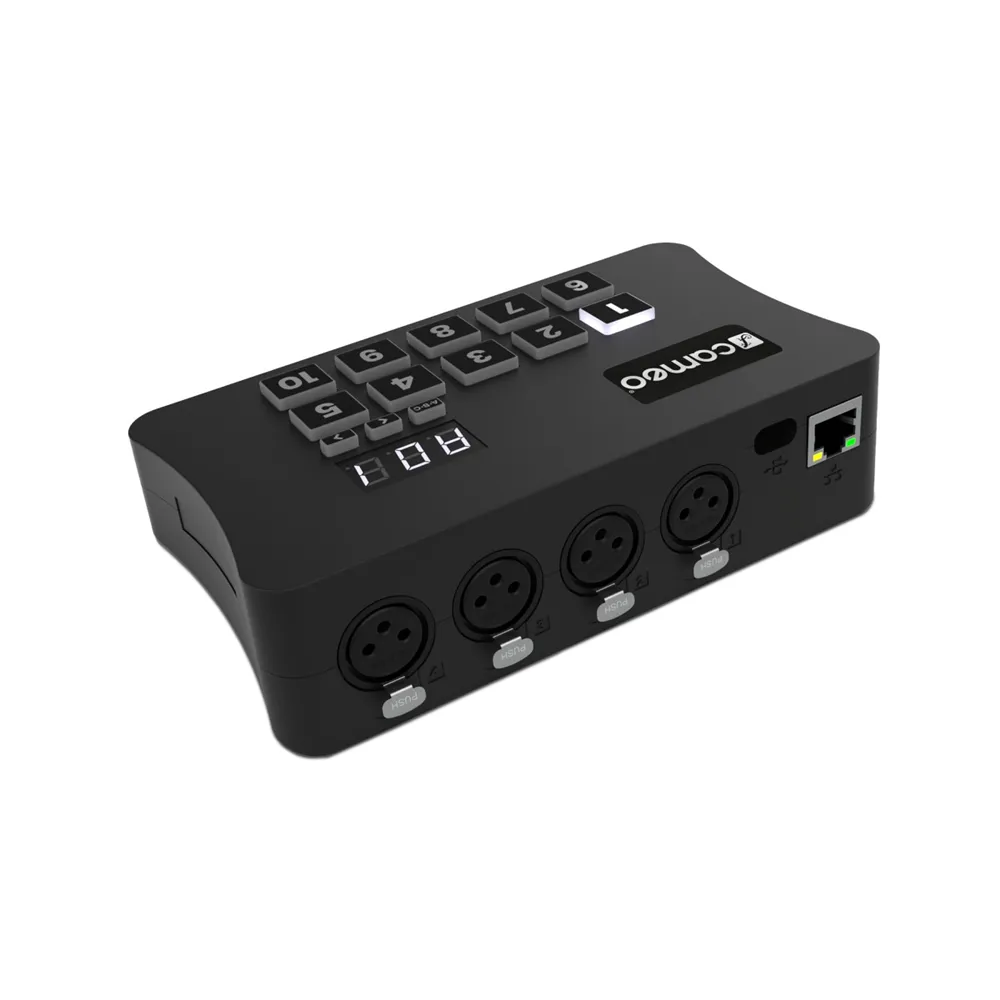

- Four 3-pin DMX outputs
- Ethernet port for external control
- Storage on microSD card (SDHC, max. 32 GB)
- Color: gray
- Power supply: 5 - 5.5 V DC 0.6 A
- IP protection class: IP20
- Dimensions: 160 mm (width) x 90 mm (height) x 45 mm (depth)
- Weight: 0.3 kg
Cameo DVC CUE - USB to DMX Interface with Up to 2048 DMX Channels and Illuminated Control Panel
Discover the Cameo DVC CUE, the ultimate USB-DMX interface that simplifies control over your DMX-compatible lighting devices. With the powerful Cameo software supported by Daslight, you can operate in both live and standalone modes. The interface provides two DMX512 universes in live operation, which can be expanded to up to four universes, allowing for a total of 2048 DMX channels.

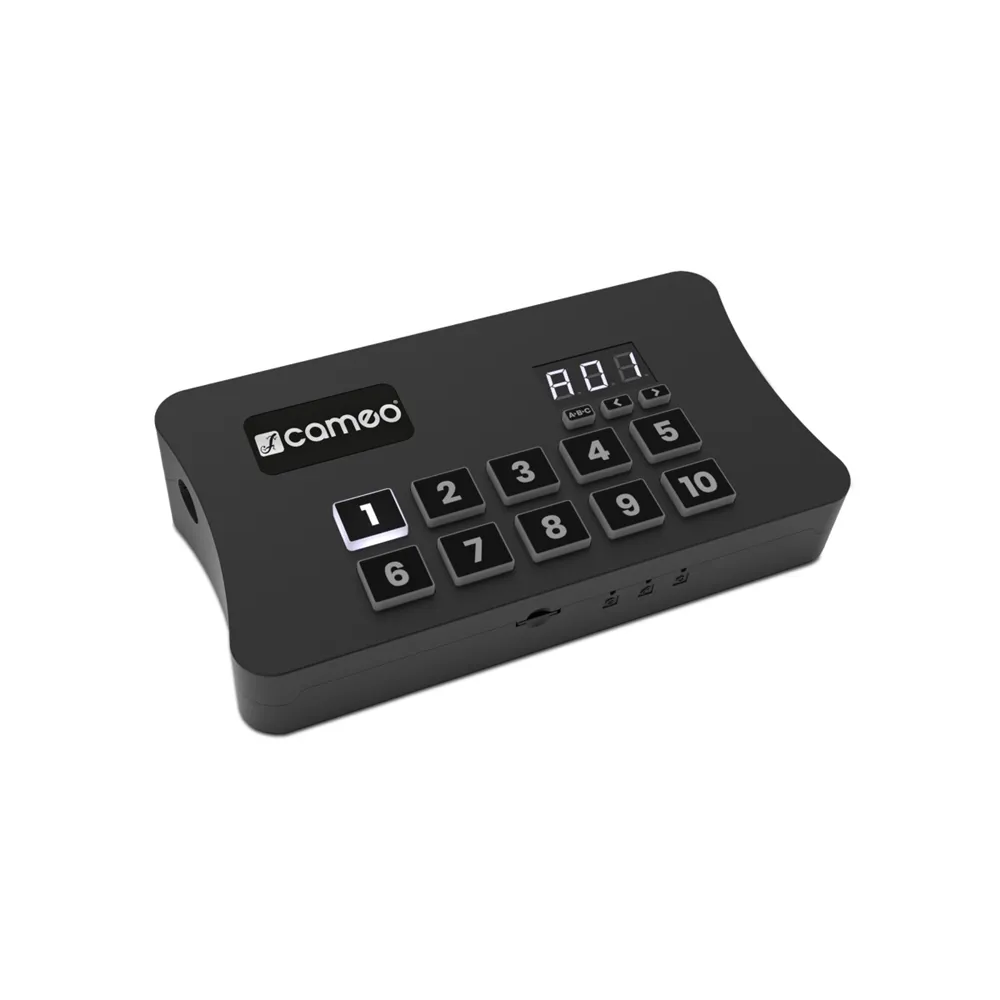

The intuitive illuminated keypad with ten buttons enables direct access to up to 99 scenes distributed across five zones. For standalone operation, you can store pre-programmed scenes on a microSD card and conveniently recall them using the buttons on the interface. The ABC button and arrow keys facilitate easy navigation through your scenes.
The Cameo DVC CUE is equipped with a USB-C port for power and connection to your computer, as well as an Ethernet port for external control. With a robust metal bracket for mounting and enhanced triggering options, this interface is the perfect solution for professional lighting control.
